Balanced Moments and Problem Solving

This section delves into the concept of balanced moments and provides a step-by-step approach to solving related problems. Understanding balanced moments is crucial for analyzing equilibrium in mechanical systems.

An object is considered balanced when the anticlockwise moment equals the clockwise moment around a pivot. This principle is used to find missing forces or distances in physics problems.

Highlight: The key to solving balanced moment problems is remembering that the total anticlockwise moment must equal the clockwise moment.

When solving problems involving balanced moments, follow these steps:

1. Identify either the clockwise or anticlockwise moment using the moment equation.
2. Write an equation equating the clockwise moment to the anticlockwise moment.
3. Rearrange and solve the equation to find the unknown variable.

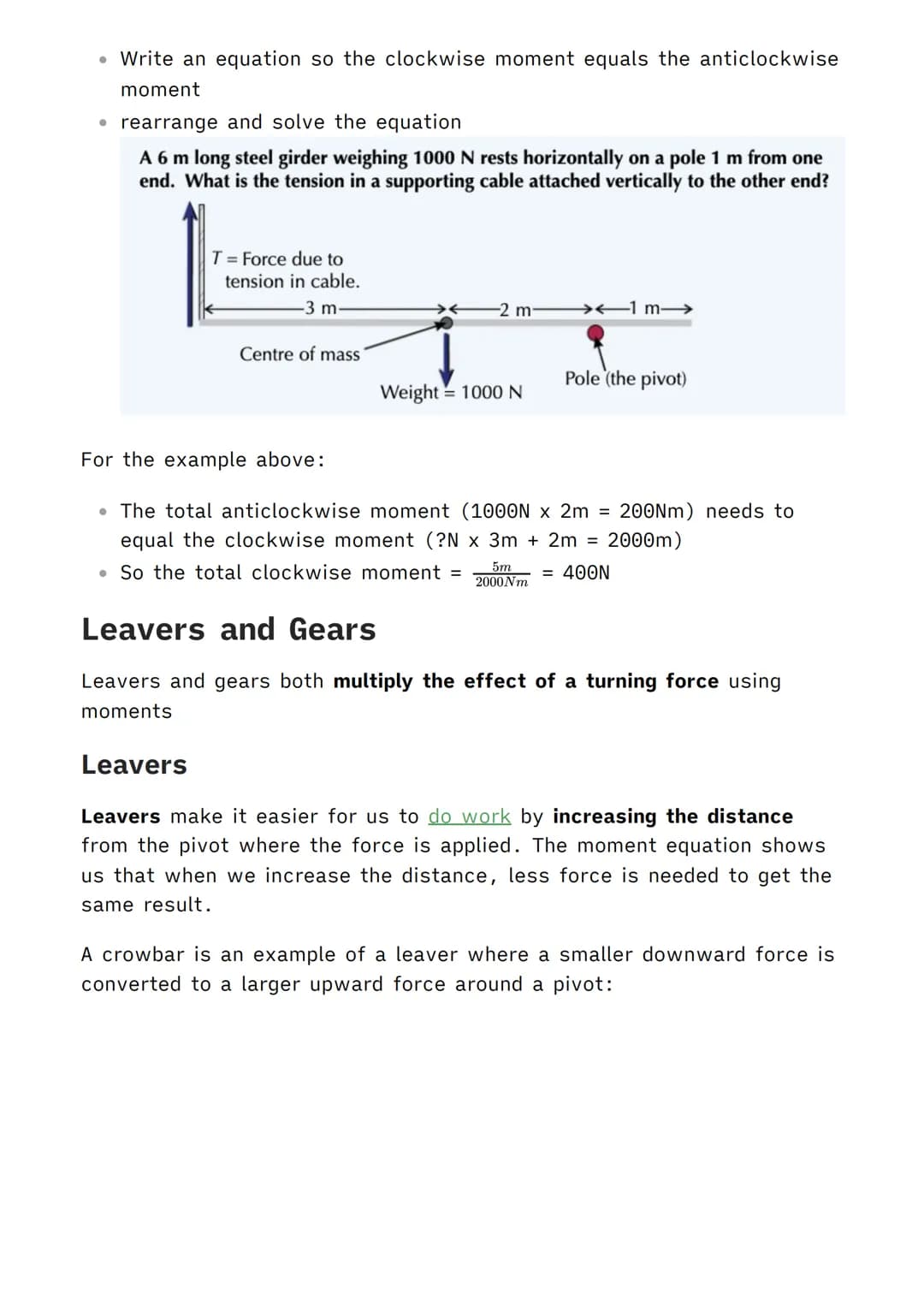

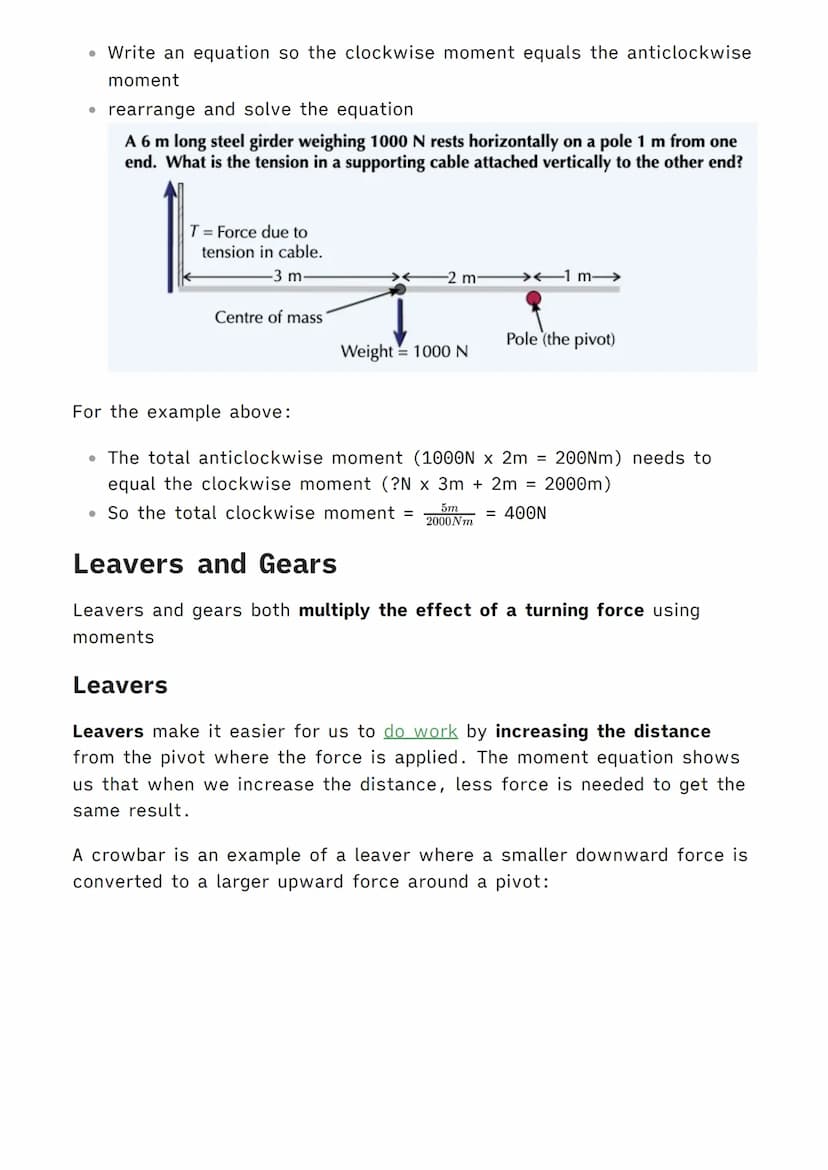

Example: A 6 m long steel girder weighing 1000 N rests horizontally on a pole 1 m from one end. To find the tension in a supporting cable attached vertically to the other end, we calculate the anticlockwise moment $1000N x 2m = 2000Nm$ and equate it to the clockwise moment $?N x 5m = 2000Nm$. Solving this gives us a tension of 400N.

This problem-solving approach is essential for calculating moments and balanced forces in various real-world scenarios.

Levers and Their Applications

This section explores the concept of levers and their practical applications in physics. Levers are simple machines that utilize moments to multiply force effects, making them essential in many everyday tools and mechanisms.

Levers make it easier for us to do work by increasing the distance from the pivot where the force is applied. The moment equation $M = Fd$ demonstrates that when we increase the distance, less force is needed to achieve the same result.

Definition: A lever is a simple machine consisting of a rigid object used with a pivot to multiply the mechanical force applied to an object.

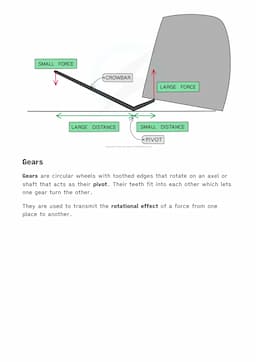

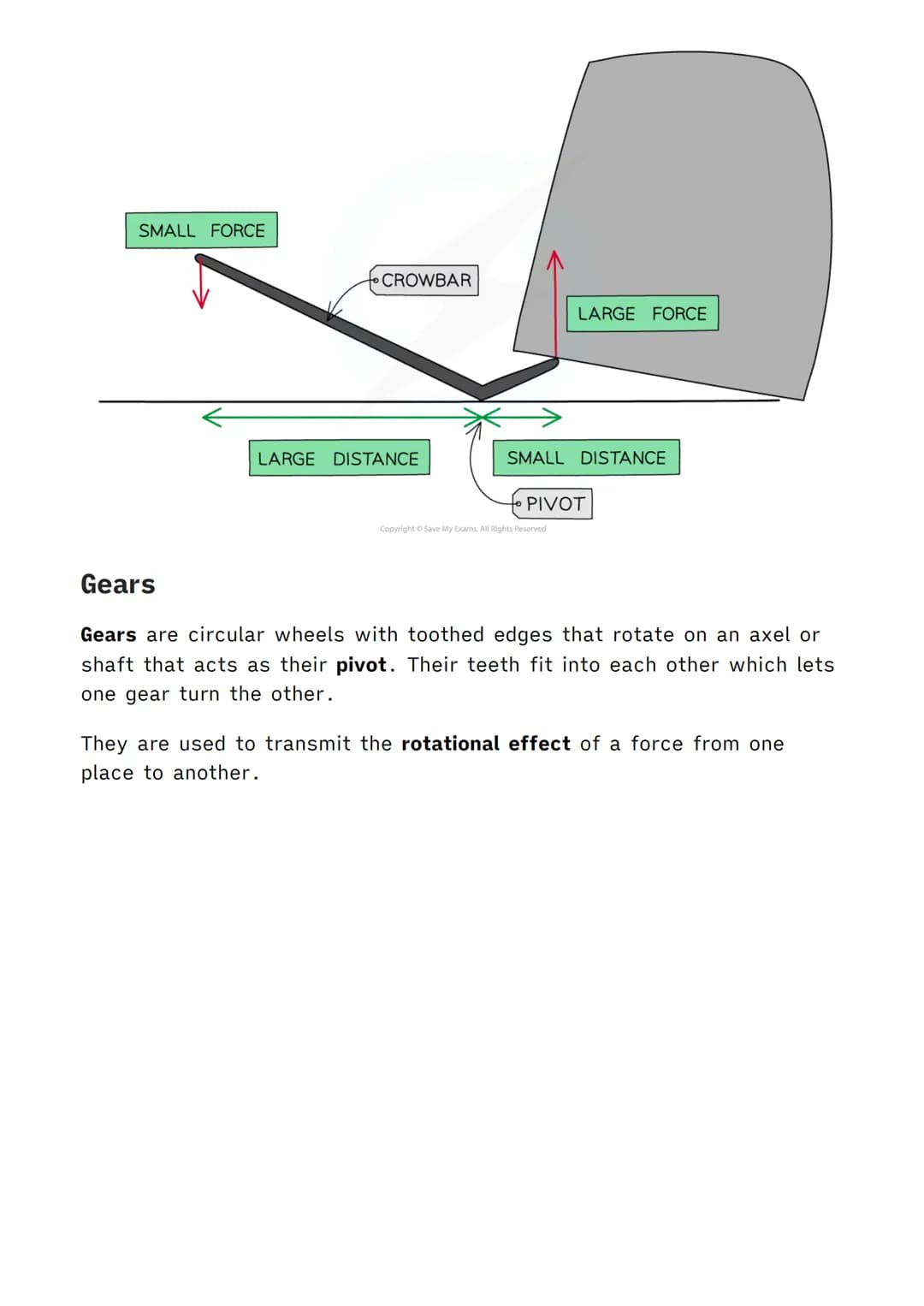

Example: A crowbar is a classic example of a lever. It converts a smaller downward force applied over a large distance into a larger upward force over a small distance around a pivot point.

Understanding how levers work in physics is crucial for designing and using various tools and machines efficiently. The principle of levers is widely applied in construction, mechanics, and even in the human body (e.g., bones and muscles acting as levers).

Highlight: The effectiveness of a lever depends on the relative distances of the applied force and the load from the pivot point.

By mastering the concept of levers, students can better understand the principles behind many mechanical devices and improve their problem-solving skills in physics.

Gears and Their Functionality

This final section introduces gears and explains their role in mechanical systems. Gears are crucial components in many machines, utilizing the principles of moments to transmit and modify rotational forces.

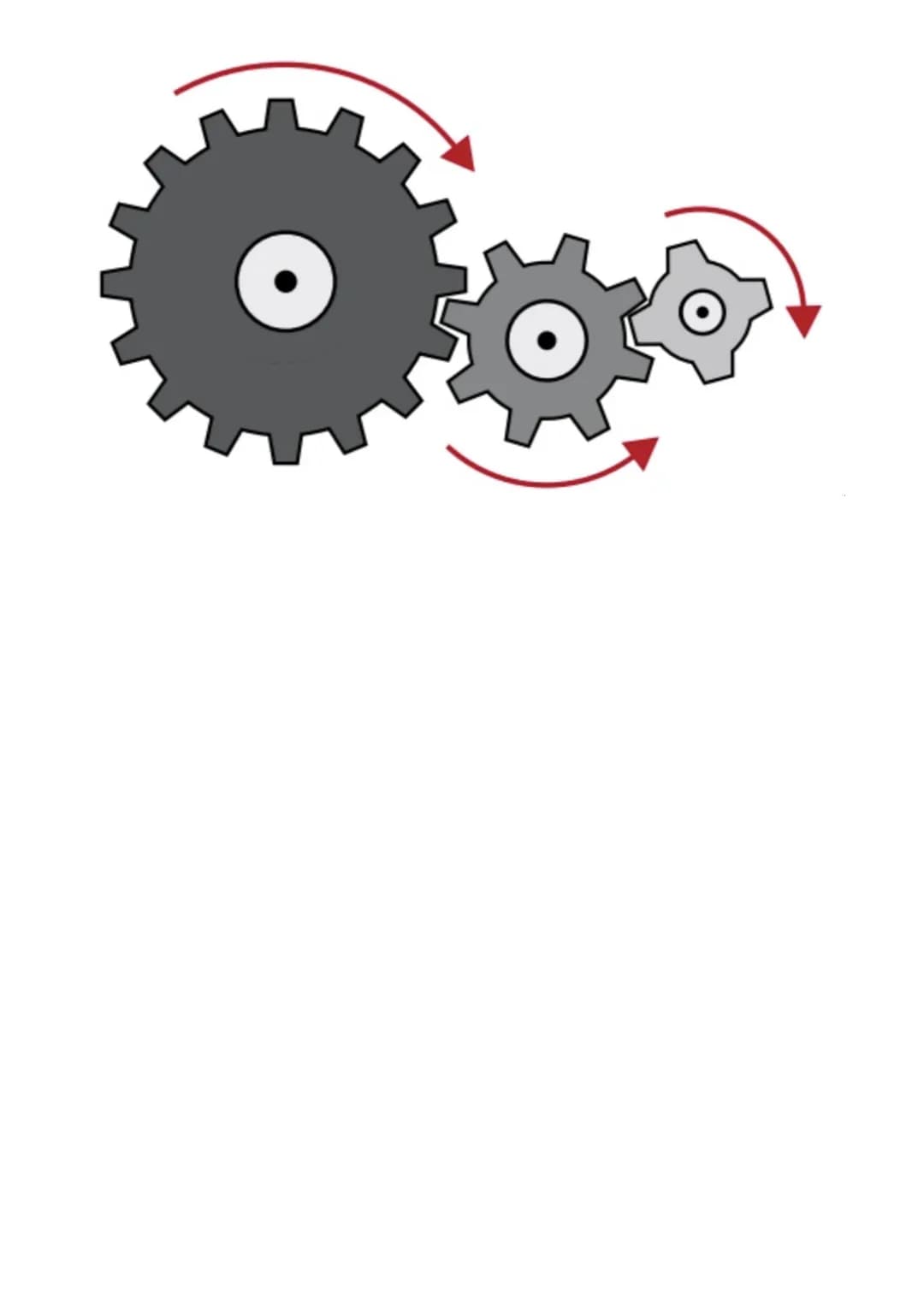

Gears are circular wheels with toothed edges that rotate on an axle or shaft, which acts as their pivot. The teeth of one gear fit into the teeth of another, allowing the rotational motion to be transmitted from one gear to another.

Definition: Gears are mechanical components used to transmit rotational motion and force from one part of a machine to another.

The primary function of gears is to transmit the rotational effect of a force from one place to another. This makes them essential in various machines and devices where rotational motion needs to be transferred or modified.

Vocabulary: Axle - A rod or spindle that passes through the center of a wheel or gear, allowing it to rotate.

Understanding how gears work in physics is crucial for comprehending the operation of many complex machines, from simple bicycles to sophisticated industrial equipment. Gears can be used to change the speed, direction, or torque of a rotational force, making them versatile components in mechanical design.

Highlight: The interaction between gears of different sizes allows for the modification of rotational speed and force, a principle widely used in engineering and machinery.

By grasping the concepts of gears and their applications, students can better appreciate the intricate workings of various mechanical systems they encounter in everyday life.

Understanding Gears

This section covers the mechanics and applications of gear systems in force transmission.

Definition: Gears are toothed wheels that rotate on an axle or shaft, transmitting rotational force between components.

Vocabulary: An axel or shaft serves as the pivot point for gear rotation.

Highlight: Gears effectively transfer rotational motion and force between different locations in mechanical systems.

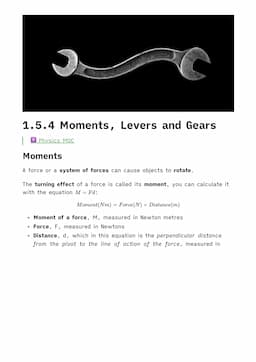

Moments and Their Calculation

This section introduces the concept of moments in physics and explains how to calculate them. Moments are crucial in understanding the rotational effects of forces on objects.

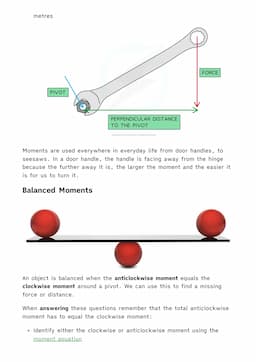

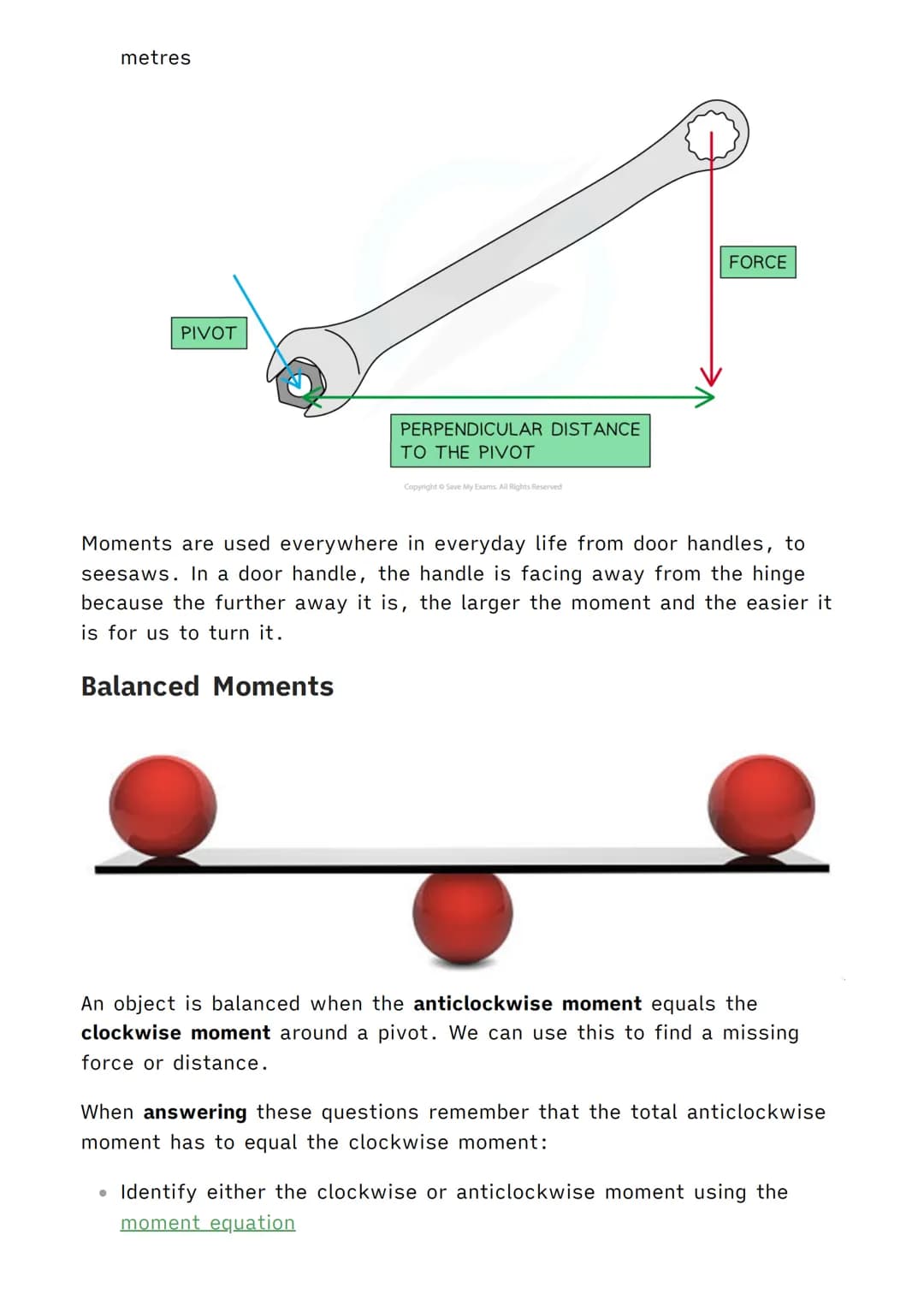

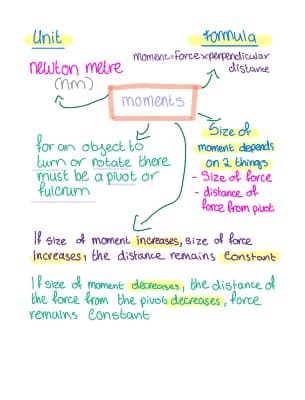

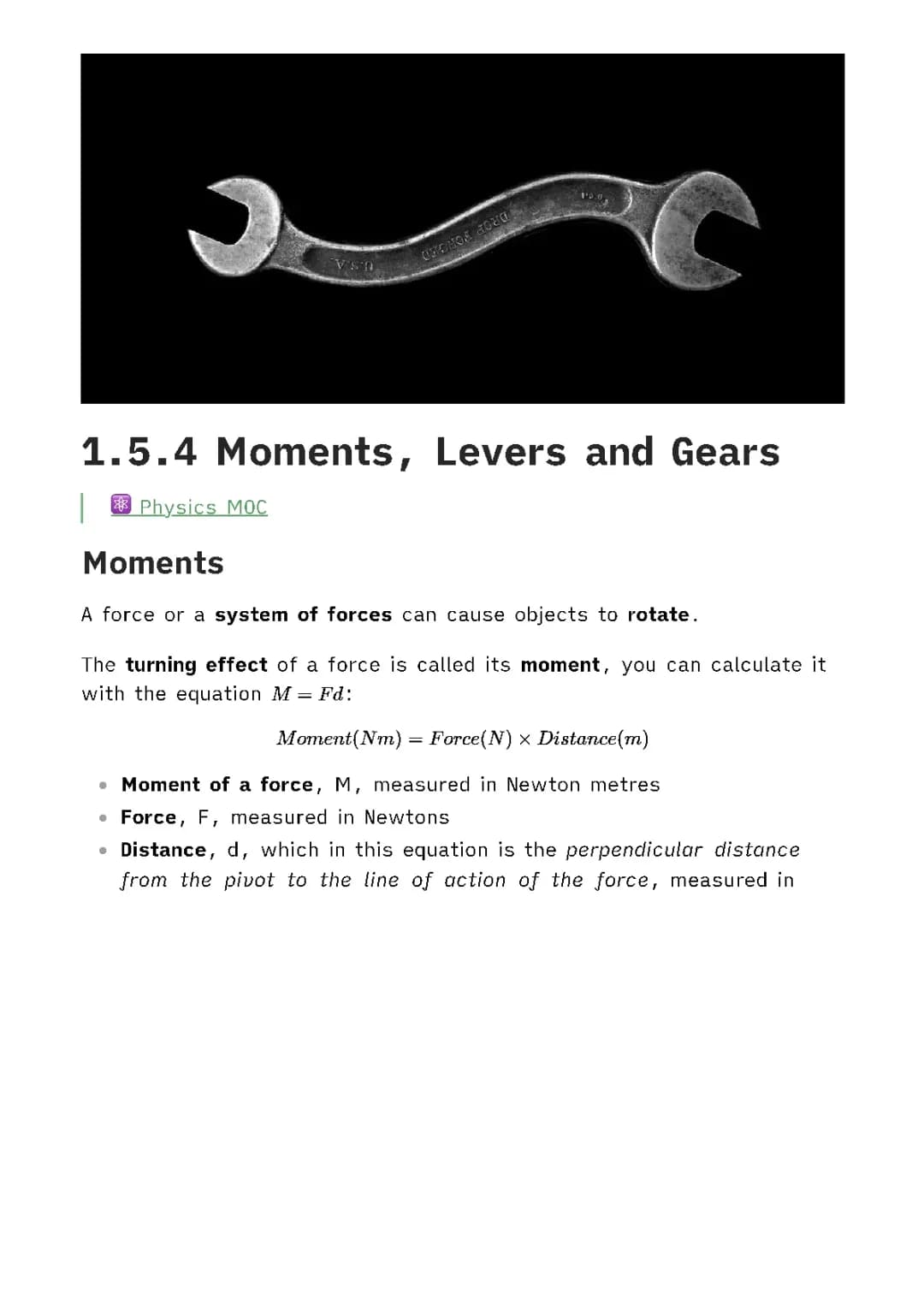

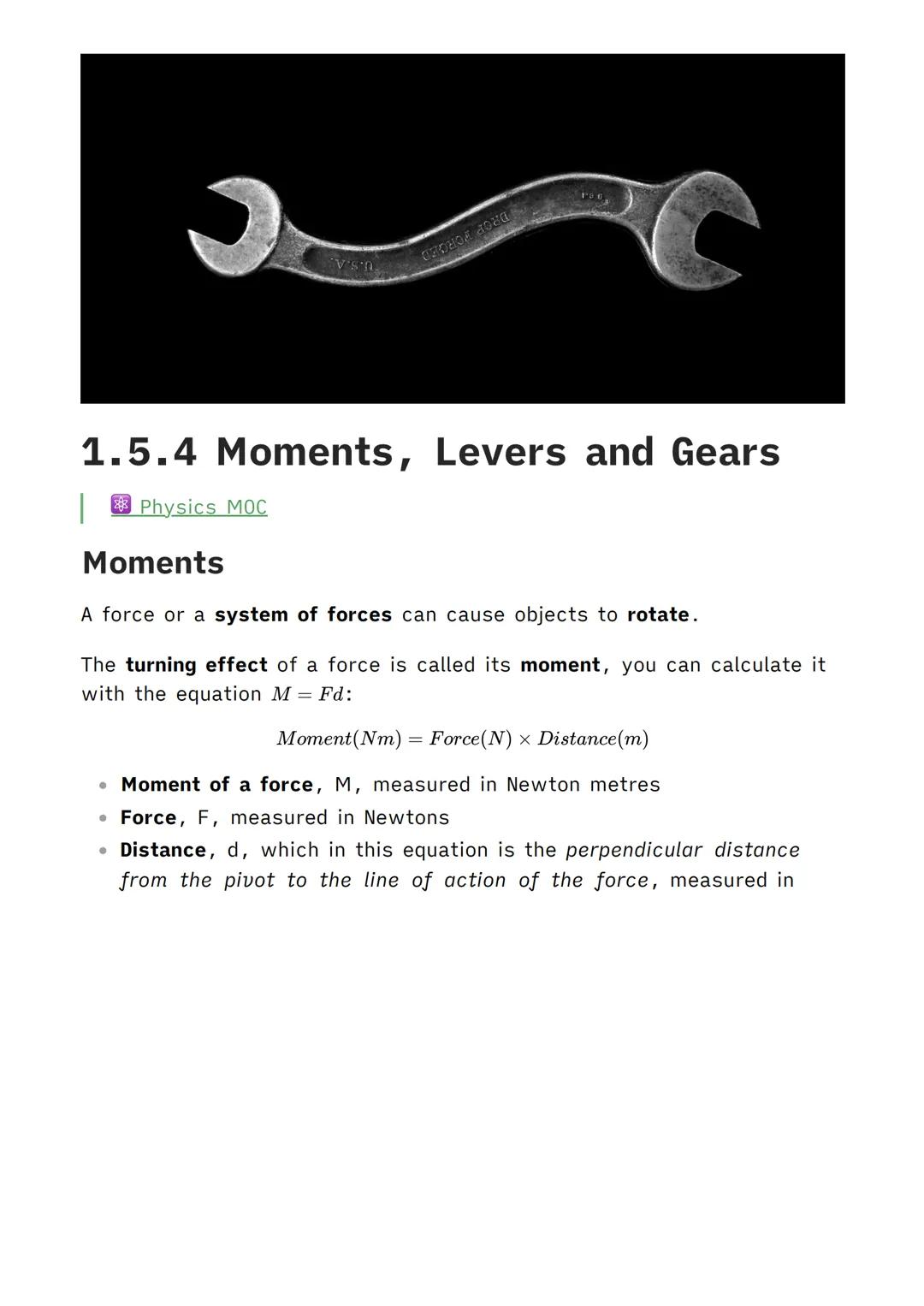

The turning effect of a force is called its moment. To calculate a moment, we use the equation M = Fd, where:

• M is the moment, measured in Newton metres (Nm)
• F is the force, measured in Newtons (N)
• d is the perpendicular distance from the pivot to the line of action of the force, measured in metres $m$

Definition: A moment is the turning effect of a force, quantifying its ability to rotate an object around a pivot point.

The concept of moments is widely applied in everyday life. For example, door handles are designed to be far from the hinge to create a larger moment, making it easier to open the door.

Example: In a door handle, the handle is positioned away from the hinge because the further away it is, the larger the moment and the easier it is for us to turn it.

Understanding moments is essential for calculating moments and balanced forces in various mechanical systems.
