1.5.3 Forces and Elasticity Physics MOC Changing Shape When two or more forces are applied to an object, the object may stretch, compress, o

View

Elastic and Inelastic Deformation

Objects can undergo either elastic or inelastic deformation when subjected to forces.

Definition: Elastic deformation occurs when an object returns to its original shape after the applied force is removed.

Definition: Inelastic deformation occurs when an object does not fully return to its original shape after the applied force is removed.

Examples of elastic objects:

  • Springs
  • Elastic bands

Examples of inelastic objects:

  • Plastic
  • Clay

Highlight: The elastic and inelastic deformation in physics concept is crucial for understanding material properties and behavior under stress.

Work Done on a Spring

When a spring is stretched or compressed, work is done, and energy is transferred to its elastic potential energy store. The work done on a spring can be calculated using the equation:

Formula: Ee = ½ × k × x²

Where:

  • Ee is the elastic potential energy
  • k is the spring constant
  • x is the extension

Highlight: This formula only applies to objects that haven't exceeded their limit of proportionality.

1.5.3 Forces and Elasticity Physics MOC Changing Shape When two or more forces are applied to an object, the object may stretch, compress, o

View

Hooke's Law and Extension

Hooke's law is a fundamental principle in physics that describes the relationship between force and extension in elastic objects.

Definition: Hooke's law states that the extension of an elastic object is directly proportional to the force applied, up to the limit of proportionality.

The limit of proportionality is the point beyond which an elastic object may extend but won't return to its original shape when the force is removed. This value varies by material.

Force-Extension Graphs

Force-extension graphs visually represent Hooke's law. These graphs typically show:

  1. A linear region where force and extension are directly proportional
  2. A non-linear region beyond the limit of proportionality markedaspointPmarked as point P

Example: In a force-extension graph for a spring, the initial straight line represents the elastic region, while the curved portion indicates the plastic region.

Calculating Spring Constant

The spring constant kk can be determined from force-extension graphs by finding the gradient:

Formula: k = gradient = ΔF / Δe

Where:

  • ΔF is the change in force
  • Δe is the change in extension

Highlight: A steeper gradient indicates a larger spring constant, meaning the spring is stiffer.

1.5.3 Forces and Elasticity Physics MOC Changing Shape When two or more forces are applied to an object, the object may stretch, compress, o

View

Using Hooke's Law

Hooke's Law is expressed by the equation:

Formula: F = k × e

Where:

  • F is the force inNewtons,Nin Newtons, N
  • k is the spring constant inNewtonspermeter,N/min Newtons per meter, N/m
  • e is the extension inmeters,min meters, m

Vocabulary: Extension is calculated by subtracting the original length from the final length of the object.

Solving Hooke's Law Problems

To solve problems using Hooke's Law:

  1. List known quantities
  2. Write down and rearrange the relevant equation
  3. Calculate extension finallength−originallengthfinal length - original length
  4. Convert units if necessary
  5. Substitute values into the equation

Highlight: Pay attention to units when solving Hooke's Law problems. The standard units are meters for length and Newtons per meter for spring constant.

Example: When calculating the spring constant using force extension graphs, ensure that you convert centimeters to meters by dividing by 100.

This comprehensive guide provides a solid foundation for understanding Hooke's law force extension relationship and related concepts in physics, suitable for GCSE and KS3 level students.

1.5.3 Forces and Elasticity Physics MOC Changing Shape When two or more forces are applied to an object, the object may stretch, compress, o

View

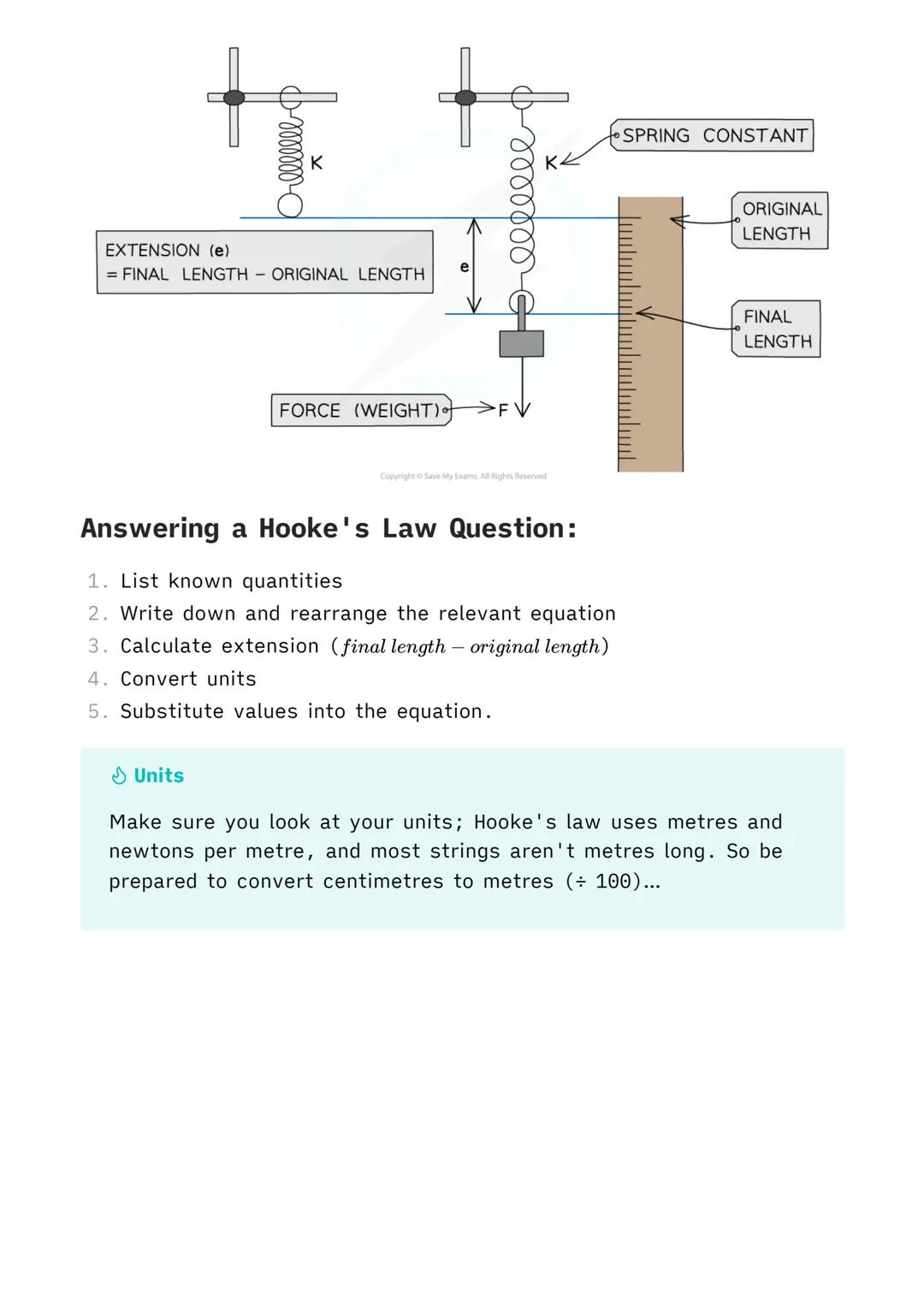

Answering Hooke's Law Questions

This page provides a step-by-step guide on how to approach and solve problems related to Hooke's Law.

Steps to answer a Hooke's Law question:

  1. List known quantities
  2. Write down and rearrange the relevant equation
  3. Calculate extension finallength−originallengthfinal length - original length
  4. Convert units if necessary
  5. Substitute values into the equation

Highlight: Pay close attention to units when solving Hooke's Law problems. Most springs are measured in centimeters, but Hooke's Law uses meters, so conversion may be necessary.

Example: The page includes a visual representation of a spring, highlighting the original length, final length, and the force weightweight applied, to help students understand how to apply Hooke's Law in practical scenarios.

Can't find what you're looking for? Explore other subjects.

Knowunity is the #1 education app in five European countries

Knowunity has been named a featured story on Apple and has regularly topped the app store charts in the education category in Germany, Italy, Poland, Switzerland, and the United Kingdom. Join Knowunity today and help millions of students around the world.

Ranked #1 Education App

Download in

Google Play

Download in

App Store

Knowunity is the #1 education app in five European countries

4.9+

Average app rating

21 M

Pupils love Knowunity

#1

In education app charts in 17 countries

950 K+

Students have uploaded notes

Still not convinced? See what other students are saying...

iOS User

I love this app so much, I also use it daily. I recommend Knowunity to everyone!!! I went from a D to an A with it :D

Philip, iOS User

The app is very simple and well designed. So far I have always found everything I was looking for :D

Lena, iOS user

I love this app ❤️ I actually use it every time I study.

Subjects

Physics

Forces & movement

Hooke's law



Physics

•

340

•

12 May 2023

•

5 pages

Fun with Hooke's Law and Springy Science: Force-Extension Graphs and More

user profile picture

Reuben Cowell

@reubencowell

Hooke's Law and Elasticity in Physics: Understanding force-extension relationships and deformation

  • Explores the principles of Hooke's law force-extension relationship and its applications in physics
  • Covers elastic and inelastic deformation in physics, including stretching, compressing, and bending of objects... Show more

1.5.3 Forces and Elasticity Physics MOC Changing Shape When two or more forces are applied to an object, the object may stretch, compress, o

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Elastic and Inelastic Deformation

Objects can undergo either elastic or inelastic deformation when subjected to forces.

Definition: Elastic deformation occurs when an object returns to its original shape after the applied force is removed.

Definition: Inelastic deformation occurs when an object does not fully return to its original shape after the applied force is removed.

Examples of elastic objects:

  • Springs
  • Elastic bands

Examples of inelastic objects:

  • Plastic
  • Clay

Highlight: The elastic and inelastic deformation in physics concept is crucial for understanding material properties and behavior under stress.

Work Done on a Spring

When a spring is stretched or compressed, work is done, and energy is transferred to its elastic potential energy store. The work done on a spring can be calculated using the equation:

Formula: Ee = ½ × k × x²

Where:

  • Ee is the elastic potential energy
  • k is the spring constant
  • x is the extension

Highlight: This formula only applies to objects that haven't exceeded their limit of proportionality.

1.5.3 Forces and Elasticity Physics MOC Changing Shape When two or more forces are applied to an object, the object may stretch, compress, o

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Hooke's Law and Extension

Hooke's law is a fundamental principle in physics that describes the relationship between force and extension in elastic objects.

Definition: Hooke's law states that the extension of an elastic object is directly proportional to the force applied, up to the limit of proportionality.

The limit of proportionality is the point beyond which an elastic object may extend but won't return to its original shape when the force is removed. This value varies by material.

Force-Extension Graphs

Force-extension graphs visually represent Hooke's law. These graphs typically show:

  1. A linear region where force and extension are directly proportional
  2. A non-linear region beyond the limit of proportionality markedaspointPmarked as point P

Example: In a force-extension graph for a spring, the initial straight line represents the elastic region, while the curved portion indicates the plastic region.

Calculating Spring Constant

The spring constant kk can be determined from force-extension graphs by finding the gradient:

Formula: k = gradient = ΔF / Δe

Where:

  • ΔF is the change in force
  • Δe is the change in extension

Highlight: A steeper gradient indicates a larger spring constant, meaning the spring is stiffer.

1.5.3 Forces and Elasticity Physics MOC Changing Shape When two or more forces are applied to an object, the object may stretch, compress, o

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Using Hooke's Law

Hooke's Law is expressed by the equation:

Formula: F = k × e

Where:

  • F is the force inNewtons,Nin Newtons, N
  • k is the spring constant inNewtonspermeter,N/min Newtons per meter, N/m
  • e is the extension inmeters,min meters, m

Vocabulary: Extension is calculated by subtracting the original length from the final length of the object.

Solving Hooke's Law Problems

To solve problems using Hooke's Law:

  1. List known quantities
  2. Write down and rearrange the relevant equation
  3. Calculate extension finallength−originallengthfinal length - original length
  4. Convert units if necessary
  5. Substitute values into the equation

Highlight: Pay attention to units when solving Hooke's Law problems. The standard units are meters for length and Newtons per meter for spring constant.

Example: When calculating the spring constant using force extension graphs, ensure that you convert centimeters to meters by dividing by 100.

This comprehensive guide provides a solid foundation for understanding Hooke's law force extension relationship and related concepts in physics, suitable for GCSE and KS3 level students.

1.5.3 Forces and Elasticity Physics MOC Changing Shape When two or more forces are applied to an object, the object may stretch, compress, o

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Answering Hooke's Law Questions

This page provides a step-by-step guide on how to approach and solve problems related to Hooke's Law.

Steps to answer a Hooke's Law question:

  1. List known quantities
  2. Write down and rearrange the relevant equation
  3. Calculate extension finallength−originallengthfinal length - original length
  4. Convert units if necessary
  5. Substitute values into the equation

Highlight: Pay close attention to units when solving Hooke's Law problems. Most springs are measured in centimeters, but Hooke's Law uses meters, so conversion may be necessary.

Example: The page includes a visual representation of a spring, highlighting the original length, final length, and the force weightweight applied, to help students understand how to apply Hooke's Law in practical scenarios.

1.5.3 Forces and Elasticity Physics MOC Changing Shape When two or more forces are applied to an object, the object may stretch, compress, o

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Changing Shape and Deformation

When multiple forces act on an object, it may undergo deformation through stretching, compressing, or bending. This process transfers energy to the object's elastic potential energy store.

Definition: Deformation refers to a change in an object's shape due to applied forces.

The three main types of deformation are:

  1. Stretching: Forces acting in opposite directions away from the object
  2. Compressing: Forces acting in opposite directions towards the object
  3. Bending: Forces distorting the object's shape

Highlight: Deformation only occurs when two or more forces are applied. A single force would simply cause the object to move.
