1.5 Atomic and Nuclear Physics - GCSE Physics
166
•
1 Dec 2025
•
Understanding Atomic and Nuclear Physics for GCSE Students
caightlin
@caightlinx
1 / 6

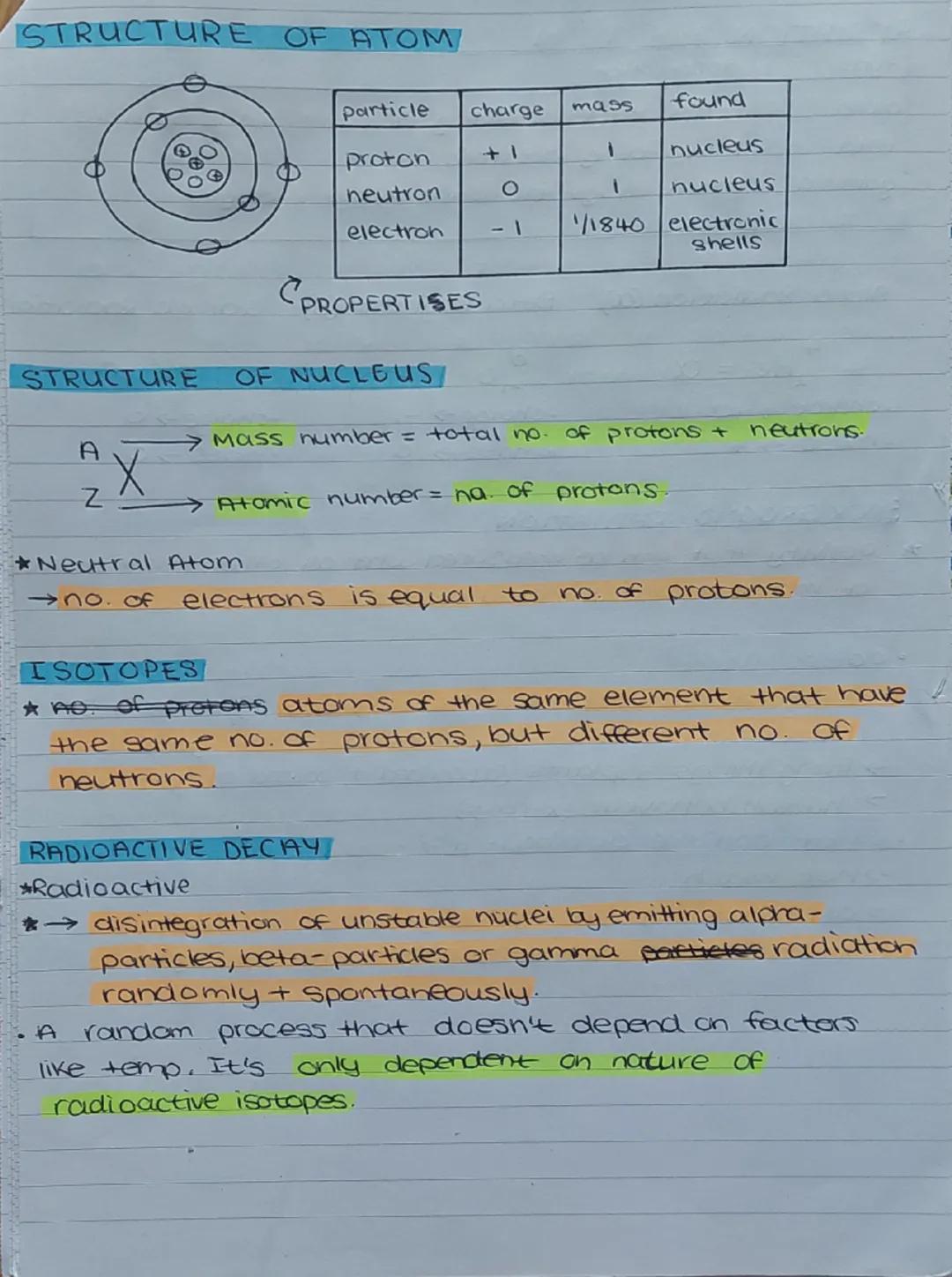

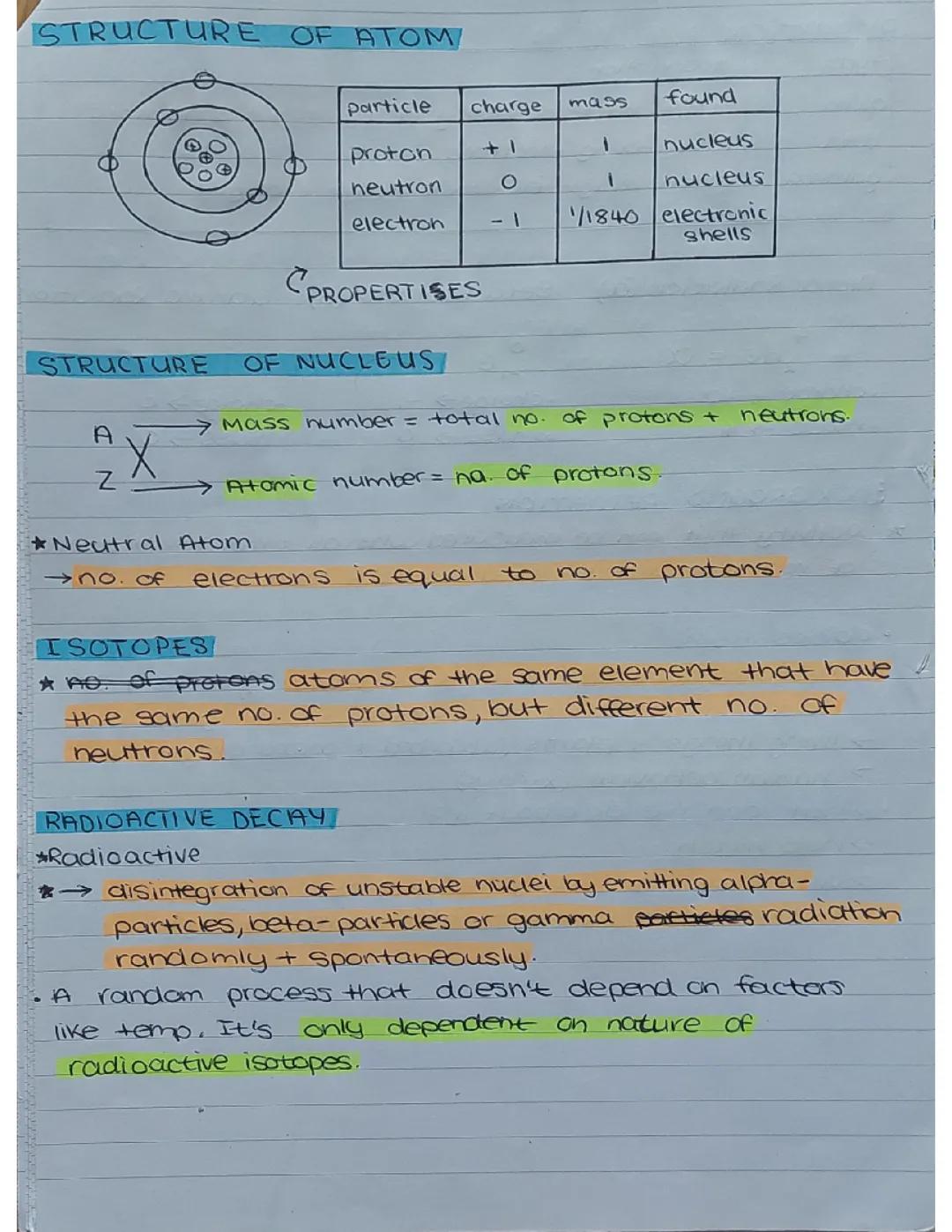

Structure of Atoms
Ever wondered what everything around you is made of? At the most basic level, it's atoms! Atoms consist of three main particles: protons (positive charge), neutrons (no charge), and electrons (negative charge).
Protons and neutrons live in the nucleus at the center, while electrons orbit in shells around it. The mass number (A) tells you the total number of protons and neutrons, while the atomic number (Z) counts just the protons. In a neutral atom, the number of electrons equals the number of protons.
Isotopes are atoms of the same element (same number of protons) but with different numbers of neutrons. Some isotopes are unstable and undergo radioactive decay, where their nuclei spontaneously disintegrate by emitting alpha particles, beta particles, or gamma radiation.
💡 Radioactive decay is a completely random process and doesn't depend on external factors like temperature—only on the nature of the radioactive isotope itself!

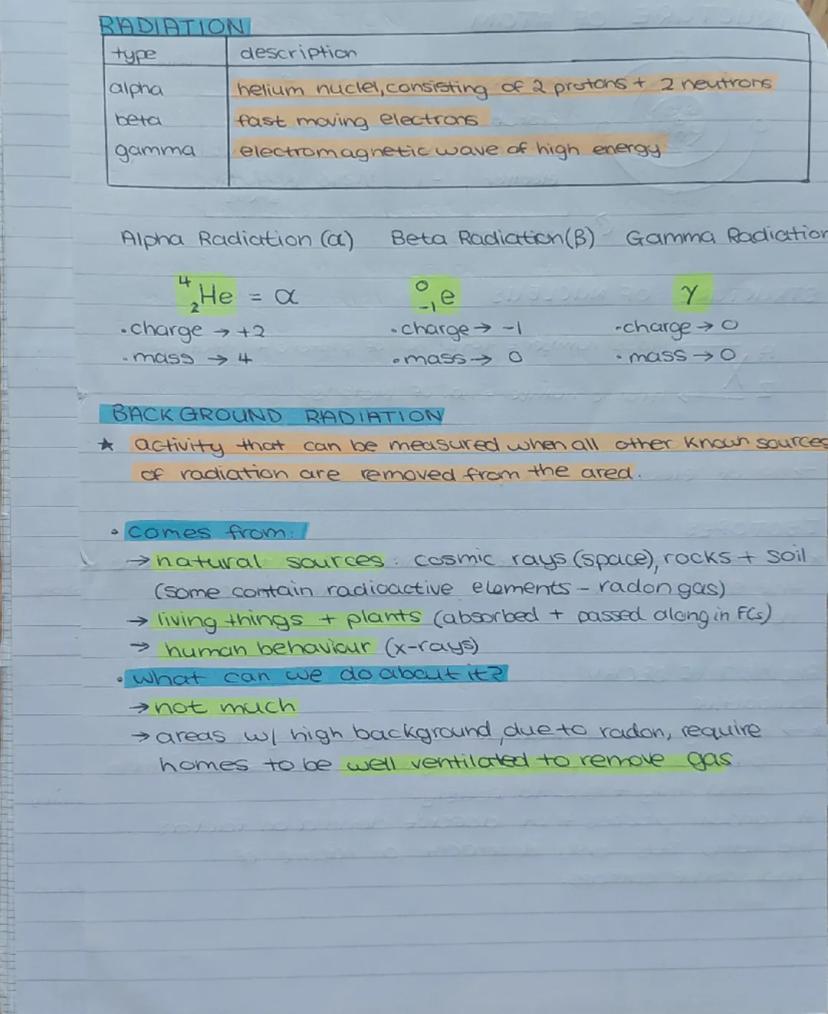

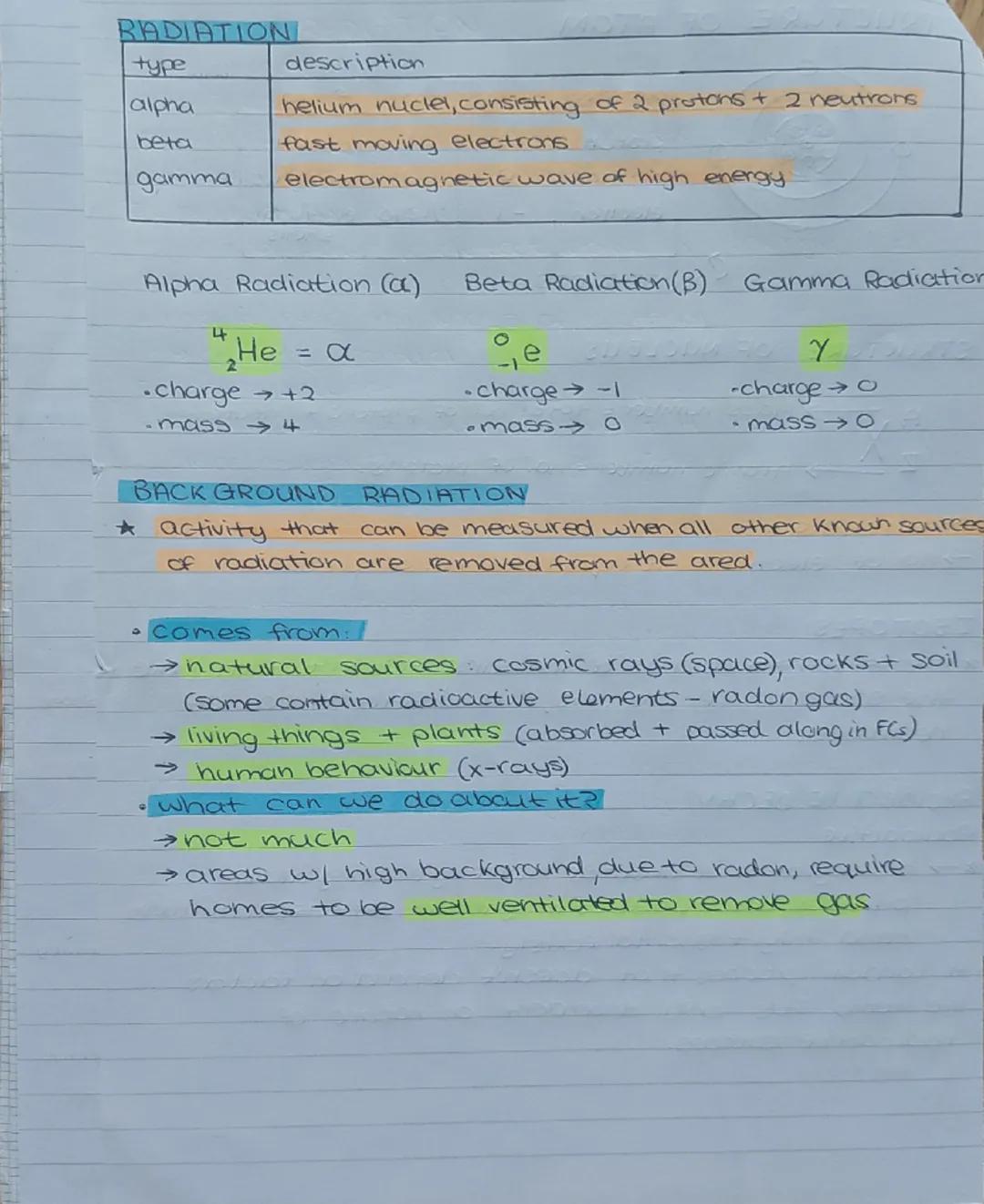

Types of Radiation
When unstable atoms decay, they release different types of radiation. Each type has different properties and behaviors that affect how they interact with matter.
Alpha radiation consists of helium nuclei (2 protons and 2 neutrons) with a charge of +2 and mass of 4. Beta radiation involves fast-moving electrons with a charge of -1 and virtually no mass. Gamma radiation is a high-energy electromagnetic wave with no charge or mass.
Even when no obvious radiation sources are present, we're still exposed to background radiation. This comes from natural sources like cosmic rays from space, radioactive elements in rocks and soil (like radon gas), and even from living things that have absorbed radioactive elements.
⚠️ While we can't eliminate background radiation completely, in areas with high radon levels, proper home ventilation is essential to reduce exposure to this radioactive gas!

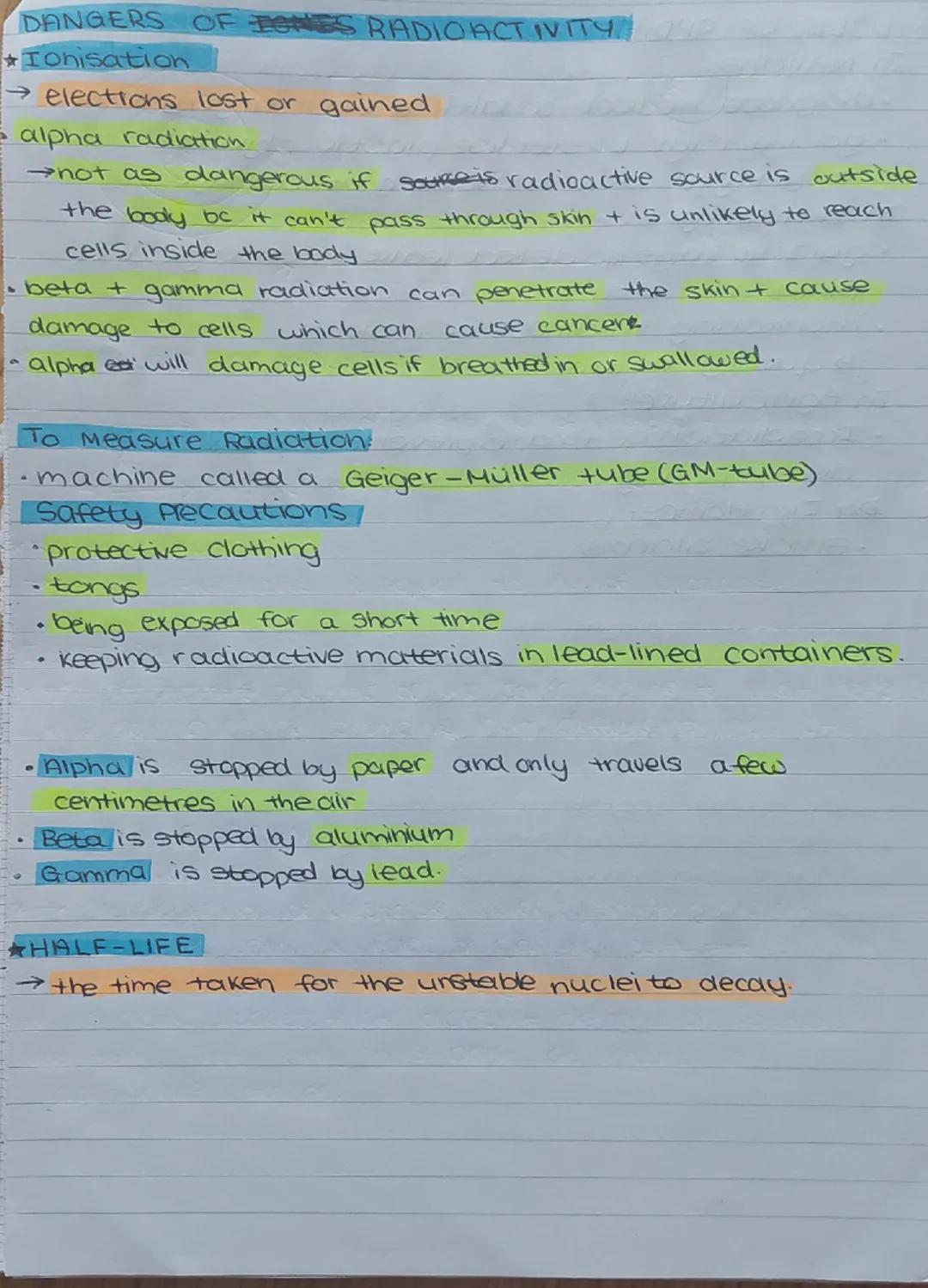

Dangers and Measuring Radiation
Radiation can be dangerous because it causes ionisation—making atoms lose or gain electrons, which can damage cells and potentially cause cancer.
Alpha radiation isn't very dangerous outside the body as it can't penetrate skin, but it's extremely harmful if inhaled or swallowed. Beta and gamma radiation can penetrate skin and damage cells inside the body. We measure radiation using a Geiger-Müller tube .
To stay safe around radioactive materials, we use protective clothing, tongs for handling, minimise exposure time, and store materials in lead-lined containers. Each type of radiation can be stopped by different materials: paper stops alpha radiation, aluminium blocks beta, and lead is needed to stop gamma rays.
🔍 The danger of radiation is related to its half-life—the time taken for half the unstable nuclei to decay. Some radioactive materials remain dangerous for thousands of years!

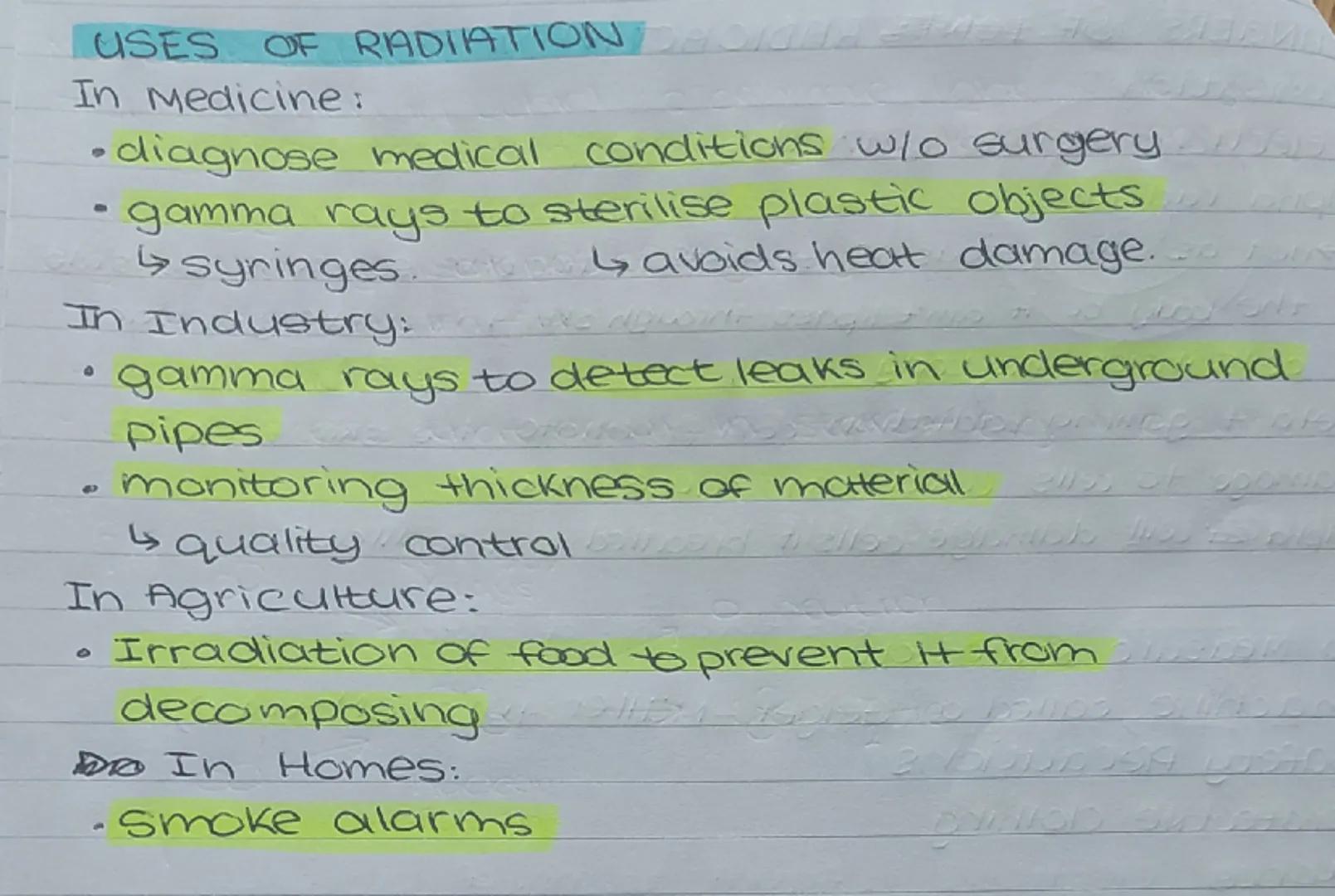

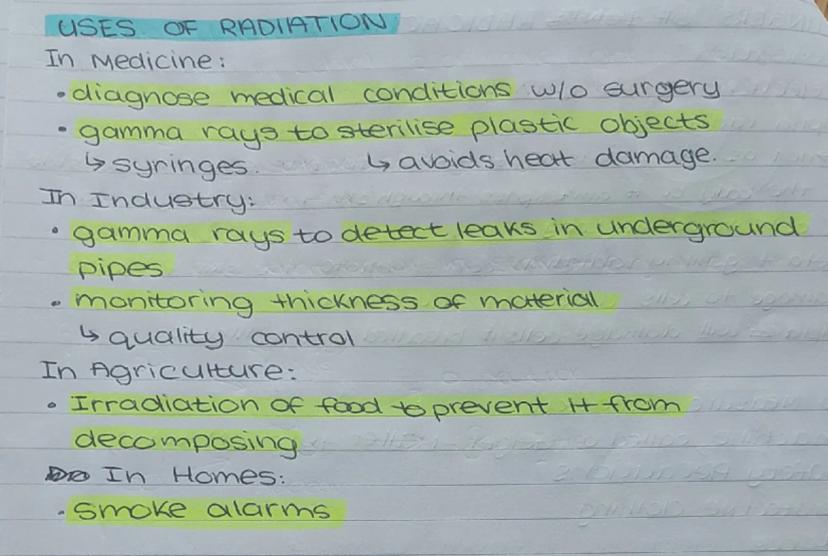

Uses of Radiation
Despite the dangers, radiation has many beneficial applications in our daily lives. Bet you didn't know how often you rely on radiation!
In medicine, radiation helps doctors diagnose conditions without surgery and sterilise plastic medical equipment like syringes without heat damage. Industries use gamma rays to detect leaks in underground pipes and monitor material thickness for quality control.
Agricultural applications include food irradiation to prevent decomposition and extend shelf life. Even in our homes, common smoke alarms use tiny amounts of radioactive material to detect smoke particles in the air.
🔬 The ability to control and direct radiation has revolutionised medicine, allowing doctors to see inside the body and treat diseases that once required invasive procedures!

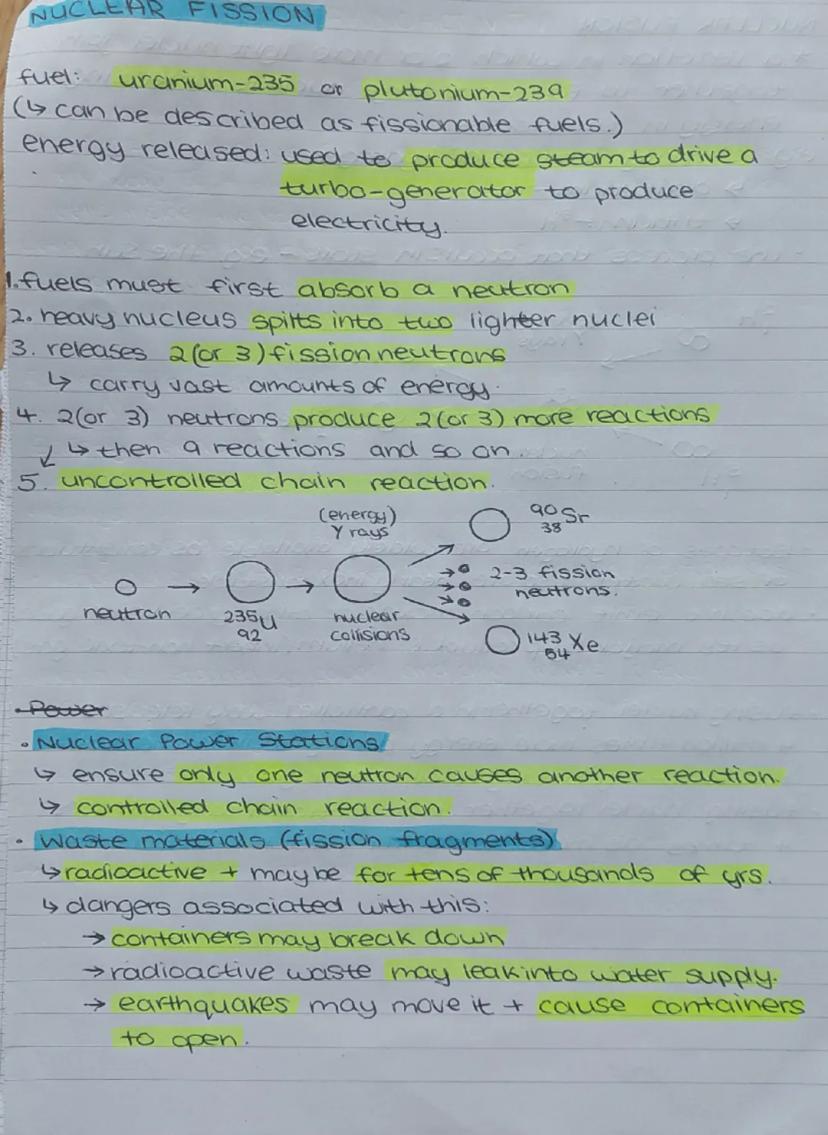

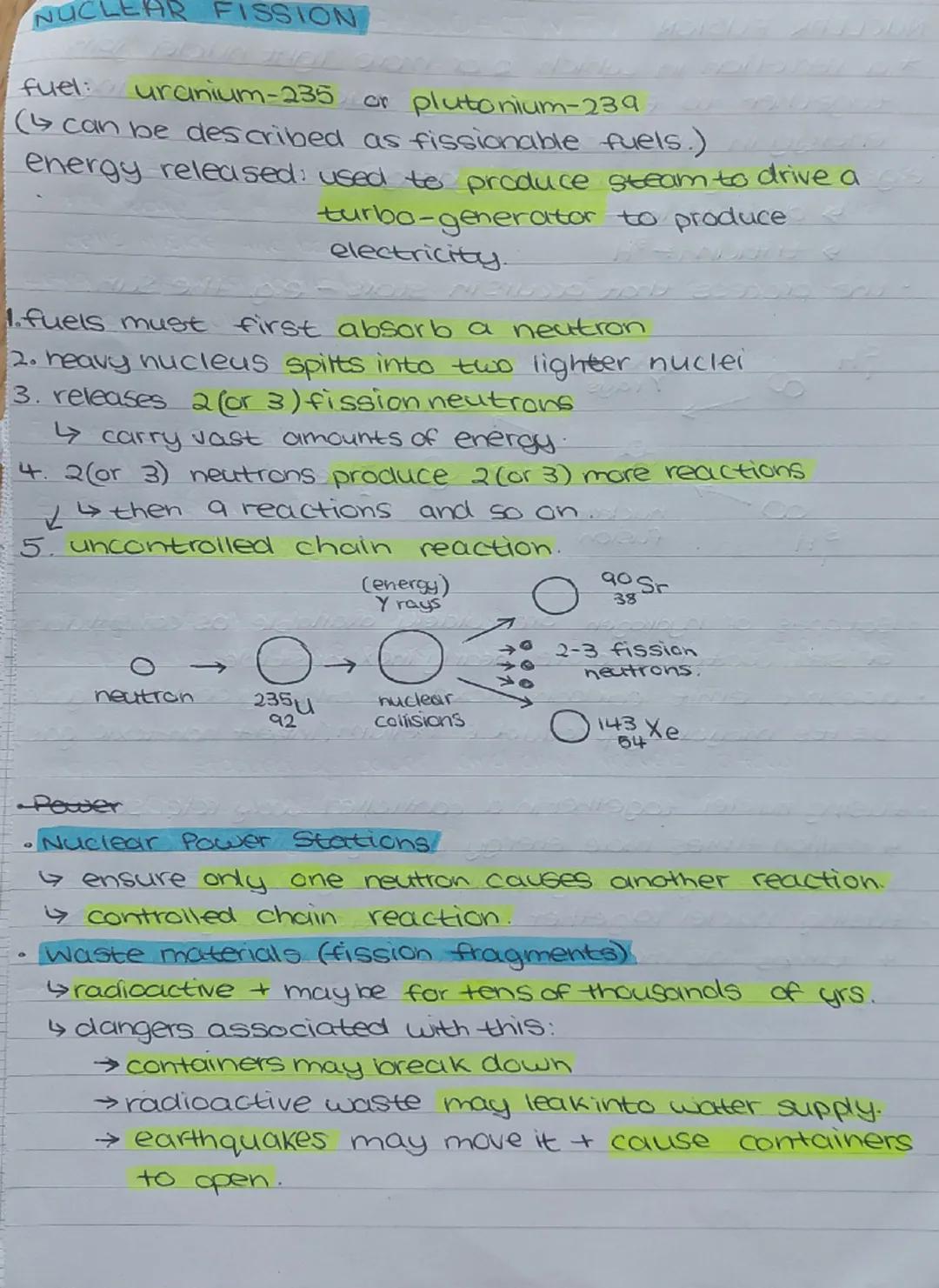

Nuclear Fission
Nuclear fission is the process used in nuclear power stations to generate electricity. It uses fuels like uranium-235 or plutonium-239, which are called fissionable fuels.
The process starts when a neutron is absorbed by a heavy nucleus, causing it to split into two lighter nuclei. This splitting releases enormous energy and 2-3 more neutrons. Those neutrons can then cause more atoms to split, creating a chain reaction that releases vast amounts of energy.
In nuclear power stations, this reaction is carefully controlled so that only one neutron from each split causes another reaction. The energy released heats water to produce steam, which drives turbines to generate electricity.
⚠️ Nuclear fission produces radioactive waste that may remain dangerous for tens of thousands of years. If containment fails, this waste could contaminate water supplies or be disturbed by earthquakes, creating serious environmental hazards.

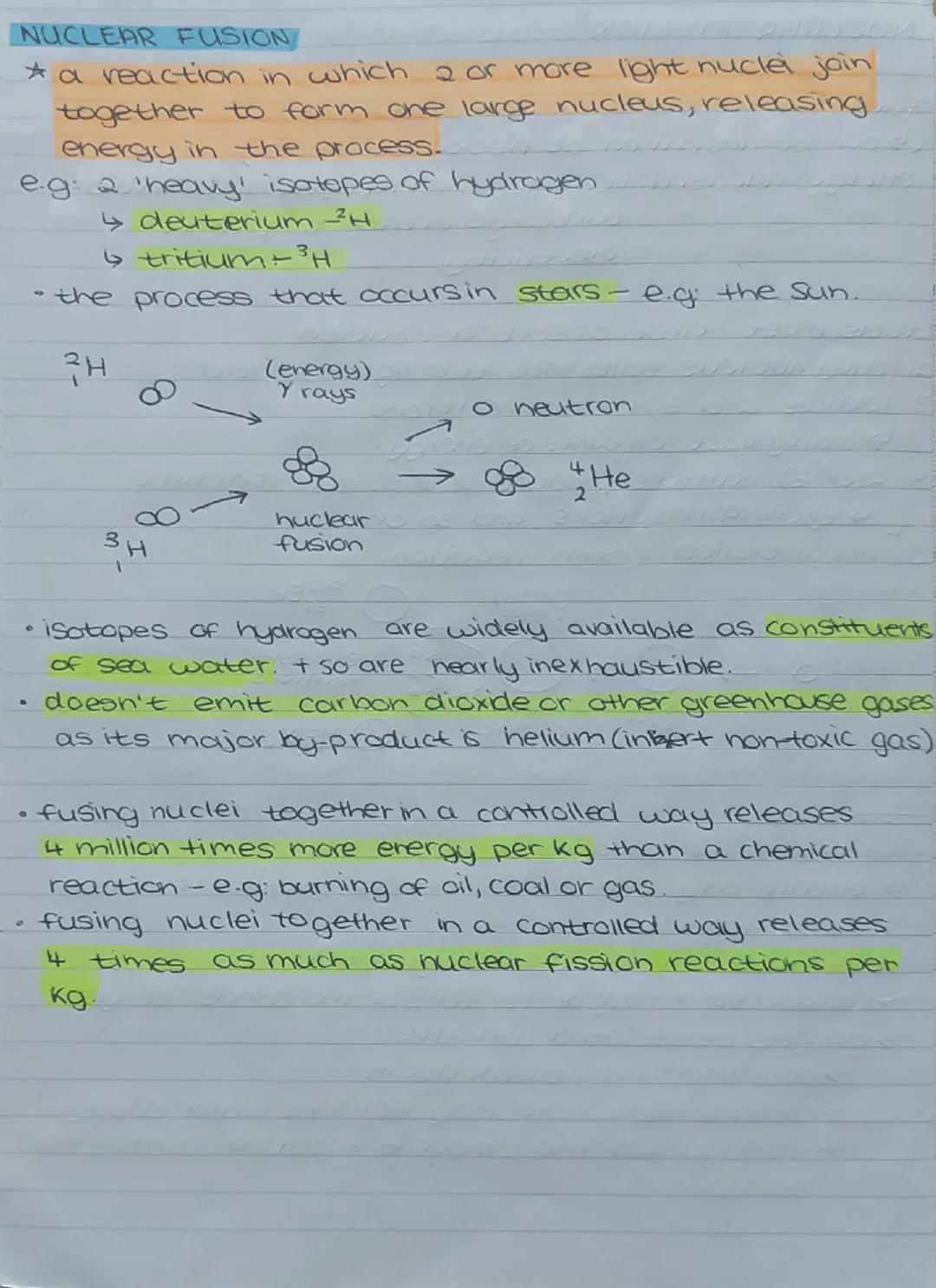

Nuclear Fusion
Nuclear fusion occurs when two or more light nuclei join together to form one larger nucleus, releasing enormous energy in the process. This is the same process that powers our Sun and other stars!
Fusion typically uses "heavy" hydrogen isotopes like deuterium (²H) and tritium (³H). When these isotopes fuse, they produce helium (⁴He), a neutron, and release tremendous energy.
Fusion has amazing potential advantages over other energy sources. The fuel (hydrogen isotopes) is abundant in seawater, making it nearly inexhaustible. It doesn't produce greenhouse gases—its main byproduct is harmless helium. Most impressively, fusion releases about 4 million times more energy per kilogram than burning fossil fuels, and even 4 times more than nuclear fission!
🌟 If we could harness controlled fusion on Earth, it would provide an incredibly clean, safe, and virtually limitless energy source—potentially solving many of our energy and environmental challenges!
