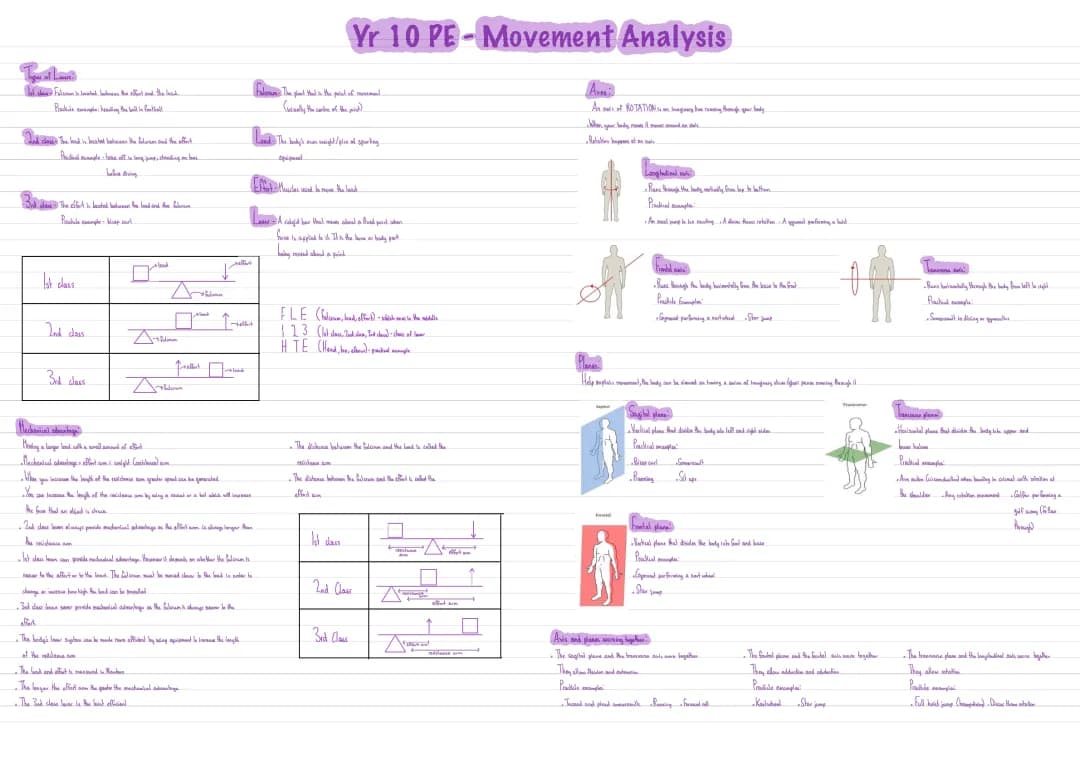

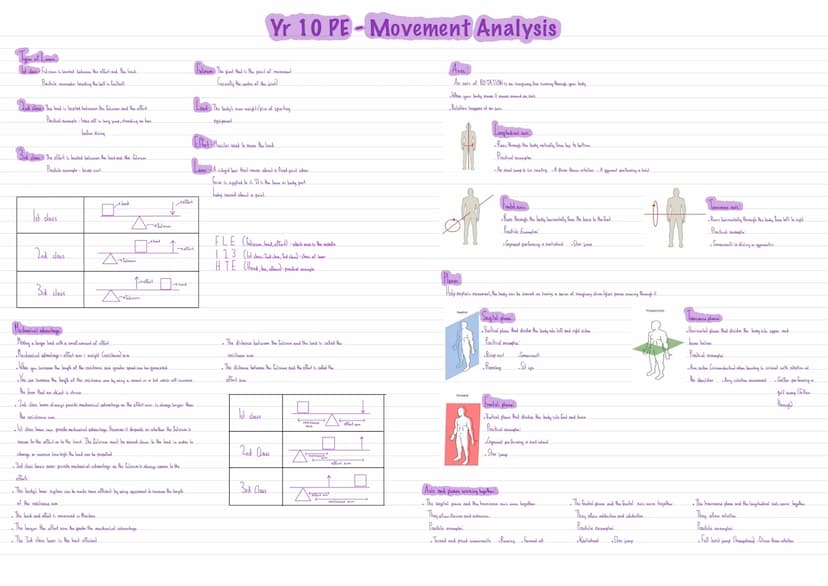

Types of Levers, Mechanical Advantage, Axes, and Planes in GCSE PE
This page covers essential concepts in movement analysis for GCSE Physical Education, including types of levers, mechanical advantage, axes of rotation, and planes of movement. These concepts are crucial for understanding how the human body moves during various sporting activities.
Types of Levers
The document explains the three classes of levers and their applications in sports:
- First Class Lever: The fulcrum is located between the effort and the load.
Example: Heading the ball in football.
- Second Class Lever: The load is located between the fulcrum and the effort.
Example: Take-off in long jump or standing on toes before diving.
- Third Class Lever: The effort is located between the load and the fulcrum.
Example: Bicep curl.
Vocabulary:
- Fulcrum: The pivot point or center of the joint
- Load: The body's own weight or piece of sporting equipment
- Effort: Muscles used to move the load
Mechanical Advantage
The concept of mechanical advantage in lever systems is explained:
Definition: Mechanical advantage is the ability to move a larger load with a small amount of effort.
- It is calculated as the ratio of effort arm to weight arm.
- Increasing the length of the resistance arm can generate greater speed.
- Second class levers always provide mechanical advantage.
- First class levers can provide mechanical advantage depending on fulcrum position.
- Third class levers never provide mechanical advantage.
Highlight: The body's lever system can be made more efficient by using equipment to increase the length of the resistance arm.
Axes of Rotation
The document describes three main axes of rotation:
- Longitudinal Axis: Runs vertically from top to bottom.
Example: An axel jump in skating, discus throw rotation, or a gymnast performing a twist.
- Frontal Axis: Runs horizontally from back to front.
Example: Gymnast performing a cartwheel or a star jump.
- Transverse Axis: Runs horizontally from left to right.
Example: Somersault in diving or gymnastics.
Planes of Movement
The three planes of movement are explained:
- Sagittal Plane: Divides the body into left and right sides.
Example: Bicep curl, running, somersault, sit-ups.
- Frontal Plane: Divides the body into front and back.
Example: Gymnast performing a cartwheel or star jump.
- Transverse Plane: Divides the body into upper and lower parts.
Example: Arm action when bowling in cricket or a golfer's follow-through.
The document concludes by explaining how axes and planes work together to produce various movements in sports.
Highlight: Understanding the relationship between axes and planes is crucial for analyzing complex movements in sports and physical activities.
