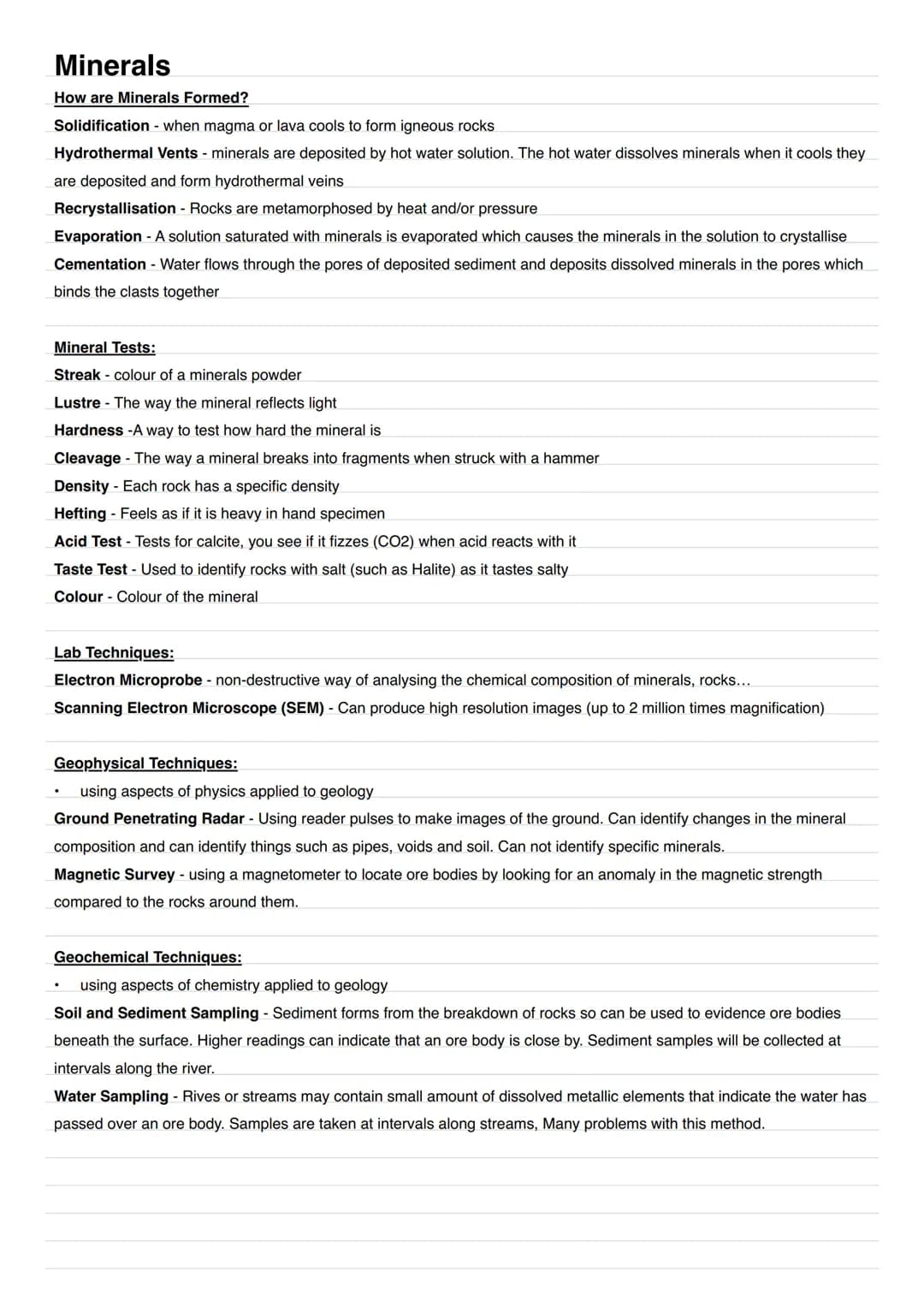

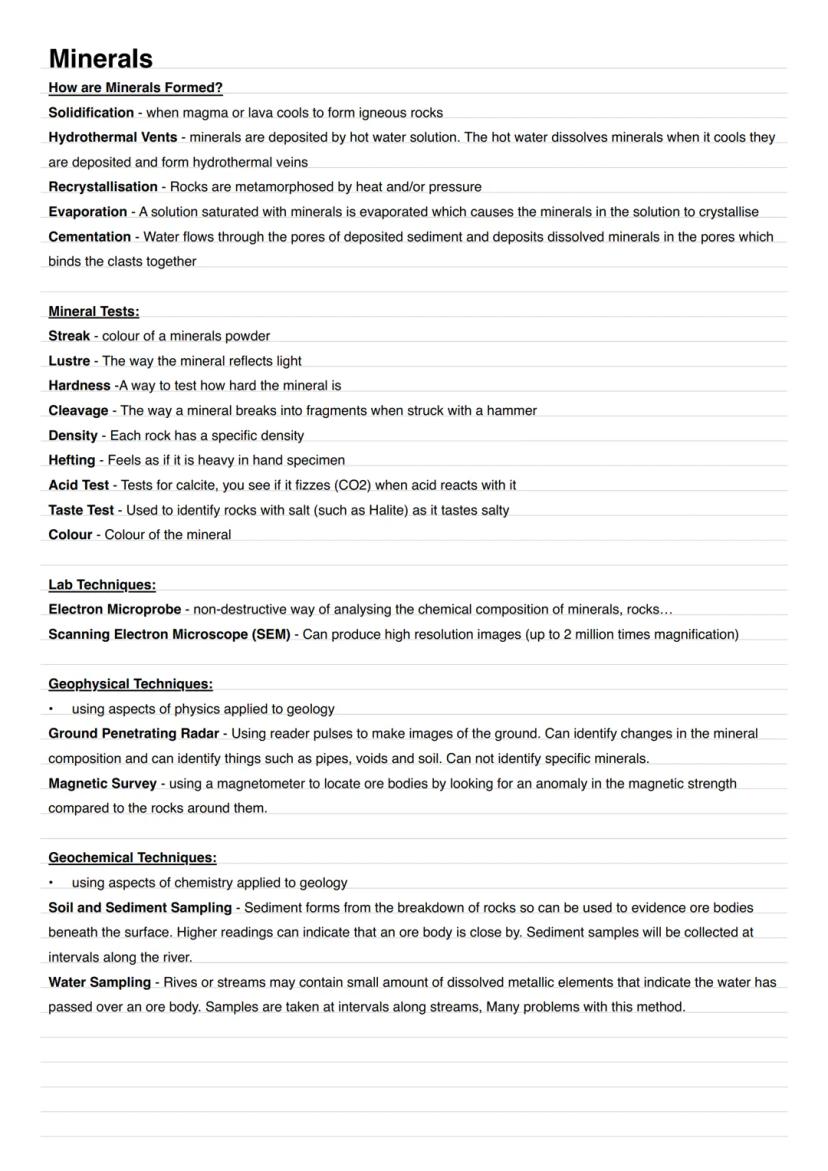

Understanding Mineral Formation and Testing Methods

Minerals form through several distinct geological processes that shape our Earth's composition. During solidification, WJEC Geology A level students learn how magma or lava cooling creates igneous rocks with unique mineral structures. Hydrothermal vents play a crucial role when hot water solutions deposit minerals, forming distinctive veins as temperatures decrease. The process of recrystallization occurs when existing rocks undergo metamorphosis through heat and pressure application.

Definition: Hydrothermal vents are fissures in the Earth's surface where geothermally heated water deposits dissolved minerals as it cools.

Mineral identification involves multiple scientific testing methods essential for WJEC Geology GCSE study. These include streak testing to determine powder color, lustre examination for light reflection properties, and hardness testing using Mohs scale. Cleavage patterns, density measurements, and chemical reactions like the acid test for calcite provide additional identification markers.

Advanced laboratory techniques enhance our understanding of mineral composition. The electron microprobe offers non-destructive analysis, while Scanning Electron Microscopes (SEM) provide extraordinary magnification up to 2 million times. Geophysical methods like Ground Penetrating Radar and magnetic surveys help locate mineral deposits beneath the surface, while geochemical techniques including soil and water sampling assist in identifying potential ore bodies.

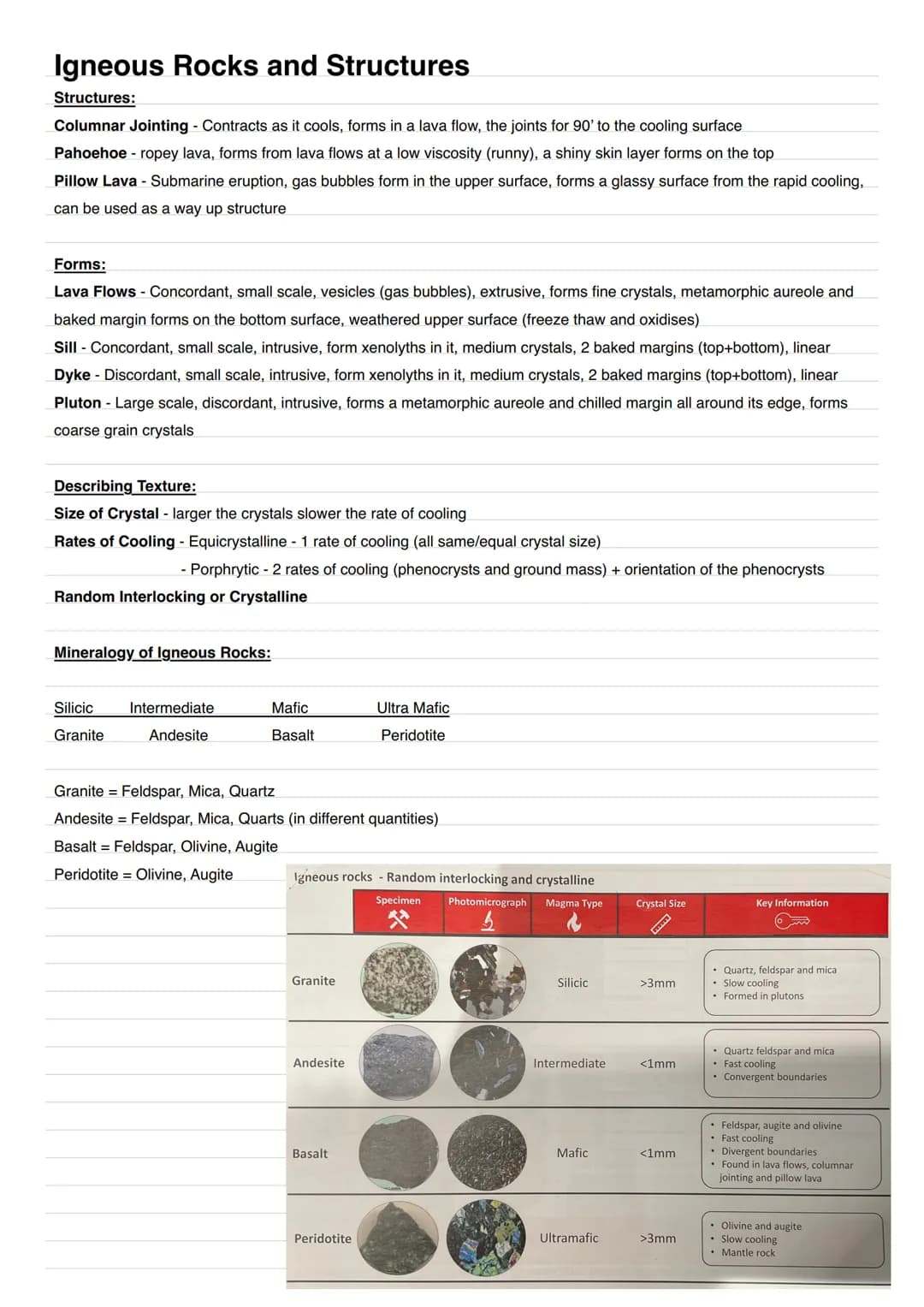

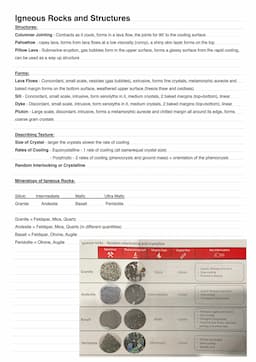

Igneous Rock Formations and Structural Characteristics

Understanding igneous rock structures is fundamental for WJEC Geology A Level past papers preparation. Columnar jointing forms when lava contracts during cooling, creating distinctive 90-degree joints. Pahoehoe displays characteristic ropey patterns in low-viscosity lava flows, while pillow lavas form during submarine eruptions with distinctive glassy surfaces.

Vocabulary: Phenocrysts are large crystals surrounded by finer-grained material in porphyritic rocks, indicating two-stage cooling.

The classification of igneous rocks depends on their formation conditions and mineral composition. From granite to peridotite, each rock type tells a unique story of its cooling history and original magma composition. Crystal size serves as a key indicator of cooling rates - larger crystals suggest slower cooling, typically found in plutonic environments.

Texture analysis reveals crucial information about formation conditions. Equicrystalline textures indicate uniform cooling rates, while porphyritic textures suggest multiple cooling stages. The mineralogy ranges from silicic compositions rich in quartz and feldspar to ultramafic rocks dominated by olivine and augite.

Metamorphic Rock Formation and Characteristics

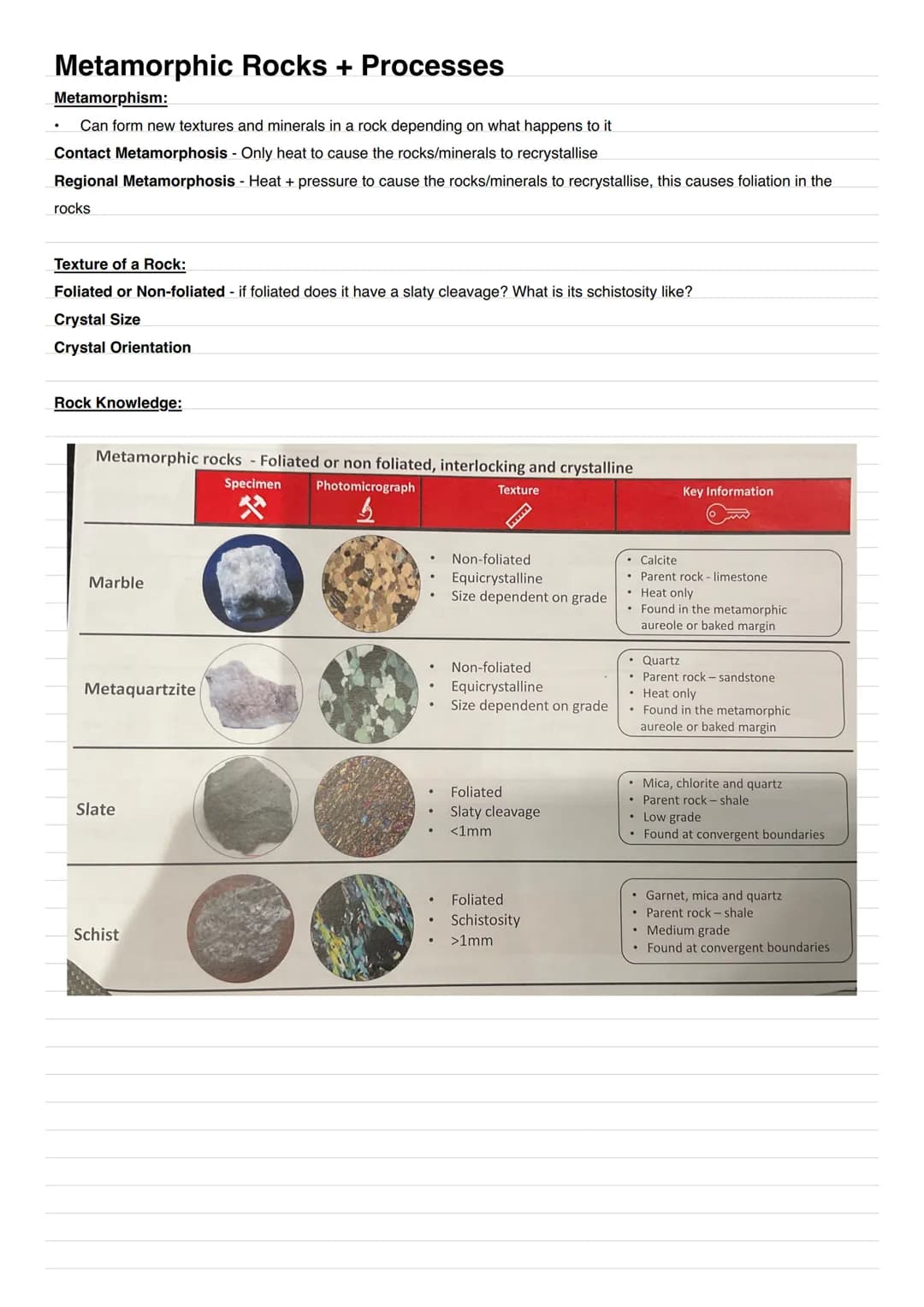

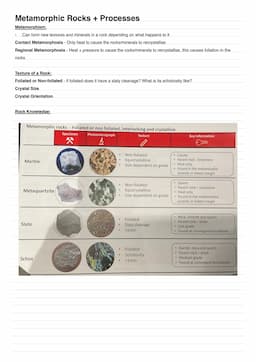

Metamorphic rocks form through transformation processes crucial to understanding How minerals are formed for geology wjec pdf content. These rocks develop through either contact metamorphism, involving heat alone, or regional metamorphism, combining both heat and pressure to create distinctive foliated structures.

Highlight: Metamorphic grade determines mineral assemblages and textures, with higher grades producing larger crystals and more complex mineral arrangements.

The texture of metamorphic rocks provides essential clues about their formation conditions. Foliated rocks like slate and schist display distinctive layering, while non-foliated rocks like marble and metaquartzite maintain more uniform structures. Crystal size and orientation serve as key indicators of metamorphic conditions and intensity.

Rock identification relies on understanding parent materials and metamorphic conditions. Marble forms from limestone through heat application, while slate develops from shale under low-grade conditions. Each metamorphic rock type preserves evidence of its transformation history through its mineral composition and structural characteristics.

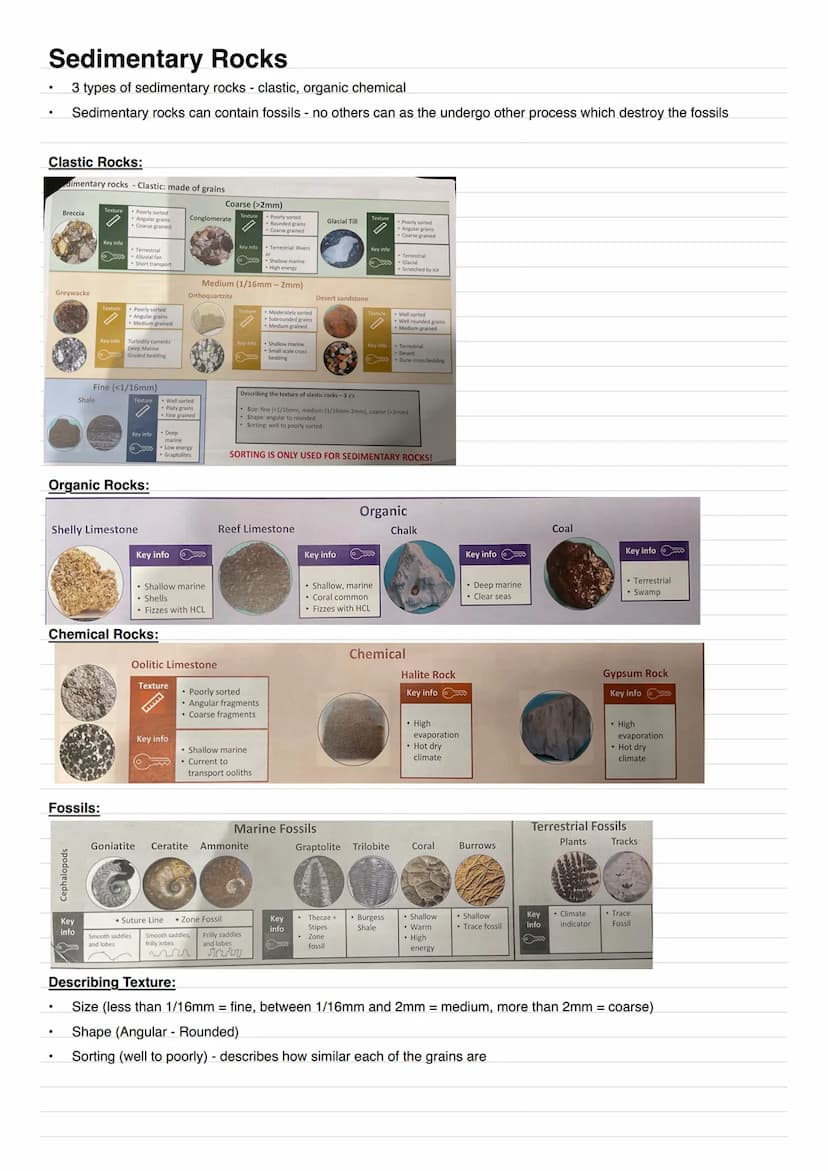

Sedimentary Rock Classification and Formation

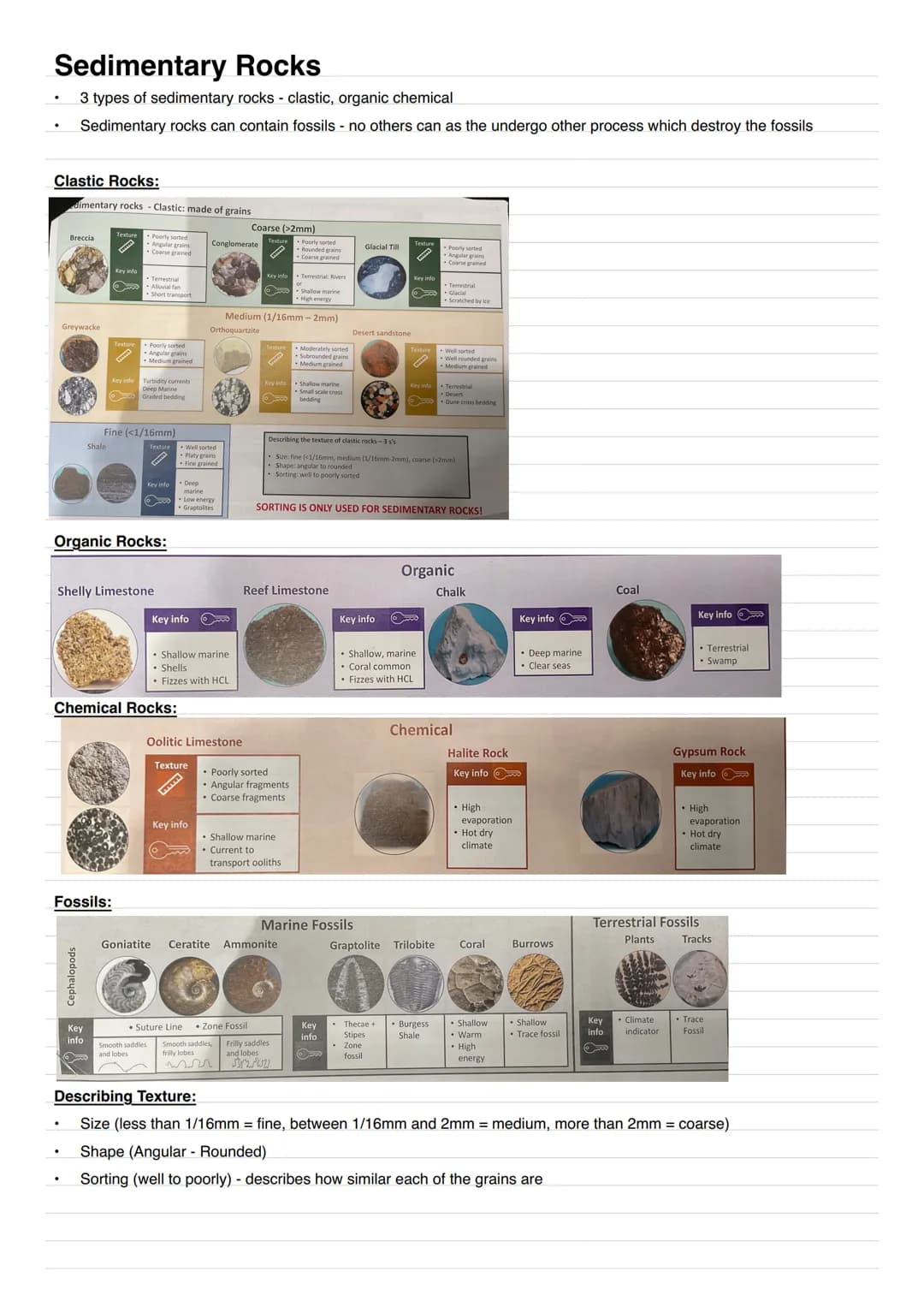

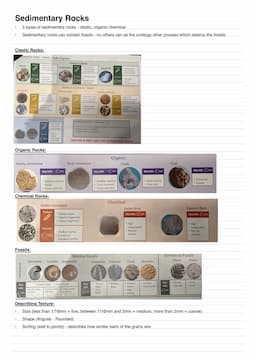

Sedimentary rocks, essential for Characteristics of sedimentary rocks gcse study, fall into three main categories: clastic, organic, and chemical. These rocks uniquely preserve fossils, making them crucial for understanding Earth's biological history. Clastic rocks form from accumulated sediment particles, while organic rocks develop from biological remains, and chemical rocks precipitate from solution.

Example: Breccia contains angular fragments indicating minimal transport, while conglomerate's rounded clasts suggest significant water transport.

Texture analysis of clastic rocks follows the "three S's" principle: size, shape, and sorting. Fine-grained rocks like shale contrast with coarse-grained varieties like conglomerate, each revealing distinct depositional environments. Shape ranges from angular to rounded, while sorting indicates transport and depositional conditions.

Marine fossils in sedimentary rocks provide crucial environmental indicators. Graptolites and trilobites suggest marine conditions, while plant fossils indicate terrestrial environments. Chemical sedimentary rocks like halite and gypsum form in evaporative conditions, providing important paleoclimate information.

Understanding Sedimentary Rock Formation and Processes

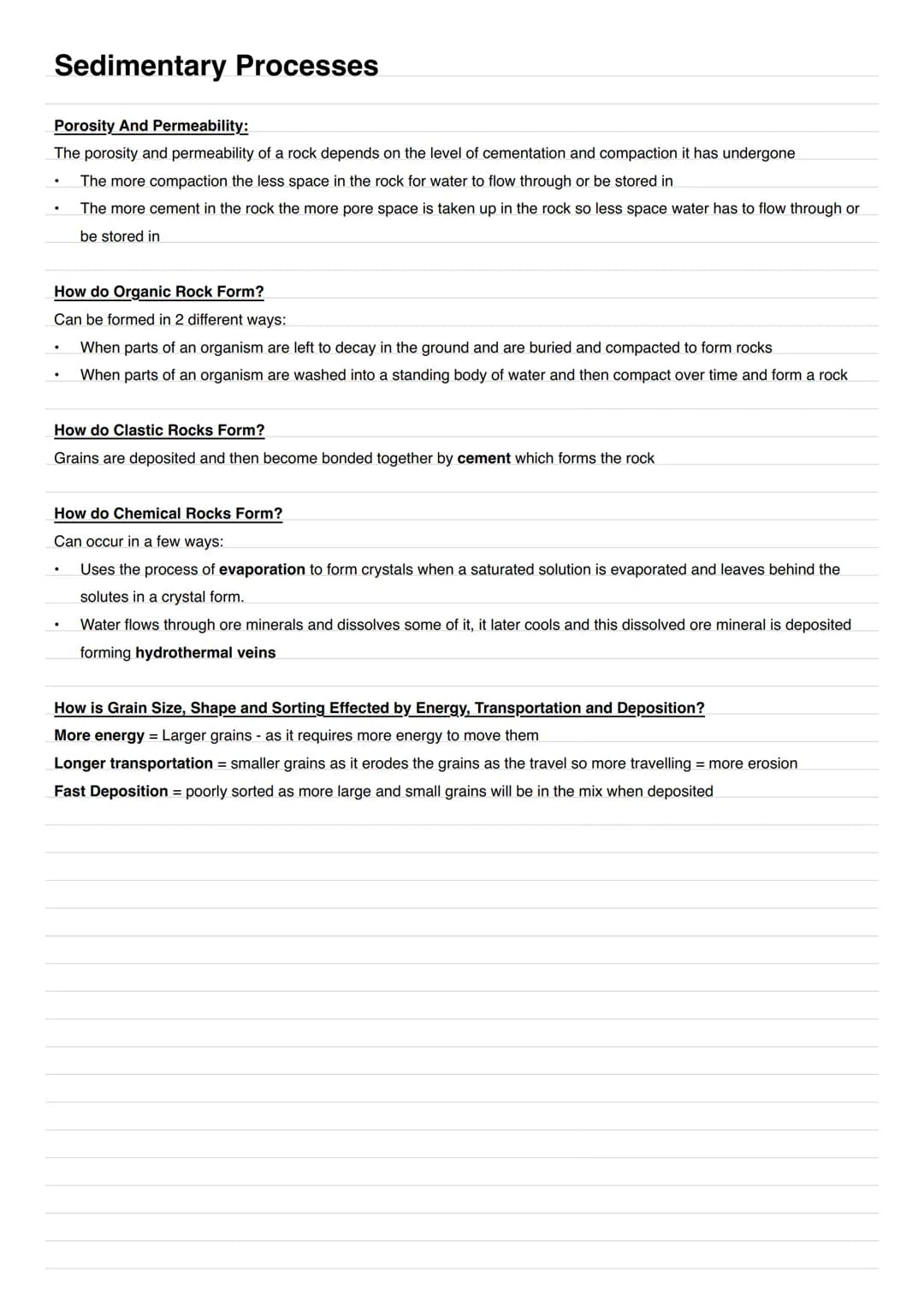

Sedimentary rocks form through complex processes involving the deposition, compaction, and cementation of materials. The formation of these rocks is heavily influenced by porosity and permeability characteristics, which determine how water moves through and is stored within the rock structure.

Definition: Porosity refers to the amount of void space in a rock, while permeability describes how easily fluids can flow through these spaces.

The formation of sedimentary rocks occurs through three main processes: clastic, organic, and chemical deposition. Clastic rocks form when loose sediment grains become cemented together over time. Organic rocks develop either through the burial and compaction of organism remains or when organic matter settles in standing water bodies. Chemical sedimentary rocks form through evaporation of mineral-rich solutions or through hydrothermal processes where dissolved minerals precipitate from cooling solutions.

Energy levels during transportation and deposition play a crucial role in determining sedimentary rock characteristics. Higher energy environments can transport larger grain sizes, while longer transportation distances result in smaller, more rounded grains due to erosion. The speed of deposition affects grain sorting - rapid deposition typically produces poorly sorted deposits with mixed grain sizes, while slower deposition allows for better sorting.

Example: In a river system, you might find larger, poorly sorted grains near the source where energy is high, while downstream deposits show smaller, well-sorted grains due to longer transportation distances.

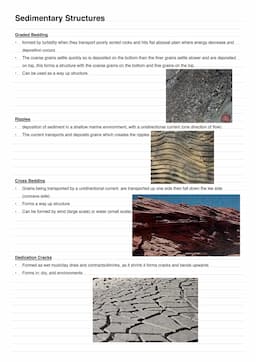

Sedimentary Structures and Their Formation

Sedimentary structures provide crucial evidence about ancient depositional environments and conditions. These structures form through various processes and can be used to determine the original orientation of rock layers.

Graded bedding, a common sedimentary structure, forms through turbidity currents where poorly sorted sediments are deposited as energy decreases. This creates distinctive layers with coarse grains at the bottom and progressively finer grains toward the top. This structure serves as a reliable way-up indicator in geological studies.

Highlight: Sedimentary structures like cross-bedding and ripple marks are essential tools for understanding ancient environmental conditions and determining the original orientation of rock layers.

Cross-bedding forms when sediments are transported by unidirectional currents, creating distinctive angled layers. These structures can form in both wind and water environments, with wind-formed cross-beds typically showing larger scales. Desiccation cracks develop in mud or clay as it dries and contracts, forming characteristic polygonal patterns that indicate exposure to air.

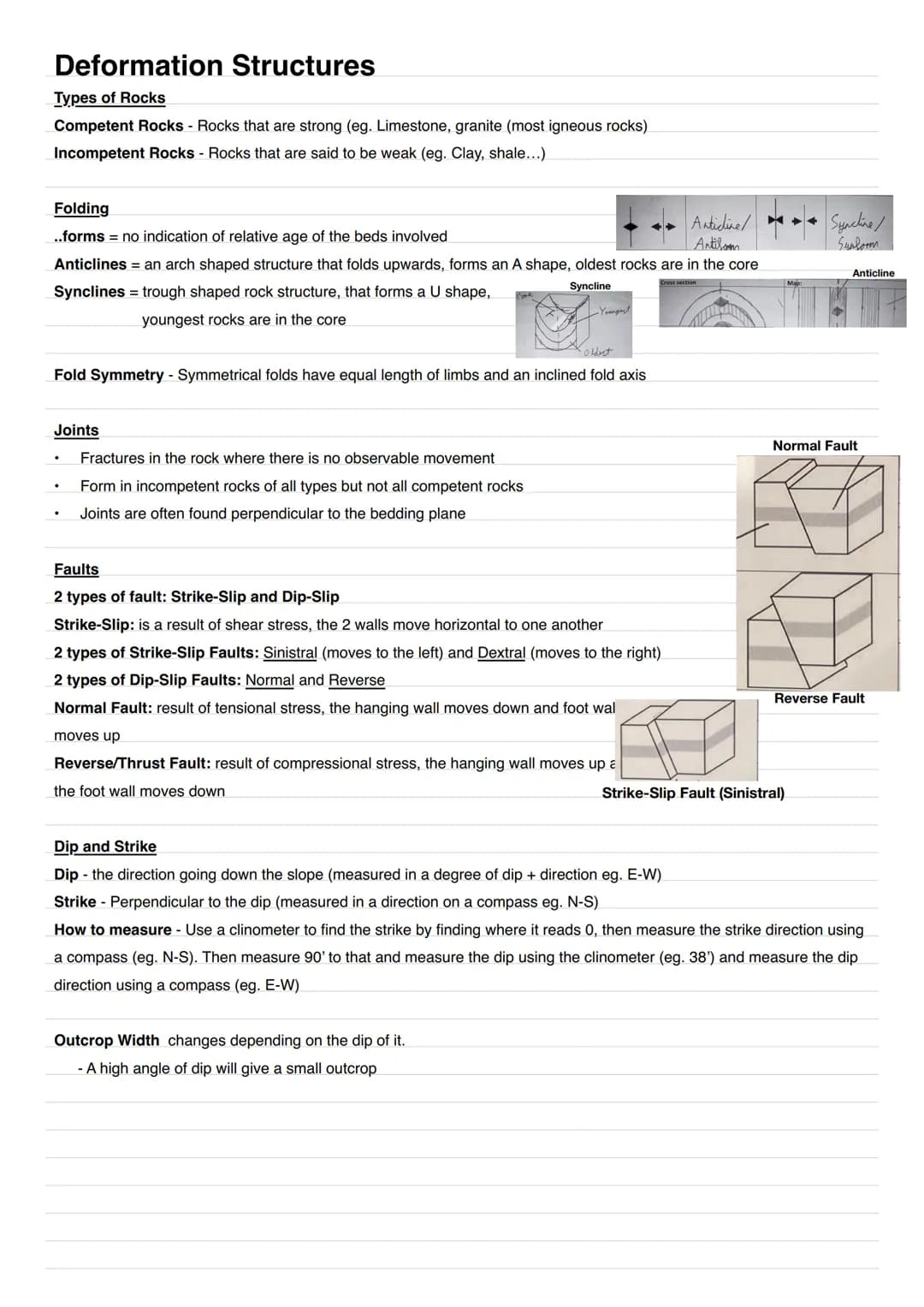

Geological Deformation and Rock Structures

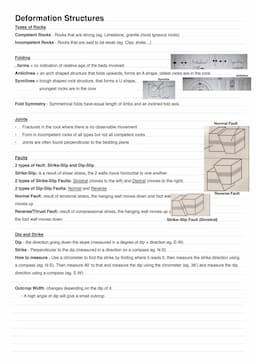

Understanding rock deformation requires knowledge of rock competency and various structural features. Rocks are classified as either competent (strong, like limestone and granite) or incompetent (weak, like clay and shale), which affects how they respond to stress.

Vocabulary: Competent rocks resist deformation and tend to break, while incompetent rocks tend to bend or flow under stress.

Folding occurs when rock layers bend under stress, creating various structures including anticlines (upward-arching folds) and synclines (downward-arching folds). These structures help geologists understand the deformation history of an area and can indicate relative ages of rock layers.

Faults represent breaks in rock masses where observable movement has occurred. They come in two main categories: strike-slip faults (horizontal movement) and dip-slip faults (vertical movement). Understanding fault types and their characteristics is crucial for interpreting geological history and assessing seismic hazards.

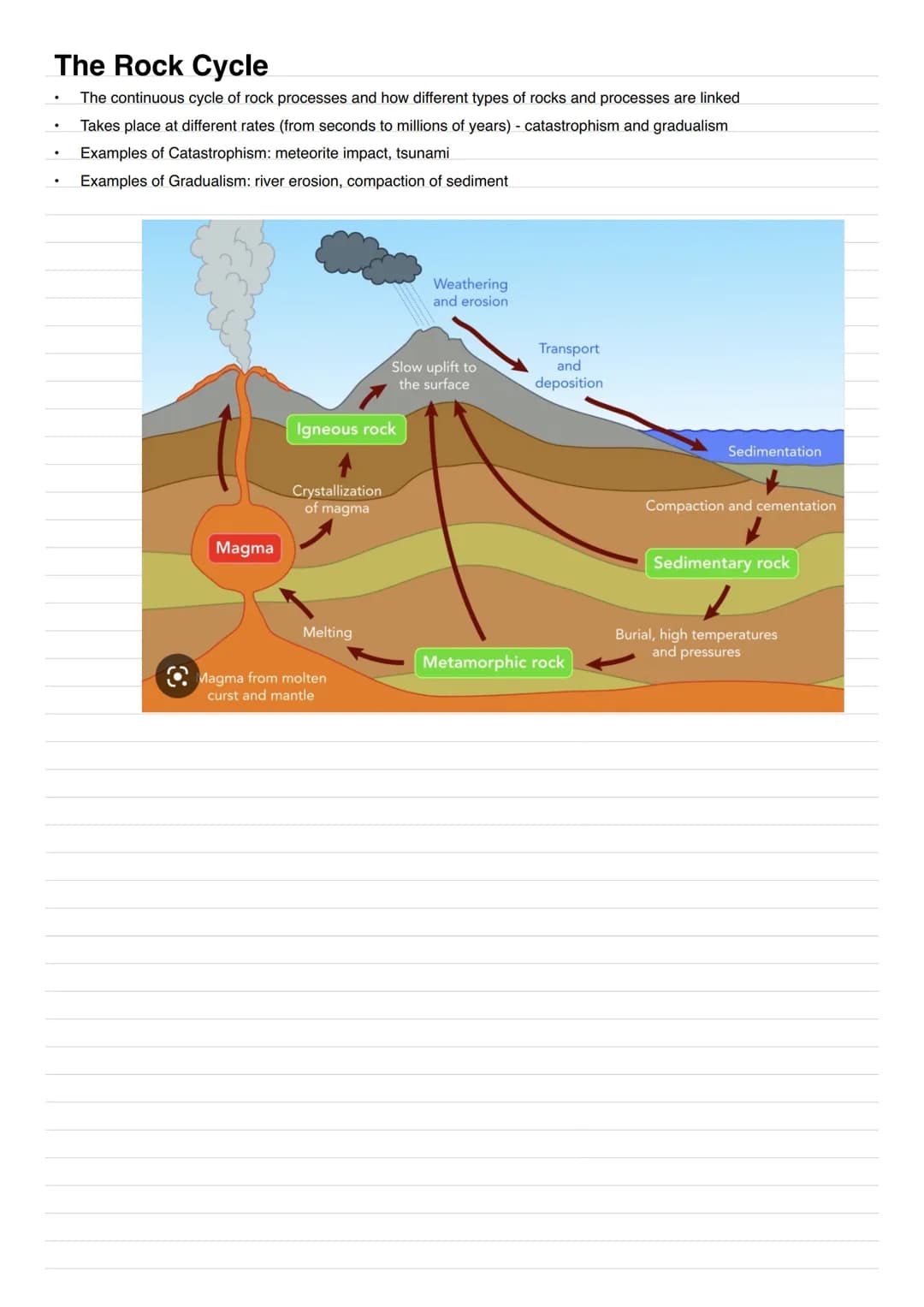

The Rock Cycle and Plate Tectonics

The rock cycle represents the continuous transformation of rocks through various geological processes. This dynamic system involves the formation, destruction, and reformation of rocks through processes like weathering, erosion, deposition, metamorphism, and melting.

Definition: The rock cycle is a fundamental concept in geology that explains how rocks change form through various geological processes over time.

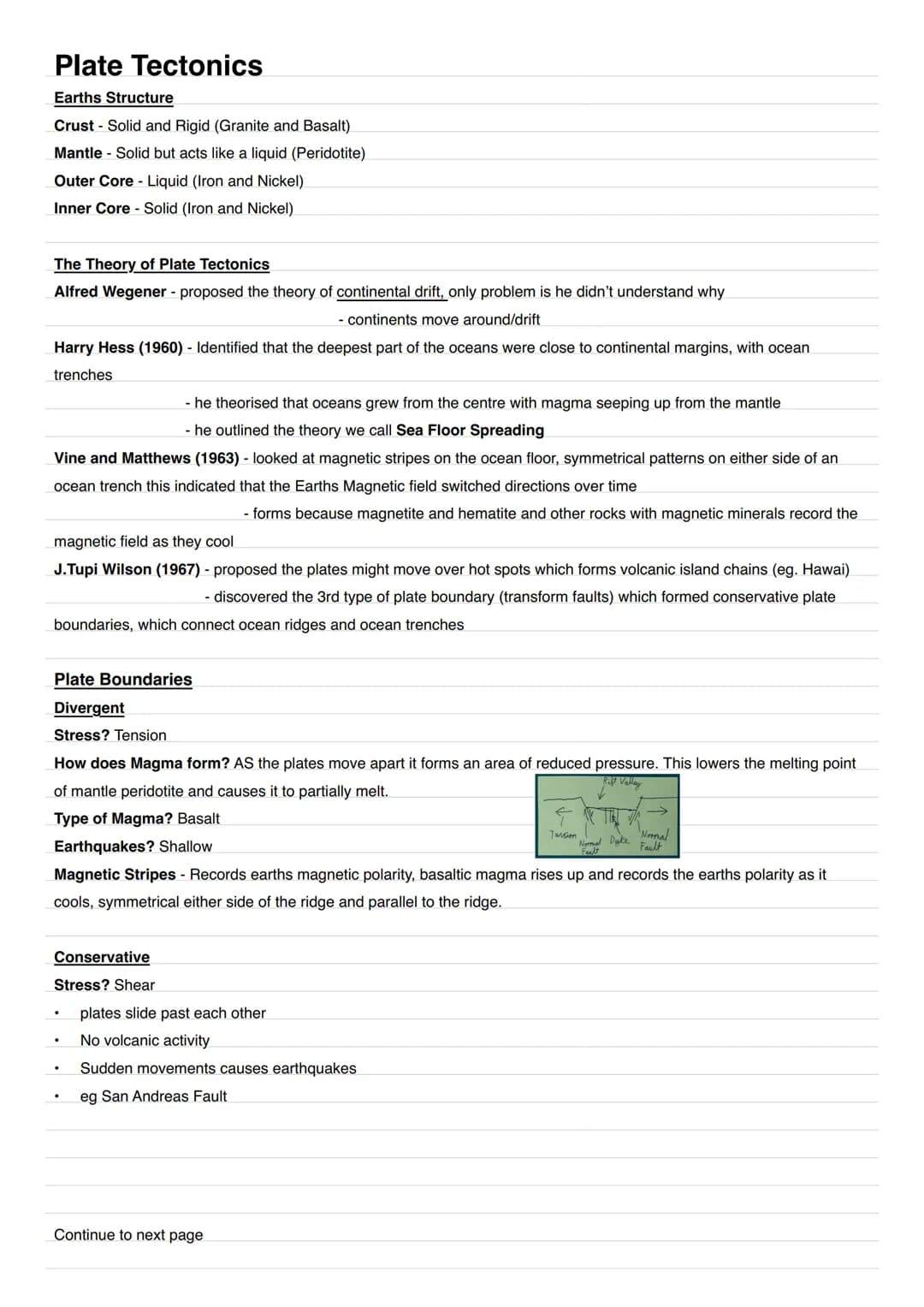

Plate tectonics drives many aspects of the rock cycle. The theory, developed through contributions from scientists like Alfred Wegener and Harry Hess, explains how Earth's crust moves and interacts. Plate boundaries can be divergent (plates moving apart), convergent (plates coming together), or conservative (plates sliding past each other).

These tectonic processes create distinctive features and patterns, such as magnetic stripes on the ocean floor that record Earth's magnetic field reversals. Understanding these patterns and processes helps geologists reconstruct Earth's history and predict future geological events.

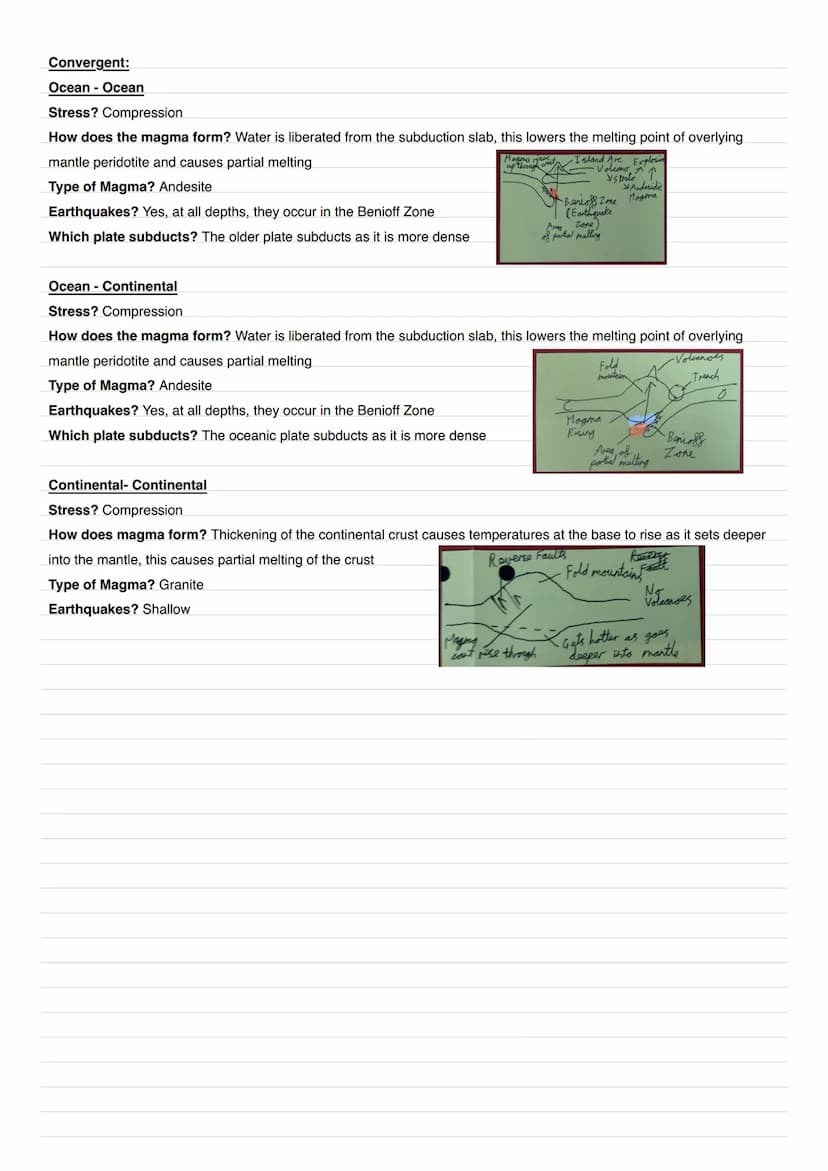

Understanding Plate Convergence and Magma Formation in Geological Systems

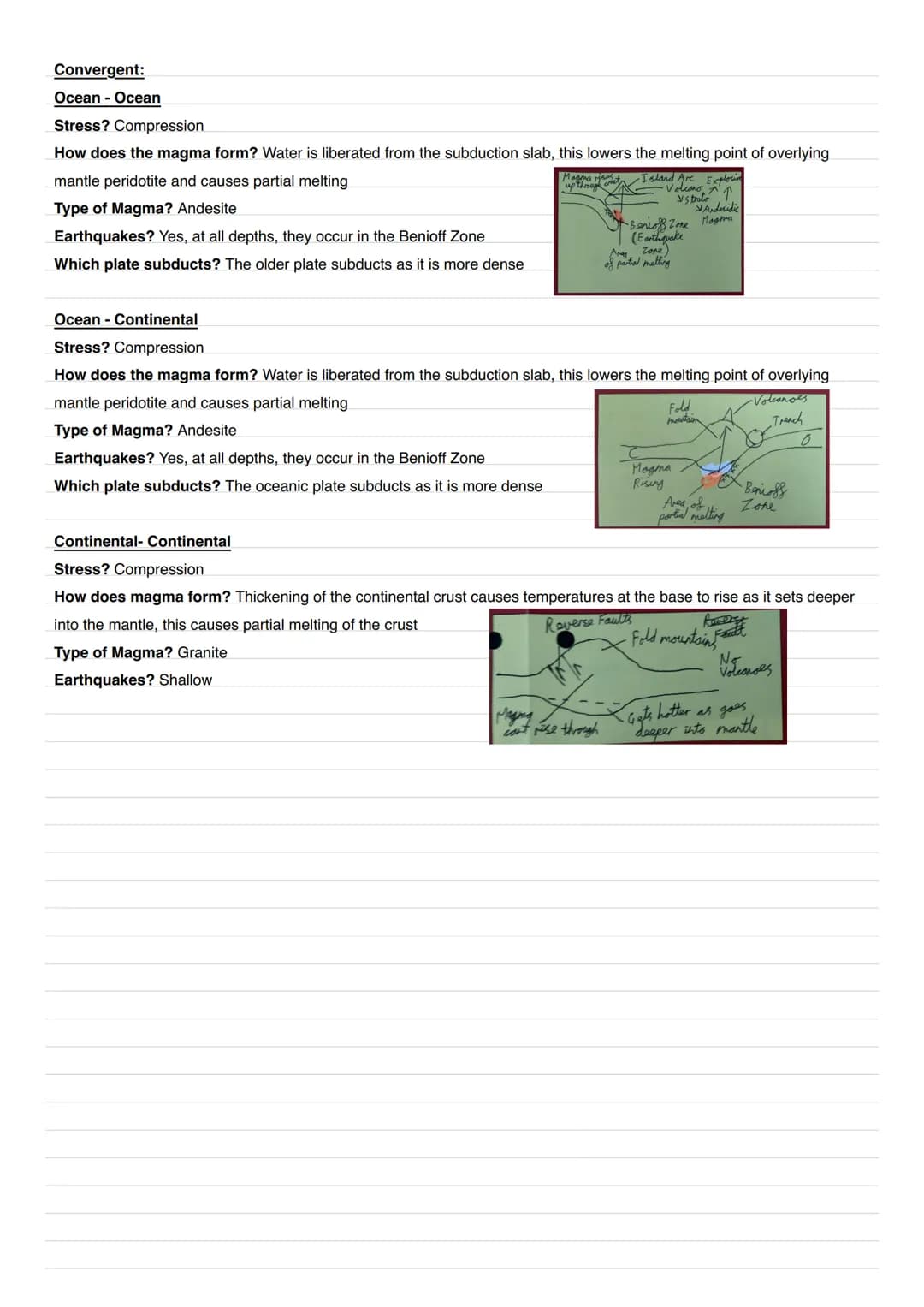

When oceanic plates converge, complex geological processes create distinctive features through compressional forces. In ocean-ocean convergence, the older, denser plate subducts beneath the younger plate, creating a characteristic WJEC Geology A Level study topic. Water released from the subducting slab lowers the melting point of the overlying mantle peridotite, triggering partial melting that produces andesitic magma. This process forms island arc volcanoes and creates the Benioff Zone, where earthquakes occur at various depths.

Definition: The Benioff Zone is a seismically active area that traces the movement of a subducting plate as it descends into the mantle, producing earthquakes at different depths.

Ocean-continental convergence demonstrates similar principles but with distinct outcomes. The denser oceanic plate invariably subducts beneath the continental plate, creating dramatic geological features. This process, essential for WJEC Geology GCSE understanding, produces fold mountains, deep oceanic trenches, and volcanic activity. The magma generated is typically andesitic, forming through the same water-liberation process that occurs in ocean-ocean convergence.

Continental-continental convergence presents unique characteristics in the WJEC Geology A Level past papers. When two continental plates collide, neither subducts due to their similar densities. Instead, the compression creates massive mountain ranges through crustal thickening. As continental crust pushes deeper into the mantle, increased temperatures cause partial melting, producing granitic magma. Unlike other convergent boundaries, these zones typically feature shallow earthquakes and lack volcanic activity.

Geological Structures and Rock Formation Processes

The formation of different rock structures through plate tectonics is fundamental to understanding Characteristics of sedimentary rocks GCSE. In convergent boundaries, compression creates reverse faults where older rocks are pushed up over younger ones. This process is particularly evident in continental collision zones, where intense pressure can result in metamorphic rock formation.

Highlight: The type of magma produced at convergent boundaries directly influences the resulting rock structures and volcanic features, making this crucial for Igneous rocks structures wjec geology notes.

The relationship between plate movement and rock formation demonstrates the Earth's dynamic nature. When studying How minerals are formed for geology wjec pdf, it's essential to understand that different convergent boundaries produce varying mineral assemblages. Ocean-ocean convergence typically results in mineral-rich volcanic islands, while continental convergence creates extensive mineral deposits through metamorphic processes.

The depth of subduction and temperature variations play crucial roles in determining the final rock composition. This concept appears frequently in WJEC Geology Past Papers, where students must demonstrate understanding of how different tectonic environments influence rock formation. The increasing temperature with depth in subduction zones creates distinct zones of metamorphism and mineral formation, each with characteristic assemblages that help geologists interpret past tectonic events.
