Understanding CPU Architecture and the Fetch Decode Execute Cycle

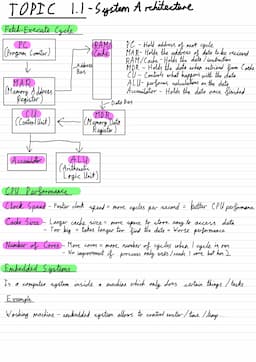

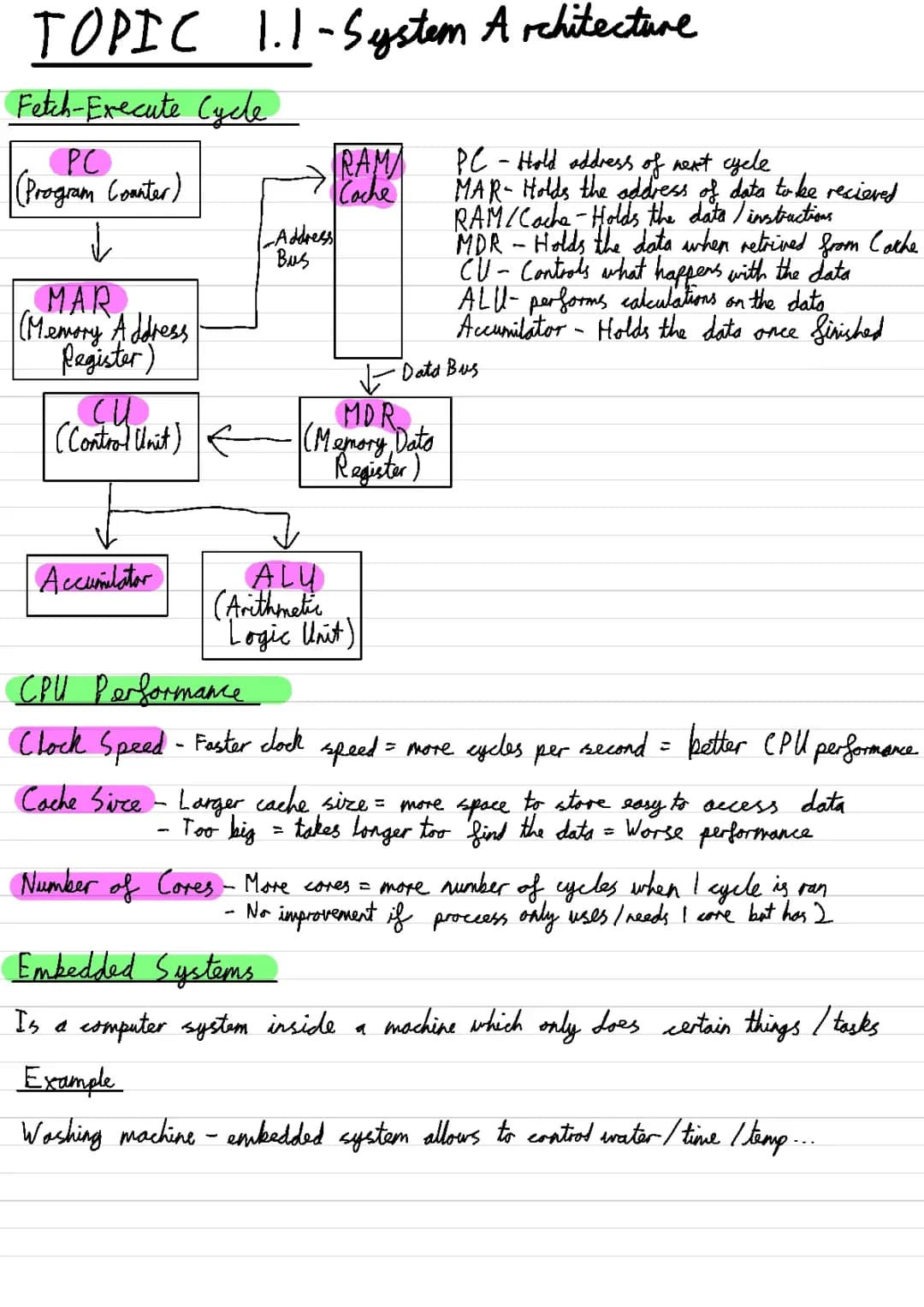

The central processing unit (CPU) operates through a fundamental process known as the Fetch-decode-execute cycle. This cycle forms the backbone of how computers process instructions and data.

The cycle begins when the Program Counter (PC) holds the address of the next instruction to be executed. This address moves to the Memory Address Register (MAR), which works with RAM to locate the specific instruction. The Memory Data Register (MDR) then retrieves and temporarily stores this data. The Control Unit (CU) orchestrates these components while the Arithmetic Logic Unit (ALU) performs calculations, with results stored in the Accumulator.

CPU performance depends on several key factors. Clock speed measures how many cycles the processor can complete per second - higher speeds mean faster processing. Cache size affects how quickly the CPU can access frequently used data, though excessive cache can actually slow performance. Multiple cores allow parallel processing, though benefits only apply when software can utilize multiple cores effectively.

Definition: An embedded system is a specialized computer system built into a larger device to perform specific functions, like the control systems in washing machines that manage water levels, temperature, and cycle timing.

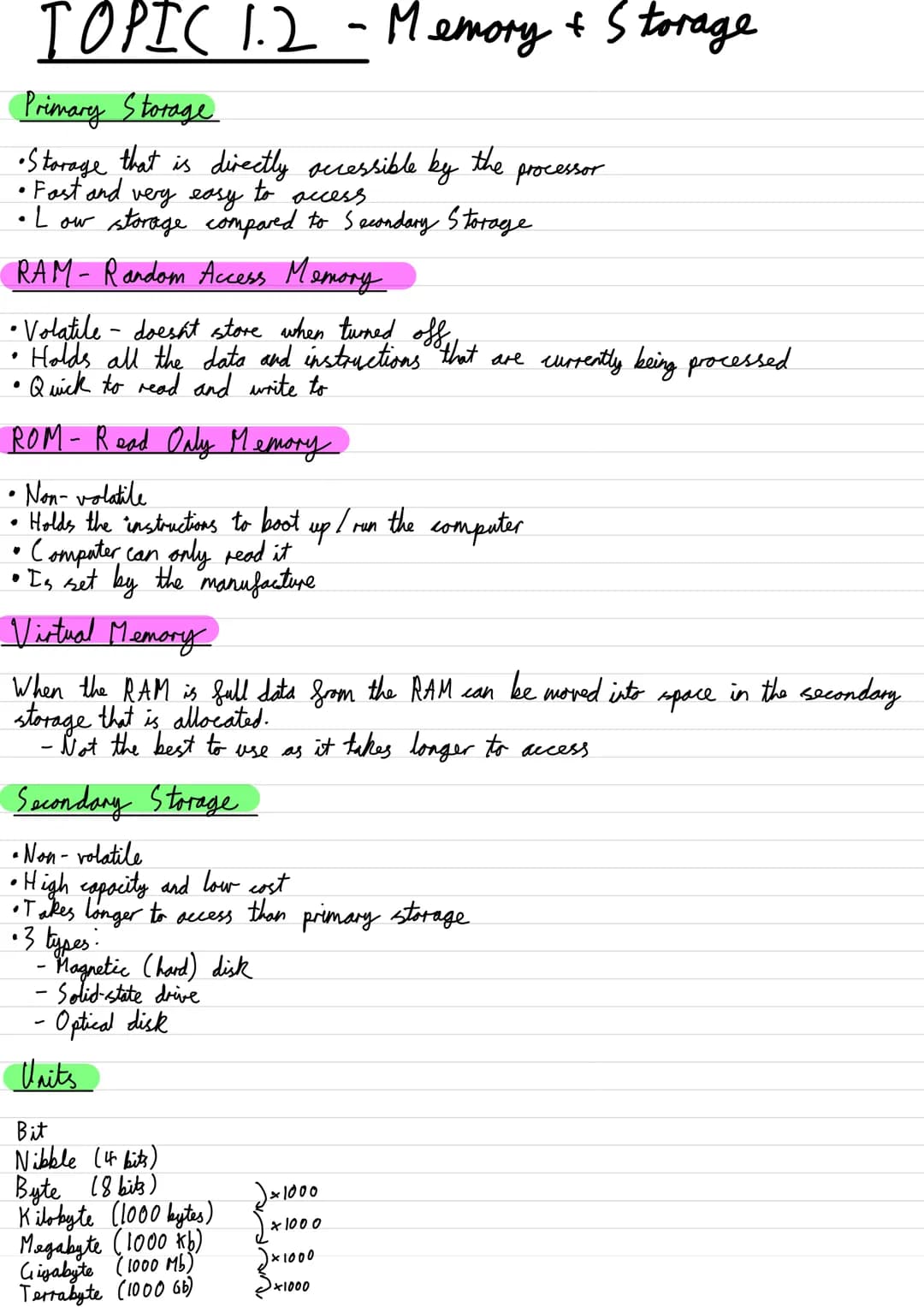

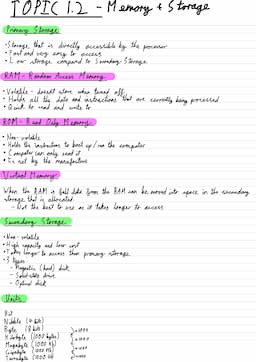

Memory Systems and Storage Hierarchy in Computer Science

Primary storage provides direct access to data and instructions the CPU needs immediately. OCR GCSE Computer Science emphasizes understanding both RAM and ROM in computer systems.

Random Access Memory (RAM) serves as volatile storage, meaning it loses contents when powered off. It holds active programs and data for quick access. Read Only Memory (ROM) provides non-volatile storage containing essential startup instructions that remain even without power.

Secondary storage offers permanent data storage through various technologies. These include magnetic hard drives, solid-state drives, and optical disks. When RAM becomes full, virtual memory can use secondary storage as an overflow, though this reduces performance.

Vocabulary: Storage capacity is measured in increasing units:

• Bit (single binary digit)
• Byte (8 bits)
• Kilobyte (1,000 bytes)
• Megabyte (1,000 KB)
• Gigabyte (1,000 MB)
• Terabyte (1,000 GB)

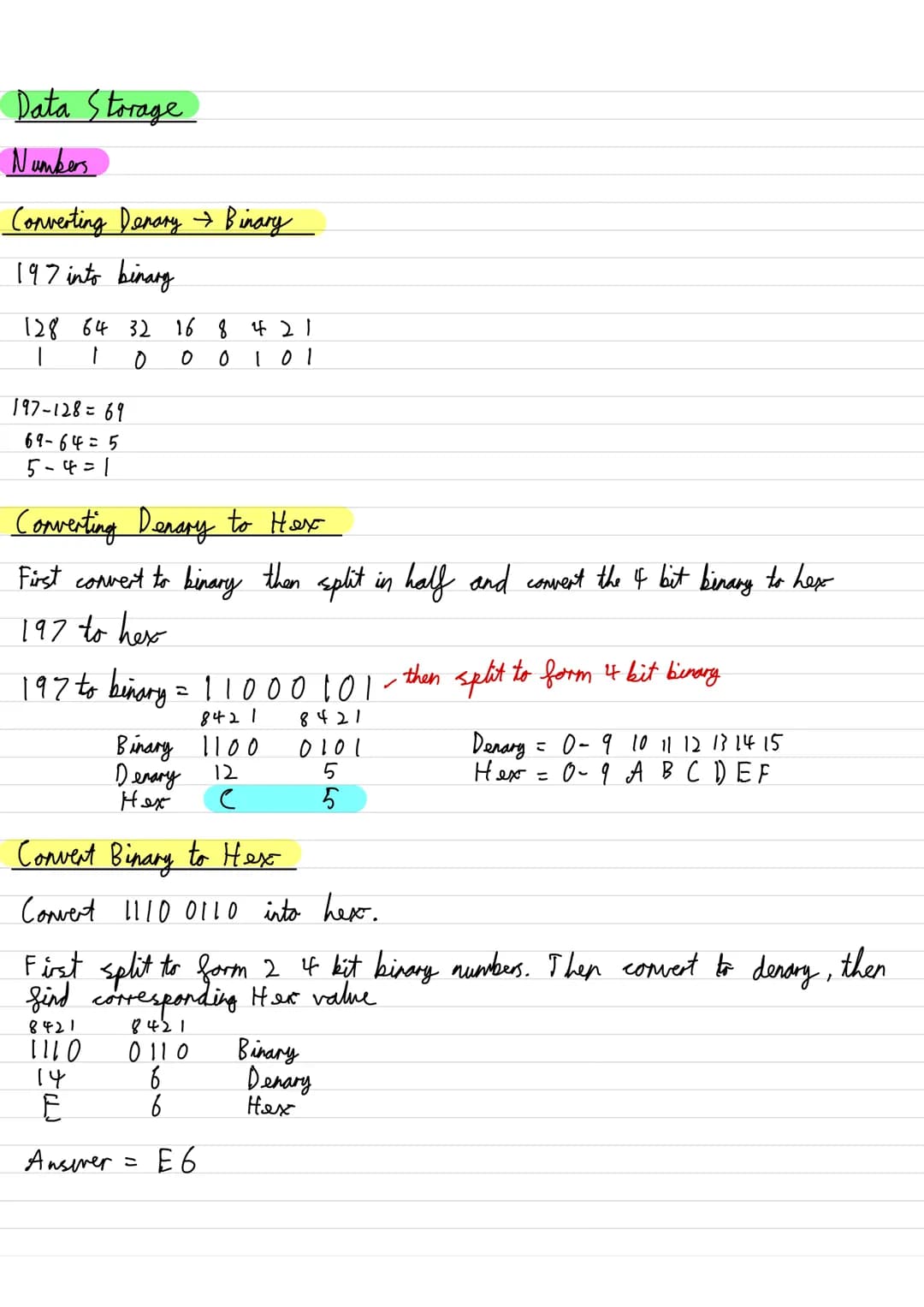

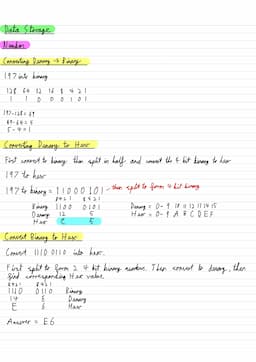

Binary and Hexadecimal Number Systems

Understanding number systems is crucial for OCR Computer Science GCSE specification 2024. Converting between denary $base-10$ and binary $base-2$ requires breaking down numbers into powers of 2.

For example, converting 197 to binary:

1. Find largest power of 2 that fits (128)
2. Subtract and continue (197-128=69)
3. Continue process (69-64=5, 5-4=1)
4. Result: 11000101

Hexadecimal $base-16$ provides a more compact way to represent binary numbers. Converting between binary and hexadecimal involves grouping binary digits into sets of four and matching them to corresponding hex values $0-9, A-F$.

Example: Converting binary 11100110 to hex:

1. Split into groups of 4: 1110 0110
2. Convert each group: 1110 = E, 0110 = 6
3. Result: E6

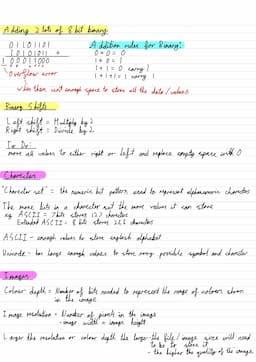

Binary Operations and Character Encoding

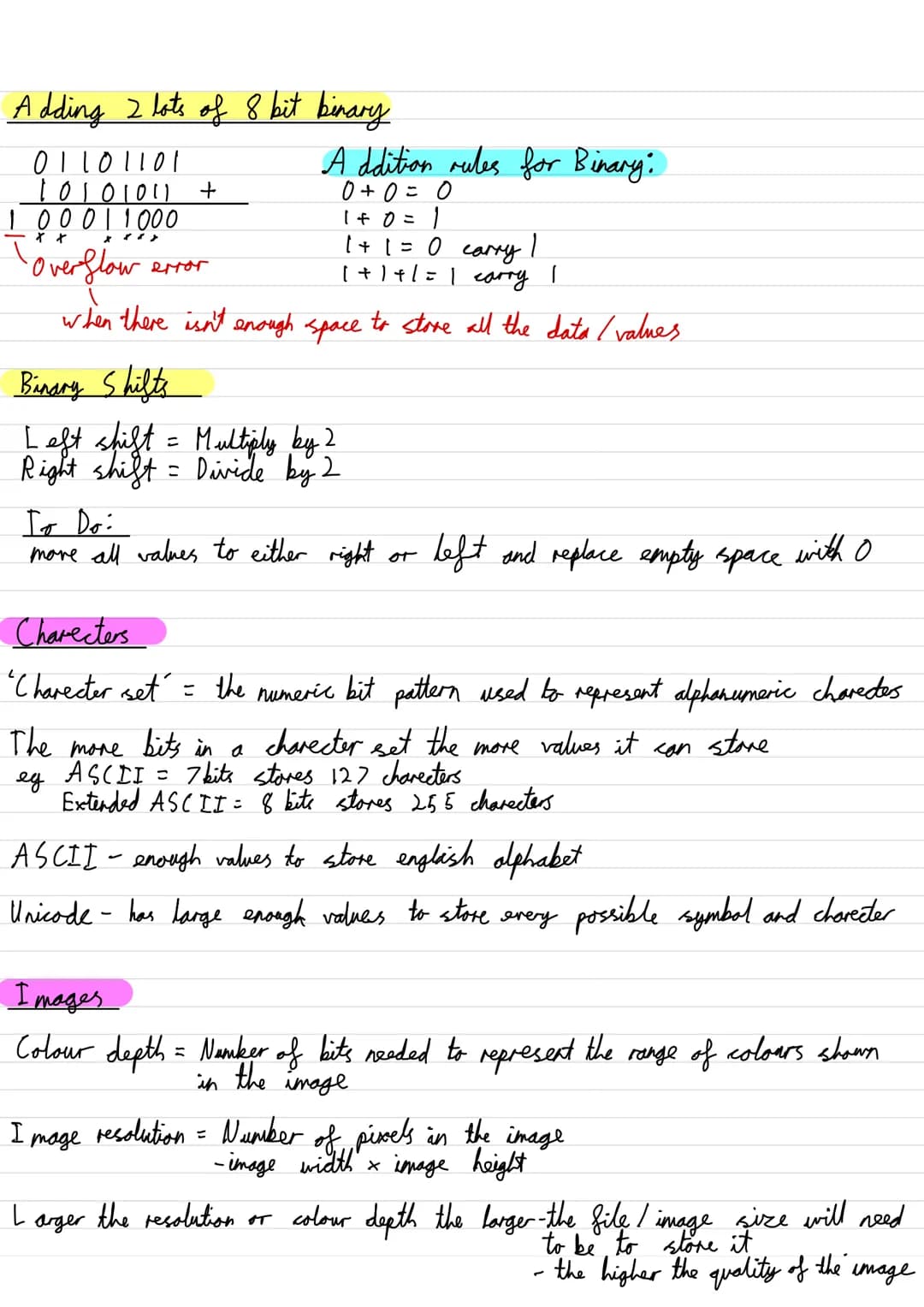

Binary arithmetic follows specific rules for addition: 0+0=0, 1+0=1, 1+1=0 (carry 1). When adding 8-bit numbers, overflow occurs if the result requires more than 8 bits to represent.

Binary shifts provide efficient multiplication and division operations. Left shifts multiply by 2, while right shifts divide by 2. This is crucial for understanding how computers perform calculations efficiently.

Character encoding systems like ASCII and Unicode convert text into binary representations. ASCII uses 7 or 8 bits per character, sufficient for English text, while Unicode supports multiple languages and symbols using more bits per character.

Highlight: Image resolution and color depth determine digital image file sizes. Resolution is calculated as width × height in pixels, while color depth represents how many bits encode each pixel's color. Higher values in either increase quality but require more storage space.

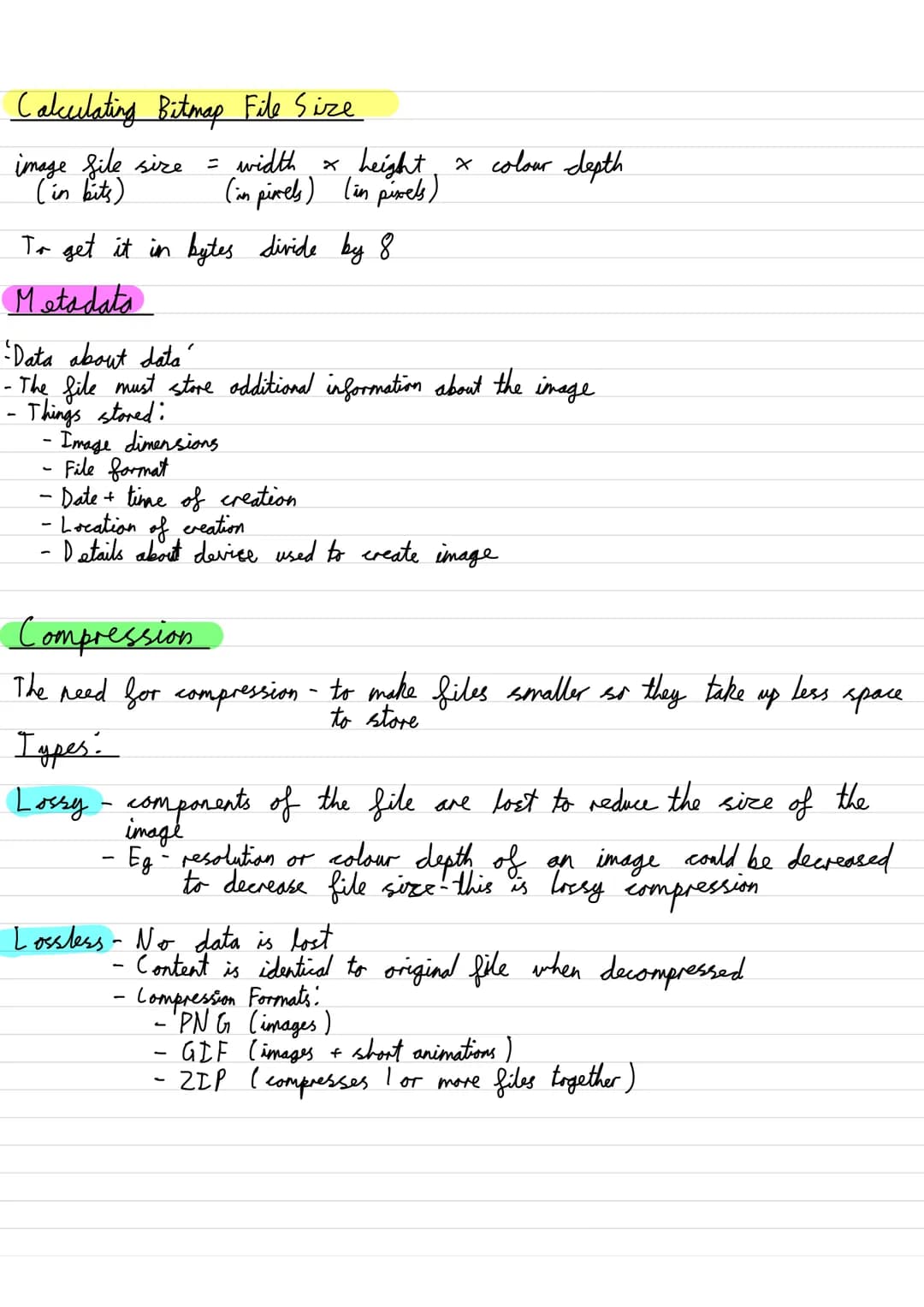

Understanding Bitmap Images and File Compression

A bitmap image's size depends on three key factors: width, height, and color depth. The Understanding binary conversions in computer science gcse principles apply when calculating bitmap file sizes, as the total size in bits equals width × height × color depth. To convert this to bytes, divide by 8.

Metadata plays a crucial role in digital image storage by containing essential information about the file. This includes image dimensions, file format, creation date and time, location data, and device specifications. Understanding metadata helps manage and organize digital assets effectively.

File compression becomes necessary to optimize storage space and transmission speeds. Two primary compression methods exist: lossy and lossless. Lossy compression reduces file size by permanently removing some data, like decreasing resolution or color depth. Lossless compression maintains perfect file integrity while reducing size through efficient encoding.

Definition: Compression formats serve different purposes:

• PNG: Ideal for images requiring transparency
• GIF: Suitable for simple animations and images
• ZIP: Combines multiple files into one compressed archive

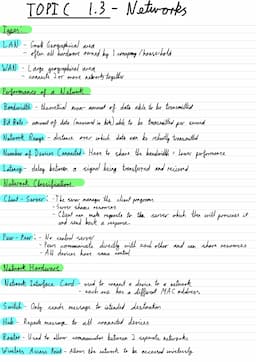

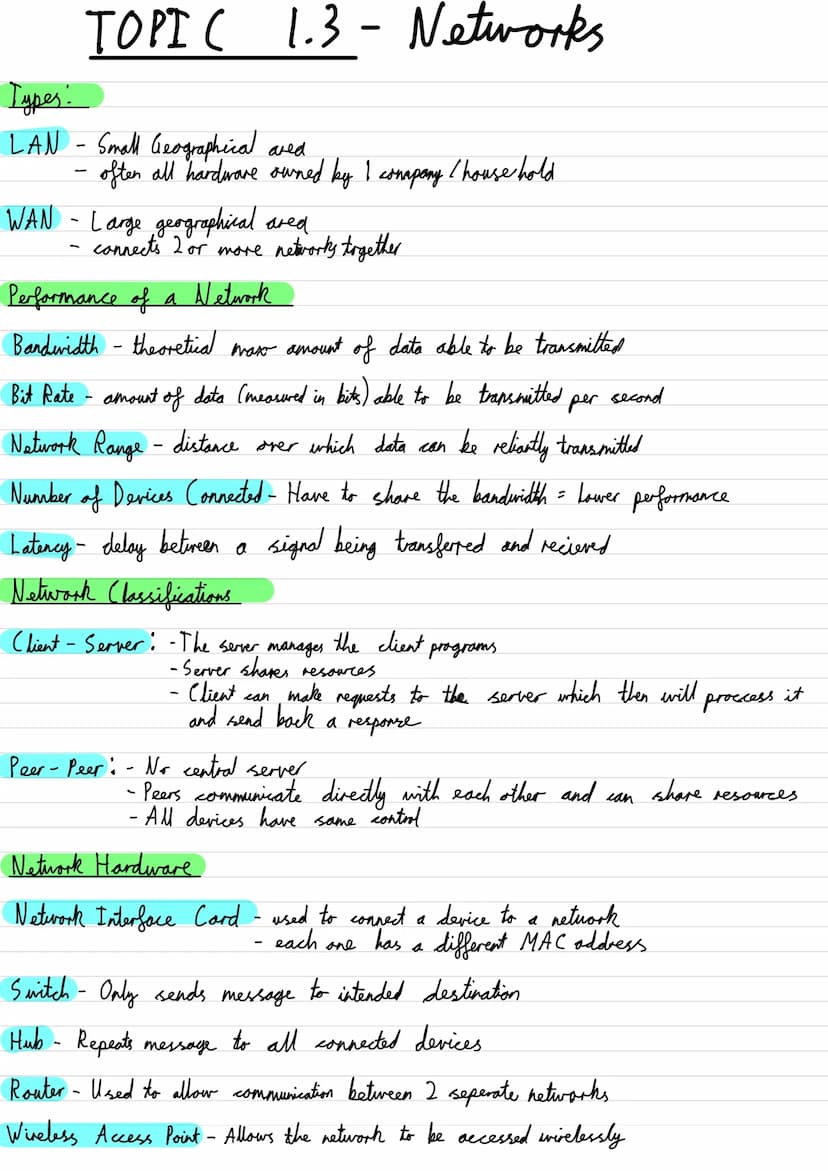

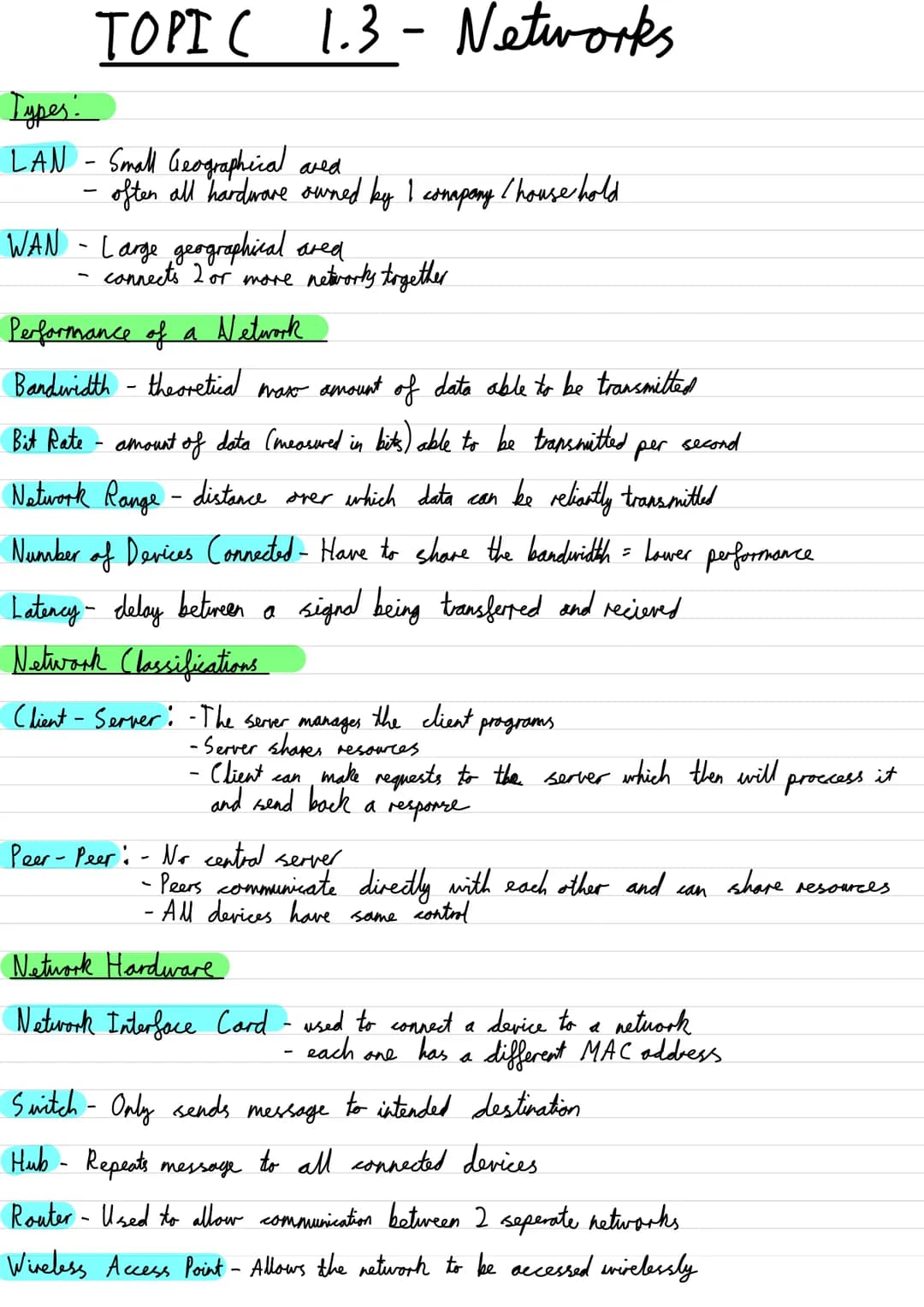

Network Types and Performance Factors

Local Area Networks (LANs) and Wide Area Networks (WANs) form the backbone of modern digital communications. LANs operate within limited geographical areas, typically owned by a single organization. WANs connect multiple networks across vast distances, enabling global connectivity.

Network performance depends on several critical factors. Bandwidth represents the theoretical maximum data transmission capacity, while bit rate measures actual data transfer speed. Network range, device count, and latency all impact overall performance.

Highlight: Key network classifications include:

• Client-Server: Centralized resource management
• Peer-to-Peer: Distributed control and direct communication

Essential network hardware components include Network Interface Cards (NICs), switches, hubs, routers, and Wireless Access Points. Each component serves specific functions in maintaining network connectivity and data flow.

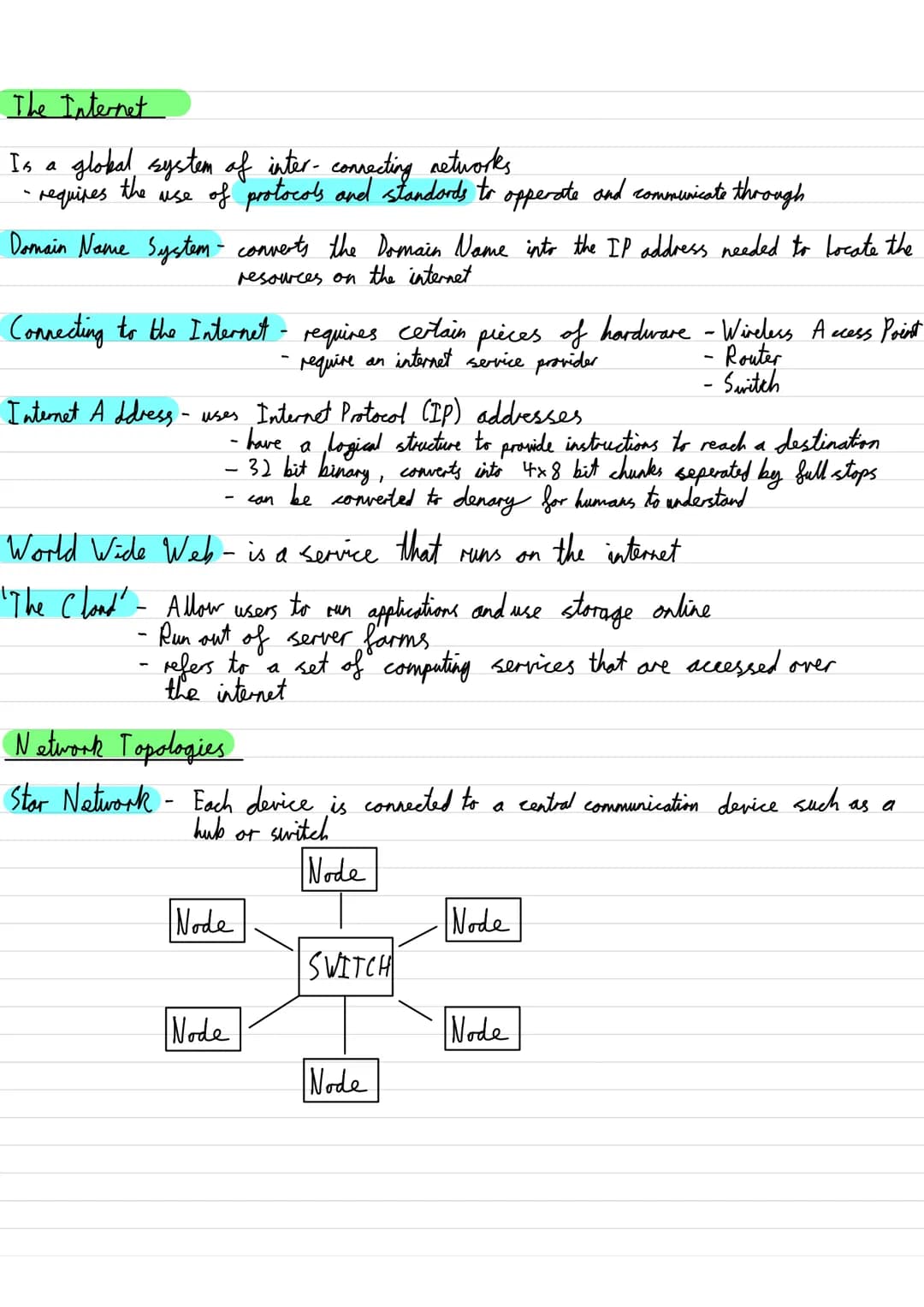

Internet Architecture and Web Technologies

The internet operates through interconnected networks using standardized protocols. The Domain Name System (DNS) converts human-readable domain names into IP addresses, enabling resource location across the internet. The Fetch decode execute cycle principles apply to how computers process these instructions.

Internet addressing uses IP protocols, with addresses structured as 32-bit binary numbers divided into four 8-bit segments. These can be converted to denary for human readability. The World Wide Web represents just one service running on the internet infrastructure.

Cloud computing has revolutionized how we access applications and storage. Server farms host these services, allowing users to run applications and store data remotely through internet connections.

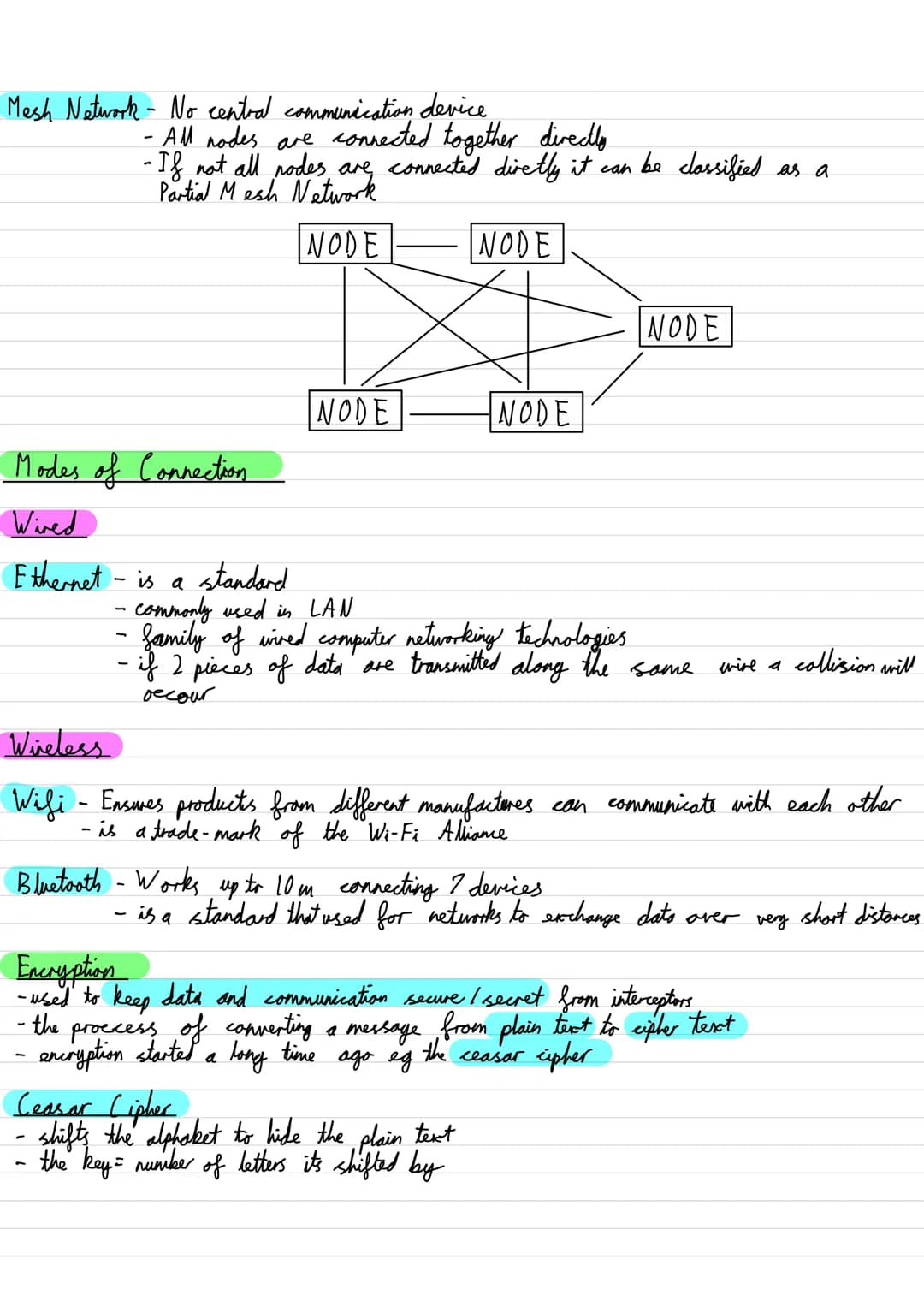

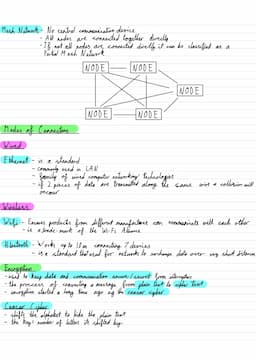

Example: Network topologies include:

• Star: Devices connect to a central hub
• Mesh: Devices connect directly to each other
• Partial Mesh: Some devices connect directly while others route through intermediaries

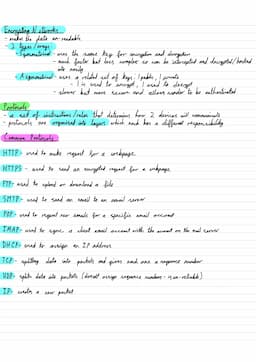

Network Security and Communication Protocols

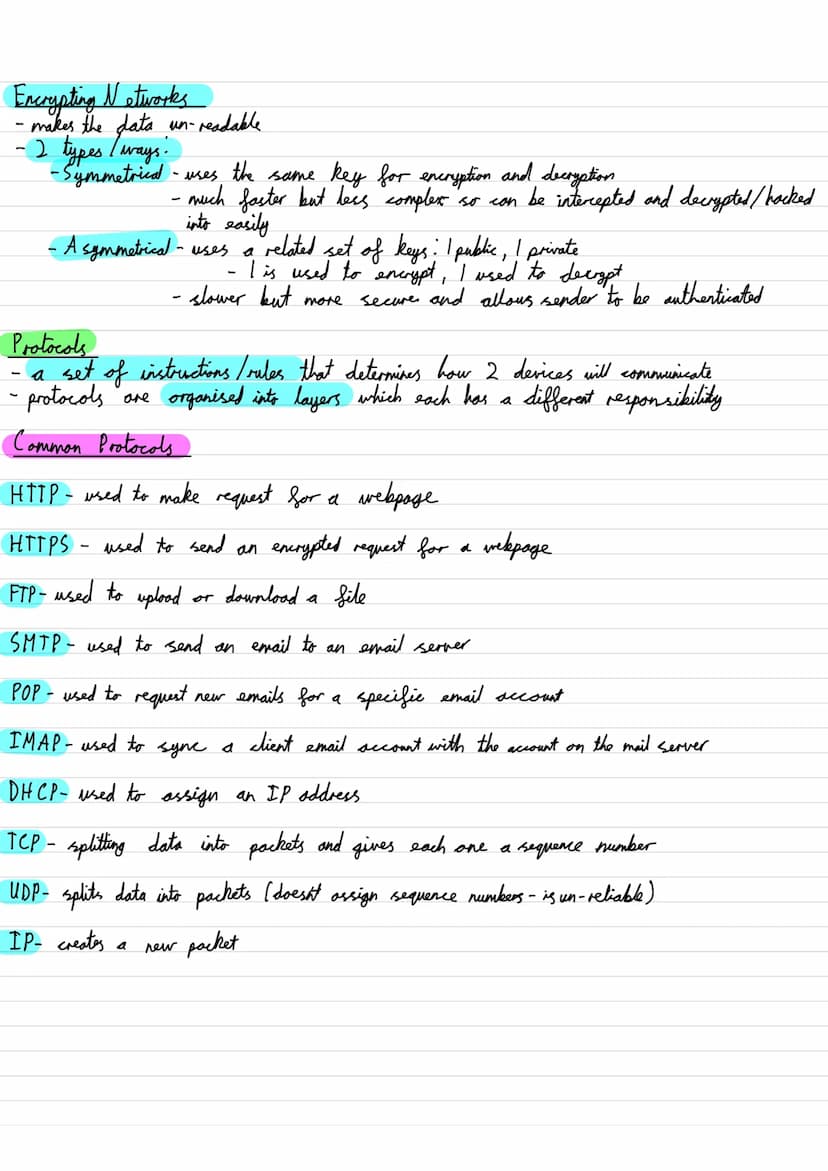

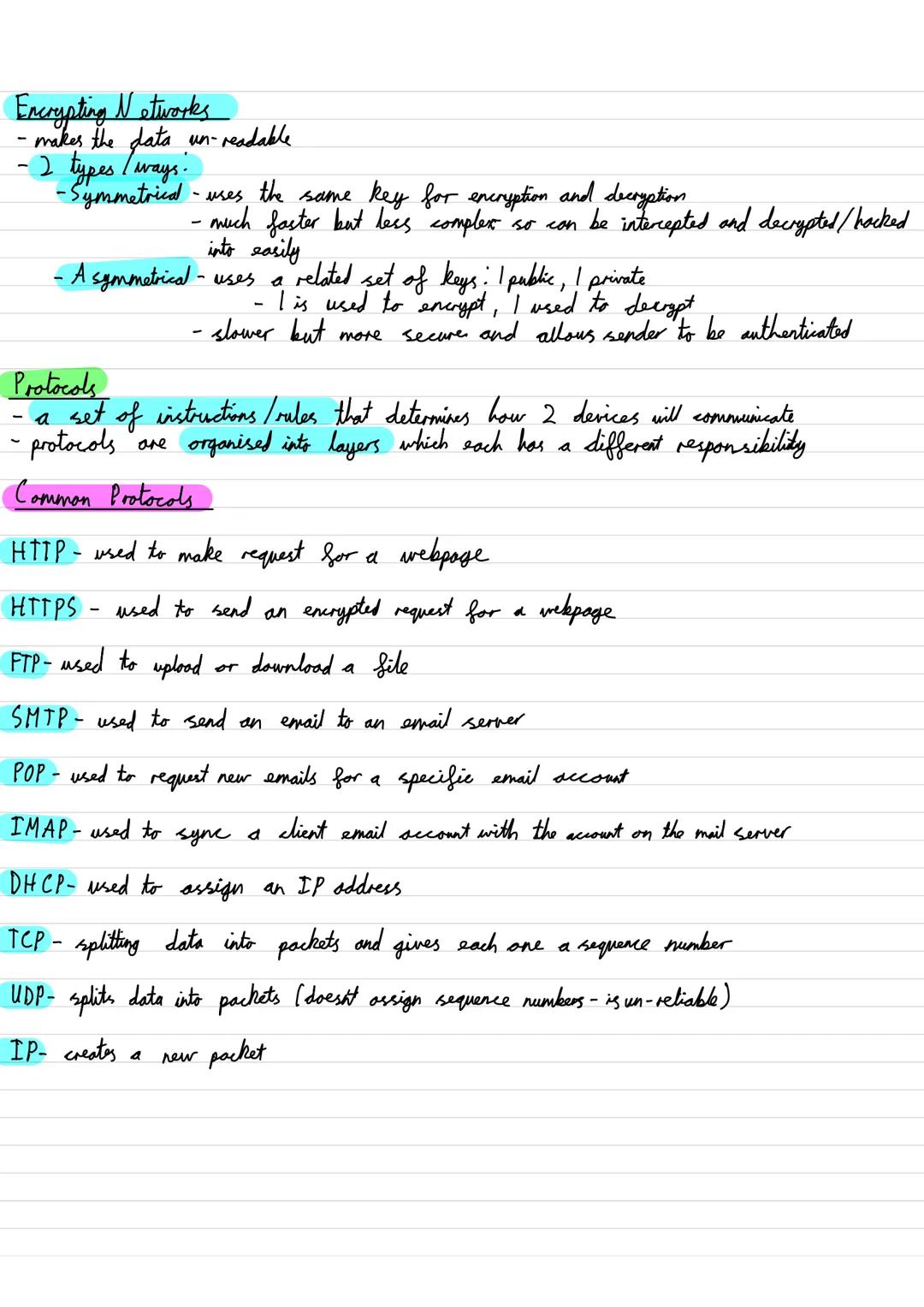

Network security relies heavily on encryption to protect data transmission. The Fetch-decode-execute cycle a Level concepts parallel how encryption processes work, transforming plain text into cipher text through various algorithms.

Two main encryption types exist: symmetrical and asymmetrical. Symmetrical encryption uses a single key for both encryption and decryption, offering speed but potentially lower security. Asymmetrical encryption employs public and private key pairs, providing stronger security and authentication capabilities.

Communication protocols establish rules for device interaction, organized in layers with specific responsibilities. Common protocols include HTTP(S) for web browsing, FTP for file transfer, SMTP/POP/IMAP for email, and TCP/UDP for data packet management.

Vocabulary: Essential protocols:

• HTTP/HTTPS: Web page requests and secure browsing
• FTP: File transfer
• SMTP/POP/IMAP: Email services
• TCP/UDP: Data packet handling
• IP: Packet addressing and routing

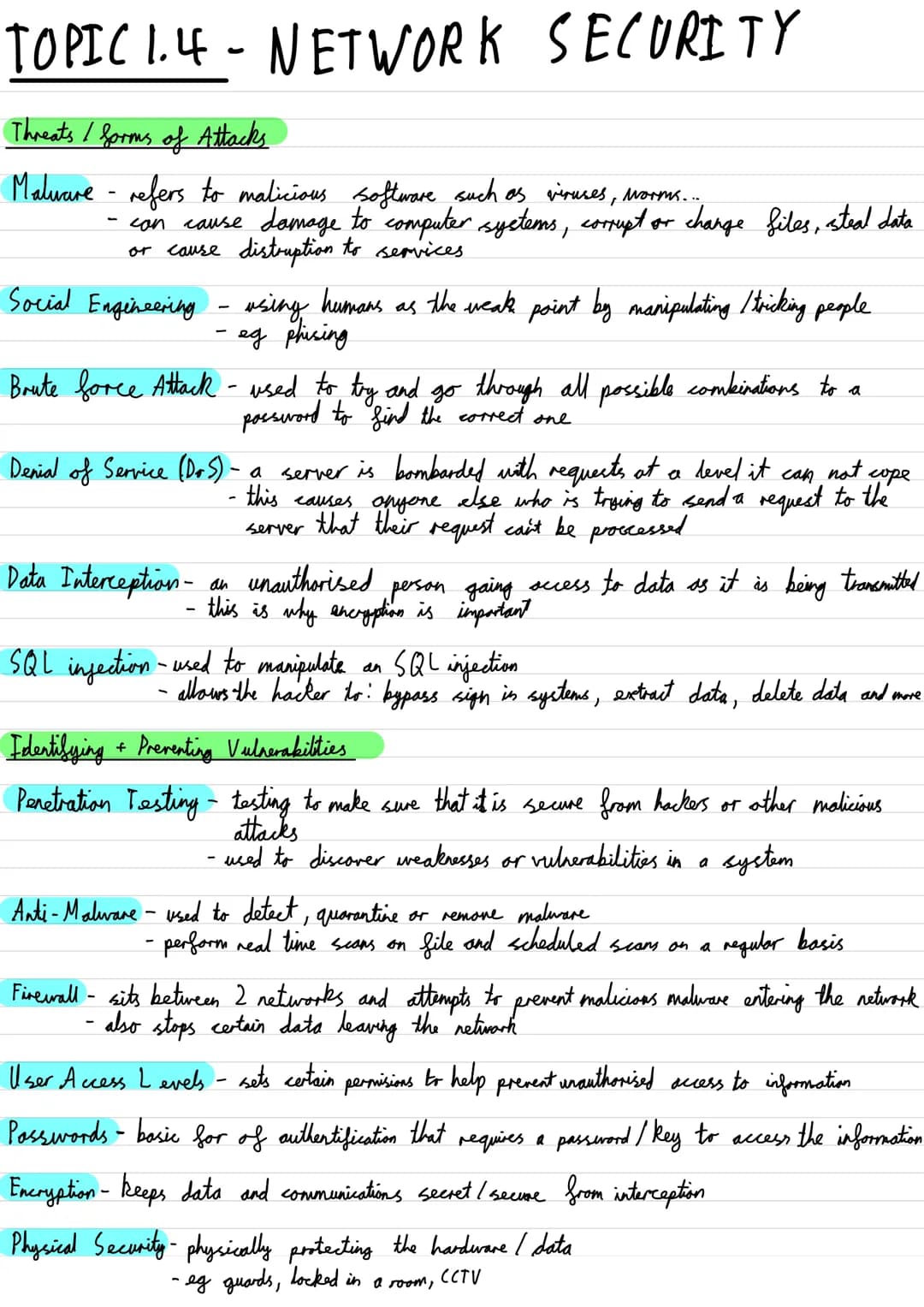

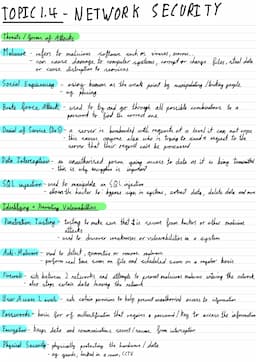

Network Security in Computer Science: Understanding Threats and Prevention

Network security forms a critical component of modern computing systems, protecting valuable data and resources from various cyber threats. Understanding these threats and implementing robust security measures is essential for maintaining system integrity.

Definition: Network security refers to the practices and policies implemented to prevent and monitor unauthorized access, misuse, modification, or denial of computer network resources.

Malicious attacks come in various forms, each targeting different vulnerabilities in computer systems. Fetch decode execute cycle implementations can be compromised through sophisticated attacks, while basic system operations including binary conversions in computer science remain susceptible to various security threats. Common attack methods include malware, which encompasses viruses and worms that can corrupt files and steal data. Social engineering attacks exploit human psychology through techniques like phishing, while brute force attacks systematically attempt every possible password combination to gain unauthorized access.

Denial of Service (DoS) attacks represent a particularly disruptive threat, overwhelming servers with excessive requests until legitimate users cannot access services. Data interception poses another significant risk, where unauthorized individuals capture sensitive information during transmission. SQL injection attacks manipulate database queries to bypass security measures, potentially allowing attackers to extract or modify data at will.

Highlight: Essential security measures include:

• Penetration testing to identify system vulnerabilities
• Anti-malware software for real-time protection
• Firewalls to control network traffic
• User access levels to manage permissions
• Strong password policies
• Data encryption
• Physical security measures

Implementing Effective Network Security Measures

Modern network security requires a comprehensive approach combining technical solutions with practical policies. The OCR GCSE Computer Science specification emphasizes understanding these security measures as fundamental knowledge for students pursuing computer science education.

Organizations must implement multiple layers of security to protect against various attack vectors. Penetration testing serves as a proactive measure, systematically probing systems for weaknesses before malicious actors can exploit them. Anti-malware solutions provide continuous protection against evolving threats, performing real-time scans and scheduled system checks to identify and neutralize malicious software.

Example: A typical security implementation might include:

1. Firewall configuration blocking unauthorized access
2. Regular anti-malware scans
3. Encrypted data transmission
4. Multi-factor authentication
5. Physical security controls

Physical security remains crucial despite the focus on digital protection. This includes measures like security guards, restricted access areas, and surveillance systems. These physical safeguards complement digital security measures, creating a comprehensive security framework that protects both hardware and data assets.

Vocabulary: Key security terms:

• Malware: Malicious software designed to damage or disrupt systems
• Phishing: Social engineering attack attempting to steal sensitive information
• Encryption: Process of encoding data to prevent unauthorized access
• Penetration Testing: Authorized simulation of cyberattacks to test system security
