Venn Diagram Notation and Operations
This page provides a comprehensive overview of Venn diagram notation and operations, focusing on two-set and three-set diagrams. The illustrations demonstrate various set relationships and operations, which are fundamental in set theory and logic.
Definition: A Venn diagram is a graphical representation of sets using overlapping circles or other shapes to show relationships between different groups of things.

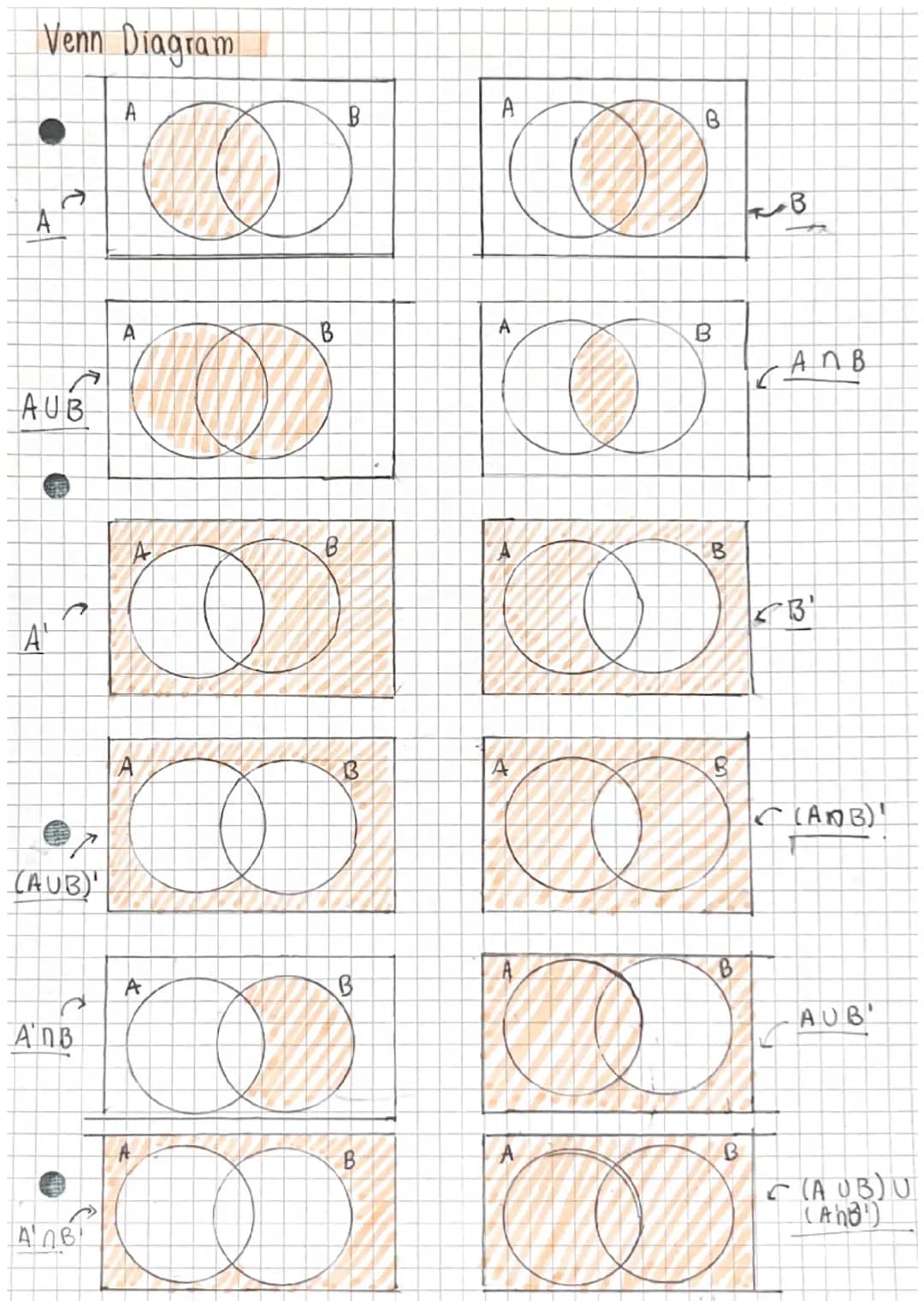

The diagram showcases several key concepts:
-
Set Representation: Individual sets are represented by circles labeled A and B.
-
Union (AUB): This operation combines all elements from both sets A and B.
Vocabulary: The union of two sets A and B, denoted as AUB, includes all elements that belong to either A or B or both.
- Intersection (AnB): This represents the elements common to both sets A and B.
Example: In a Venn diagram intersection, the overlapping region of circles A and B represents AnB.
- Complement: The complement of a set, denoted with a prime symbol ('), represents all elements not in that set.
Highlight: The complement of the union (AUB)' is a crucial concept in set theory, representing all elements that are neither in A nor in B.
- Exclusive Regions: Areas within one circle but outside the other represent elements unique to that set.
The page also illustrates more complex operations:
- Three-Set Venn Diagrams: These show relationships between three sets, often labeled A, B, and C.
Vocabulary: In a three-circle Venn diagram, the central region where all circles overlap represents the intersection of all three sets (AnBnC).
- Shading: Different regions are shaded to represent specific set operations or combinations.
Understanding these notations and operations is crucial for solving problems involving set theory, logic, and probability. Students can use this visual guide to interpret and construct Venn diagrams for various mathematical and logical scenarios.
Example: A Venn diagram union of 3 sets would include all elements from sets A, B, and C, represented by the entire area covered by all three circles.
This comprehensive overview of Venn diagram notation provides a solid foundation for students to tackle more complex problems in set theory and related mathematical fields.
