Exploring Transformations and Vectors in Geometry

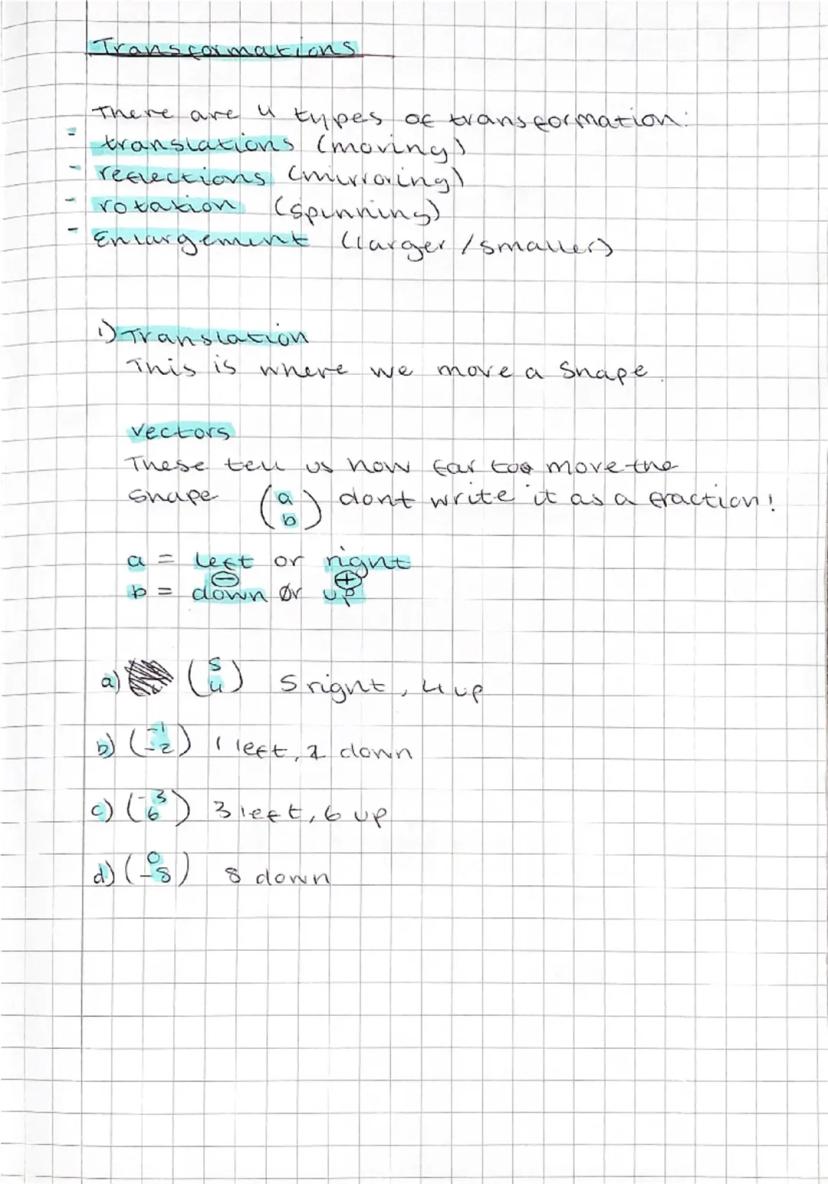

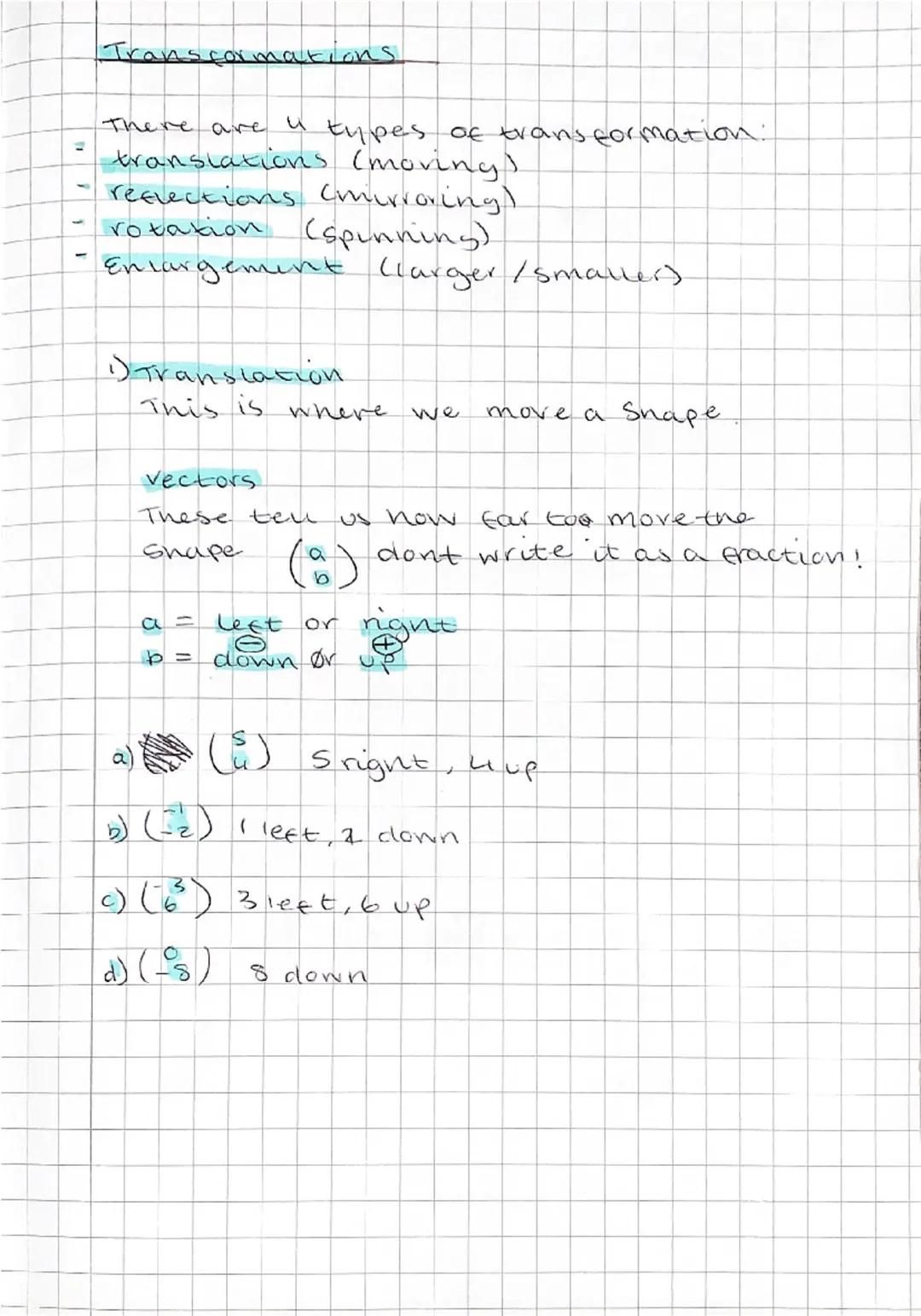

Types of Transformations

Ever wondered how video game characters move around the screen or how architects resize building plans? That's all down to transformations - and there are exactly four types you need to know.

The four transformation types are translations (moving shapes), reflections (creating mirror images), rotations (spinning shapes around a point), and enlargements (making shapes bigger or smaller). Each one follows specific rules that make maths predictable and logical.

Translation is the simplest - you're just sliding a shape from one position to another without changing its size or orientation. Think of it like moving a piece on a chess board.

Vectors tell you exactly how to move during translation. They're written as $\begin{pmatrix} a \\ b \end{pmatrix}$ where 'a' means left/right movement and 'b' means up/down movement. For example, $\begin{pmatrix} 5 \\ 4 \end{pmatrix}$ means move 5 units right and 4 units up.

Quick Tip: Negative numbers in vectors mean opposite directions - negative 'a' goes left, negative 'b' goes down!

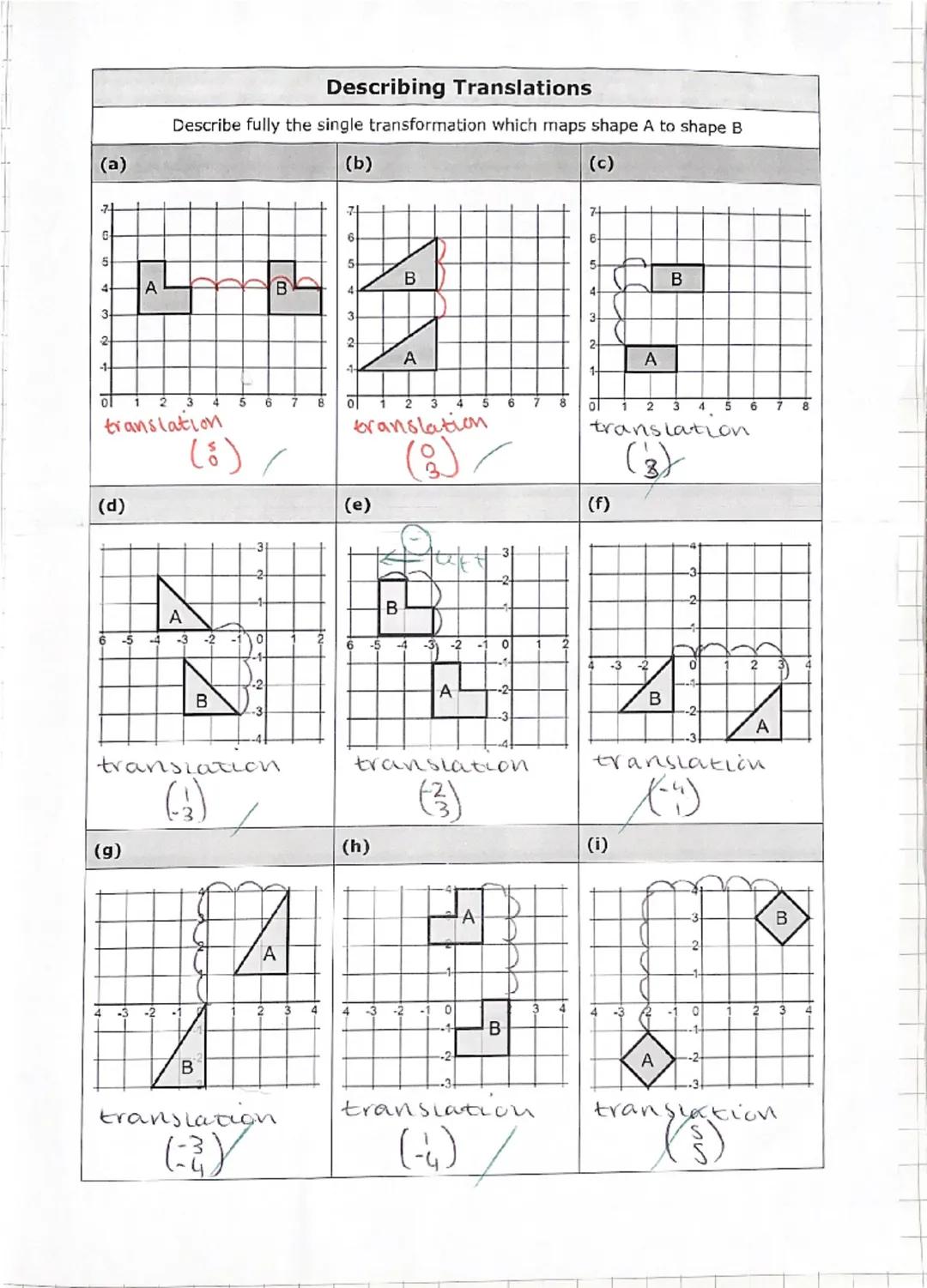

Describing Translations

When you're asked to "describe fully" a transformation, you need to be as specific as a GPS giving directions. For translations, this means working out the exact vector that maps one shape onto another.

Look at the coordinate grids and compare where corresponding points have moved. Count the horizontal movement first (that's your 'a' value), then the vertical movement (that's your 'b' value). Always double-check by testing multiple corners of the shape.

The key word "fully" in exam questions means you must include the vector - just saying "translation" won't get you full marks. Write your answer as "translation by vector $\begin{pmatrix} a \\ b \end{pmatrix}$" to show you understand exactly how the shape has moved.

Exam Success: Practice reading coordinates accurately - one misread number and your whole vector will be wrong!

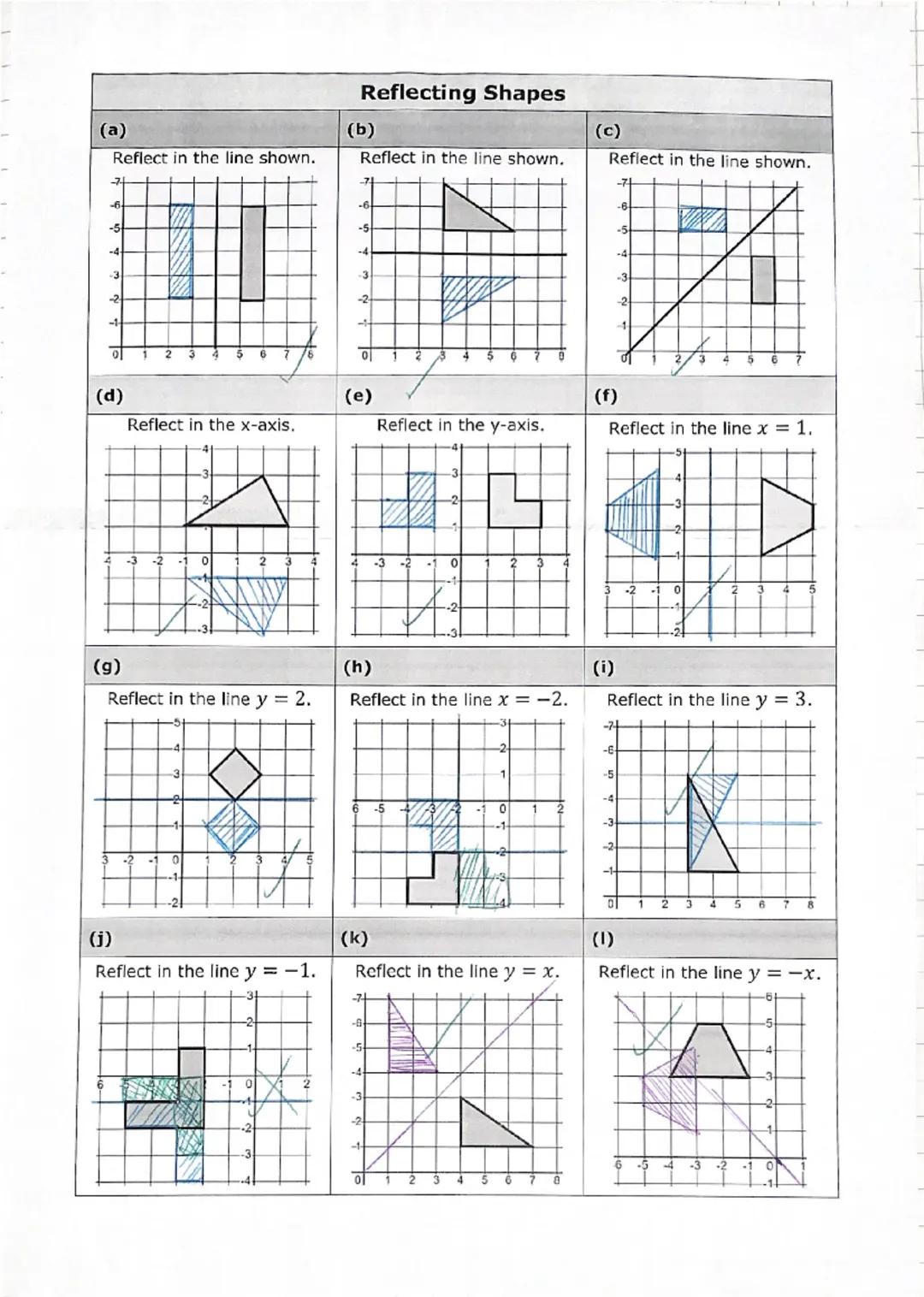

Reflecting Shapes

Reflections create perfect mirror images across a line, and you'll encounter several common reflection lines that pop up repeatedly in exams. The most basic ones are the x-axis and y-axis, but you'll also work with lines like y = x and specific horizontal or vertical lines.

When reflecting in the x-axis, your x-coordinates stay the same but y-coordinates become their opposite. For the y-axis, it's the reverse - y stays the same, x becomes opposite. These are your bread-and-butter reflections.

Diagonal reflections like y = x swap your coordinates completely - point (3,5) becomes (5,3). The line y = -x also swaps coordinates but makes them both opposite signs.

For lines like x = 1 or y = 2, you need to think about distance from the line. Each point ends up the same distance on the opposite side of the reflection line.

Mirror Trick: Use a small mirror on your paper along the reflection line to check your answer - the reflected shape should look identical to what you've drawn!

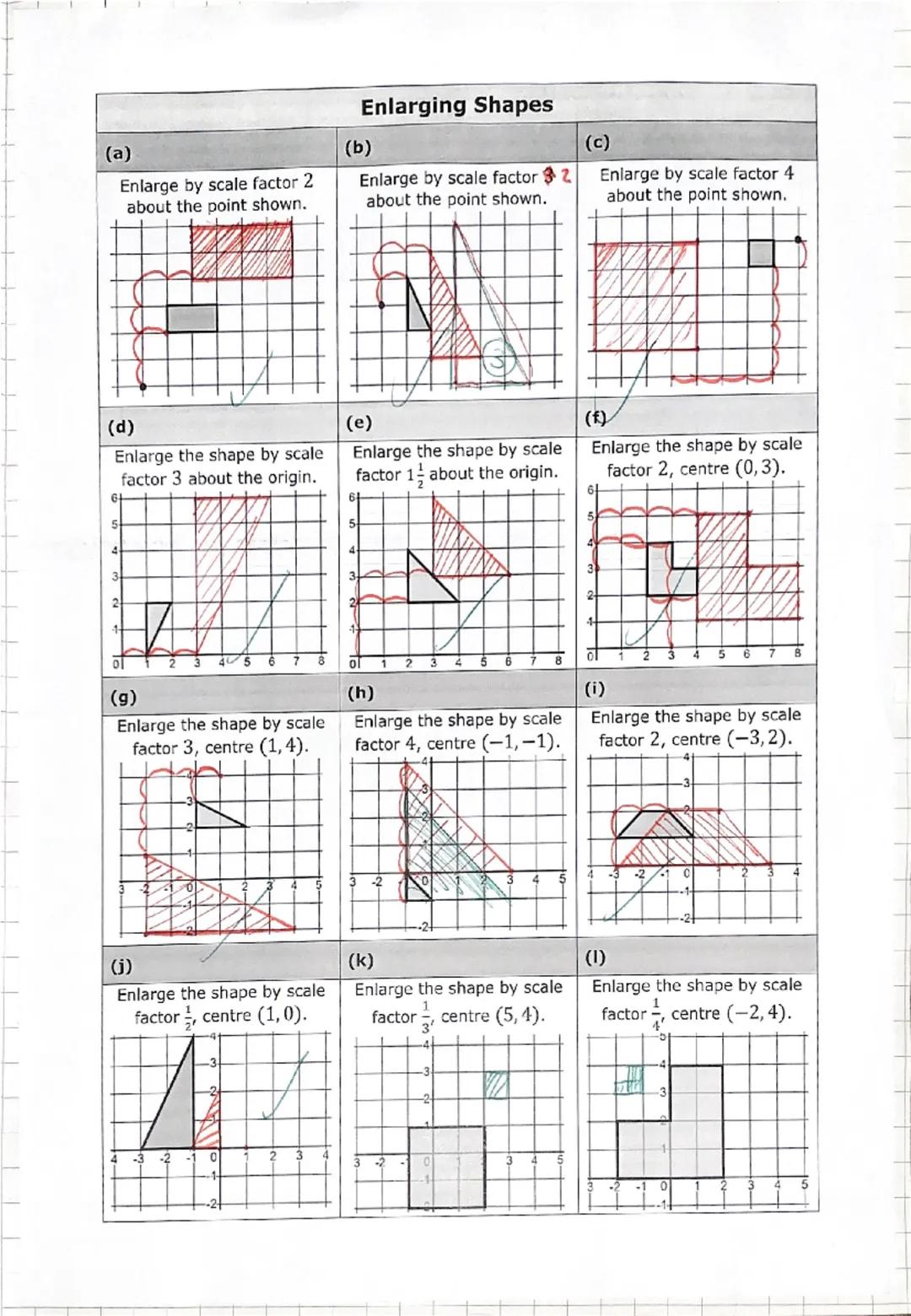

Enlarging Shapes

Enlargements change the size of shapes using a scale factor and work from a fixed centre of enlargement. Scale factors bigger than 1 make shapes larger, while fractions between 0 and 1 make them smaller.

The centre of enlargement is crucial - it's the point that stays fixed while everything else moves away from or towards it. When the centre is the origin (0,0), you simply multiply all coordinates by the scale factor.

For other centres, you need to work with the distance from each point to the centre. Multiply this distance by the scale factor, then plot the new position. This sounds complex but becomes automatic with practice.

Fractional scale factors like ½ or ¼ create smaller versions of the original shape. Despite being called "enlargements," these actually shrink the shape - maths terminology can be confusing sometimes!

Centre Matters: Always identify the centre of enlargement first - it's your anchor point that makes all other calculations possible!
