Statistics isn't just about numbers - it's about spotting patterns...
Maths295 views·Updated 6 Sept 2026·2 pagesVisualizing Data in Statistics
Hannah @hannah_studys1012
1
of 2

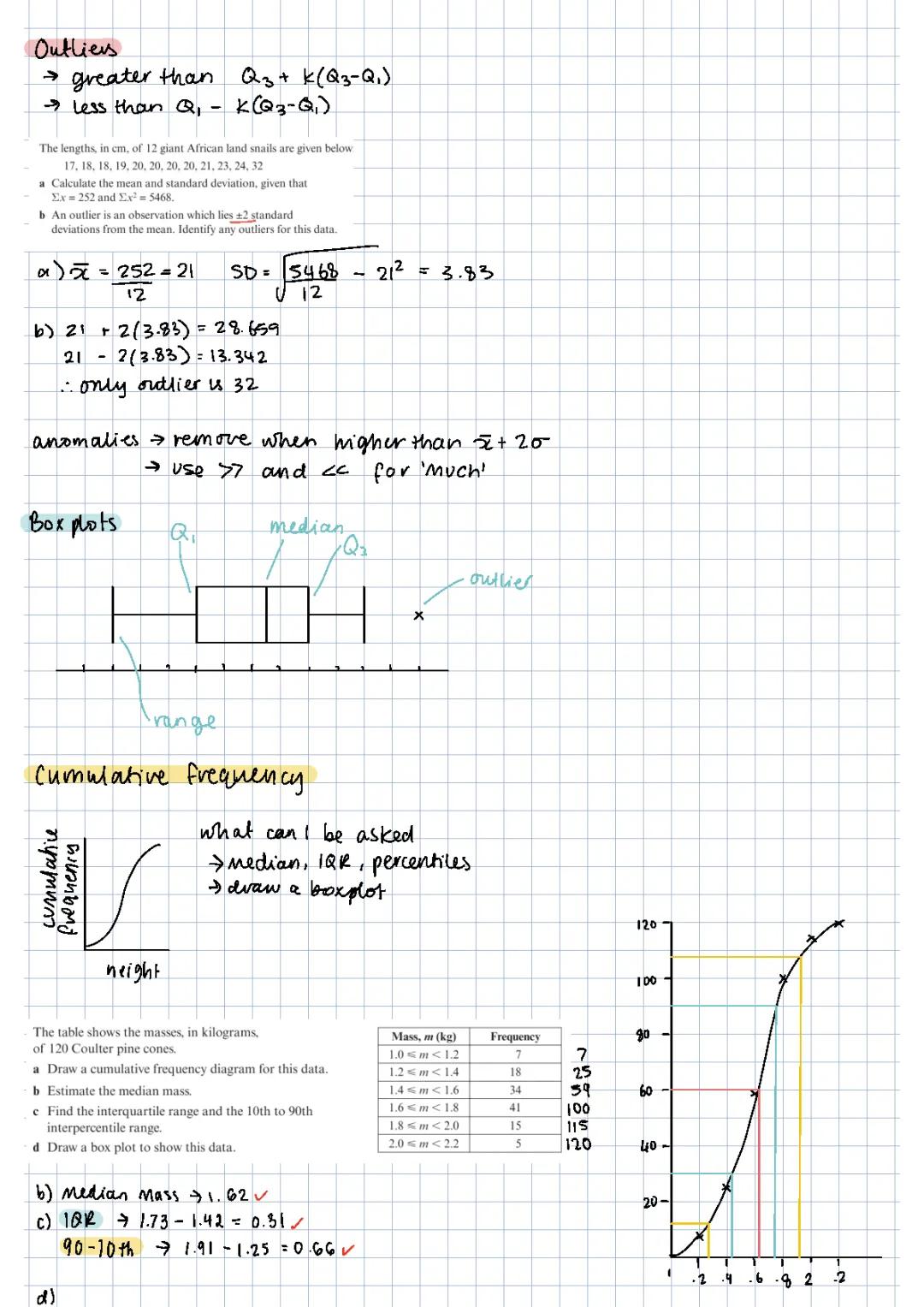

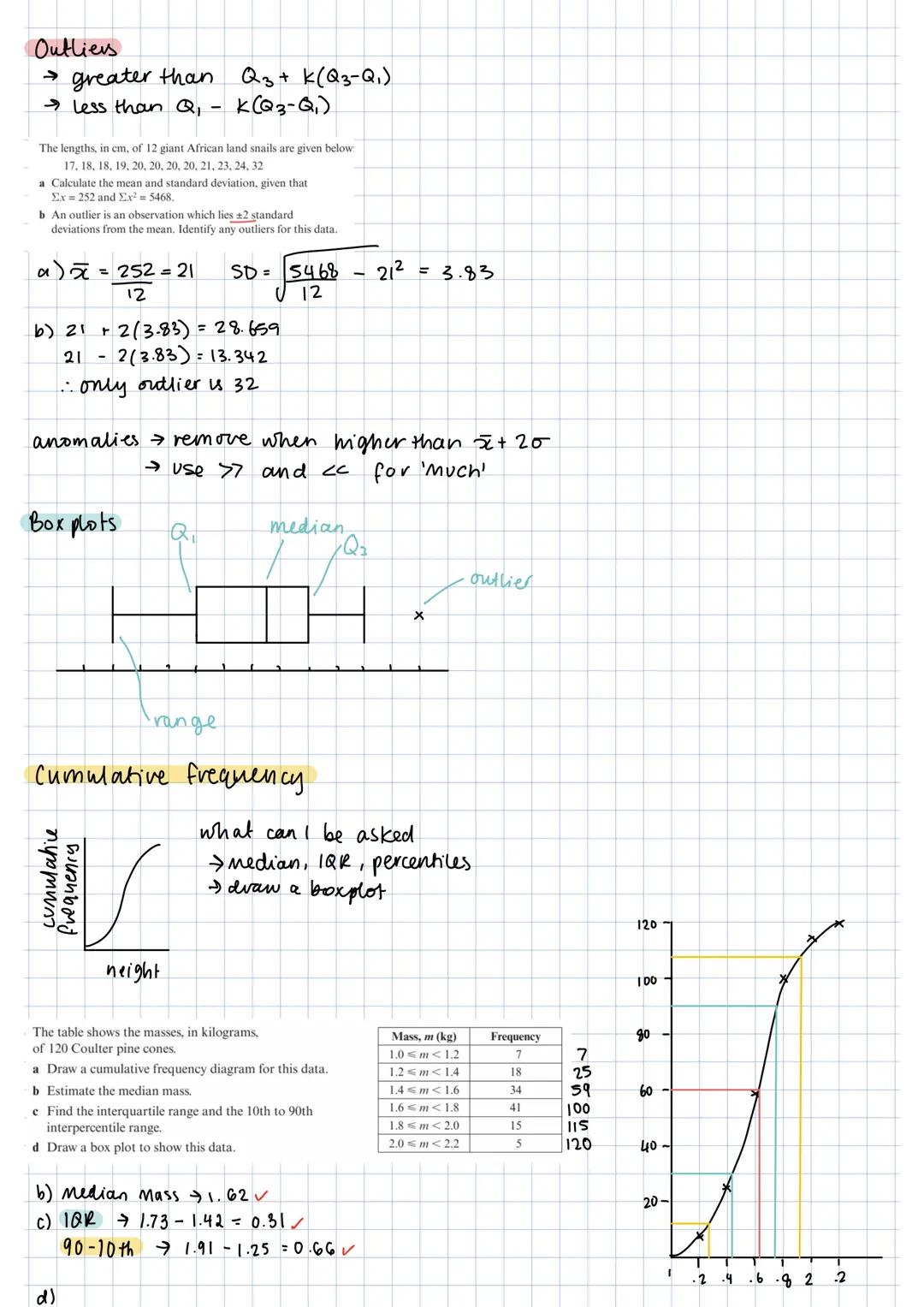

Outliers, Box Plots, and Cumulative Frequency
Outliers are those weird data points that stick out like a sore thumb from the rest of your dataset. You can spot them using two methods: either they're more than 2 standard deviations away from the mean, or they fall outside the range of Q₁ - k to Q₃ + k.
When working with the mean and standard deviation, remember that outliers are values greater than mean + 2σ or less than mean - 2σ. In the snail example, with a mean of 21cm and standard deviation of 3.83, any snail longer than 28.69cm or shorter than 13.34cm would be considered an outlier - making that 32cm snail definitely unusual!
Box plots give you a brilliant visual summary of your data's key features. They show you the quartiles (Q₁, median, Q₃), the range, and any outliers as separate points. The "box" contains the middle 50% of your data, whilst the "whiskers" extend to show the spread.
Top Tip: When drawing cumulative frequency graphs, always plot the cumulative frequency against the upper boundary of each class interval - this makes reading off percentiles much more accurate.
Cumulative frequency helps you find medians, quartiles, and percentiles quickly. Simply read across from the relevant position (like 60 for the median when n=120) to find these key values on your graph.
2
of 2

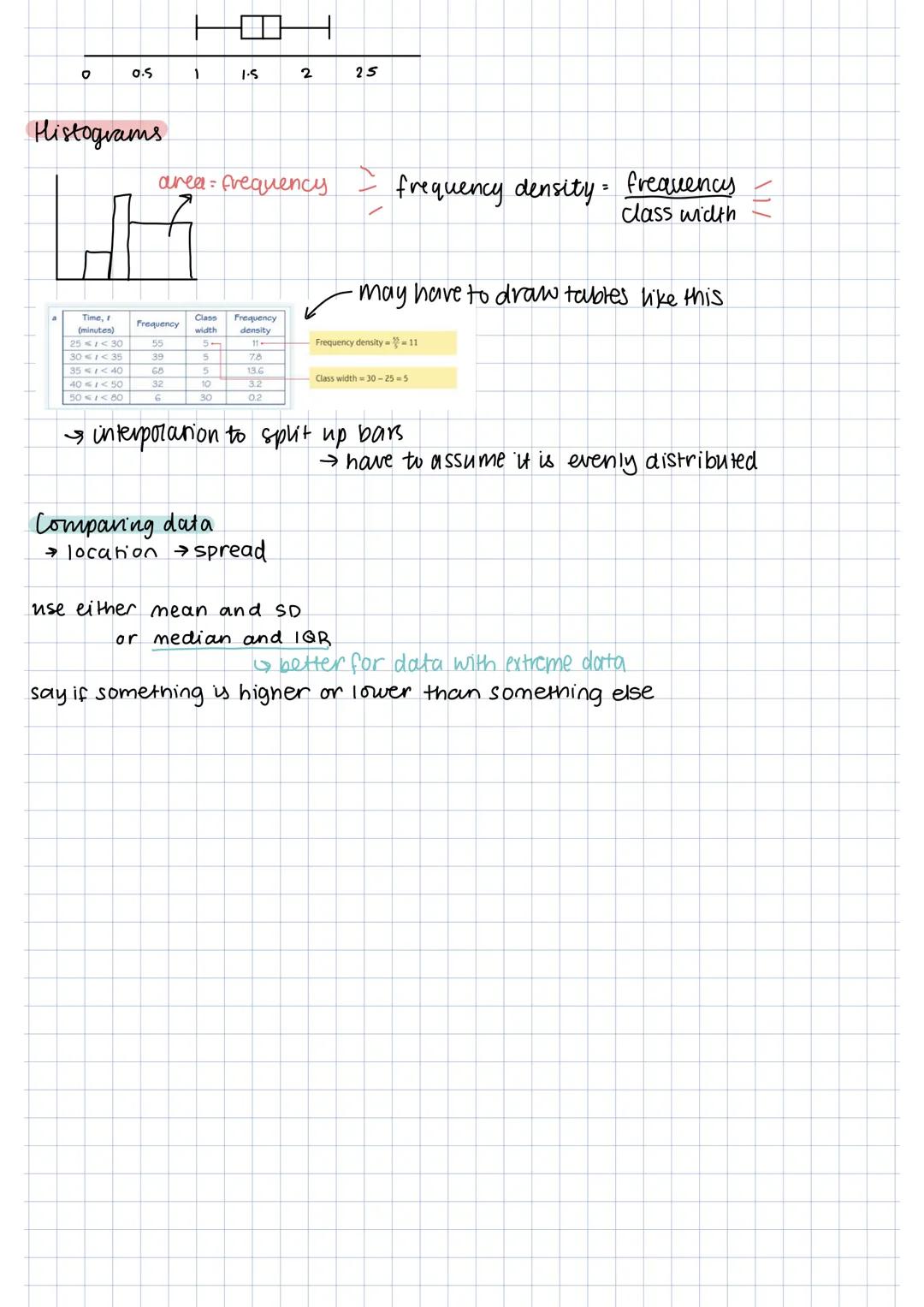

Histograms and Comparing Data
Histograms might look like bar charts, but they're completely different beasts. The key rule is that area equals frequency, not height. This means you need to calculate frequency density by dividing frequency by class width before drawing anything.
Different class widths make histograms tricky - a class that's twice as wide needs half the height to represent the same frequency. Always create a frequency density table first, showing class width and frequency density calculations. This stops you making costly mistakes in exams.
When you need to interpolate (split up bars), assume the data is evenly distributed within each class. It's not always perfectly accurate in real life, but it's the best assumption you can make with grouped data.
Exam Strategy: For comparing data questions, always mention both location (central tendency) and spread. Use mean and standard deviation for normal data, or median and IQR when you've got outliers or skewed distributions.
Comparing datasets requires you to comment on both where the data sits (location) and how spread out it is. Don't just say "Dataset A is higher" - explain whether it's the mean or median that's higher, and discuss whether one dataset is more variable than the other.
