A comprehensive guide to geometry and mensuration concepts covering perimeter, area, 3D shapes, and volume calculations for understanding properties of polygons for year 7 students.

Detailed coverage of area calculations for various 2D shapes including rectangles, parallelograms, triangles, kites, and how to calculate area of trapezium with examples
In-depth exploration of 2D representations of 3D shapes in mensuration through nets, plans, and elevations
Comprehensive study of polygon properties, circle geometry, and volume calculations
Clear examples and visual representations for each mathematical concept
Essential formulas and step-by-step problem-solving approaches

02/08/2023

447

Perimeter and Area
Topic/Skill
1. Perimeter
2. Area
3. Area of a
Rectangle
4. Area of a
Parallelogram
5. Area of a
Triangle
6. Area of a
Kit

View

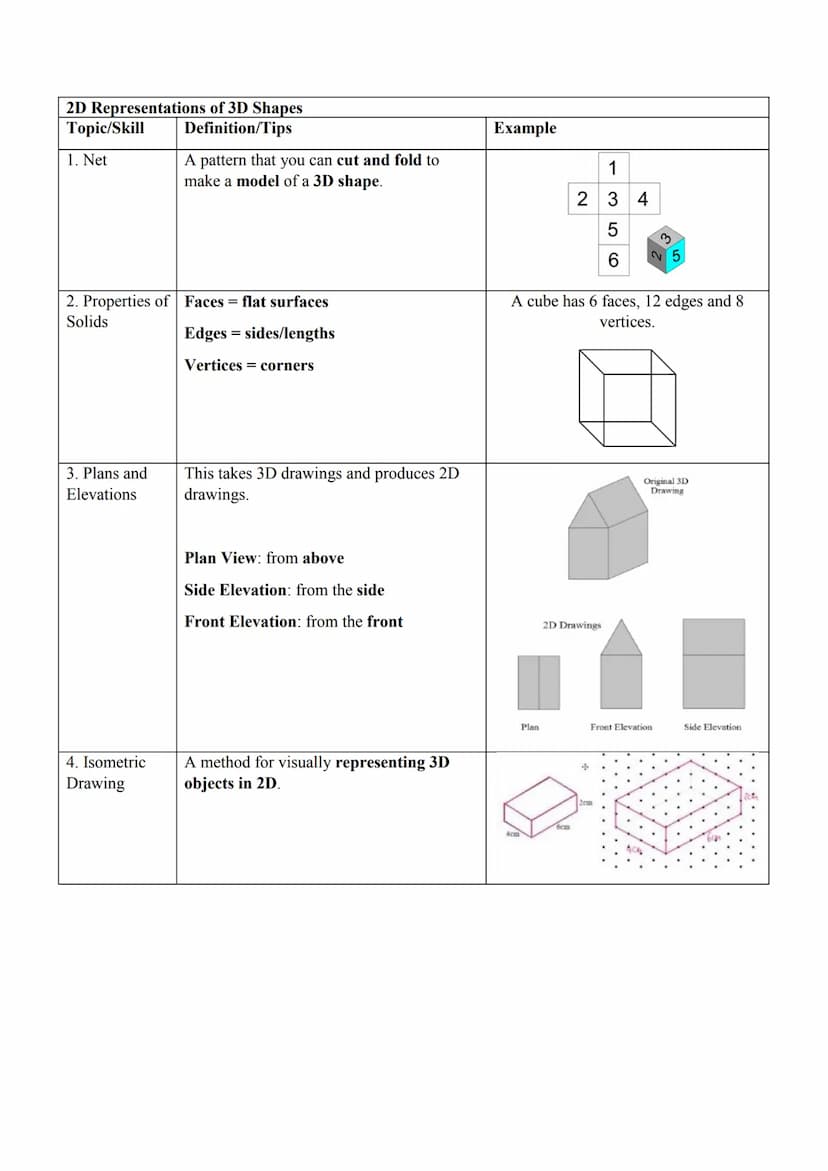

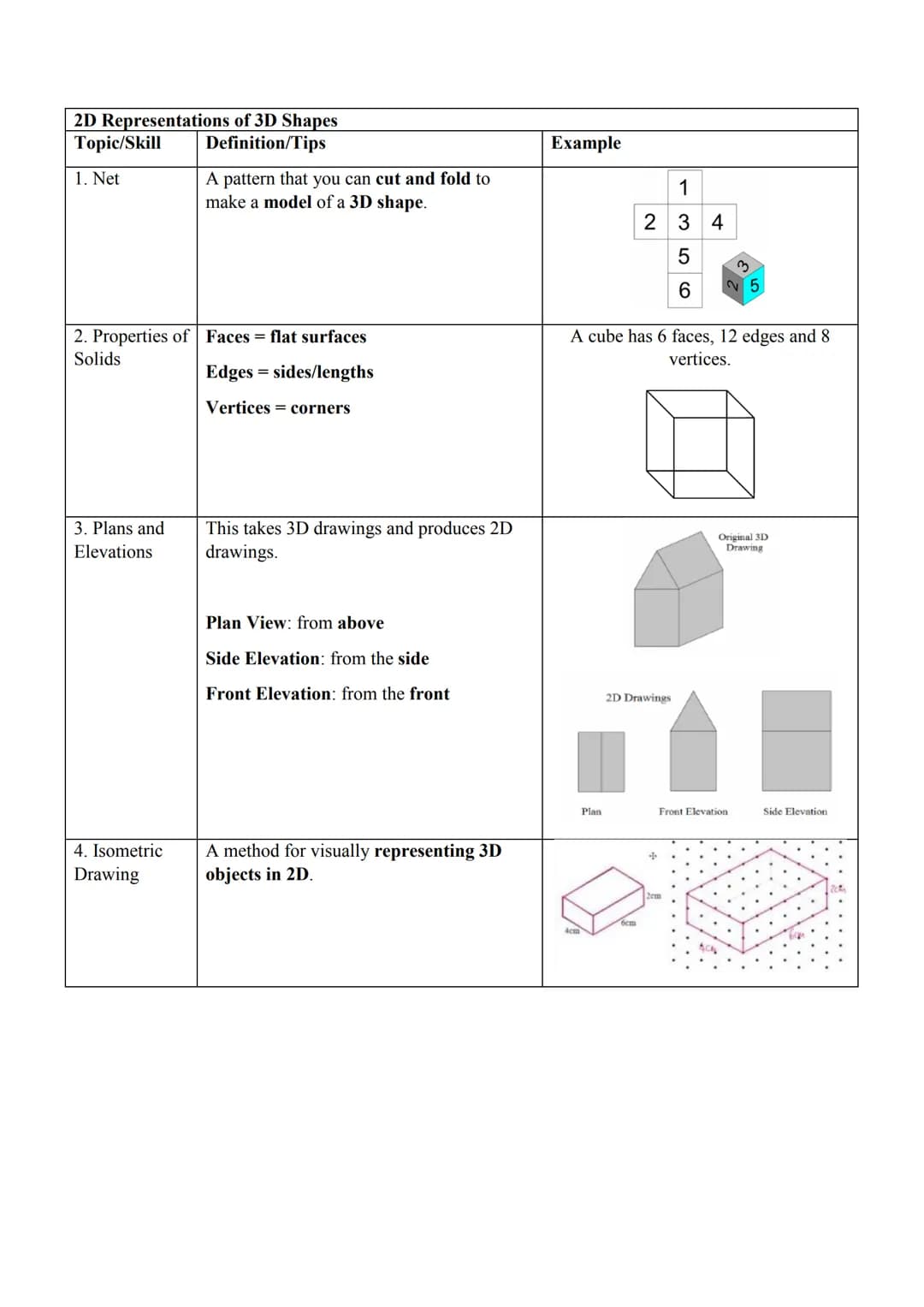

Page 2: 2D Representations of 3D Shapes

This page explores how three-dimensional objects can be represented in two dimensions through various techniques.

Vocabulary: A net is a flat pattern that can be folded to create a 3D shape.

Definition: Plans and elevations are 2D views of 3D objects from different perspectives - top (plan), front (front elevation), and side (side elevation).

Example: A cube has 6 faces, 12 edges, and 8 vertices when represented in 3D.

View

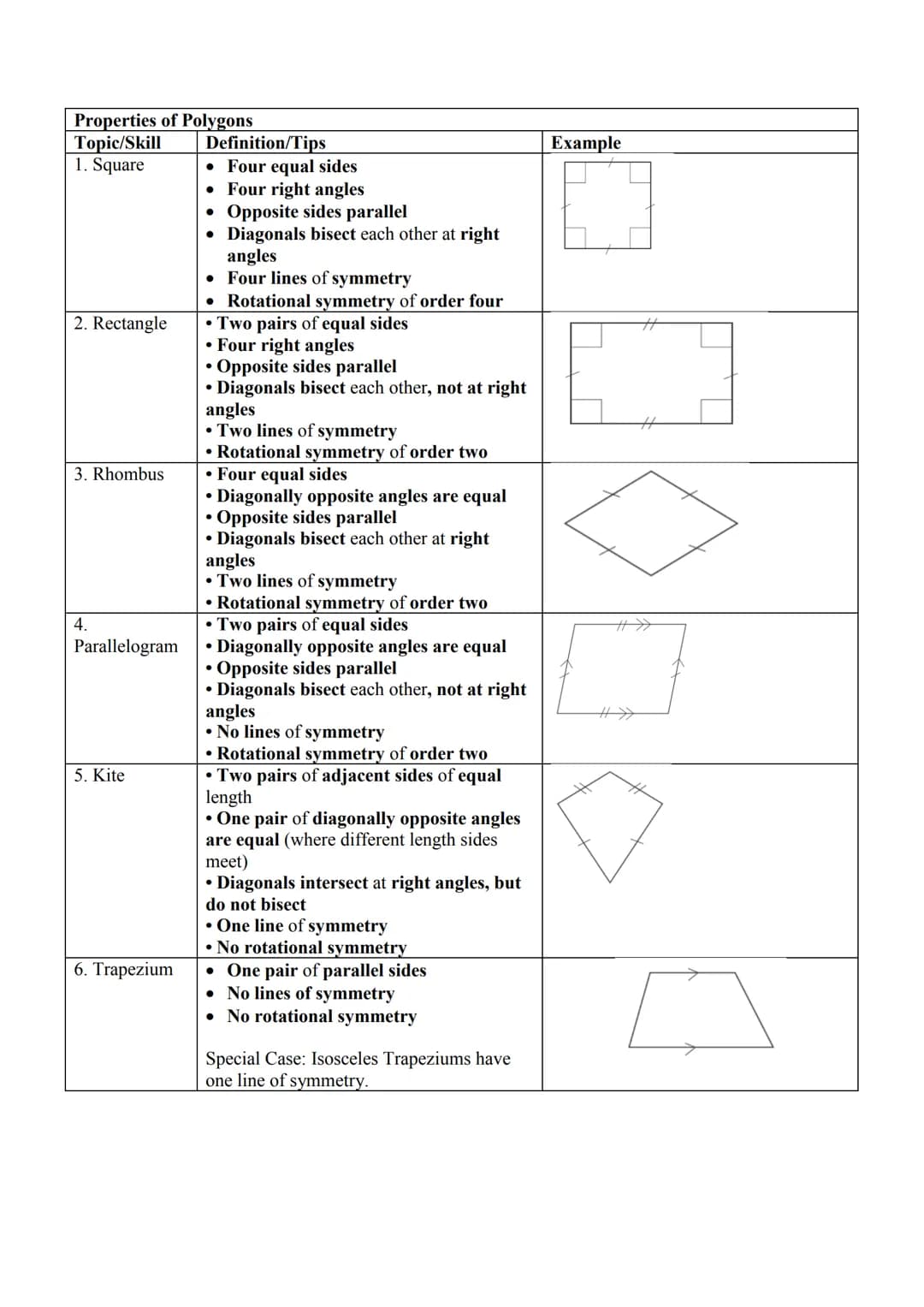

Page 3: Properties of Polygons

This page details the characteristics and properties of various polygons.

Definition: A square has four equal sides, four right angles, and four lines of symmetry.

Highlight: Each polygon type has unique properties regarding side lengths, angles, parallel sides, and symmetry.

Example: A rhombus has four equal sides and diagonally opposite angles are equal, with two lines of symmetry.

View

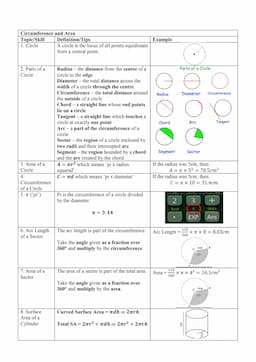

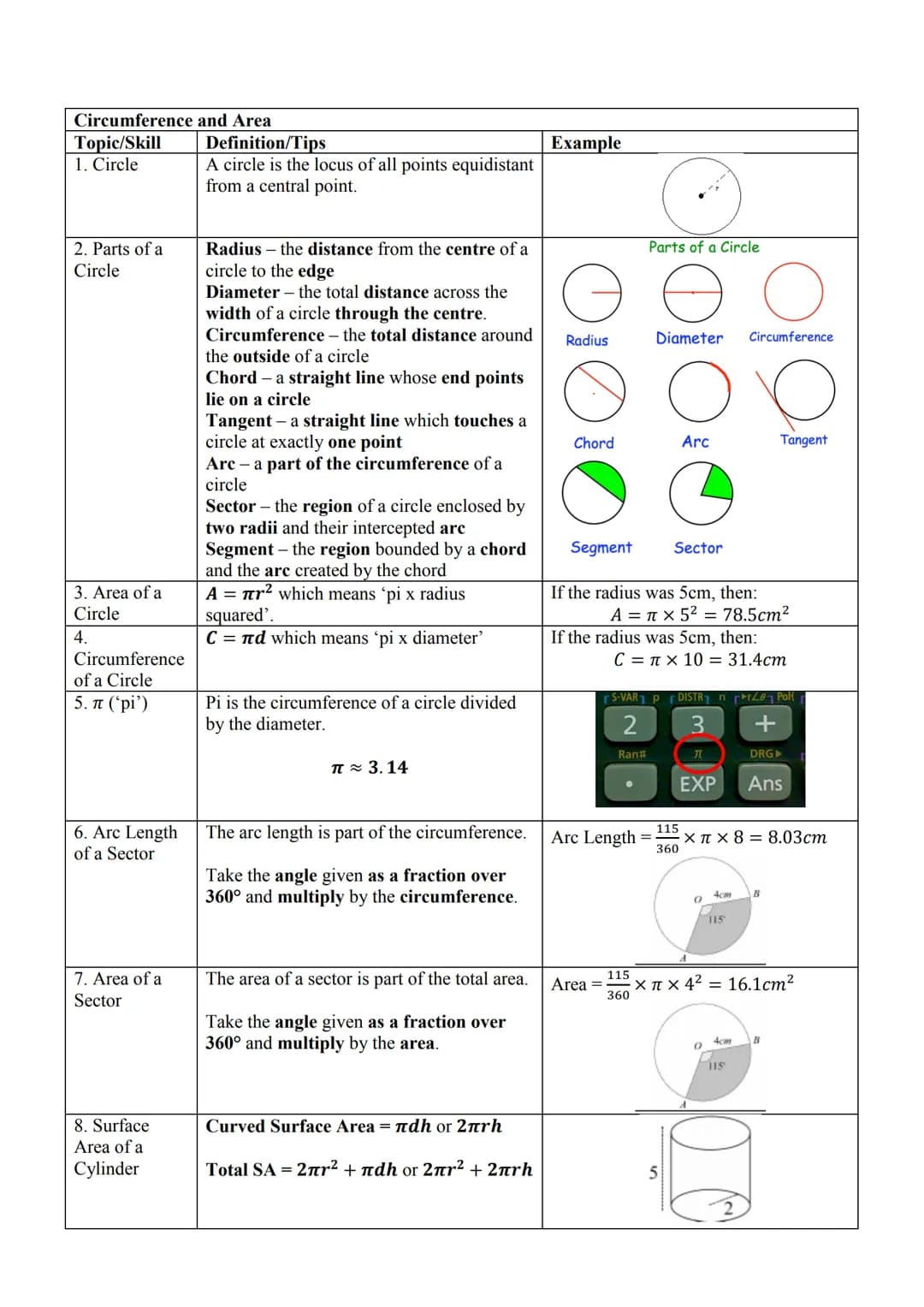

Page 4: Circle Geometry

This page covers circle-related concepts and calculations.

Vocabulary: Pi (π) is the ratio of a circle's circumference to its diameter, approximately equal to 3.14.

Definition: A circle is the locus of points equidistant from a central point.

Example: For a circle with radius 5cm, the area would be π×5² = 78.5cm².

View

Page 5: Surface Area

This page focuses on surface area calculations for three-dimensional shapes.

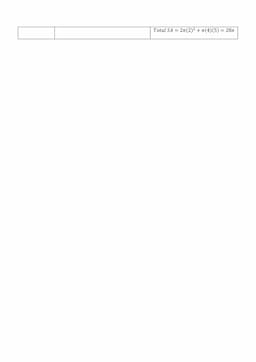

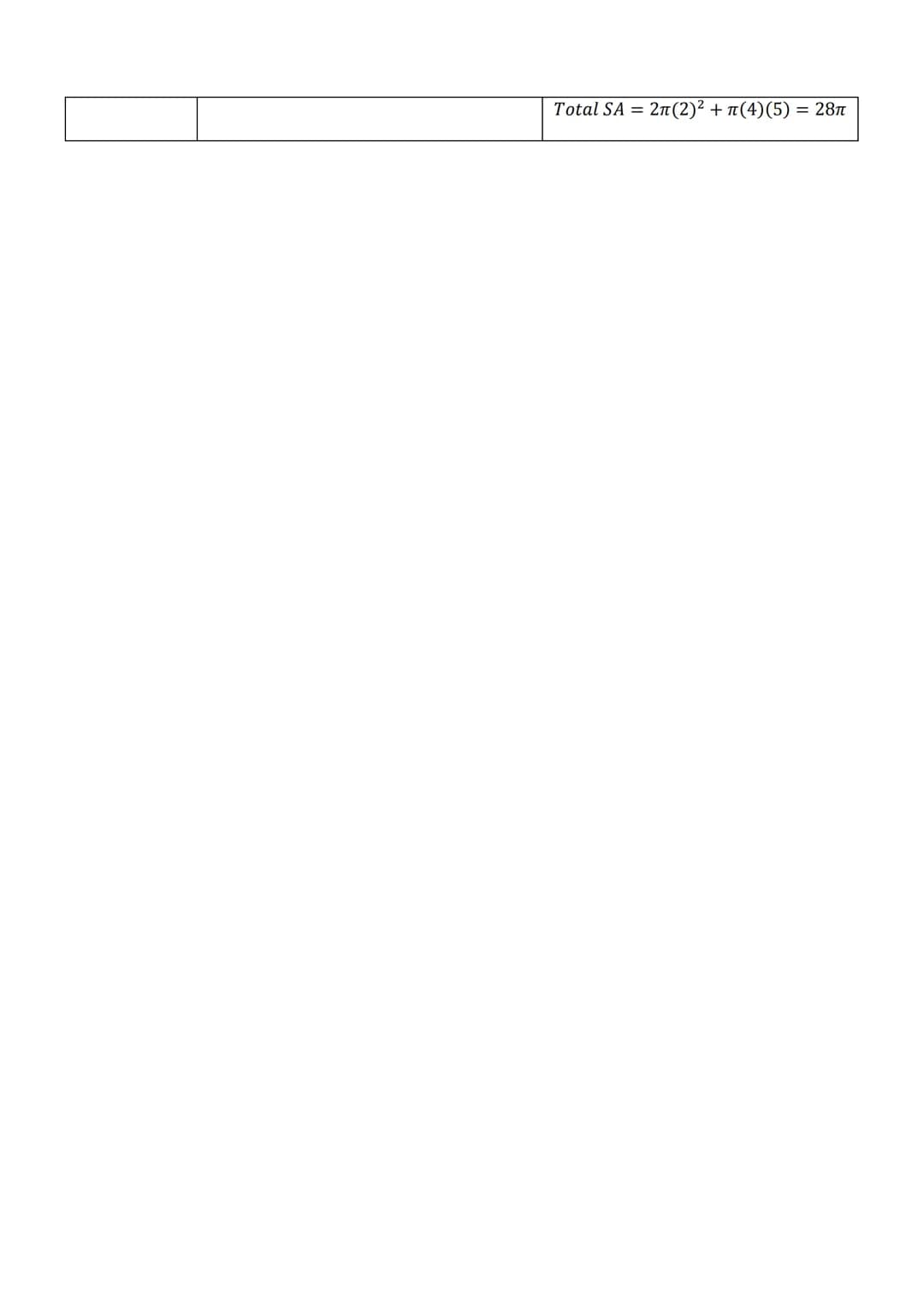

Example: The total surface area of a cylinder can be calculated using the formula 2πr² + πdh.

View

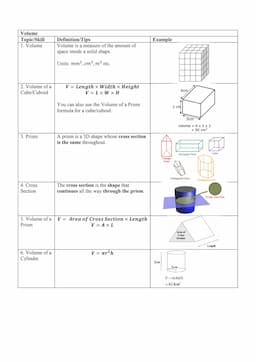

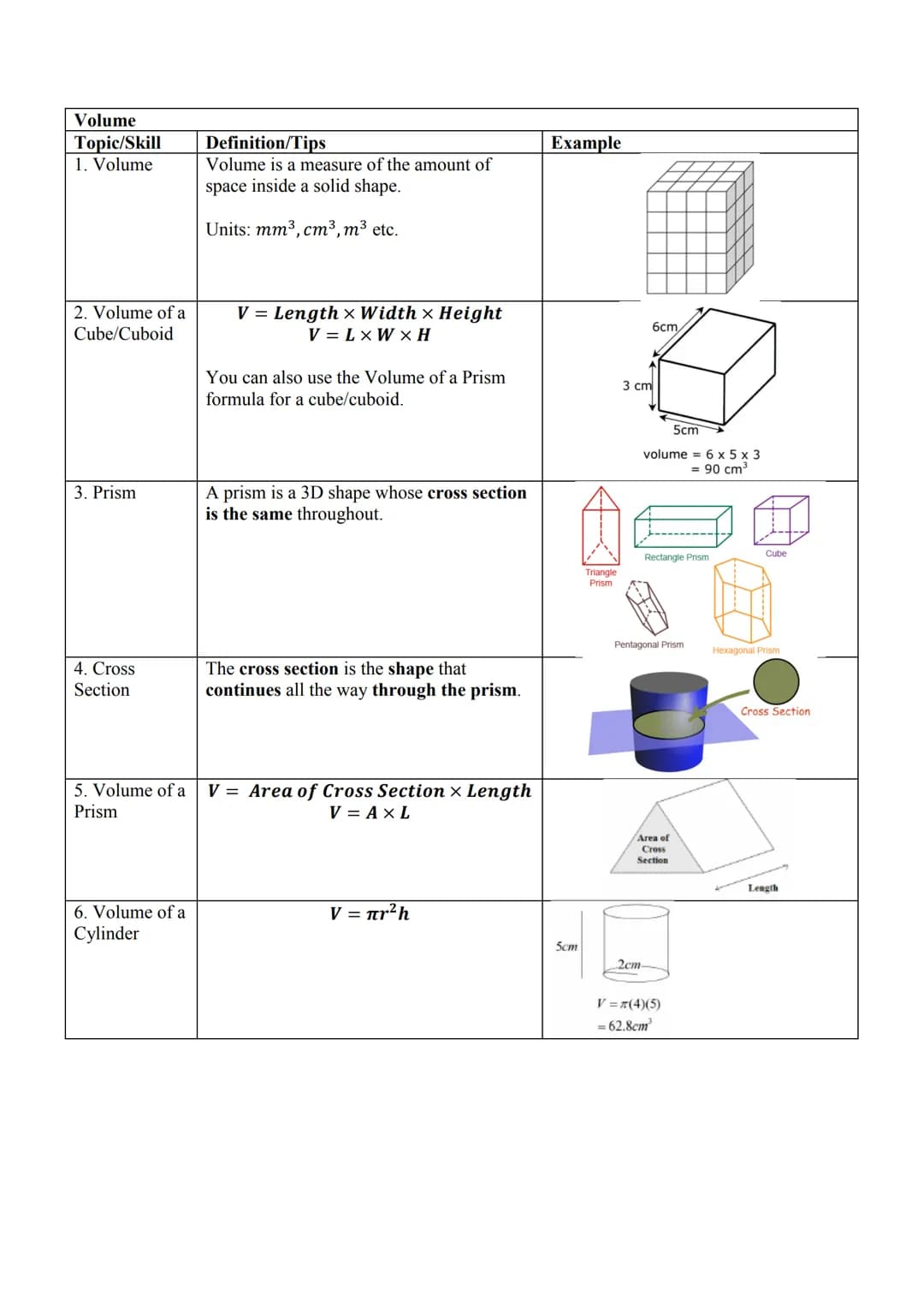

Page 6: Volume

This page explains volume calculations for various 3D shapes.

Definition: Volume is the measure of space inside a solid shape, measured in cubic units.

Highlight: The volume of any prism can be calculated by multiplying the area of the cross-section by the length.

Example: For a cuboid with length 6cm, width 5cm, and height 3cm, the volume is 90cm³.

View

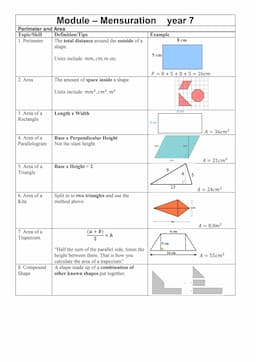

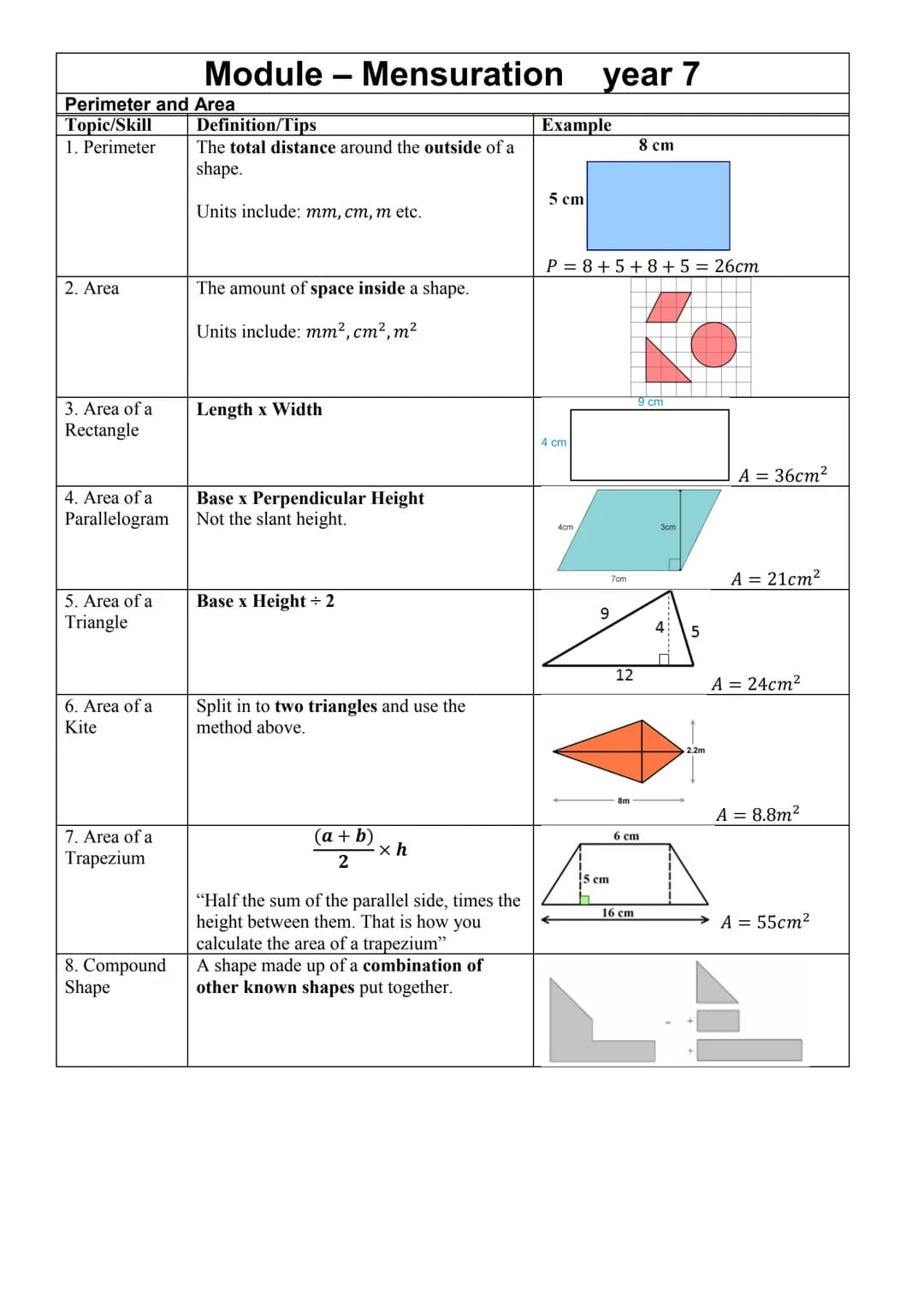

Page 1: Perimeter and Area Fundamentals

This page introduces fundamental concepts of perimeter and area calculations for various geometric shapes.

Definition: Perimeter is the total distance around the outside of a shape, measured in linear units like mm, cm, or m.

Definition: Area represents the amount of space inside a shape, measured in square units like mm², cm², or m².

Example: For a rectangle with length 8cm and width 5cm, the perimeter would be 26cm (8+5+8+5) and the area would be 40cm² (8×5).

Highlight: The area of a trapezium is calculated using the formula (a+b)×h÷2, where a and b are the parallel sides and h is the height.
