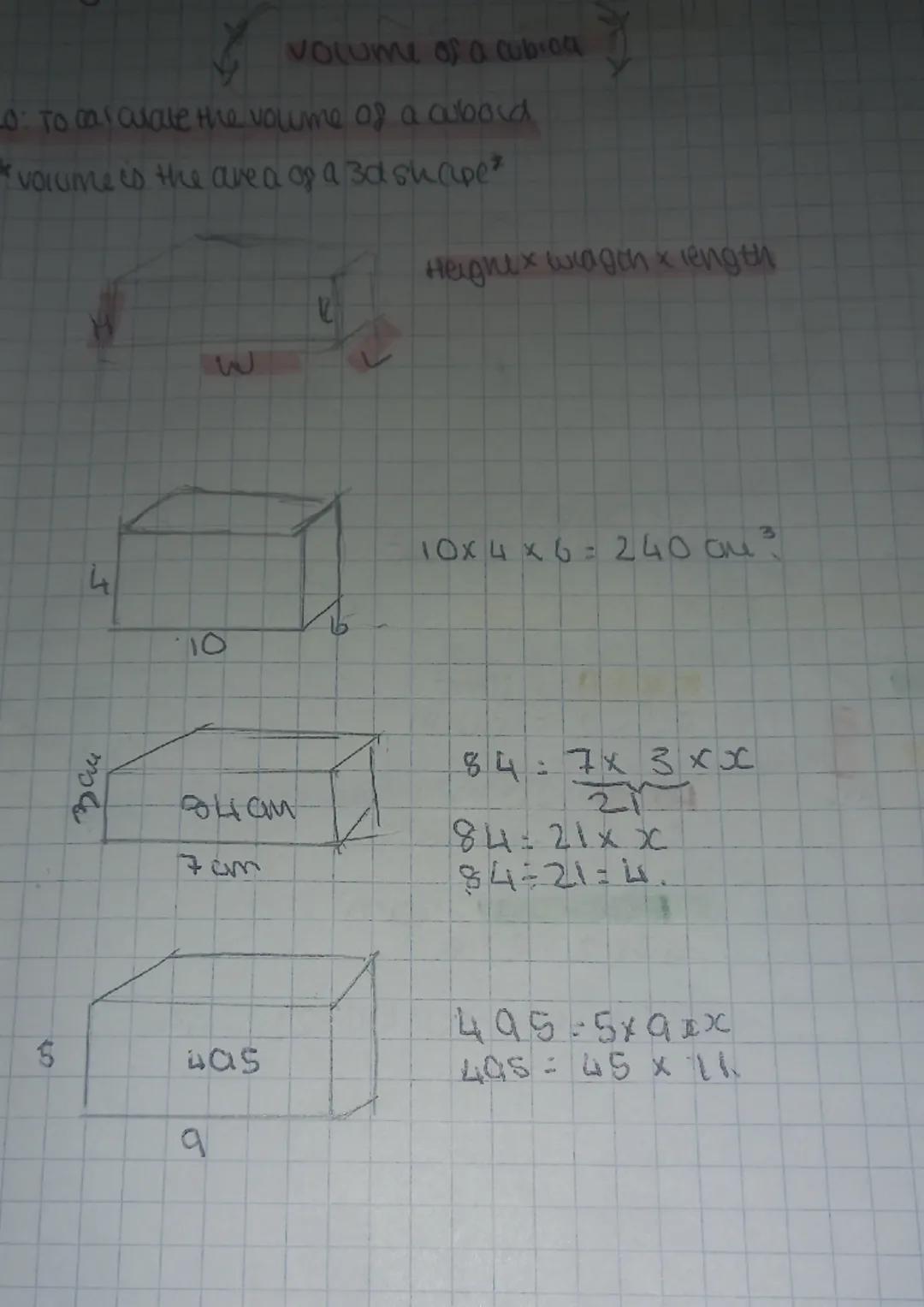

Volume of a Cuboid

Volume tells you how much space a 3D shape takes up inside - think of it as how much water you could pour into a box. For cuboids (rectangular boxes), the formula is dead simple: height × width × length.

Let's say you've got a box that's 10cm long, 6cm wide, and 4cm high. Just multiply: 10 × 6 × 4 = 240cm³. The little ³ symbol means "cubic" - you're measuring in cubic centimetres.

Sometimes you'll get tricky questions where one measurement is missing. Don't panic! If you know the volume is 84cm³ and two sides are 7cm and 3cm, just work backwards: 84 ÷ (7 × 3) = 84 ÷ 21 = 4cm.

Top Tip: Always check your units match - if some measurements are in metres and others in centimetres, convert them first!

Maths, volume and surface area of 3 d shapes. – page 2

Sign up to see the content.
It's free!

By signing up you accept Terms of Service and Privacy Policy

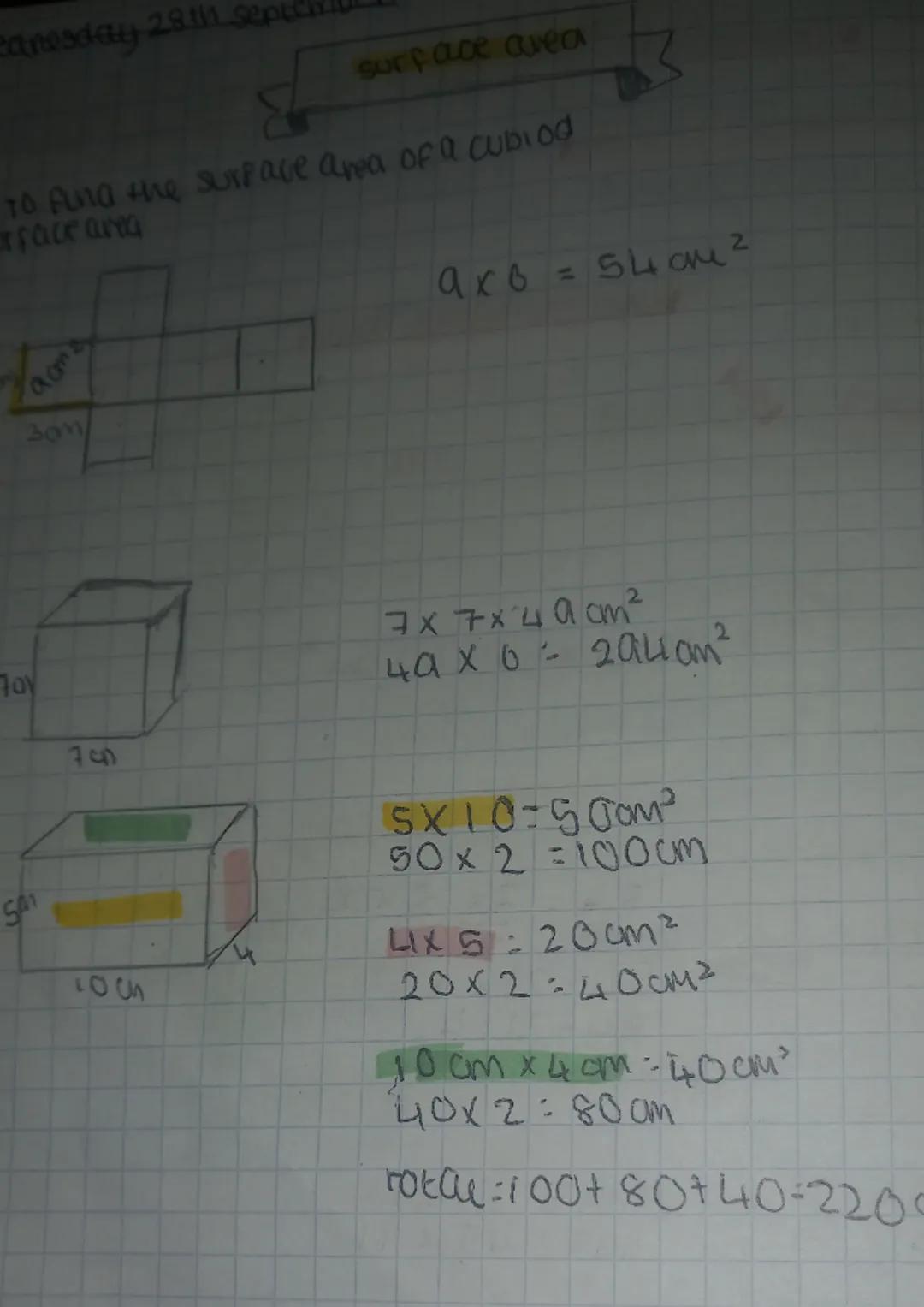

Surface Area of a Cuboid

Surface area is the total area of all the faces wrapped around your 3D shape - imagine painting it and working out how much paint you'd need. Every cuboid has 6 faces, and opposite faces are always identical.

Here's the clever bit: calculate the area of each different face, then double it. For a cuboid with sides 5cm, 10cm, and 4cm, you'd get: (5 × 10) × 2 = 100cm², (4 × 5) × 2 = 40cm², and (10 × 4) × 2 = 80cm².

Add them all up: 100 + 40 + 80 = 220cm². Remember, surface area is always measured in square units (cm²), not cubic ones.

Quick Check: Count your faces - you should always have exactly 6 for a cuboid!

Maths, volume and surface area of 3 d shapes. – page 3

Sign up to see the content.
It's free!

By signing up you accept Terms of Service and Privacy Policy

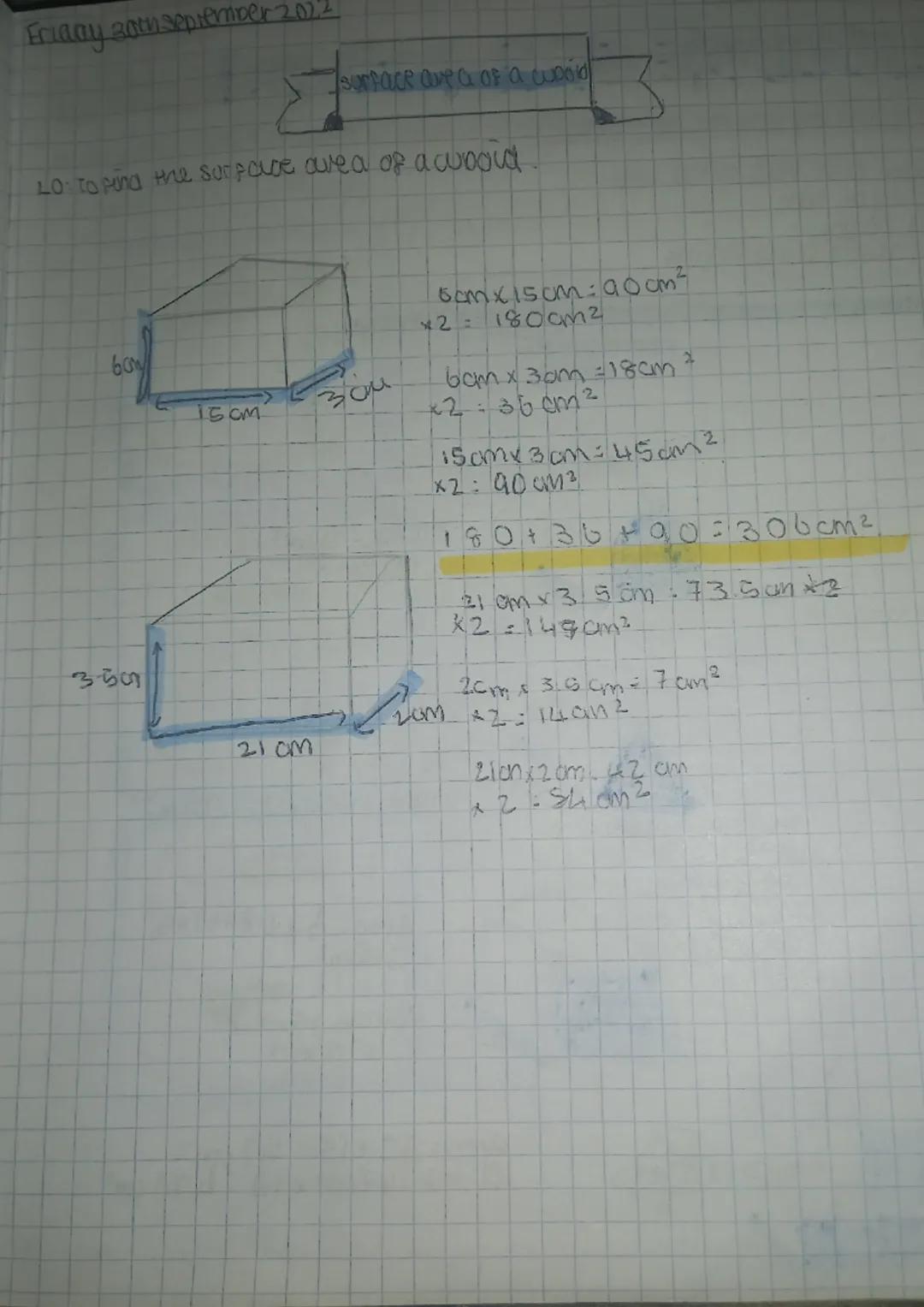

More Surface Area Practice

Let's tackle some real examples to nail this concept. For a cuboid measuring 6cm × 15cm × 3cm, work through each pair of faces systematically.

First pair: 6 × 15 = 90cm², doubled gives 180cm². Second pair: 6 × 3 = 18cm², doubled gives 36cm². Third pair: 15 × 3 = 45cm², doubled gives 90cm².

Total surface area: 180 + 36 + 90 = 306cm². The key is staying organised - work through each pair methodically and you won't miss any faces.

Memory Trick: Think "opposite twins" - every face has an identical twin on the opposite side!

Maths, volume and surface area of 3 d shapes. – page 4

Sign up to see the content.
It's free!

By signing up you accept Terms of Service and Privacy Policy

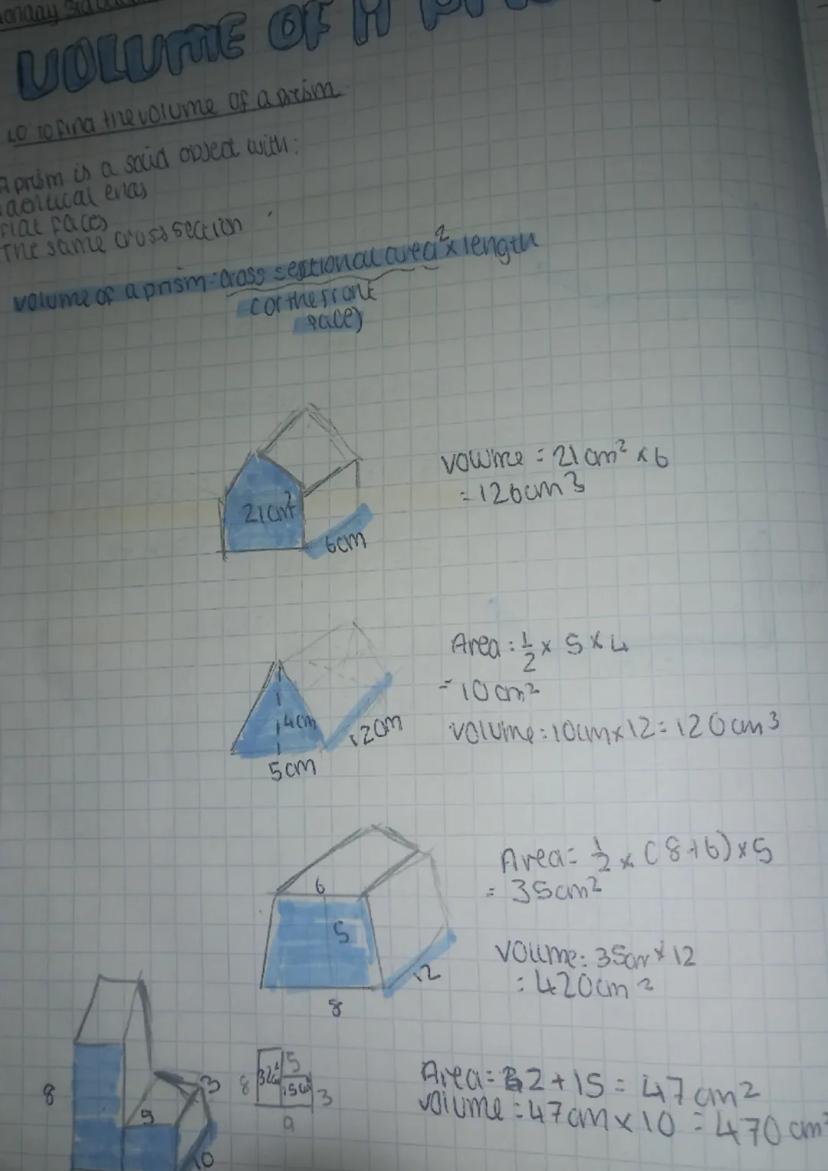

Volume of Prisms

A prism is any 3D shape with identical ends and the same cross-section all the way through - like a tube of Pringles! The volume formula is brilliant: cross-sectional area × length.

For triangular prisms, first find the area of the triangular end using ½ × base × height. If your triangle has a base of 5cm and height of 4cm, that's ½ × 5 × 4 = 10cm². Then multiply by the length - if it's 12cm long, volume = 10 × 12 = 120cm³.

Trapezoid prisms use the formula ½ × (top + bottom) × height for the end area. With parallel sides of 8cm and 6cm, height 5cm, and length 12cm: area = ½ × 8+68 + 6 × 5 = 35cm², so volume = 35 × 12 = 420cm³.

Golden Rule: Always find the end area first, then multiply by how long the prism stretches!

Maths, volume and surface area of 3 d shapes. – page 5

Sign up to see the content.
It's free!

By signing up you accept Terms of Service and Privacy Policy

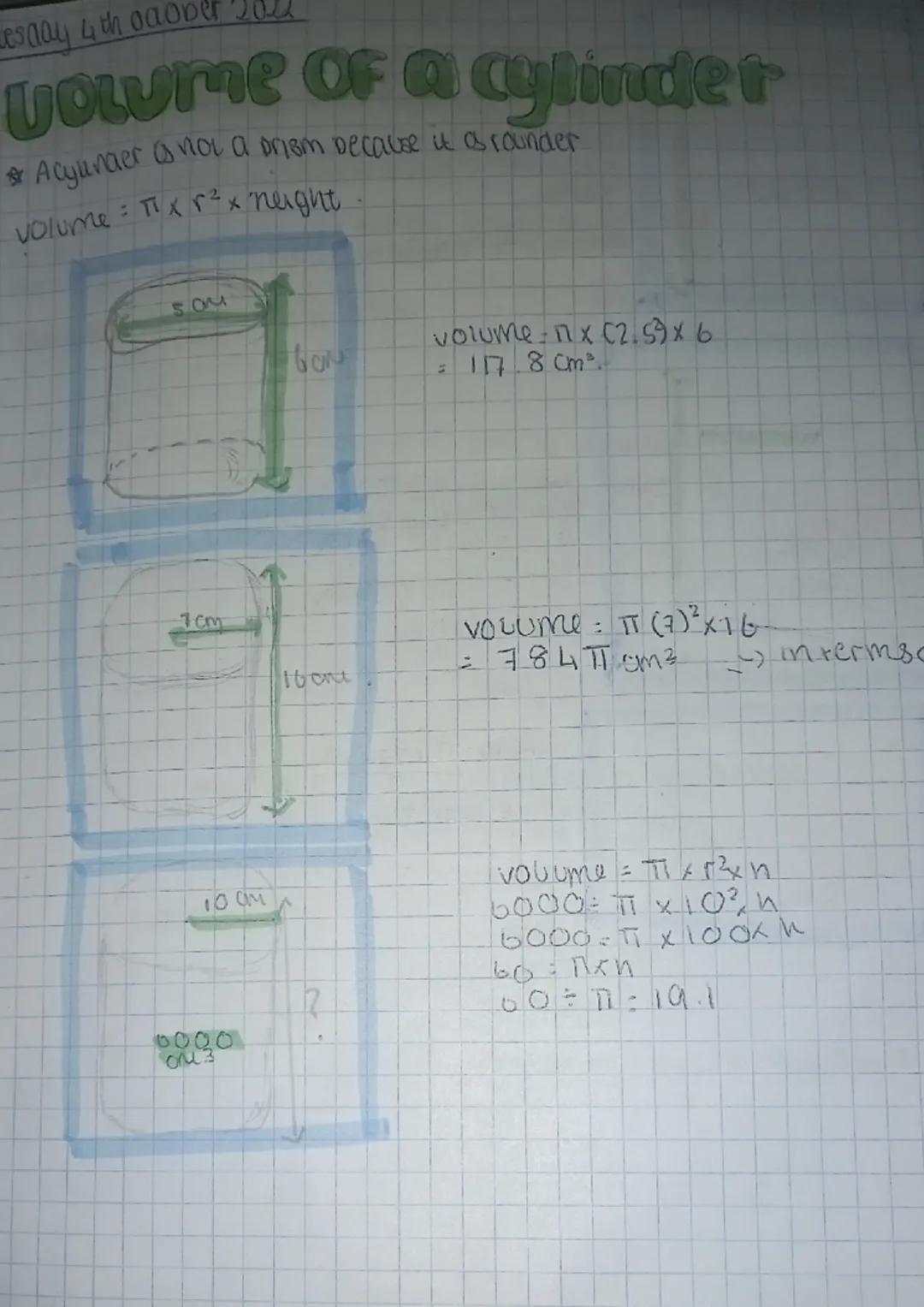

Volume of Cylinders

Cylinders aren't technically prisms because they're rounded, but the volume formula follows the same logic: π × r² × height. The π (pi) button on your calculator makes this much easier!

For a cylinder with radius 2.5cm and height 6cm: π × (2.5)² × 6 = π × 6.25 × 6 = 117.8cm³. Remember to square the radius first - it's a common mistake to forget this step.

Working backwards is trickier but totally doable. If volume = 6000cm³ and radius = 10cm, then 6000 = π × 100 × h. Rearranging: h = 6000 ÷ (π × 100) = 19.1cm.

Calculator Tip: Use the π button rather than 3.14 for more accurate answers!

Maths, volume and surface area of 3 d shapes. – page 6

Sign up to see the content.
It's free!

By signing up you accept Terms of Service and Privacy Policy

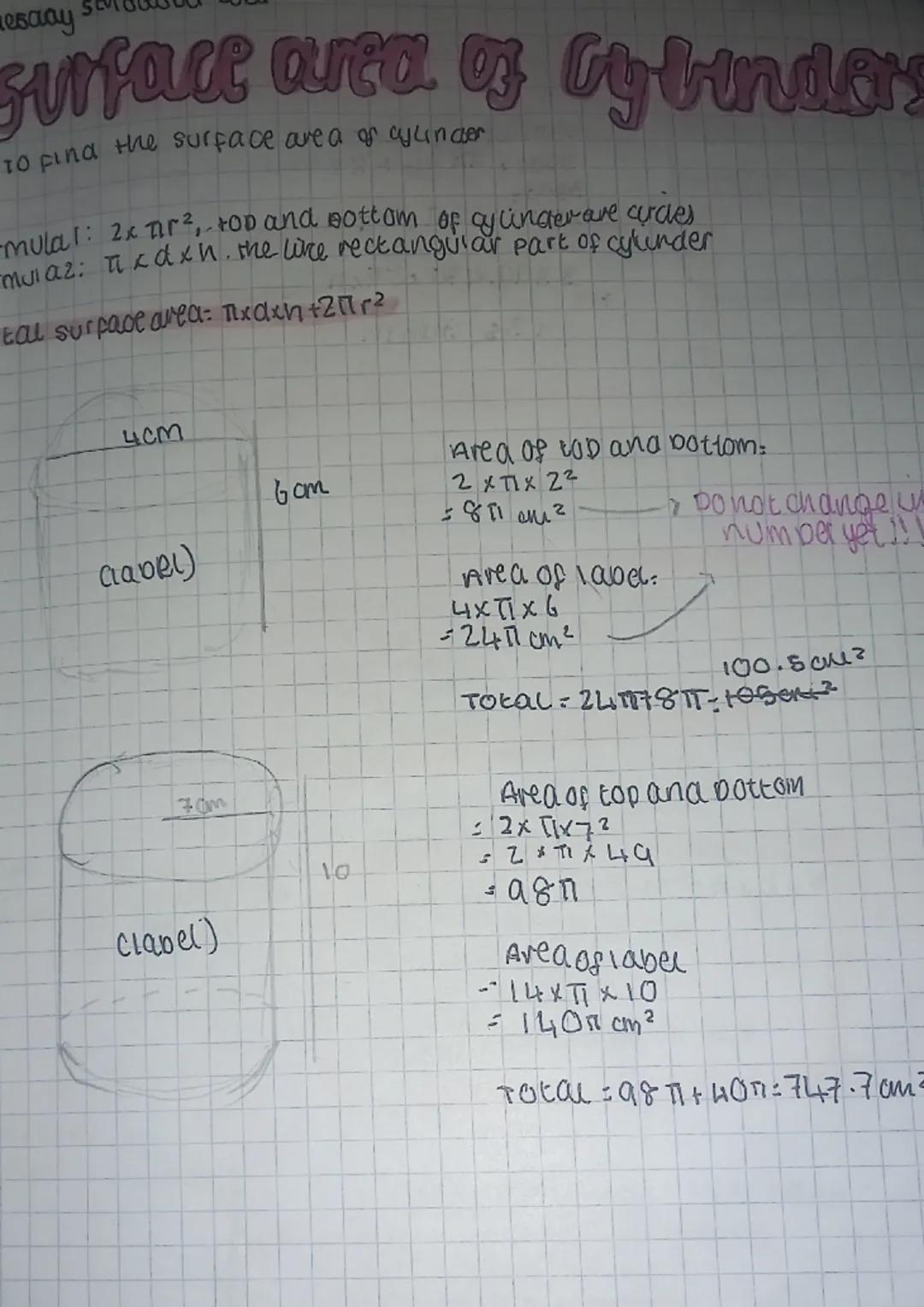

Surface Area of Cylinders

Cylinder surface area has two parts: the curved side (like a label wrapped around) and the two circular ends (top and bottom). The formula combines both: 2πr² + πdh.

The 2πr² covers both circular ends - each circle has area πr², and there are two of them. The πdh is the rectangular label wrapped around the curved side.

For a cylinder with radius 2cm and height 6cm: circular ends = 2 × π × 2² = 8π cm², curved side = π × 4 × 6 = 24π cm². Total = 8π + 24π = 32π ≈ 100.8cm².

Visual Trick: Imagine peeling the label off a tin can - that's your curved surface area!

Maths, volume and surface area of 3 d shapes. – page 7

Sign up to see the content.
It's free!

By signing up you accept Terms of Service and Privacy Policy

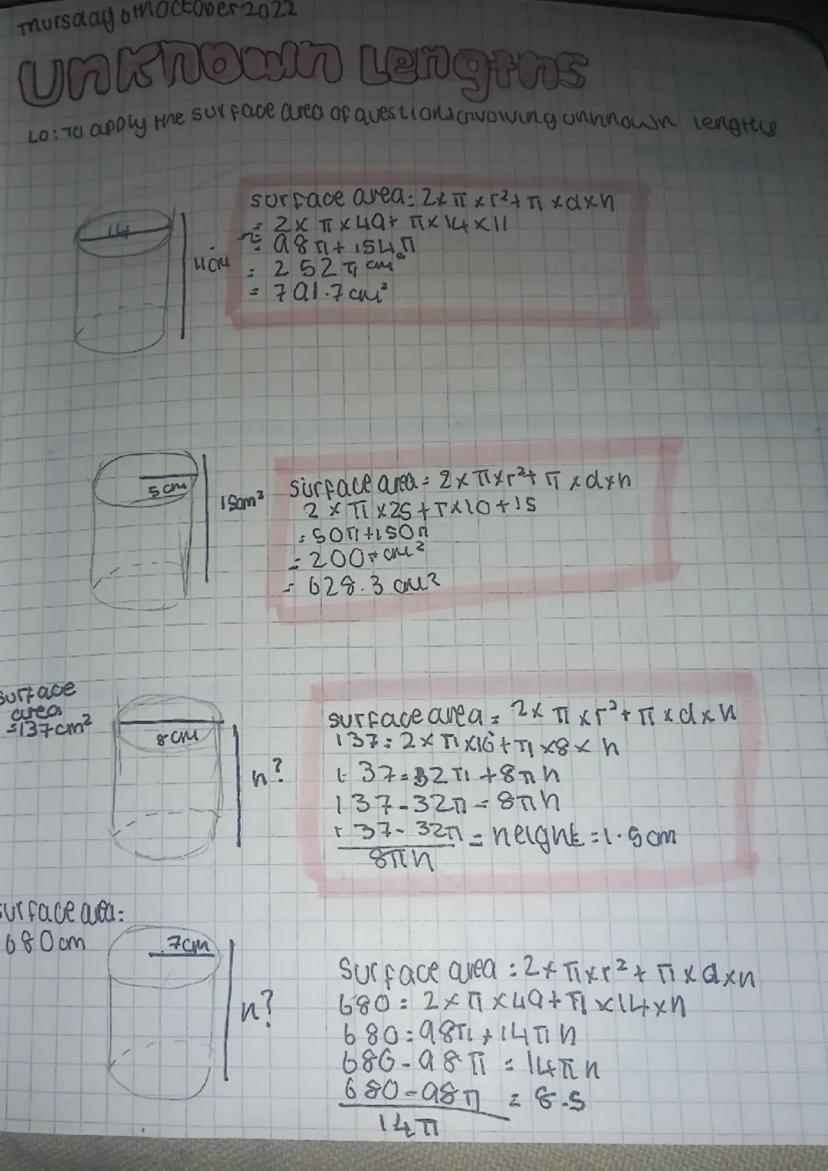

Unknown Lengths in Cylinders

Sometimes you'll need to work backwards from the surface area to find missing measurements. This is where your algebra skills shine! Start with the surface area formula and substitute what you know.

If surface area = 137cm², radius = 4cm, find the height: 137 = 2π(4²) + π(8)h. This simplifies to 137 = 32π + 8πh. Subtract 32π from both sides: 137 - 32π = 8πh.

Divide by 8π: h = 137−32π137 - 32π ÷ 8π ≈ 1.9cm. The key is taking it step by step and not rushing the algebra.

Success Strategy: Write down the formula first, then substitute known values before rearranging!

Maths, volume and surface area of 3 d shapes. – page 8

Sign up to see the content.
It's free!

By signing up you accept Terms of Service and Privacy Policy

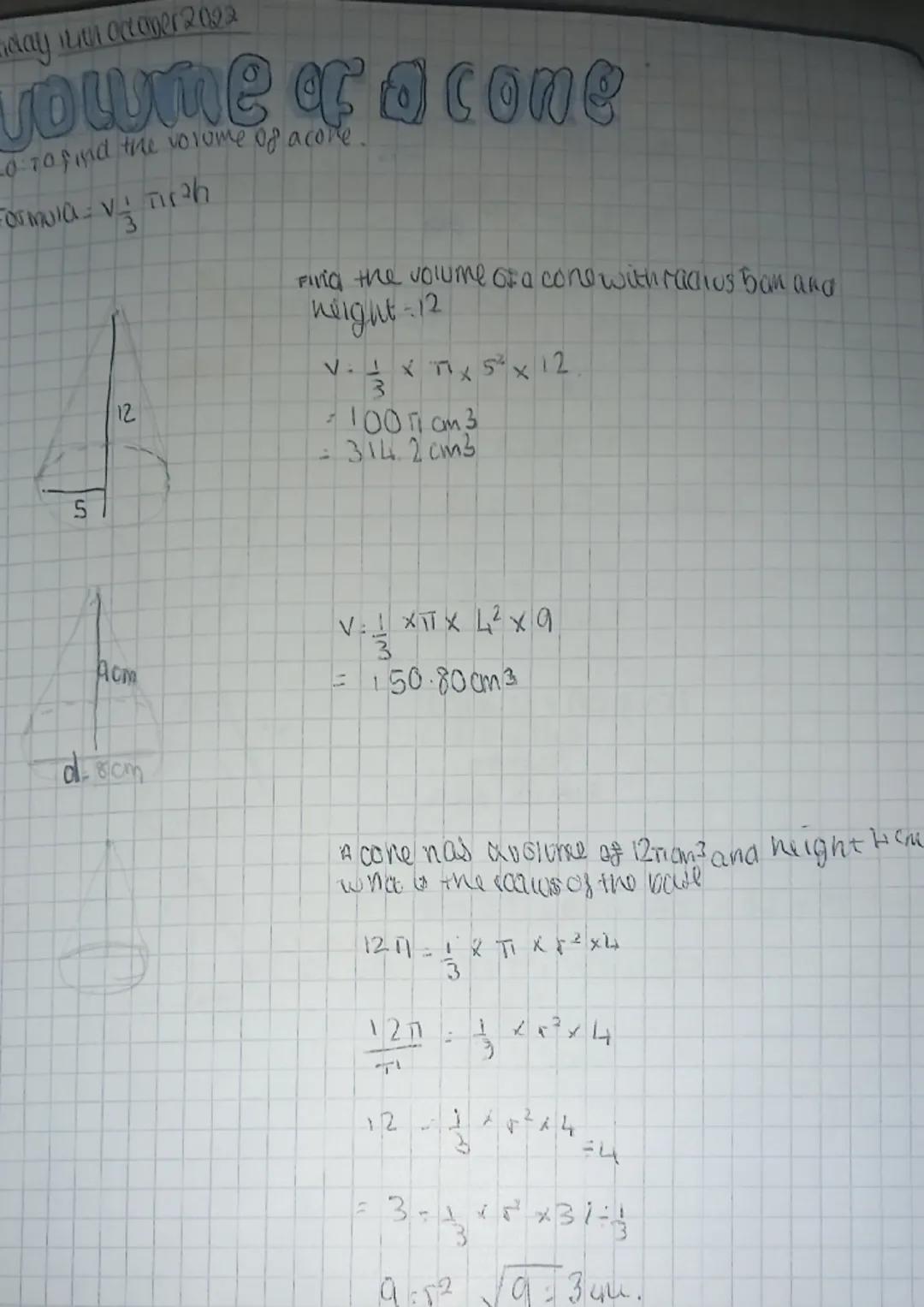

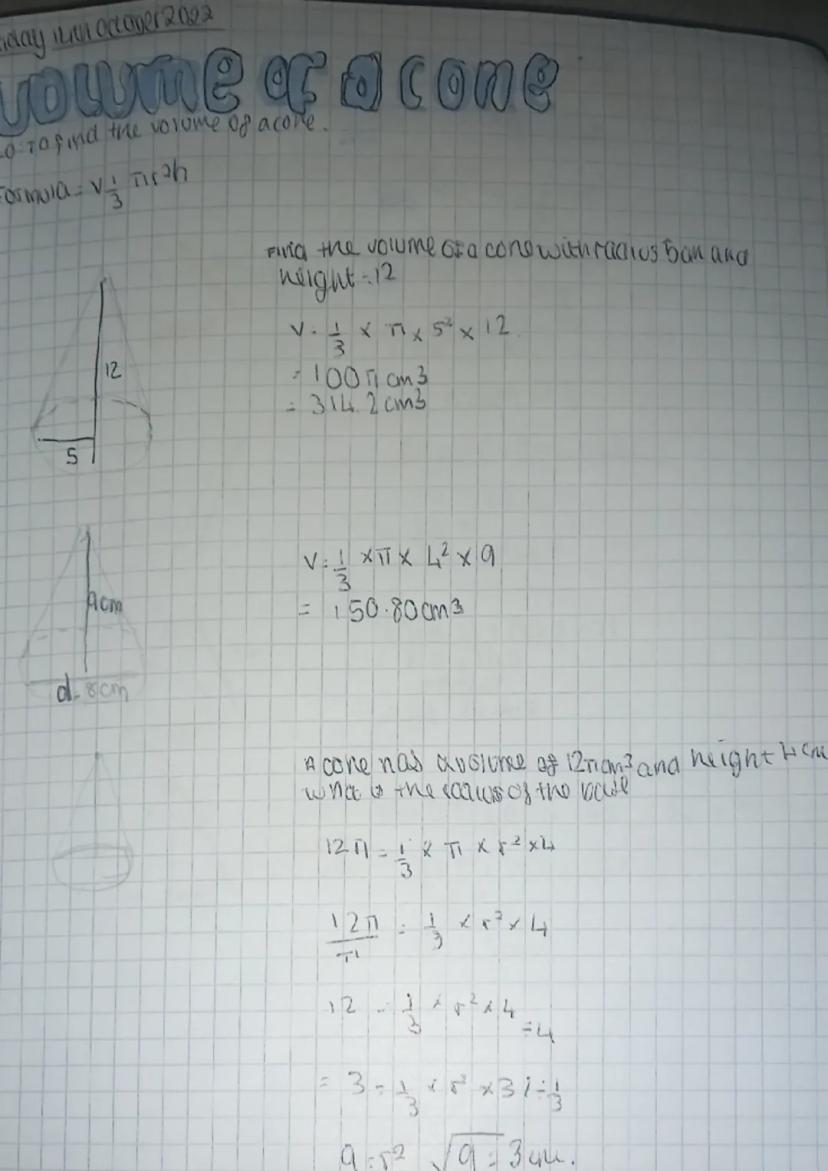

Volume of Cones

Cone volume uses the formula V = ⅓πr²h - it's exactly one-third of a cylinder with the same base and height. This makes sense because a cone tapers to a point!

For a cone with radius 5cm and height 12cm: V = ⅓ × π × 5² × 12 = ⅓ × π × 25 × 12 = 100π ≈ 314.2cm³. Always multiply everything together before dividing by 3.

Reverse calculations work brilliantly too. If volume = 12πcm³ and height = 4cm, find the radius: 12π = ⅓ × π × r² × 4. Cancel π from both sides: 12 = ⅓ × r² × 4. This gives r² = 9, so r = 3cm.

Memory Hook: Cone volume = cylinder volume ÷ 3!

Maths, volume and surface area of 3 d shapes. – page 9

Sign up to see the content.
It's free!

By signing up you accept Terms of Service and Privacy Policy

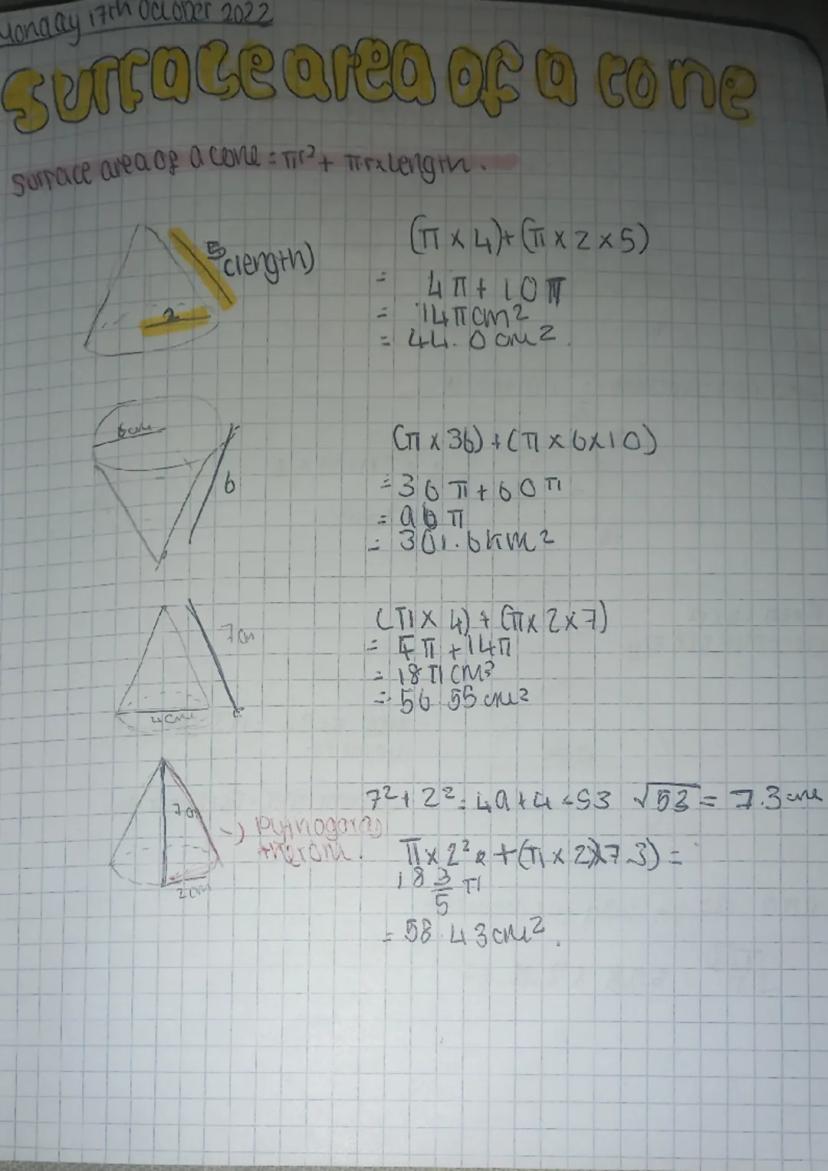

Surface Area of Cones

Cone surface area combines the circular base (πr²) with the curved side (πrl), where l is the slant height from the tip to the edge of the base. Total formula: πr² + πrl.

The tricky bit is finding the slant height when you only know the radius and vertical height. Use Pythagoras' theorem: l² = r² + h². For radius 2cm and height 7cm: l² = 4 + 49 = 53, so l = √53 ≈ 7.3cm.

Then calculate: base area = π × 2² = 4π, curved area = π × 2 × 7.3 = 14.6π. Total ≈ 18.6π ≈ 58.4cm².

Pro Tip: Draw a right triangle with the radius and height to visualise the slant height calculation!
