How to Draw a Box Plot Easily: Step by Step Guide

Understanding Box Plots and Statistical Distribution Analysis - A comprehensive guide to creating and interpreting box plots for statistical data visualization, focusing on interquartile ranges and distribution comparisons.

  • Learn how to draw box plot step by step using ordered data sets and identifying key statistical measures
  • Master techniques for comparing distribution with box plots between different groups
  • Understand the importance of understanding interquartile range IQR in statistics for measuring data spread
  • Explore practical applications through exam-style questions and real-world examples
  • Develop skills in statistical interpretation and data visualization
...

11/07/2023

270

(1) 2,11, 7, 5, 10, 8, 3, 14, 9, 6, 7 2,3, 5, 6, 7, 73, 9, 10, 11, 14 median = 7 LQ=5 BOX PLOTS Box zo Ordered. |UQ = 10 0 middle no. after

View

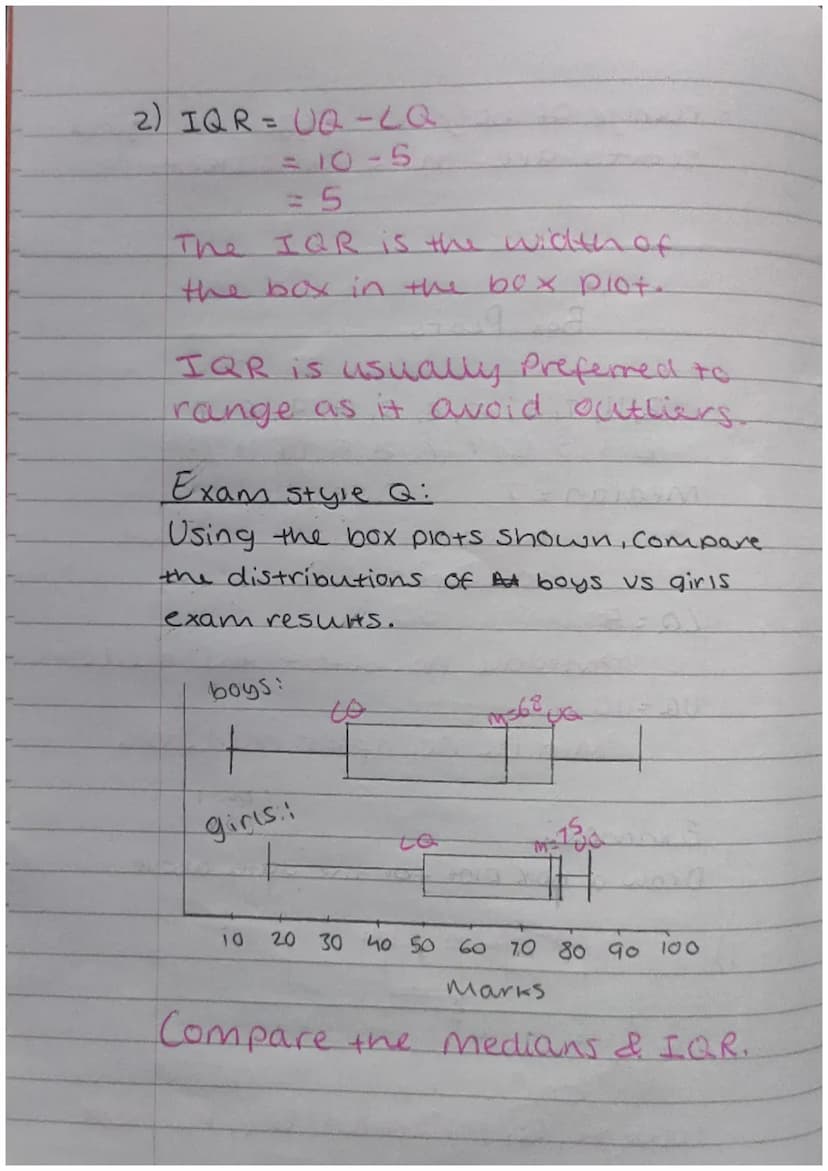

Understanding Interquartile Range (IQR)

This section delves into the concept of Interquartile Range and its significance in statistical analysis.

Definition: IQR is calculated by subtracting the Lower Quartile from the Upper Quartile (UQ - LQ).

Example: Using the previous data: IQR = 10 - 5 = 5

Highlight: IQR is often preferred over range as a measure of spread because it eliminates the influence of outliers.

(1) 2,11, 7, 5, 10, 8, 3, 14, 9, 6, 7 2,3, 5, 6, 7, 73, 9, 10, 11, 14 median = 7 LQ=5 BOX PLOTS Box zo Ordered. |UQ = 10 0 middle no. after

View

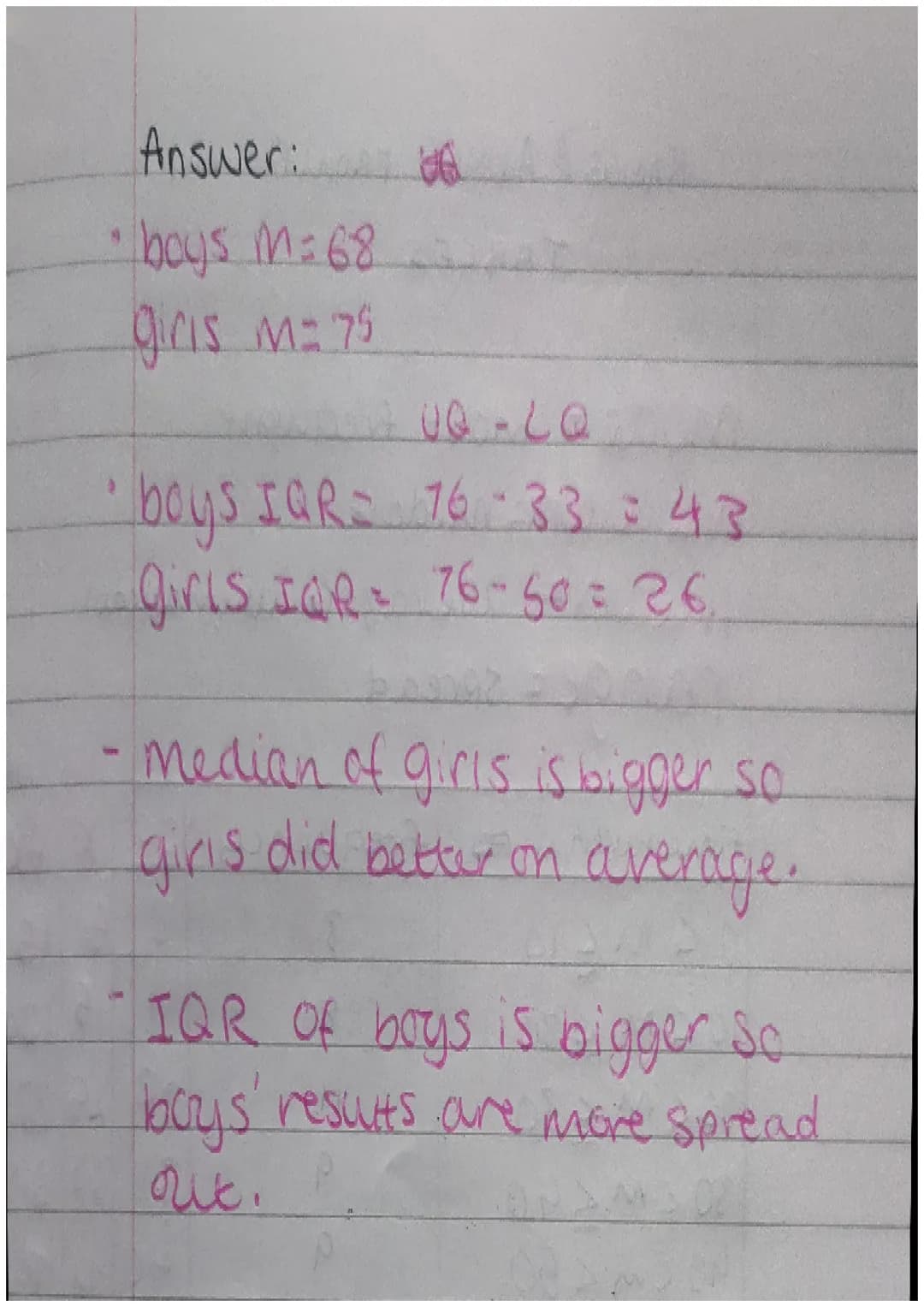

Comparing Distributions Using Box Plots

This section demonstrates how to analyze and compare distributions between different groups using box plots.

Example: Comparison of boys' and girls' exam results:

  • Boys: Median = 68, IQR = 43
  • Girls: Median = 75, IQR = 26

Highlight: The analysis reveals that:

  • Girls performed better on average (higher median)
  • Boys' results showed more variation (larger IQR)

Vocabulary:

  • Spread: The dispersion of data points around the central value
  • Distribution: The pattern of variation in a dataset

Similar content

Know mean, median, mode, range thumbnail

368

2022

11

mean, median, mode, range

foundation gcse maths

Know Math notes - Topics include: product rule for counting, averages, Pythagoras, multiplying etc. thumbnail

4

628

11

Math notes - Topics include: product rule for counting, averages, Pythagoras, multiplying etc.

These notes give an explanation example and questions for you to try. Topics include: product rule for counting, averages, Pythagoras, multiplying decimals, collecting like terms and substitution.

Can't find what you're looking for? Explore other subjects.

Knowunity is the #1 education app in five European countries

Knowunity has been named a featured story on Apple and has regularly topped the app store charts in the education category in Germany, Italy, Poland, Switzerland, and the United Kingdom. Join Knowunity today and help millions of students around the world.

Ranked #1 Education App

Download in

Google Play

Download in

App Store

Knowunity is the #1 education app in five European countries

4.9+

Average app rating

21 M

Pupils love Knowunity

#1

In education app charts in 17 countries

950 K+

Students have uploaded notes

Still not convinced? See what other students are saying...

iOS User

I love this app so much, I also use it daily. I recommend Knowunity to everyone!!! I went from a D to an A with it :D

Philip, iOS User

The app is very simple and well designed. So far I have always found everything I was looking for :D

Lena, iOS user

I love this app ❤️ I actually use it every time I study.

Subjects

Maths

Statistics

Analysing data



Maths

•

270

•

11 Jul 2023

•

3 pages

How to Draw a Box Plot Easily: Step by Step Guide

user profile picture

✧₊∘GCSE Tips ∘₊✧

@gcse.revision.notes

Understanding Box Plots and Statistical Distribution Analysis - A comprehensive guide to creating and interpreting box plots for statistical data visualization, focusing on interquartile ranges and distribution comparisons.

  • Learn how to draw box plot step by stepusing ordered data... Show more
(1) 2,11, 7, 5, 10, 8, 3, 14, 9, 6, 7 2,3, 5, 6, 7, 73, 9, 10, 11, 14 median = 7 LQ=5 BOX PLOTS Box zo Ordered. |UQ = 10 0 middle no. after

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

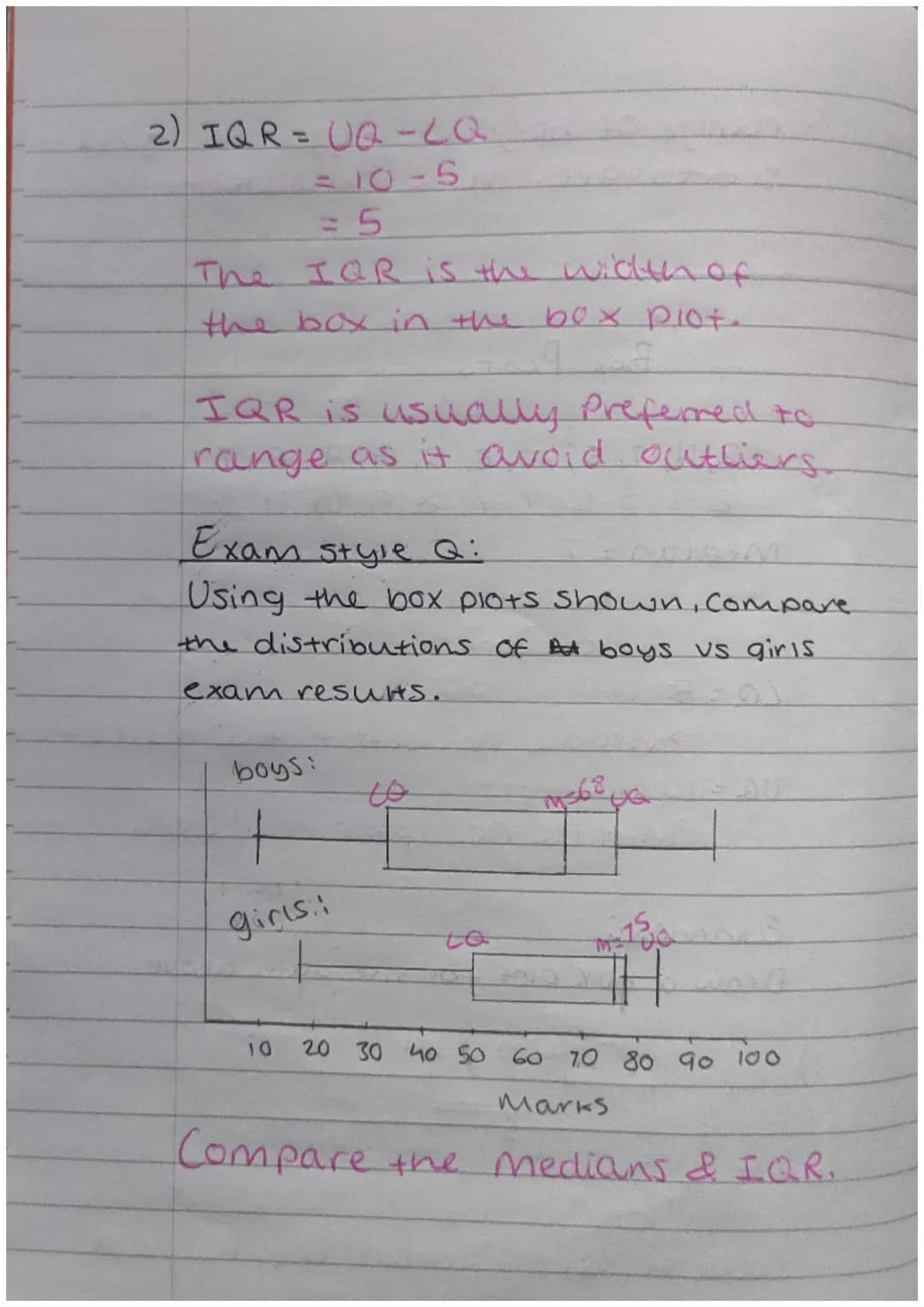

Understanding Interquartile Range (IQR)

This section delves into the concept of Interquartile Range and its significance in statistical analysis.

Definition: IQR is calculated by subtracting the Lower Quartile from the Upper Quartile (UQ - LQ).

Example: Using the previous data: IQR = 10 - 5 = 5

Highlight: IQR is often preferred over range as a measure of spread because it eliminates the influence of outliers.

(1) 2,11, 7, 5, 10, 8, 3, 14, 9, 6, 7 2,3, 5, 6, 7, 73, 9, 10, 11, 14 median = 7 LQ=5 BOX PLOTS Box zo Ordered. |UQ = 10 0 middle no. after

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

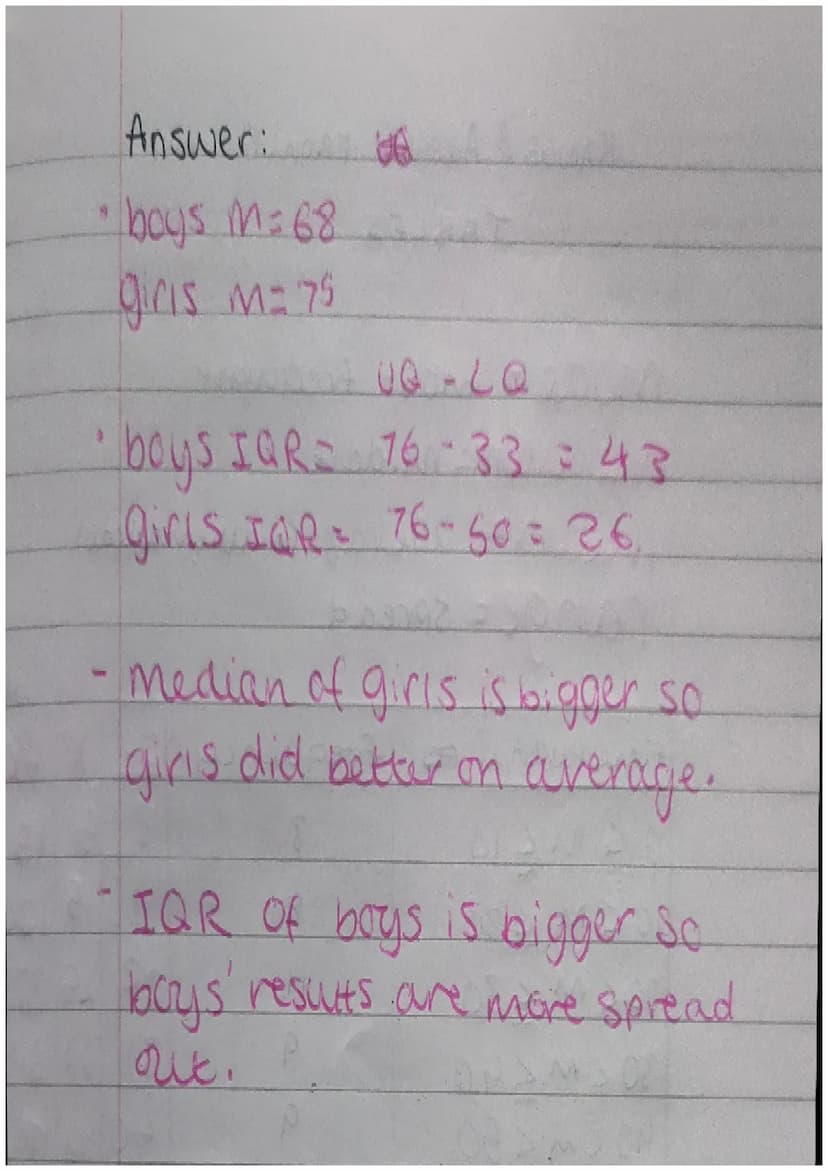

Comparing Distributions Using Box Plots

This section demonstrates how to analyze and compare distributions between different groups using box plots.

Example: Comparison of boys' and girls' exam results:

  • Boys: Median = 68, IQR = 43
  • Girls: Median = 75, IQR = 26

Highlight: The analysis reveals that:

  • Girls performed better on average (higher median)
  • Boys' results showed more variation (larger IQR)

Vocabulary:

  • Spread: The dispersion of data points around the central value
  • Distribution: The pattern of variation in a dataset
(1) 2,11, 7, 5, 10, 8, 3, 14, 9, 6, 7 2,3, 5, 6, 7, 73, 9, 10, 11, 14 median = 7 LQ=5 BOX PLOTS Box zo Ordered. |UQ = 10 0 middle no. after

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

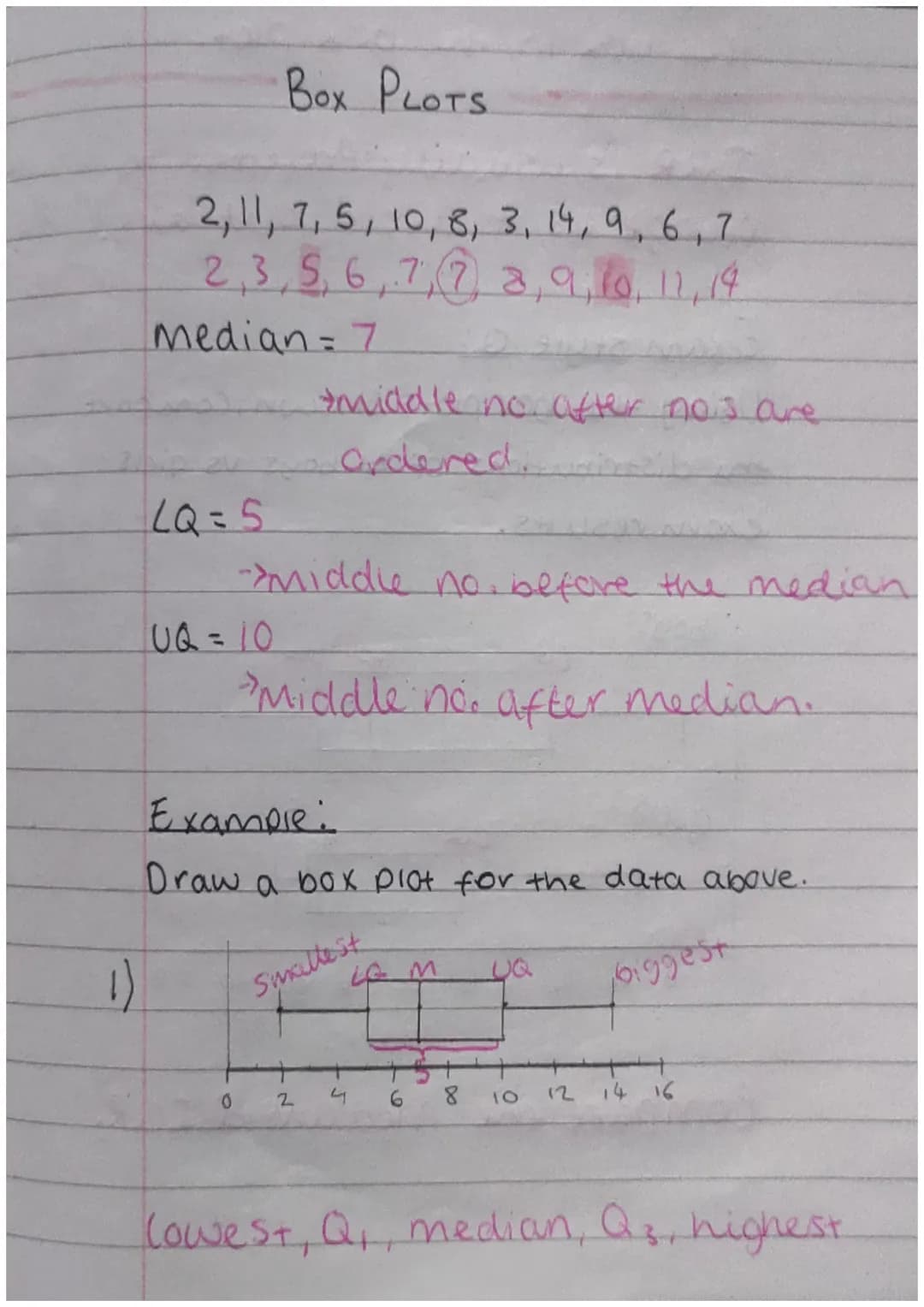

Creating Box Plots from Raw Data
