Scatter Diagrams, Correlation, and Data Collection

This page focuses on analyzing relationships between variables and methods for collecting data in GCSE Statistics.

Scatter Diagrams are used to visualize relationships between two variables in bivariate data. The explanatory (independent) variable is plotted on the x-axis, while the response (dependent) variable is on the y-axis.

Definition: A scatter diagram plots pairs of numerical data to show the relationship between two variables.

Correlation refers to the association between variables. It's important to note that correlation does not imply causation.

Highlight: Understanding correlation and causation in GCSE statistics questions is crucial. While two variables may be correlated, other factors could be causing the observed relationship.

The Line of Best Fit (LOBF) is drawn through the mean point (x̄, ȳ) to show the overall trend in a scatter diagram. It can be used for interpolation (estimating within the data range) and extrapolation (estimating outside the data range).

Vocabulary: Interpolation is usually more reliable than extrapolation when using the line of best fit.

Data Collection Methods include:

1. Questionnaires: Sets of questions designed to obtain data
2. Interviews: Face-to-face data collection allowing for explanation and follow-up
3. Observations: Direct recording of data without asking questions

Example: A GCSE Statistics sampling methods question might ask you to compare the advantages and disadvantages of interviews vs questionnaires for a specific scenario.

Experimental Design concepts include:

• Control groups: Used to compare against the treatment group
• Randomization: Ensures unbiased group selection
• Matched pairs: Groups with similar characteristics except for the factor being studied

Vocabulary: Extraneous variables are factors not being studied that could affect the experiment's results.

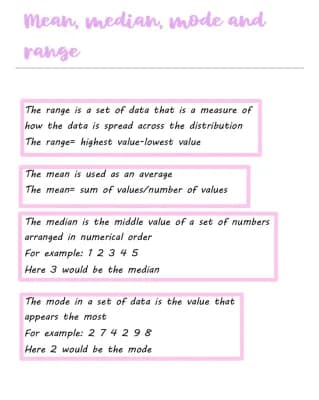

Measures of Dispersion quantify the spread of data:

• Range: Difference between largest and smallest values
• Interquartile Range (IQR): Difference between upper and lower quartiles
• Standard Deviation: Average distance of values from the mean

Formula: Frequency density formula Statistics: Frequency Density = Frequency ÷ Class Width

Understanding these concepts is essential for success in GCSE Statistics systematic sampling techniques questions and other exam topics.

Systematic Sampling and Data Types

This page covers key sampling techniques and types of data for GCSE Statistics.

Systematic Sampling is a probability sampling method where every nth item is selected from the population at regular intervals. This provides a representative sample if the population is randomly ordered.

Definition: Systematic sampling involves selecting every nth item from a population to create a sample.

Histograms are used to display continuous data using frequency density. The area of each bar represents the frequency for that class interval.

Vocabulary: Frequency density is calculated as frequency divided by class width.

Types of Data are categorized in several ways:

• Quantitative (numerical) vs Qualitative $non-numerical$
• Continuous (any value on a scale) vs Discrete (specific values only)
• Categorical (distinct categories) vs Ordinal (ordered categories)
• Primary (collected firsthand) vs Secondary (from existing sources)

Example: Height measurements are quantitative continuous data, while shoe sizes are quantitative discrete data.

Sampling involves selecting a subset of items from a population. Key concepts include:

• Population: The entire group being studied
• Sample: A smaller group selected from the population
• Sampling frame: A list of all items that could be sampled
• Biased sample: A non-representative sample of the population

Highlight: Proper sampling techniques are crucial for obtaining representative data and making valid statistical inferences.
