Graphical Representations of Functions

This page delves into the graphical representation of functions, highlighting the differences between one-to-one and many-to-one functions through visual examples.

Highlight: Graphical representations of functions help visualize the relationship between inputs (domain) and outputs (range).

The page presents two function examples and their corresponding graphs:

1. f$x$ = 2x
2. f$x$ = x²

These graphs illustrate the key differences between one-to-one and many-to-one functions:

Example: For f$x$ = 2x, the graph shows a straight line. To obtain an output $y$ value of 4, there is only one possible input value of 2. This demonstrates that f$x$ = 2x is a one-to-one function, as each input corresponds to a unique output.

Example: For f$x$ = x², the graph shows a parabola. To obtain an output $y$ value of 4, there are two possible input values: -2 or 2. This illustrates that f$x$ = x² is a many-to-one function, as multiple inputs can result in the same output.

Understanding these graphical representations is crucial for identifying function types and analyzing their behavior. The visual approach helps students grasp the concept of function relationships more intuitively, complementing the algebraic representations introduced earlier.

Identifying Functions Through Examples

This page provides practical examples to help students identify and classify functions based on their characteristics.

Example: The first example examines the function f$x$ = x + 2.

To determine if this is a function, we apply the following criteria:

1. It must have one or many inputs.
2. It must have only one output for each input.

The graph of f$x$ = x + 2 is a straight line with a y-intercept of 2 and a gradient of 1. Analysis of this graph reveals that: • Any input $x$ corresponds to only one output $y$. • This is classified as a one-to-one function.

Example: The second example looks at f$x$ = x².

Applying the same criteria, we find that: • Any input $x$ corresponds to only one output $y$. • However, more than one input can give the same output. • This is classified as a many-to-one function.

The page concludes with two practice questions:

1. Is f$x$ = sin$x$ a function?
2. Is f$x$ = √x a function?

These examples and practice questions help reinforce the concept of functions and provide students with opportunities to apply their understanding to different scenarios.

Practice Answers and Further Examples

This final page provides answers to the practice questions from the previous page and offers additional insights into function analysis.

Example: Analysis of f$x$ = sin$x$

The sine function is determined to be a many-to-one function. The graph of sin$x$ shows that: • Each input $x$ corresponds to only one output $y$. • Multiple inputs can result in the same output.

Example: Analysis of f$x$ = √x

This example demonstrates a case where a mathematical expression is not a function. The reasoning is as follows:

1. When using an input of 4: f(4) = √4
2. √4 can equal either 2 or -2, resulting in two possible outputs for a single input.

Highlight: The square root function, as typically defined in mathematics, is not a function because it violates the fundamental rule that each input must correspond to exactly one output.

Graphically, if we were to plot √x, we would see that for any positive x-value, there are two corresponding y-values (positive and negative square roots).

This page reinforces the importance of carefully analyzing mathematical relationships to determine whether they meet the criteria for functions. It also highlights that not all mathematical expressions or relationships qualify as functions, emphasizing the need for critical thinking in mathematical analysis.

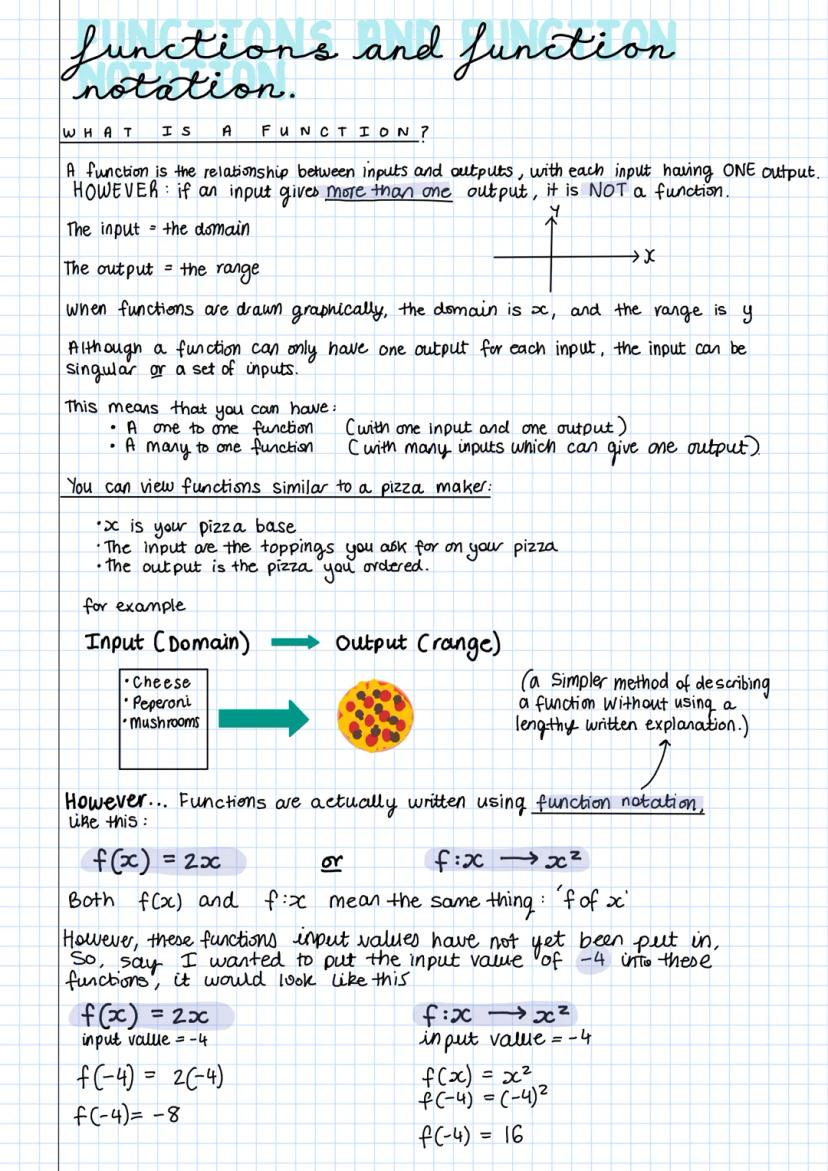

Functions and Their Characteristics

Functions are fundamental mathematical concepts that describe relationships between inputs and outputs. This page introduces the basic definition of a function and its key components.

Definition: A function is a relationship between inputs and outputs, where each input has exactly one output.

The essential components of a function include:

1. Input: Also known as the domain
2. Output: Also known as the range

When functions are represented graphically, the domain is typically plotted on the x-axis, while the range is plotted on the y-axis.

Highlight: Functions can have either a one-to-one or many-to-one relationship between inputs and outputs.

To illustrate the concept of functions, the page uses an analogy of a pizza maker: • x represents the pizza base • The input represents the toppings requested • The output is the final pizza ordered

Example: A one-to-one function might be represented by f$x$ = 2x. For an input value of -4, the function would be calculated as follows: f$-4$ = 2$-4$ f$-4$ = -8

The page also introduces function notation, a concise way of representing functions mathematically:

Vocabulary: Function notation uses f$x$ or f$x$ to represent 'f of x', providing a more efficient method of describing functions without lengthy written explanations.

Example: The function f$x$ = x² can be evaluated for an input value of -4 as follows: f$-4$ = $-4$² f$-4$ = 16

This introduction to functions and function notation lays the groundwork for understanding more complex mathematical relationships and their applications.
