Fun with Bearings: Easy Scale Drawing, Maths Questions, and Measurement Tips
Shaz
@shaz2007
1 / 4
Page 2: Advanced Bearing Calculations
This page delves into more complex bearing calculations, including return bearings and multi-step problems.

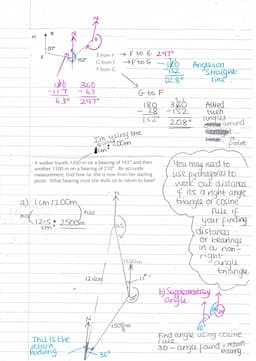

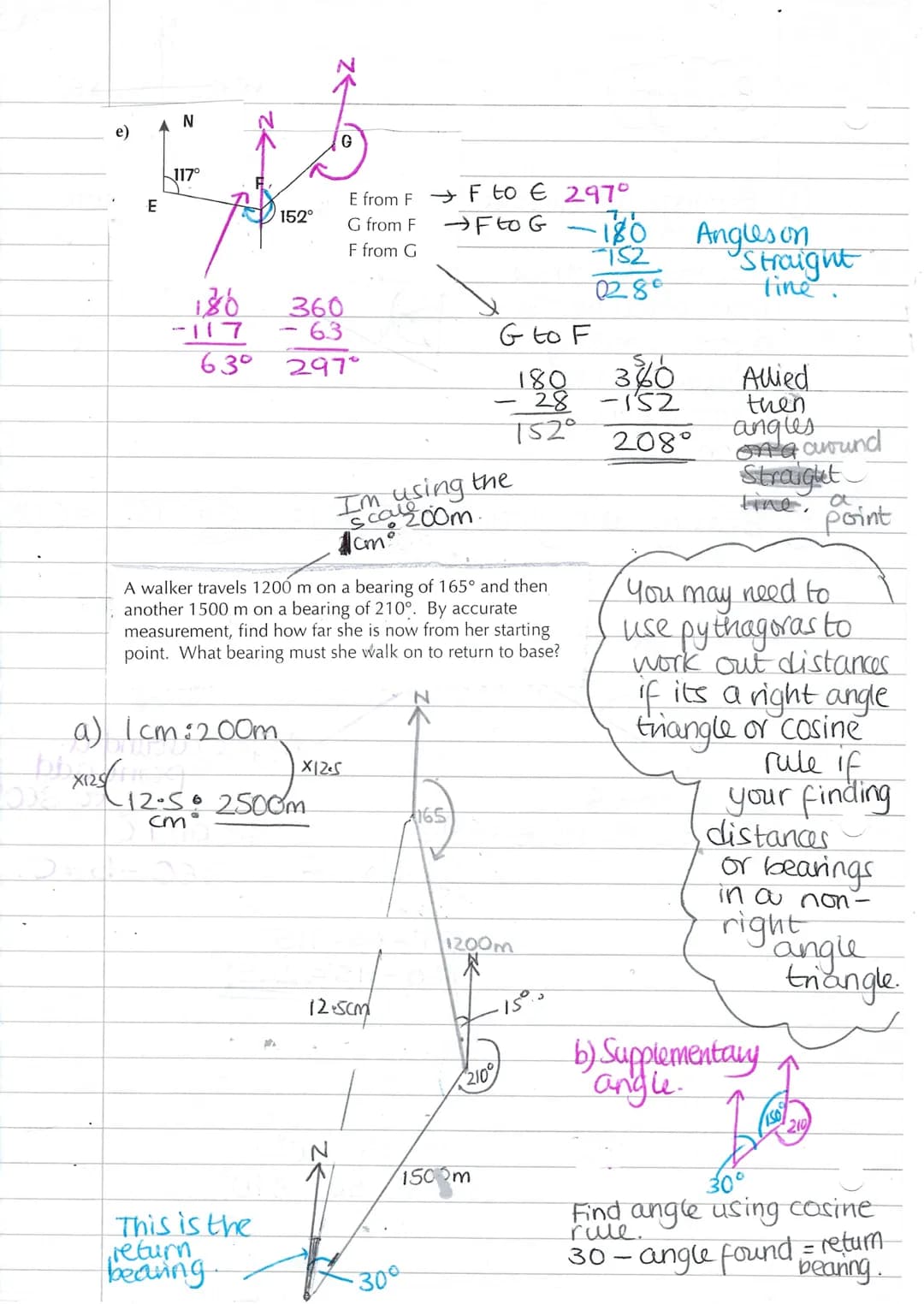

Example: A walker travels 1200 m on a bearing of 165° and then another 1500 m on a bearing of 210°. The problem asks to find the distance from the starting point and the bearing to return to base.
The page demonstrates how to use scale drawings and trigonometric calculations to solve such problems. It introduces the concept of supplementary angles and the use of the cosine rule for non-right-angled triangles.
Highlight: When solving complex bearing problems, you may need to use Pythagoras theorem for right-angled triangles or the cosine rule for non-right-angled triangles.
This section is particularly useful for students preparing for trigonometry bearings questions and answers pdf and GCSE maths bearings and distance problems with solutions.
Page 3: Applying the Cosine Rule in Bearing Problems

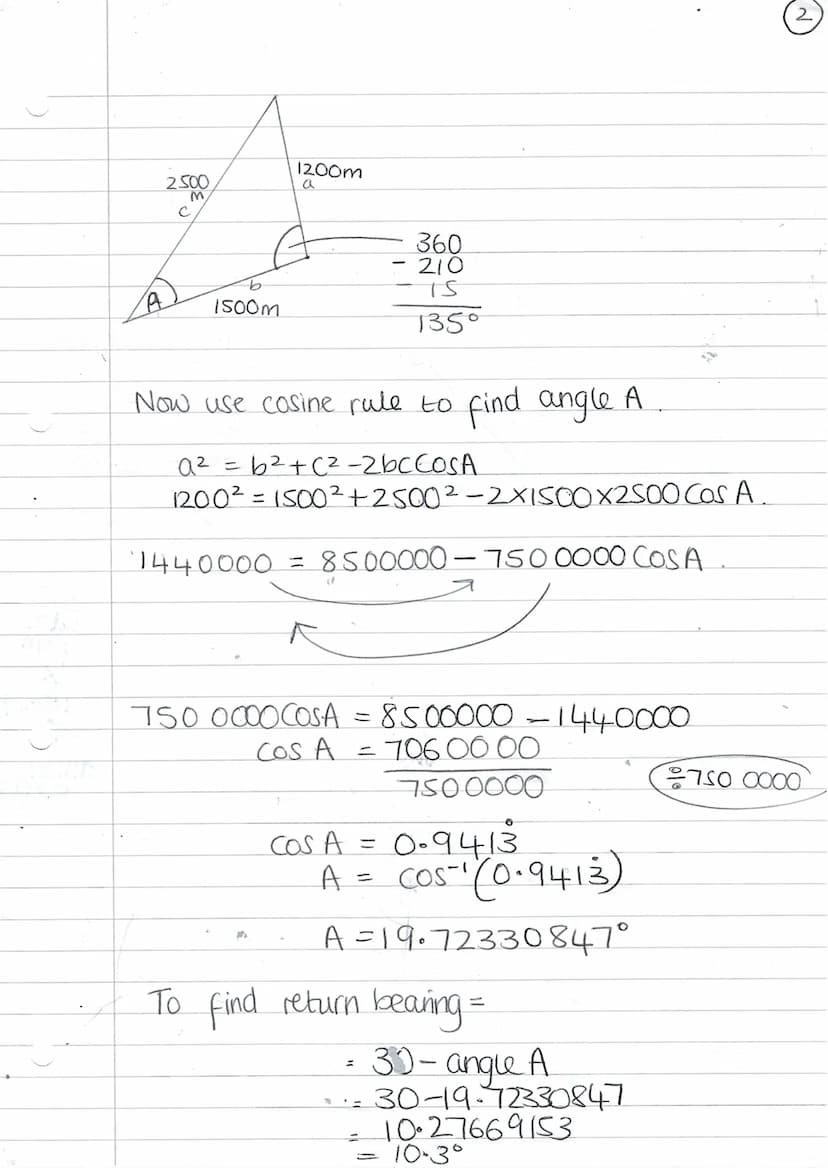

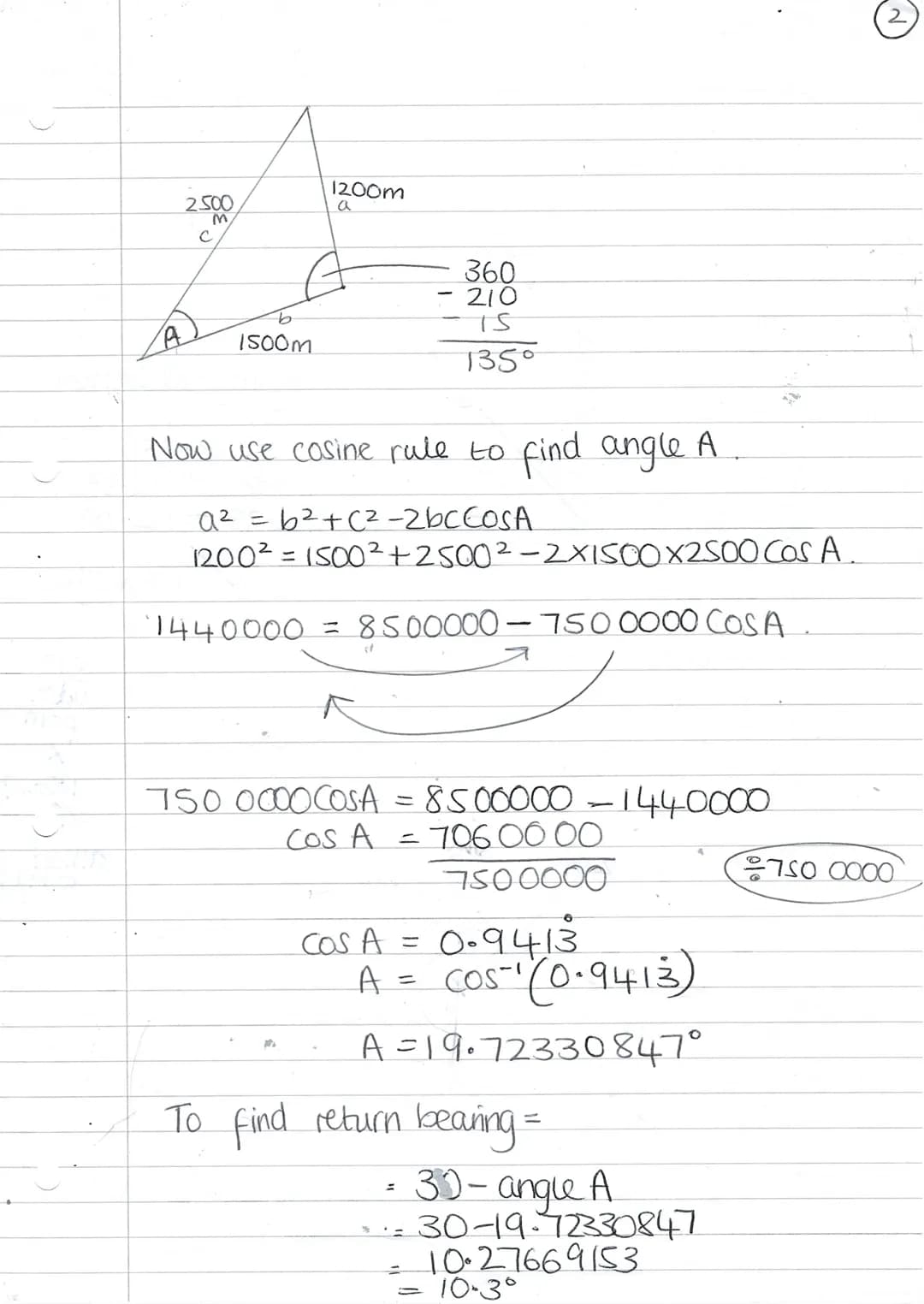

This page focuses on using the cosine rule to solve a complex bearing problem.
Definition: Cosine Rule: a² = b² + c² - 2bc cos A, where A is the angle opposite side a in a triangle.
The page provides a step-by-step solution to find the return bearing in the walker problem introduced on the previous page. It demonstrates how to set up the cosine rule equation, solve for the angle, and then use this information to calculate the final bearing.
Highlight: To find a return bearing, subtract the calculated angle from 360°.
This detailed explanation is invaluable for students working on bearings Maths GCSE questions and answers and IGCSE bearing questions and answers PDF.
Page 4: Practical Applications and Complex Problems
The final page presents two complex bearing problems that integrate various concepts covered in the previous pages.

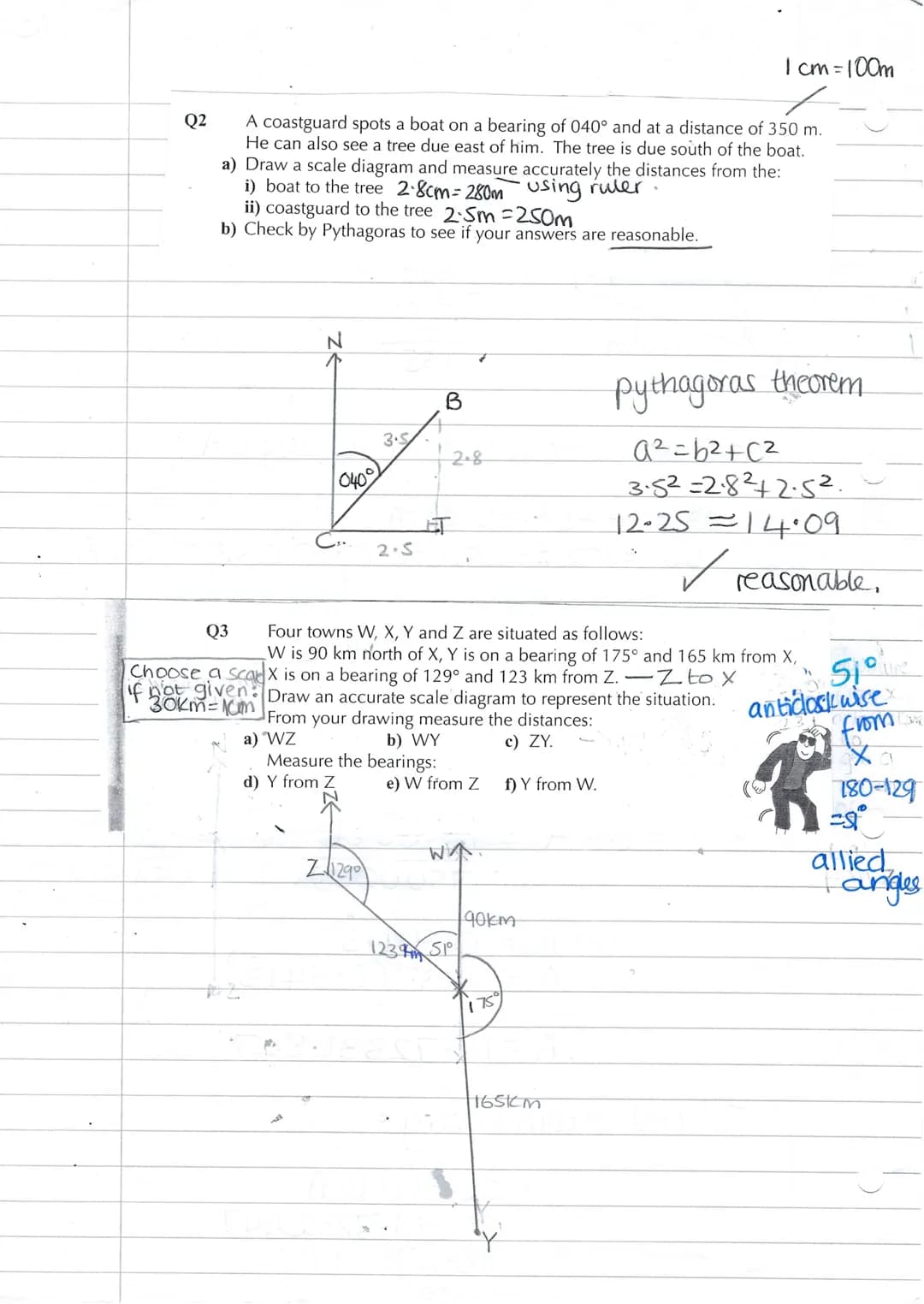

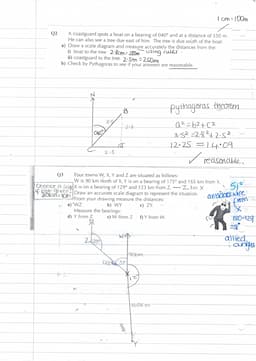

Problem 1 involves a coastguard spotting a boat and a tree, requiring students to draw a scale diagram and use Pythagoras theorem to verify their measurements.
Example: A coastguard spots a boat on a bearing of 040° and at a distance of 350 m. He can also see a tree due east of him. The tree is due south of the boat.
Problem 2 is a more complex scenario involving four towns and their relative positions using bearings and distances.
Highlight: When solving multi-step bearing problems, choose an appropriate scale for your diagram to ensure accuracy in measurements.
These problems provide excellent practice for students preparing for GCSE maths bearings and distance problems worksheets and measuring bearings using angles GCSE questions and answers.

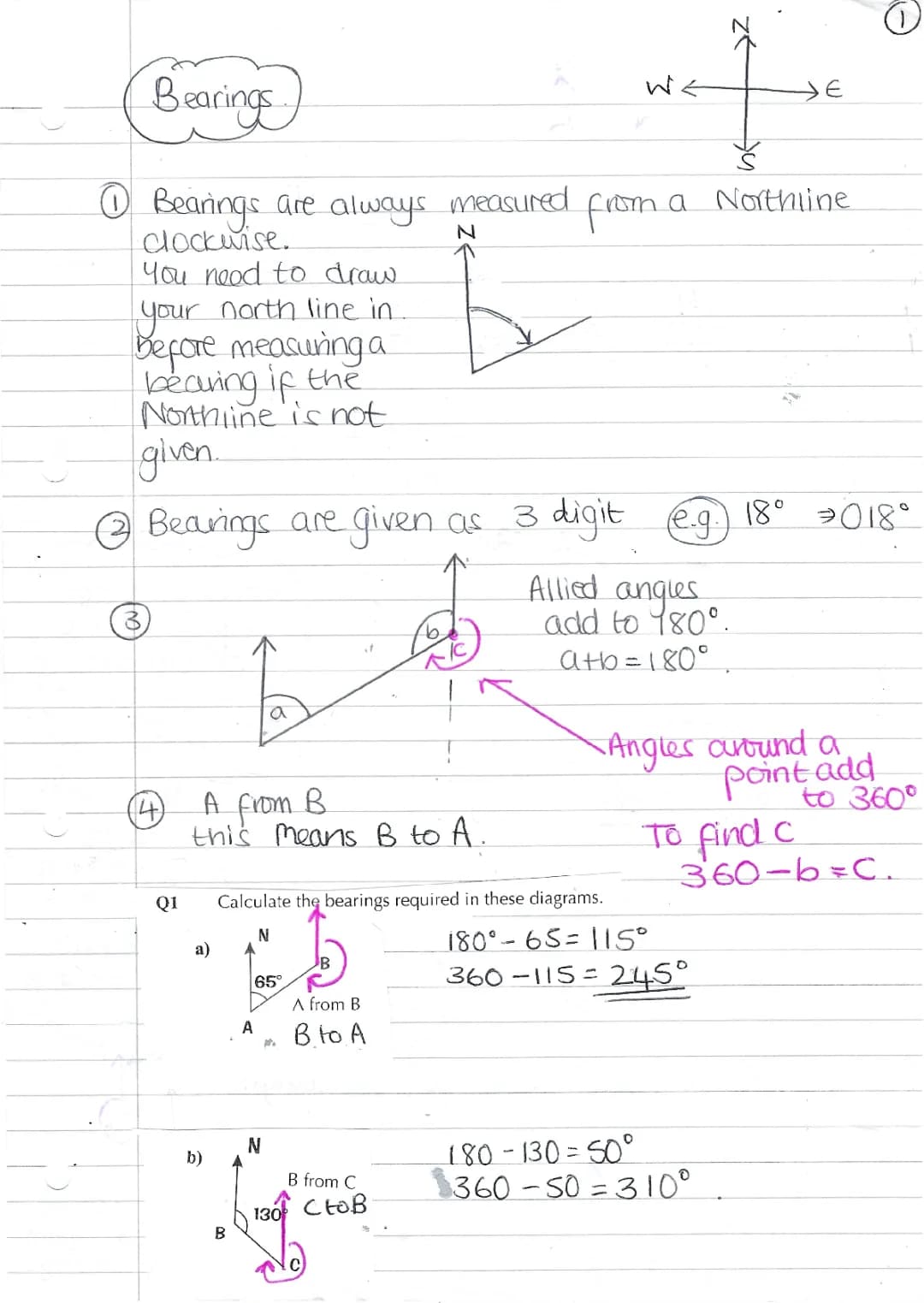

Page 1: Introduction to Bearings

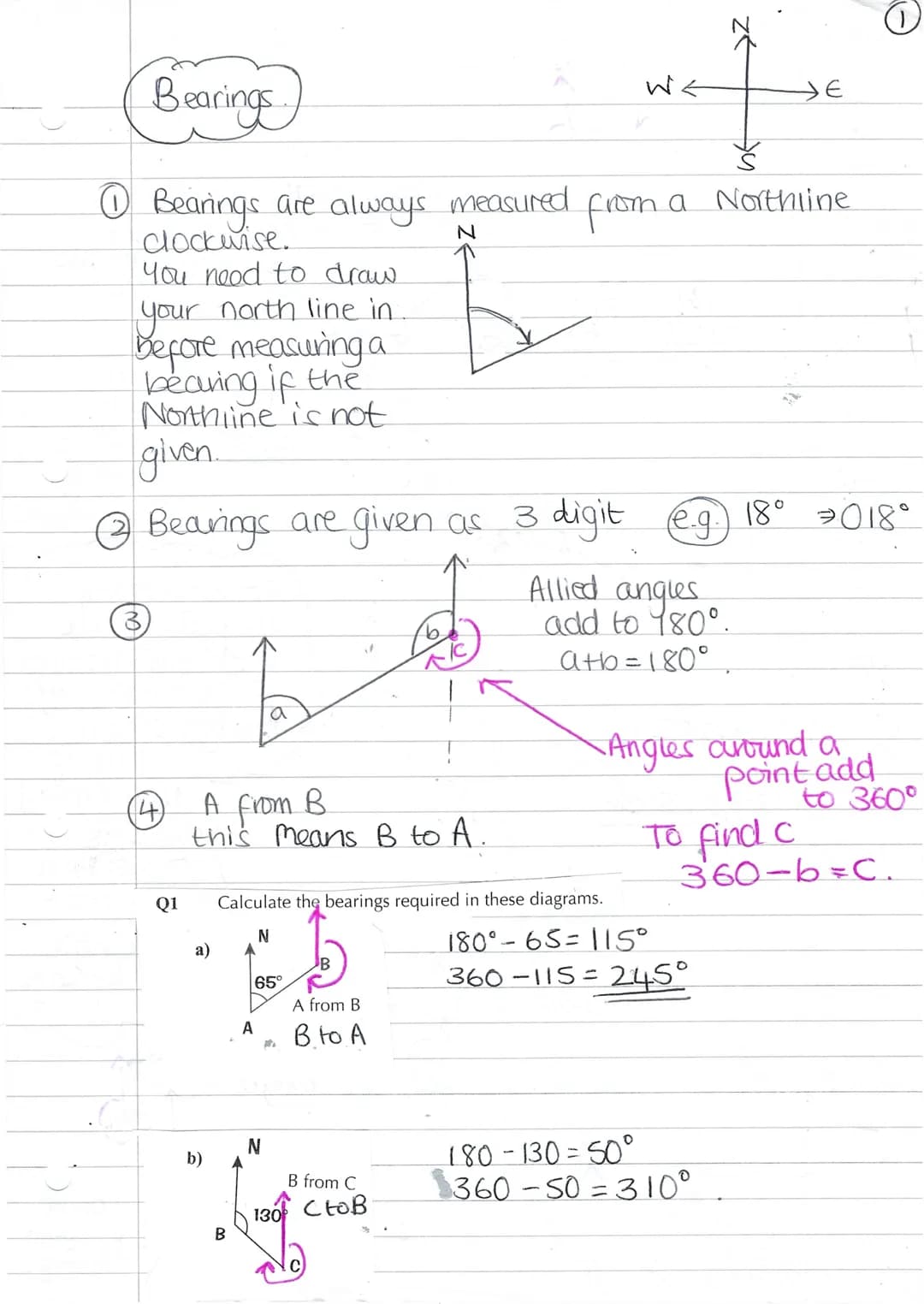

This page introduces the fundamental concepts of bearings in mathematics.
Definition: Bearings are always measured from a North line clockwise and are given as 3-digit numbers.
Example: 18° is written as 018° in bearing notation.
The page explains how to calculate bearings in various diagrams, emphasizing the importance of drawing a North line when it's not provided. It also covers the concept of allied angles and angles around a point.
Highlight: To find a bearing, remember that angles around a point add up to 360°, and allied angles add up to 180°.
Vocabulary: Allied angles - Two angles that add up to 180°.
This information is crucial for students tackling bearings GCSE maths grade 8 questions and answers.
