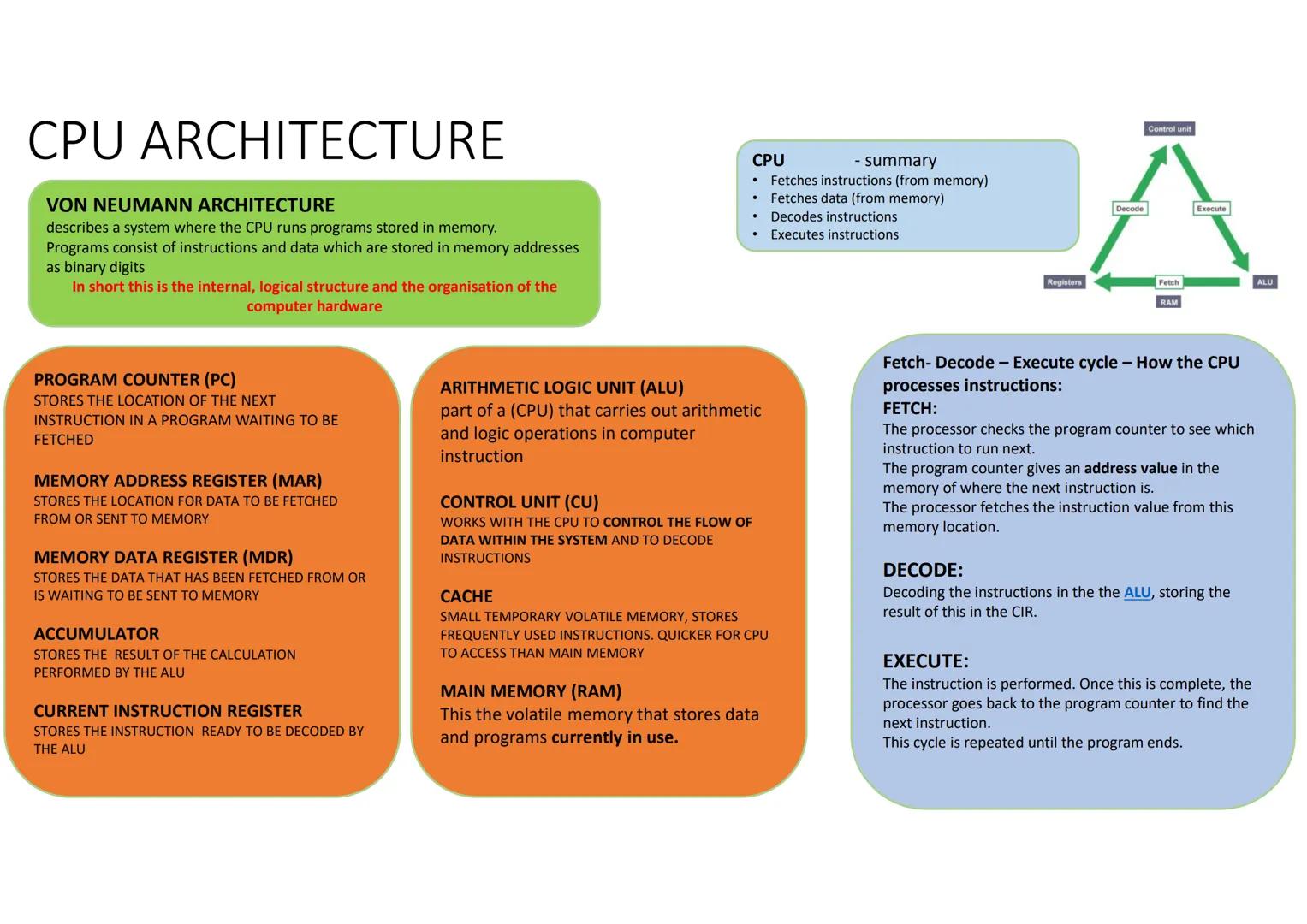

CPU Architecture Basics
Your CPU is basically the brain of your computer, and it follows a simple but brilliant design called Von Neumann architecture. This system stores both programs and data in the same memory as binary digits, which is why your computer can run any software you throw at it.
The CPU has four main jobs that it repeats constantly: fetch instructions from memory, decode what those instructions mean, execute the commands, and fetch data when needed. Think of it like following a recipe - you read the next step, work out what it means, then actually do it.
Inside the CPU, you've got several key components working together. The Control Unit (CU) acts like a traffic controller, managing data flow and decoding instructions. The Arithmetic Logic Unit (ALU) handles all the maths and logical operations. Registers are tiny, super-fast storage areas that hold crucial information the CPU needs right now.
Quick Tip: Remember that cache is like your CPU's personal notepad - it stores frequently used instructions so the processor doesn't have to keep going back to the slower main memory (RAM) every time.
2
of 2

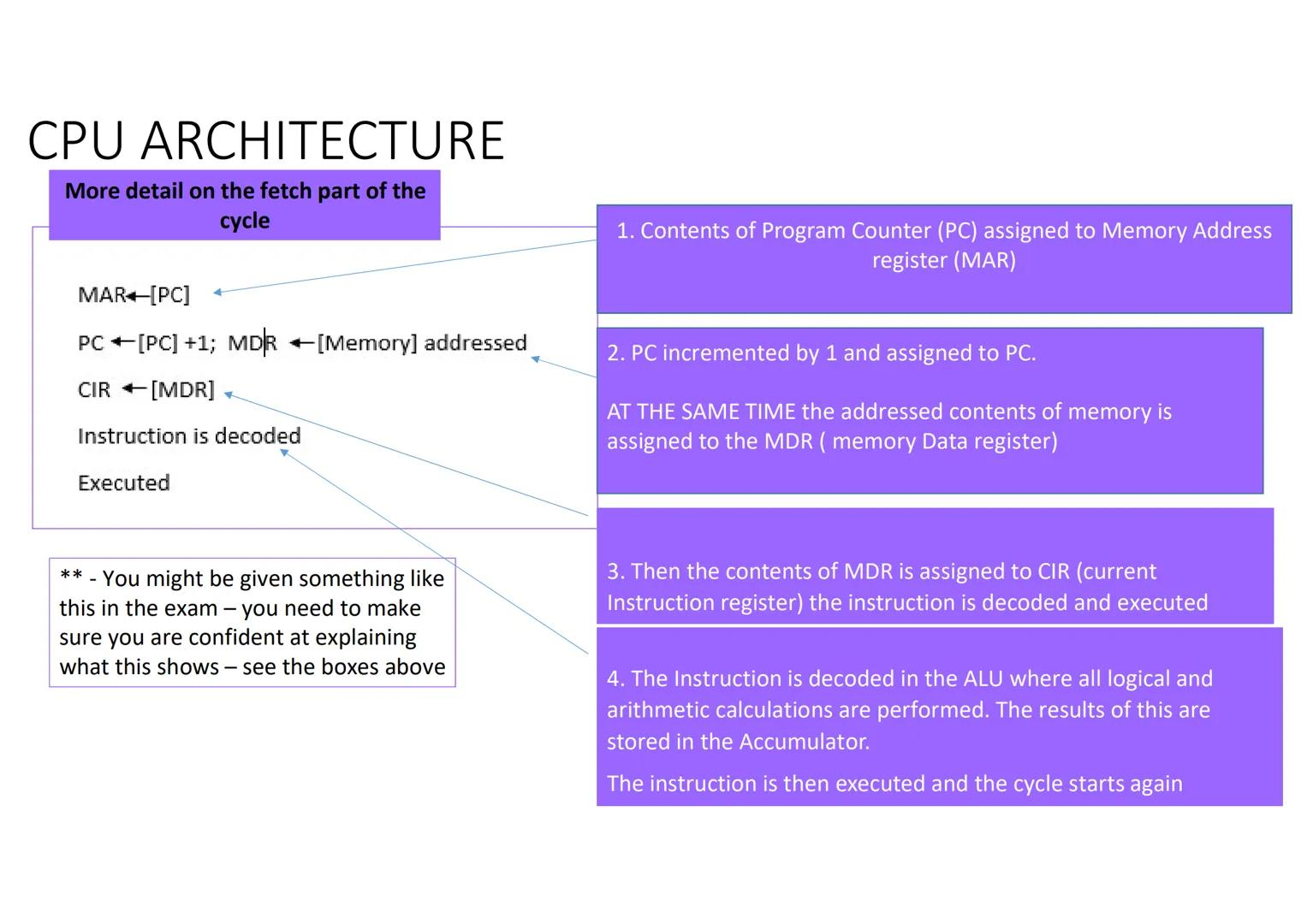

The Fetch-Decode-Execute Cycle in Detail
The fetch-decode-execute cycle is where the magic happens, and you'll definitely need to understand this for your exams. Let's break down what actually occurs during the fetch stage using those confusing register abbreviations.
First, the Program Counter (PC) tells the system where to find the next instruction. Its contents get copied to the Memory Address Register (MAR) - written as MAR←[PC]. Simultaneously, the PC increases by 1 (PC←[PC]+1) to point to the following instruction, whilst the Memory Data Register (MDR) grabs the actual instruction from memory.
Next, the instruction moves from the MDR into the Current Instruction Register (CIR) where it gets decoded by the ALU. Any calculations or logical operations happen here, with results stored in the Accumulator. Once the instruction executes, the whole cycle starts again.
Exam Alert: You might see notation like "MAR←[PC]" in your exam - this simply means "copy the contents of PC into MAR". The square brackets mean "contents of" and the arrow shows direction of data movement.
