Understanding Cosine and Sine Rules with Proofs - GCSE/IGCSE Guide
Neil Trivedi - MyEdSpace
@neildoesmaths
1 / 6
GCSE Maths: Cosine and Sine Rule Study Notes
You're about to master two essential formulas that'll make triangle problems much easier to solve. The cosine rule and sine rule are fundamental tools in GCSE maths that work with any triangle - not just right-angled ones.
These rules are particularly useful when you need to find missing measurements in triangles where basic SOH CAH TOA won't help. You'll use them in exams, coursework, and real-world applications like navigation and engineering.
Quick Tip: Think of these rules as upgraded versions of Pythagoras' theorem that work for all triangles!

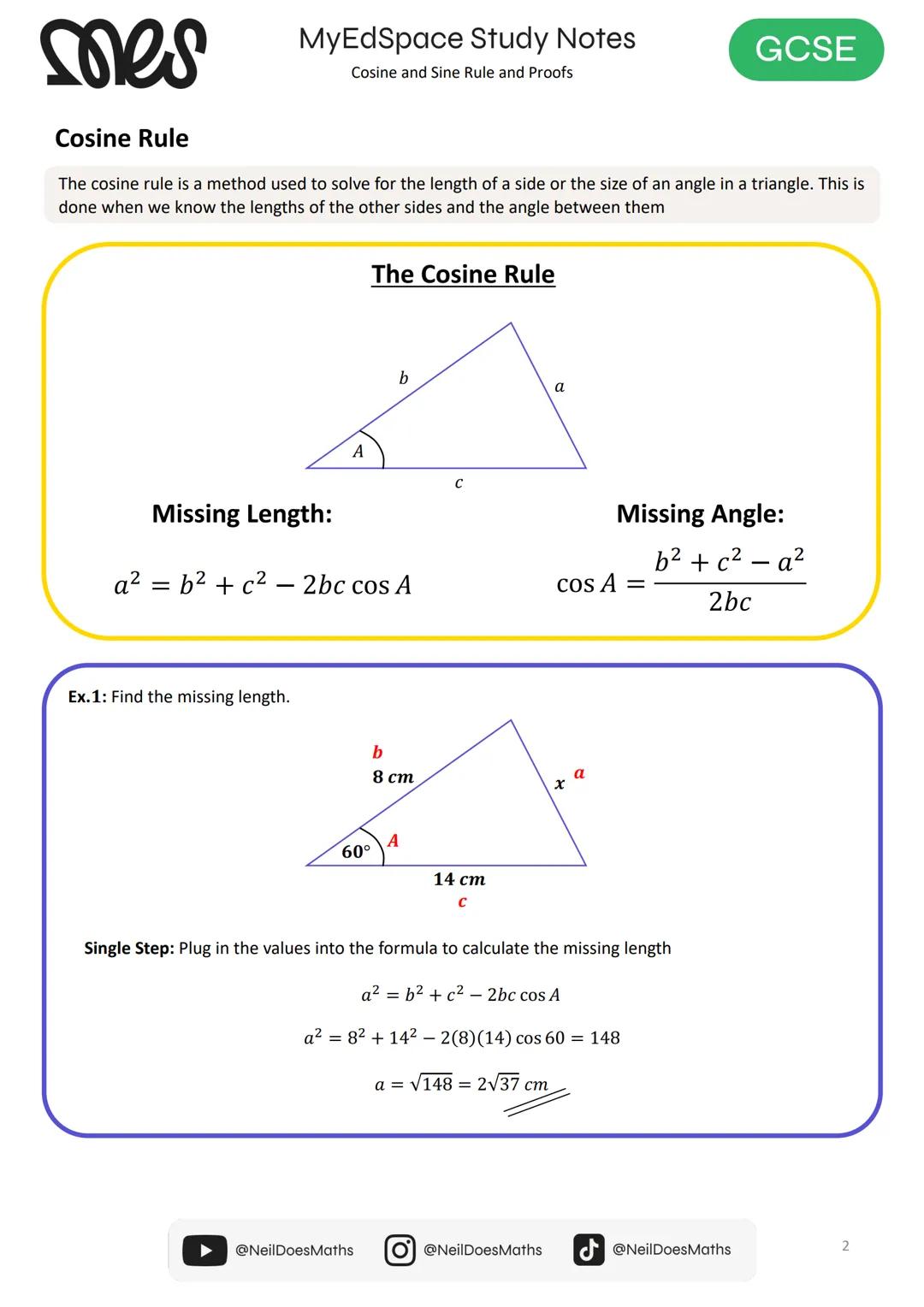

The Cosine Rule - Finding Missing Sides and Angles
The cosine rule is your go-to method when you know two sides and the angle between them, or when you know all three sides but need an angle. It's like Pythagoras' theorem with an extra twist to handle non-right triangles.
For finding a missing length, use: a² = b² + c² - 2bc cos A. Simply plug in your known values and solve - it's that straightforward! In the example, with sides of 8cm and 14cm and a 60° angle between them, the missing side works out to 2√37 cm.
When you need a missing angle, rearrange the formula to: cos A = ÷ 2bc. Then use the inverse cosine function on your calculator to find the angle.
Exam Tip: Always double-check which sides and angles you're given before choosing your formula version!

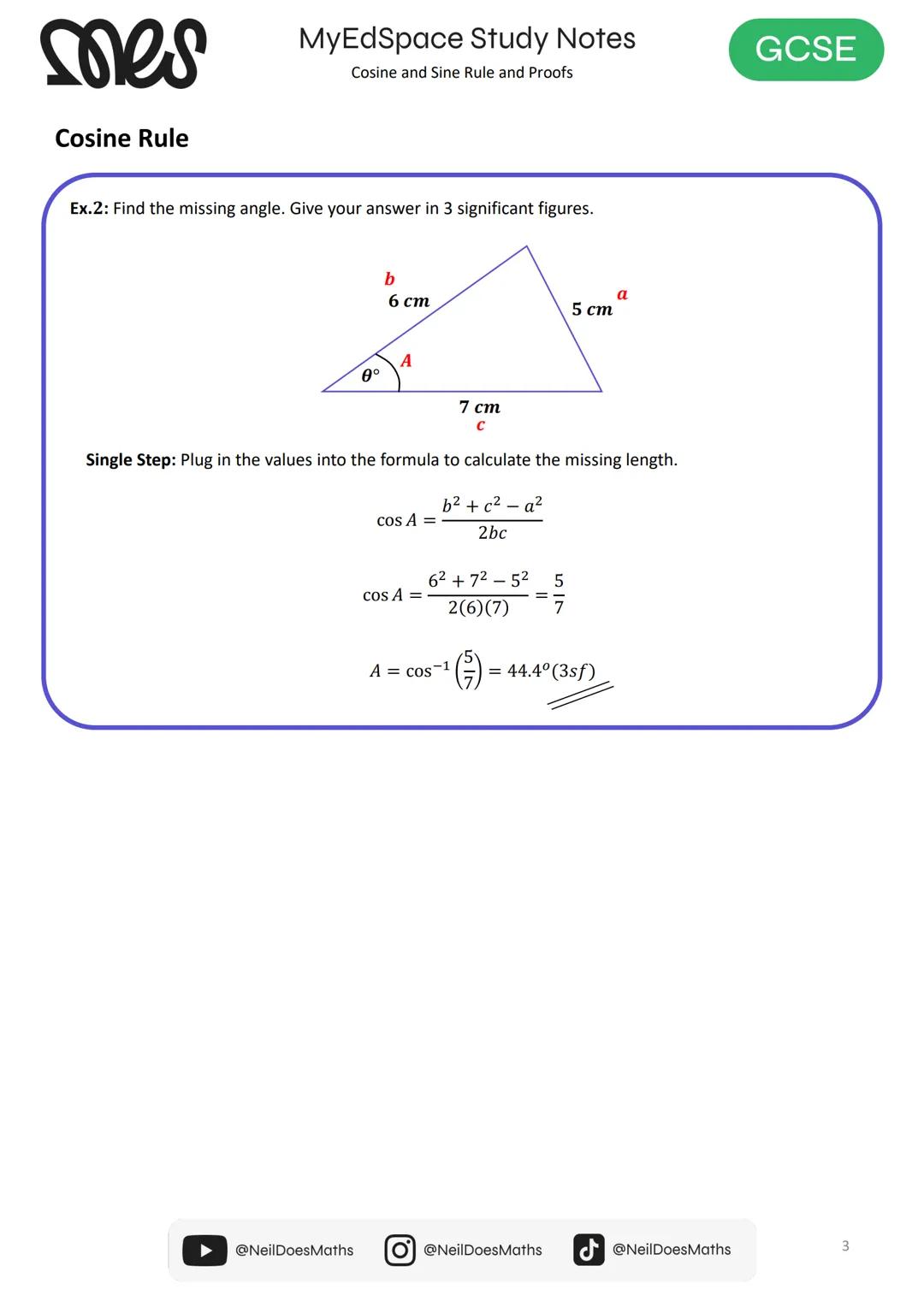

Cosine Rule Example - Finding Missing Angles
Finding missing angles with the cosine rule follows a clear pattern that you can master with practice. When you know all three side lengths, you can calculate any angle using the rearranged cosine formula.
In this example with sides 5cm, 6cm, and 7cm, we substitute into cos A = (6² + 7² - 5²) ÷ (2 × 6 × 7). This gives us cos A = 5/7, so A = cos⁻¹(5/7) = 44.4°.
Remember to give your answer to the required number of significant figures - examiners always specify this! Your calculator's inverse cosine function (cos⁻¹) is essential here.
Memory Trick: The longest side is always opposite the largest angle, so use this to check if your answer makes sense!

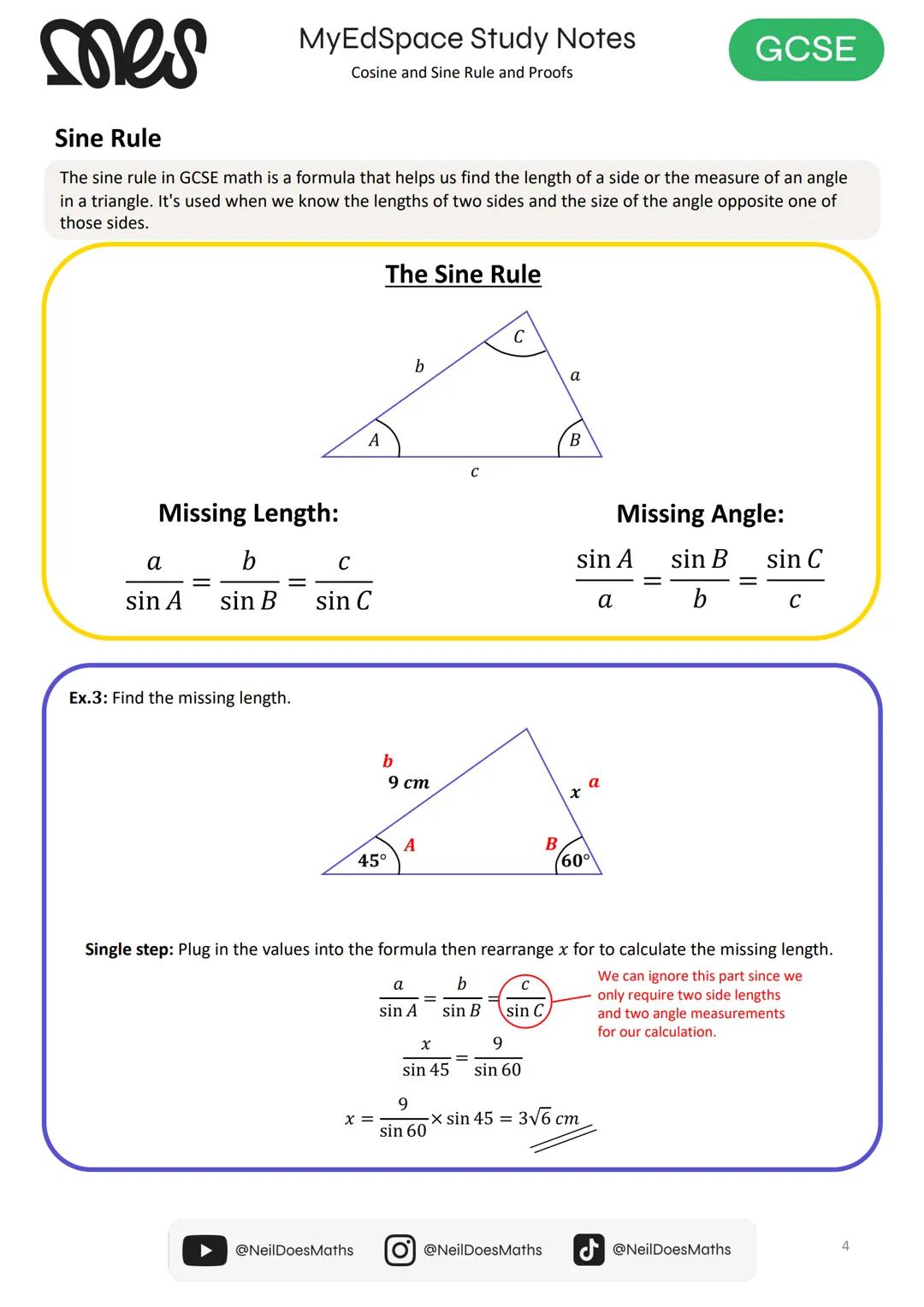

The Sine Rule - When You Know Angles and Opposite Sides
The sine rule comes to the rescue when you know two sides and an angle that's not between them, or when you have two angles and one side. It creates a beautiful relationship: a/sin A = b/sin B = c/sin C.
For missing lengths, rearrange to solve for your unknown side. In the example, with a 45° angle, a 60° angle, and a 9cm side, you set up the equation and cross-multiply to get x = 3√6 cm.
The key insight is that you only need two parts of this three-way relationship to solve your problem. Pick the two fractions that contain your known and unknown values, then ignore the third part completely.
Study Smart: You can flip the sine rule to sin A/a = sin B/b = sin C/c when finding angles - whatever feels easier to work with!

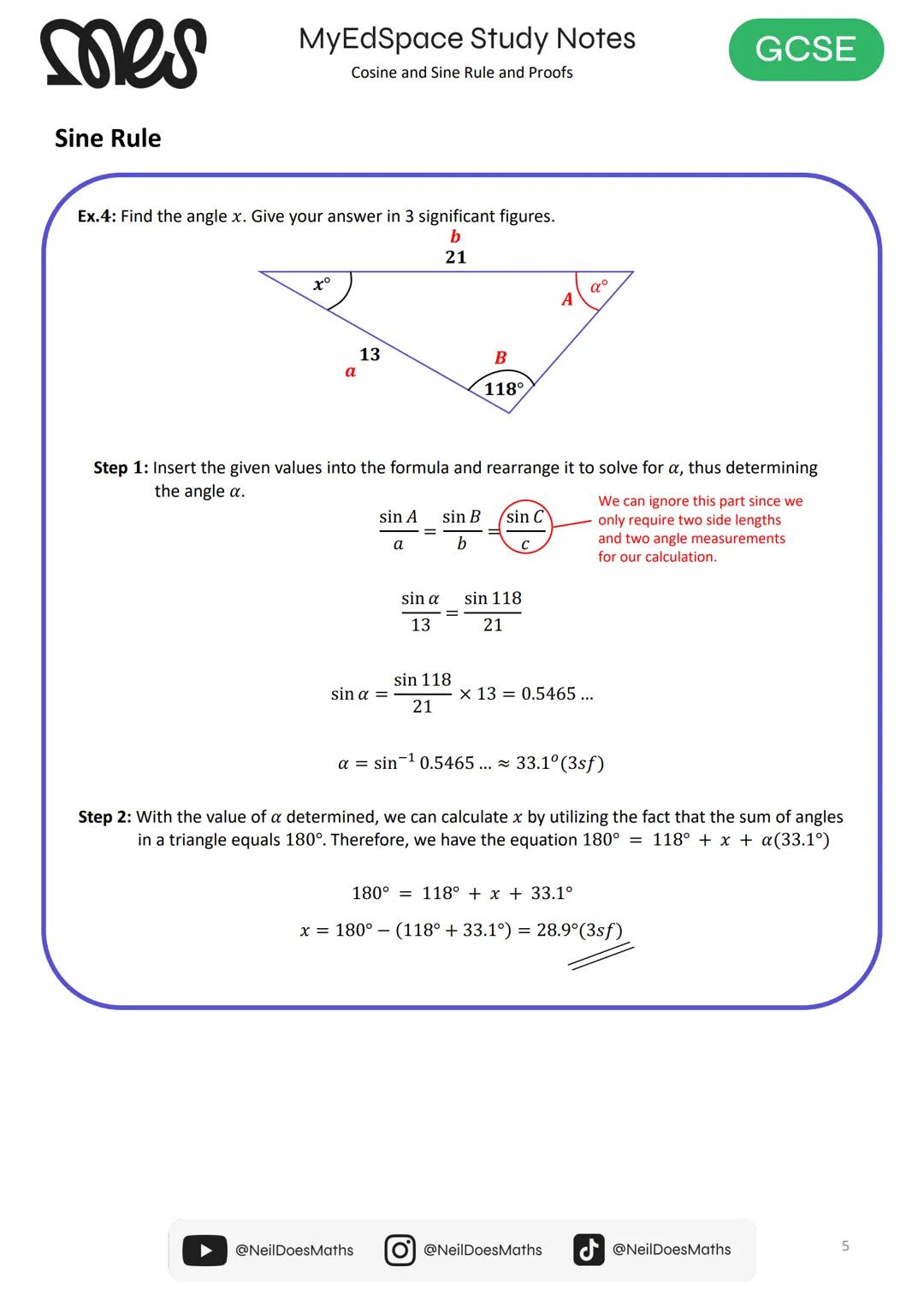

Sine Rule for Angles - The Two-Step Method
Finding missing angles with the sine rule often requires a two-step approach that builds on the triangle angle sum. You'll first find one unknown angle, then use the fact that all triangle angles add up to 180°.
Step one involves using sin a = (sin 118° ÷ 21) × 13 to find angle a = 33.1°. This uses the rearranged sine rule where you multiply both sides to isolate the sine of your unknown angle.
Step two is simpler: since angles in a triangle sum to 180°, you calculate x = 180° - (118° + 33.1°) = 28.9°. This systematic approach prevents errors and ensures you don't miss any steps.
Confidence Booster: Break complex problems into smaller steps like this - you've got the skills to handle even tricky multi-step questions!

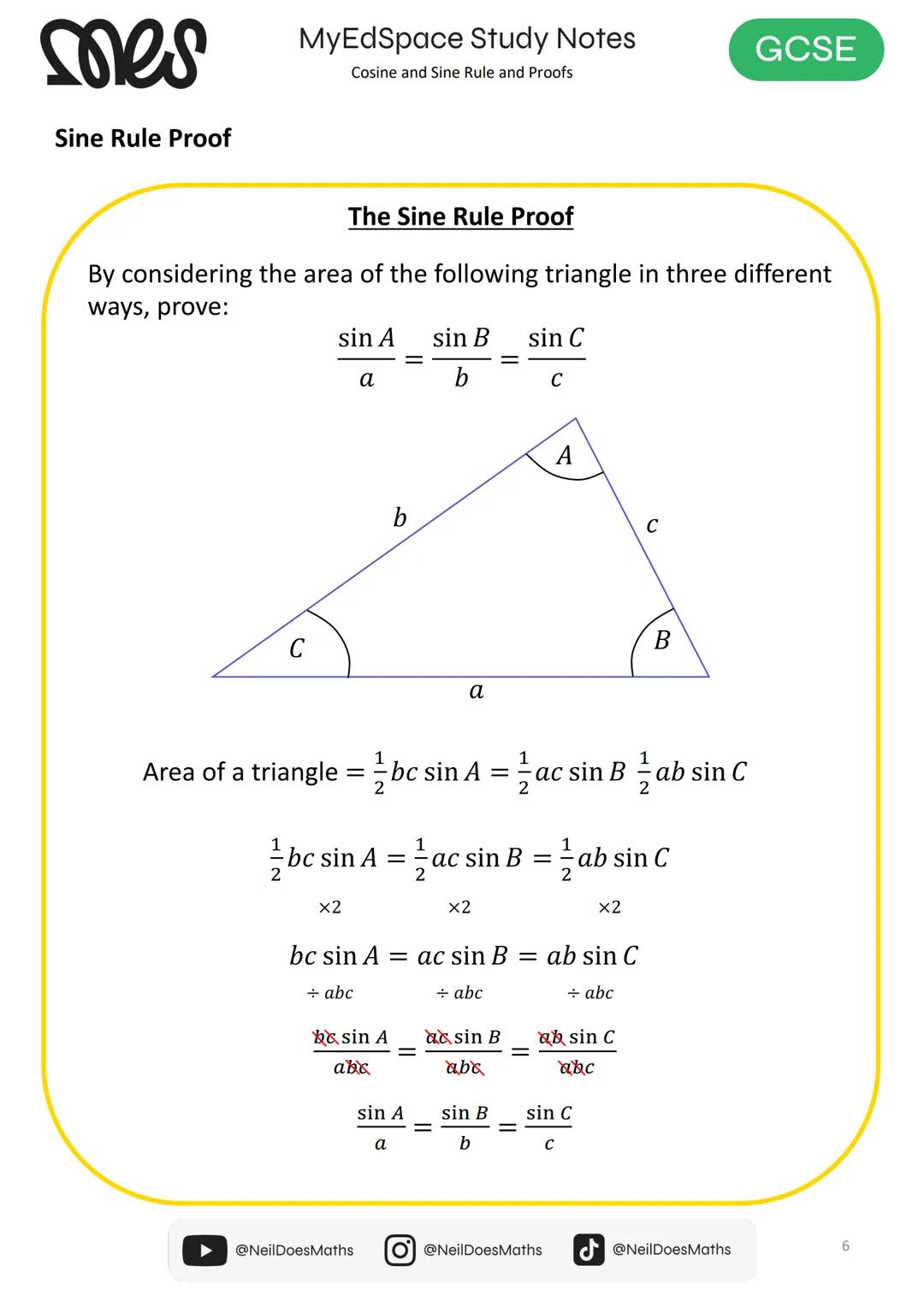

Proving the Sine Rule - Understanding Why It Works
Understanding the sine rule proof helps cement why this formula works and shows the elegant mathematics behind it. The proof uses the fact that triangle area can be calculated in multiple ways depending on which base and height you choose.
Starting with Area = ½bc sin A = ½ac sin B = ½ab sin C, you multiply everything by 2 to get bc sin A = ac sin B = ab sin C. This removes those pesky fractions and makes the next step clearer.
The magic happens when you divide everything by abc. This gives you (bc sin A) ÷ abc = (ac sin B) ÷ abc = (ab sin C) ÷ abc, which simplifies beautifully to sin A/a = sin B/b = sin C/c.
Deep Understanding: Proofs like this show that maths formulas aren't random - they're logical consequences of simpler ideas you already know!
