Understanding River Systems and Drainage Basins

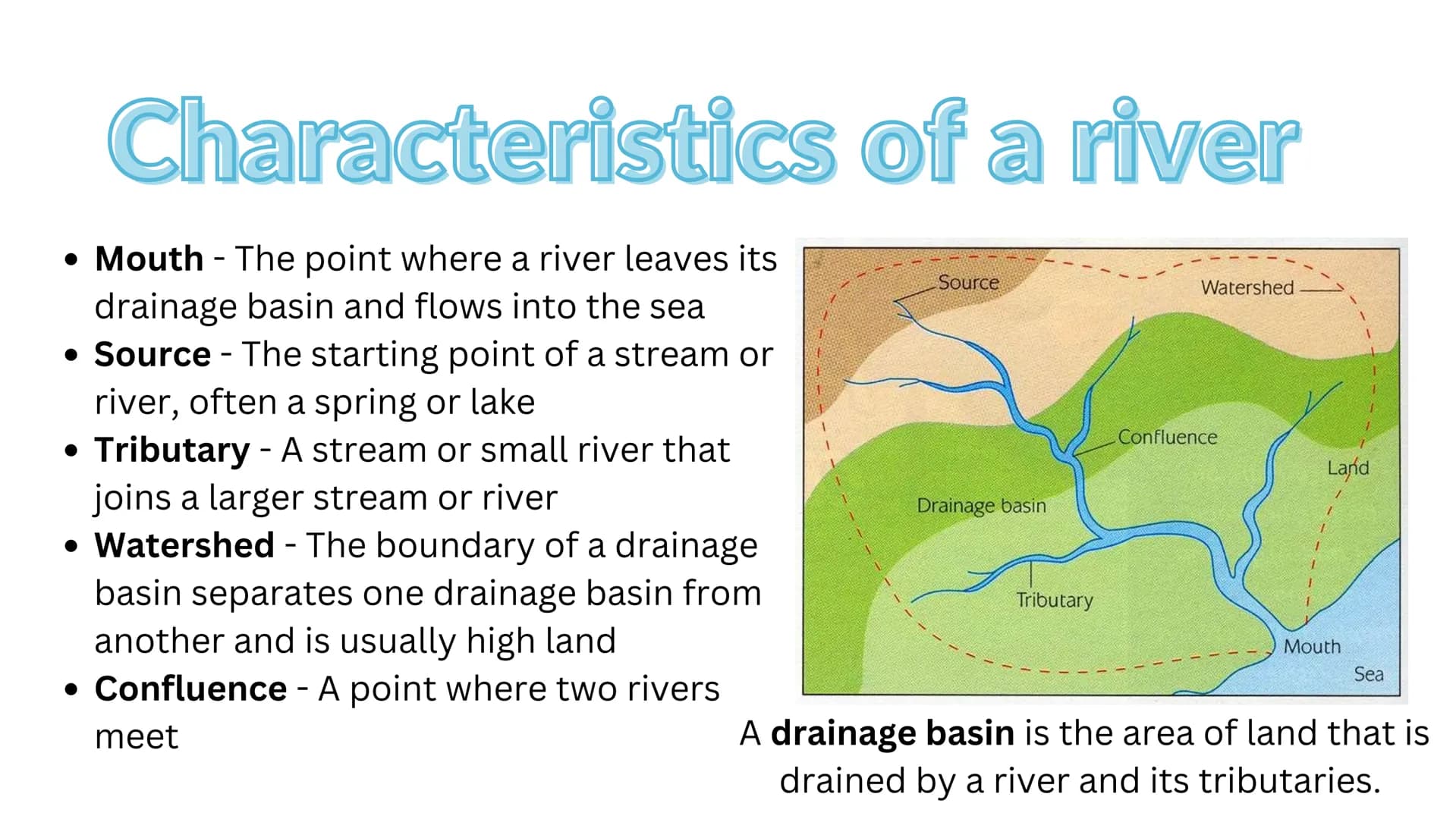

A drainage basin represents a complex natural system where water flows from higher elevations to lower areas through a network of channels. The main components include the source, tributaries, confluence points, and mouth, all working together within a defined watershed boundary. The drainage basin features create a sophisticated hydrological system that shapes our landscapes and supports ecosystems.

Definition: A drainage basin is an area of land drained by a main river and its tributaries, bounded by watersheds or high ground that separates it from neighboring basins.

Understanding river systems requires knowledge of their key elements. The source marks the river's beginning, often emerging from springs or mountains. Tributaries contribute additional water flow, meeting at confluence points before eventually reaching the mouth where the river enters a larger body of water.

The watershed plays a crucial role in defining basin boundaries and controlling water movement. These natural divides, typically along ridgelines or elevated terrain, determine which direction water flows and which river system it joins.

River Profiles and Their Characteristics

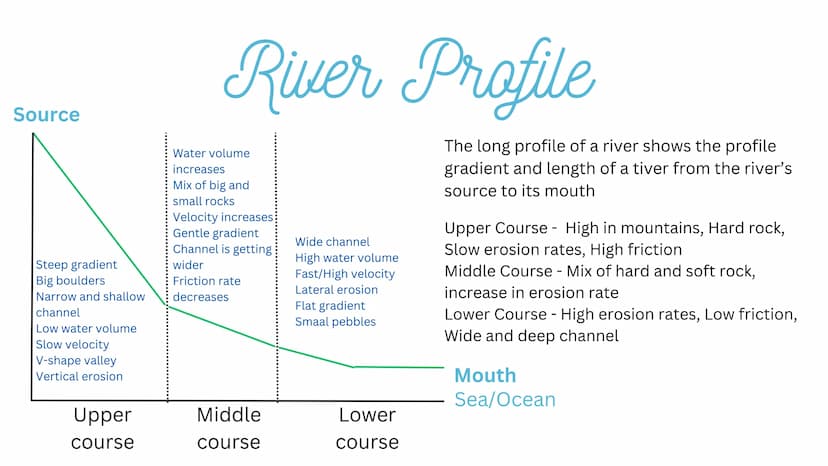

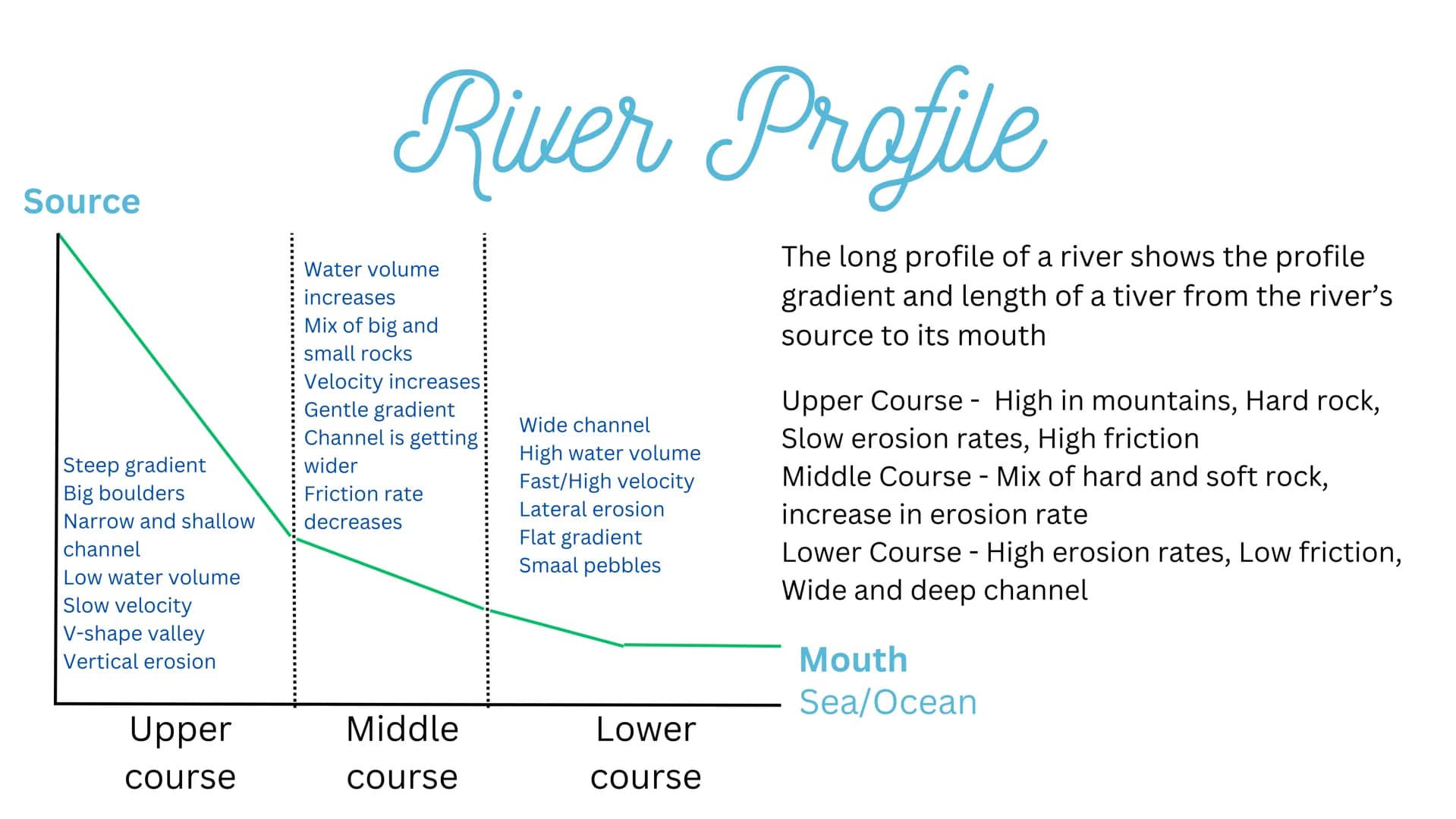

The long profile of a river shows its gradient change from source to mouth, revealing how the river's characteristics evolve along its course. This profile helps understand erosion patterns, sediment transport, and channel development.

Highlight: River profiles demonstrate how water velocity, channel width, and erosion processes change systematically from upper to lower courses.

The cross profile of a river varies significantly between the upper, middle, and lower courses. Upper courses feature V-shaped valleys with steep gradients and narrow channels. Middle courses show wider valleys with gentler slopes, while lower courses develop broad floodplains with meandering channels.

River profile characteristics and erosion processes depend on factors like gradient, discharge, and rock type. Upper courses experience vertical erosion with high-energy flow, while lower courses undergo lateral erosion creating wider channels.

The River Severn: A Case Study

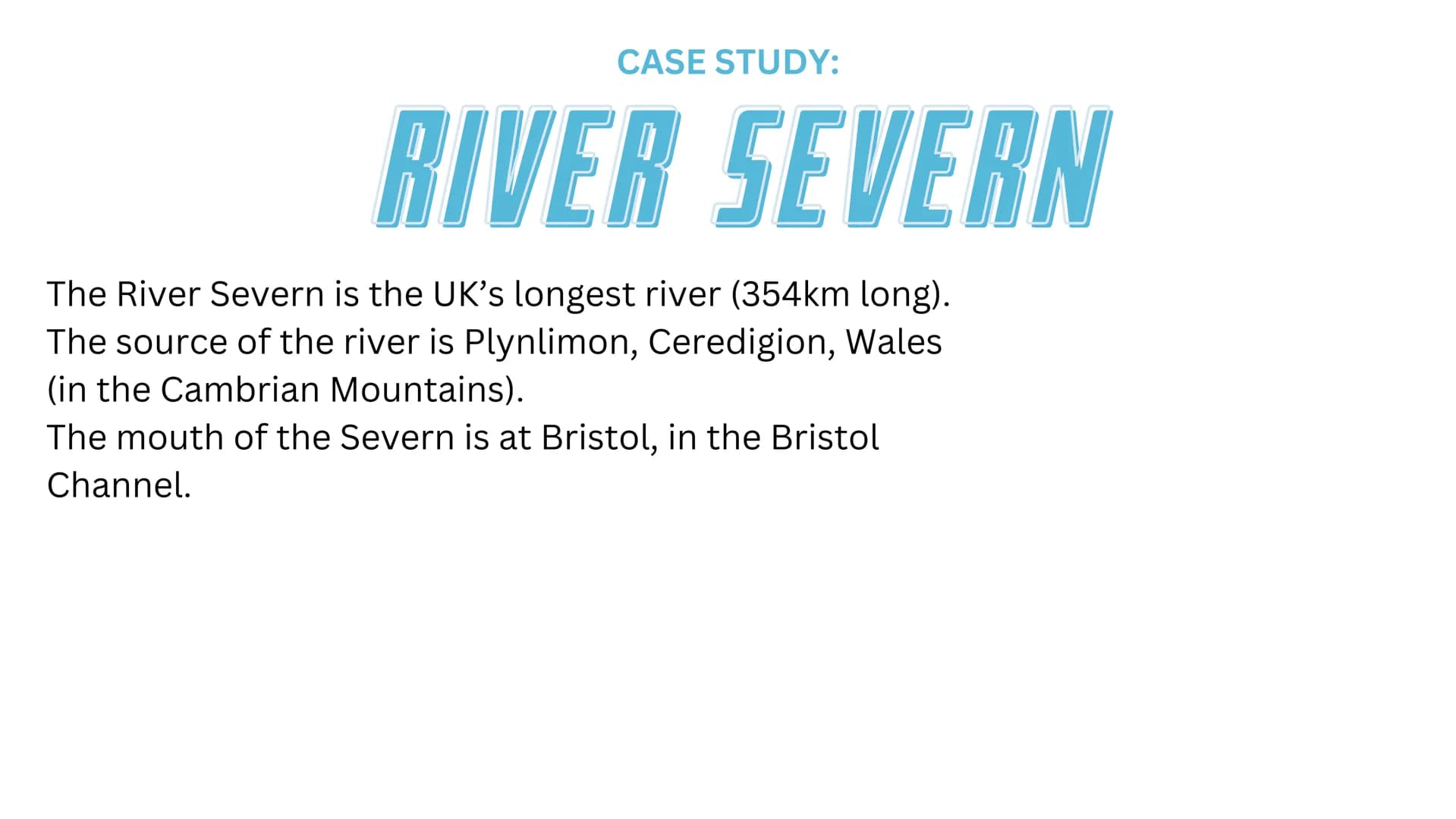

The River Severn stands as Britain's longest river, exemplifying typical river characteristics across its 354-kilometer journey. What is the River Severn famous for? Beyond its length, it's renowned for its dramatic tidal bore and historical significance in British commerce and industry.

Example: The River Severn's source in Plynlimon, Wales, demonstrates how mountain springs can give rise to major river systems, flowing through diverse landscapes before reaching the Bristol Channel.

What causes the River Severn to flood? Multiple factors contribute, including heavy rainfall in its upper catchment, tidal influences, and the river's natural characteristics. The river's geology and channel modifications also influence its flooding patterns.

The geology of the River Severn varies significantly along its course, affecting erosion patterns and channel development. From resistant Welsh mountains to softer sedimentary rocks in its lower reaches, geological variations shape the river's character.

River Course Characteristics and Development

Understanding how rivers change from source to mouth reveals important geographical processes. The upper course features steep gradients and vertical erosion, creating distinctive V-shaped valleys and waterfalls.

Vocabulary: Lateral erosion - The sideways wearing away of river banks, particularly prominent in middle and lower courses.

Why does the cross profile of a river change along its course? Changes occur due to varying gradients, discharge volumes, and erosional processes. Upper courses have narrow, deep profiles, while lower courses develop wide, shallow channels.

The lower course demonstrates mature river characteristics with extensive floodplains and meanders. Here, the river carries more water and sediment, creating distinctive depositional features like levees and flood plains. What does the long profile of a river show you? It reveals the river's changing gradient, velocity, and erosional patterns from source to mouth.

Understanding River Characteristics and Physical Processes

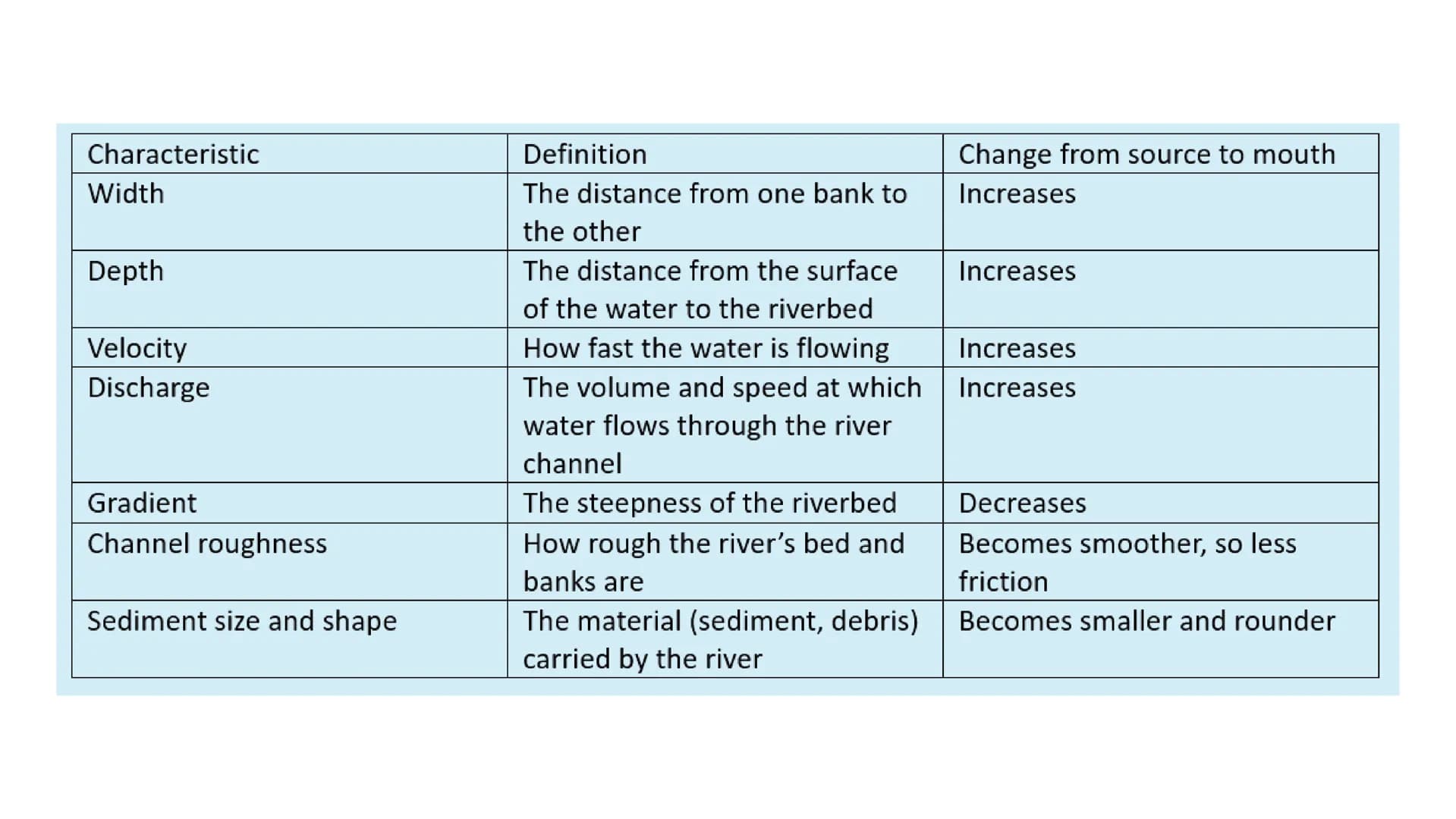

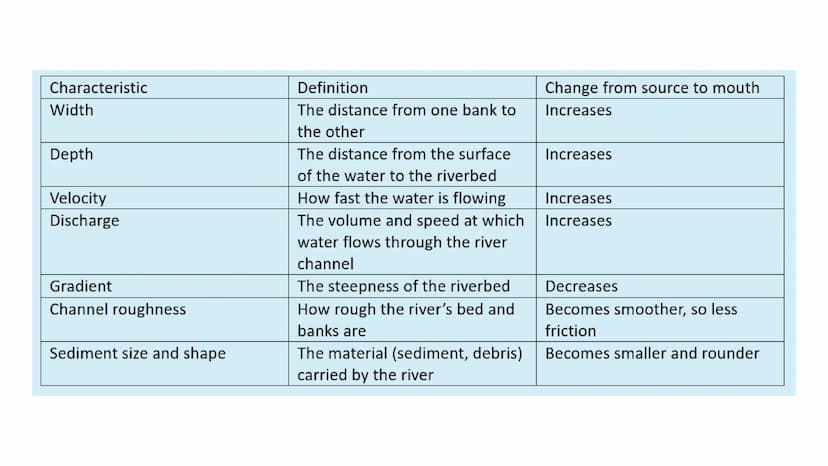

The physical characteristics of a river undergo significant changes as it flows from its source to mouth. The cross profile of a river demonstrates how width typically increases downstream as the channel expands through erosion and deposition processes. Water depth also increases progressively, allowing for greater discharge volumes. The river's velocity generally increases despite a decreasing gradient, mainly due to reduced channel roughness and increased water volume.

Definition: Drainage basin refers to the area of land drained by a river and its tributaries, forming a natural watershed system where all surface water flows to a single outlet point.

The long profile of a river shows its gradient change from source to mouth. Near the source, steep gradients create fast-flowing water capable of transporting larger sediments. As the river progresses, sediment size decreases through attrition, becoming smaller and more rounded. Channel roughness also decreases downstream as sediments smooth the riverbed, reducing friction and increasing flow efficiency.

River discharge, which measures water volume and flow rate, increases downstream as tributaries join the main channel and contribute additional water. This relationship between discharge and channel characteristics is fundamental to understanding river behavior and flooding patterns, as seen in rivers like the River Severn, which experiences regular flooding due to its large drainage basin and channel characteristics.

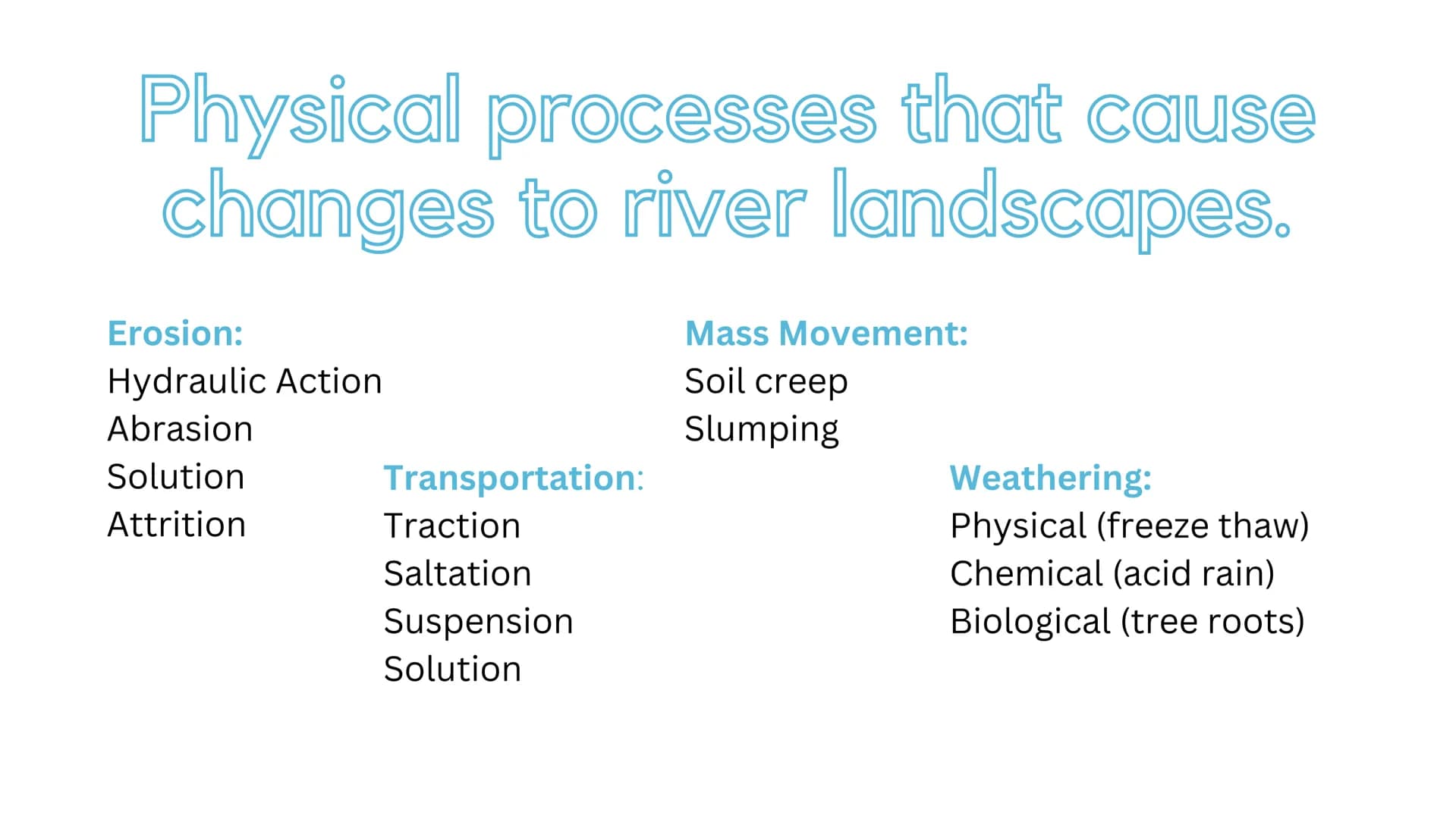

River Processes and Landscape Formation

Rivers shape landscapes through four main physical processes: erosion, transportation, mass movement, and weathering. Each process contributes uniquely to the development of river landforms and valley characteristics.

Vocabulary: Erosion processes include:

• Hydraulic Action: Water force breaking rock
• Abrasion: Sediment scratching riverbed
• Solution: Rock dissolution in water
• Attrition: Particles breaking down

Transportation methods vary based on particle size and flow strength. Larger particles move by traction (rolling along the bed) or saltation (bouncing), while smaller particles travel in suspension. Dissolved materials move in solution. These processes work together to create distinctive river landscapes and depositional features.

Mass movement and weathering contribute to valley development. Soil creep and slumping modify valley sides, while physical, chemical, and biological weathering break down rocks. Understanding these processes is crucial for Geography notes on rivers and drainage basins and helps explain the formation of various river features.

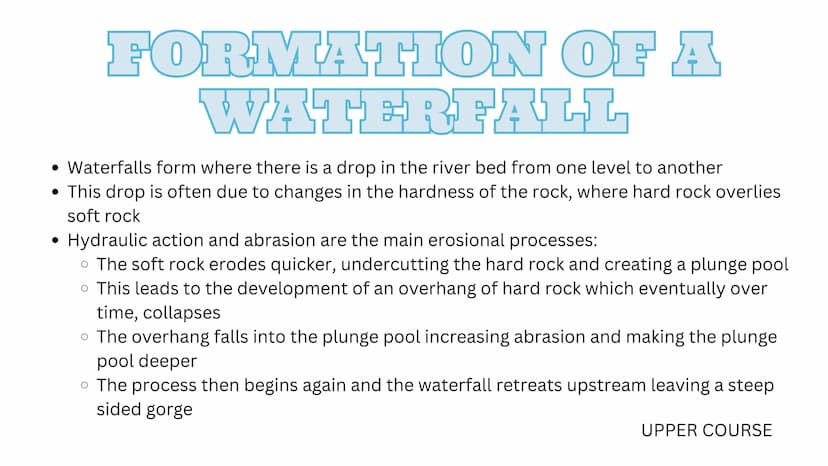

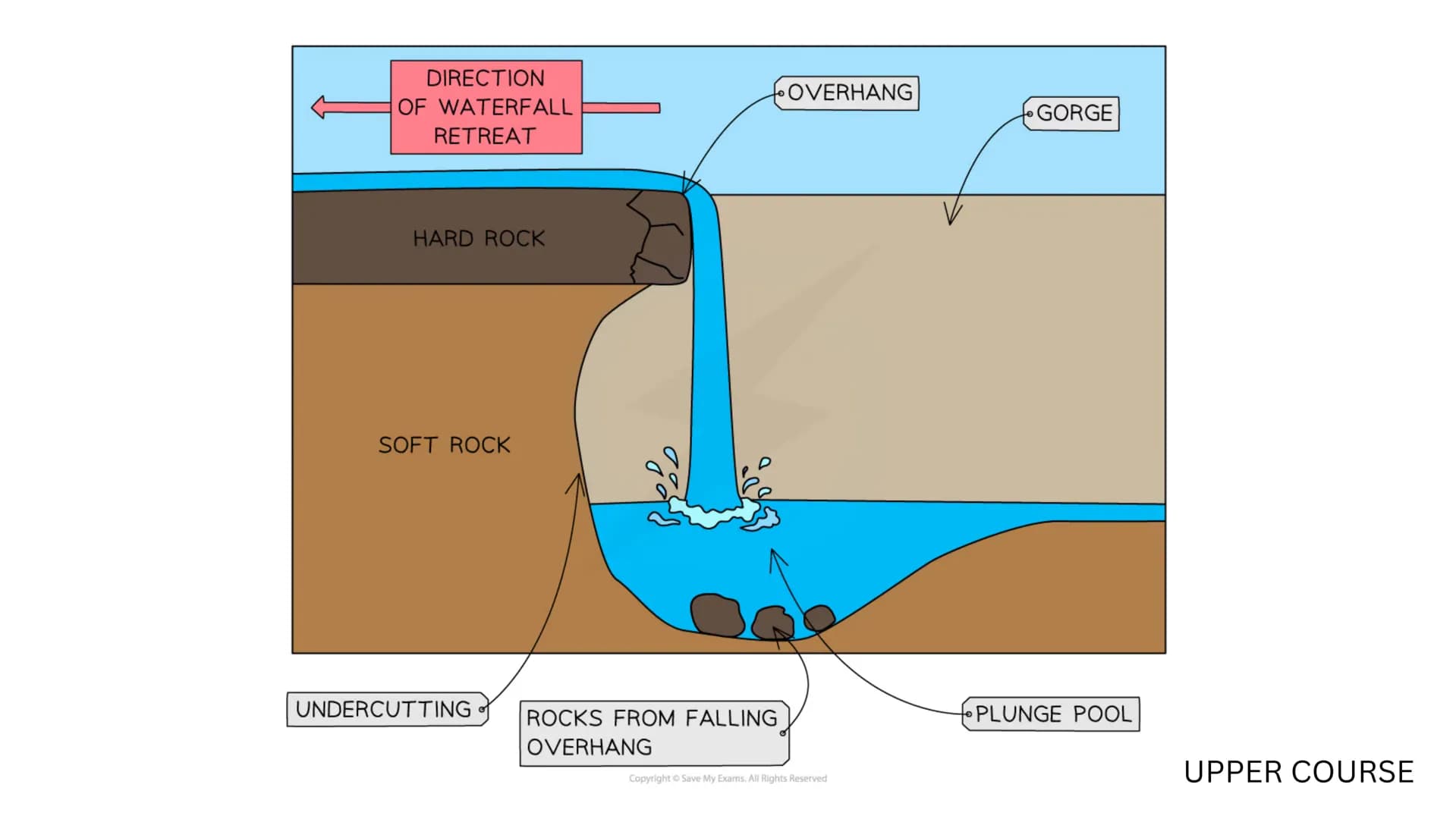

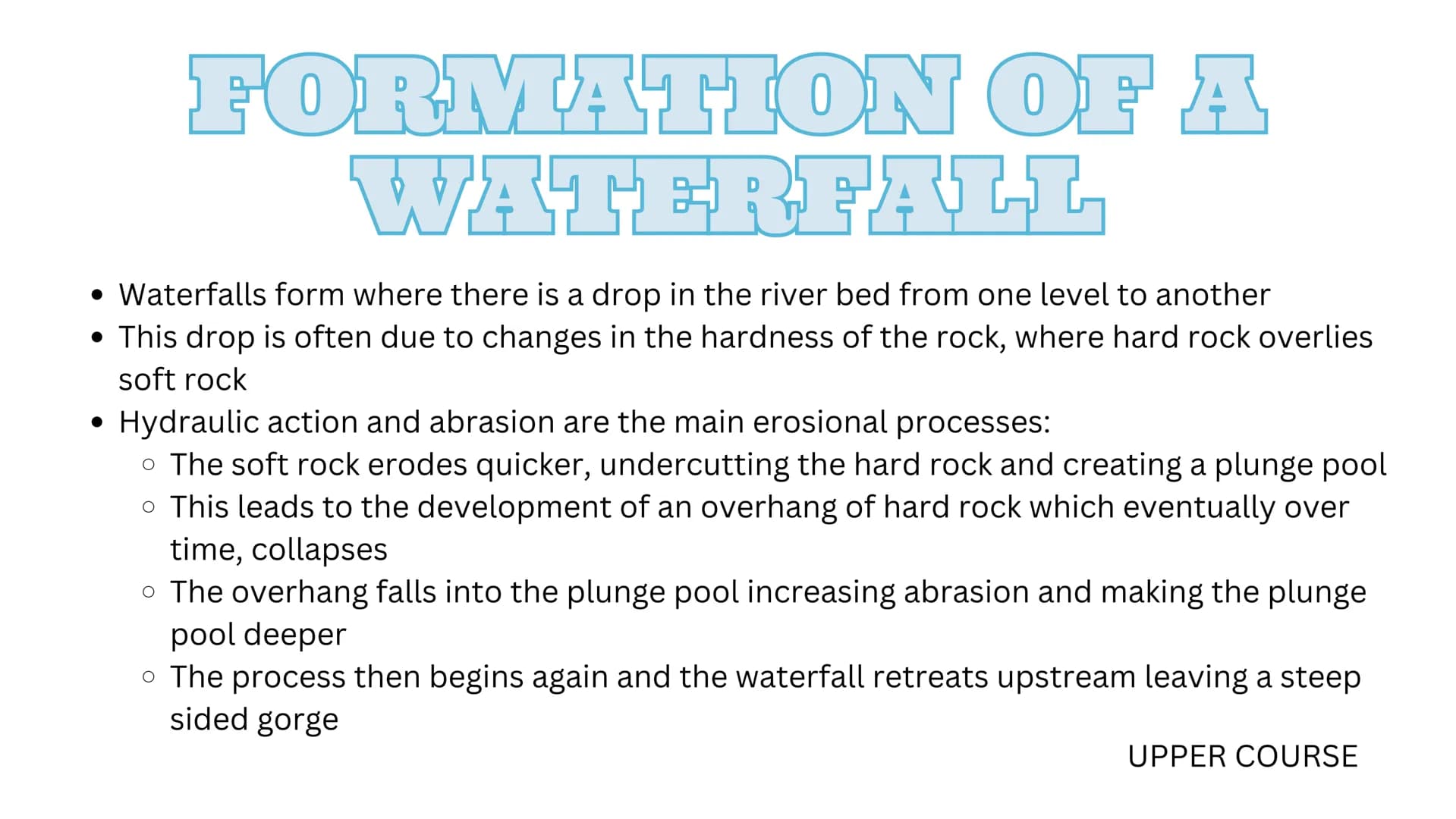

Waterfall Formation and Development

Waterfalls represent dramatic features in river landscapes, forming where resistant rock overlies weaker rock layers. The formation process demonstrates the power of river erosion and the influence of geological structures on landscape development.

Example: Waterfall formation stages:

1. River encounters rock layers of different resistance
2. Soft rock erodes faster through hydraulic action
3. Hard rock forms overhang as underlying soft rock erodes
4. Overhang collapses, process repeats
5. Waterfall retreats upstream, forming gorge

The process begins when a river flows over alternating bands of hard and soft rock. Differential erosion rates between these rock types lead to the development of a vertical drop. The falling water creates a plunge pool through hydraulic action and abrasion, eventually undercutting the harder rock layer above.

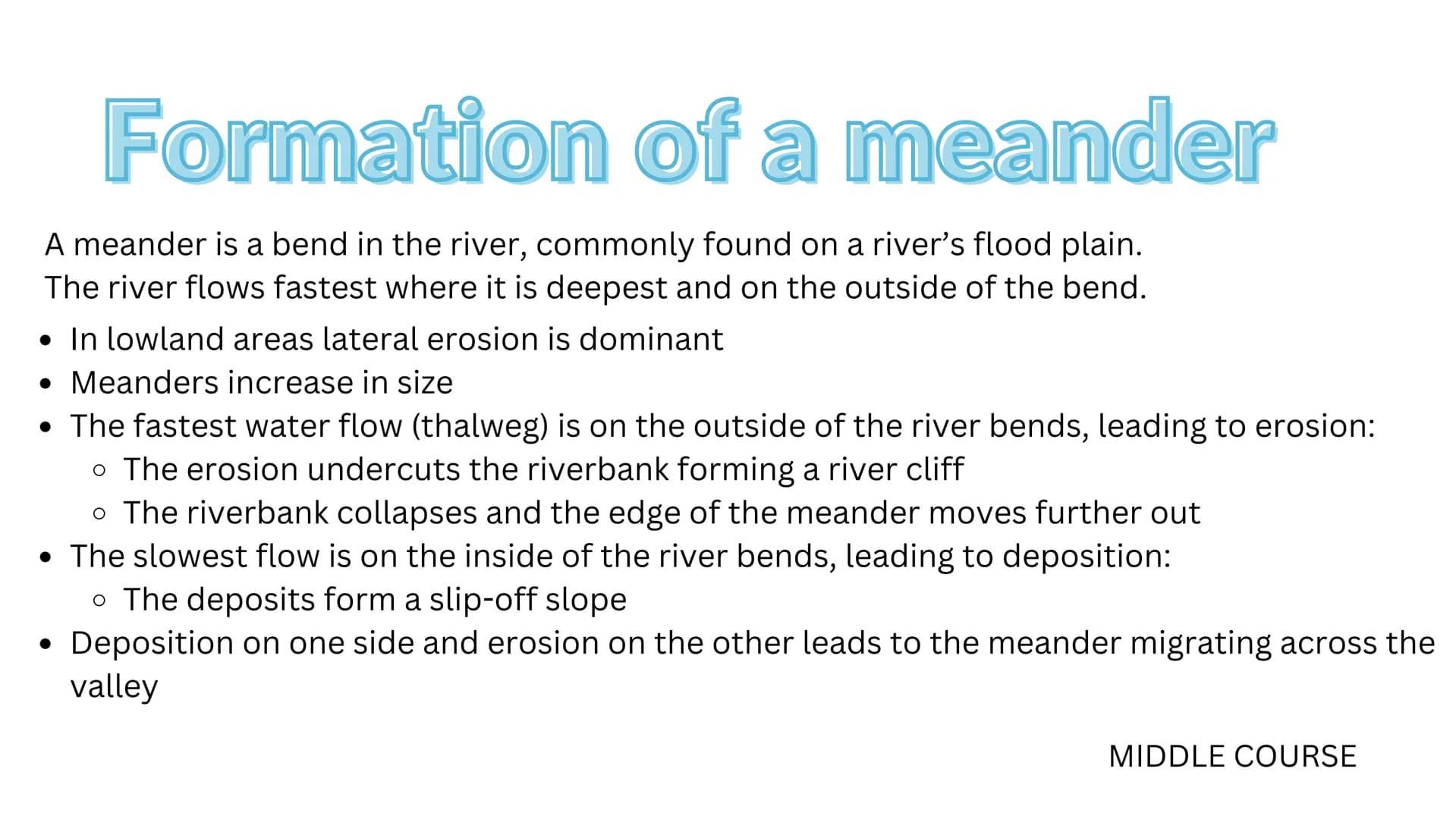

Meander Formation and Development

Meanders are sinuous bends that develop in rivers during their middle and lower courses, where the gradient becomes gentler and lateral erosion dominates over vertical erosion. Their formation illustrates the complex interaction between erosion and deposition processes.

Highlight: Key features of meander development:

• Fastest flow occurs on outside bend
• River cliff forms through erosion
• Deposition creates slip-off slope on inside
• Meanders migrate across valley floor

The development of meanders begins with slight irregularities in the channel that become amplified over time. The fastest flow (thalweg) follows a sinuous path, concentrating erosion on the outer banks while deposition occurs on inner bends. This process creates characteristic features including river cliffs and slip-off slopes, which are essential components of river profile characteristics and erosion processes.

Understanding River Flow Patterns and Channel Formation in the Middle Course

The middle course of a river demonstrates complex interactions between water flow, erosion, and deposition that create distinctive channel features. In this section of a river's journey, the water moves in a sinuous pattern, developing meanders through continuous processes of erosion and deposition.

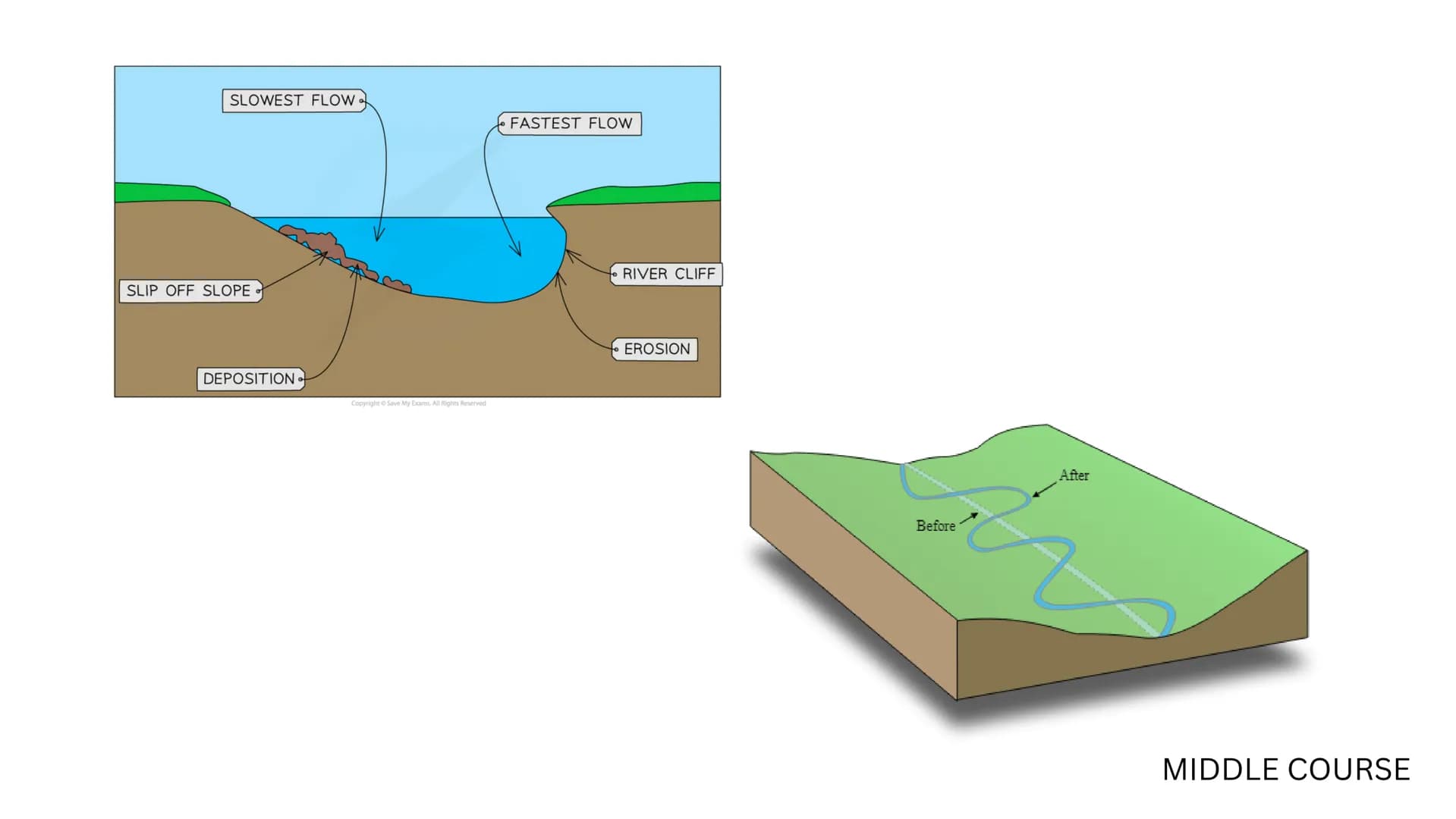

The flow velocity within a meander bend varies significantly, creating a characteristic pattern of erosion and deposition. On the outer bend, where the river profile characteristics show the fastest flow, the water's momentum causes intense erosion, forming a steep river cliff. This erosive force continuously cuts into the outer bank, gradually expanding the meander bend outward. The deeper water and faster flow in this section make it particularly important for understanding drainage basin features.

On the inner bend of the meander, where flow velocity decreases significantly, deposition occurs creating a gentle slope known as a slip-off slope. This pattern of faster flow and erosion on the outer bend coupled with slower flow and deposition on the inner bend is fundamental to understanding river profile characteristics and erosion processes. Over time, these processes lead to the development of increasingly pronounced meander bends, demonstrating how cross profile of a river changes along its course.

Definition: A slip-off slope is a gentle gradient formed on the inner bend of a meander where slower water flow leads to the deposition of sediment, while a river cliff is the steep outer bank formed by erosion from faster-flowing water.

River Severn: A Case Study in River Development and Flooding

The River Severn, Britain's longest river, provides an excellent example of how river processes shape landscapes and influence human activities. Understanding its characteristics helps explain what causes the River Severn to flood and why it's such a significant geographical feature.

The river's course, from its source in the Welsh mountains to its mouth in the Bristol Channel, showcases classic river development features. The geology of the River Severn plays a crucial role in its behavior, with varying rock types influencing erosion patterns and flood vulnerability. The river flows through different geological zones, from resistant Welsh rocks to softer sedimentary rocks in the English Midlands, affecting its long profile of a river.

What is River Severn famous for? Beyond being Britain's longest river, it's renowned for its tidal bore - a rare phenomenon where incoming tides create a wave that travels upstream. The river's flood history has also made it notable, with extensive flood plains and modern flood management schemes demonstrating the challenges of river management in populated areas. The Severn's drainage basin exemplifies many key concepts in drainage basin gcse Geography, making it an invaluable case study for understanding river systems.

Highlight: The River Severn's journey from source to mouth demonstrates all major river processes, including meander formation, flooding patterns, and the influence of geology on river development, making it an excellent example for studying river systems.
