Understanding the Global Atmospheric Circulation Model: OCR B Case Studies for Paper 1

L
Liam@liam_iznt

Ever wondered why some places are scorching hot whilst others... Show more

1
of 2
# Case Study: Global Atmospheric
## Circulation Model

90°N
Veren
Pore

23.5°

Equator
00

Sunlight heat//

१०°5
Antartica

Heat and sunligh

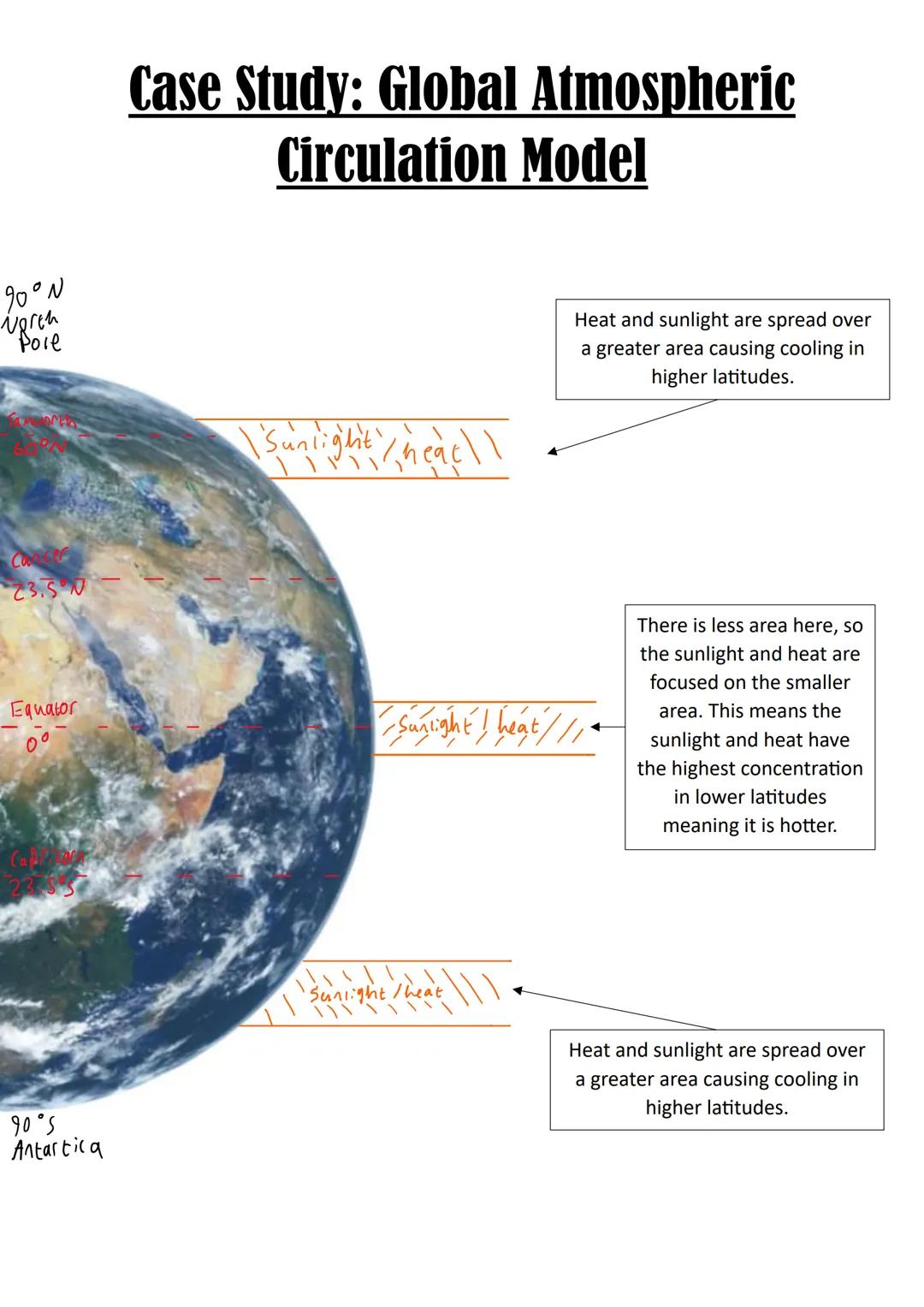

Why Different Places Have Different Temperatures

Think about holding a torch - when you shine it directly at something close up, it's really bright and hot. But when you shine it from far away or at an angle, the light spreads out and becomes much dimmer. That's exactly what happens with sunlight hitting Earth.

At the equator, the sun's rays hit directly, concentrating all that heat and light into a smaller area. This makes equatorial regions absolutely roasting! But as you move towards the North and South Poles, the same amount of sunlight gets spread over a much larger area because of Earth's curved shape.

This uneven heating creates the foundation for all our weather patterns. The hot equatorial regions and cold polar regions set up a massive heat exchange system that drives winds, storms, and climate zones across the entire planet.

Quick Fact: The difference in temperature between equatorial and polar regions can be over 80°C - that's like the difference between a freezer and a sauna!

2
of 2
# Case Study: Global Atmospheric
## Circulation Model

90°N
Veren
Pore

23.5°

Equator
00

Sunlight heat//

१०°5
Antartica

Heat and sunligh

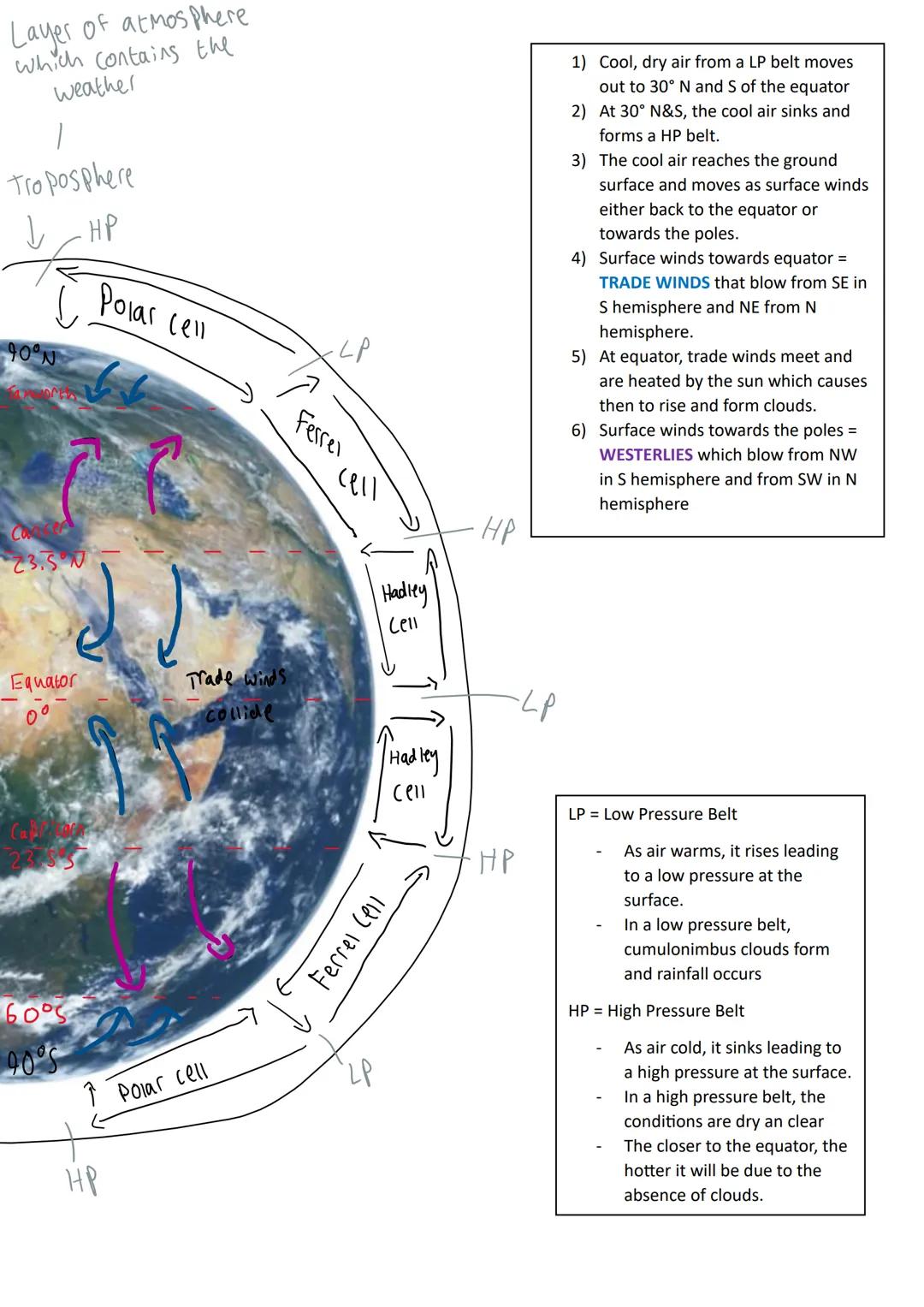

How Air Moves Around the Planet

Your troposphere (the bottom layer of atmosphere where all weather happens) works like a giant conveyor belt system with three main loops called cells. These cells create predictable wind patterns that sailors and pilots have relied on for centuries.

Here's how the system works: Hot air at the equator rises up, creating low pressure and loads of rain. This air then travels towards 30°N and 30°S, where it cools down and sinks, forming high pressure belts with clear, dry conditions - perfect for deserts like the Sahara.

The trade winds blow from these high pressure areas back towards the equator, whilst the westerlies blow towards the poles. These aren't random - they follow the same patterns year after year because of Earth's rotation and temperature differences.

Low pressure belts mean rising air, clouds, and rain (think tropical rainforests). High pressure belts mean sinking air, clear skies, and dry conditions (think major deserts). Understanding this pattern helps explain why certain climate zones exist where they do.

Remember This: Low pressure = lousy weather (rain), High pressure = happy weather (sunshine)!
