National 5 Geography - Weather systems
514
•
28 Jan 2023
•
Explore Weather Systems: Low Pressure, Depressions, and Anticyclones
H
Holly Carnson
@hollycarnson_eakb
Frontal Systems in Depressions
In a depression weather system, three main types of fronts can be observed: warm fronts, cold fronts, and occluded fronts. Each of these fronts has distinct characteristics and impacts on weather conditions.
Warm Front: The warm front is the first to pass over in a low pressure system. It occurs when warm air meets cold air, and the warm air rises above it.
Vocabulary: A front is a boundary between two different air masses.
Warm fronts are associated with:
- Steady, continuous rainfall
- Gradual temperature increase
- Formation of clouds due to condensation

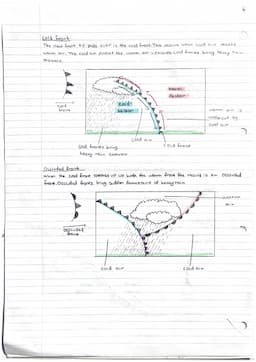

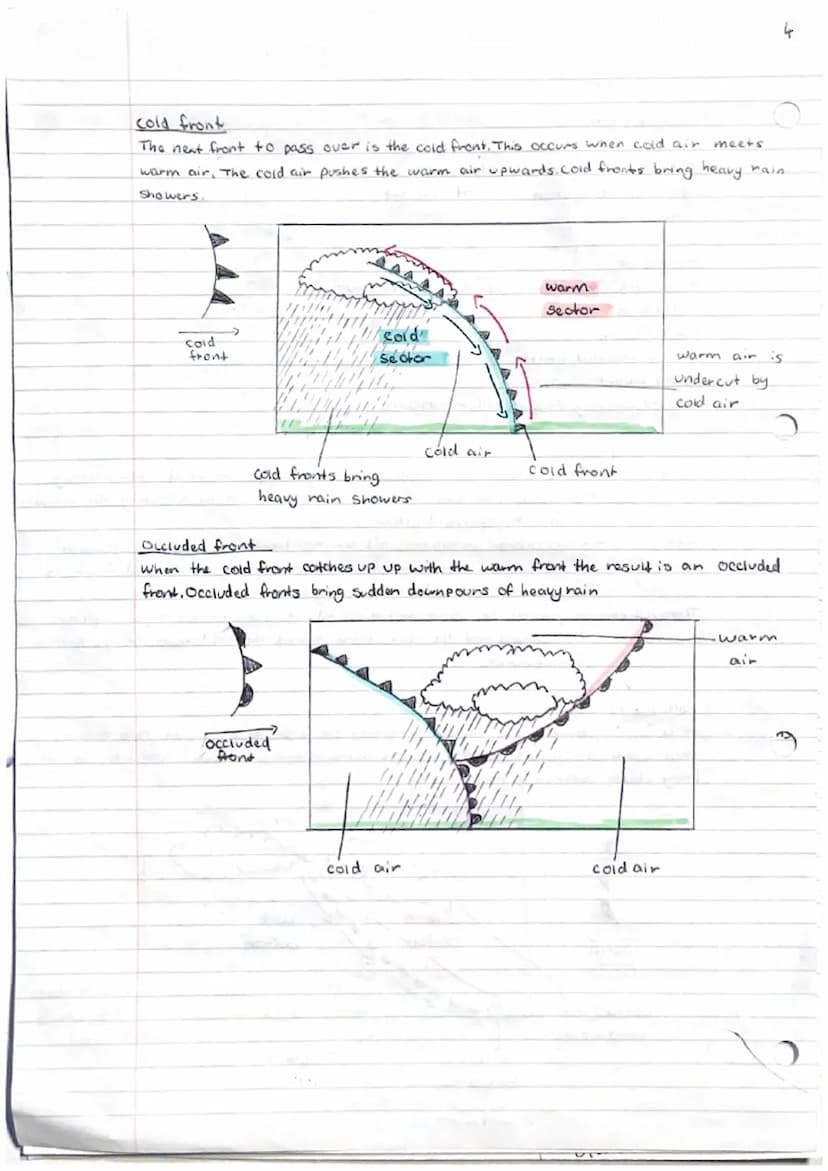

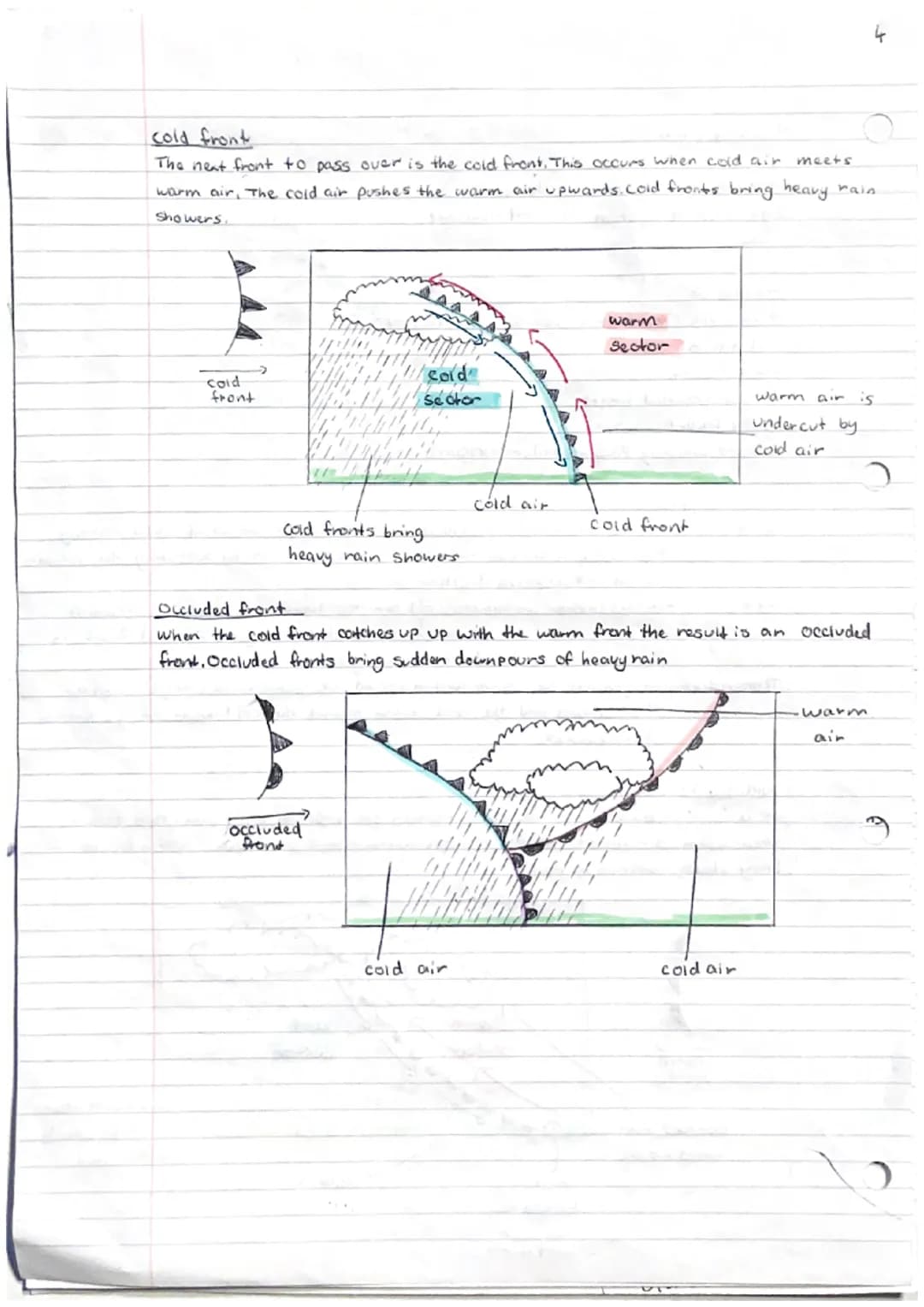

Cold Front: Following the warm front, the cold front passes over. This happens when cold air meets warm air, pushing the warm air upwards.
Cold fronts bring:
- Heavy rain showers
- Sudden temperature drops
- Potentially unstable weather conditions
Example: The passage of a cold front often results in a quick transition from warm, humid conditions to cooler, drier air.
Occluded Front: An occluded front forms when a cold front catches up with a warm front. This complex interaction of air masses can lead to significant weather events.
Occluded fronts are characterized by:
- Sudden downpours of heavy rain
- Variable temperature changes
- Potential for thunderstorms
Understanding these frontal systems is crucial for interpreting weather depression diagrams and predicting weather patterns in GCSE geography.

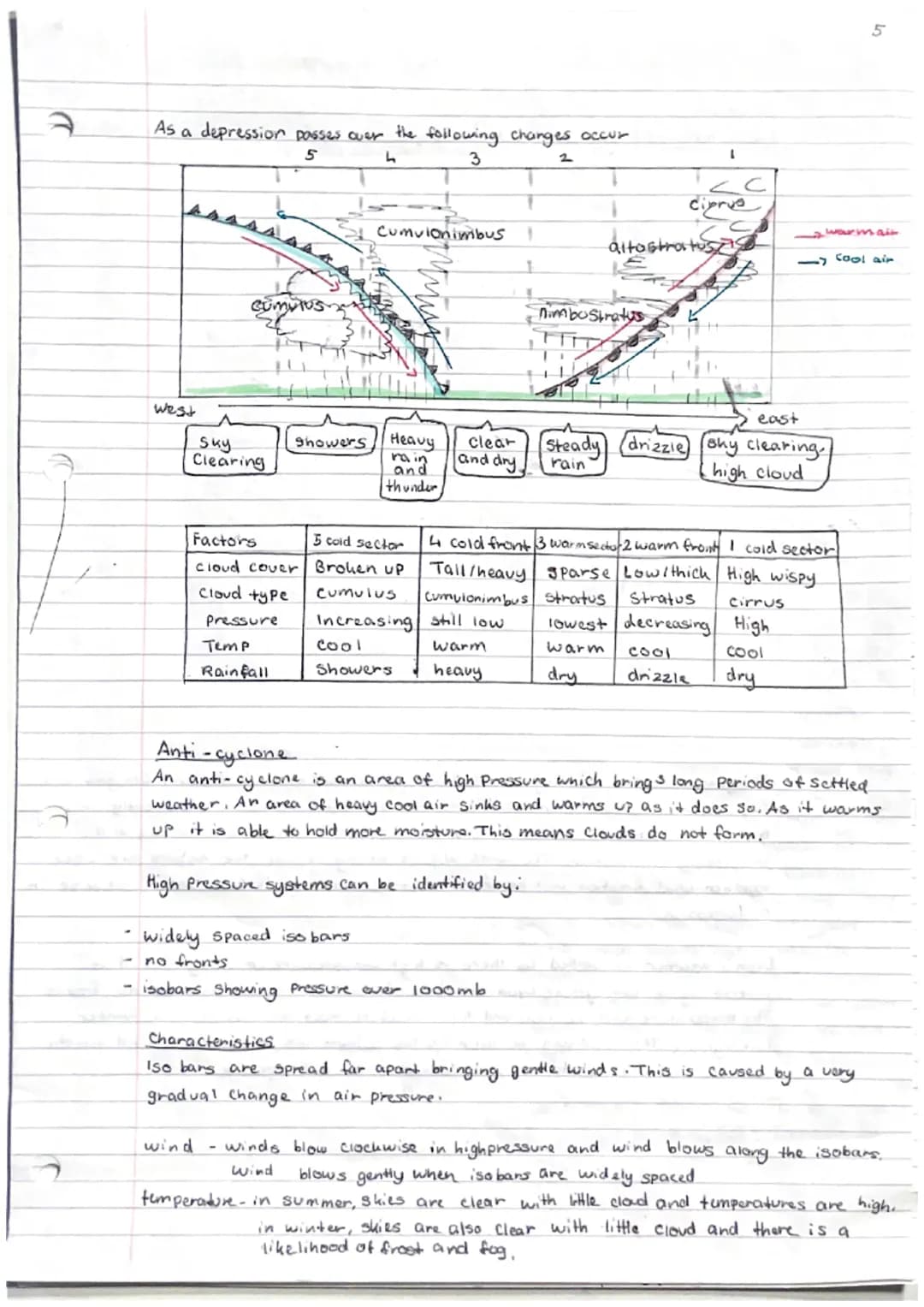

Changes During Depression Passage and High Pressure Systems
As a depression passes over an area, several changes occur in weather conditions. These changes follow a specific pattern and are crucial for understanding how a depression is formed in geography.
The sequence of changes typically includes:
- Increasing cloud cover
- Falling pressure
- Temperature fluctuations
- Varying rainfall intensity
Highlight: The passage of a depression brings a characteristic sequence of cloud types, from cirrus to cumulonimbus.
High Pressure Systems : In contrast to depressions, high pressure systems, or anticyclones, bring different weather conditions.
Characteristics of anticyclones include:
- Widely spaced isobars
- No fronts
- Pressure readings over 1000mb
Definition: An anticyclone is an area of high pressure which brings long periods of settled weather.
In an anticyclone:
- Cool air sinks and warms up
- As it warms, it can hold more moisture, preventing cloud formation
- Winds blow clockwise and gently due to widely spaced isobars
Example: During a summer anticyclone in the UK, you can expect clear skies, high temperatures, and dry conditions.
Understanding the differences between low and high pressure systems is essential for interpreting weather patterns and forecasting in geography studies.

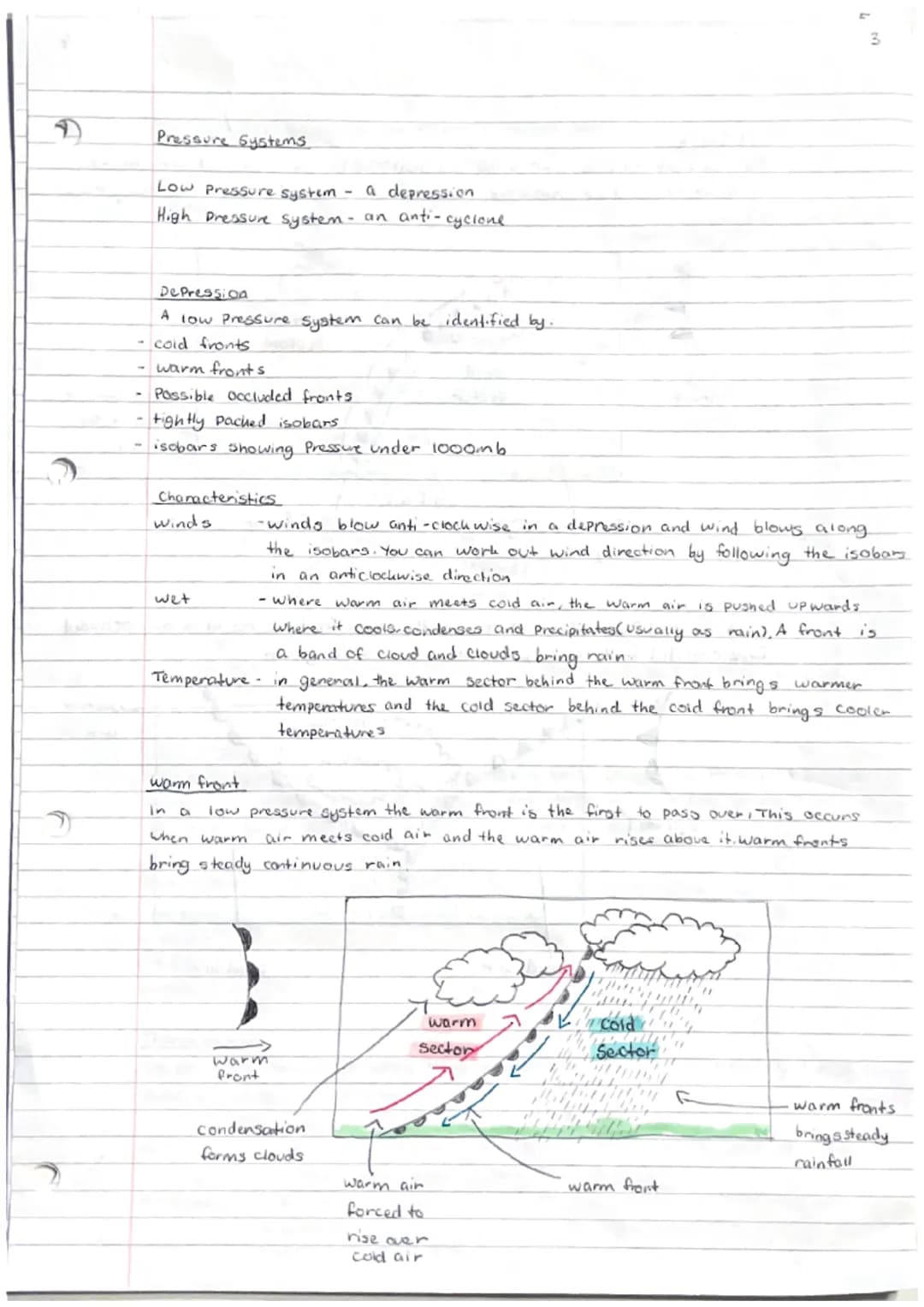

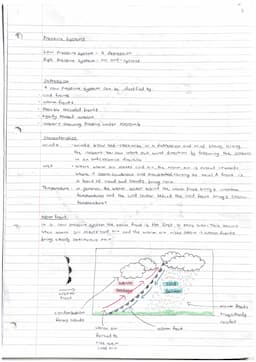

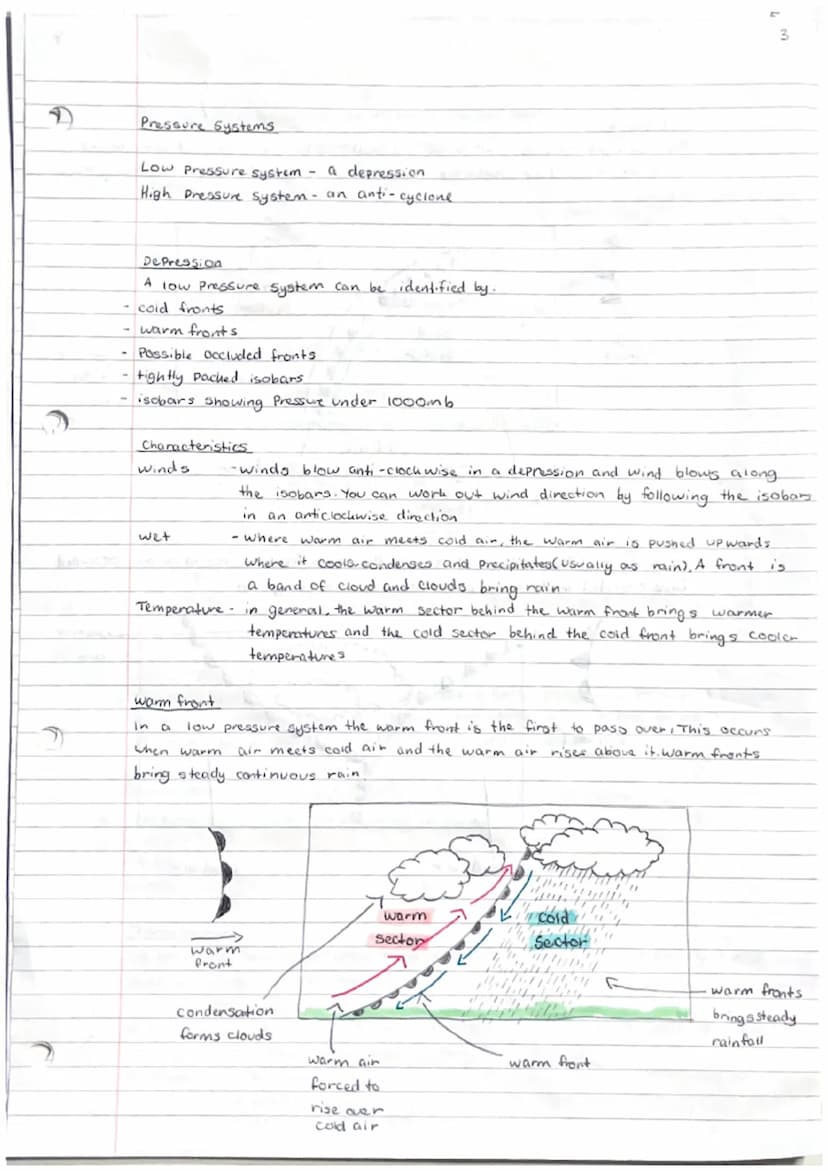

Low Pressure Systems: Depressions
A low pressure system, also known as a depression, is characterized by specific features that distinguish it from other weather patterns. These systems play a crucial role in shaping weather conditions and are essential to understand for students studying National 5 geography or GCSE geography.
Definition: A depression is an area of low atmospheric pressure, typically bringing unsettled weather conditions.
Characteristics of a depression include:
- Cold fronts, warm fronts, and possibly occluded fronts
- Tightly packed isobars
- Pressure readings below 1000mb
Highlight: In a depression, winds blow anticlockwise and along the isobars.
The formation of a depression involves the interaction of warm and cold air masses. When warm air meets cold air, the warm air is forced upwards, cooling and condensing to form clouds and precipitation.
Example: A warm front in a depression brings steady, continuous rain as warm air rises over cold air.
The temperature variations within a depression are notable:
- The warm sector behind the warm front brings warmer temperatures
- The cold sector behind the cold front brings cooler temperatures
Understanding the stages of a depression weather system is crucial for predicting and interpreting weather patterns.
