How to Read Synoptic Charts: Weather Symbols and Depressions

A depression is a low-pressure weather system characterized by specific features on a synoptic chart. It moves from west to east in the northern hemisphere and brings distinct weather patterns.

• Depressions are identified by cold fronts, warm fronts, and sometimes occluded fronts on synoptic charts.
• They have tightly packed isobars with pressure decreasing towards the center, typically from about 1004mb.
• Depressions progress through distinct stages, each with unique weather characteristics.
• Key features include anticlockwise winds, precipitation where warm and cold air meet, and temperature changes as fronts pass.

...

23/04/2023

221

Can't find what you're looking for? Explore other subjects.

Knowunity is the #1 education app in five European countries

Knowunity has been named a featured story on Apple and has regularly topped the app store charts in the education category in Germany, Italy, Poland, Switzerland, and the United Kingdom. Join Knowunity today and help millions of students around the world.

Ranked #1 Education App

Download in

Google Play

Download in

App Store

Knowunity is the #1 education app in five European countries

4.9+

Average app rating

21 M

Pupils love Knowunity

#1

In education app charts in 17 countries

950 K+

Students have uploaded notes

Still not convinced? See what other students are saying...

iOS User

I love this app so much, I also use it daily. I recommend Knowunity to everyone!!! I went from a D to an A with it :D

Philip, iOS User

The app is very simple and well designed. So far I have always found everything I was looking for :D

Lena, iOS user

I love this app ❤️ I actually use it every time I study.



Geography

221

23 Apr 2023

1 page

How to Read Synoptic Charts: Weather Symbols and Depressions

user profile picture

Alex

@alexstudy

A depression is a low-pressure weather system characterized by specific features on a synoptic chart. It moves from west to east in the northern hemisphere and brings distinct weather patterns.

• Depressions are identified by cold fronts, warm fronts, and... Show more

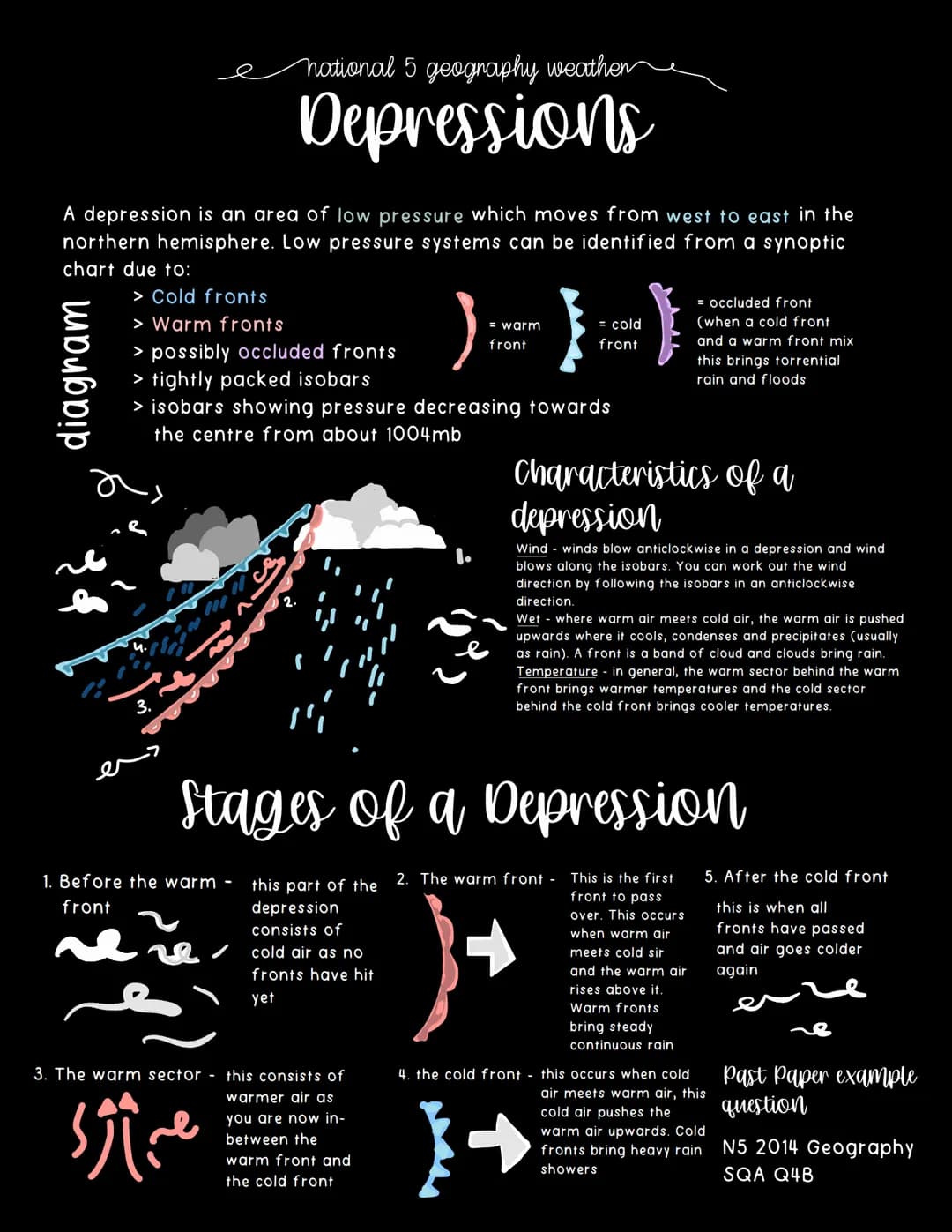

A depression is an area of low pressure which moves from west to east in the
northern hemisphere. Low pressure systems can be identified fro

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Understanding Depressions in Weather Systems

How to identify depressions on a synoptic chart involves recognizing specific features and patterns. A depression, or low-pressure system, is characterized by several key elements visible on weather maps.

Definition: A depression is an area of low atmospheric pressure that moves from west to east in the northern hemisphere, bringing distinct weather patterns.

Synoptic chart symbols for depressions include:

  1. Cold fronts
  2. Warm fronts
  3. Possibly occluded fronts
  4. Tightly packed isobars
  5. Isobars showing decreasing pressure towards the center, typically from about 1004mb

Highlight: The arrangement and spacing of isobars are crucial indicators of a depression on a synoptic chart.

The stages of a depression weather system progress as follows:

  1. Before the warm front: This area consists of cold air as no fronts have yet passed.
  2. The warm front: This is the first front to pass over, occurring when warm air meets cold air and rises above it. Warm fronts bring steady, continuous rain.
  3. The warm sector: This area between the warm front and the cold front consists of warmer air.
  4. The cold front: This occurs when cold air meets warm air, pushing the warm air upwards. Cold fronts bring heavy rain showers.
  5. After the cold front: All fronts have passed, and the air becomes colder again.

Example: An occluded front forms when a cold front and a warm front mix, often bringing torrential rain and floods.

Characteristics of a depression weather system include:

  1. Wind: Winds blow anticlockwise in a depression and along the isobars. Wind direction can be determined by following the isobars anticlockwise.
  2. Precipitation: Where warm air meets cold air, the warm air is pushed upwards, cools, condenses, and precipitates, usually as rain. Fronts are bands of cloud that bring rain.
  3. Temperature: Generally, the warm sector behind the warm front brings warmer temperatures, while the cold sector behind the cold front brings cooler temperatures.

Vocabulary: Isobars are lines on a weather map connecting points of equal atmospheric pressure.

Understanding cold and warm fronts in geography is essential for interpreting weather patterns and predicting conditions. The interaction between these fronts drives the weather changes associated with depressions.

Quote: "A front is a band of cloud and clouds bring rain."

This comprehensive overview of depressions provides valuable insights for students studying weather systems in geography, particularly at the National 5 level in Scotland or GCSE level in other parts of the UK.
