Understanding Output Gaps and Unemployment with Simple Diagrams

user profile picture
Joseph Raphael@joeraphael9

The business cycle and output gaps are crucial concepts in...

1
of 2
Output Gaps – page 1

Output Gaps and Keynesian Aggregate Supply

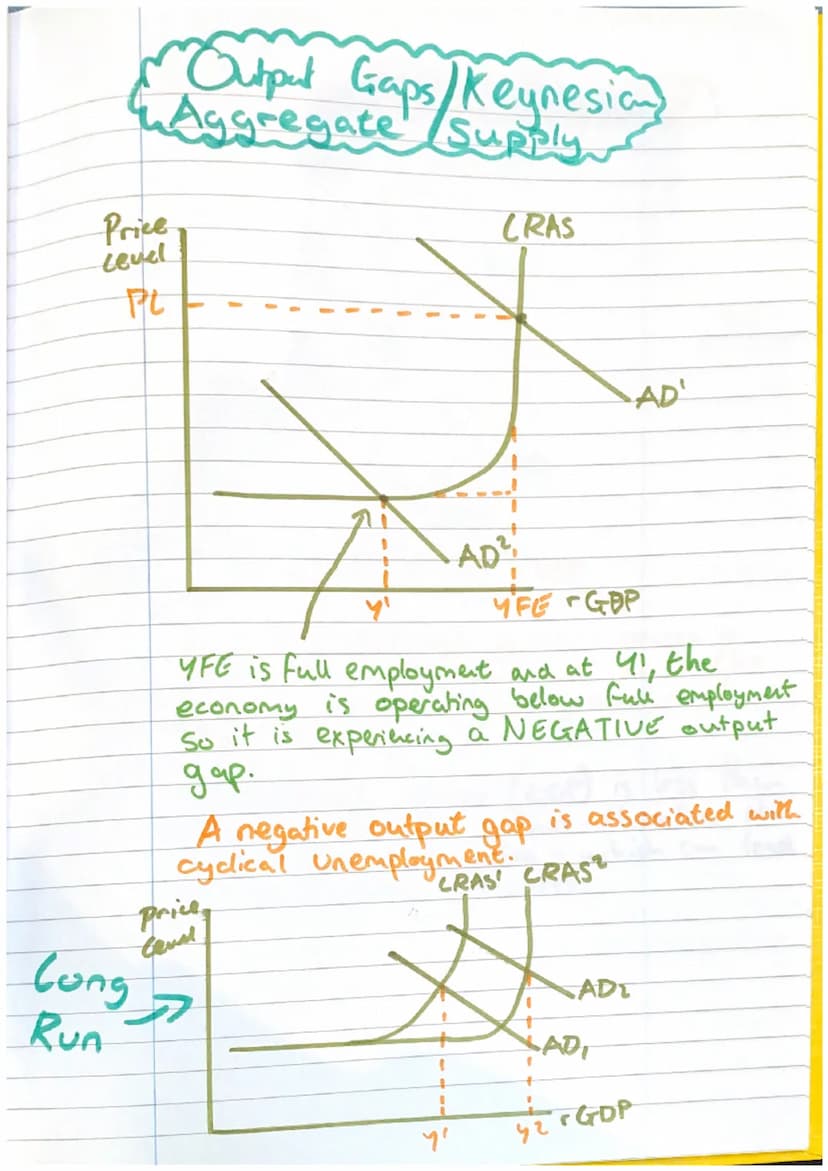

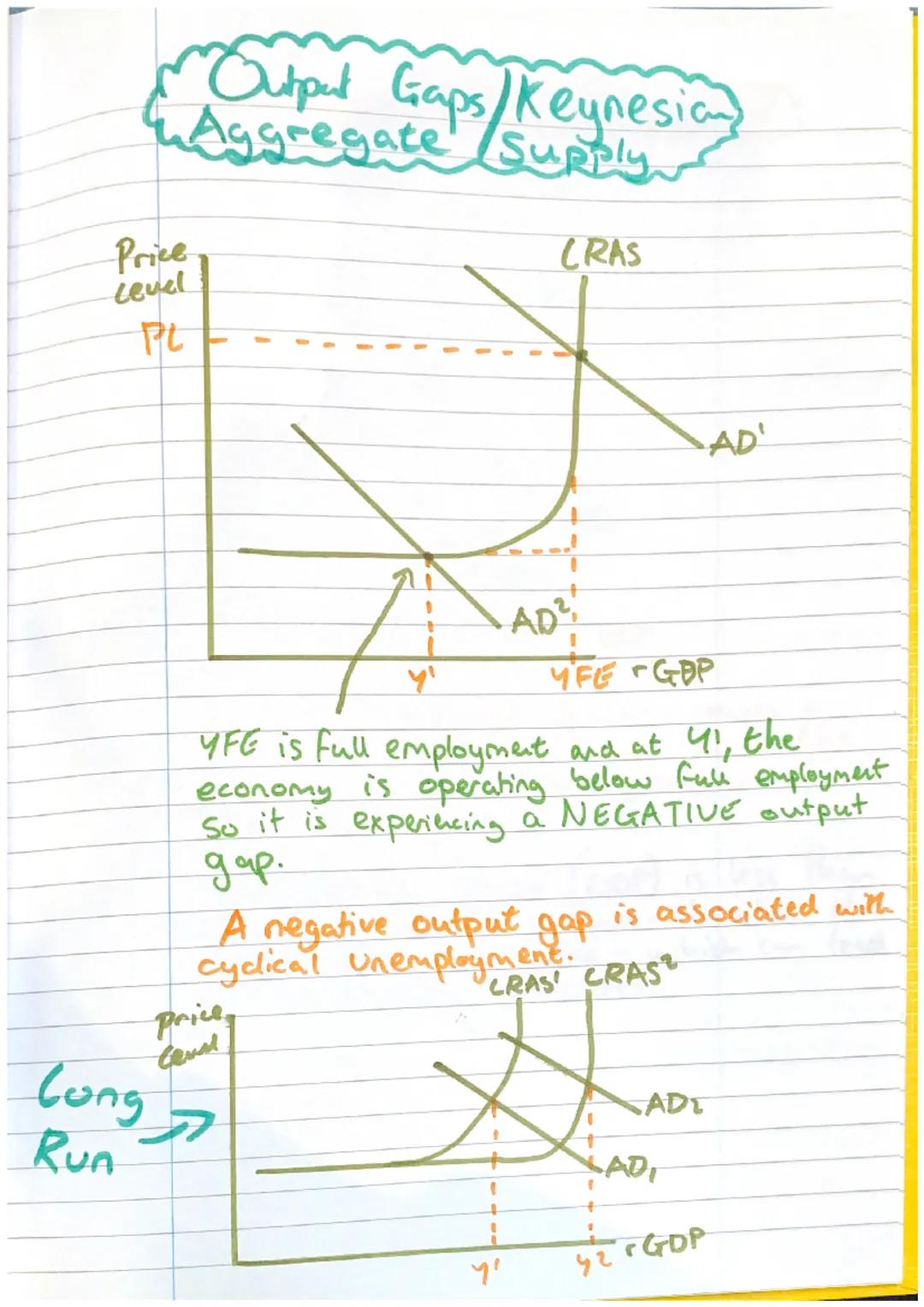

The second page delves deeper into output gaps, focusing on the Keynesian perspective of aggregate supply and its relationship to unemployment.

The diagram on this page illustrates a situation where the equilibrium level of national income (Y') is below the full employment level (YFE). This scenario represents a negative output gap, which is associated with cyclical unemployment.

Definition: Cyclical unemployment occurs when there is insufficient aggregate demand in the economy to provide jobs for everyone who wants to work.

Highlight: A negative output gap is closely linked to cyclical unemployment, as the economy is operating below its full potential.

The Keynesian aggregate supply curve is shown as relatively flat in the short run, indicating that changes in aggregate demand can have significant effects on output and employment without causing substantial changes in the price level.

Example: In a recession, a negative output gap may lead to layoffs in various industries as businesses reduce production due to decreased demand.

The diagram also shows multiple aggregate demand curves (AD1, AD2, AD3), illustrating how shifts in aggregate demand can affect the equilibrium level of output and potentially close or widen the output gap.

Understanding the relationship between output gaps, unemployment, and aggregate supply is crucial for policymakers when designing strategies to combat economic downturns and promote sustainable growth.

Vocabulary: Potential GDP (or potential output) is the maximum sustainable output an economy can produce when all resources are fully and efficiently employed.

This page emphasizes the importance of considering both the supply and demand sides of the economy when analyzing output gaps and their effects on employment and economic performance.

2
of 2
Output Gaps – page 2

Understanding Output Gaps

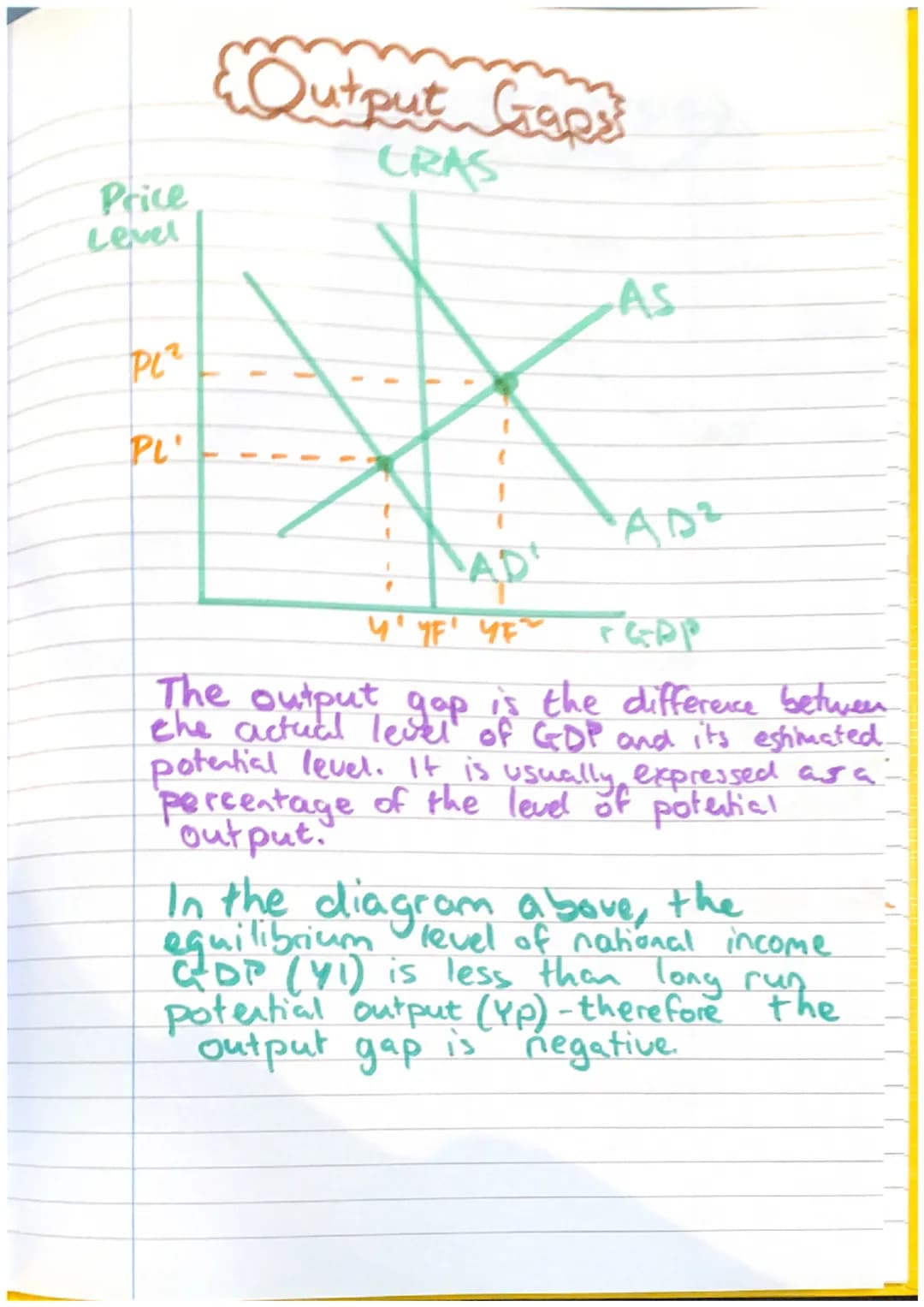

The first page introduces the concept of output gaps in macroeconomics. An output gap is the difference between the actual level of GDP and its estimated potential level, usually expressed as a percentage of potential output.

The diagram on this page illustrates a negative output gap, where the equilibrium level of national income (Y') is less than the long-run potential output (YF'). This situation occurs when the economy is operating below its full capacity.

Definition: An output gap is the difference between actual GDP and potential GDP, expressed as a percentage of potential GDP.

Highlight: A negative output gap indicates that the economy is not reaching its full productive potential, which can lead to various economic consequences.

The diagram shows the relationship between aggregate demand (AD), aggregate supply (AS), and the long-run aggregate supply (LRAS) curves. The intersection of AD and AS determines the actual output, while the LRAS curve represents the economy's potential output.

Vocabulary: LRAS (Long-Run Aggregate Supply) represents the economy's productive capacity when all resources are fully employed.

Understanding the concept of output gaps is crucial for analyzing economic performance and implementing appropriate fiscal and monetary policies to address economic imbalances.
