Graphic Communication is a comprehensive subject that combines technical drawing, design principles, and digital technologies to effectively communicate visual information.

Key aspects of the course include mastering Bottom-up modelling techniques, which involve building 3D models by starting with basic shapes and gradually adding complexity through features and details. Students learn essential desktop publishing principles, focusing on layout design, typography, and visual hierarchy. Understanding alignment and balance techniques is crucial for creating professional-looking documents and presentations.

The curriculum covers both manual and computer-aided design (CAD) skills. Students explore various drawing methods, including orthographic projection, pictorial drawings, and technical illustrations. In the context of a sited environment, learners analyze how graphics relate to real-world settings and architectural spaces. The course emphasizes practical applications through project work, where students develop skills in creating promotional graphics, technical drawings, and 3D models. Assessment preparation involves studying past papers and practicing different question types, particularly focusing on technical drawing interpretation and design analysis. The coursework also includes learning about color theory, rendering techniques, and industry-standard software applications. Students develop an understanding of how graphic communication is used in various industries, from architecture and engineering to advertising and product design. Through hands-on projects and theoretical study, learners gain valuable skills in visual communication, problem-solving, and digital literacy that are essential in today's technology-driven world.

...

07/08/2022

1677

N
N
5
L
graphics
theory
T
S
T
E
S
G
N
5
T
T
S
E
S
E
S beniçits of desktop publishing
Can be edited and manipulated easily
can be sent electr

View

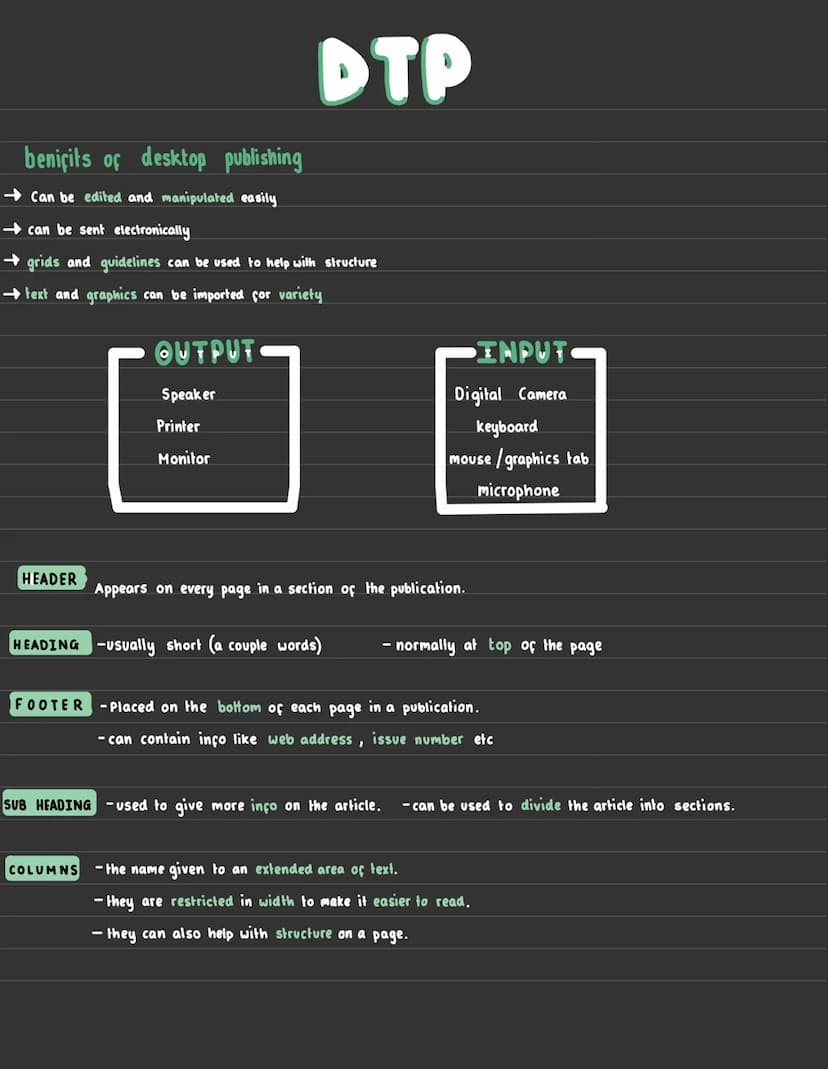

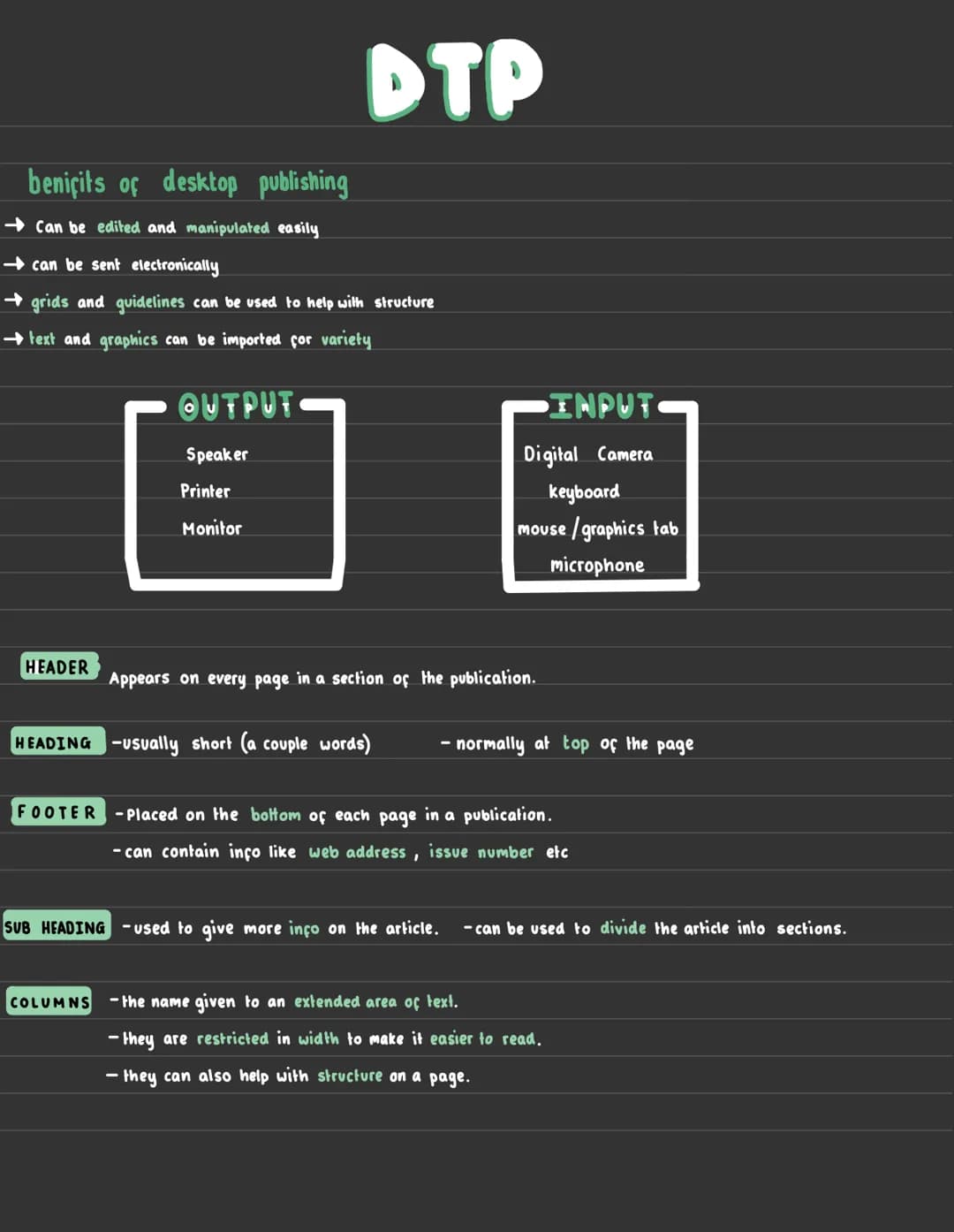

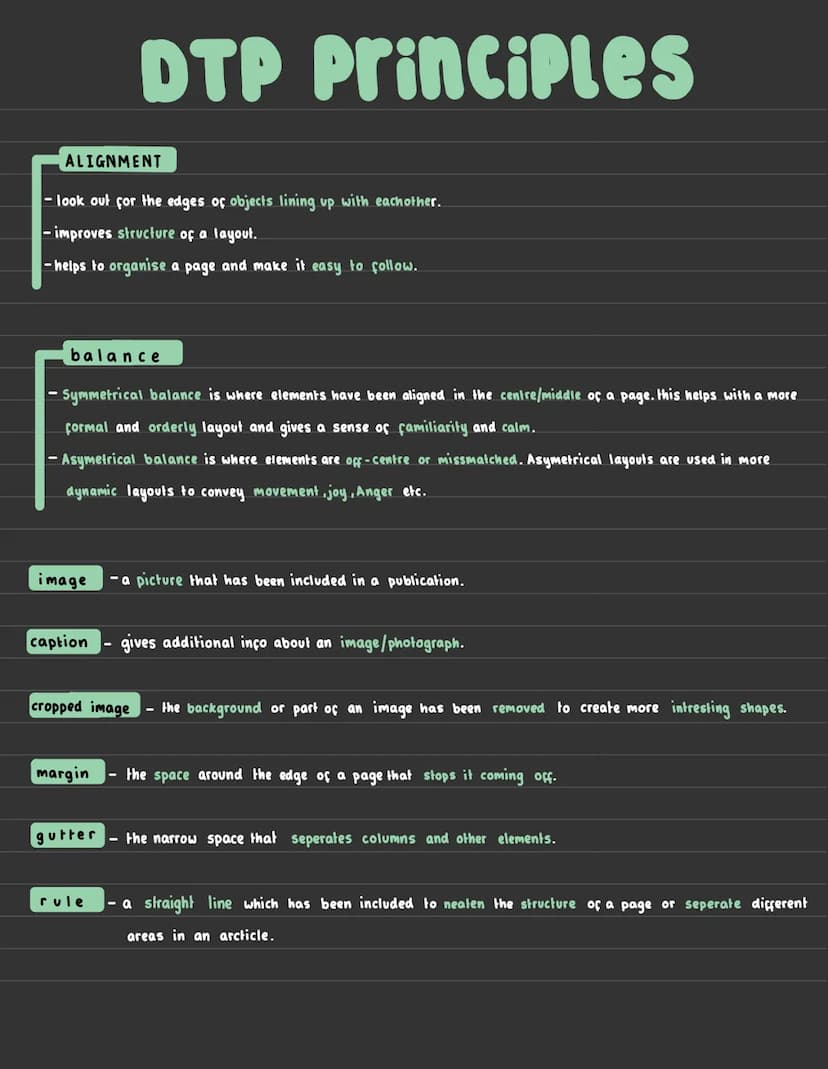

Desktop Publishing Principles and Layout Design

Desktop publishing has revolutionized how we create and distribute publications. When working with Higher graphic communications desktop publishing principles, understanding the core components and their functions is essential for creating professional layouts.

The input devices form the foundation of desktop publishing work. Digital cameras capture high-quality images, while keyboards and graphics tablets enable precise text entry and illustration. Microphones can be used for voice commands or audio annotations. These devices work together to provide content that can be manipulated within the DTP software.

Output elements are crucial for presenting the final product. Headers appear consistently across publication sections, while footers contain essential information like page numbers and web addresses. The strategic use of columns helps structure content and improve readability. Sub-headings break down articles into digestible sections, making navigation easier for readers.

Definition: Desktop Publishing (DTP) is a system that uses computer software and hardware to create professional-quality documents combining text and graphics.

View

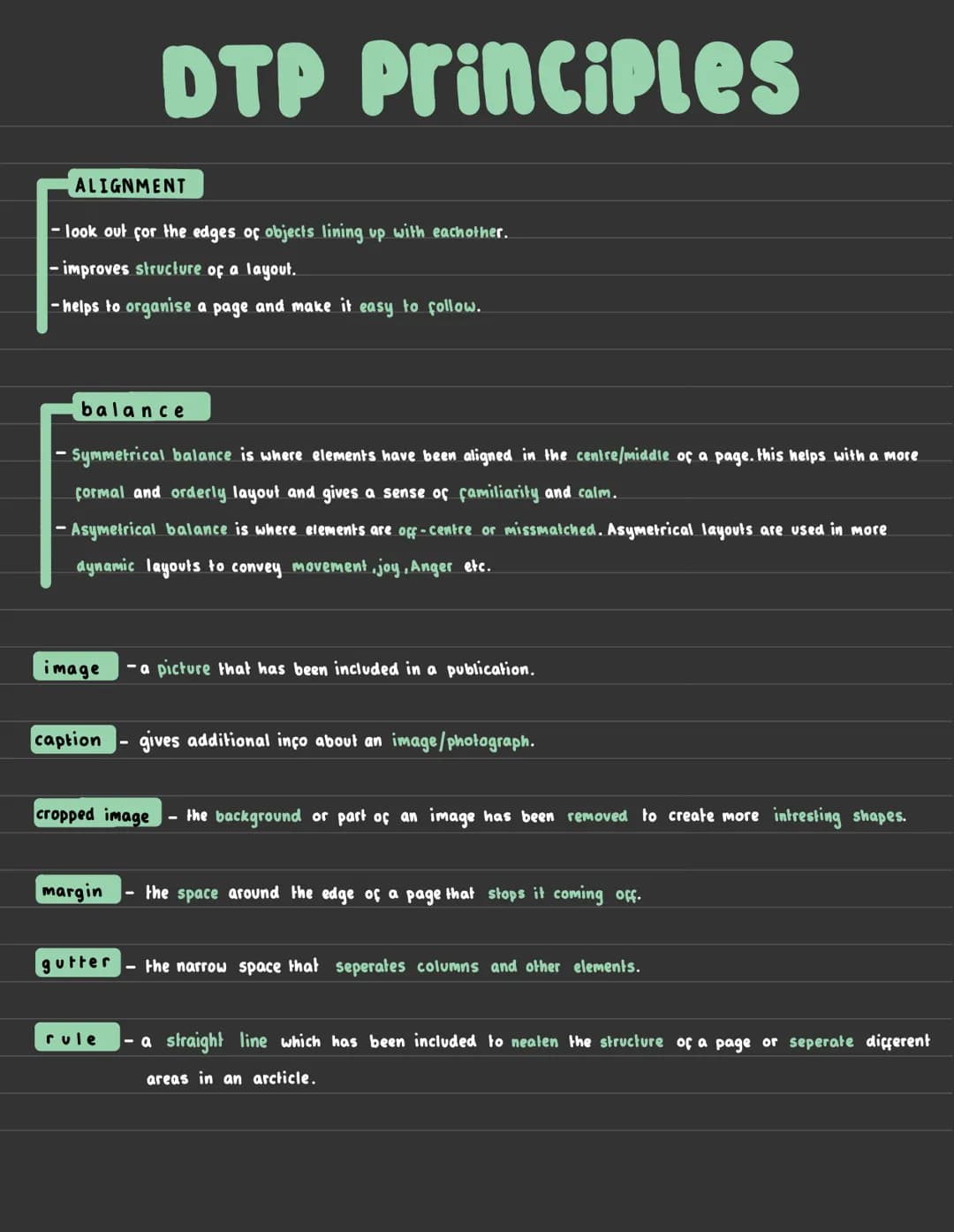

Layout Alignment and Balance Techniques

Understanding alignment and balance is fundamental for Graphic communications alignment and balance techniques. Proper alignment creates visual harmony by ensuring elements line up along common edges or centers. This organizational principle helps guide the reader's eye and establishes a clear visual hierarchy.

Symmetrical balance creates formal, orderly layouts by centering elements on the page. This approach conveys stability and professionalism, making it ideal for corporate documents and formal publications. In contrast, asymmetrical balance uses off-center placement to create dynamic, energetic compositions that can express various emotions.

Layout elements like gutters, margins, and rules work together to structure content effectively. Gutters provide essential spacing between columns, while margins prevent content from appearing too close to page edges. Rules (lines) can separate different sections and enhance overall organization.

Highlight: Effective alignment improves readability and creates a professional appearance by organizing elements in a visually coherent way.

View

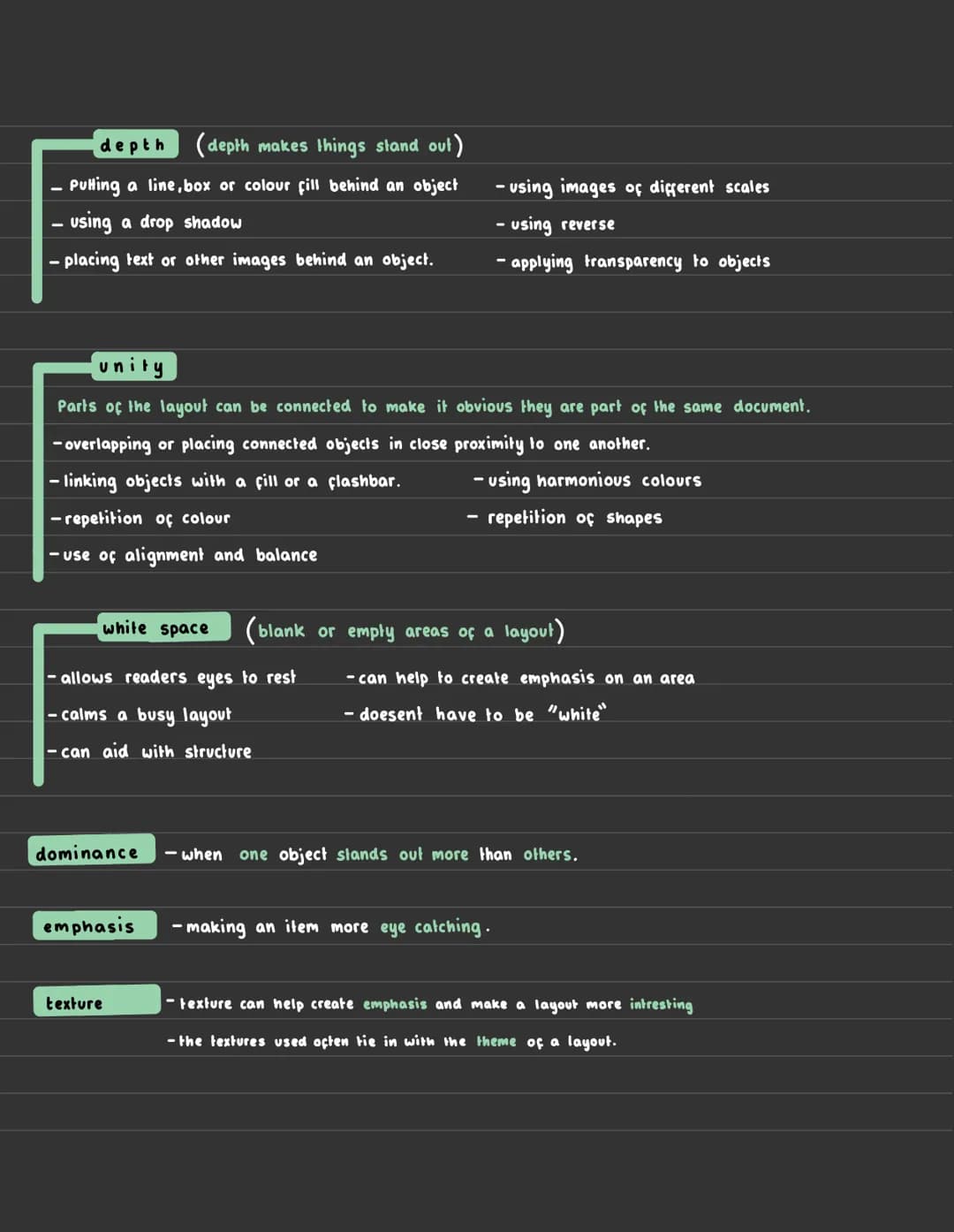

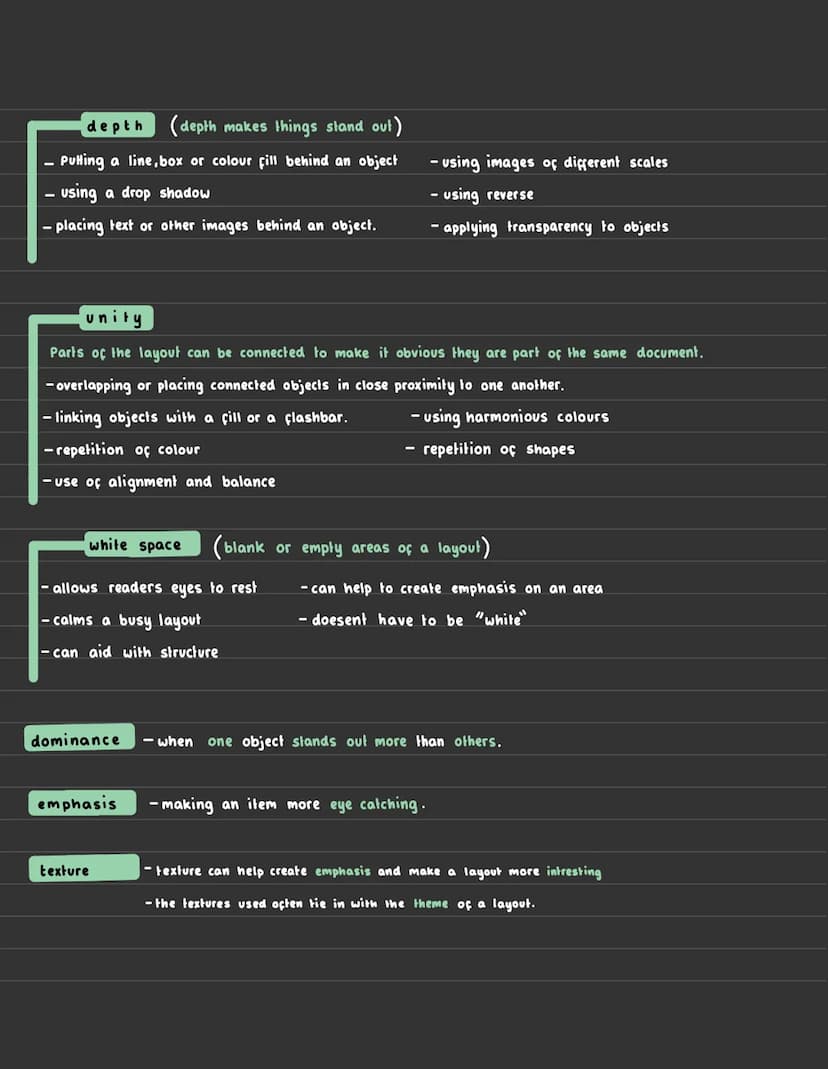

Visual Hierarchy and Depth Techniques

Creating visual hierarchy through depth techniques is essential in modern graphic design. Designers can make elements stand out using various methods like drop shadows, background elements, and layering. These techniques add dimension and interest to otherwise flat layouts.

Unity in design ensures all elements work together cohesively. This can be achieved through consistent color schemes, proximity of related elements, and repeated visual motifs. Overlapping elements and using harmonious colors helps establish connections between different parts of the layout.

White space plays a crucial role in professional design, though it doesn't necessarily have to be white. This empty space provides visual breathing room and helps structure the layout effectively. Strategic use of white space can direct attention and prevent layouts from becoming overwhelming.

Example: To create depth, designers might place a subtle drop shadow behind important text or use overlapping elements to create a sense of layering.

View

Advanced Design Elements and Emphasis

Dominance and emphasis are key principles in creating effective visual hierarchies. These techniques ensure important information stands out and guides viewers through the content in the intended order. Scale variations, reverse type, and transparency effects can all contribute to establishing clear focal points.

Texture adds another dimension to design work, creating visual interest and reinforcing thematic elements. The choice of textures should align with the publication's overall message and tone. Thoughtful application of texture can enhance emphasis and create more engaging layouts.

These advanced design elements work together to create professional, effective communications. Understanding how to balance these elements is crucial for success in Higher Graphic Communication and N5 graphic communication revision.

Vocabulary: Reverse type refers to light-colored text on a dark background, while transparency allows underlying elements to show through overlaid objects.

View

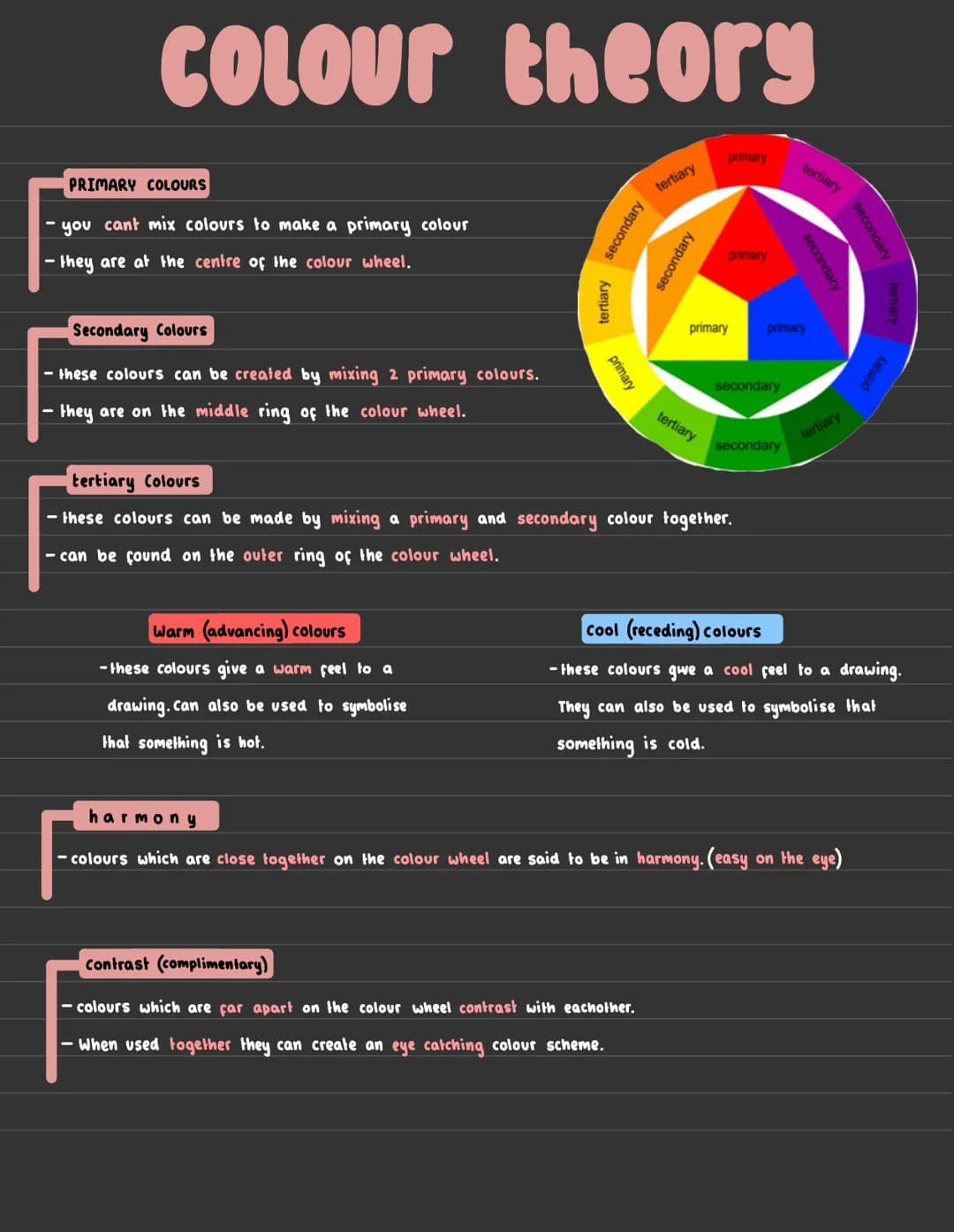

Understanding Color Theory in Graphic Communication

Color theory forms the foundation of effective visual communication and design. The color wheel organizes colors into three main categories: primary, secondary, and tertiary colors. Primary colors cannot be created by mixing other colors and occupy the center of the color wheel. These fundamental hues - red, blue, and yellow - serve as the building blocks for all other colors.

When working with Secondary colors, designers mix two primary colors to create green, orange, or purple. These colors appear in the middle ring of the color wheel and provide essential variety in design work. Tertiary colors emerge from combining a primary color with an adjacent secondary color, creating sophisticated intermediate hues like blue-green or red-orange that occupy the outer ring of the color wheel.

Understanding color relationships is crucial for effective design. Contrasting or complementary colors sit opposite each other on the color wheel and create dynamic visual interest. Harmonious colors, which appear adjacent on the wheel, create peaceful and cohesive designs. Warm colors like red, orange, and yellow advance visually and evoke energy, while cool colors like blue, green, and purple recede and suggest calmness.

Definition: Color harmony refers to the pleasing arrangement of colors based on their relationships on the color wheel. Harmonious color schemes create visual balance and comfort for viewers.

View

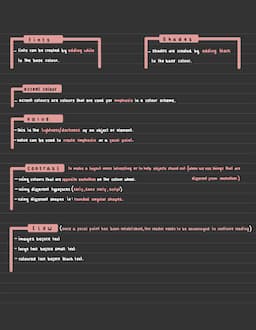

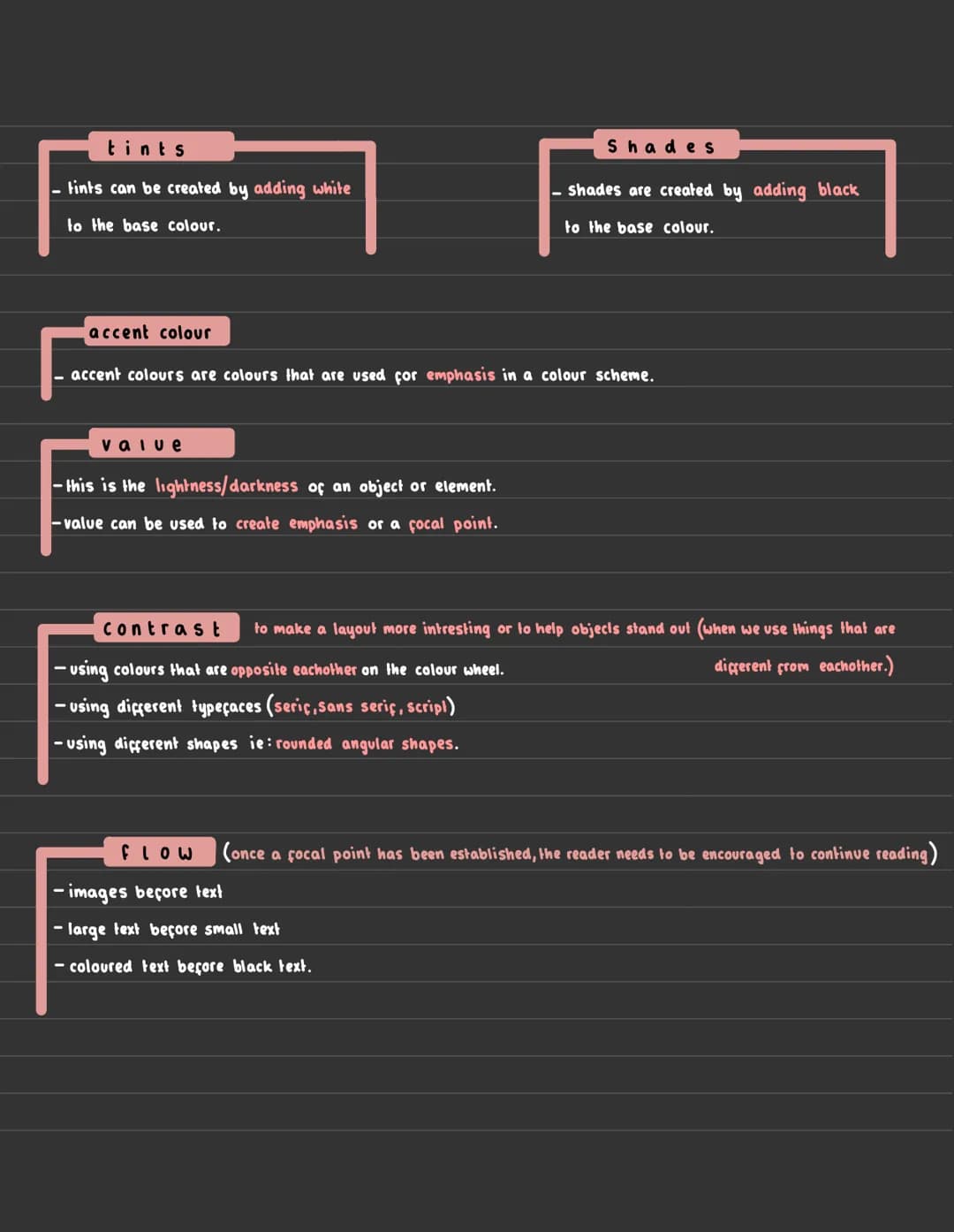

Color Values and Desktop Publishing Principles

Color values add depth and emphasis to graphic designs through the manipulation of lightness and darkness. Tints are created by adding white to a base color, producing lighter variations, while shades emerge from adding black, resulting in darker tones. These variations provide designers with extensive options for creating visual hierarchy and emphasis.

Accent colors play a crucial role in design by drawing attention to specific elements. When selecting accent colors, designers often use complementary colors or contrasting values to create focal points. This technique guides viewers' attention through the design in a deliberate sequence.

The concept of flow in design ensures readers naturally progress through content in the intended order. This is achieved through careful placement of design elements: images typically precede text, larger text elements lead to smaller ones, and colored text draws more attention than black text. These principles are fundamental to Higher graphic communications desktop publishing principles.

Highlight: Understanding flow principles helps create designs that effectively guide viewers through content while maintaining visual interest and hierarchy.

View

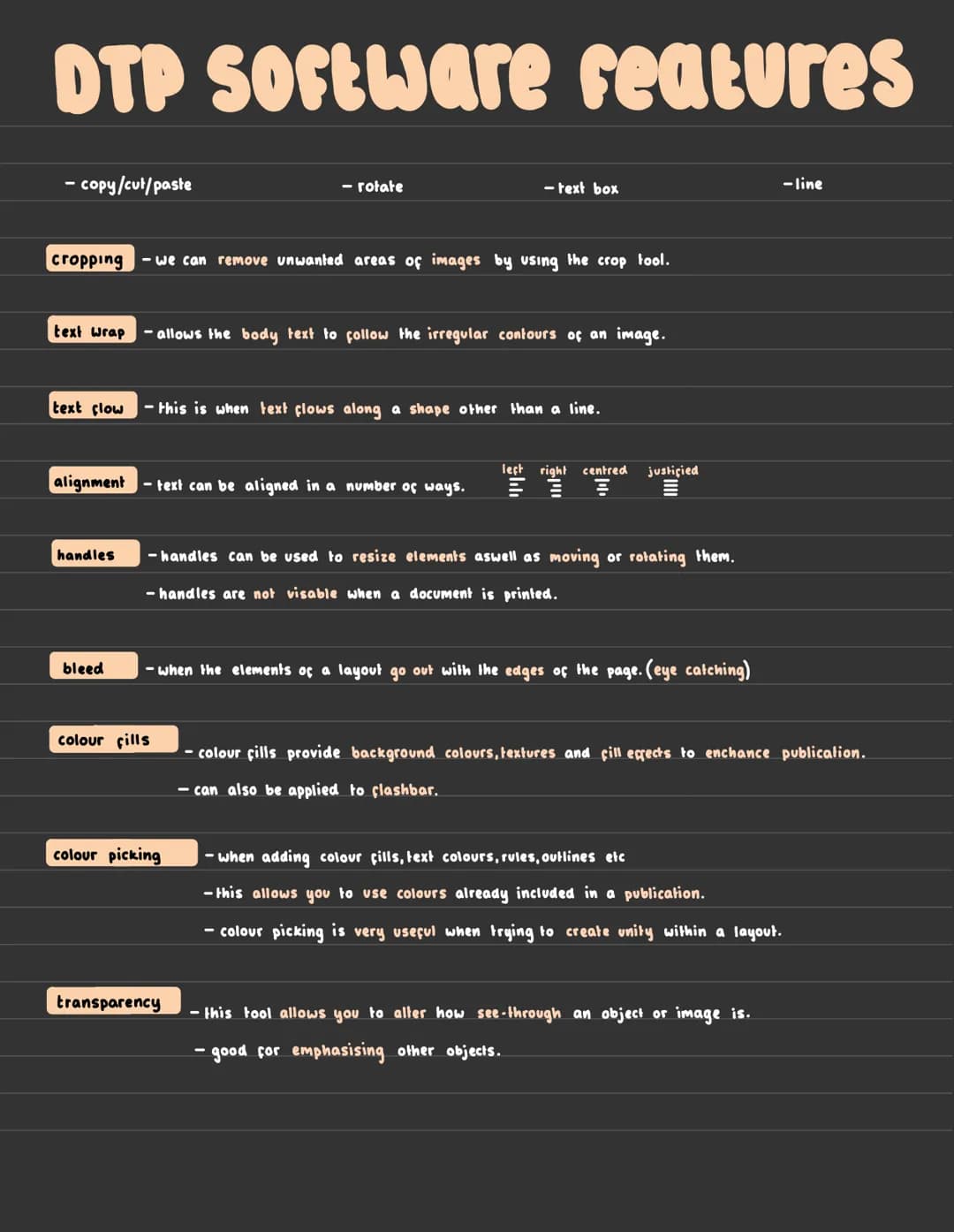

Desktop Publishing Software Features and Tools

Modern desktop publishing software offers extensive features for professional design work. Text wrap functionality allows text to flow naturally around images and shapes, while cropping tools enable precise image editing. Handles provide control over element sizing, rotation, and positioning, though they remain invisible in final printed documents.

Alignment options give designers precise control over text positioning, with choices including left, right, centered, and justified arrangements. The bleed feature allows elements to extend beyond page boundaries for professional printing results. Color fills and transparency controls provide opportunities for creative enhancement of layouts.

Color picking tools ensure consistency across publications by allowing designers to sample and reuse exact colors from existing elements. This feature is particularly valuable when maintaining brand consistency or creating unified design schemes across multiple pages or documents.

Example: Text wrap can be used to create dynamic layouts where text flows around irregular image shapes, creating professional and visually appealing designs.

View

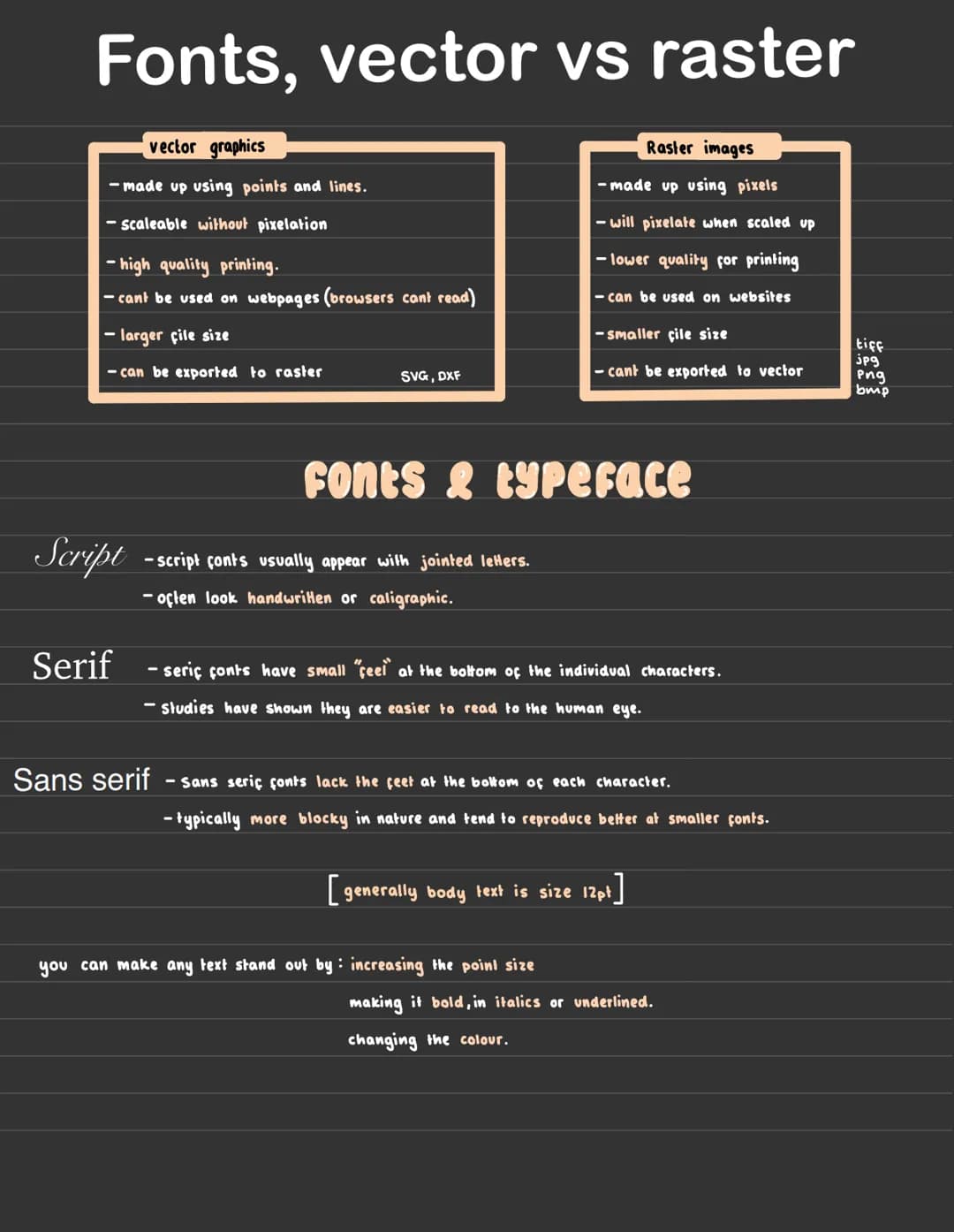

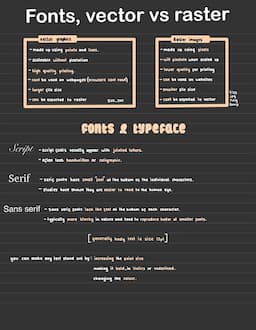

Vector and Raster Graphics in Design

Understanding the distinction between vector and raster graphics is essential for effective graphic design. Vector graphics, constructed from mathematical points and lines, maintain quality at any scale without pixelation. They excel in high-quality printing applications but may face limitations in web usage due to browser compatibility.

Font selection significantly impacts design readability and aesthetic appeal. Serif fonts, characterized by small decorative feet, enhance readability in printed materials. Sans serif fonts, lacking these decorative elements, often perform better in digital displays and at smaller sizes. Script fonts simulate handwriting and add a personal or elegant touch to designs.

Raster images, composed of pixels, are ideal for web use but may lose quality when enlarged. Common raster file formats include TIFF, JPG, PNG, and BMP, each serving specific purposes in digital and print design. While raster images typically have smaller file sizes than vector graphics, they cannot be converted to vector format without loss of quality.

Vocabulary: Vector graphics use mathematical equations to create images, while raster graphics use a grid of pixels. This fundamental difference affects their scalability and use cases.

View

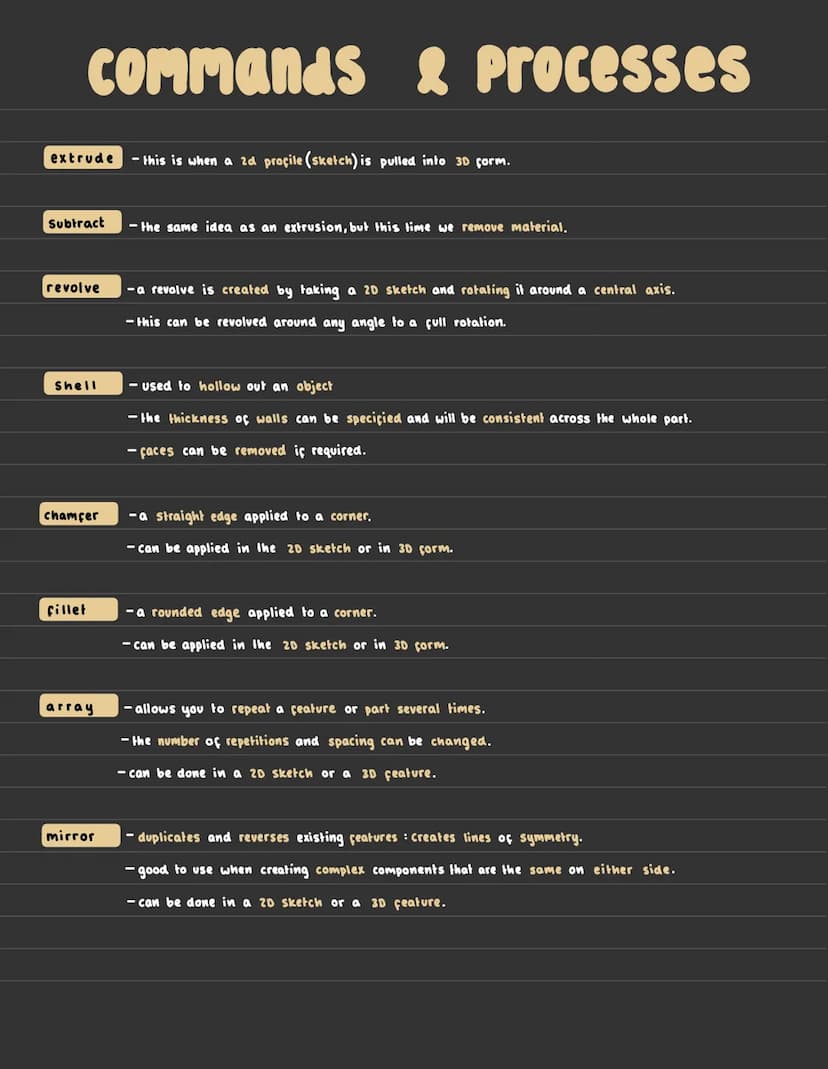

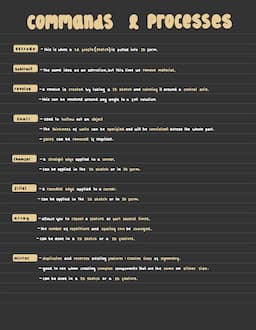

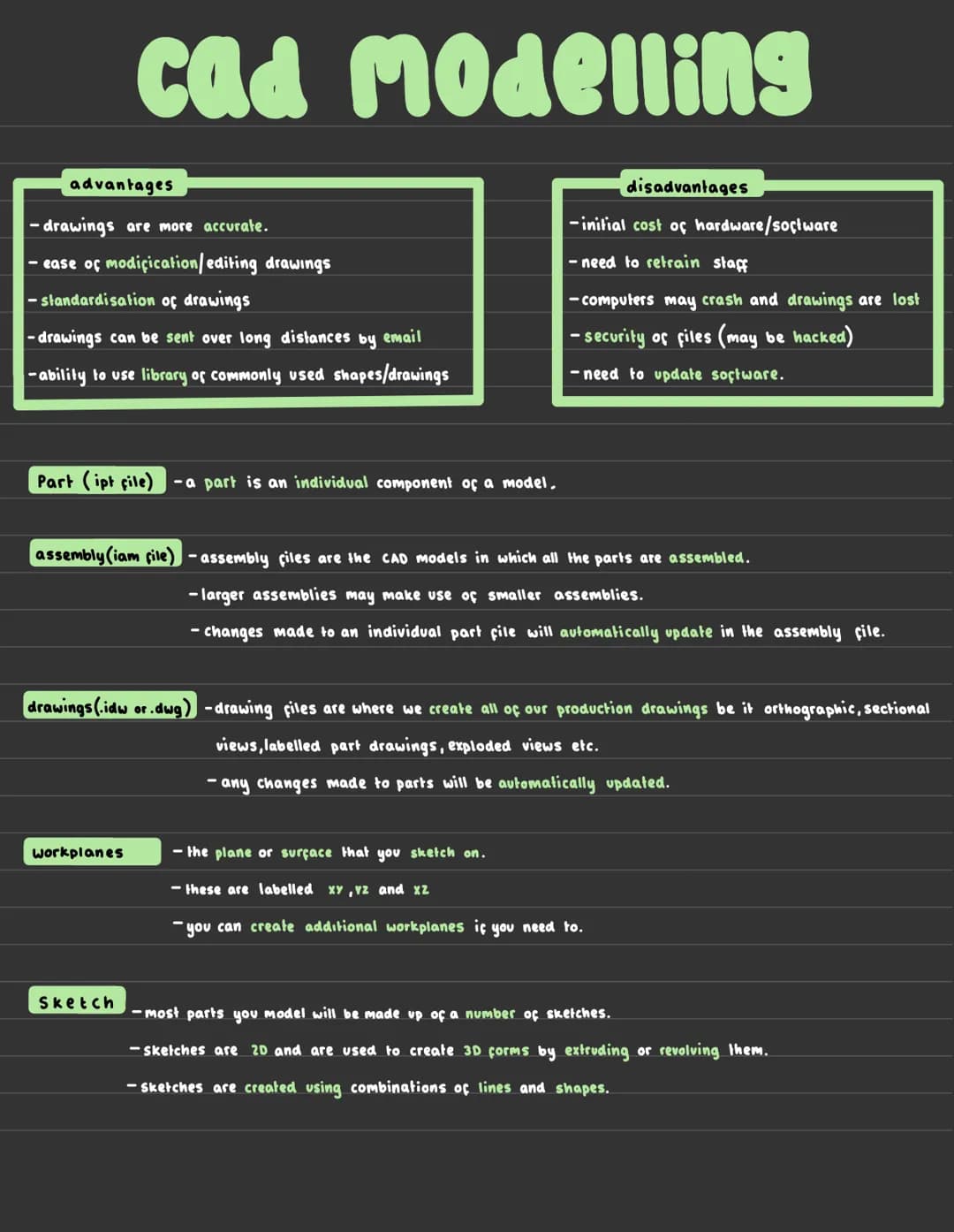

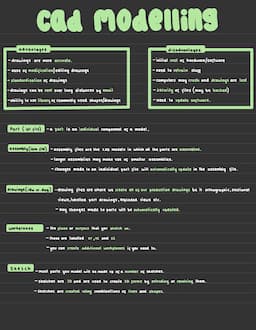

Understanding Essential 3D Modeling Commands and Processes

In 3D modeling and Bottom-up modelling Higher graphics, understanding fundamental commands and processes is crucial for creating detailed digital models. These commands form the backbone of computer-aided design and are essential knowledge for both N5 graphic communication revision and Higher Graphic Communication revision.

The extrusion command transforms 2D sketches into 3D objects by pulling the profile outward to create depth. This fundamental operation allows designers to create basic geometric shapes and complex components. When working with extrusions, designers can either add or remove material. The subtract command, similar to extrusion, removes material from existing 3D objects, enabling the creation of holes, cutouts, and complex internal features.

Revolve commands create cylindrical or radial objects by rotating a 2D profile around a central axis. This powerful feature allows for the creation of symmetric objects like bottles, wheels, or any round components. The shell command hollows out solid objects while maintaining consistent wall thickness throughout the model. Designers can specify exact wall measurements and selectively remove faces to create openings.

Definition: Fillets and chamfers are edge treatments that modify the intersection of surfaces. Fillets create rounded corners, while chamfers create angled corners. Both can be applied in either 2D sketches or 3D models.

Advanced commands like array and mirror enhance modeling efficiency. Arrays duplicate features in patterns, allowing precise control over spacing and quantity. Mirror commands create symmetrical features by duplicating and reversing existing geometry across a defined line or plane. These tools are particularly valuable when designing complex components with repeated elements or symmetrical characteristics.
