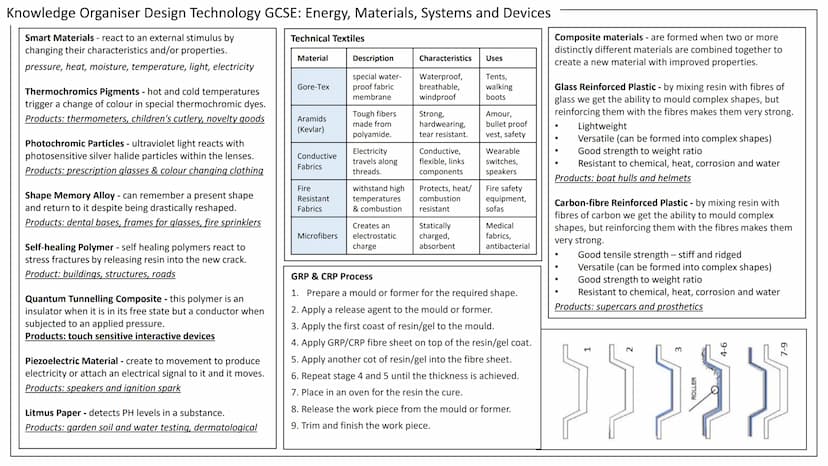

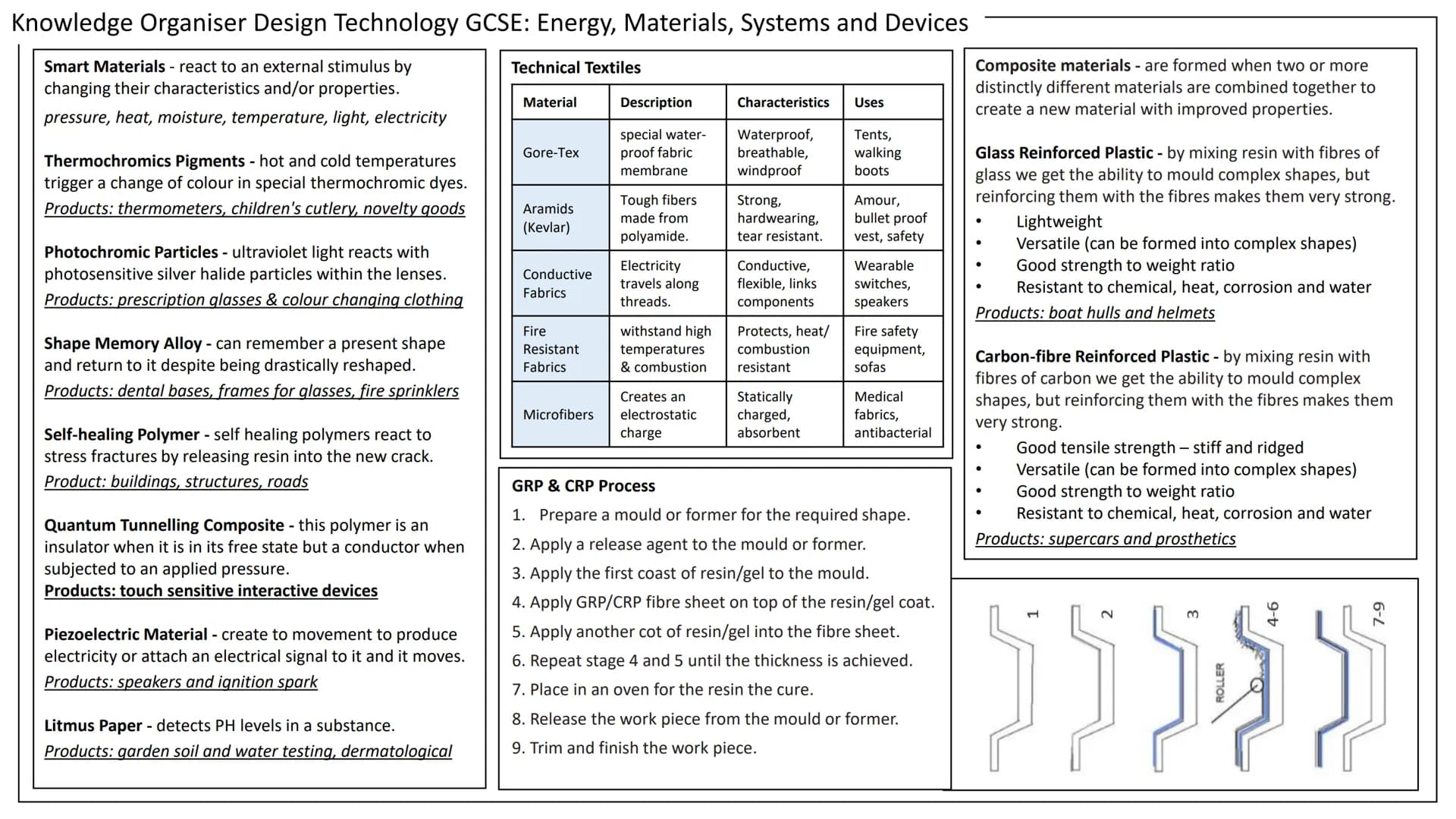

Knowledge Organiser Design Technology GCSE: Energy, Materials, Systems and Devices Energy Generation Superheated steam (heat energy) Boiler

View

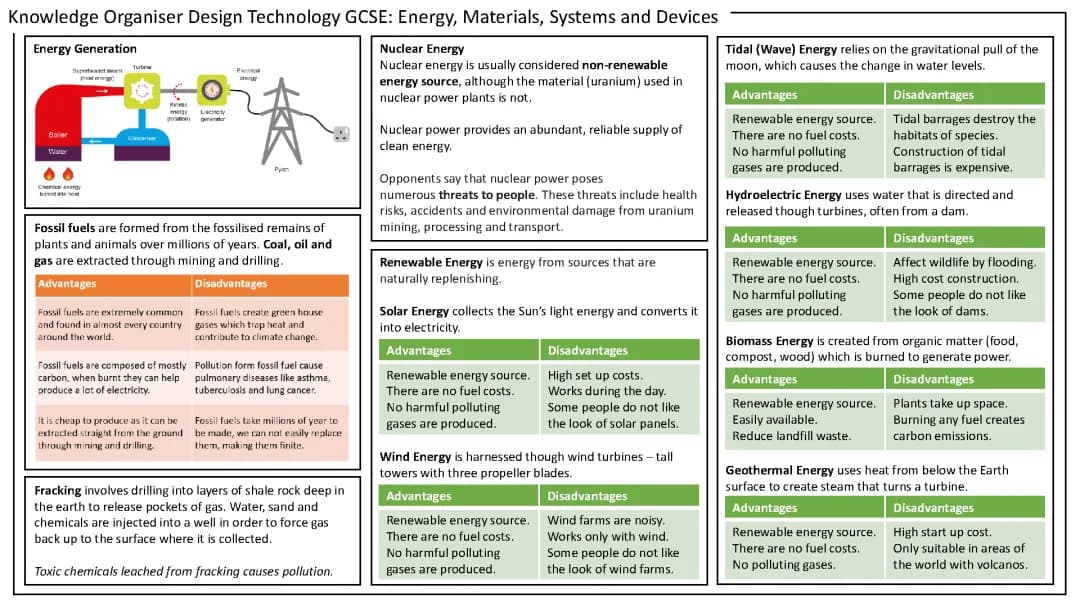

Renewable Energy Sources

This page focuses on renewable energy sources, providing a detailed overview of various types of renewable energy and their characteristics. This information is crucial for students studying renewable energy resources for GCSE Physics.

The page begins with a definition of renewable energy:

Definition: Renewable Energy is energy from sources that are naturally replenishing.

It then proceeds to discuss several types of renewable energy sources:

  1. Solar Energy: The page explains how solar energy is collected and converted into electricity. It lists advantages such as being a renewable source with no fuel costs and no harmful polluting gases. Disadvantages include high setup costs and limited functionality during nighttime.

  2. Wind Energy: The document describes wind turbines and their role in harnessing wind energy. Advantages and disadvantages are similar to solar energy, with the additional drawback of noise pollution from wind farms.

  3. Tidal (Wave) Energy: This section explains how tidal energy relies on the moon's gravitational pull. While it shares benefits with other renewable sources, the construction of tidal barrages can be expensive and potentially harmful to marine habitats.

  4. Hydroelectric Energy: The page describes how water is used to generate electricity through turbines, often utilizing dams. While it's a clean energy source, the construction of dams can affect wildlife and have high initial costs.

  5. Biomass Energy: This section explains how organic matter is used to generate power. It's noted as a renewable source that can help reduce landfill waste, but it requires significant space and still produces carbon emissions when burned.

  6. Geothermal Energy: The document describes how heat from below the Earth's surface is used to create steam for electricity generation. While it's a clean and renewable source, it has high startup costs and is only suitable in certain geological areas.

Highlight: All renewable energy sources share common advantages: they are renewable, have no fuel costs, and produce no harmful polluting gases.

This comprehensive overview of renewable energy sources provides students with essential knowledge for their GCSE DT revision and aligns with topics covered in Energy resources BBC Bitesize KS3.

Knowledge Organiser Design Technology GCSE: Energy, Materials, Systems and Devices Energy Generation Superheated steam (heat energy) Boiler

View

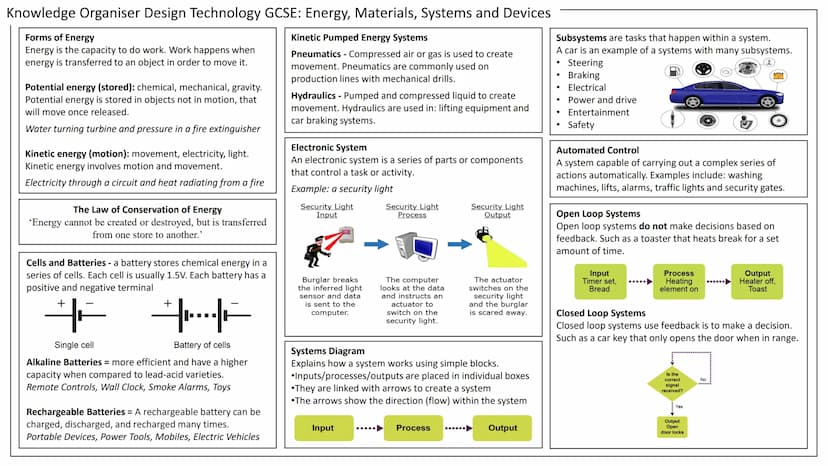

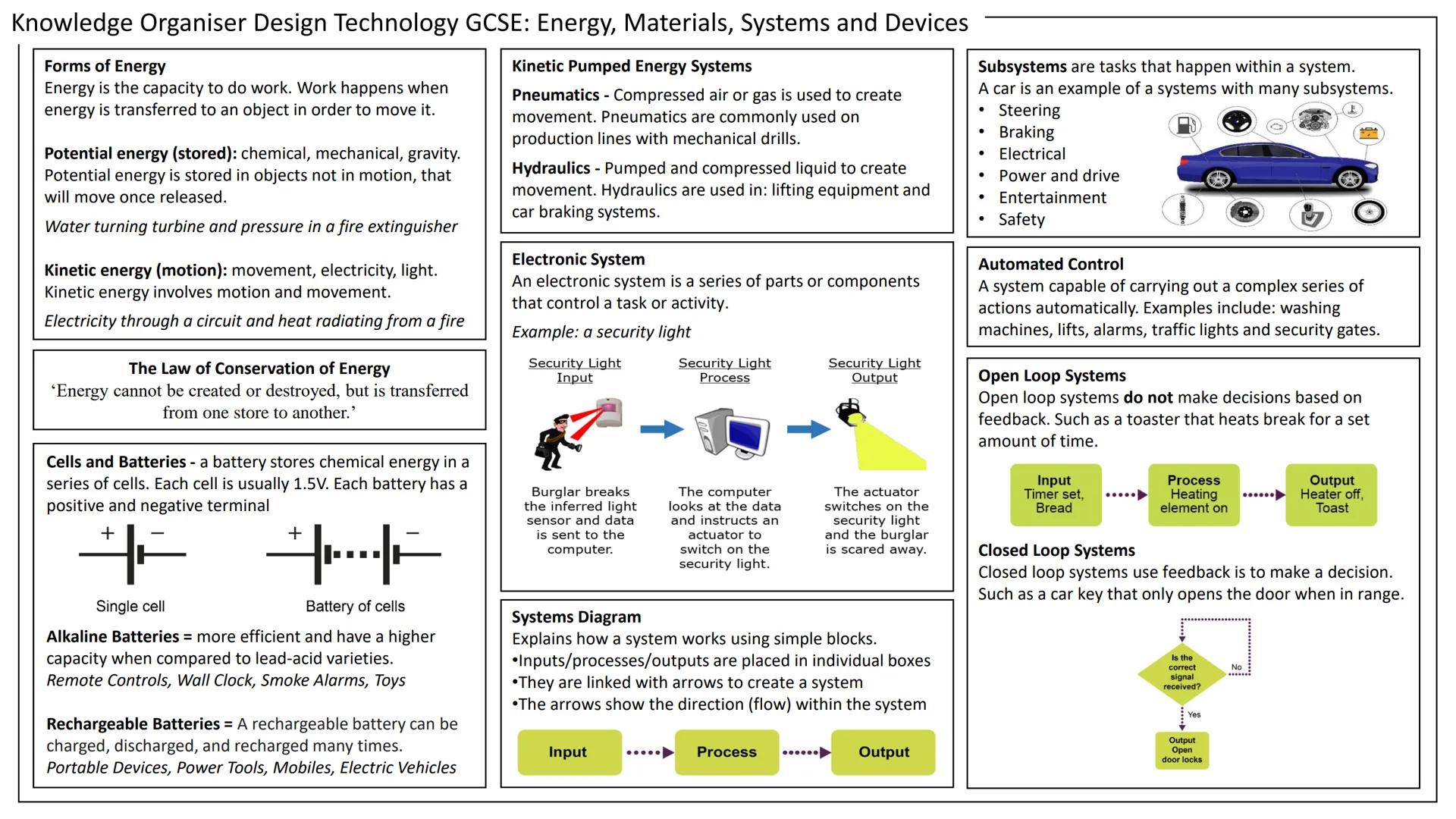

Forms of Energy and Energy Conservation

This page delves into the fundamental concepts of energy forms and conservation, which are crucial for understanding GCSE Design Technology knowledge organiser on energy materials systems and devices.

The page begins by defining energy:

Definition: Energy is the capacity to do work. Work happens when energy is transferred to an object in order to move it.

It then categorizes energy into two main forms:

  1. Potential Energy (stored): This includes chemical, mechanical, and gravitational energy. The page explains that potential energy is stored in objects not in motion but will move once released.

Example: Water turning a turbine and pressure in a fire extinguisher are examples of potential energy.

  1. Kinetic Energy (motion): This involves movement, electricity, and light. The document clarifies that kinetic energy is associated with motion and movement.

Example: Electricity flowing through a circuit and heat radiating from a fire are examples of kinetic energy.

The page then introduces the Law of Conservation of Energy, a fundamental principle in physics:

Quote: "Energy cannot be created or destroyed, but is transferred from one store to another."

This law is essential for understanding energy transformations and efficiency in various systems and devices.

The document proceeds to discuss cells and batteries, explaining that batteries store chemical energy in a series of cells. It differentiates between single cells (usually 1.5V) and batteries composed of multiple cells.

Two types of batteries are highlighted:

  1. Alkaline Batteries: These are described as more efficient and having a higher capacity compared to lead-acid varieties. Common applications include remote controls, wall clocks, smoke alarms, and toys.

  2. Rechargeable Batteries: The page explains that these batteries can be charged, discharged, and recharged many times. They are commonly used in portable devices, power tools, mobile phones, and electric vehicles.

Finally, the page introduces Kinetic Pumped Energy Systems, briefly mentioning pneumatics and hydraulics:

  • Pneumatics: Uses compressed air or gas to create movement, commonly used on production lines with mechanical drills.
  • Hydraulics: Utilizes pumped and compressed liquid to create movement, used in lifting equipment and car braking systems.

This comprehensive overview of energy forms, conservation, and storage systems provides students with essential knowledge for their GCSE DT revision and aligns with topics covered in Energy resources BBC Bitesize KS3.

Knowledge Organiser Design Technology GCSE: Energy, Materials, Systems and Devices Energy Generation Superheated steam (heat energy) Boiler

View

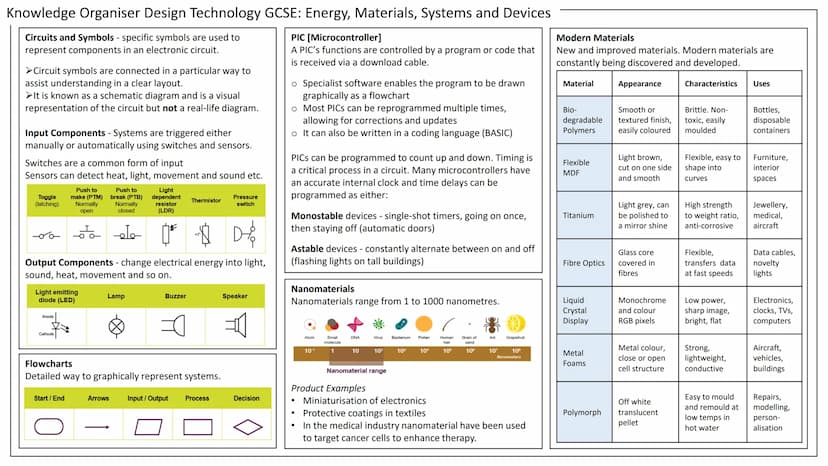

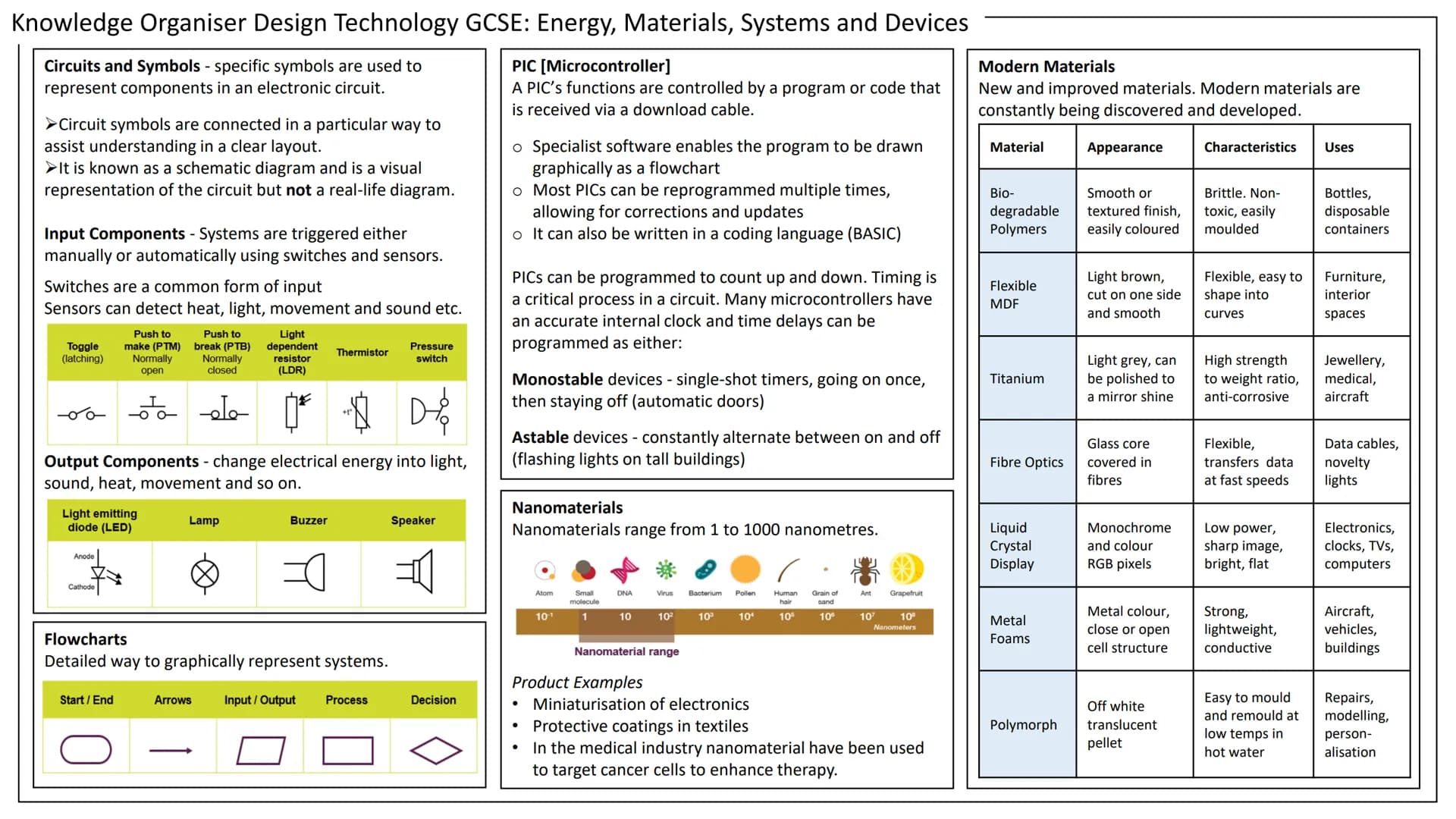

Electronic Systems and Components

This page focuses on electronic systems and components, which are crucial elements in the GCSE Design Technology knowledge organiser on energy materials systems and devices. The content provides students with a comprehensive understanding of various electronic components and their functions within circuits.

The page begins by introducing the concept of input devices, which are components that allow data to be entered into an electronic circuit. Several examples are provided:

  1. Light Dependent Resistor (LDR): This component's resistance changes based on the amount of light it receives. More light results in lower resistance, while less light increases resistance.

  2. Thermistor: Similar to an LDR, a thermistor's resistance changes with temperature. As temperature increases, the resistance decreases.

  3. Pressure Sensor: This device converts pressure into an electrical signal, often used in applications like touch screens or weather stations.

  4. Moisture Sensor: It detects the presence of water or humidity, commonly used in automatic plant watering systems or leak detection.

  5. Infra-red Sensor: This component detects infrared radiation, often used in motion detectors or remote controls.

The document then moves on to discuss output devices, which are components that produce a response based on the input received:

  1. Light Emitting Diode (LED): A semiconductor device that emits light when an electric current passes through it.

  2. Buzzer: An audio signaling device that produces a buzzing sound when activated.

  3. Motor: A device that converts electrical energy into mechanical energy, causing rotation.

  4. Relay: An electrically operated switch used to control high-power circuits with a low-power signal.

The page also introduces the concept of a transistor, explaining its function as an electronic switch or amplifier in circuits.

Vocabulary: A transistor is a semiconductor device used to amplify or switch electronic signals and electrical power.

Lastly, the document touches on integrated circuits (ICs), explaining that they are miniaturized circuits containing multiple electronic components on a single chip.

This comprehensive overview of electronic systems and components provides students with essential knowledge for their GCSE DT revision and aligns with topics covered in GCSE AQA DT knowledge Organiser. Understanding these components is crucial for designing and analyzing electronic systems in various technological applications.

Knowledge Organiser Design Technology GCSE: Energy, Materials, Systems and Devices Energy Generation Superheated steam (heat energy) Boiler

View

Systems Approach and Control Systems

This page delves into the systems approach and control systems, which are fundamental concepts in the GCSE Design Technology knowledge organiser on energy materials systems and devices. The content provides students with a comprehensive understanding of how systems work and how they can be controlled.

The page begins by introducing the systems approach, which is a way of understanding how different parts work together to achieve a goal. It explains that a system typically consists of three main components:

  1. Input: The information or data that goes into the system.
  2. Process: The actions or operations performed on the input.
  3. Output: The result or product that comes out of the system.

Definition: A system is a set of interrelated components working together to achieve a specific goal.

The document then introduces the concept of feedback, which is crucial in control systems:

Vocabulary: Feedback is the process of returning part of the output of a system to the input, often used to control the system's behavior.

Two types of feedback are explained:

  1. Positive Feedback: This type of feedback amplifies the system's output, potentially leading to instability if not controlled.
  2. Negative Feedback: This type reduces the system's output, helping to maintain stability and achieve a desired state.

The page proceeds to discuss various types of control systems:

  1. Open Loop Systems: These systems do not use feedback and operate based on pre-set instructions.

Example: A washing machine that runs through a predetermined cycle without adjusting based on the cleanliness of the clothes.

  1. Closed Loop Systems: These systems use feedback to monitor and adjust their operation.

Example: A thermostat that continuously monitors room temperature and adjusts heating or cooling to maintain a set temperature.

  1. Electronic Control Systems: The document explains how electronic components can be used to create control systems, mentioning microcontrollers and programmable logic controllers (PLCs).

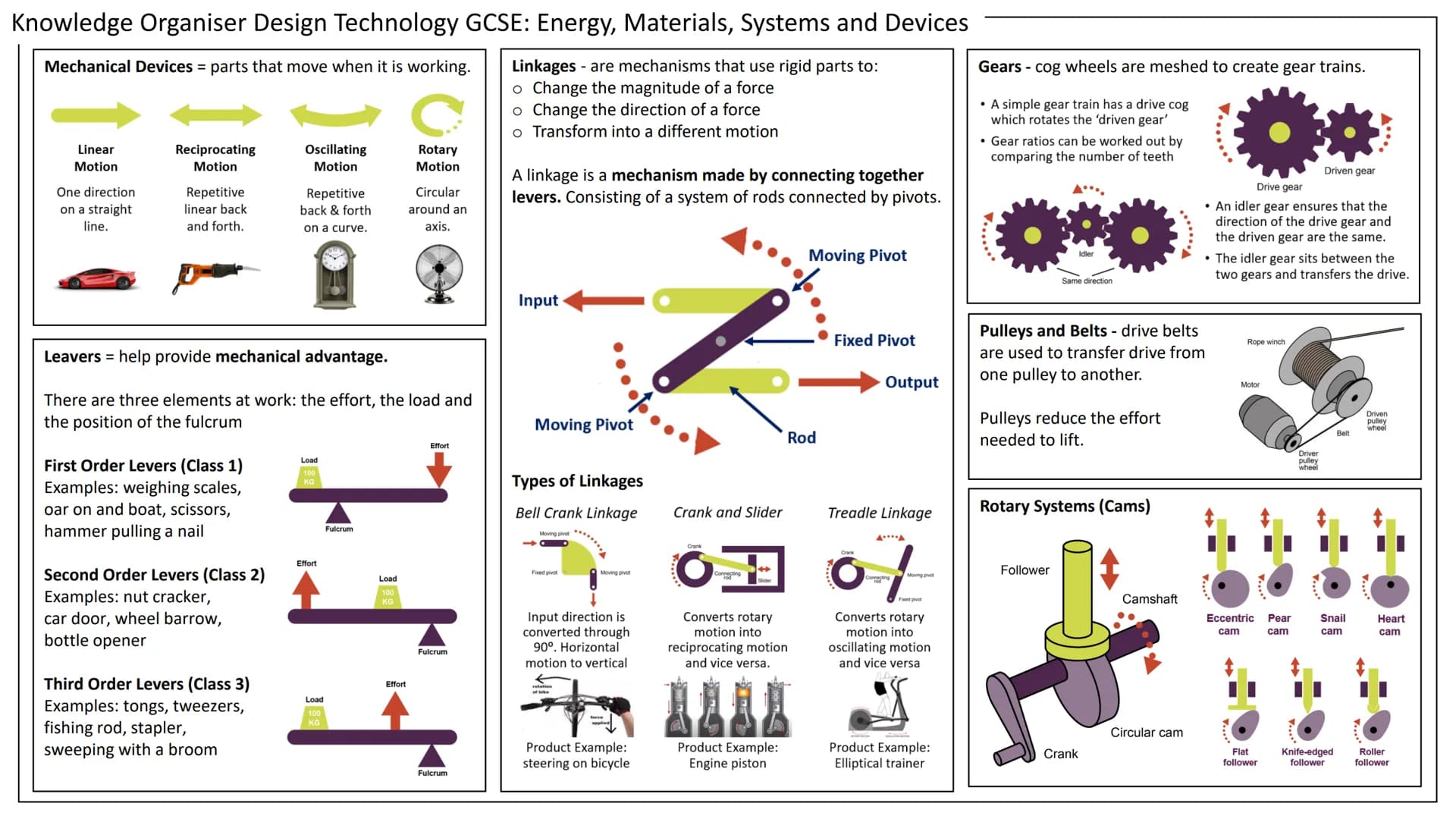

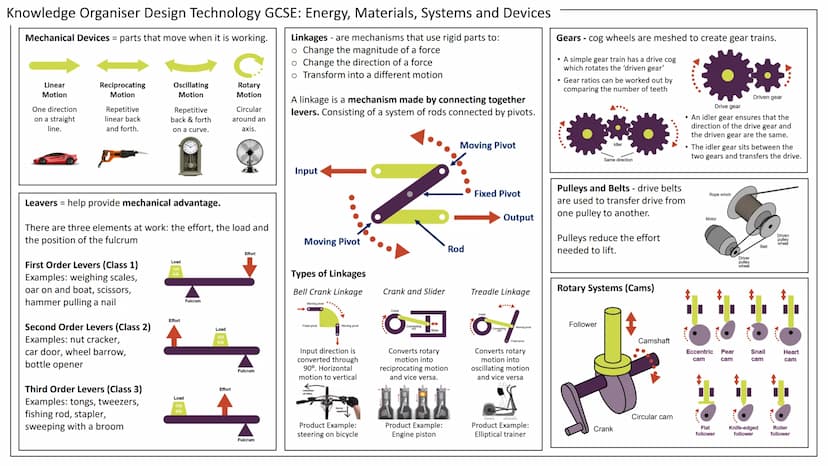

  2. Mechanical Control Systems: These systems use mechanical components to control processes, such as governors in engines or float valves in toilets.

  3. Pneumatic and Hydraulic Systems: The page briefly touches on how these systems use compressed air or fluid to control movement and force.

Lastly, the document emphasizes the importance of understanding control systems in modern technology and design, highlighting their applications in various fields from manufacturing to home automation.

This comprehensive overview of systems approach and control systems provides students with essential knowledge for their GCSE DT revision and aligns with topics covered in GCSE AQA DT knowledge Organiser. Understanding these concepts is crucial for analyzing and designing effective systems in various technological applications.
