Understanding Advanced Design & Manufacture Course Materials

The SQA Advanced Higher Design and Manufacture course represents a comprehensive study of manufacturing processes, materials, and design principles. Students pursuing this qualification gain in-depth knowledge of industrial manufacturing methods and design considerations essential for modern product development. The course materials encompass detailed examination of production techniques, material properties, and design methodologies used in contemporary manufacturing.

Definition: The Advanced Higher qualification builds upon the foundation established in Higher and National 5 levels, providing students with university-level understanding of design and manufacturing principles.

Understanding the course structure is crucial for success. The curriculum includes theoretical components covering materials science, manufacturing processes, and design theory, alongside practical portfolio work demonstrating real-world application of these concepts. Students develop advanced analytical skills through examining existing products and creating innovative solutions to design challenges.

The design and manufacture higher portfolio requirements demonstrate students' ability to apply theoretical knowledge in practical scenarios. This includes detailed documentation of the design process, from initial concept generation through to final product specification, incorporating market research, technical drawings, and manufacturing considerations.

Manufacturing Processes in Design & Manufacture

Modern manufacturing processes form a cornerstone of the Scottish Advanced Higher Design and Manufacture courses. These processes encompass various techniques for transforming raw materials into finished products, with particular emphasis on mass production methods and quality control systems.

Highlight: Understanding manufacturing processes is essential for creating designs that are both innovative and practically manufacturable.

The course materials extensively cover production planning, quality assurance, and process optimization. Students learn to evaluate different manufacturing methods based on factors such as cost-effectiveness, environmental impact, and production volume requirements. This knowledge is crucial for making informed decisions in real-world design scenarios.

Manufacturing considerations directly influence design decisions, from material selection to final product specifications. The relationship between design intent and manufacturing capabilities represents a critical aspect of the course, helping students develop practical, producible solutions.

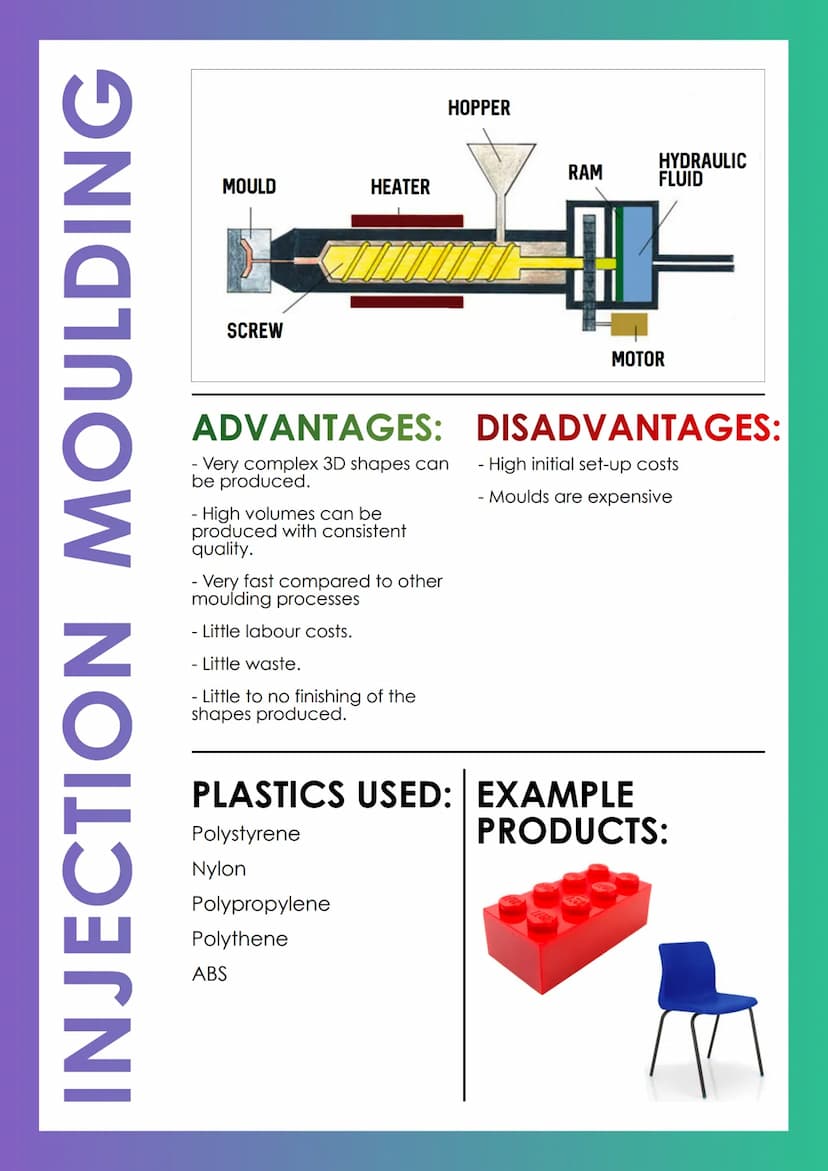

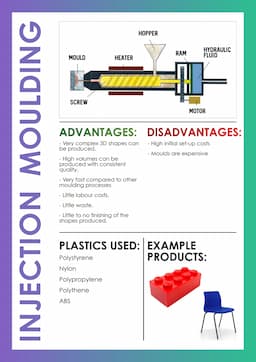

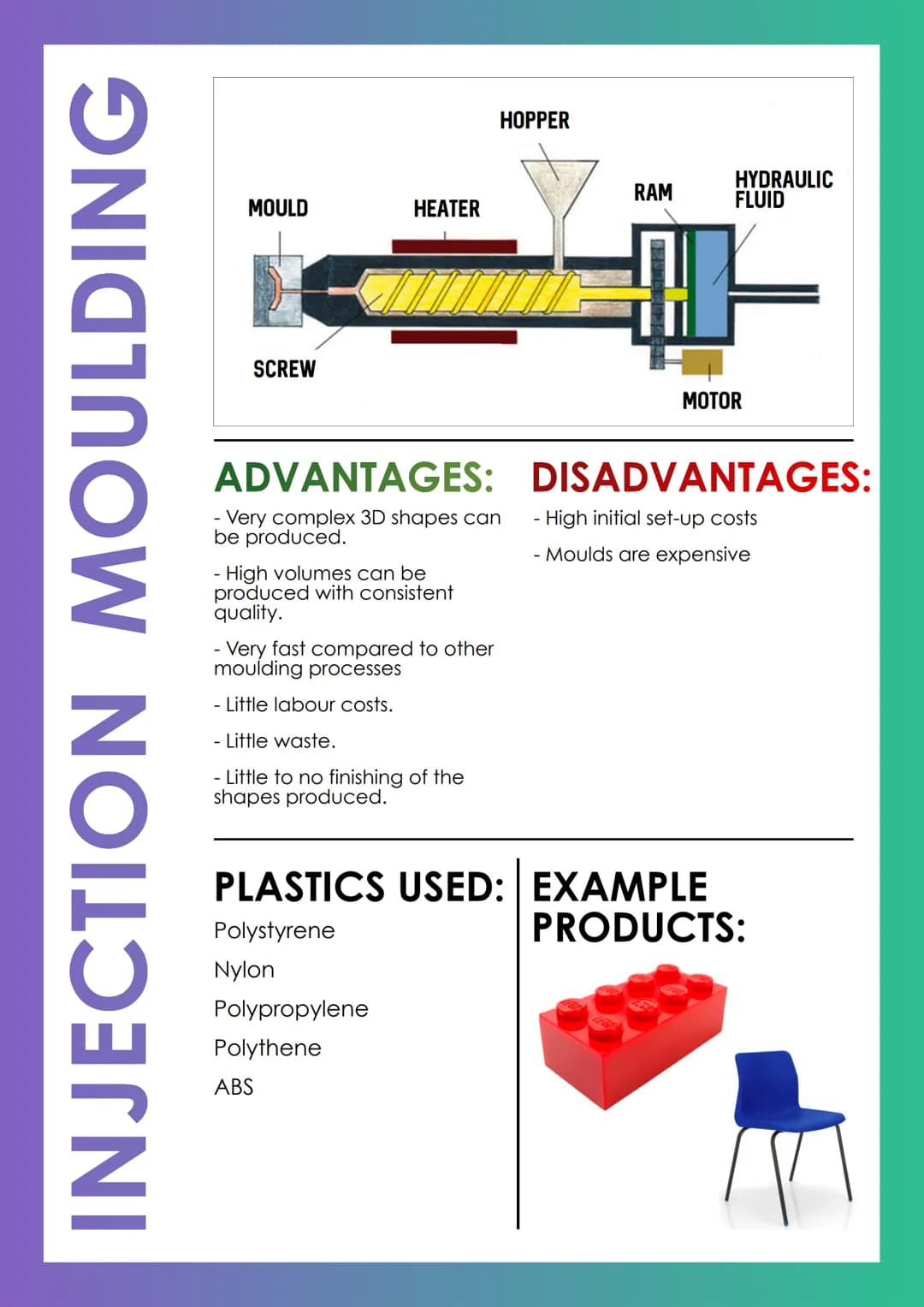

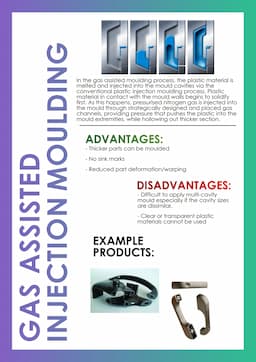

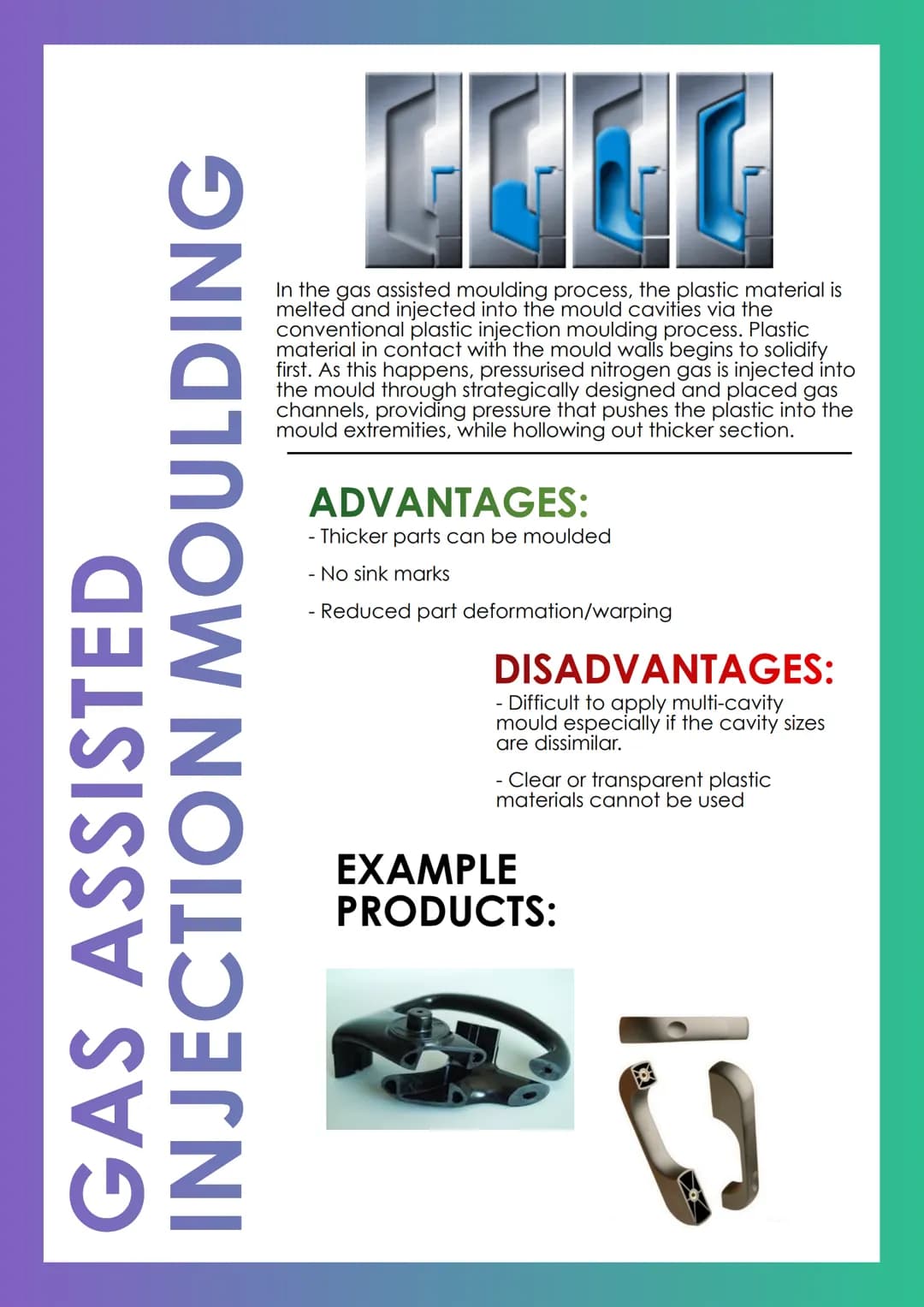

Injection Molding: Principles and Applications

Injection molding represents one of the most significant manufacturing processes studied in the course. This process involves injecting molten plastic material into a mold cavity under high pressure, where it cools and solidifies into the desired shape. The process is particularly suited for producing complex plastic components in high volumes.

Vocabulary: Key components of injection molding machines include the hopper, screw, heating elements, and hydraulic system.

The process offers numerous advantages, including high production rates, consistent quality, and minimal waste. Injection molding materials commonly used include polypropylene, ABS, nylon, and polystyrene. Each material offers specific properties suitable for different applications, from consumer products to industrial components.

Understanding injection mold design principles is crucial for successful production. This includes considerations such as wall thickness, draft angles, and gate locations. The course covers these aspects in detail, helping students understand how design decisions impact manufacturability.

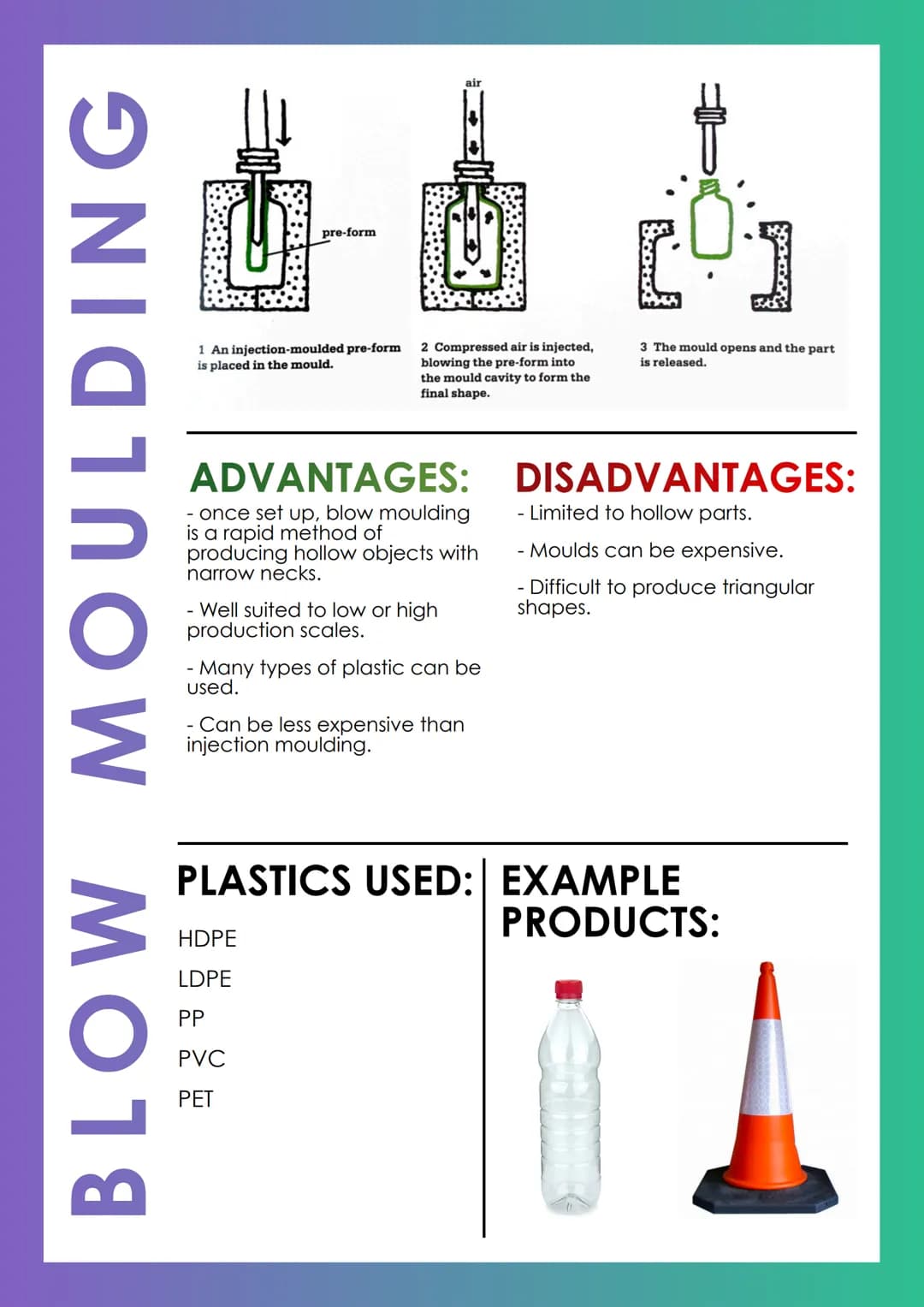

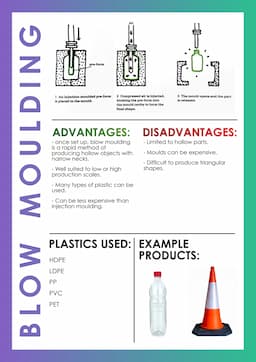

Advanced Manufacturing Techniques: Blow Molding

Blow molding represents another crucial manufacturing process studied in the Higher Design and Manufacture course specification. This technique specializes in producing hollow plastic products through a two-stage process involving preform creation and air inflation.

Example: Common products manufactured through blow molding include plastic bottles, containers, and fuel tanks.

The process begins with an injection-molded preform, which is then expanded using compressed air to fill a mold cavity. This technique offers unique advantages for producing hollow containers efficiently. Materials commonly used include HDPE, LDPE, PP, PVC, and PET, each selected based on specific product requirements.

Understanding the capabilities and limitations of blow molding helps designers create more effective solutions. The process offers cost advantages compared to injection molding for certain applications, though it comes with specific design constraints that must be considered during product development.

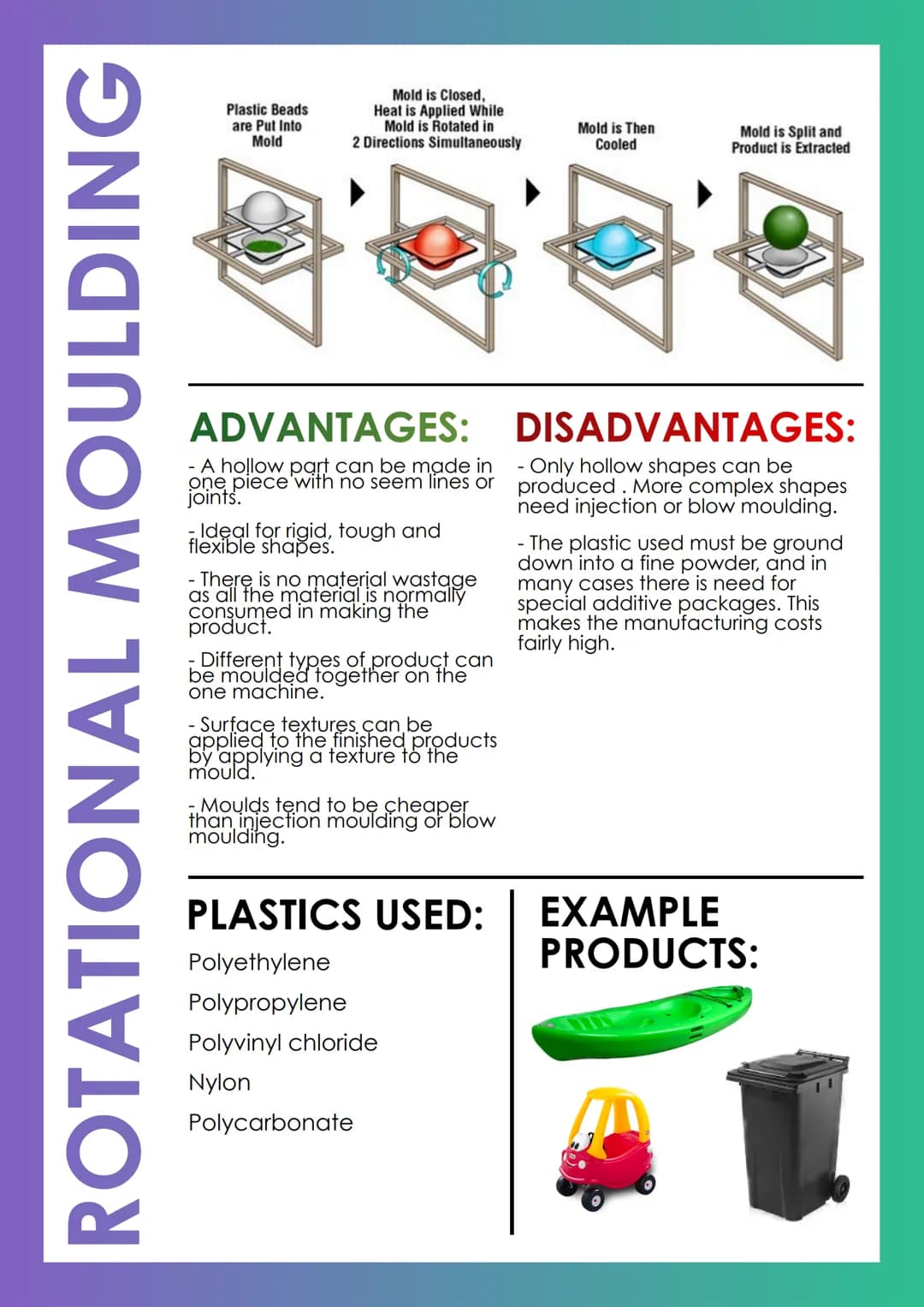

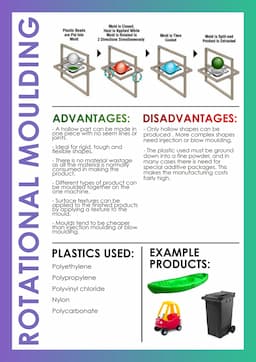

Understanding Rotational Molding in Manufacturing

Rotational molding represents a sophisticated manufacturing process particularly suited for creating hollow plastic products. This method begins with plastic beads or powder being placed into a mold that rotates biaxially while heat is applied. The simultaneous rotation in two directions ensures even distribution of the melted plastic material against the mold walls.

The process excels in producing seamless hollow parts with consistent wall thickness. Injection molding materials commonly used include polyethylene, polypropylene, polyvinyl chloride, nylon, and polycarbonate. Each material offers specific characteristics suitable for different applications, from storage tanks to playground equipment.

Manufacturing professionals value rotational molding for its minimal waste characteristics and cost-effective mold production compared to injection molding machine alternatives. The process allows for incorporating various surface textures directly into the finished product through mold modification, enhancing design flexibility.

Definition: Rotational molding is a thermoplastic processing method where plastic powder is heated while rotating in two axes, creating hollow parts without seams or joints.

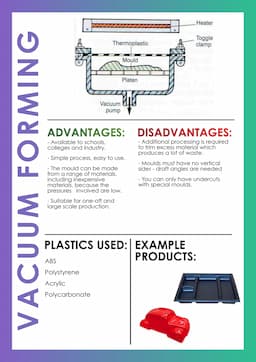

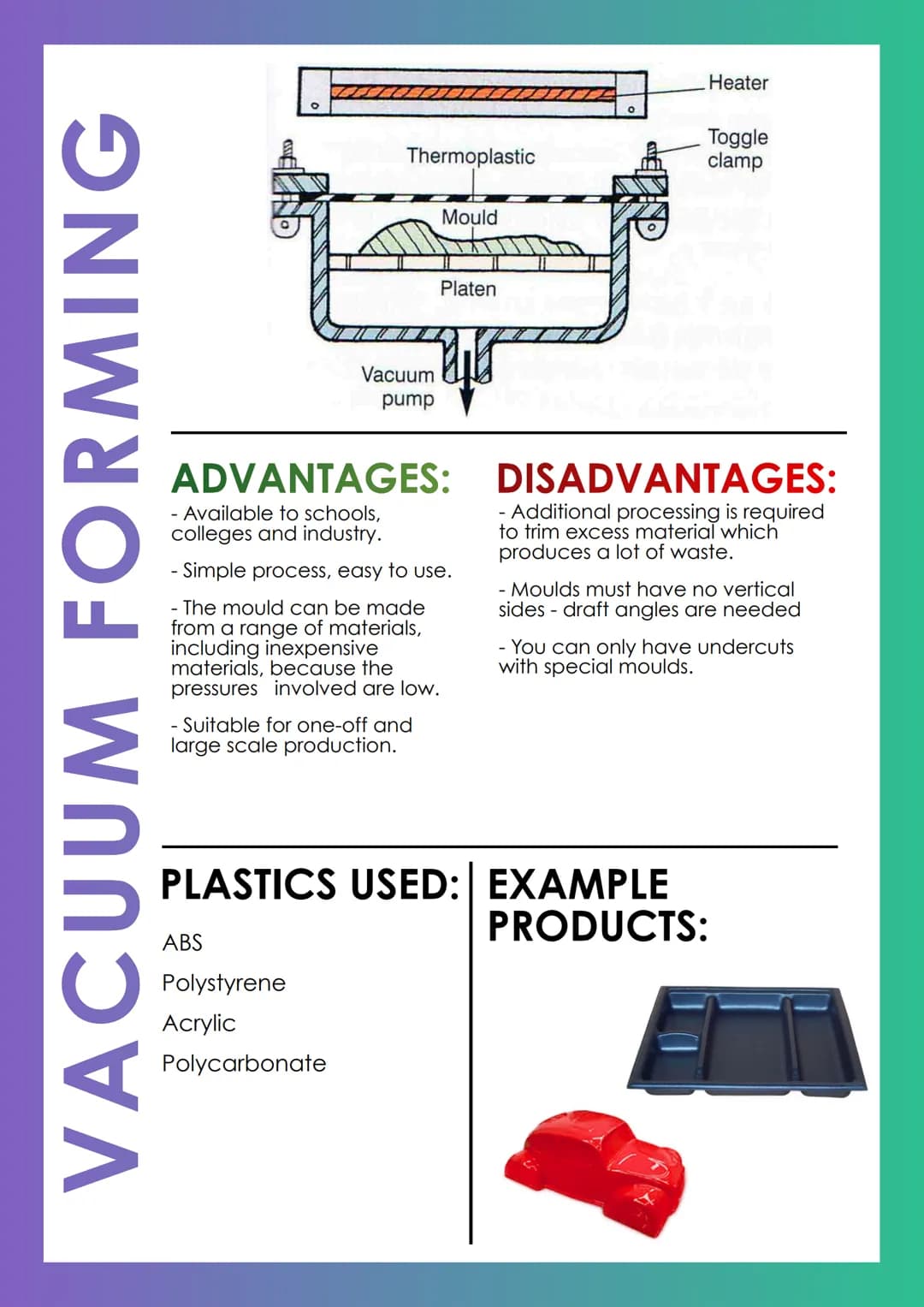

Advanced Vacuum Forming Techniques

Vacuum forming stands as a versatile thermal forming process widely utilized in both educational and industrial settings. This manufacturing method proves particularly effective for creating shaped plastic products through a combination of heat and vacuum pressure. The process begins with heating a thermoplastic sheet until pliable, then drawing it over a mold using vacuum suction.

The technique demonstrates remarkable versatility in terms of material compatibility, working effectively with ABS, polystyrene, acrylic, and polycarbonate. These plastic molding processes create products ranging from packaging materials to automotive components. The relatively low pressure requirements allow for using cost-effective mold materials, making it accessible for various production scales.

Highlight: Vacuum forming's main advantage lies in its simplicity and accessibility, though considerations must be made for draft angles and material waste management.

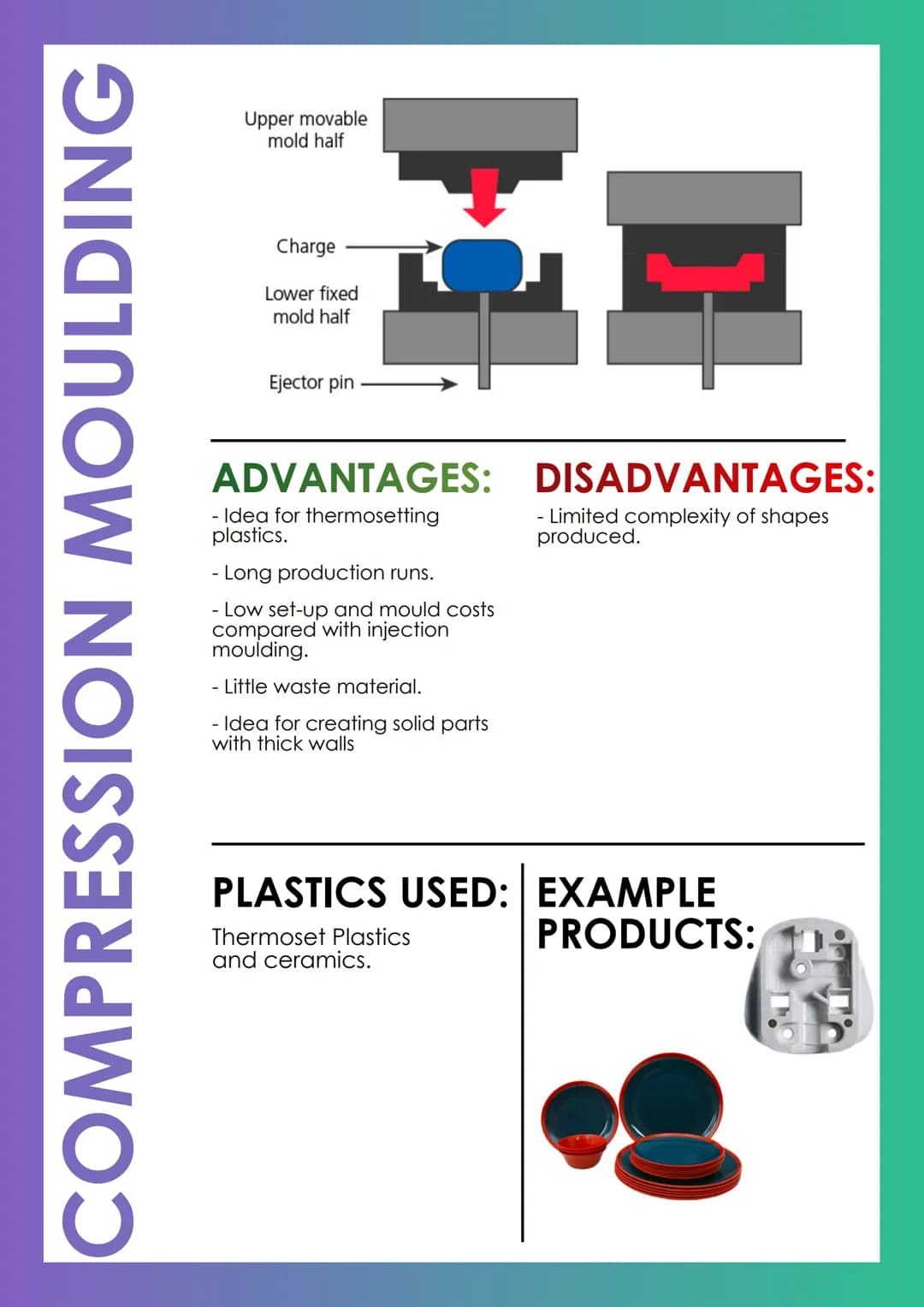

Compression Molding: Industrial Applications

Compression molding represents a critical manufacturing process particularly suited for thermosetting plastics and composites. The process involves placing a pre-measured amount of material $called a charge$ between heated mold halves, which are then closed under pressure. This technique proves especially valuable for creating solid parts with substantial wall thickness.

The method offers significant advantages in terms of material efficiency and production costs. When compared to injection mold design processes, compression molding typically requires lower initial investment while maintaining excellent output quality for appropriate applications. The process particularly excels in long production runs where consistent quality is essential.

Example: Common applications include electrical components, automotive parts, and household appliances requiring high structural integrity.

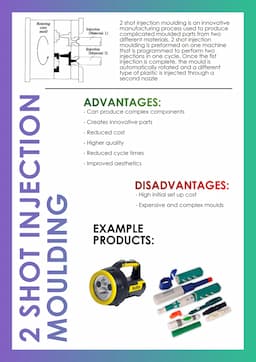

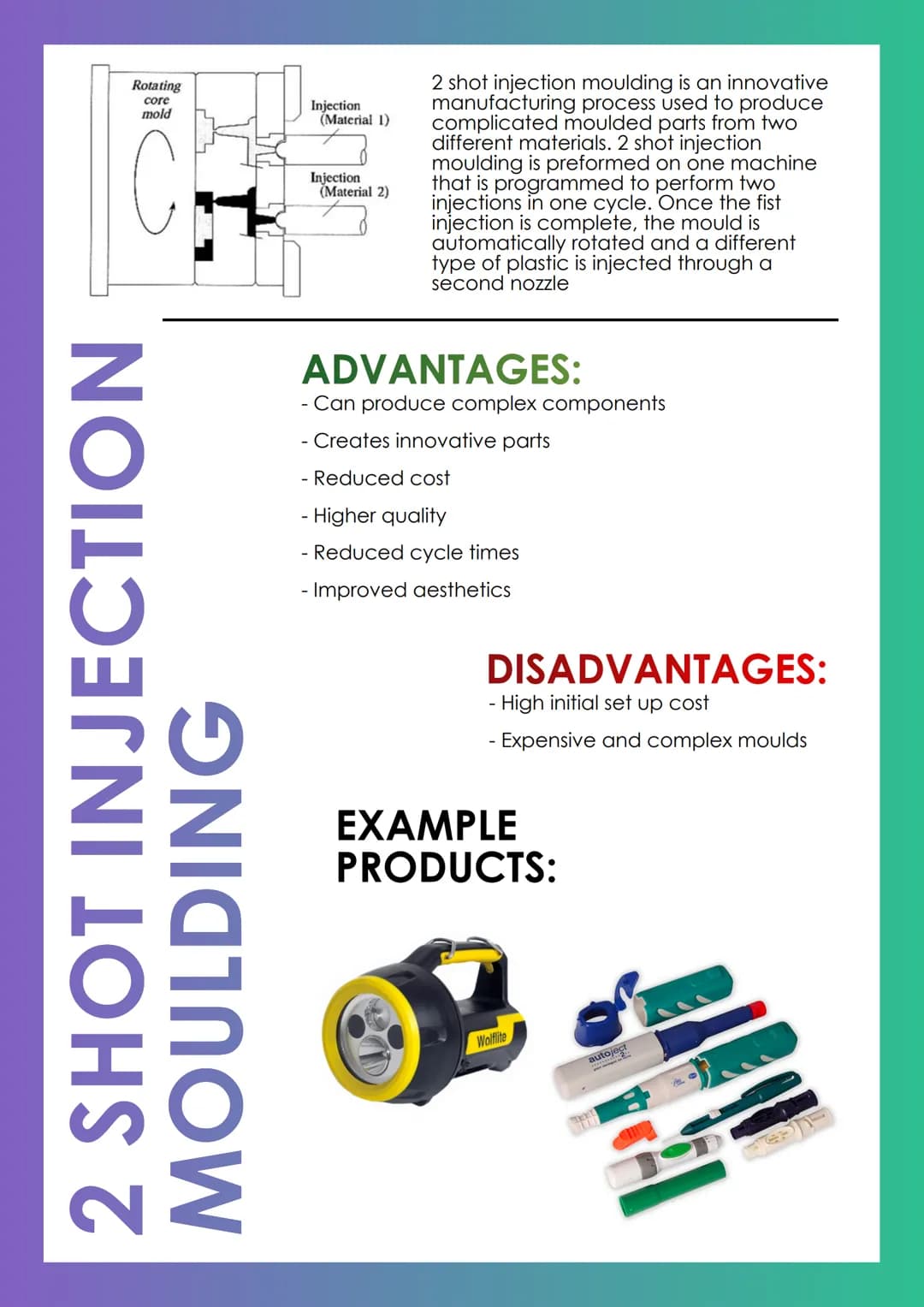

Advanced Two-Shot Injection Molding Technology

Two-shot injection molding represents an innovative advancement in plastic manufacturing technology, enabling the production of complex components using two different materials in a single automated process. This sophisticated injection molding process step by step involves sequential injection of different materials through programmed rotation of the mold core.

The technology offers remarkable advantages in terms of production efficiency and component quality. By eliminating secondary assembly operations, it reduces overall manufacturing costs while improving part consistency. The process allows for creating complex injection molding parts with varying material properties in different sections, enabling innovative design solutions.

Vocabulary: Two-shot injection molding utilizes a rotating core mold system that enables sequential injection of different materials, creating multi-material components in a single manufacturing cycle.

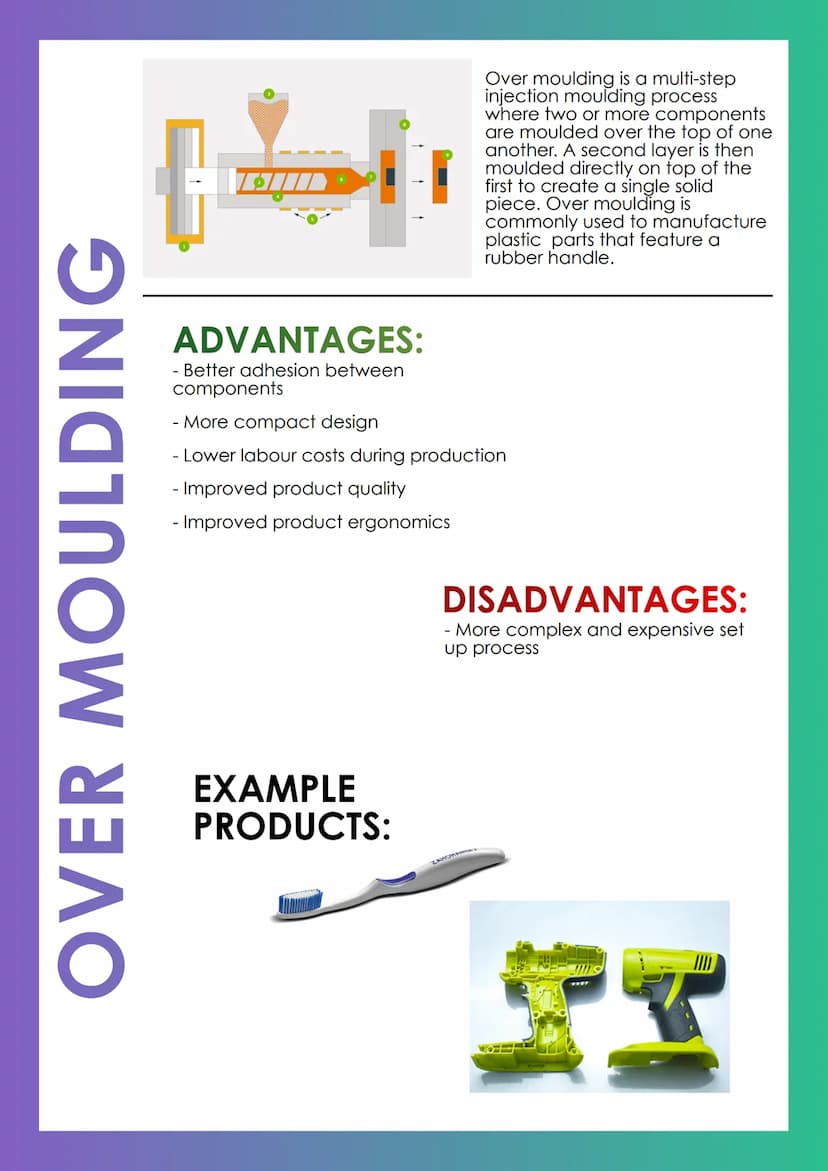

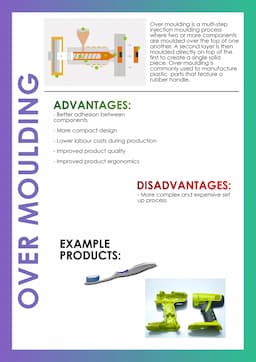

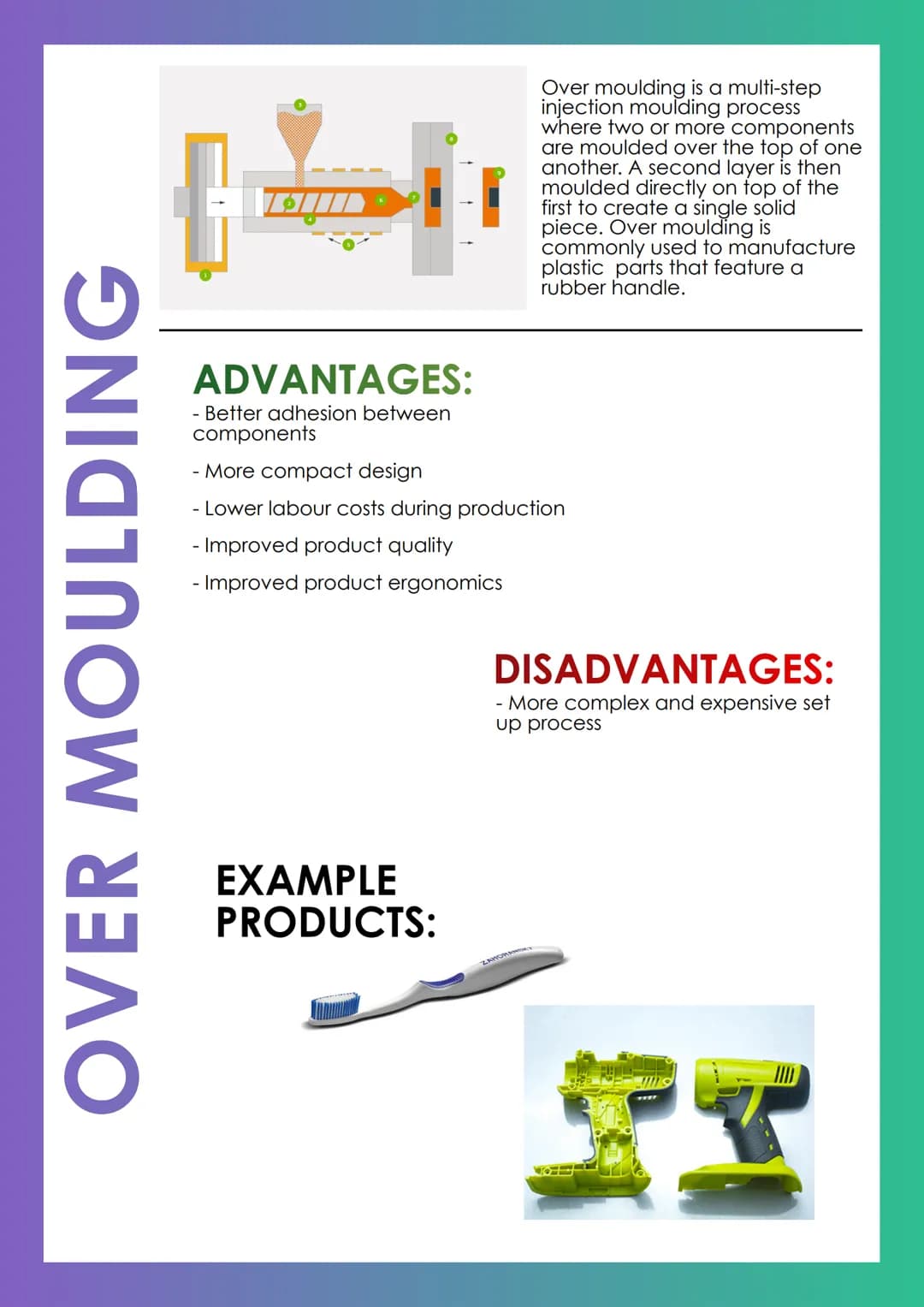

Understanding Over-Molding in Manufacturing Design

Over-molding represents a sophisticated injection molding process that has revolutionized modern manufacturing techniques. This multi-step procedure involves molding multiple components sequentially, where each new layer is applied directly over the previous one to create a unified, solid piece. The process is particularly valuable in creating ergonomic products that combine rigid plastics with softer, grippable materials.

The advantages of over-molding extend far beyond basic manufacturing benefits. This technique enables superior adhesion between different material components, allowing for more compact and streamlined product designs. From a production standpoint, over-molding significantly reduces labor costs while simultaneously improving overall product quality. The process excels in creating ergonomic designs, particularly evident in products requiring comfortable grip surfaces.

Example: A common application of over-molding can be found in tool handles, where a rigid plastic core is covered with a softer rubber exterior. This creates a comfortable, non-slip grip while maintaining structural integrity. Other examples include electronic device cases, medical instruments, and automotive components.

While over-molding offers numerous benefits, it's important to understand its limitations. The primary challenge lies in the initial setup process, which is more complex and costly compared to traditional molding methods. This complexity requires careful consideration during the design phase and specialized equipment for production. However, for many manufacturers, the long-term benefits often outweigh these initial challenges.

Advanced Applications and Considerations in Over-Molding Design

The implementation of over-molding in injection mold design requires careful material selection and precise engineering considerations. Engineers must account for material compatibility, thermal properties, and bonding characteristics to ensure successful adhesion between layers. This process has become increasingly important in plastic molding processes as consumer demands for sophisticated, ergonomic products continue to grow.

Modern over-molding applications have expanded beyond simple handle covers to include complex medical devices, consumer electronics, and automotive components. The technique allows designers to create products with varying degrees of flexibility, durability, and aesthetic appeal within a single piece. This versatility has made over-molding an essential process in contemporary manufacturing.

Highlight: When designing for over-molding, consider these critical factors:

• Material compatibility between layers
• Thermal expansion rates
• Bond strength requirements
• Tool design and gating locations
• Processing parameters for each material

The future of over-molding continues to evolve with advancements in materials science and processing technology. Manufacturers are developing new applications that combine different materials in increasingly complex ways, leading to products that were previously impossible to produce. This ongoing innovation in injection molding materials and techniques ensures that over-molding will remain a crucial manufacturing process for years to come.
