GCSE Product Design Study Notes: Materials and Prototyping Techniques

Developing product prototypes is a critical stage in manufacturing where...

1
of 2
AQA GCSE Product Design: Material Management and Developing Prototypes – page 1

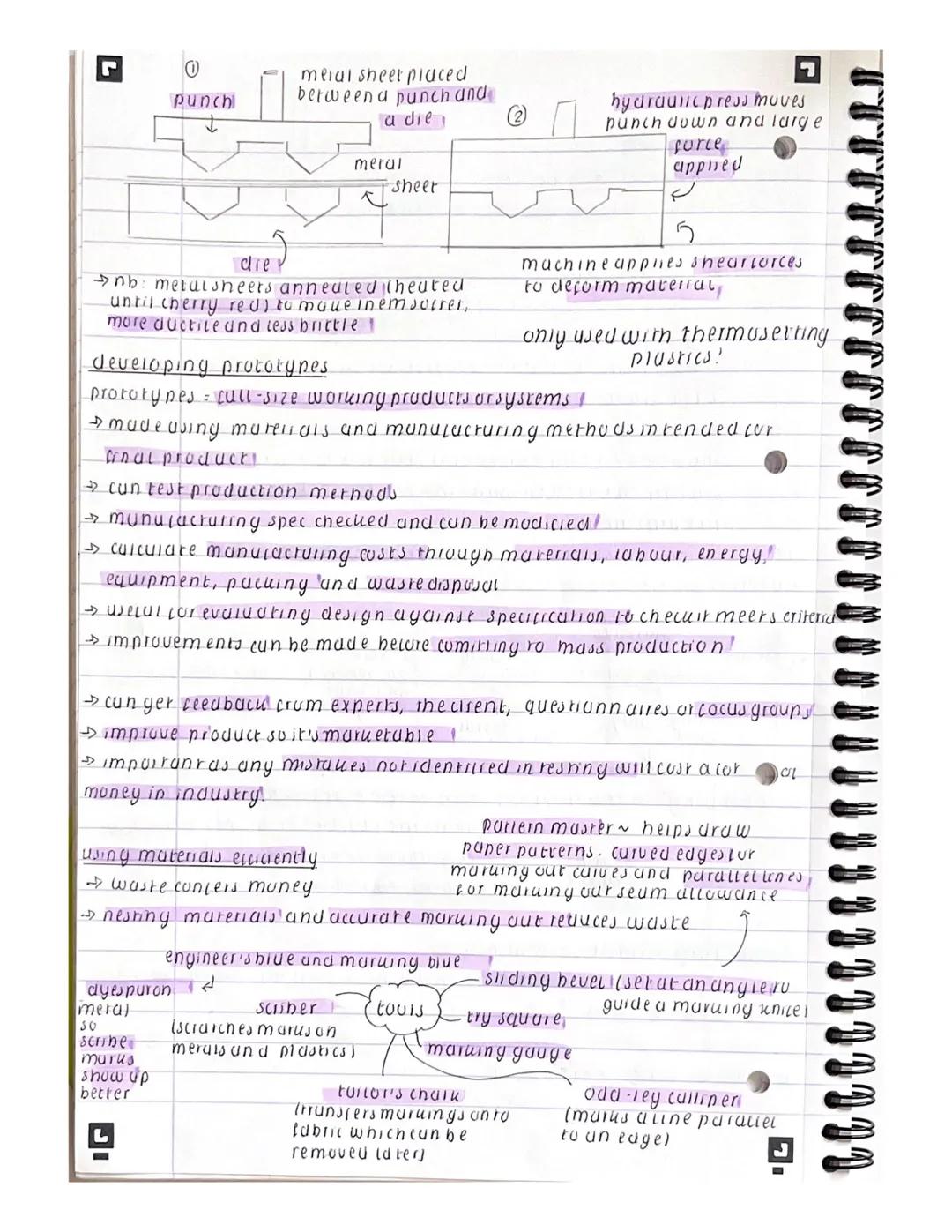

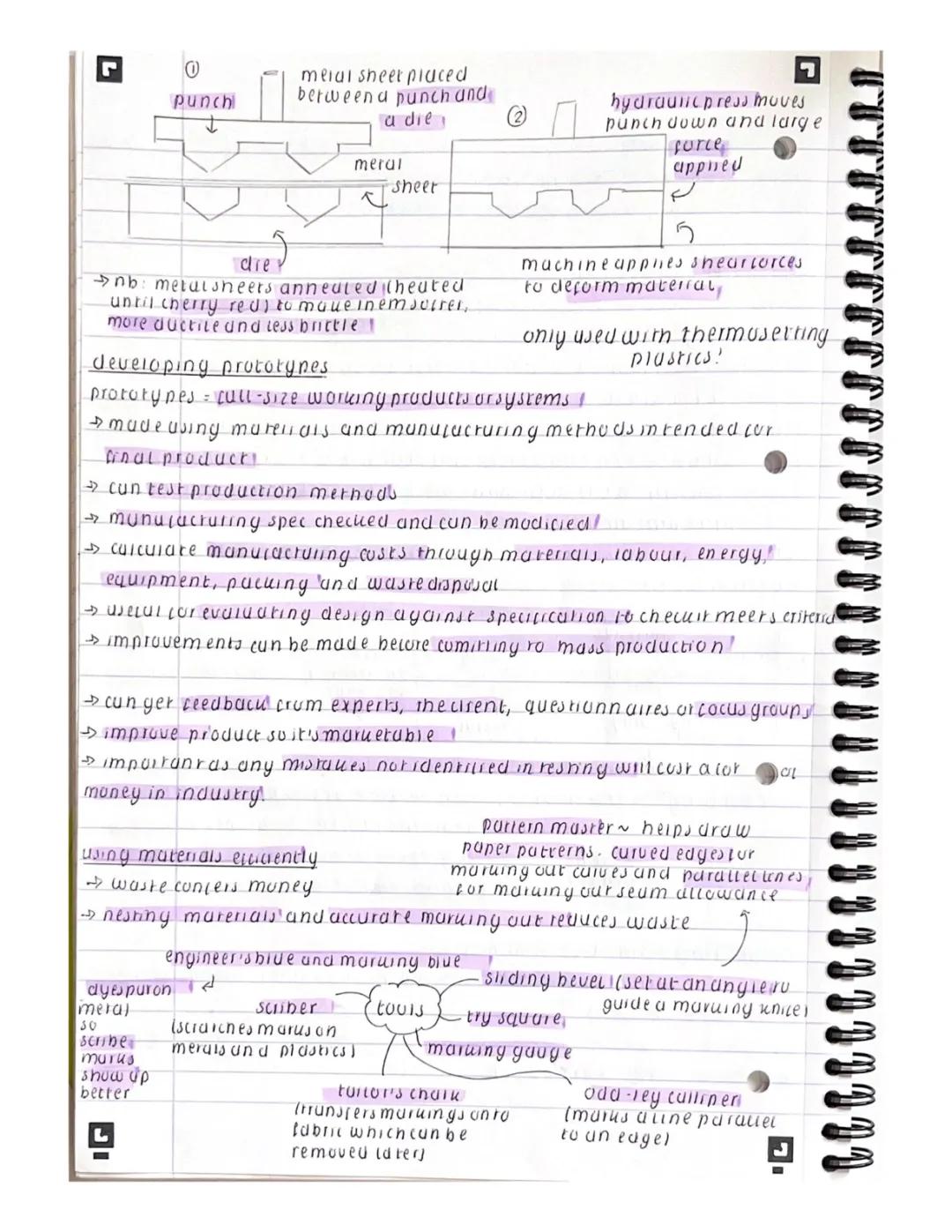

Metal Forming and Prototype Development

Metal forming often uses processes like punching, where metal sheets are placed between a punch and die. A hydraulic press applies large shearing forces to deform the material into the desired shape. Before processing, metals are typically annealed (heated until cherry red) to make them softer and more ductile.

Prototypes are full-size working products made using materials and manufacturing methods intended for the final product. They serve multiple purposes: testing production methods, checking manufacturing specifications, calculating costs (materials, labour, energy), and evaluating designs against criteria. Through prototypes, improvements can be made before committing to expensive mass production.

Getting feedback from experts, clients, or focus groups helps ensure the final product is marketable. This stage is crucial because any problems not identified during testing will cost significantly more to fix during mass production.

Remember this! Creating effective prototypes saves money in the long run by identifying issues early when they're less expensive to fix.

2
of 2
AQA GCSE Product Design: Material Management and Developing Prototypes – page 2

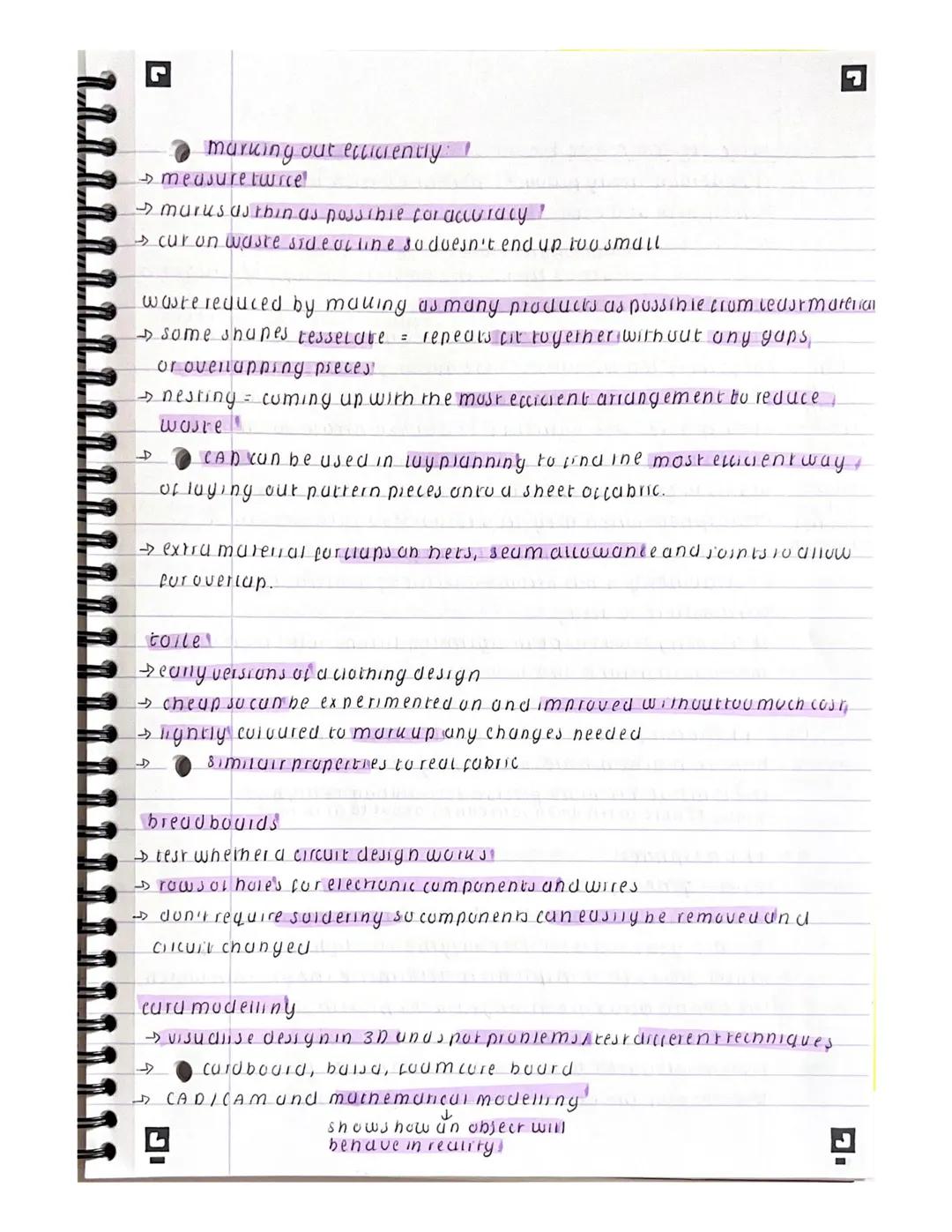

Efficient Material Use and Testing Methods

Marking out materials efficiently is essential to reduce waste. Always measure twice, make thin marking lines for accuracy, and cut on the waste side of the line. Tools like engineer's blue, scribers, try squares, and odd-leg callipers help create precise markings on different materials.

Tessellation and nesting are techniques that arrange shapes efficiently on materials to minimize waste. CAD software helps with layout planning to find the most efficient arrangement of pattern pieces on fabric or sheet materials. Remember to account for extra material needed for hems, seam allowances and joints.

For testing design concepts, several methods exist. Toiles are cheap test versions of clothing designs made in light-coloured fabric so changes can be easily marked. Breadboards allow electronic circuits to be tested without soldering, making components easy to rearrange. Card modelling with cardboard or foam board helps visualize 3D designs and spot potential problems.

Pro tip: CAD/CAM and mathematical modelling show how your object will behave in reality, giving you confidence in your design before committing to expensive materials.
