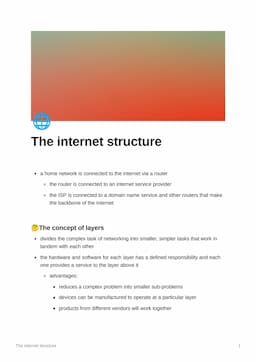

The internet structure

What is TCP/IP and DNS? Learn the 5 Layers, DNS Types, and Circuit vs Packet Switching!

TCP/IP protocol enables seamless network communication across the internet. This layered approach breaks down complex networking tasks into manageable components.

Key points:

  • Consists of 4 layers: Application, Transport, Internet, and Link layers
  • Each layer has specific responsibilities and protocols
  • Allows devices from different vendors to work together
  • Facilitates efficient data transmission and routing
...

14/02/2023

217

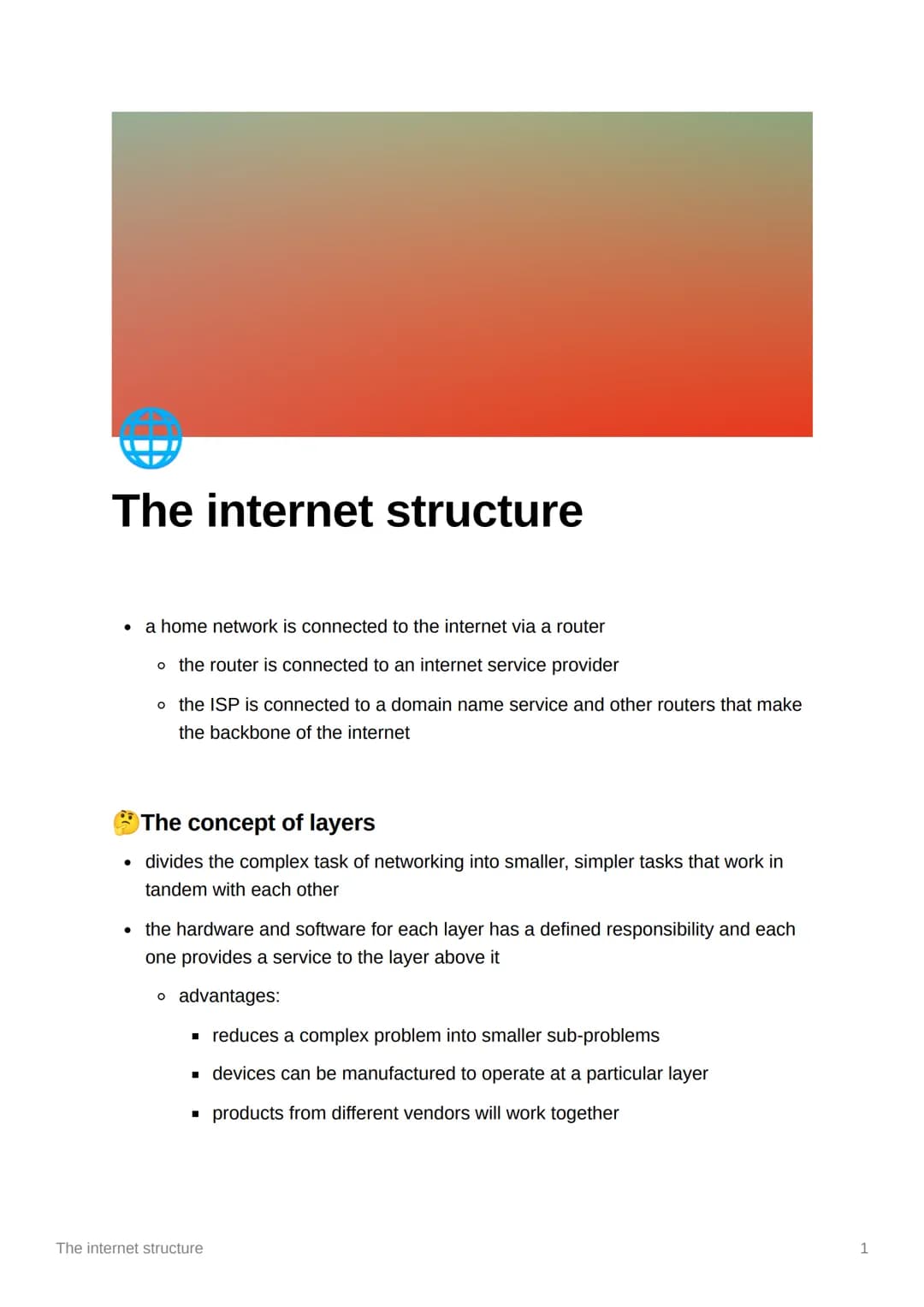

The internet structure
●
a home network is connected to the internet via a router
o the router is connected to an internet service provider

View

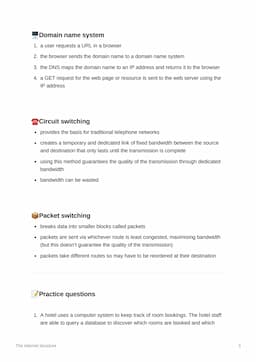

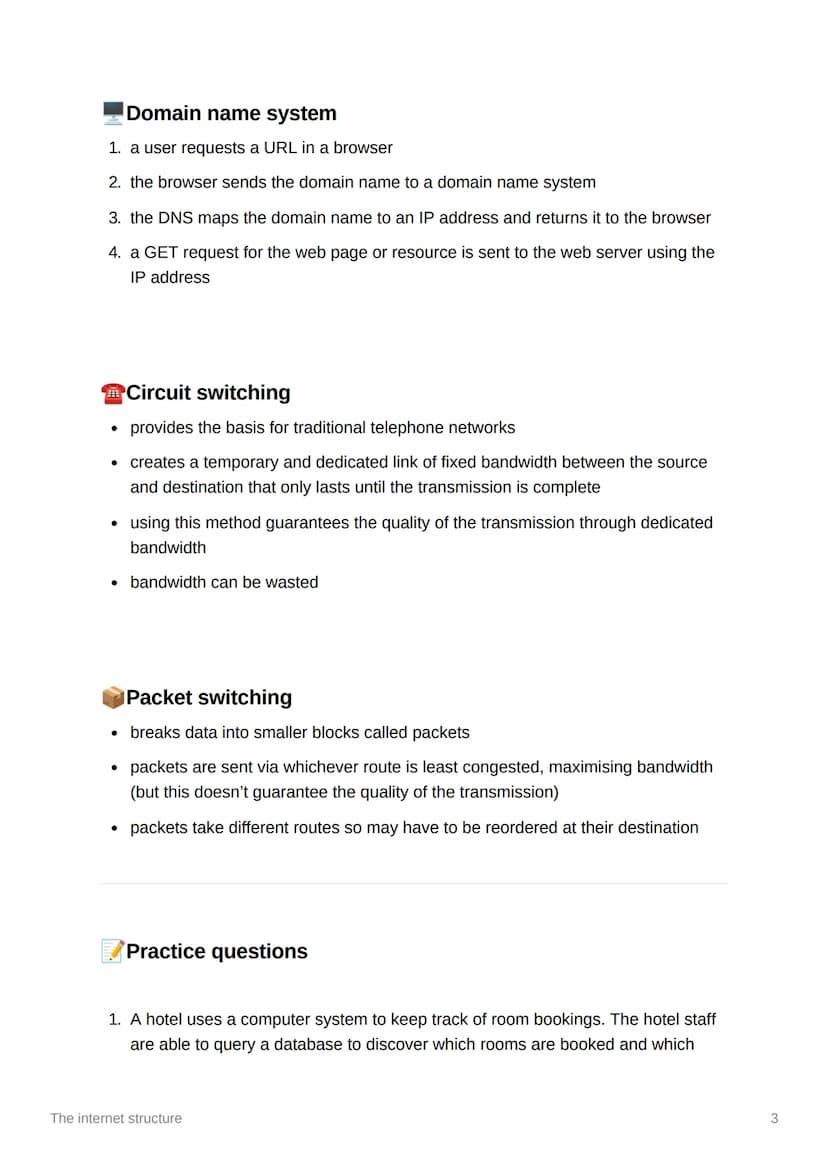

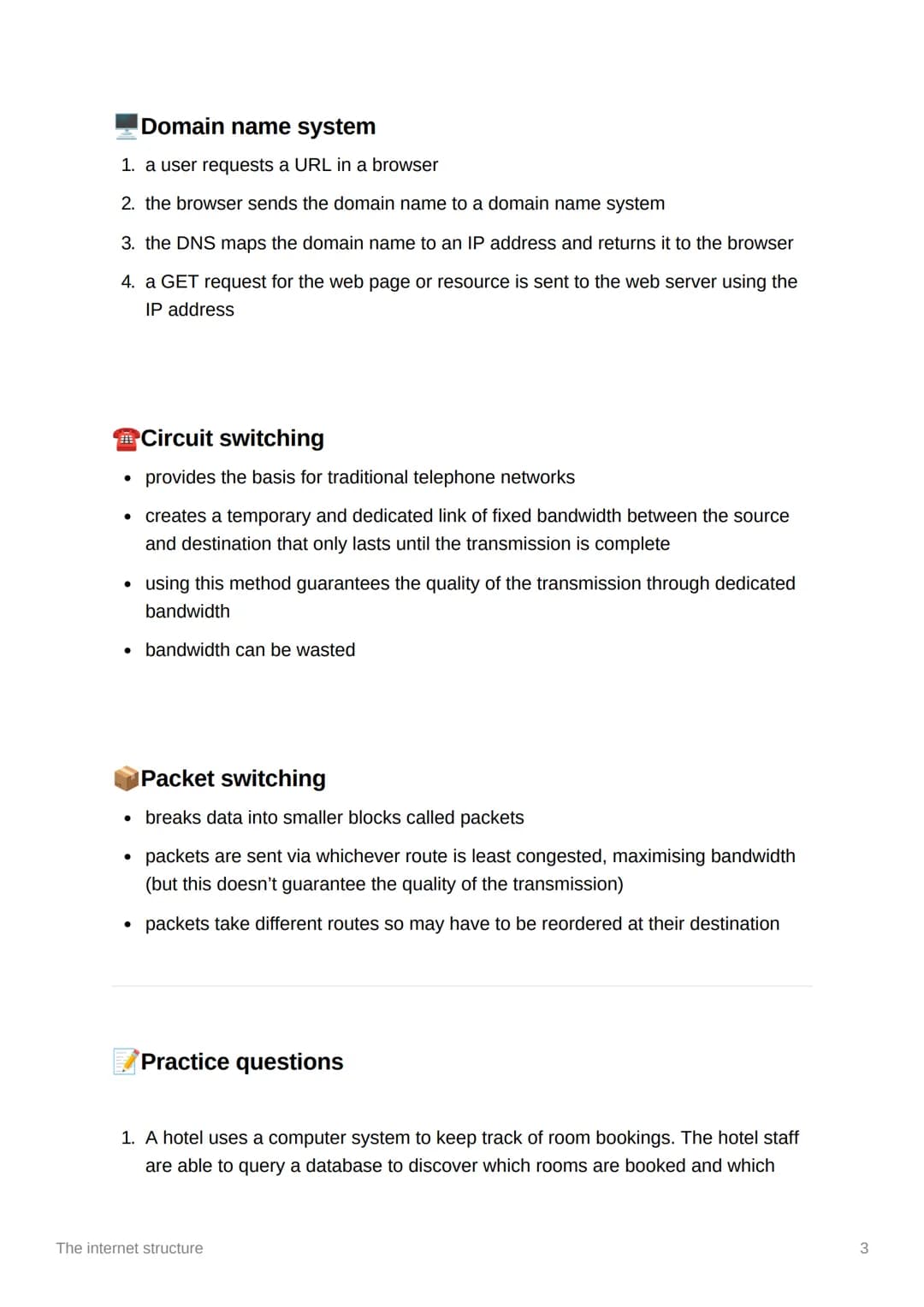

Domain Name System and Switching Methods

The Domain Name System DNSDNS is crucial for internet browsing, translating human-readable domain names into IP addresses.

Definition: DNS stands for Domain Name System, which acts as the phonebook of the Internet by translating domain names to IP addresses.

The DNS process:

  1. User enters a URL in the browser
  2. Browser sends the domain name to DNS
  3. DNS maps the domain name to an IP address
  4. Browser sends a GET request to the web server using the IP address

Example: When you type "www.google.com" into your browser, DNS server translates this into the corresponding IP address, allowing your computer to locate and connect to Google's servers.

Two main switching methods are used in networking:

  1. Circuit Switching: Creates a dedicated link between source and destination Guarantees transmission quality but can waste bandwidth
  2. Packet Switching: Breaks data into smaller packets Sends packets via least congested routes, maximizing bandwidth

Highlight: The difference between circuit switching and packet switching lies in how they handle data transmission. Circuit switching establishes a dedicated path, while packet switching breaks data into packets that can take different routes.

The internet structure
●
a home network is connected to the internet via a router
o the router is connected to an internet service provider

View

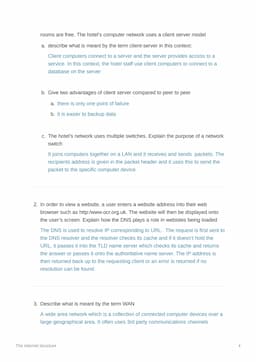

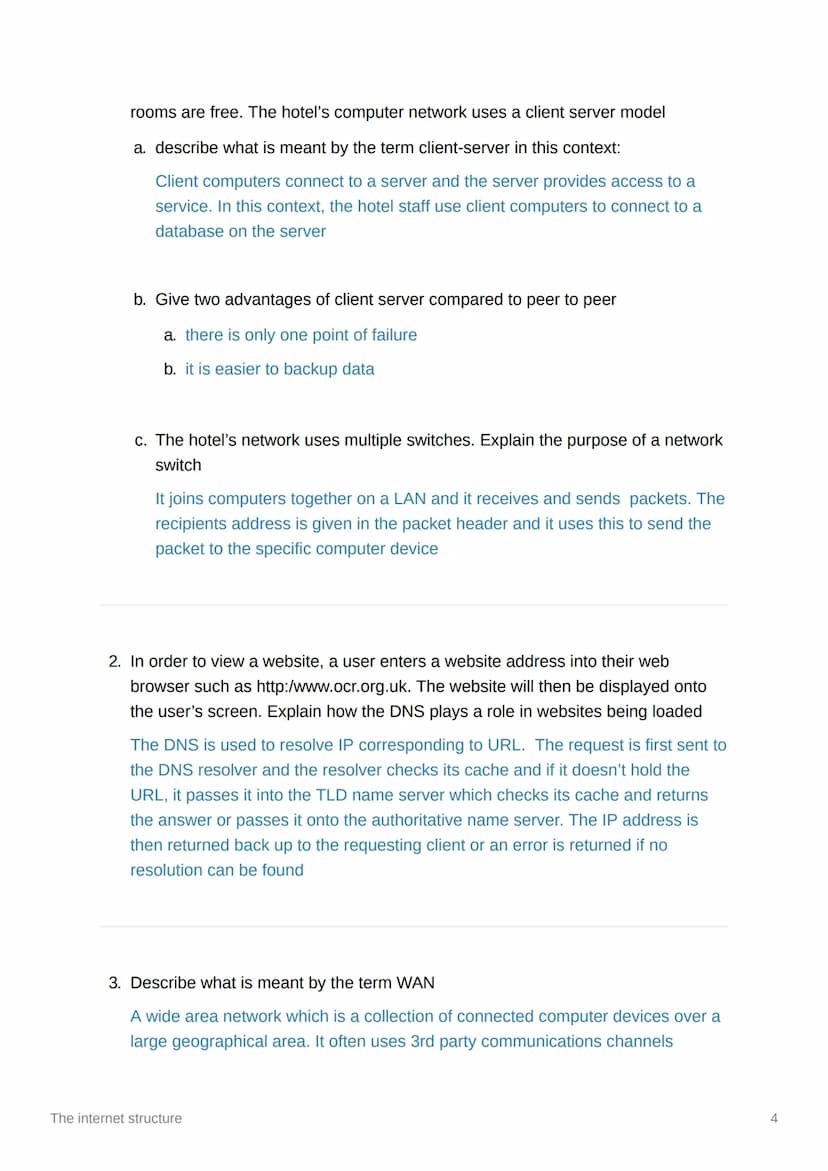

Network Models and Protocols

This section covers various network models and the importance of protocols in computer networks.

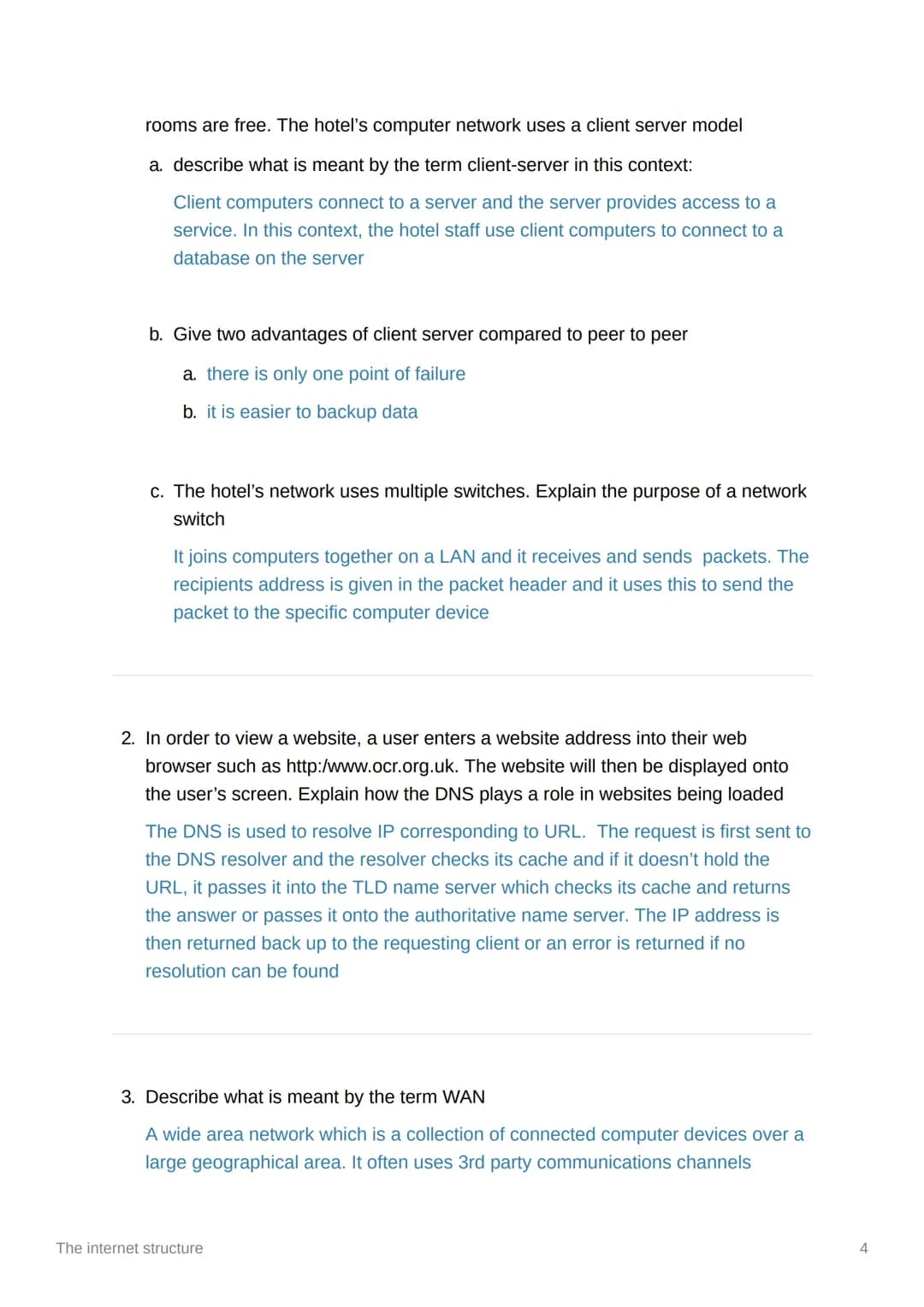

Client-Server Model:

  • Client computers connect to a server that provides access to a service
  • Advantages over peer-to-peer: Single point of failure Easier data backup

Example: In a hotel booking system, staff computers clientsclients connect to a central database server to check room availability.

Network Switch:

  • Joins computers on a LAN
  • Receives and sends packets based on recipient addresses in packet headers

Wide Area Network WANWAN:

  • A collection of connected computer devices over a large geographical area
  • Often uses third-party communication channels

Definition: A DNS server for WiFi is a server that resolves domain names to IP addresses for devices connected to a WiFi network.

Importance of Protocols:

  • Enable device communication by ensuring all devices follow the same rules
  • Essential for maintaining order and efficiency in network operations

Highlight: The TCP/IP protocol layers work together to ensure seamless communication across diverse networks and devices.

The internet structure
●
a home network is connected to the internet via a router
o the router is connected to an internet service provider

View

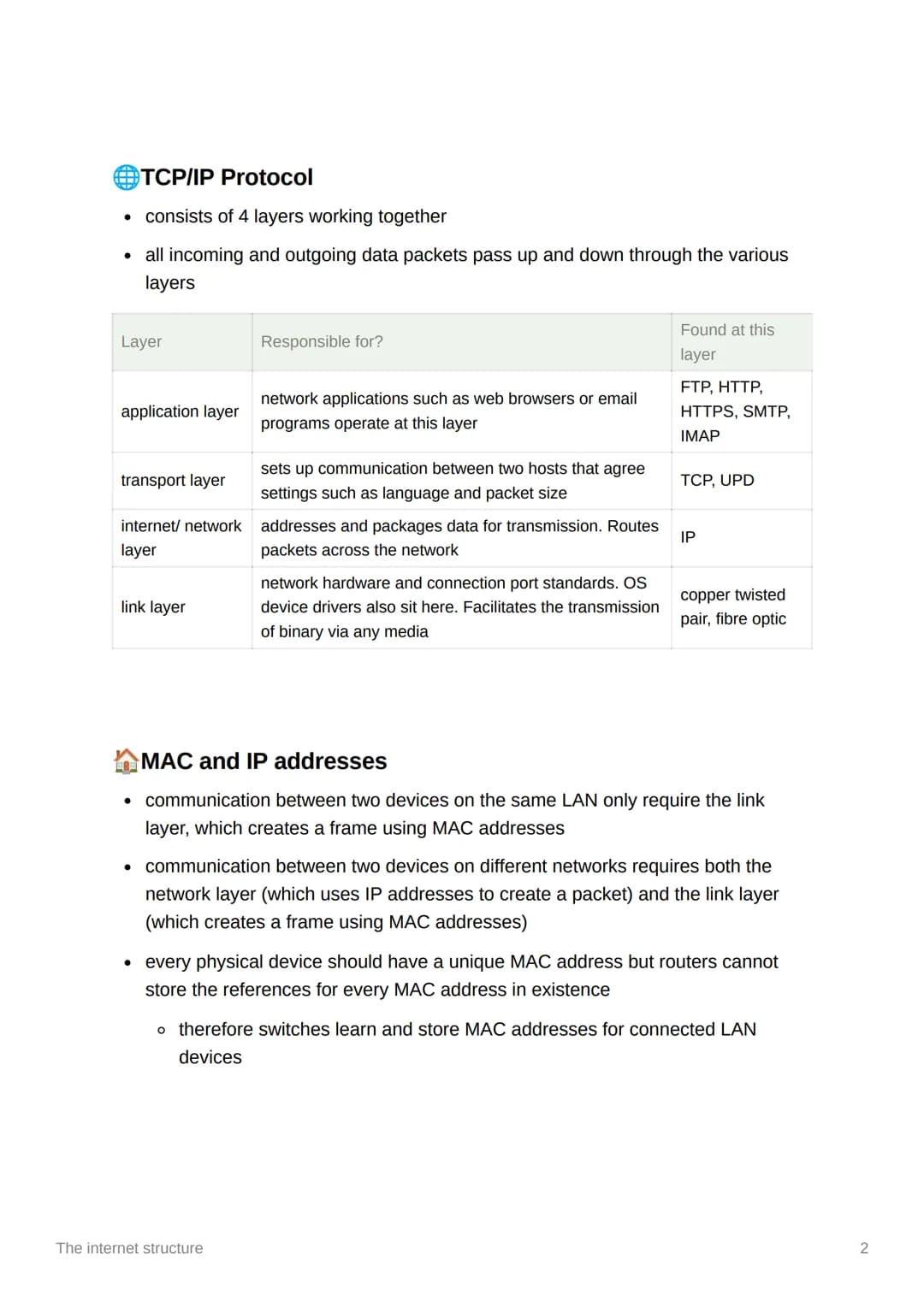

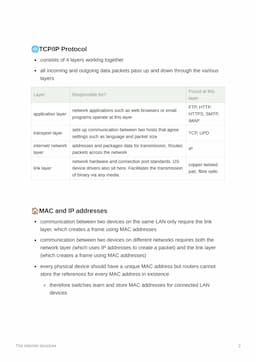

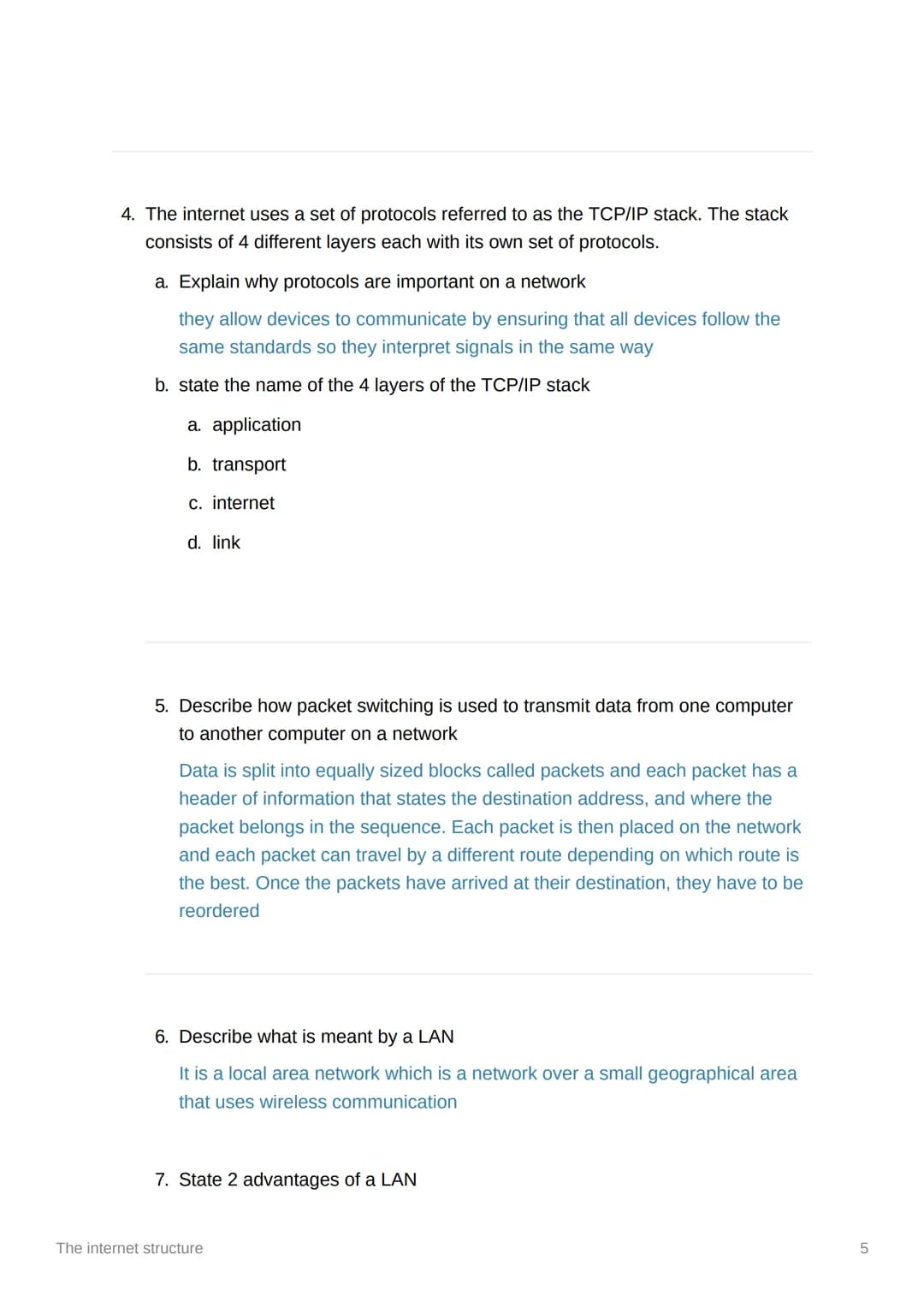

TCP/IP Model and Network Security

The TCP/IP model forms the backbone of internet communication, consisting of four layers that work together to enable data transmission across networks.

TCP/IP Model Layers:

  1. Application Layer
  2. Transport Layer
  3. Internet Layer
  4. Link Layer

Vocabulary: TCP/IP full form is Transmission Control Protocol/Internet Protocol.

Each layer in the TCP/IP model has specific responsibilities:

  • Application Layer: Handles high-level protocols, processes, and applications
  • Transport Layer: Ensures reliable data transfer between hosts
  • Internet Layer: Handles logical addressing and routing
  • Link Layer: Deals with physical addressing and network interface

Highlight: Understanding the TCP/IP model 5 layers includingthephysicallayerincluding the physical layer is crucial for network administrators and IT professionals.

Network Security Considerations:

  • Firewalls: Monitor and control incoming and outgoing network traffic
  • Encryption: Protects data during transmission
  • Authentication: Verifies the identity of users and devices

Example: A TCP/IP example in action is when you send an email. The email application uses SMTP ApplicationLayerApplication Layer, which relies on TCP TransportLayerTransport Layer to ensure reliable delivery, IP InternetLayerInternet Layer for routing, and Ethernet LinkLayerLink Layer for physical transmission.

The internet structure
●
a home network is connected to the internet via a router
o the router is connected to an internet service provider

View

Comparing Network Models and Troubleshooting

This section compares different network models and discusses common networking issues and troubleshooting techniques.

OSI vs TCP/IP Model:

  • OSI OpenSystemsInterconnectionOpen Systems Interconnection model has 7 layers
  • TCP/IP model has 4-5 layers dependingoninterpretationdepending on interpretation

Highlight: The main difference between OSI and TCP/IP model is the number of layers and their specific functions. OSI is more theoretical, while TCP/IP is more practical and widely implemented.

Common Networking Issues:

  1. Connectivity problems
  2. Slow network speeds
  3. DNS resolution failures

Example: A "DNS server not responding" error can occur when your device cannot connect to the DNS server, often due to network configuration issues or server downtime.

Troubleshooting Steps:

  1. Check physical connections
  2. Verify network settings
  3. Use diagnostic tools e.g.,ping,traceroutee.g., ping, traceroute
  4. Consult network logs

Vocabulary: Types of DNS in computer networks include Authoritative DNS servers, Recursive DNS servers, and Root DNS servers.

Advanced Networking Concepts:

  • Quality of Service QoSQoS: Prioritizes certain types of network traffic
  • Virtual Private Networks VPNsVPNs: Provide secure, encrypted connections over public networks
  • Software-Defined Networking SDNSDN: Allows for more flexible and programmable network management

Highlight: Understanding the advantages of packet switching, such as efficient bandwidth utilization and resilience to network failures, is crucial for modern network design.

The internet structure
●
a home network is connected to the internet via a router
o the router is connected to an internet service provider

View

Network Security and Future Trends

This page touches on aspects of network security and potential future developments in networking technology.

Network Security

Ensuring the security of computer networks is crucial in today's interconnected world. Key aspects include:

  • Firewalls: Monitor and control incoming and outgoing network traffic
  • Encryption: Protects data as it travels across networks
  • Authentication: Verifies the identity of users and devices
  • Access Control: Manages who can access what resources on a network

Highlight: As networks become more complex, security measures must evolve to protect against new threats and vulnerabilities.

Future Trends in Networking

The field of networking is constantly evolving. Some potential future trends include:

  1. 5G and beyond: Faster, more reliable wireless networks
  2. Internet of Things IoTIoT: More devices connected to the internet
  3. Edge Computing: Processing data closer to where it's generated
  4. Software-Defined Networking SDNSDN: More flexible, programmable network management

Example: In the future, your refrigerator might use IoT technology to automatically order groceries when supplies run low, communicating over high-speed 5G networks.

Importance of Protocols

Protocols will continue to play a vital role in networking:

  • They enable communication between diverse devices and systems
  • New protocols will emerge to address evolving needs and technologies
  • Existing protocols will be updated to improve security and efficiency

Definition: A protocol is a set of rules that govern how data is transmitted between devices on a network.

Understanding these trends and the ongoing importance of protocols is crucial for anyone looking to stay current in the field of networking.
