Understanding Computer Systems Architecture and CPU Components

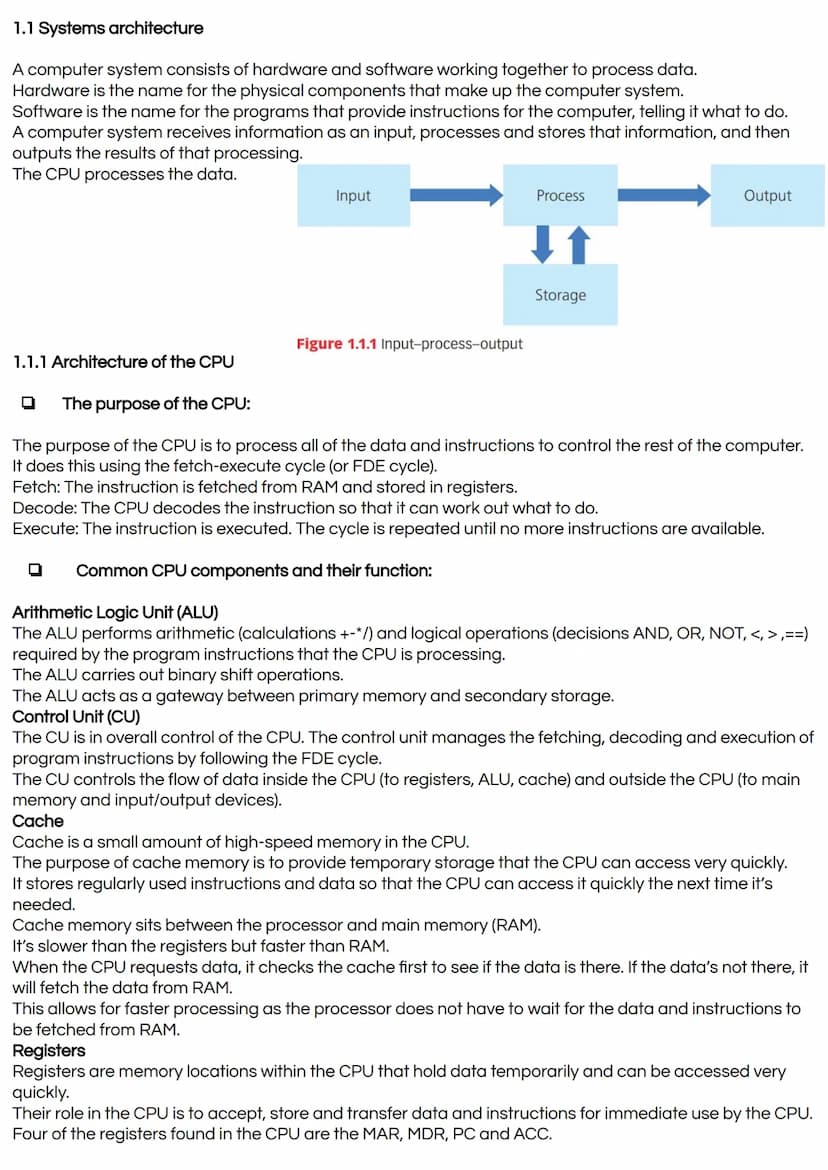

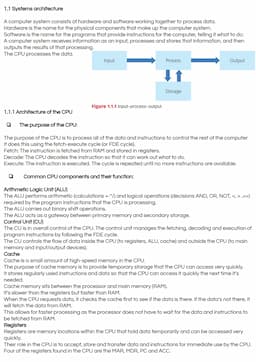

The Central Processing Unit $CPU$ serves as the brain of any computer system, orchestrating all data processing and instruction execution. In the OCR GCSE Computer Science Component 1, understanding systems architecture is fundamental to grasping how computers function.

Definition: The CPU $Central Processing Unit$ is the primary component responsible for processing instructions and coordinating all computer operations through the fetch decode execute cycle.

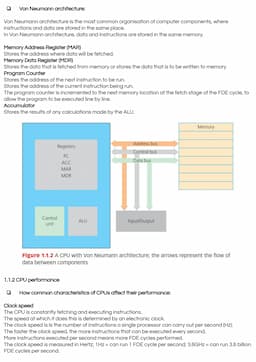

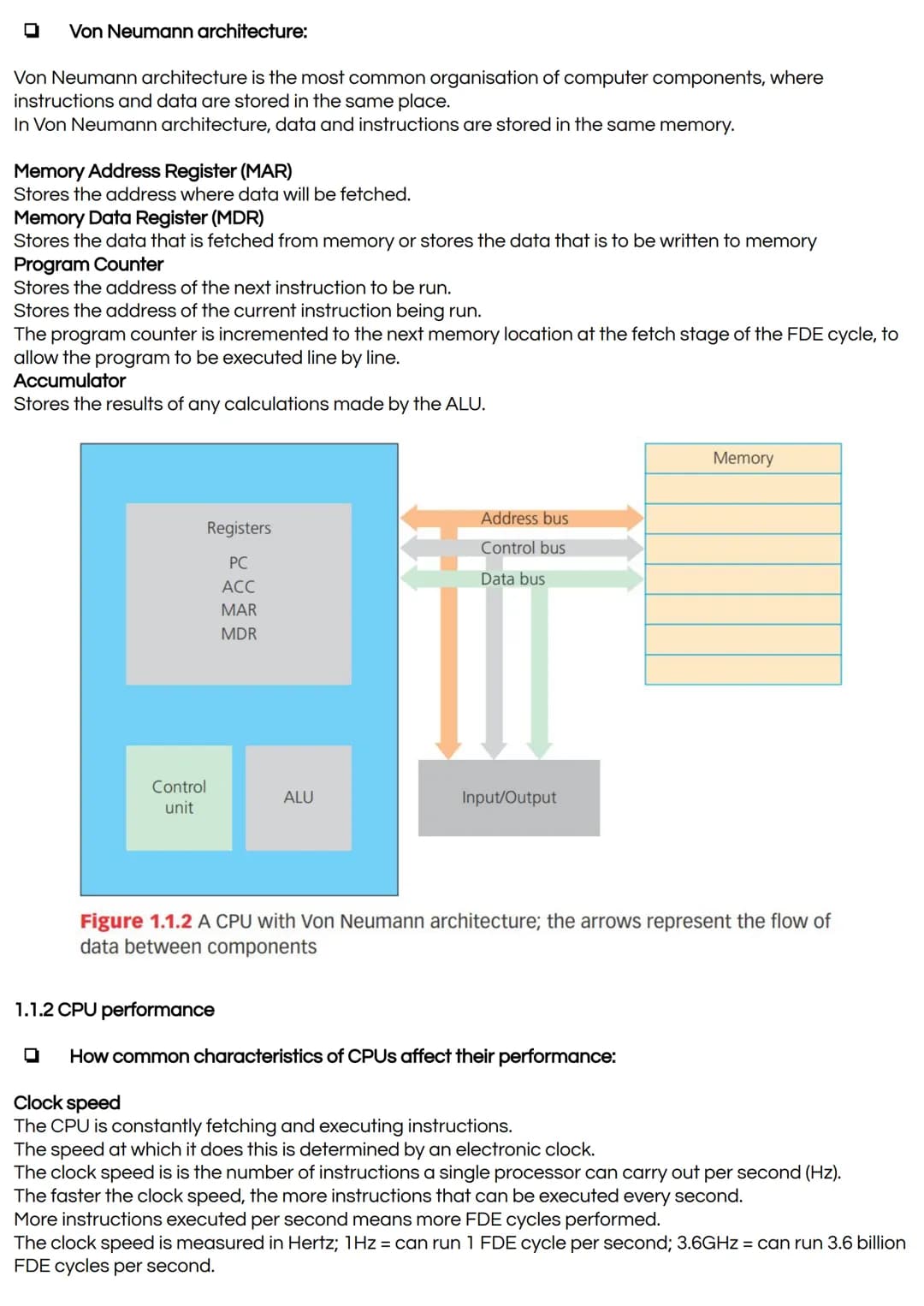

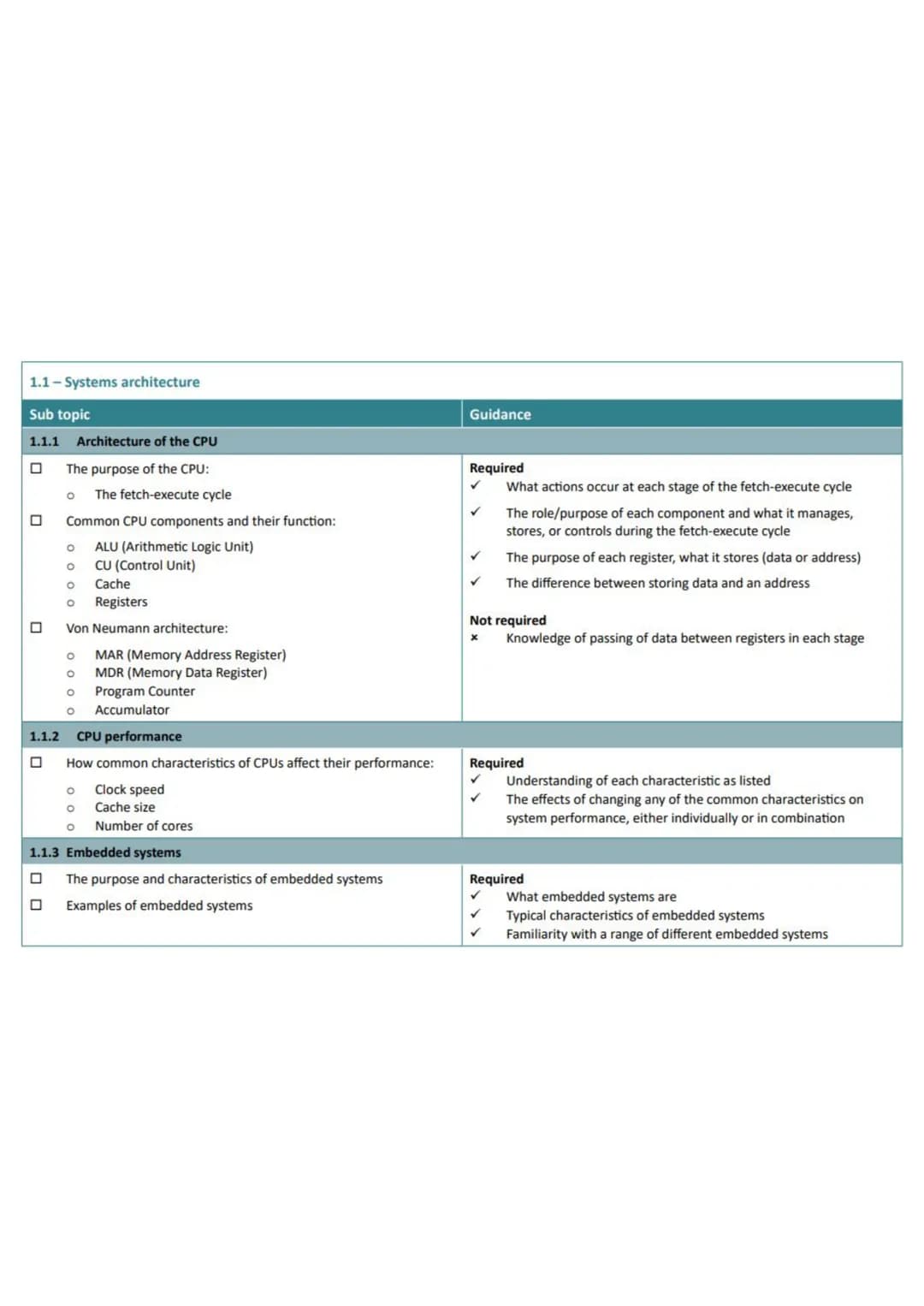

The Von Neumann architecture represents the foundational design of modern computers, where both data and instructions share the same memory space. This architecture includes several crucial components that work together to process information:

• The Control Unit $CU$ manages and coordinates all CPU operations
• The Arithmetic Logic Unit $ALU$ performs mathematical calculations and logical operations
• Cache memory provides fast-access temporary storage
• Registers offer immediate data storage within the CPU

Example: During the fetch execute cycle, the Program Counter $PC$ holds the address of the next instruction, while the Memory Address Register $MAR$ stores the current memory location being accessed. The Memory Data Register $MDR$ contains the actual data being processed.

CPU performance depends on several key characteristics that students must understand for the OCR GCSE Computer Science Paper 1. Clock speed, measured in Hertz $Hz$, determines how many instructions the CPU can process per second. A higher clock speed means faster execution of the fetch-decode-execute cycle.

The Fetch-Execute Cycle and CPU Performance

The fetch decode execute cycle forms the core of CPU operation, consisting of three main stages that repeat continuously during program execution. This fundamental concept is crucial for understanding computer processing in the J277 01 Computer Systems Architecture.

Highlight: The fetch-execute cycle consists of three main stages:

1. Fetch: Retrieving instructions from memory
2. Decode: Interpreting the instruction
3. Execute: Performing the required operation

When examining CPU performance, several factors come into play:

• Cache size affects how quickly the CPU can access frequently used data
• Number of cores determines how many instructions can be processed simultaneously
• Clock speed influences the rate at which instructions are executed

Vocabulary: Clock speed is measured in Hertz $Hz$, with modern processors operating at several gigahertz $GHz$. For example, a 3.6GHz processor can perform 3.6 billion cycles per second.

Memory Systems and CPU Components

Understanding memory systems is essential for the GCSE Computer Science Book curriculum. The hierarchy of memory in a computer system includes:

• Registers $fastest, smallest capacity$
• Cache $very fast, small capacity$
• RAM $moderately fast, larger capacity$
• Secondary storage $slowest, largest capacity$

Definition: Cache memory serves as a high-speed bridge between the CPU and main memory, storing frequently accessed data and instructions for quick retrieval.

The CPU's registers play specific roles in processing:

• The Accumulator $ACC$ stores calculation results
• The Program Counter $PC$ tracks the next instruction
• The Memory Address Register $MAR$ holds memory addresses
• The Memory Data Register $MDR$ contains data being transferred

Embedded Systems and Modern Computing

Embedded systems represent a specialized application of computer architecture, crucial for understanding modern computing in the OCR GCSE Computer Science 2023 Paper 1. These systems are designed for specific tasks within larger systems.

Example: Common embedded systems include:

• Digital watches
• Car engine management systems
• Smart home devices
• Medical equipment

Embedded systems typically feature:

• Limited functionality focused on specific tasks
• Real-time processing capabilities
• Optimized performance for their intended purpose
• Minimal power consumption

Highlight: Unlike general-purpose computers, embedded systems are designed to perform a dedicated function with minimal user intervention, making them essential components in modern technology.

The architecture of embedded systems often differs from traditional Von Neumann architecture, though they still utilize the same basic principles of fetch-decode-execute cycles and CPU components.

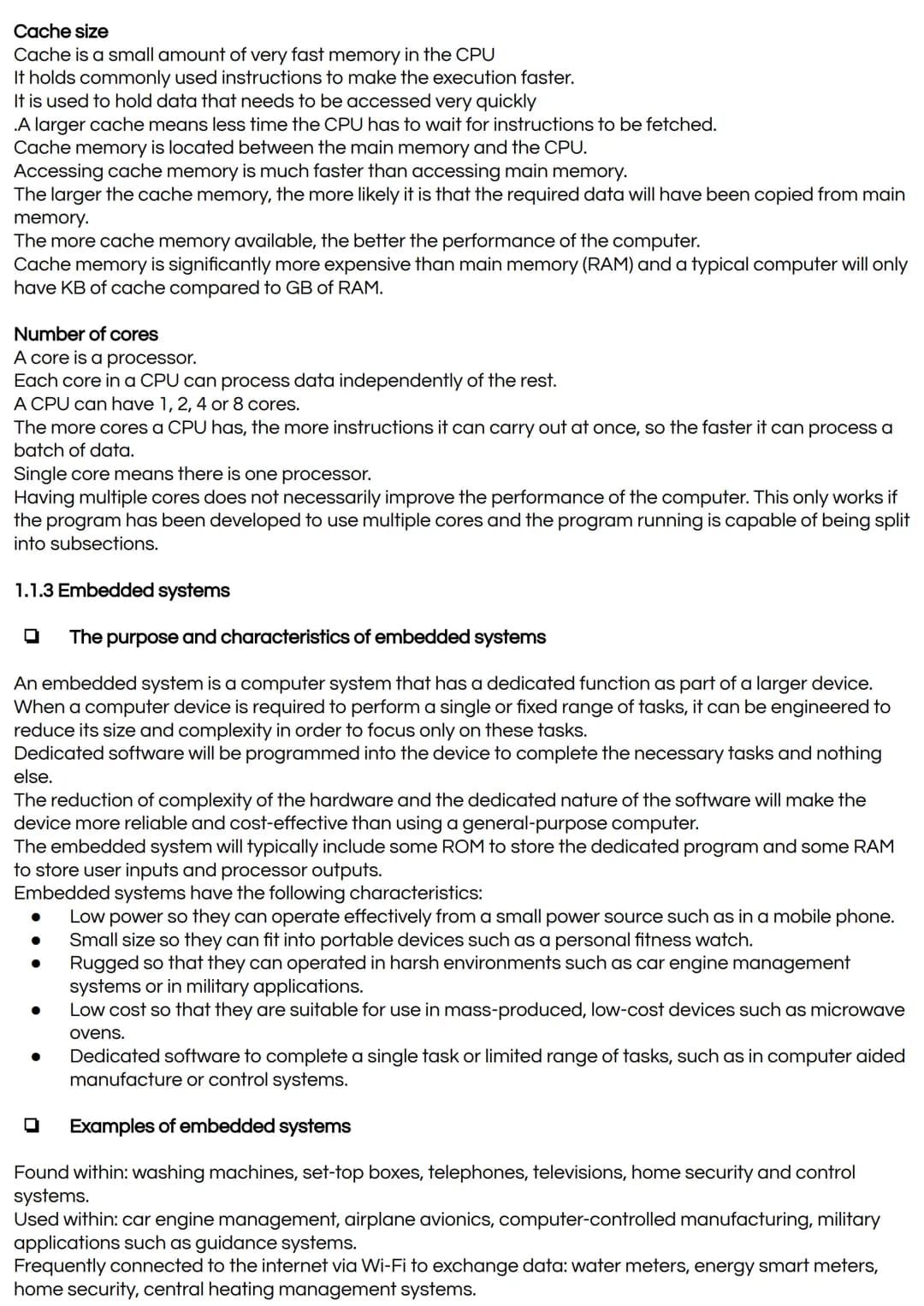

Understanding CPU Cache and Multi-Core Processing

The performance of modern computers heavily depends on CPU fetch execute cycle and components. Cache memory plays a crucial role in this process, serving as an ultra-fast intermediary between the main memory and CPU.

Cache memory significantly impacts the fetch decode execute cycle steps. When the CPU needs to process instructions, it first checks if the required data is in the cache. This checking process is part of the fetch-decode-execute cycle, making operations much faster than accessing main memory directly.

Definition: Cache memory is a small amount of very fast memory built into the CPU that stores frequently accessed instructions and data to speed up processing time.

Multiple processor cores enhance the CPU's ability to handle concurrent tasks. Each core operates independently, allowing simultaneous execution of different instructions. This parallel processing capability directly relates to the fetch execute cycle 5 steps, as each core can perform its own fetch-decode-execute cycles independently.

Example: A quad-core processor can theoretically process four instructions simultaneously, significantly improving performance in multi-threaded applications.

Embedded Systems in Modern Computing

Embedded systems represent a specialized application of computer architecture, designed for specific functions within larger devices. These systems implement a simplified version of the fetch decode execute cycle to perform their dedicated tasks efficiently.

Highlight: Embedded systems are characterized by:

• Low power consumption
• Compact size
• Rugged construction
• Cost-effectiveness
• Dedicated functionality

These systems are ubiquitous in modern technology, from household appliances to industrial equipment. Their specialized nature allows for optimized performance of the fetch-decode-execute cycle bbc bitesize principles in real-world applications.

The programming of embedded systems focuses on specific tasks, making them highly efficient at what they do. This specialization allows for streamlined implementation of the fetch-decode-execute cycle pdf concepts in practical applications.

Primary Storage and Memory Systems

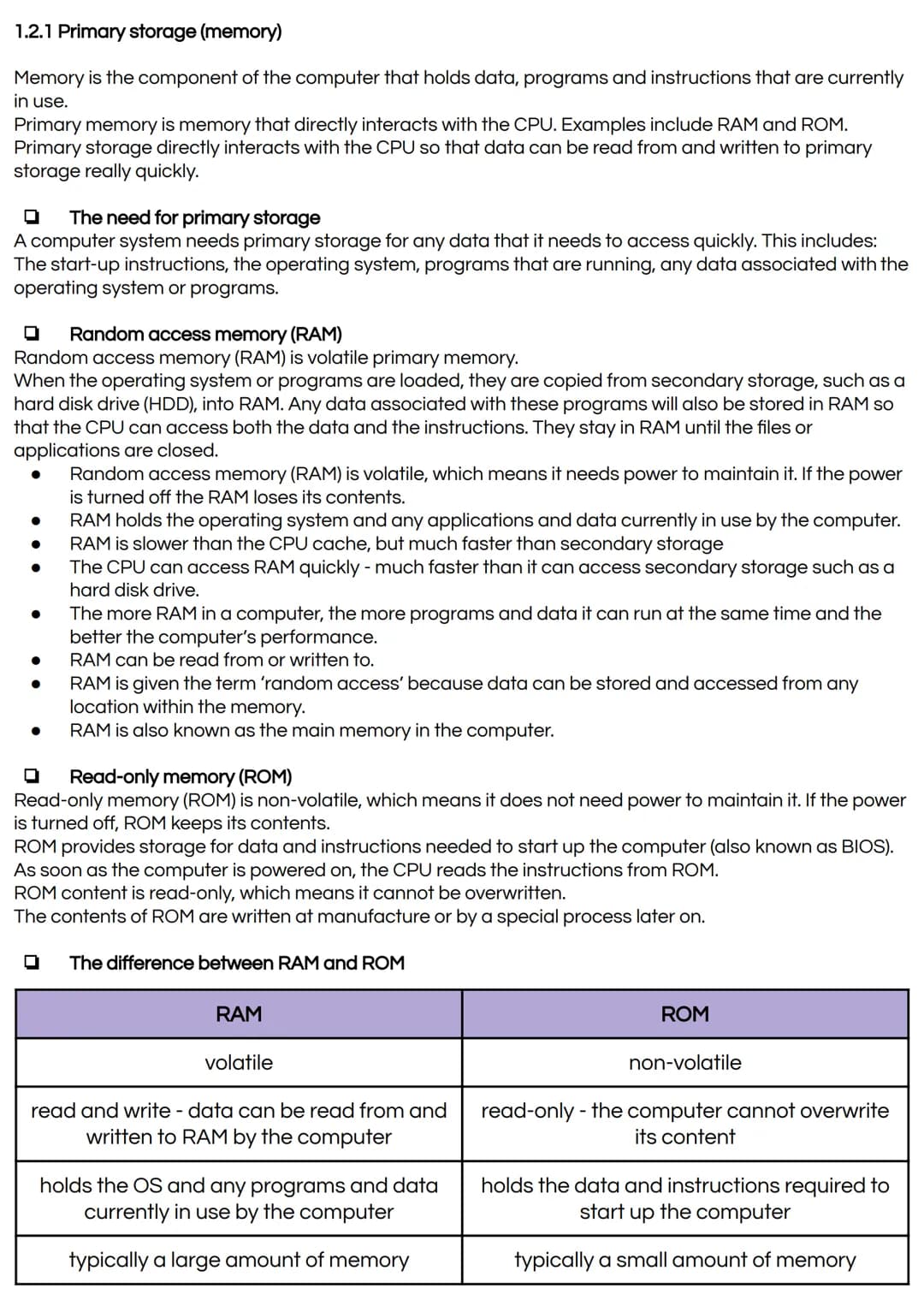

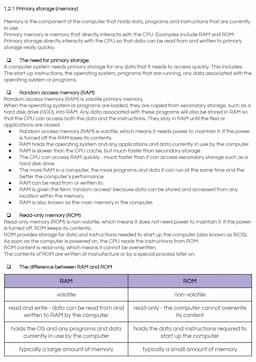

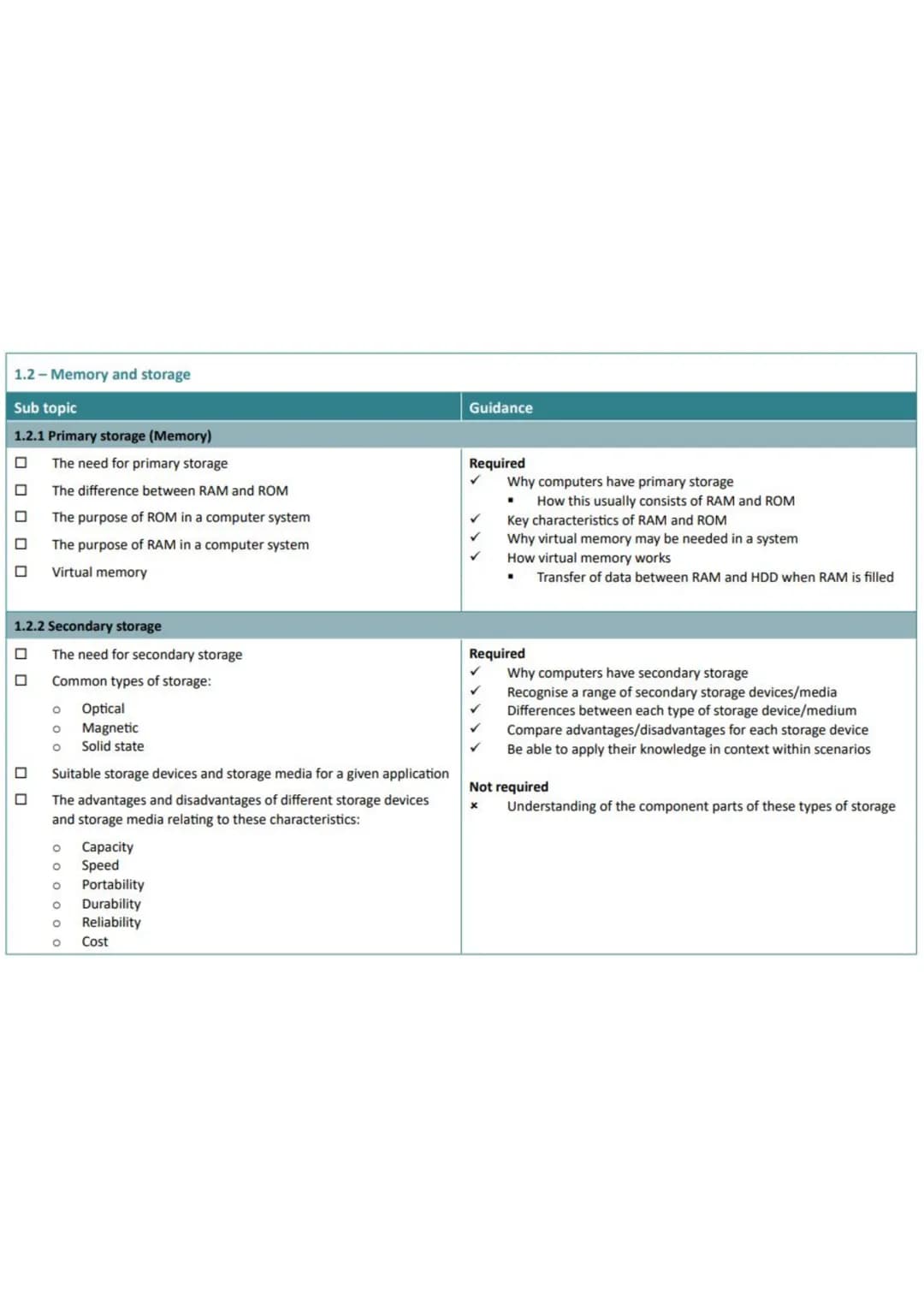

Understanding primary storage is crucial for OCR GCSE Computer Science Component 1. RAM and ROM serve as the main components of primary storage, each playing distinct roles in computer operations.

Vocabulary: RAM $Random Access Memory$ is volatile memory that temporarily stores active programs and data, while ROM $Read-Only Memory$ contains permanent instructions needed for system startup.

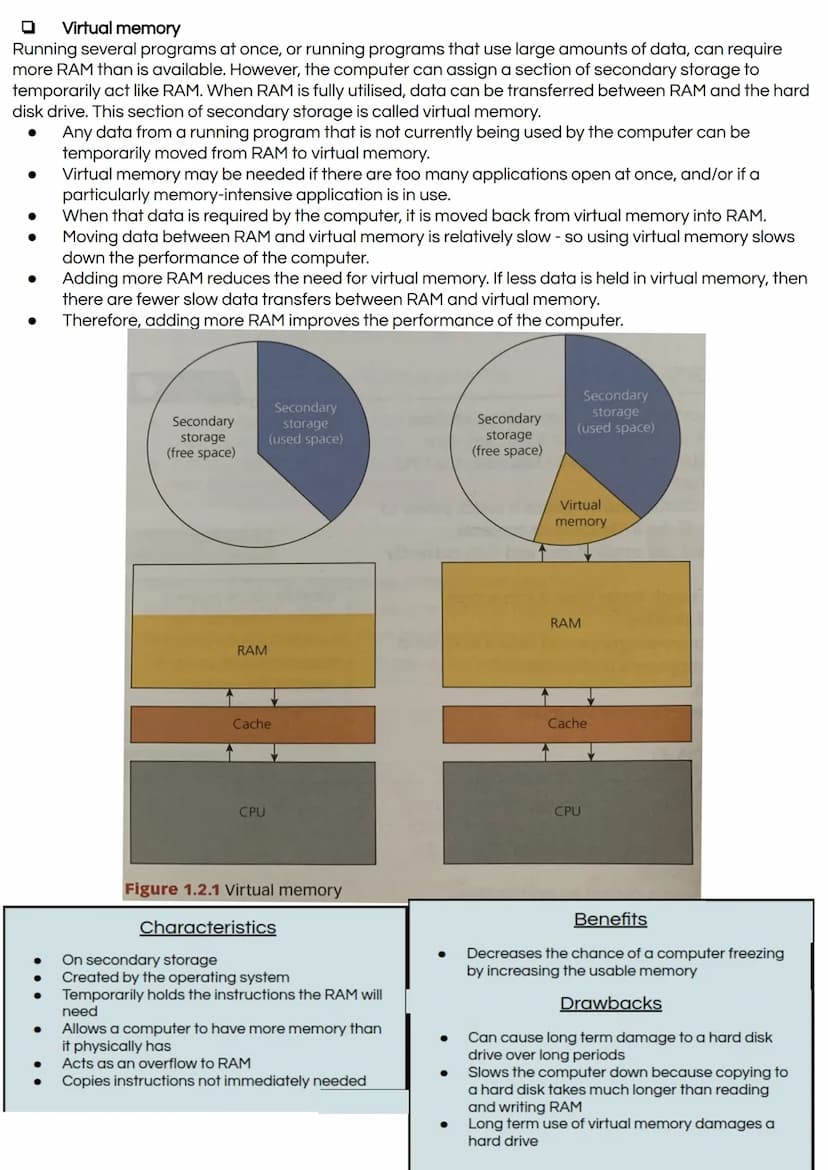

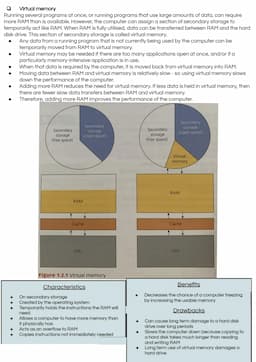

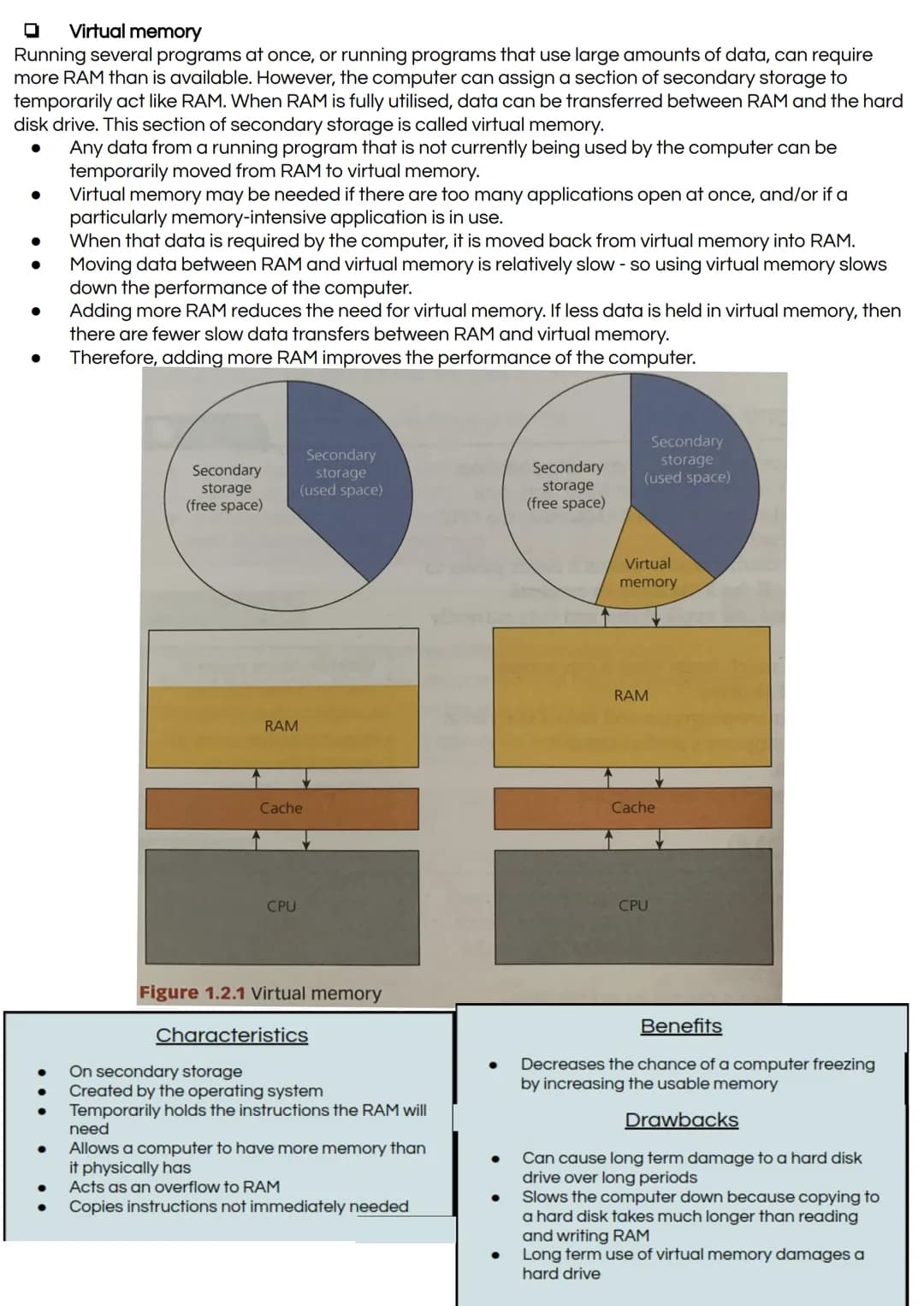

Virtual memory extends the capabilities of physical RAM by utilizing secondary storage space. This concept is particularly important for the OCR GCSE Computer Science Paper 1 revision curriculum, as it demonstrates how computers handle memory management when physical RAM is insufficient.

Definition: Virtual memory is a memory management technique that uses secondary storage to simulate additional RAM, allowing computers to run more programs than their physical RAM would typically allow.

Secondary Storage Technologies

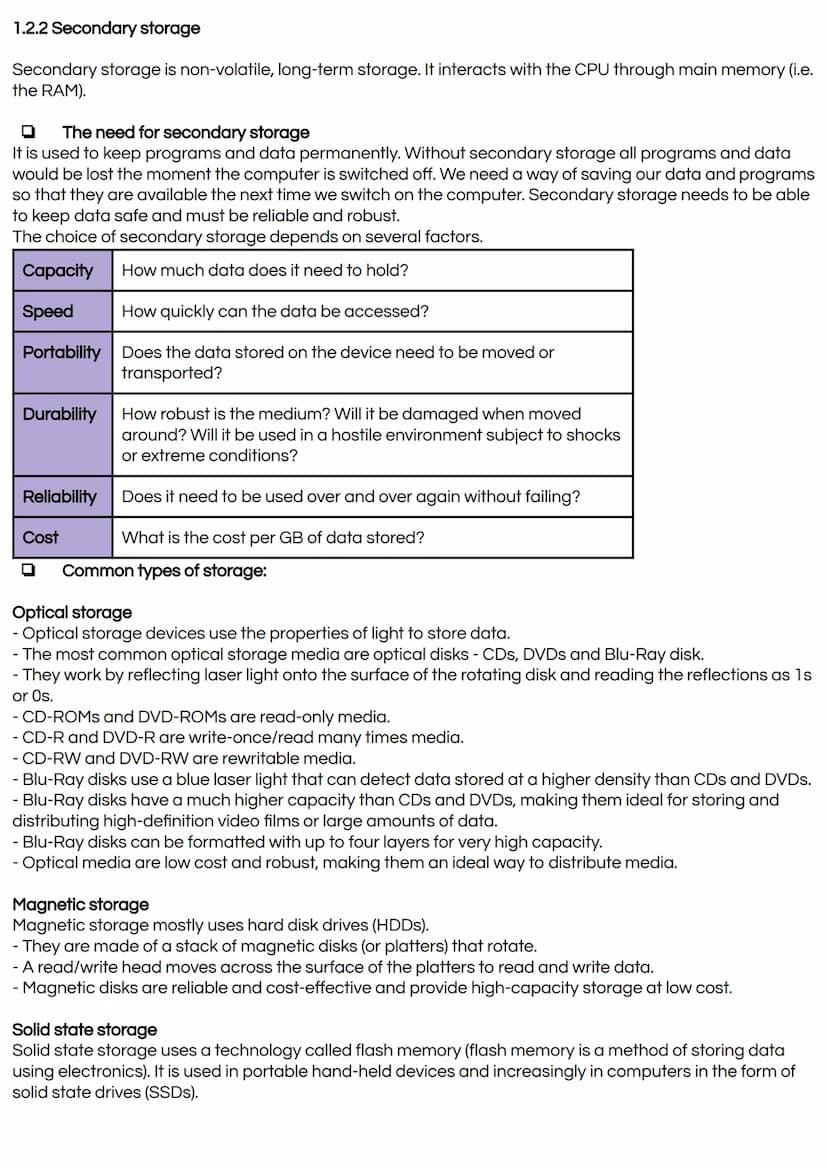

Secondary storage systems form a crucial part of the OCR Computer Science J277 curriculum, encompassing various storage technologies and their applications.

Modern secondary storage options include:

• Optical storage $CDs, DVDs, Blu-ray$
• Magnetic storage $Hard Disk Drives$
• Solid-state storage $SSDs, Flash drives$

Example: A typical modern computer might use an SSD for the operating system and frequently accessed programs, while using a larger HDD for long-term data storage.

Each storage type offers different advantages in terms of speed, capacity, and reliability. Understanding these differences is essential for the OCR GCSE Computer Science 2023 Paper 1 examination and practical applications in computing.

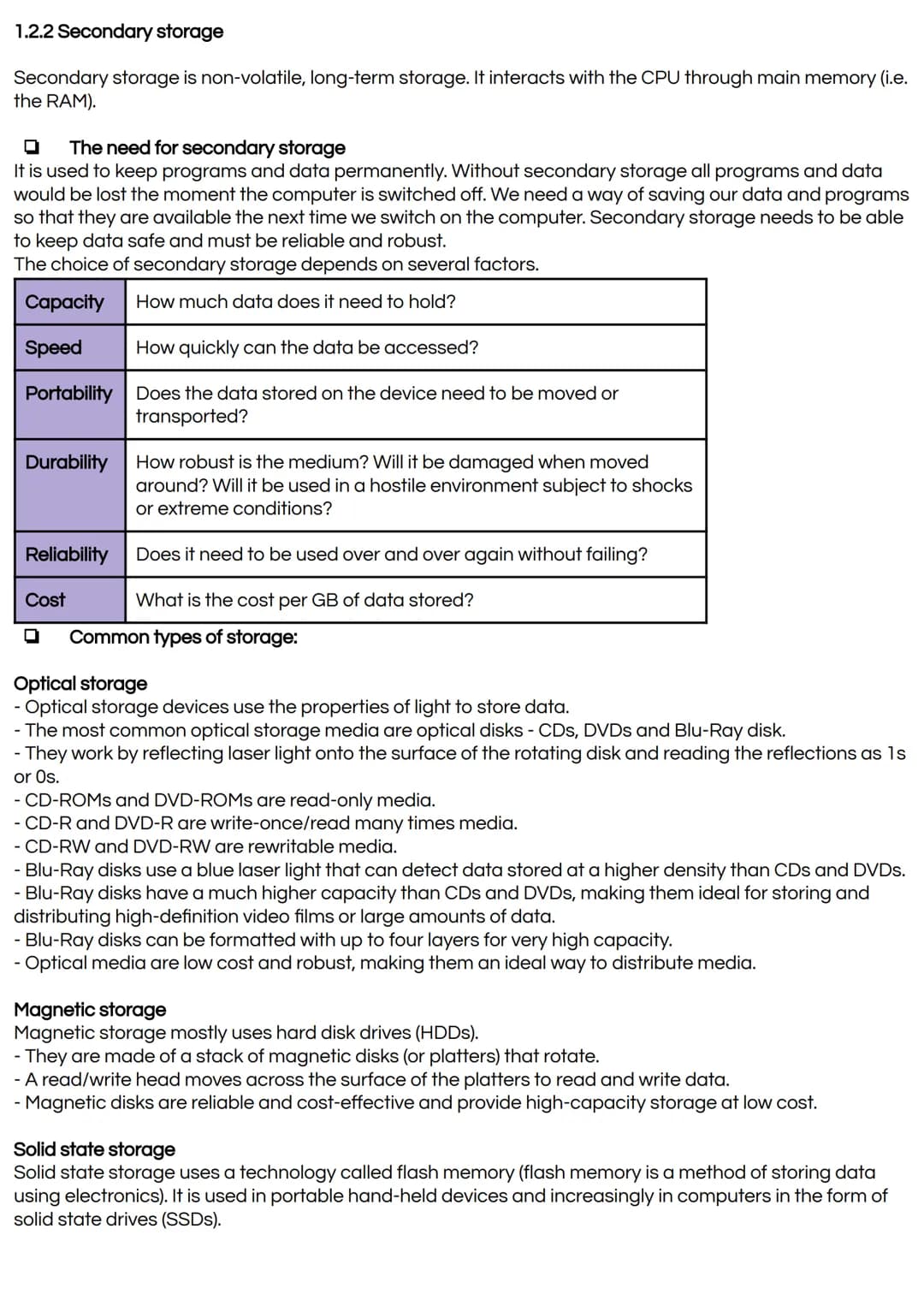

Understanding Storage Devices: A Comprehensive Guide to SSDs, Magnetic, and Optical Storage

The evolution of computer storage devices has led to various options, each with distinct characteristics and applications. Understanding these differences is crucial for GCSE Computer Science students preparing for their examinations, particularly for OCR GCSE Computer Science Component 1.

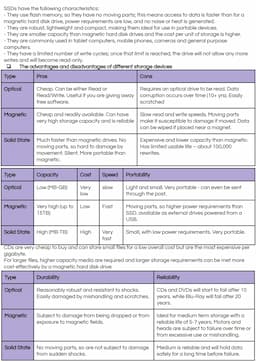

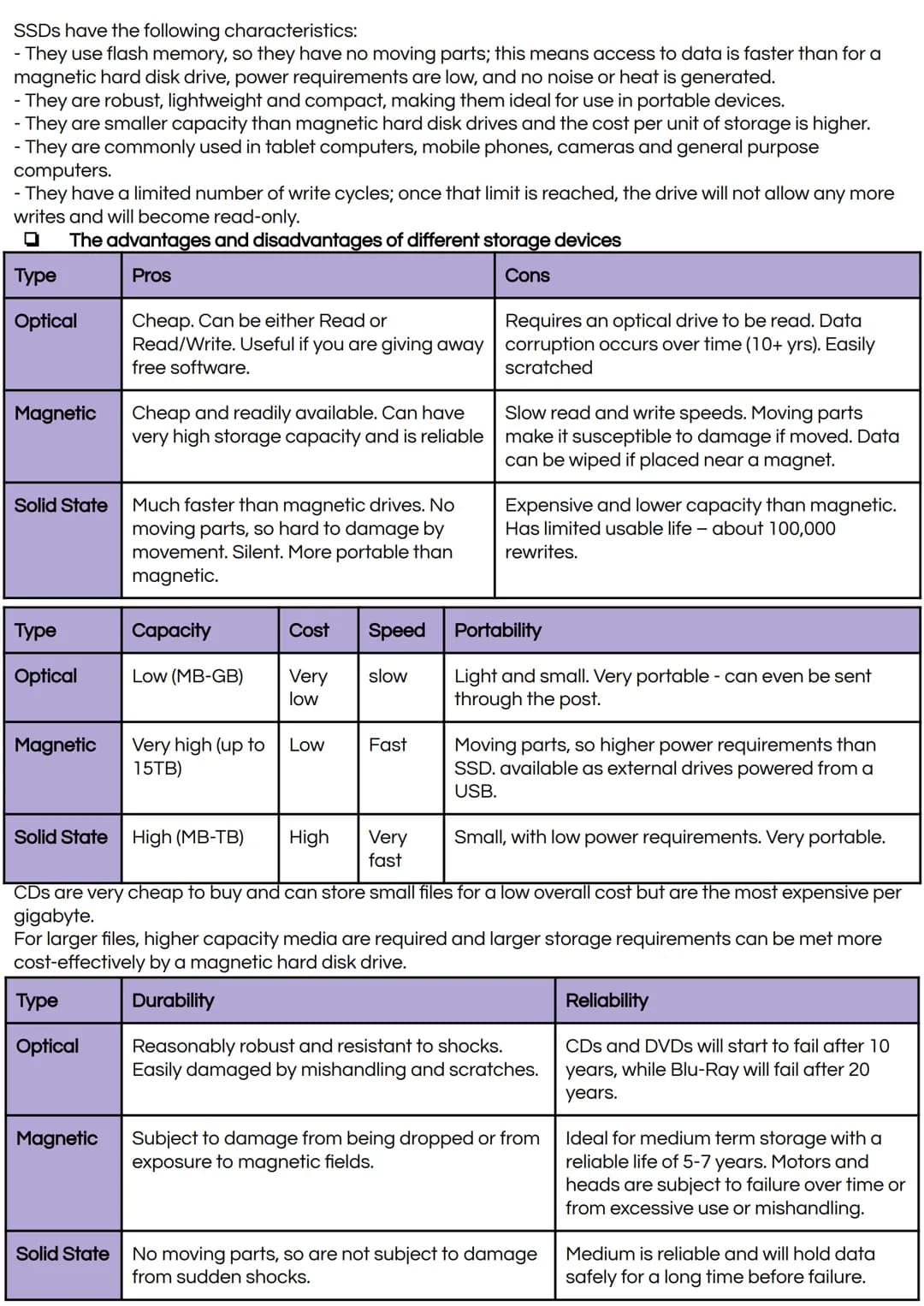

Solid State Drives $SSDs$ represent modern storage technology, utilizing flash memory without moving parts. This design enables faster data access compared to traditional drives, while consuming minimal power and operating silently. Their robust and compact nature makes them ideal for portable devices like tablets and smartphones, though they come with higher costs per storage unit and limited write cycles.

Definition: Flash memory is non-volatile computer memory that can be electrically erased and reprogrammed, commonly used in SSDs and USB drives.

Magnetic Hard Disk Drives $HDDs$ offer substantial storage capacity at lower costs, making them popular for mass storage solutions. While they provide reliable performance with capacities reaching up to 15TB, their mechanical nature introduces vulnerabilities to physical shock and magnetic interference. These drives excel in scenarios requiring large storage volumes, such as data centers and desktop computers.

Highlight: When comparing storage solutions, consider these key factors: capacity, cost, speed, durability, portability, and reliability.

Storage Device Comparison and Applications in Modern Computing

The choice between storage devices significantly impacts system performance and reliability. Optical storage media, including CDs, DVDs, and Blu-ray discs, offer affordable solutions for distributing software and media, though they face limitations in durability and access speed. Their susceptibility to physical damage and gradual data corruption makes them less suitable for long-term storage.

Example: A typical use case comparison:

• SSDs: Operating systems, frequently accessed programs
• HDDs: Large media collections, backups
• Optical: Software distribution, media sharing

Understanding storage device characteristics is essential for the fetch-decode-execute cycle and overall system architecture. The speed of storage access directly affects system performance, particularly during program execution when instructions and data need to be retrieved quickly.

Vocabulary: Mean Time Between Failures $MTBF$ - A measure of storage device reliability, indicating the expected time between system failures.

For students preparing for OCR GCSE Computer Science Paper 1, comprehending these storage technologies and their applications is crucial. The relationship between storage devices and system architecture forms a fundamental part of the J277 01 Computer Systems Architecture syllabus, emphasizing the importance of selecting appropriate storage solutions for specific computing needs.
