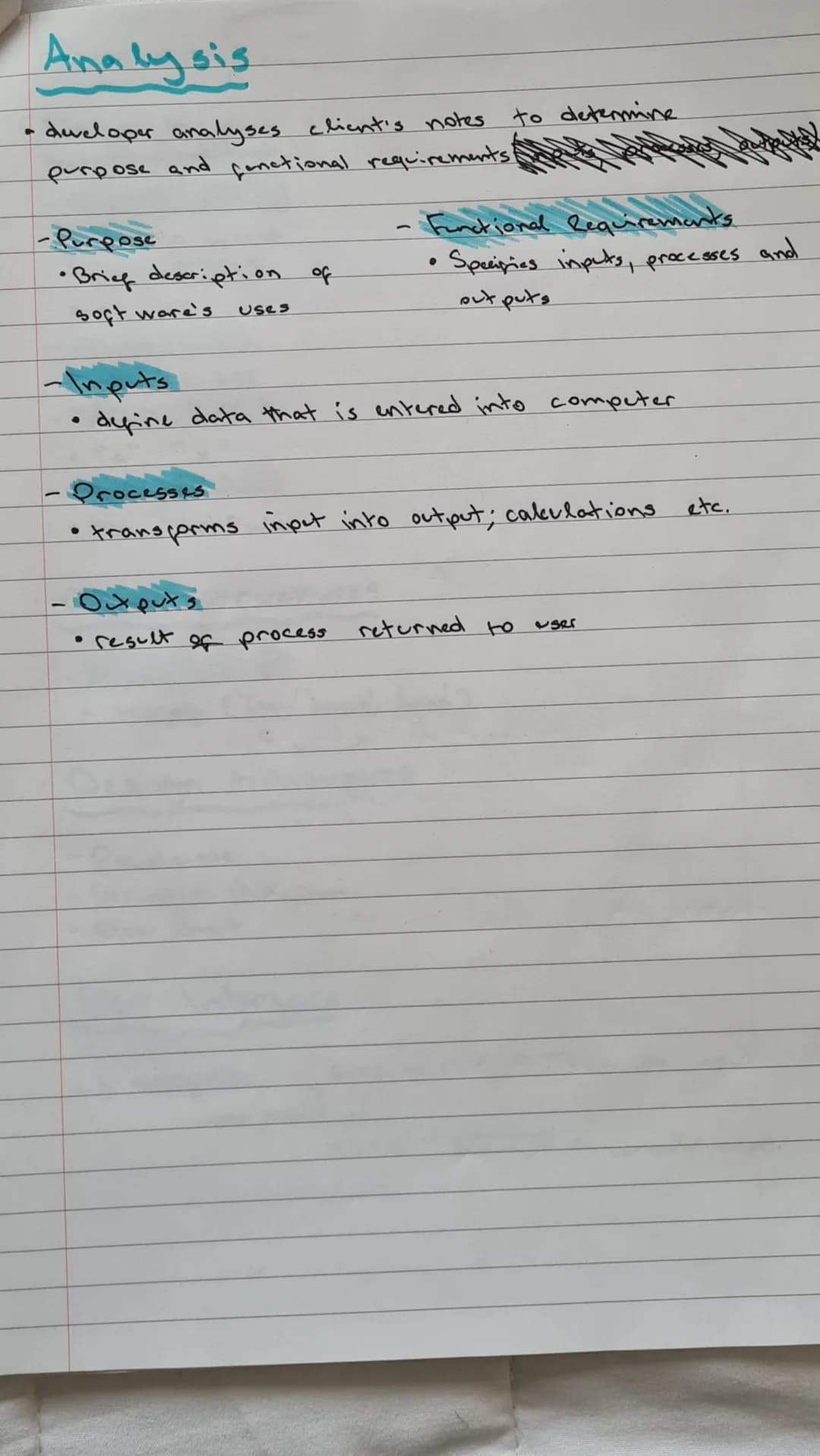

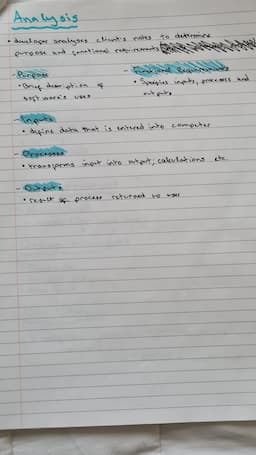

Analysis Stage

The analysis stage is crucial in the iterative design process, forming the foundation for the entire development cycle. During this stage, the developer analyzes the client's notes to determine the purpose and functional requirements of the software.

Key components of the analysis stage include:

1. Purpose: A brief description of the software's intended use.
2. Functional Requirements: Specifies the inputs, processes, and outputs of the software.
3. Inputs: Defines the data that will be entered into the computer.
4. Processes: Describes how the software will transform input into output, including calculations and other operations.
5. Outputs: Specifies the results that will be returned to the user.

Example: An iterative process example in the analysis stage might involve revisiting the functional requirements after initial implementation to refine and improve the software's capabilities.

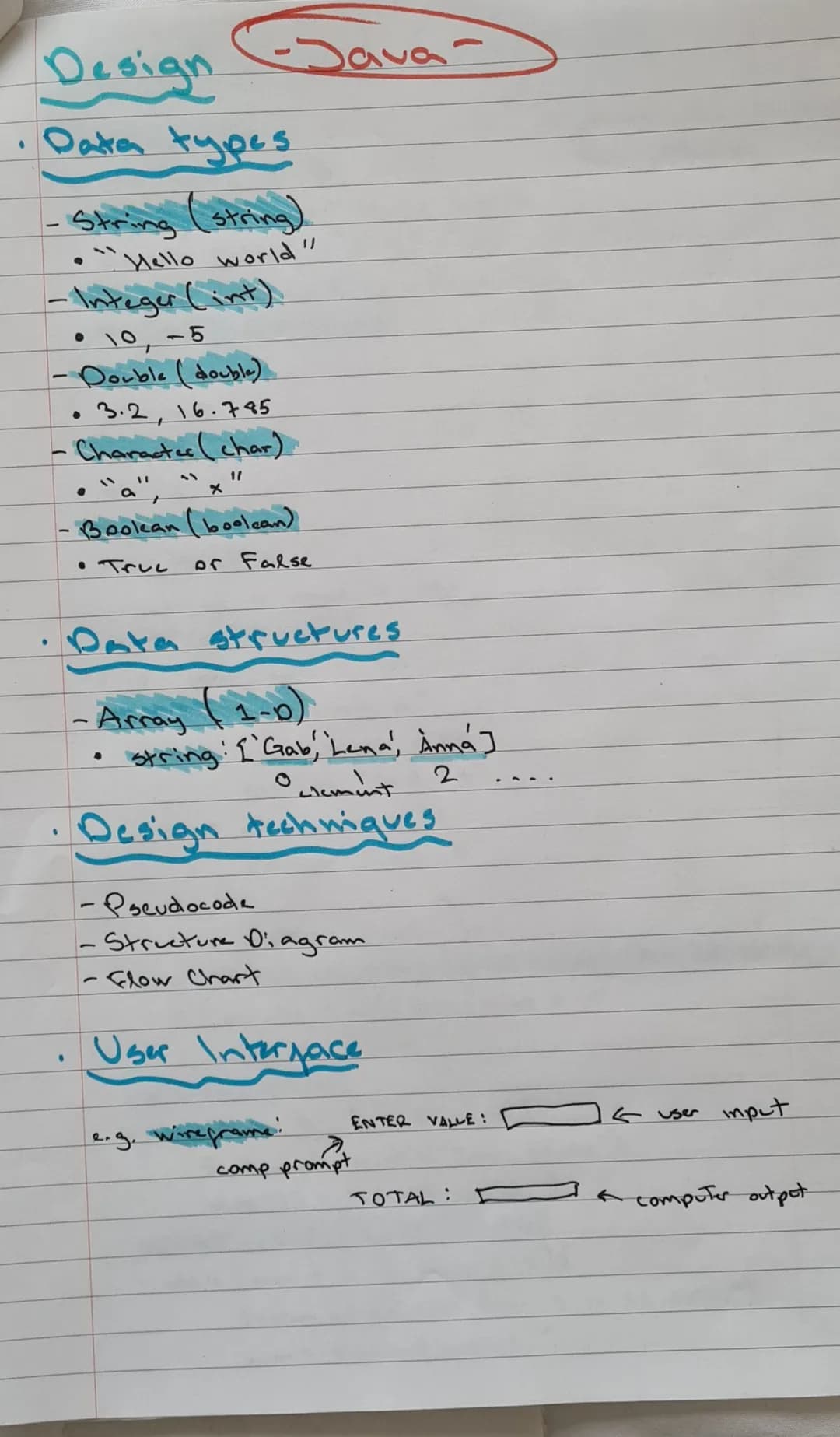

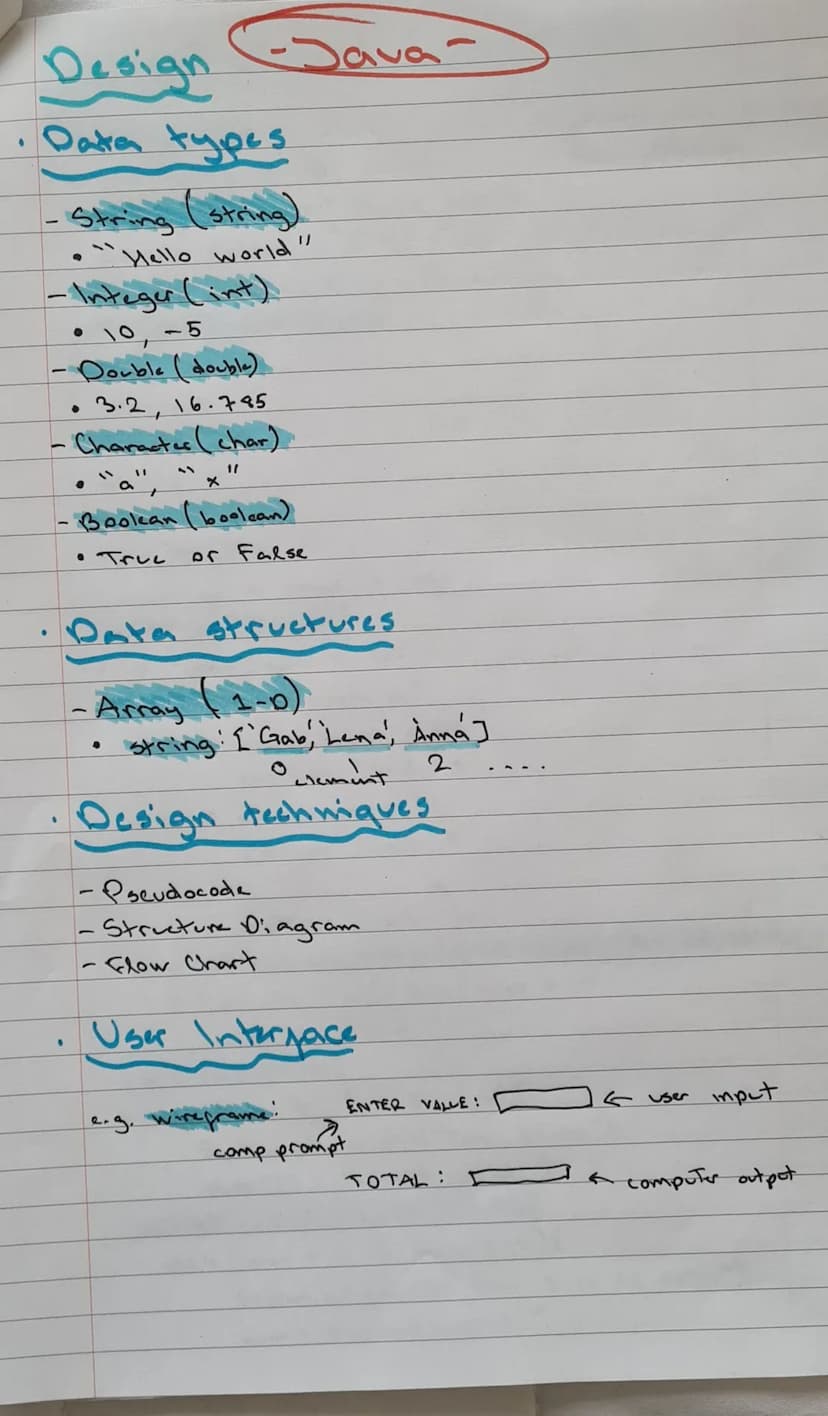

Design Stage

The design stage is a critical part of the iterative development in software engineering, where developers plan the structure and functionality of the software. This stage involves making decisions about data types, data structures, and design techniques.

Key aspects of the design stage include:

1. Data Types: Choosing appropriate data types such as Integer $int$, Double $double$, Character $char$, Boolean $boolean$, and String for variables.
2. Data Structures: Selecting suitable data structures like arrays to organize and store data efficiently.
3. Design Techniques: Utilizing various methods to plan the software's structure and flow, including: Pseudocode Structure Diagrams Flow Charts
4. User Interface Design: Creating wireframes or mockups to visualize the software's interface.

Example: A design iteration example might involve refining a wireframe based on user feedback, showcasing the iterative nature of the design process.

Vocabulary: Wireframe - A basic visual guide used to suggest the layout and placement of fundamental design elements in interface design.

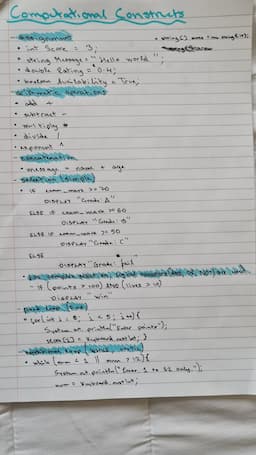

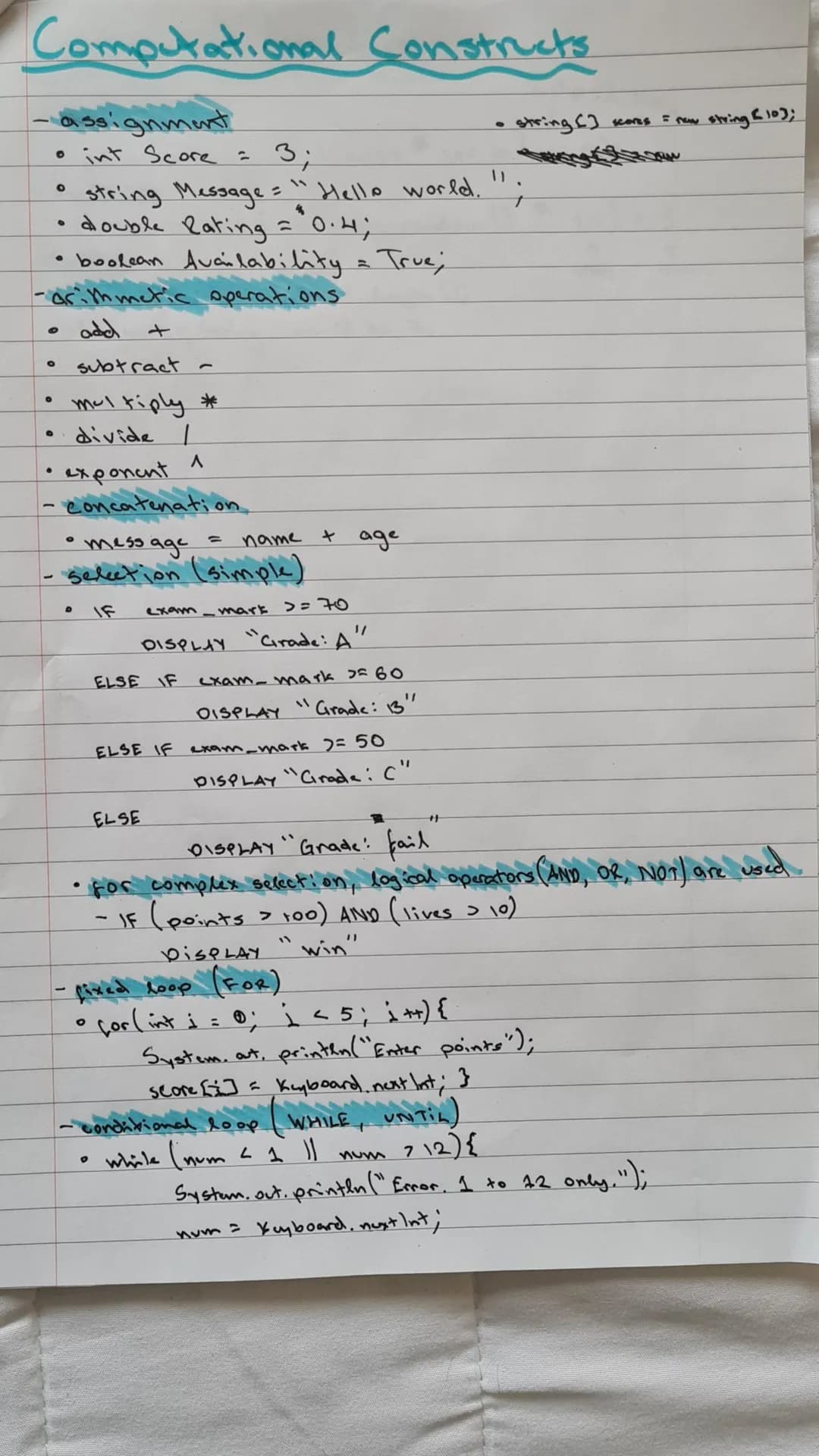

Computational Constructs

This section delves into the fundamental computational constructs and predefined functions in Java, which are essential for efficient programming. Understanding these constructs is crucial for implementing the design effectively.

Key computational constructs include:

1. Assignment: Using operators to assign values to variables.
2. Arithmetic Operations: Performing mathematical calculations using operators like +, -, *, /, and ^.
3. Concatenation: Combining strings using the + operator.
4. Selection: Implementing decision-making in code using IF, ELSE IF, and ELSE statements.
5. Loops: Utilizing fixed loops $FOR$ and conditional loops $WHILE, UNTIL$ for repetitive tasks.

Example: An example of selection in Java:

if (exam_mark >= 70) {
    System.out.println("Grade: A");
} else if (exam_mark >= 60) {
    System.out.println("Grade: B");
} else if (exam_mark >= 50) {
    System.out.println("Grade: C");
} else {
    System.out.println("Grade: Fail");
}

Highlight: The efficient use of these computational constructs is crucial for writing clean, readable, and performant code.

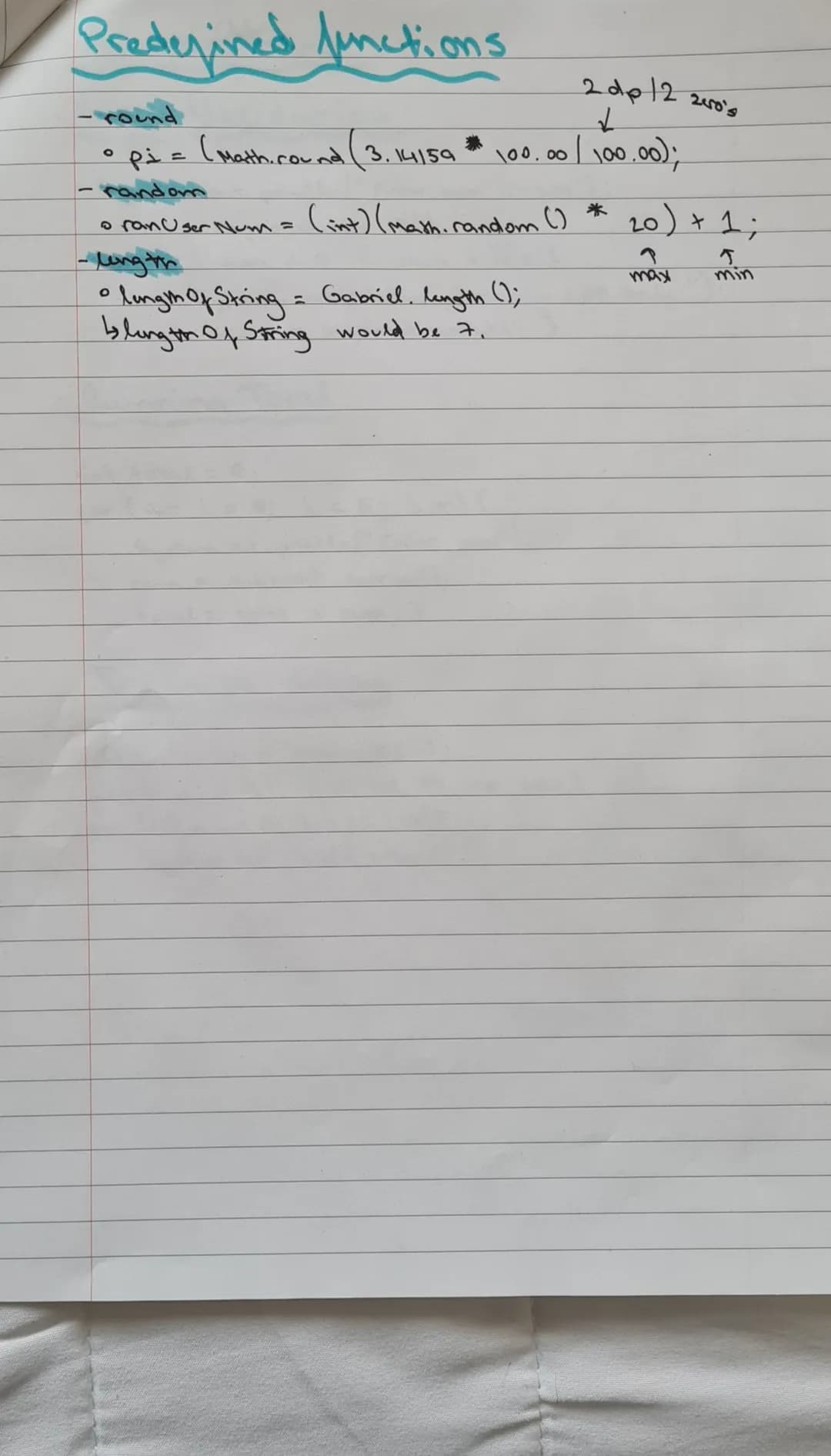

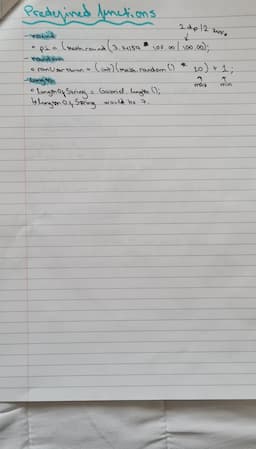

Predefined Functions

Predefined functions are built-in methods in programming languages that perform specific tasks without requiring the programmer to write the code from scratch. In Java and other languages, these functions enhance productivity and code efficiency.

Some important predefined functions examples include:

1. Math.round(): Rounds a number to the nearest integer.
2. Math.random(): Generates a random number between 0 and 1.
3. String.length(): Returns the length of a string.
4. Math.max(): Returns the larger of two numbers.

Example: Using Math.random() to generate a random number between 1 and 20:

int randomNumber = (int)(Math.random() * 20) + 1;

Vocabulary: Predefined functions - Built-in methods in a programming language that perform specific tasks without requiring custom implementation.

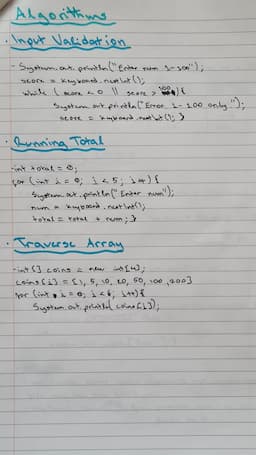

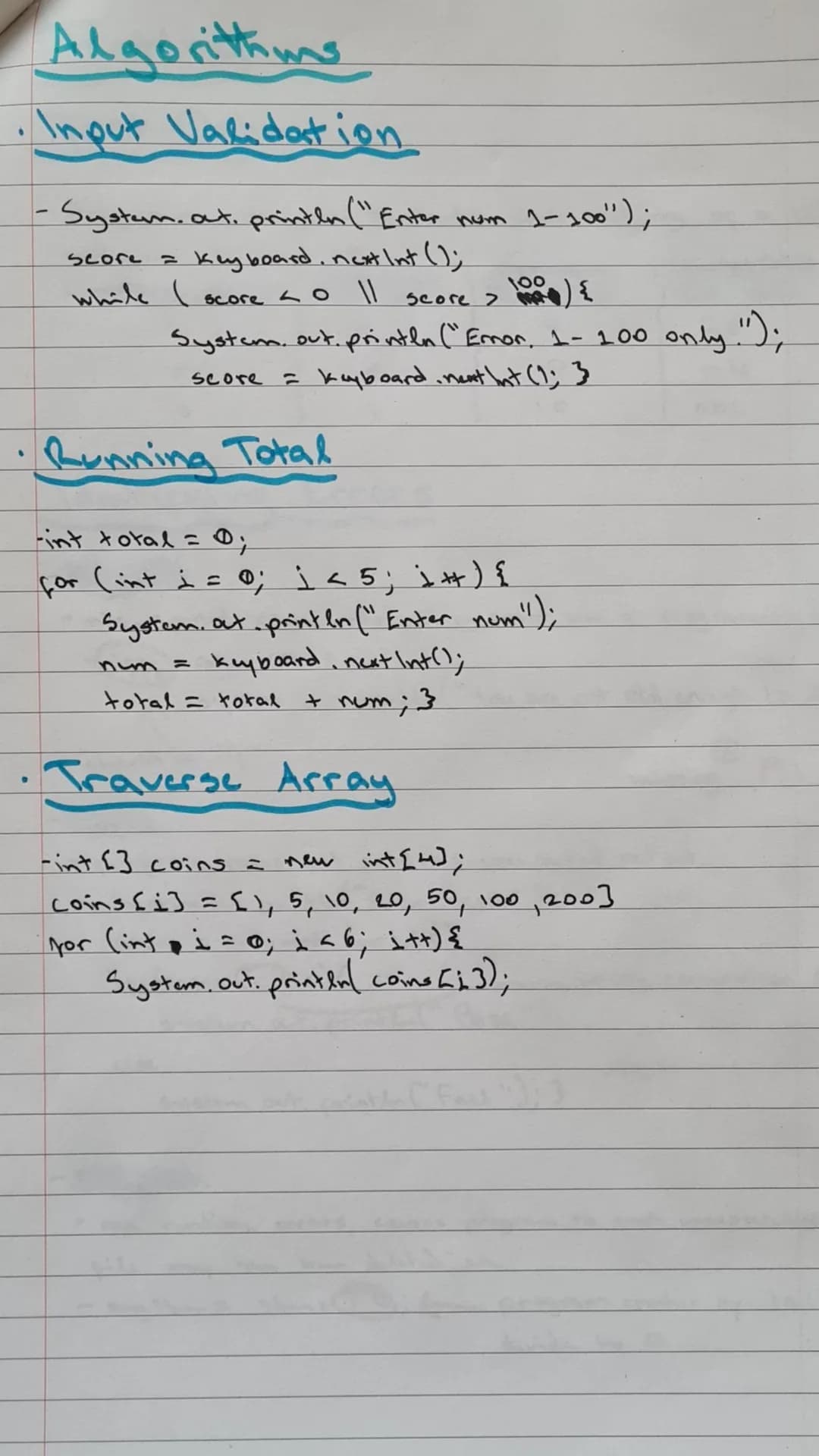

Algorithms

Algorithms are step-by-step procedures for solving problems or performing tasks in programming. This section focuses on common algorithmic patterns used in software development, which are crucial for efficient use of programming constructs.

Key algorithmic patterns discussed include:

1. Input Validation: Ensuring user input meets specific criteria before processing.
2. Running Total: Keeping a cumulative sum of values in a loop.
3. Array Traversal: Iterating through elements of an array to perform operations.

Example: Input validation algorithm in Java:

System.out.println("Enter a number between 1 and 100:");
int score = keyboard.nextInt();
while (score < 1 || score > 100) {
    System.out.println("Error. Enter a number between 1 and 100:");
    score = keyboard.nextInt();
}

Highlight: These algorithmic patterns are fundamental to solving complex programming problems and are widely used in various applications.

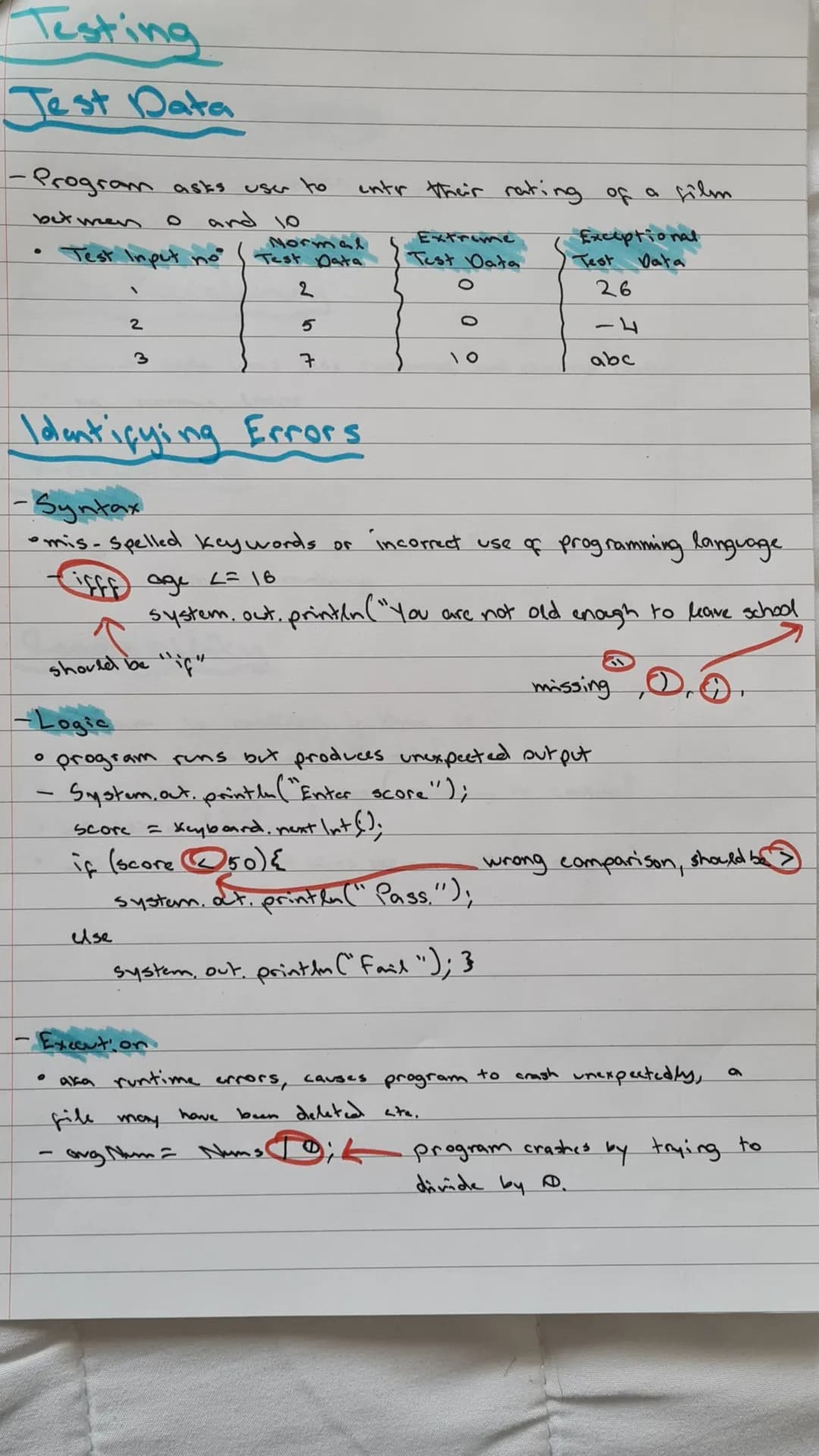

Testing

Testing is a crucial stage in the iterative development process, ensuring that the software functions as intended and meets all requirements. This stage involves systematically checking the program for various types of errors and verifying its behavior under different conditions.

Key aspects of the testing stage include:

1. Test Data: Using normal, extreme, and exceptional test cases to thoroughly evaluate the program.
2. Error Identification: Recognizing and categorizing different types of errors: Syntax Errors: Mistakes in the programming language's grammar. Logic Errors: Issues with the program's underlying algorithm or decision-making. Execution Errors: Problems that cause the program to crash unexpectedly.

Example: Testing a program that asks for a film rating between 2 and 10:

• Normal Test Data: 3, 5, 7
• Extreme Test Data: 2, 10
• Exceptional Test Data: 1, 11, "abc"

Highlight: Thorough testing is essential for producing robust, reliable software and is an integral part of the iterative development process.

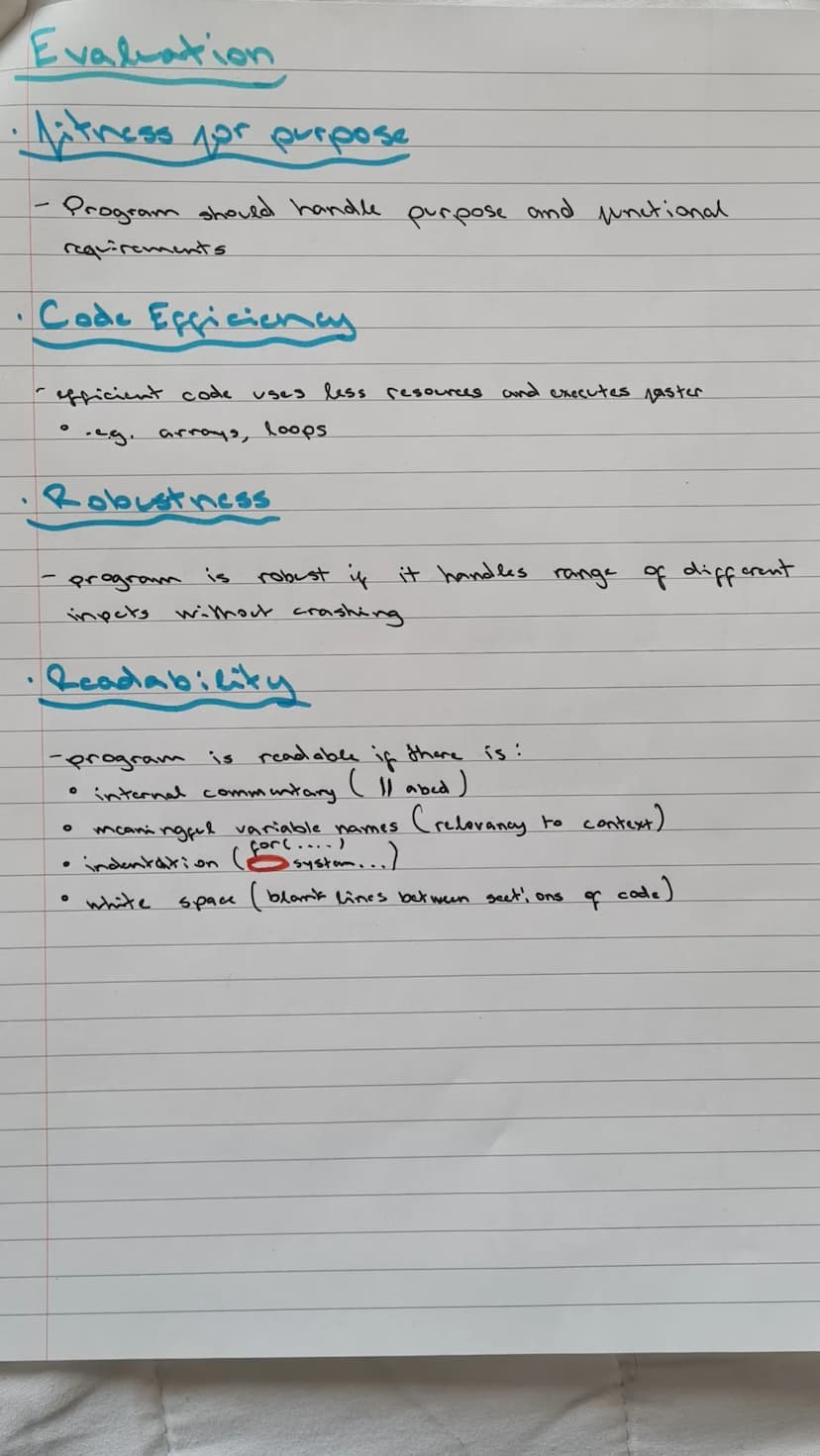

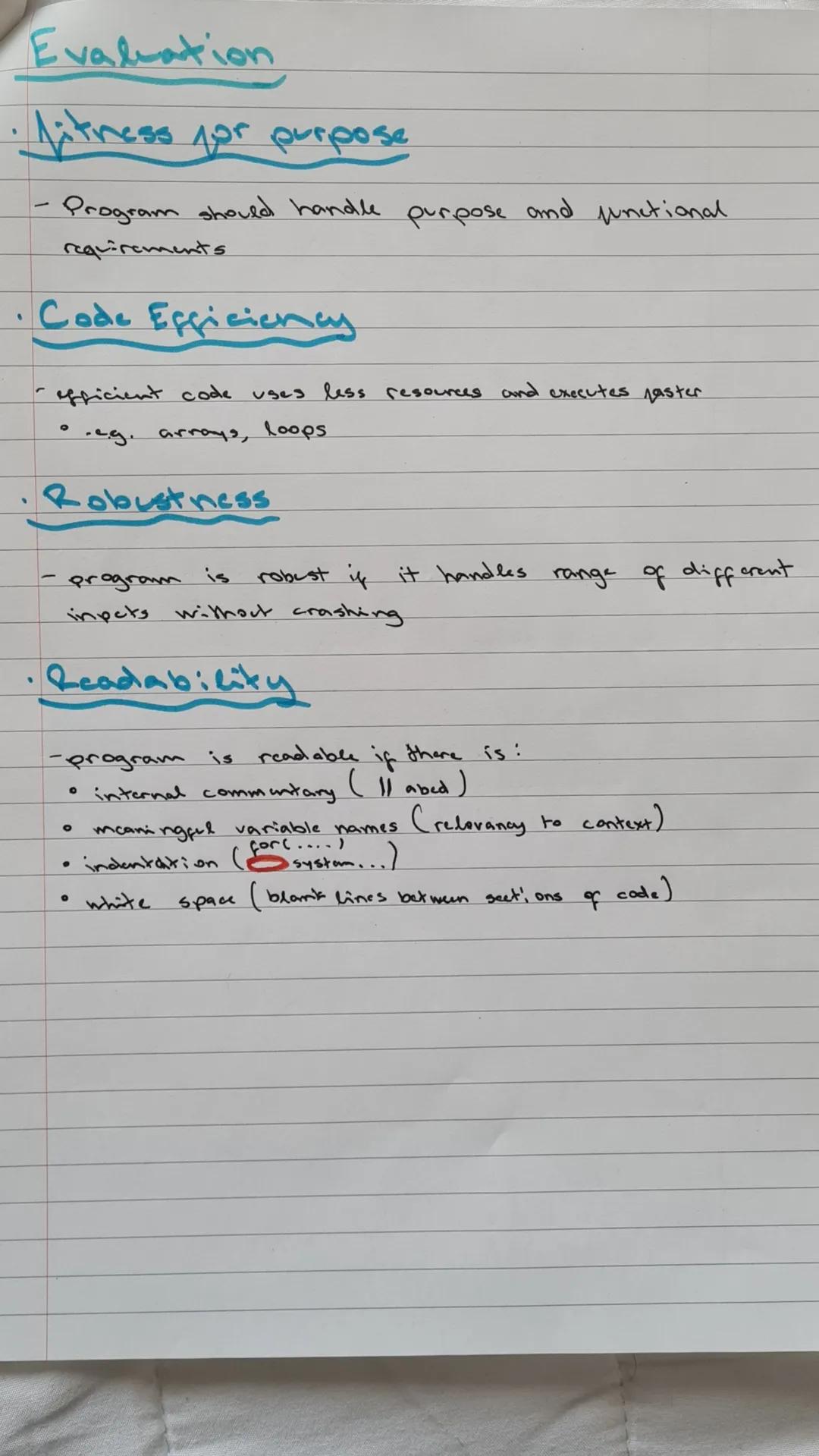

Evaluation

The evaluation stage is the final step in the iterative development process, where the software is assessed against various criteria to ensure it meets all requirements and standards. This stage is crucial for identifying areas for improvement and guiding future iterations.

Key evaluation criteria include:

1. Fitness for Purpose: Assessing whether the program fulfills its intended purpose and meets all functional requirements.
2. Code Efficiency: Evaluating the program's use of resources and execution speed, often through the use of efficient data structures and algorithms.
3. Robustness: Determining the program's ability to handle a wide range of inputs without crashing.
4. Readability: Assessing the clarity and organization of the code, including proper use of comments, indentation, and meaningful variable names.

Highlight: The evaluation stage often leads to insights that inform the next iteration of development, making it a crucial part of the continuous improvement cycle in software engineering.

Example: Improving code readability:

// Before
for(int i=0;i<10;i++){System.out.println(i);}

// After
// Print numbers from 0 to 9
for (int i = 0; i < 10; i++) {
    System.out.println(i);
}

This comprehensive overview of the iterative development process in software engineering provides valuable insights for students and practitioners alike, emphasizing the importance of continuous refinement and improvement throughout the development lifecycle.

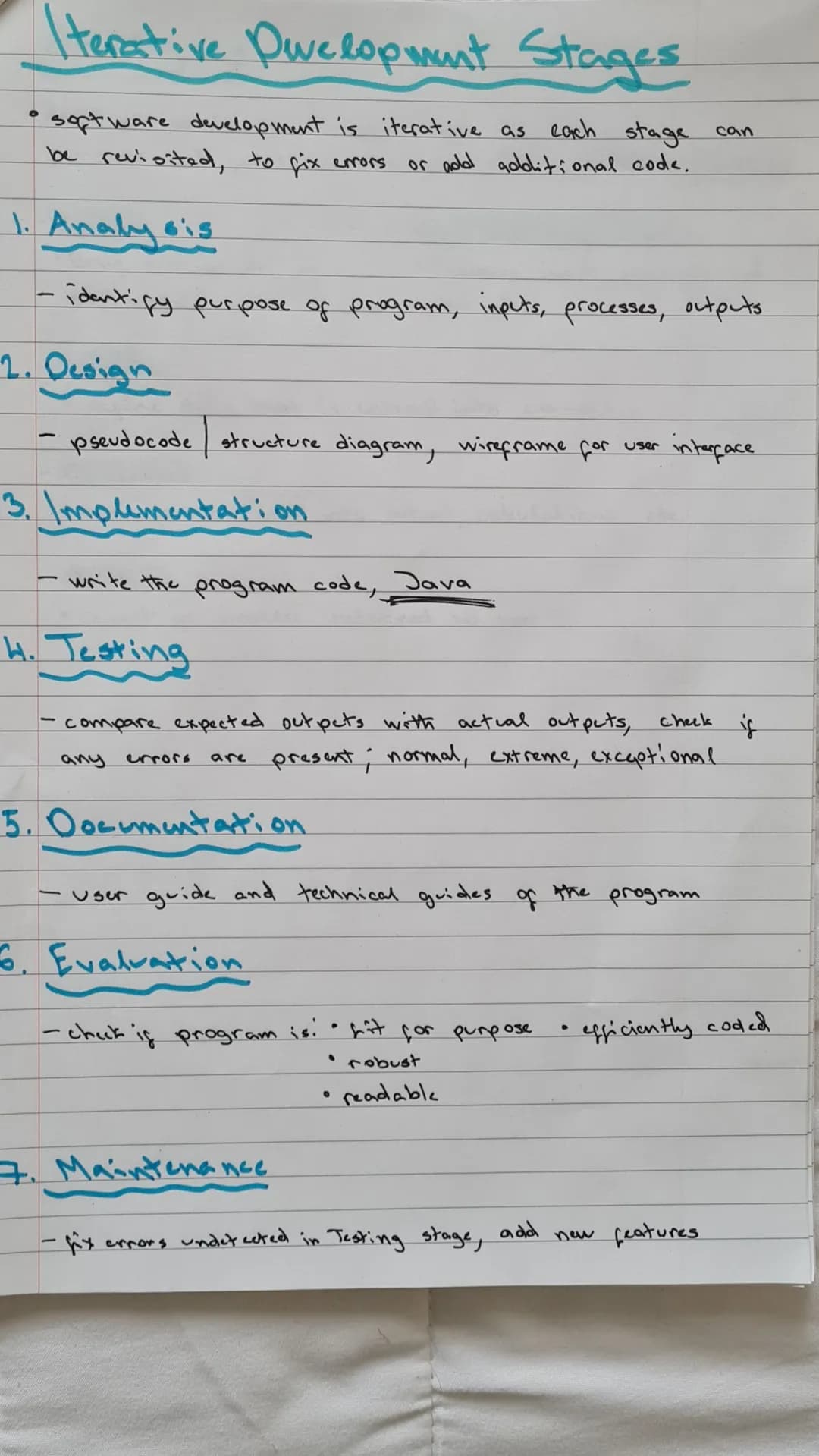

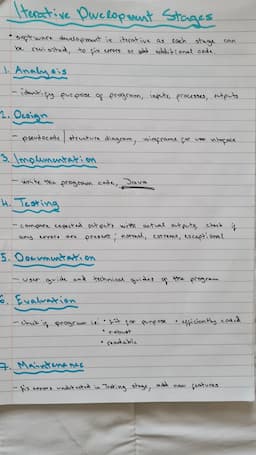

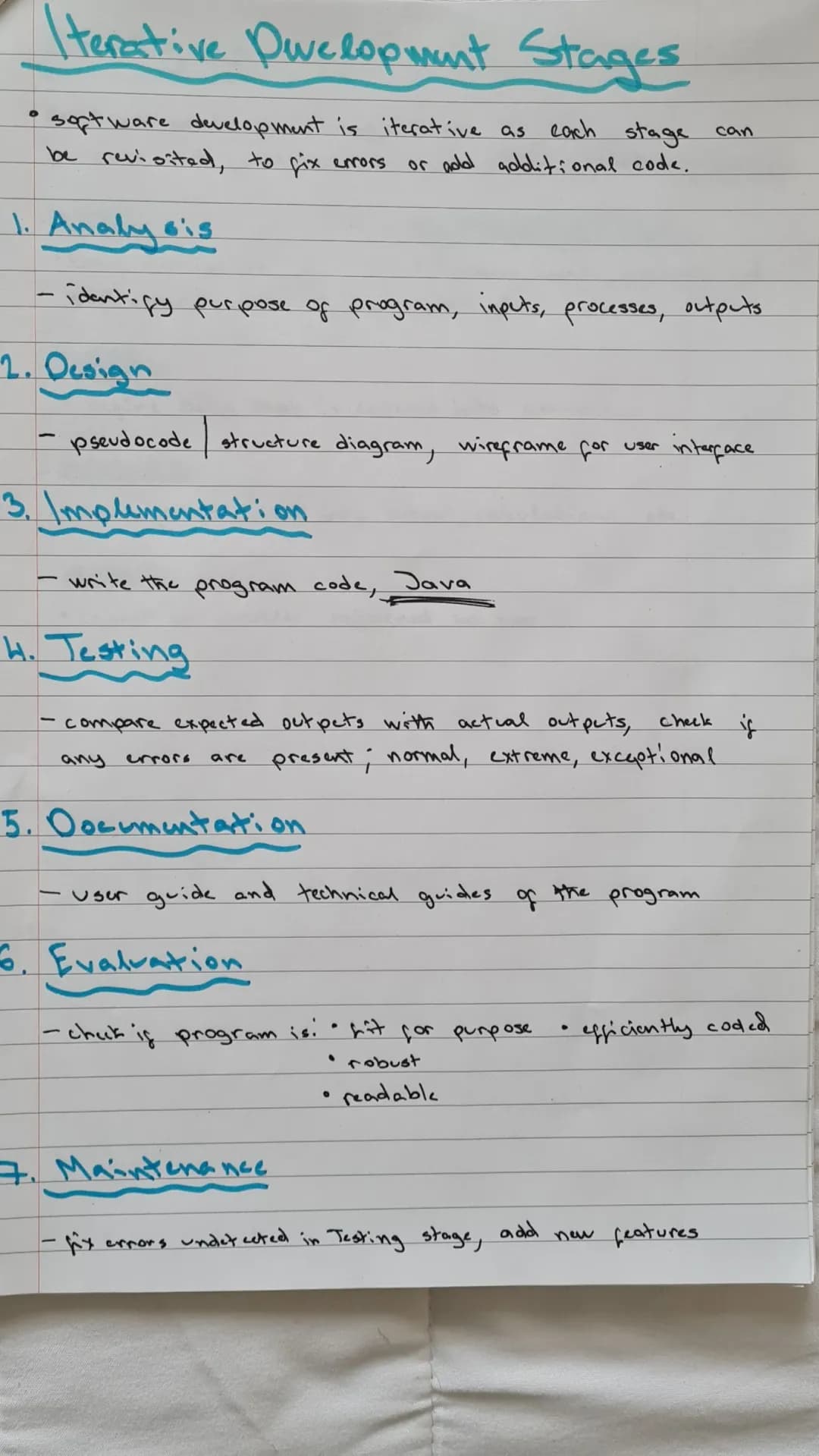

Iterative Development Stages

The iterative development process in software engineering consists of six main stages that can be revisited to fix errors or add additional code. This approach is fundamental to the iterative process in project management.

Definition: Iterative development in Agile is a cyclical approach to software development where each stage can be revisited to improve the product.

The six stages of the iterative development process are:

1. Analysis: Identifying the program's purpose, inputs, processes, and outputs.
2. Design: Creating pseudocode, structure diagrams, and wireframes for the user interface.
3. Implementation: Writing the program code, typically in Java.
4. Testing: Comparing expected outputs with actual outputs and checking for errors.
5. Documentation: Preparing user guides and technical documentation.
6. Evaluation: Assessing if the program is fit for purpose, robust, and efficiently coded.
7. Maintenance: Fixing undetected errors and adding new features.

Highlight: The iterative nature of this process allows for continuous improvement and adaptation throughout the development lifecycle.
