Introduction to Computer Science

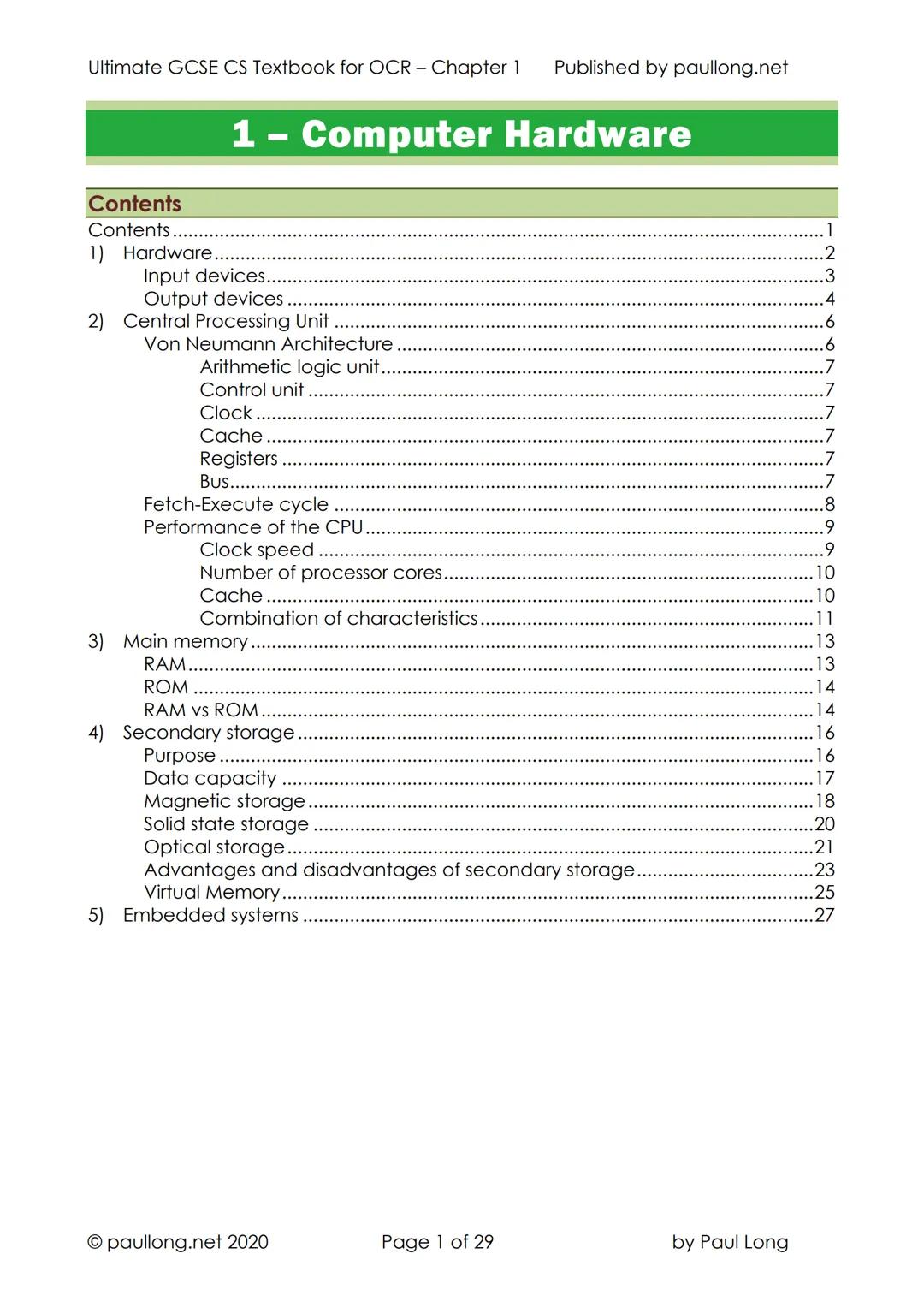

Contents Overview

This chapter covers everything you need to know about computer hardware for your GCSE. You'll explore input and output devices, dive deep into how the CPU works, understand different types of memory, and learn about storage options.

The content is organised into five main sections: hardware basics, the Central Processing Unit, memory types, secondary storage, and embedded systems. Each section builds on the previous one, so you'll develop a solid understanding step by step.

Quick tip: This chapter forms the foundation for understanding how computers work - master these concepts and you'll find the rest of the course much easier!

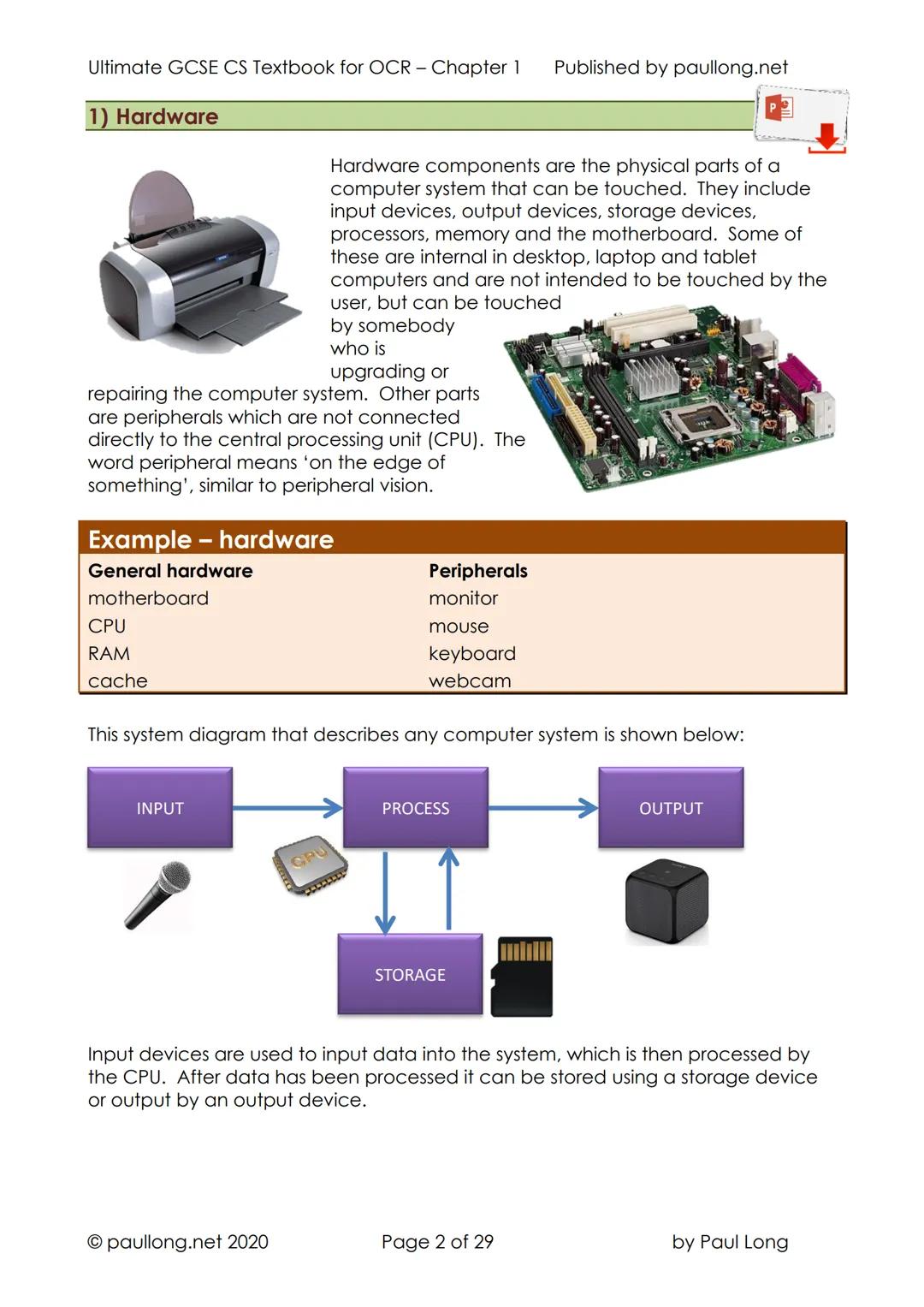

Hardware Basics

Think of hardware as anything you can physically touch in a computer system. This includes everything from your mouse and keyboard to the tiny processor chip inside your device.

Computer hardware splits into two main categories: internal components (like the CPU and RAM hidden inside your computer) and peripherals (external devices like monitors and keyboards that connect to the main system). The word peripheral literally means 'on the edge' - just like your peripheral vision!

Every computer system follows the same basic pattern: INPUT → PROCESS → OUTPUT → STORAGE. Input devices feed data into the system, the CPU processes it, output devices show you the results, and storage devices keep everything safe for later.

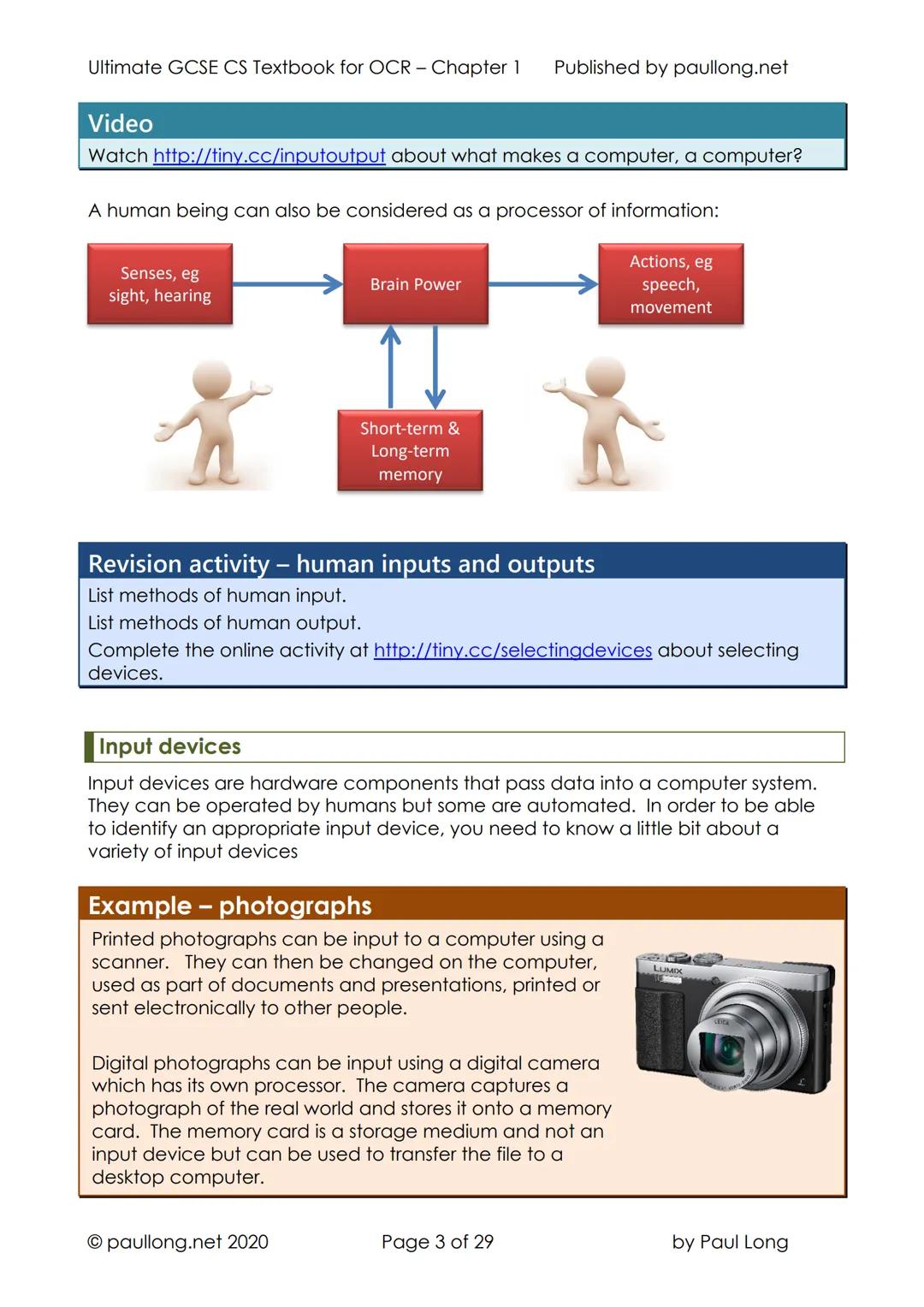

Remember: Even humans work like computers - we use our senses for input, our brain for processing, and speech/movement for output!

Input and Output Devices

Input devices are your gateway to communicating with computers. Whether you're typing on a keyboard, clicking a mouse, or scanning a document, you're using input devices to feed information into the system.

Here's something cool: digital cameras are basically mini-computers with their own processors! They capture images and store them on memory cards, which then transfer the files to your main computer. It's like having a tiny computer just for taking photos.

Output devices do the opposite job - they take processed data and present it in ways humans can understand. Without monitors, speakers, or printers, computers would be pretty useless since we'd never see the results of all that processing power.

Did you know: A touchscreen is both an input AND output device - it displays information while also detecting your finger touches!

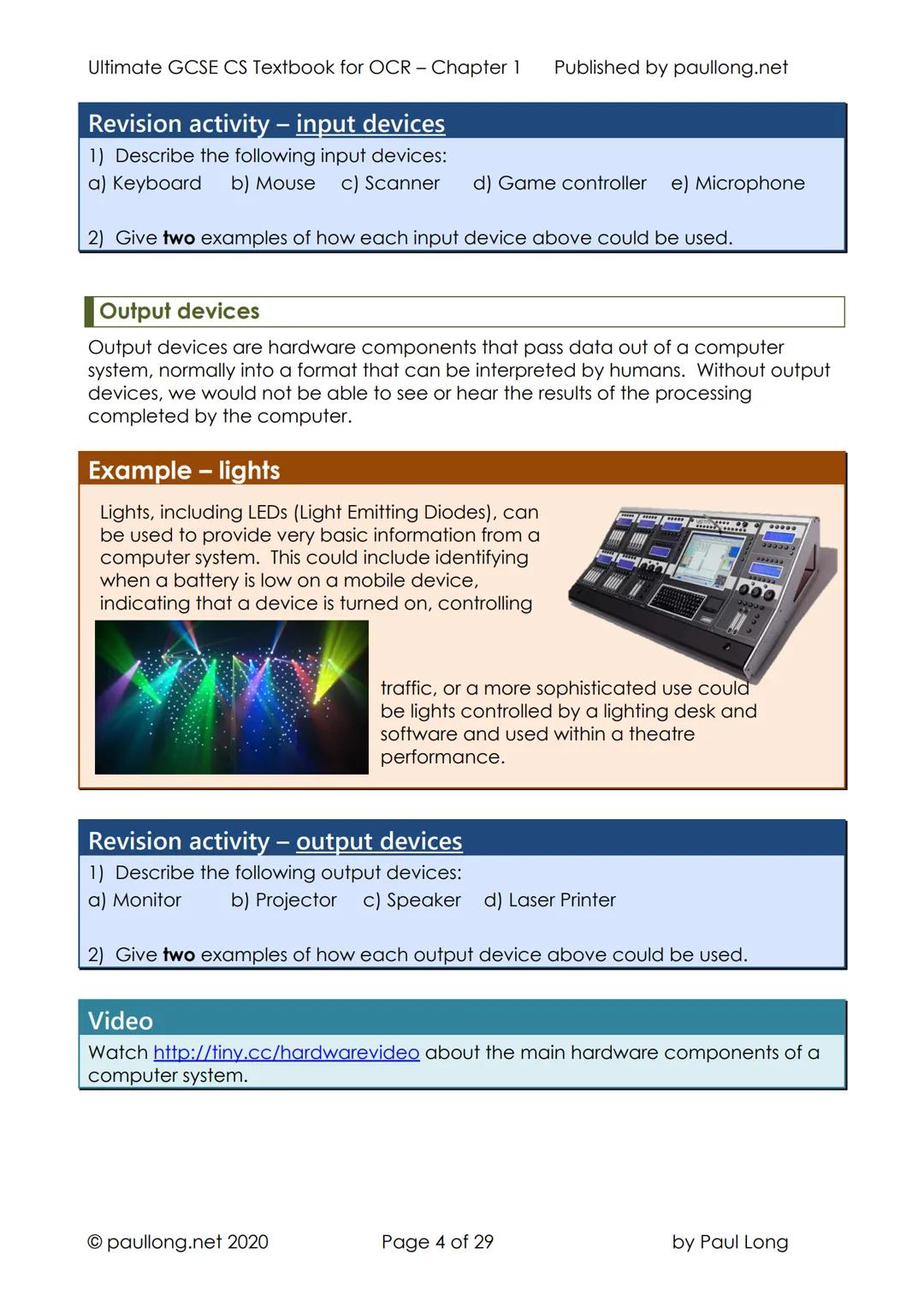

More on Input and Output

The beauty of computer systems lies in their versatility. A simple LED light can be an output device, showing whether your phone battery is low or controlling traffic lights. Meanwhile, sophisticated lighting systems in theatres use the same basic principle but with much more complex control.

Different situations call for different devices. Gaming needs controllers, music production requires microphones, and offices rely heavily on keyboards and mice. Understanding which device suits which task is crucial for your GCSE.

Scanners bridge the gap between the physical and digital worlds. Got old printed photos? A scanner can digitise them so you can edit, share, or store them electronically. It's like giving your computer the ability to 'see' physical documents.

Exam tip: Always be ready to explain why specific input/output devices are chosen for particular tasks - examiners love these application questions!

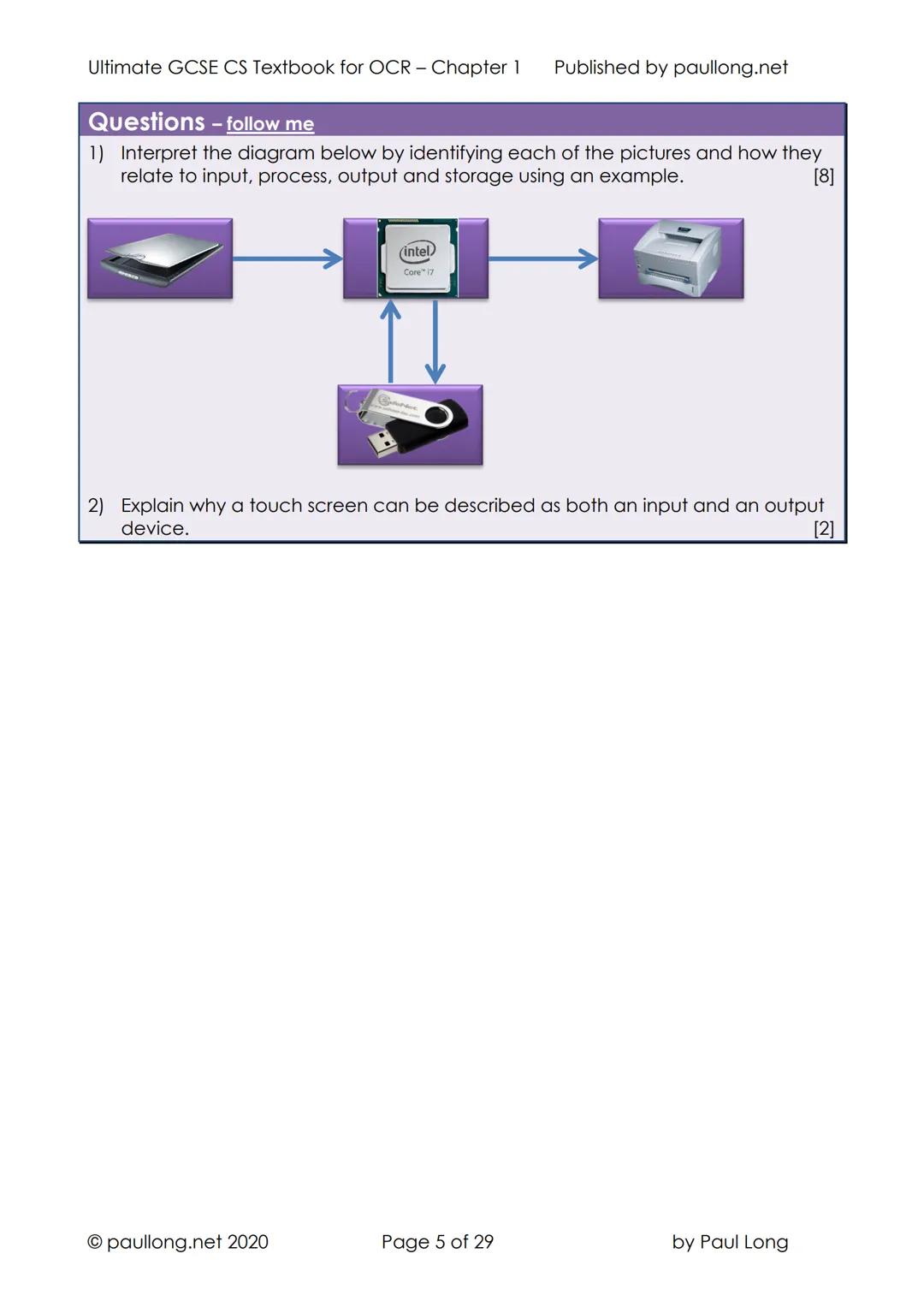

Understanding System Diagrams

System diagrams are like maps that show how data flows through a computer. You'll often see pictures representing different components, and your job is to identify whether each one handles input, processing, output, or storage.

The key skill here is recognising that data always follows a logical path. Information comes in through input devices, gets processed by the CPU, and then either gets stored for later or displayed through output devices. Sometimes it does both!

Touchscreens perfectly demonstrate how modern devices blur traditional boundaries. They display visual information (output) while simultaneously detecting where you touch (input). This dual functionality makes them incredibly useful for smartphones and tablets.

Practice makes perfect: Draw your own system diagrams using devices you use daily - it really helps cement these concepts!

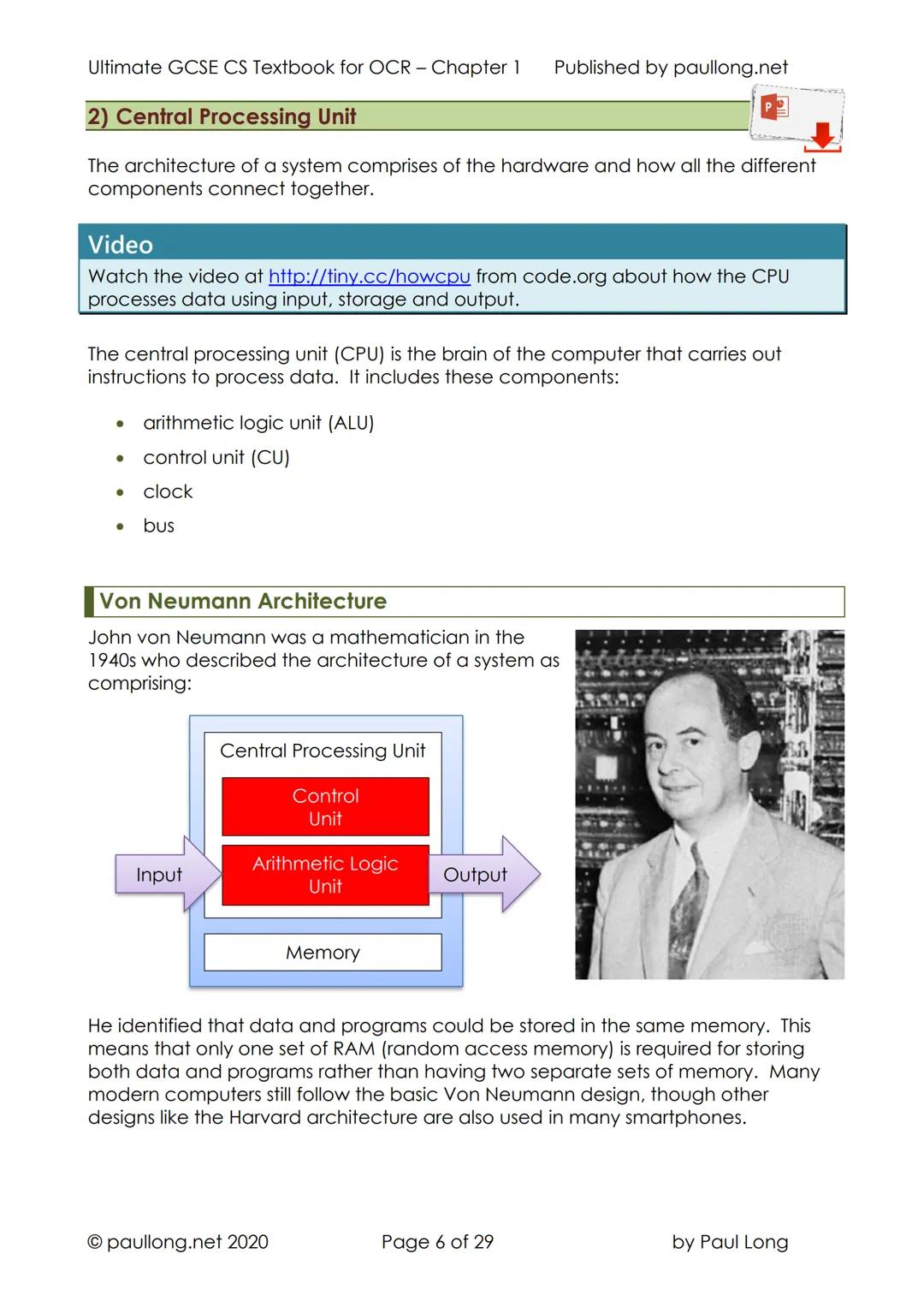

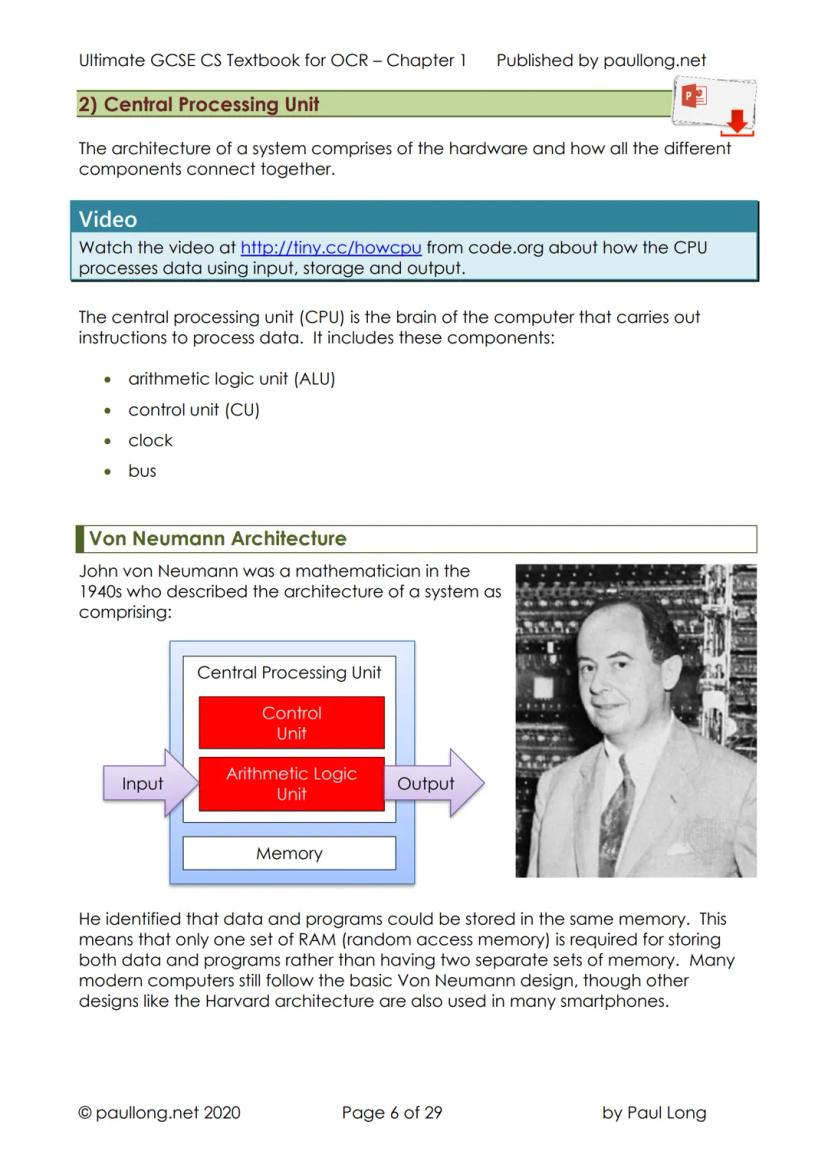

The Central Processing Unit (CPU)

Meet the CPU - the brain of every computer! This incredible chip processes all your data and carries out every instruction. It's made up of several key components: the arithmetic logic unit (ALU), control unit (CU), clock, and various buses that connect everything together.

Von Neumann Architecture revolutionised computing in the 1940s. John von Neumann figured out that programs and data could share the same memory space, which is why your computer only needs one type of RAM instead of separate memory for programs and data. Genius, right?

Most modern computers still follow this basic design, though smartphones sometimes use Harvard architecture instead. The fundamental principle remains the same: input flows to the CPU, which processes it using memory, then sends results to output devices.

Fun fact: Von Neumann's design from the 1940s is still the foundation of the device you're probably reading this on right now!

Inside the CPU

The Arithmetic Logic Unit (ALU) handles all the maths and logical comparisons. Whether you're adding numbers in a spreadsheet or comparing values in a program, the ALU does the heavy lifting with operations like addition, subtraction, AND, OR, and NOT.

The Control Unit (CU) acts like a conductor of an orchestra, making sure every component does its job at exactly the right time. It manages the fetch-execute cycle and coordinates all CPU activities.

Think of the clock as the heartbeat of your computer. Each 'tick' allows the CPU to process instructions. More ticks per second means faster processing - that's why a 3GHz processor is faster than a 1GHz one. Cache memory stores frequently used instructions right inside the CPU, like keeping your favourite tools within arm's reach.

Memory aid: The clock doesn't tell time - it tells the CPU when to work! Each tick is an opportunity to process more instructions.

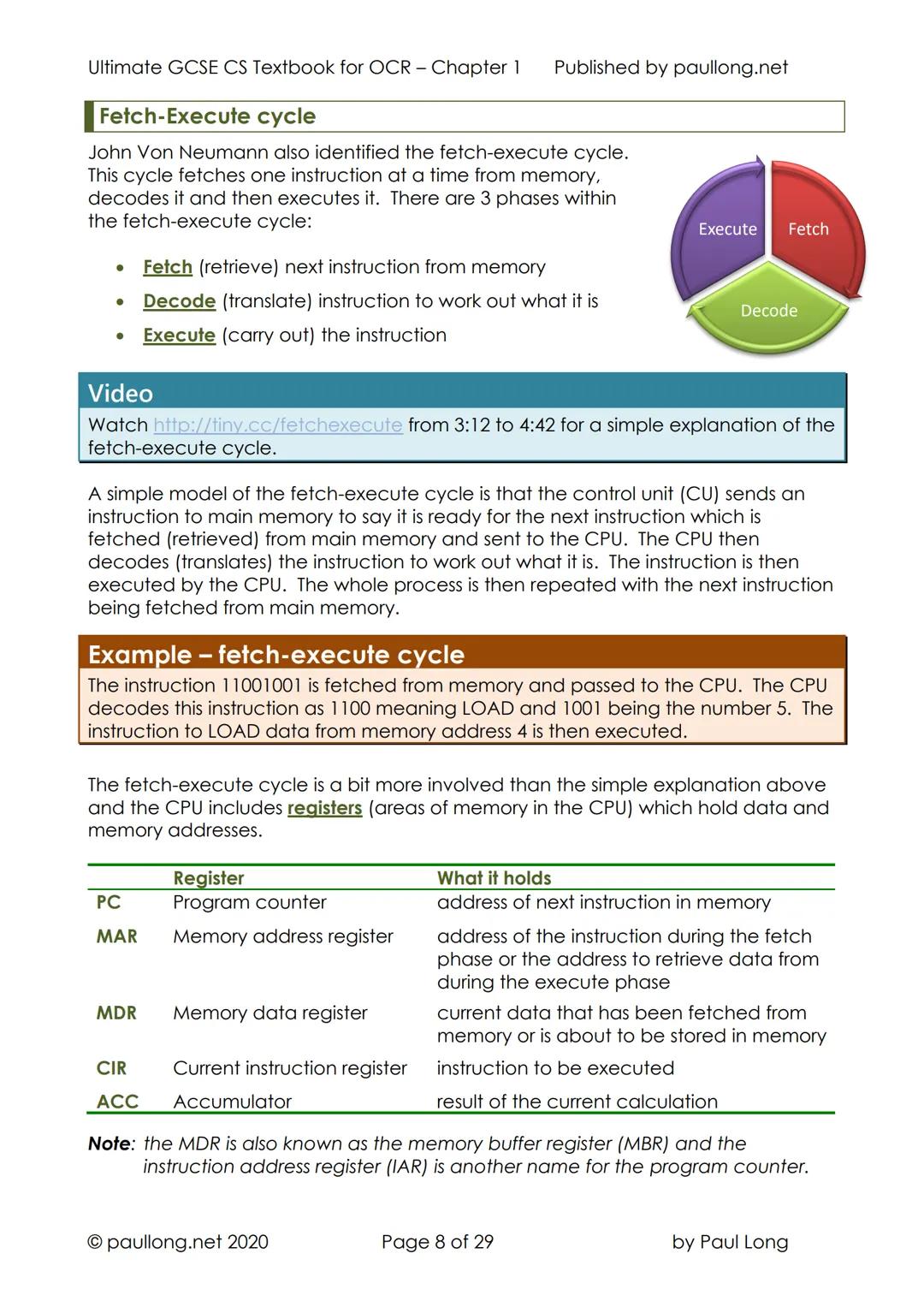

The Fetch-Execute Cycle

The fetch-execute cycle is how your CPU actually gets things done. It's beautifully simple: fetch an instruction from memory, decode what it means, then execute it. This happens billions of times per second!

Registers are tiny memory areas inside the CPU that hold crucial information during processing. The Program Counter (PC) tracks which instruction comes next, while the Current Instruction Register (CIR) holds the instruction being processed right now.

Here's a real example: the instruction '11001001' might be fetched from memory. The CPU decodes '1100' as 'LOAD' and '1001' as the number 5, then executes the command to load data from memory address 5. Simple but powerful!

Think of it like: Following a recipe - you fetch each step, work out what it means, then do it before moving to the next instruction!

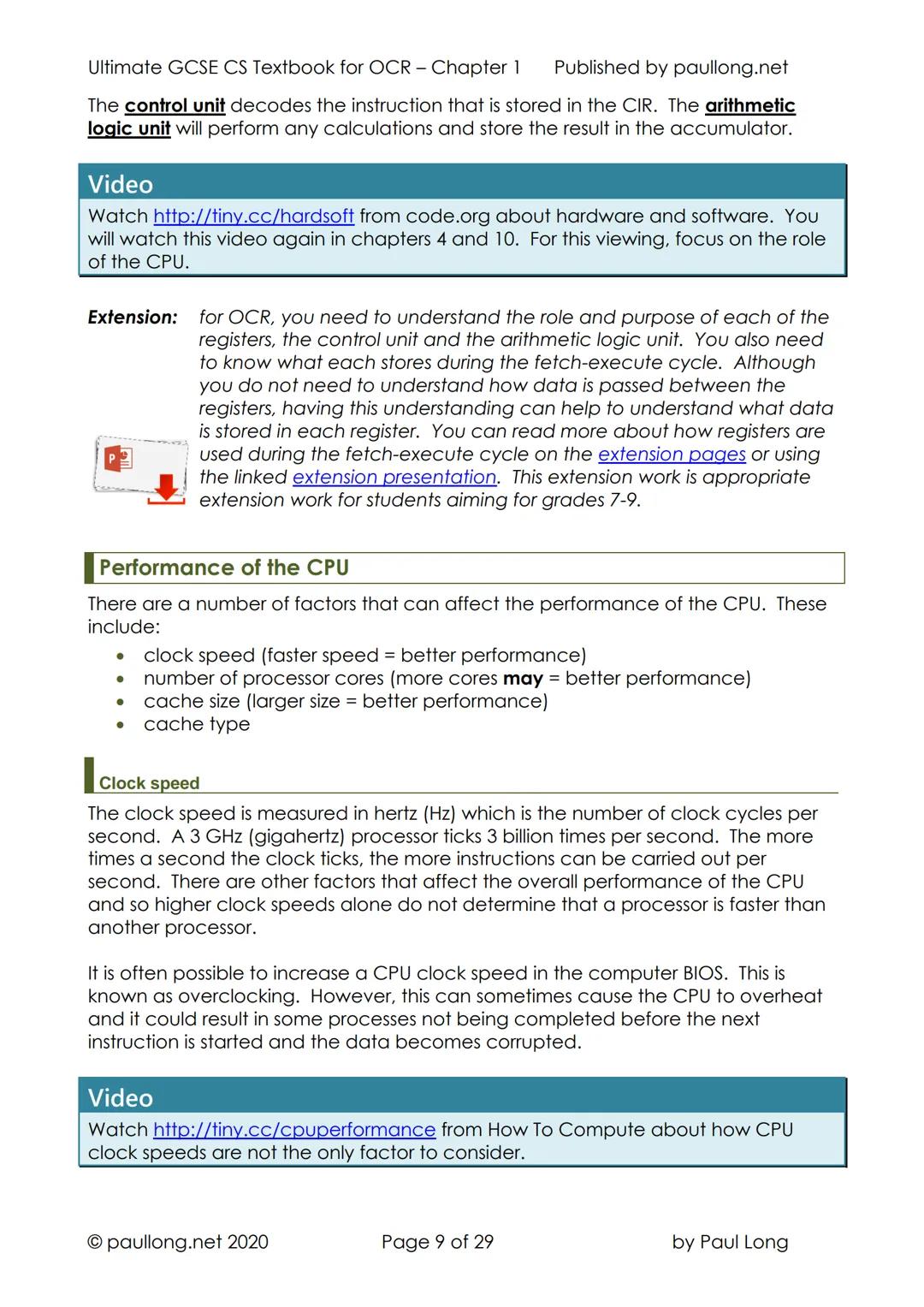

CPU Performance Factors

Clock speed gets all the attention, but it's not the whole story. A 3GHz processor ticks 3 billion times per second, which sounds impressive, but other factors matter just as much for overall performance.

You can sometimes 'overclock' a CPU to run faster than designed, but this risks overheating and data corruption. It's like pushing a car engine beyond its limits - sometimes it works, sometimes it doesn't end well!

The control unit decodes instructions stored in registers, while the arithmetic logic unit crunches numbers and stores results in the accumulator. Understanding how these work together helps you grasp why CPU performance is about more than just raw speed.

Real talk: Don't just look at clock speed when comparing processors - it's like judging a car solely by engine size while ignoring everything else!

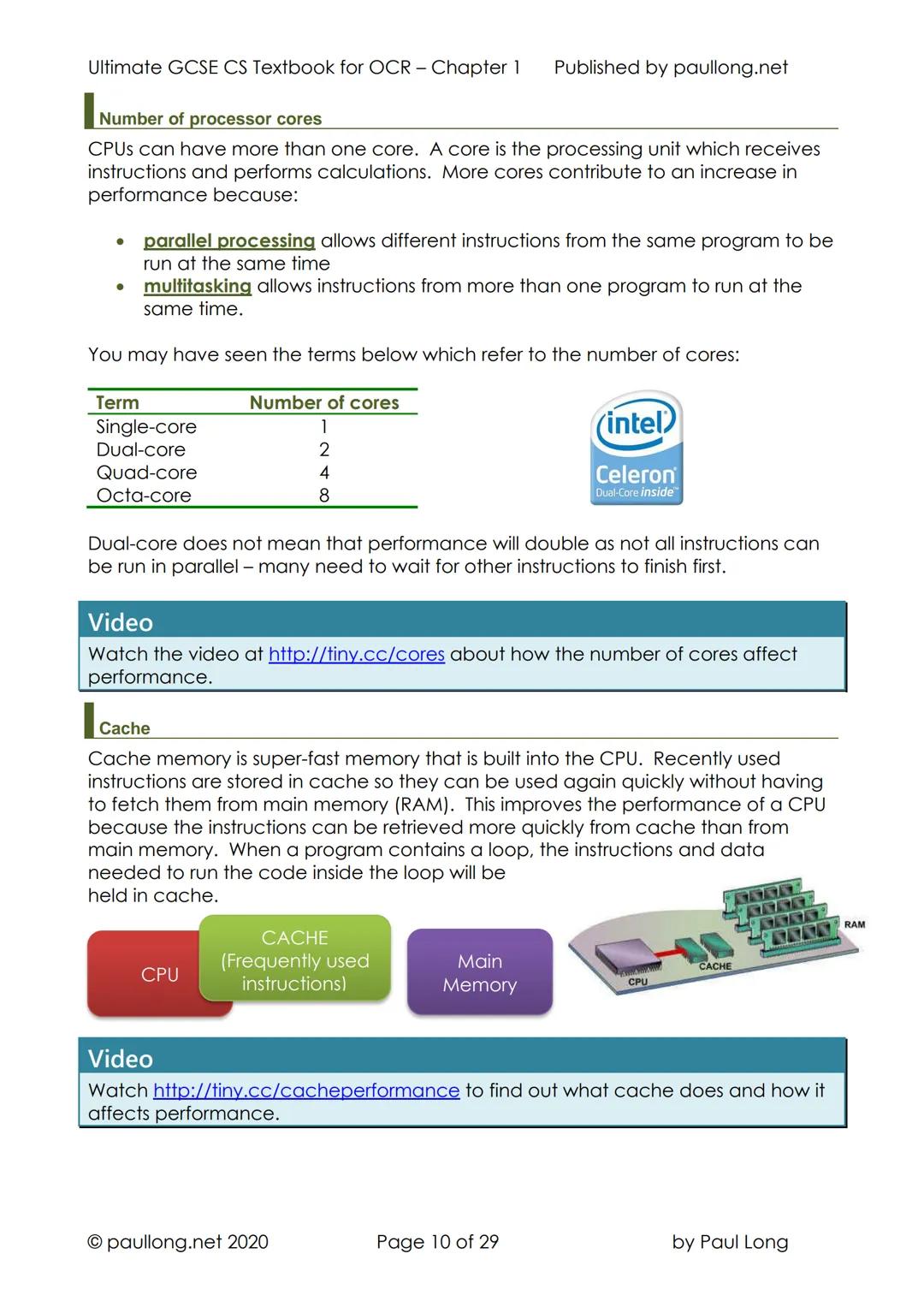

Cores and Cache

Multiple cores are like having several brains working together. A quad-core processor can handle four different tasks simultaneously through parallel processing, or switch between multiple programs through multitasking. However, doubling cores doesn't double performance because many tasks must happen in sequence.

Cache memory is the CPU's secret weapon. This super-fast memory stores recently used instructions right inside the processor. When your program runs a loop, those repeated instructions stay in cache for instant access instead of slower trips to main memory.

Think of cache like keeping frequently used items on your desk instead of filing them away. The more cache available, the more instructions can be stored close at hand, boosting overall performance significantly.

Key insight: More cores help with multitasking, while larger cache helps with everything - both contribute to better performance in different ways!
