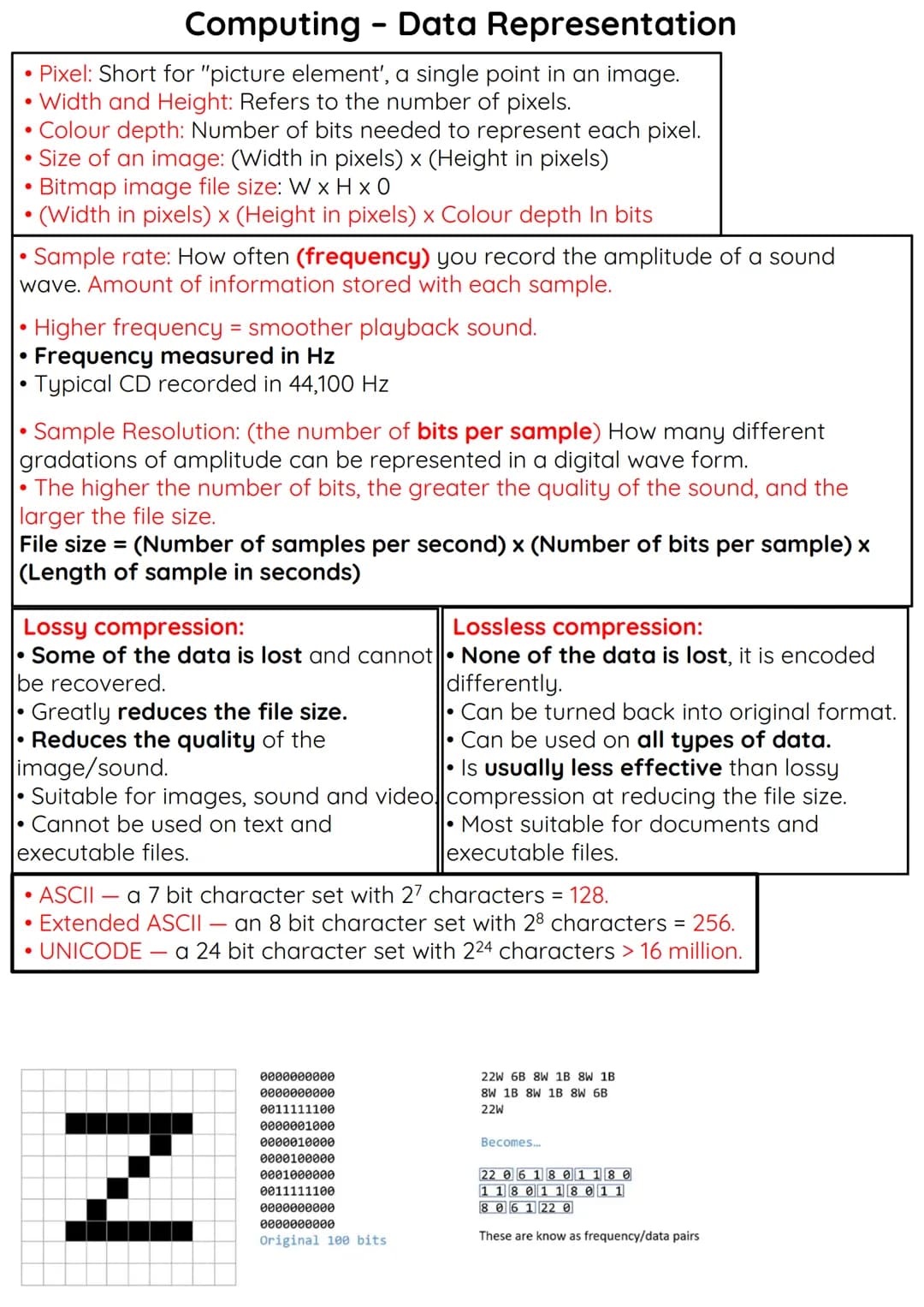

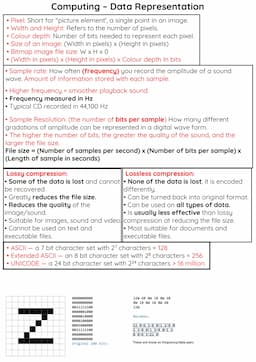

Data Representation in Computer Science

Digital images are composed of individual pixels (picture elements) arranged in a grid pattern. The size of a digital image is determined by multiplying its width and height in pixels. Color depth, measured in bits, defines how many different colors each pixel can represent. Understanding these fundamentals is crucial for AQA GCSE Computer Science Paper 1.

Definition: A pixel is the smallest addressable element in a digital image display, representing a single point of color.

Sound digitization involves two key concepts: sample rate and sample resolution. Sample rate, measured in Hertz (Hz), determines how frequently amplitude measurements are taken from an analog sound wave. CD-quality audio typically uses 44,100 Hz. Sample resolution, specified in bits per sample, affects the accuracy of amplitude representation and ultimately the sound quality.

Data compression techniques are essential for managing file sizes effectively. Lossy compression reduces file size by permanently removing some data, making it suitable for images, audio, and video where minor quality loss is acceptable. Lossless compression, conversely, preserves all original data while reducing file size through efficient encoding, making it ideal for text documents and executable files.

Highlight: File size calculation for digital images: Width × Height × Color depth (in bits)

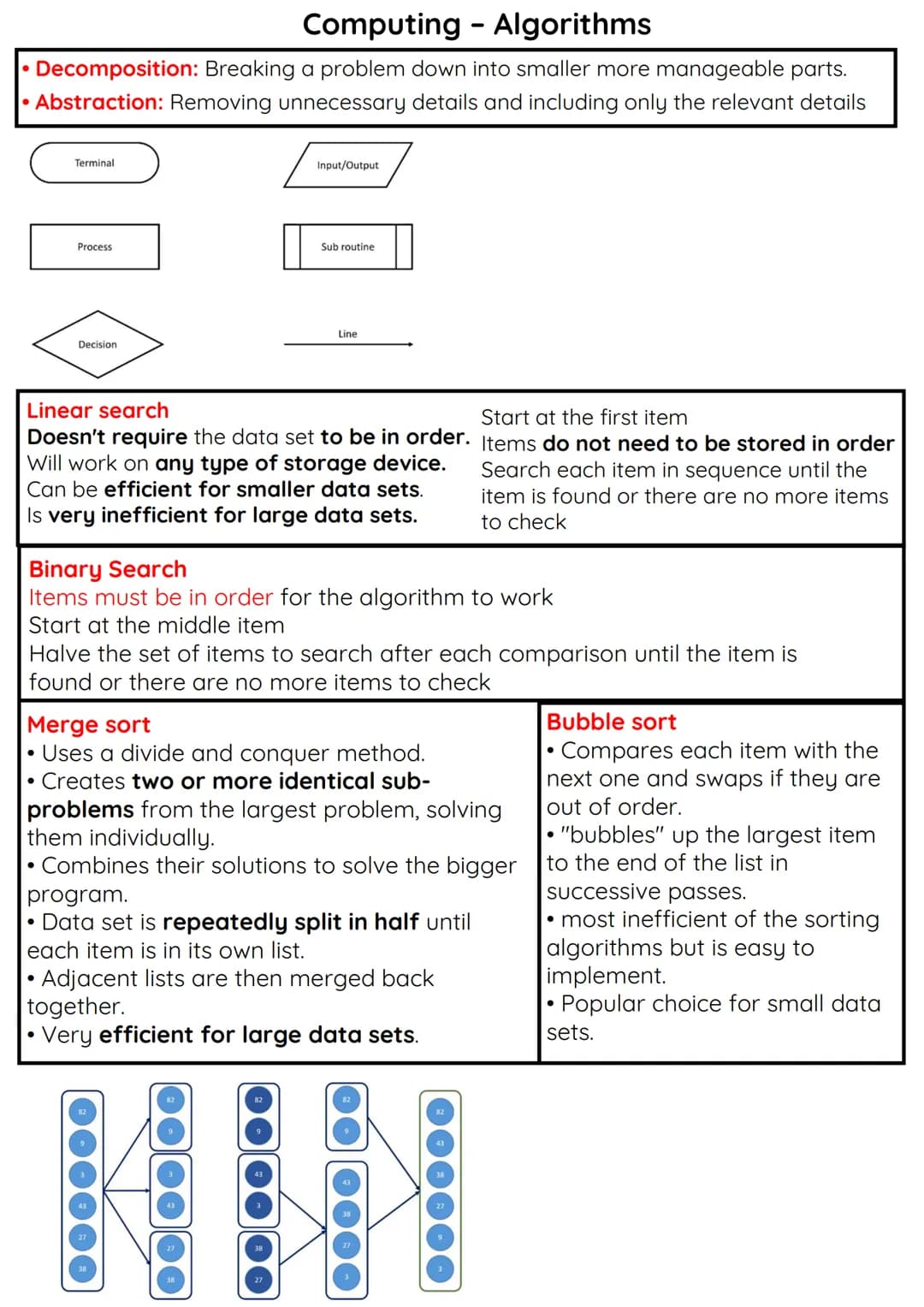

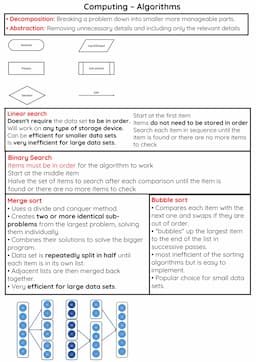

Algorithms and Problem-Solving Techniques

Problem-solving in computer science relies heavily on decomposition and abstraction. Decomposition involves breaking complex problems into smaller, manageable components, while abstraction focuses on identifying and retaining only the essential elements of a problem. These fundamental concepts are crucial for Data representation Computer Science A Level.

Searching algorithms come in two main varieties: linear search and binary search. Linear search sequentially checks each element until finding the target, working with any data organization but becoming inefficient with large datasets. Binary search, requiring sorted data, repeatedly divides the search space in half, making it significantly more efficient for large datasets.

Example: Binary Search Process

1. Start with sorted array
2. Find middle element
3. Compare with target value
4. Eliminate half of remaining elements
5. Repeat until found or not present

Sorting algorithms like bubble sort and merge sort organize data in specific orders. Bubble sort repeatedly compares adjacent elements and swaps them if needed, while merge sort uses a divide-and-conquer approach by splitting the data into smaller sorted lists before merging them back together.

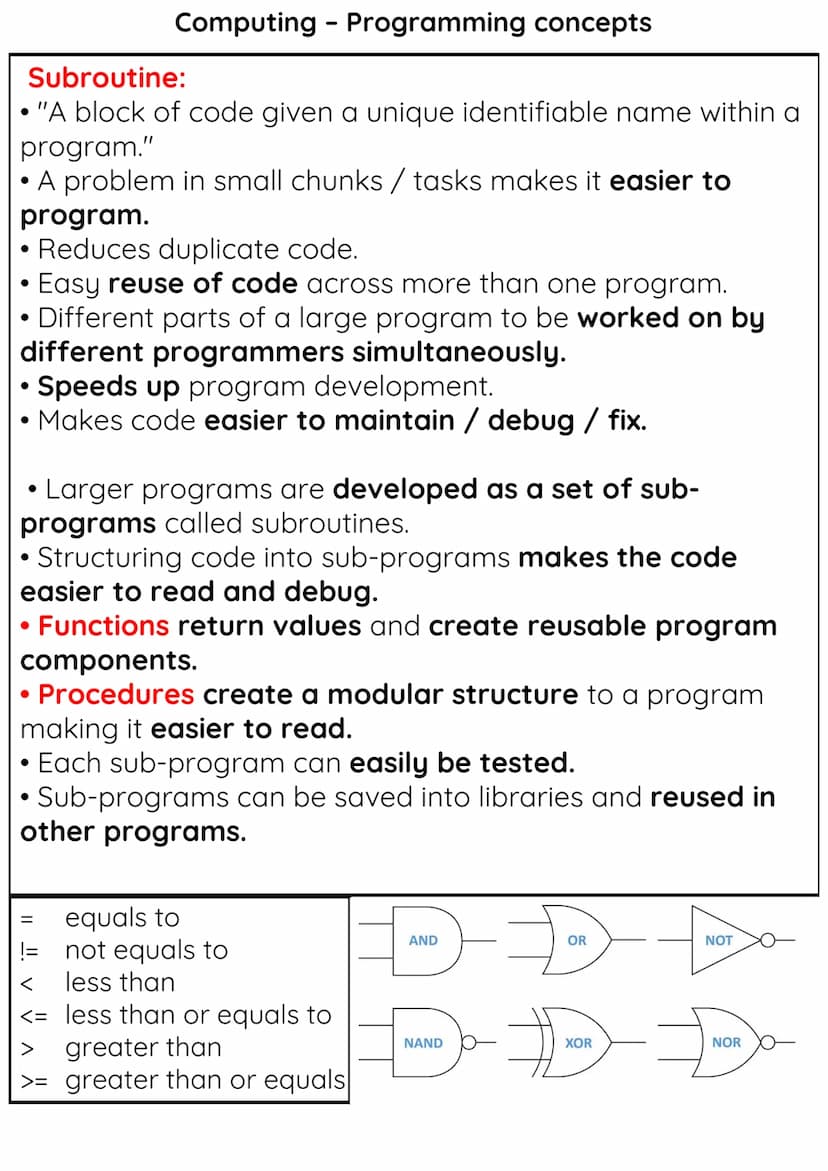

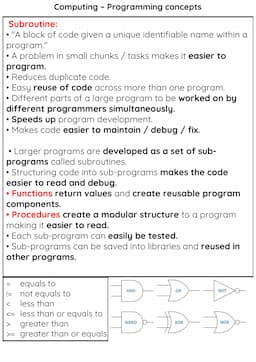

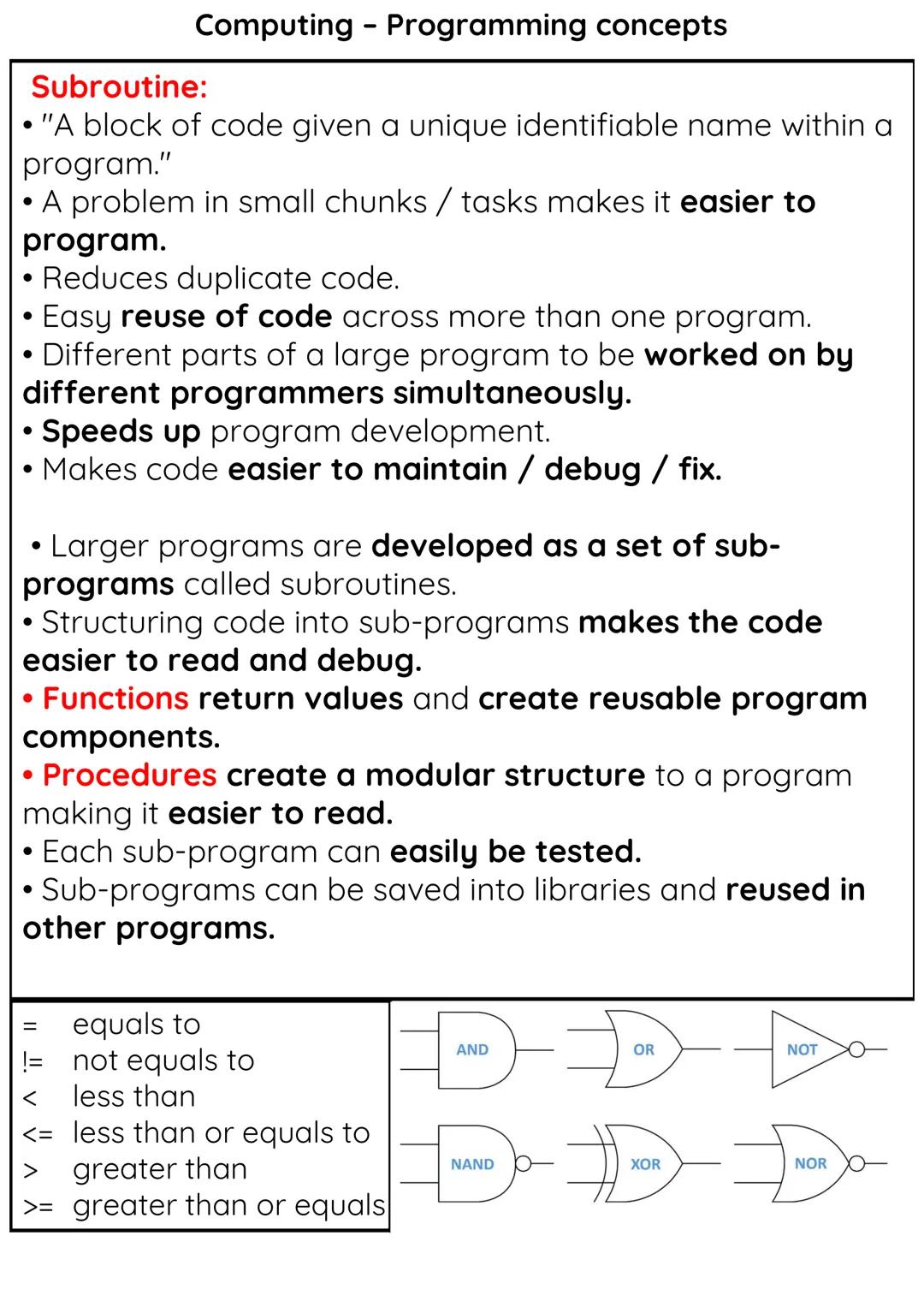

Programming Fundamentals and Concepts

Subroutines are fundamental building blocks in modern programming, representing named blocks of code that perform specific tasks. They enhance code organization and reusability while supporting the development of large-scale applications. This concept is essential for understanding Python Programming and other programming languages.

Vocabulary: Subroutine - A named sequence of program instructions that performs a specific task, also known as a function or procedure.

Comparison operators and logical operators form the basis of program control flow. Common comparison operators include equality (=), inequality (!=), less than (<), and greater than (>). Logical operators like AND, OR, and NOT enable complex condition combinations in program logic.

Programming best practices emphasize modular design through subroutines. This approach facilitates easier debugging, maintenance, and collaborative development. Each subroutine should have a clear purpose and well-defined interfaces, making the overall program structure more comprehensible.

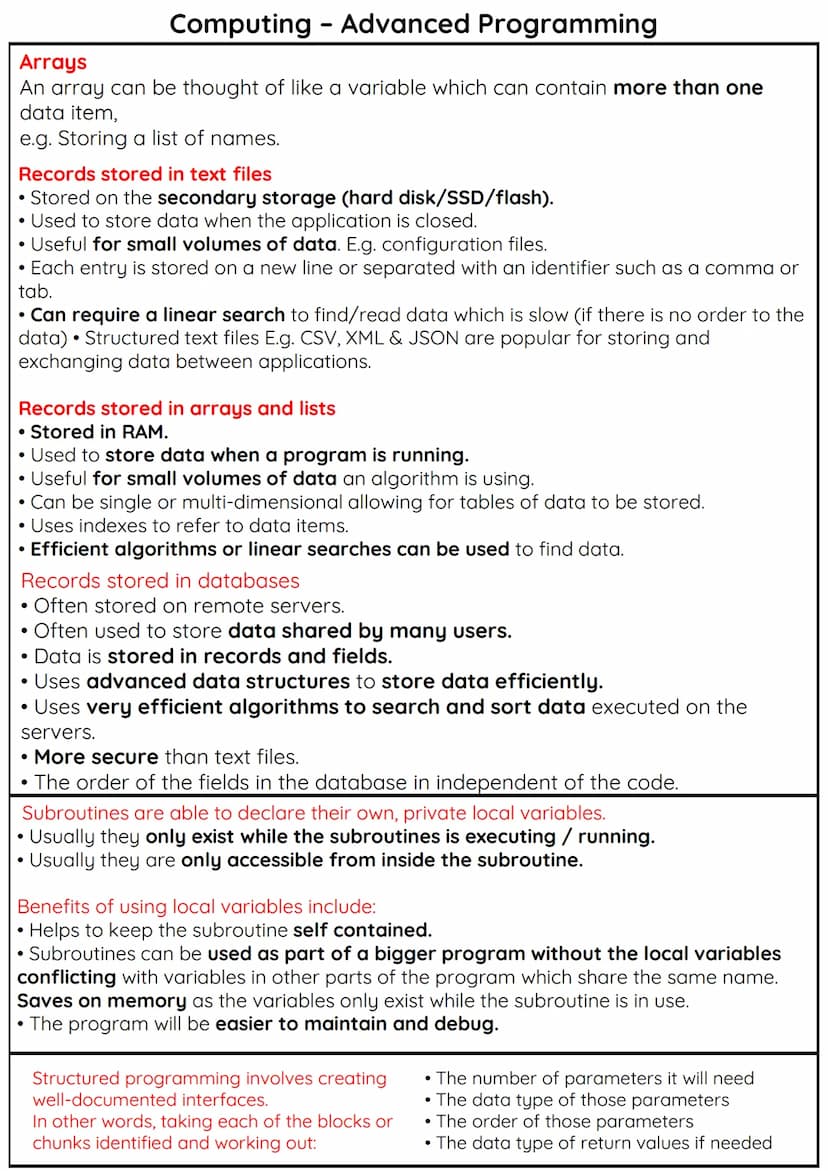

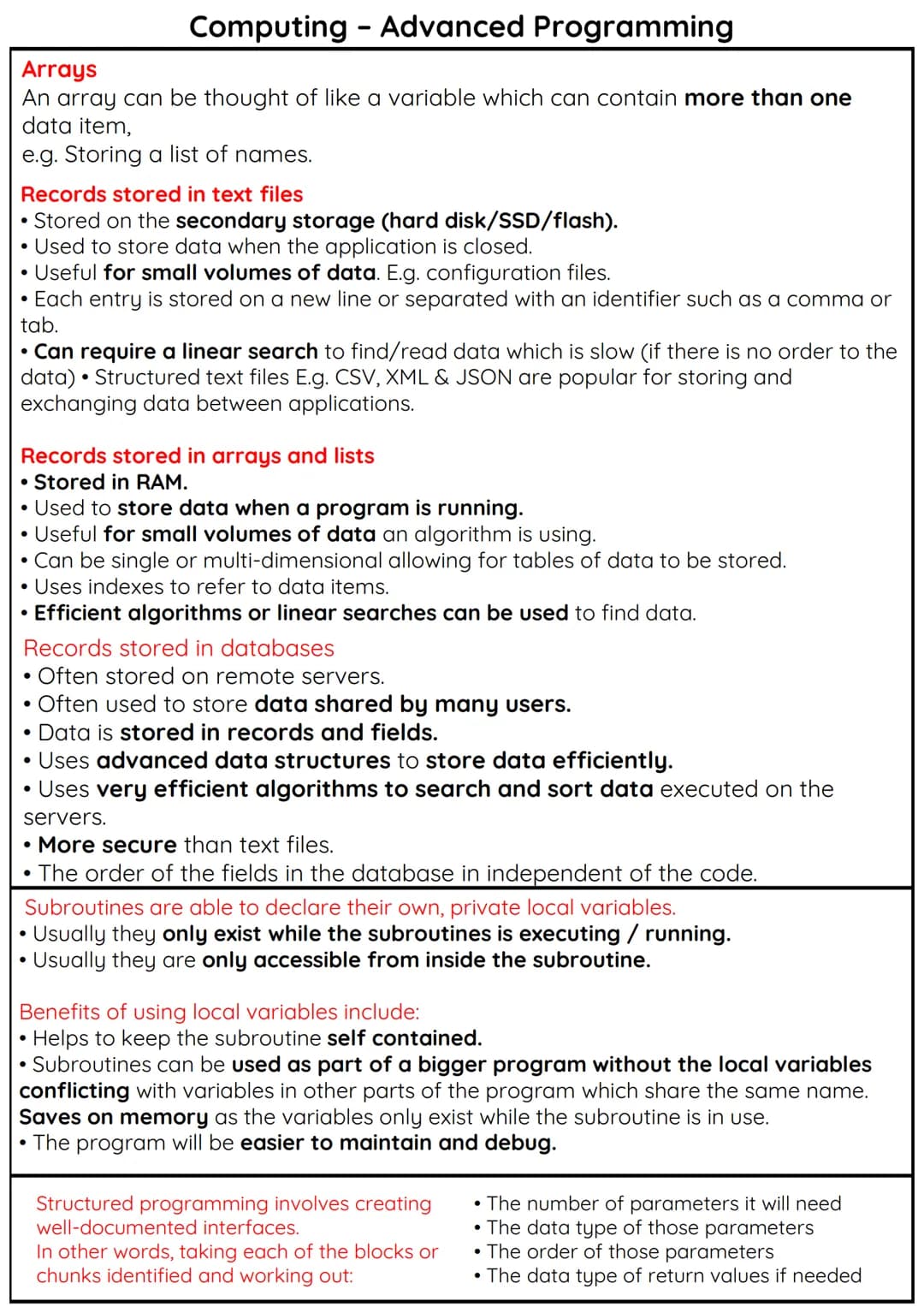

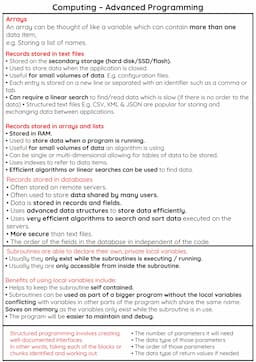

Advanced Programming Concepts and Data Storage

Data storage and management are crucial aspects of advanced programming. Arrays provide a structured way to store multiple related data items under a single variable name, essential for efficient data manipulation. This topic is frequently covered in AQA GCSE Computer Science revision notes.

Definition: An array is a data structure consisting of a collection of elements, each identified by an index or key.

Different storage methods serve various purposes in programming. Text files offer simple persistent storage, while arrays and lists provide quick access to data during program execution. Databases offer sophisticated data management capabilities, including efficient searching, sorting, and multi-user access.

Local variables within subroutines enhance program modularity and memory efficiency. These variables exist only during subroutine execution and are accessible only within their defining subroutine, preventing naming conflicts and reducing memory usage. Structured programming emphasizes clear interface definitions, including parameter specifications and return value types.

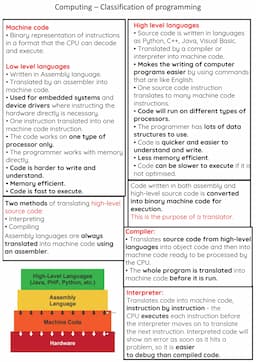

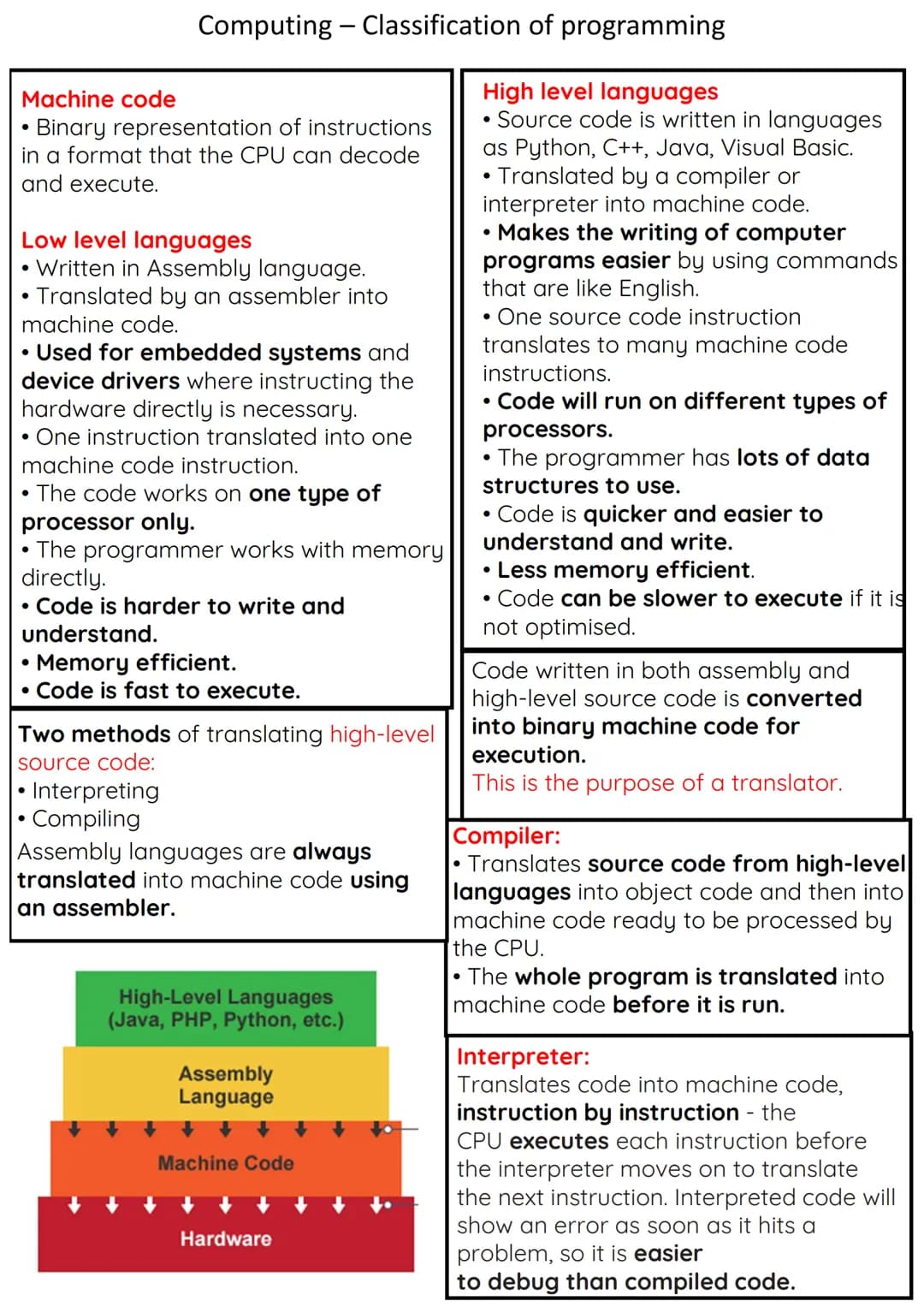

Understanding Programming Languages and Translation

Programming languages exist at different levels of abstraction, each serving specific purposes in computer systems. Python Programming represents one of many high-level languages that make coding more accessible to humans.

Machine code forms the foundation of all programming, consisting of binary instructions that CPUs directly execute. Low-level assembly language provides a human-readable representation of machine code, translated by assemblers for tasks requiring direct hardware control. This is particularly important in embedded systems and device drivers where precise hardware manipulation is necessary.

High-level languages like Python, Java, and C++ offer greater abstraction and productivity. These languages use English-like commands and are converted to machine code through either compilation or interpretation. While high-level code may execute more slowly and use more memory than low-level alternatives, it's significantly easier to write and maintain.

Definition: Machine code is the binary representation of instructions that a CPU can directly decode and execute.

Highlight: Two main methods translate high-level code to machine code:

• Compilers: Convert entire programs at once
• Interpreters: Translate and execute code line-by-line

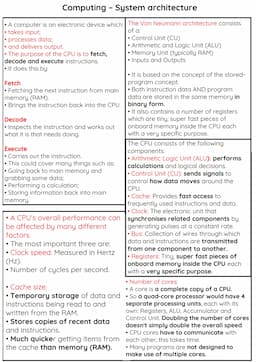

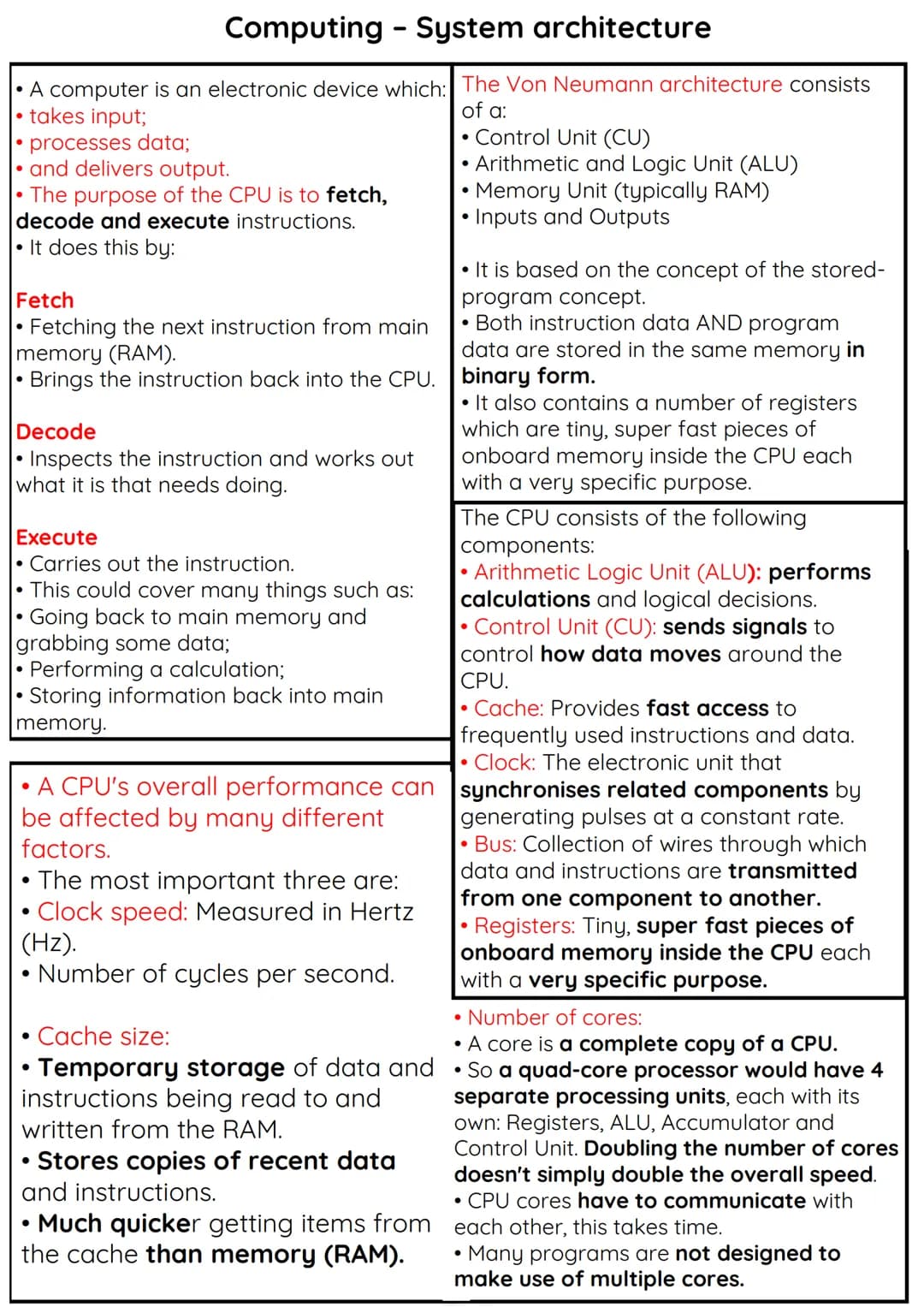

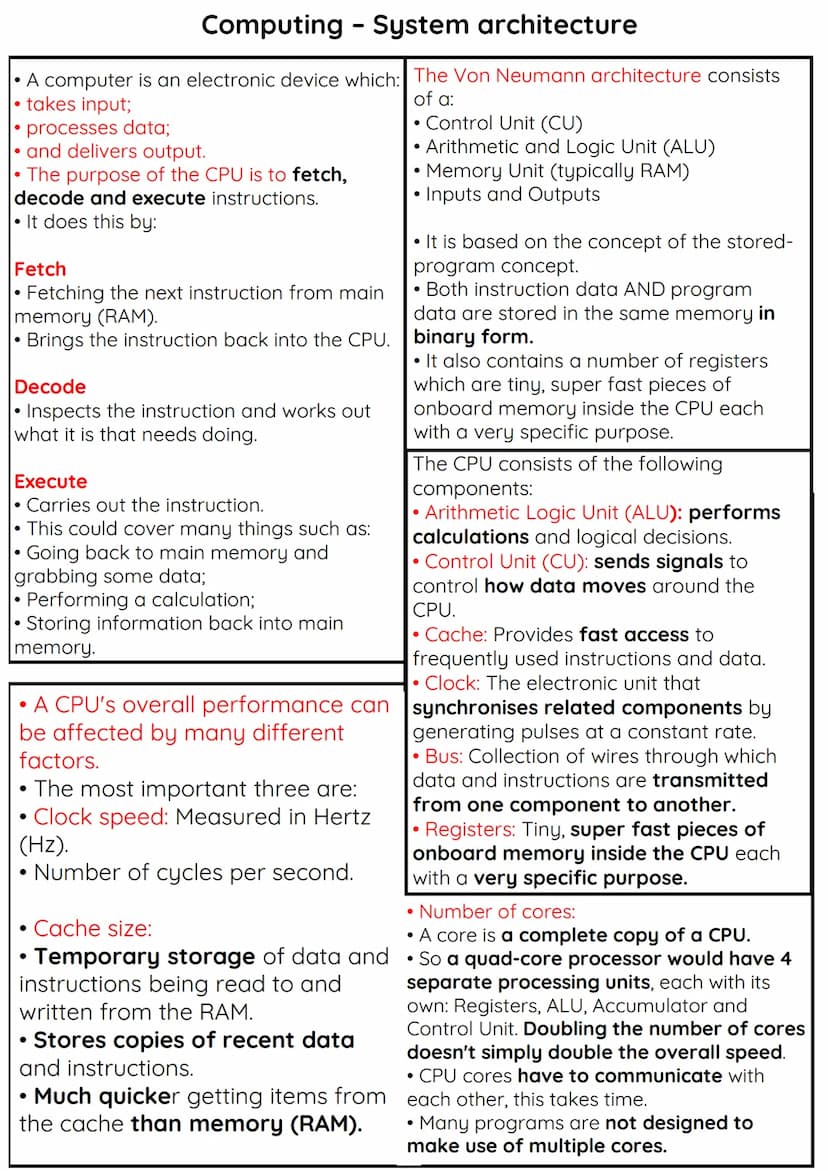

Computer System Architecture and CPU Components

The Von Neumann architecture forms the backbone of modern computing systems, incorporating key components that work together to process data. This fundamental design includes the Control Unit (CU), Arithmetic Logic Unit (ALU), memory unit, and input/output systems.

The CPU's fetch-decode-execute cycle represents the core of program execution. During this process, instructions are retrieved from memory, decoded to determine required actions, and executed to perform computations or data manipulation. This cycle repeats continuously as programs run.

CPU performance depends on several crucial factors. Clock speed, measured in Hertz, determines how many cycles occur per second. Cache size affects how quickly the CPU can access frequently used data and instructions. The number of cores enables parallel processing, though program design affects how effectively multiple cores can be utilized.

Vocabulary: Key CPU components include:

• Control Unit: Manages instruction flow
• ALU: Performs calculations and logical operations
• Cache: Fast temporary storage
• Registers: Small, high-speed memory locations
• Clock: Synchronizes operations

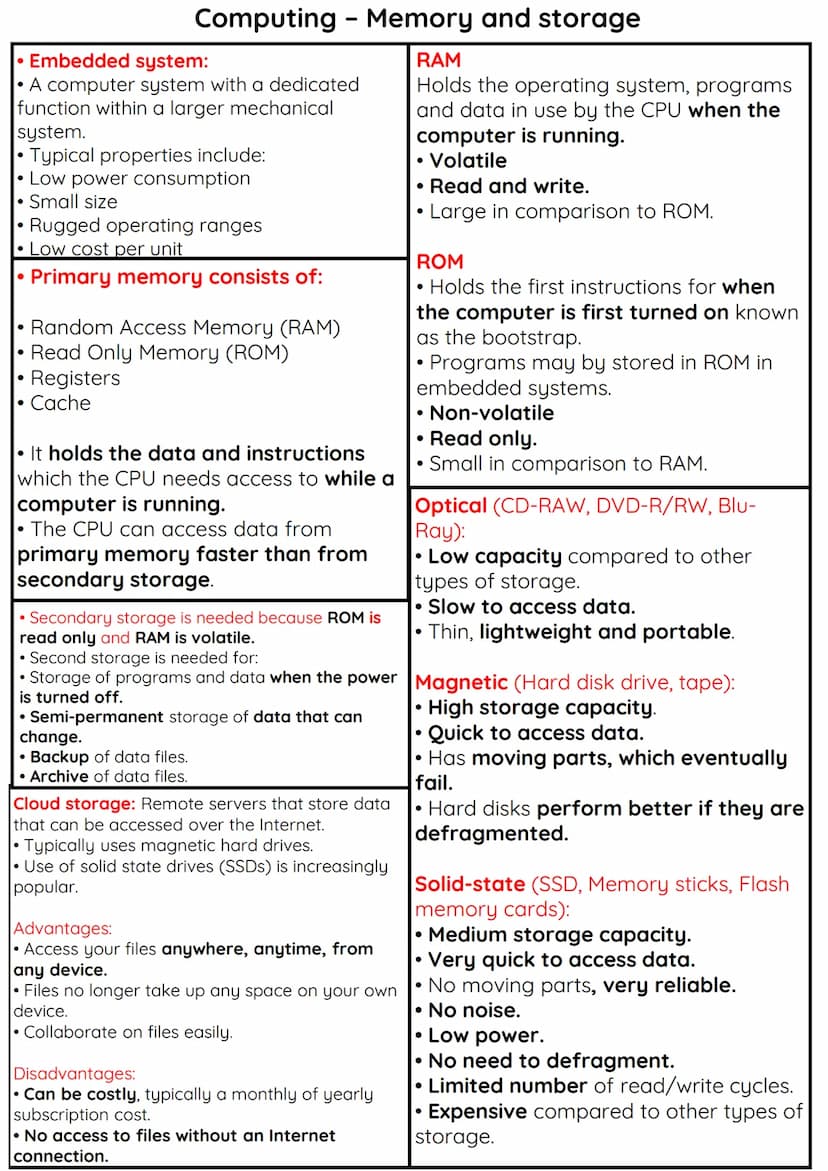

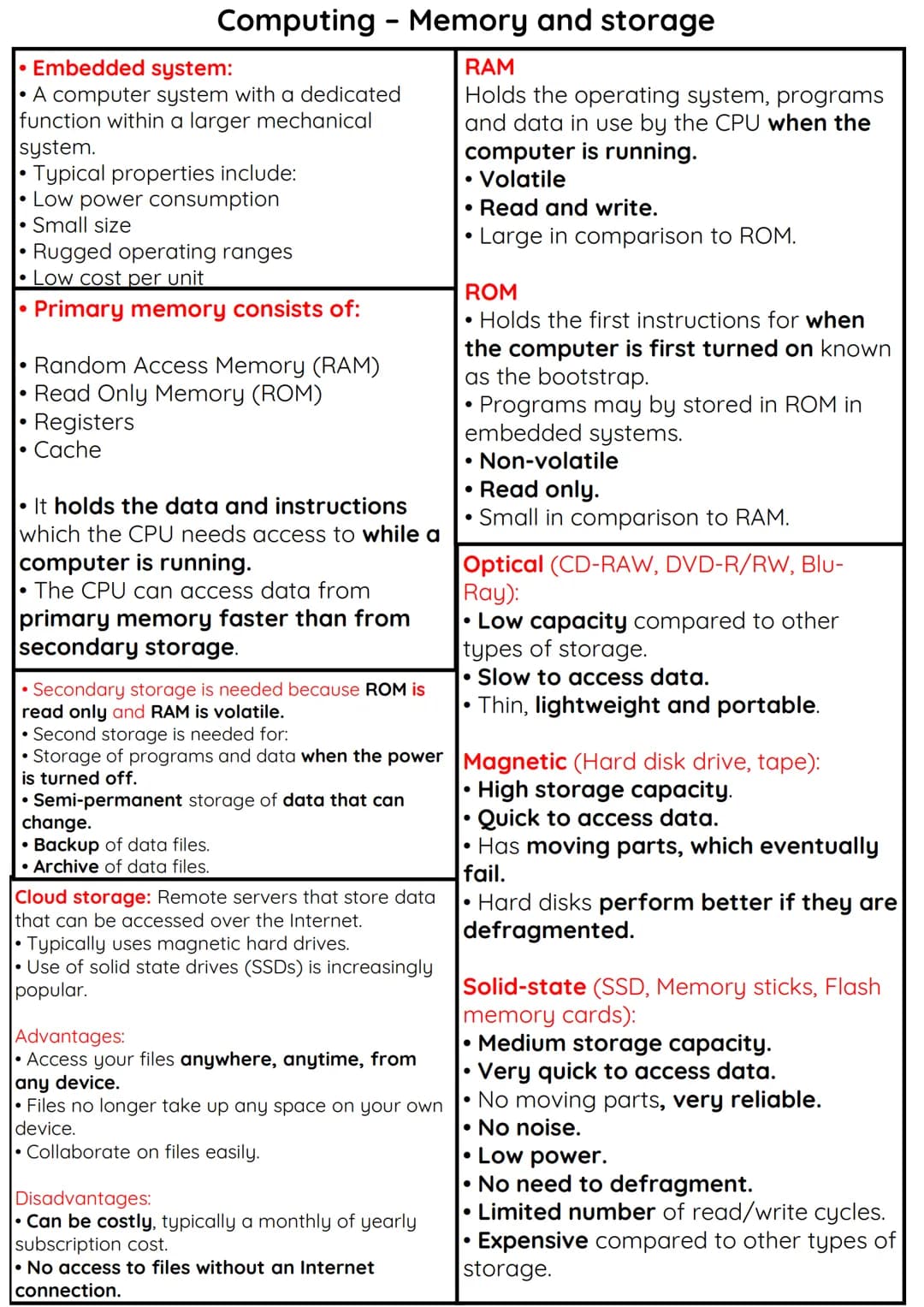

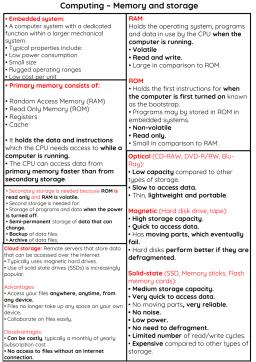

Memory Systems and Storage Technologies

Computer memory systems form a hierarchy that balances speed, capacity, and cost. Primary memory consists of RAM (Random Access Memory) and ROM (Read-Only Memory), each serving distinct purposes in system operation.

RAM provides volatile storage for active programs and data, allowing quick access by the CPU. ROM contains permanent instructions, including the bootstrap program that initializes the system at startup. Secondary storage offers permanent data retention through various technologies including magnetic, optical, and solid-state devices.

Cloud storage has emerged as a flexible solution for data management, offering remote access and collaboration capabilities. However, it requires internet connectivity and typically involves subscription costs. Local storage options continue to evolve, with SSDs gaining popularity for their speed and reliability despite higher costs per gigabyte.

Example: Storage technology comparison:

• Magnetic drives: High capacity, mechanical limitations
• Solid-state drives: Fast access, limited write cycles
• Optical media: Portable but lower capacity
• Cloud storage: Flexible access, requires internet

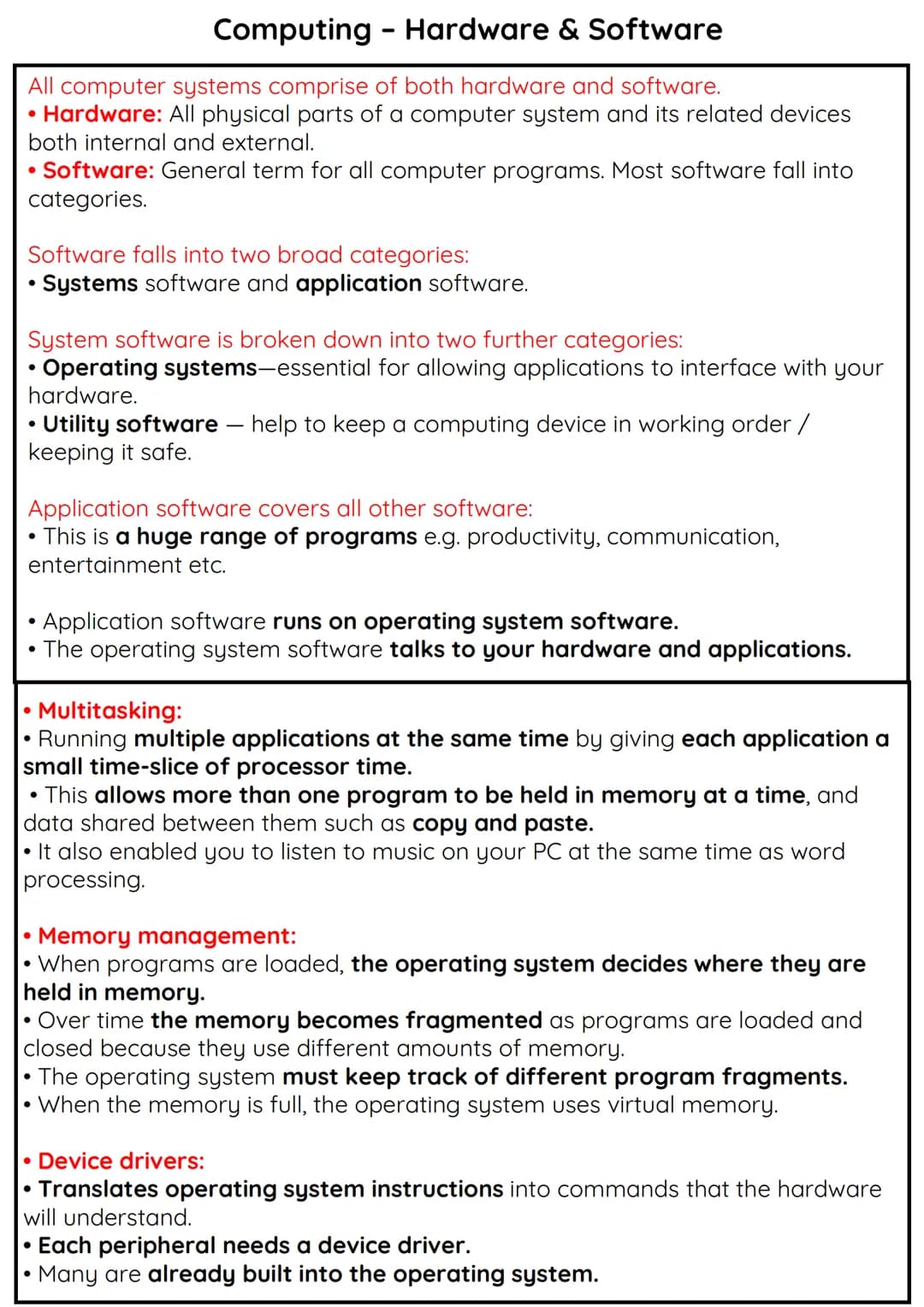

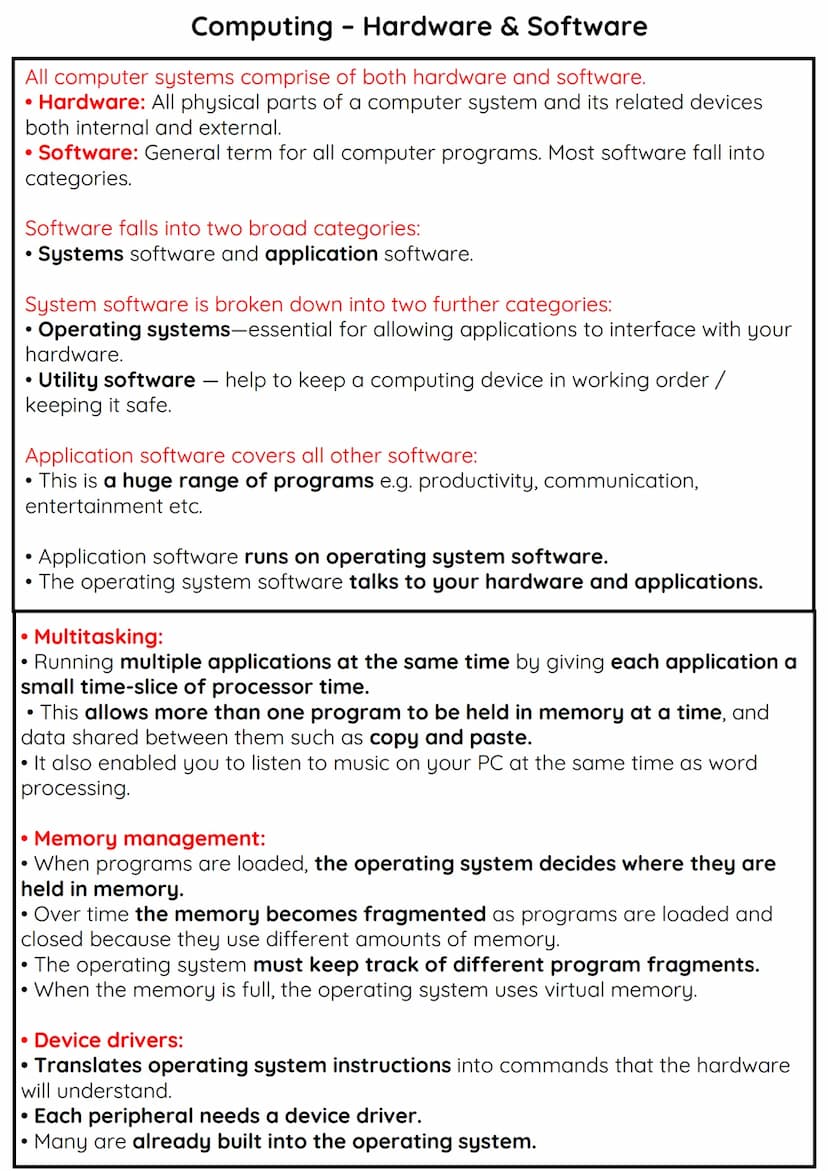

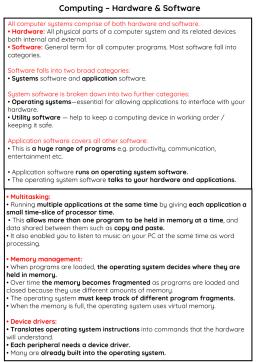

Hardware, Software, and Operating Systems

Computer systems integrate hardware components with software to create functional computing environments. The relationship between hardware and software is managed by the operating system, which provides essential services and resource management.

Operating systems handle crucial tasks including multitasking, memory management, and device driver coordination. These functions enable multiple applications to run simultaneously while managing system resources efficiently. Virtual memory extends available RAM by using secondary storage when physical memory becomes full.

Application software runs on top of the operating system layer, providing specific functionality for users. This includes productivity tools, communication software, and entertainment applications. The operating system mediates between applications and hardware, ensuring proper resource allocation and system stability.

Definition: Operating system functions include:

• Multitasking management
• Memory allocation and virtual memory
• Device driver coordination
• User interface provision
• Security management

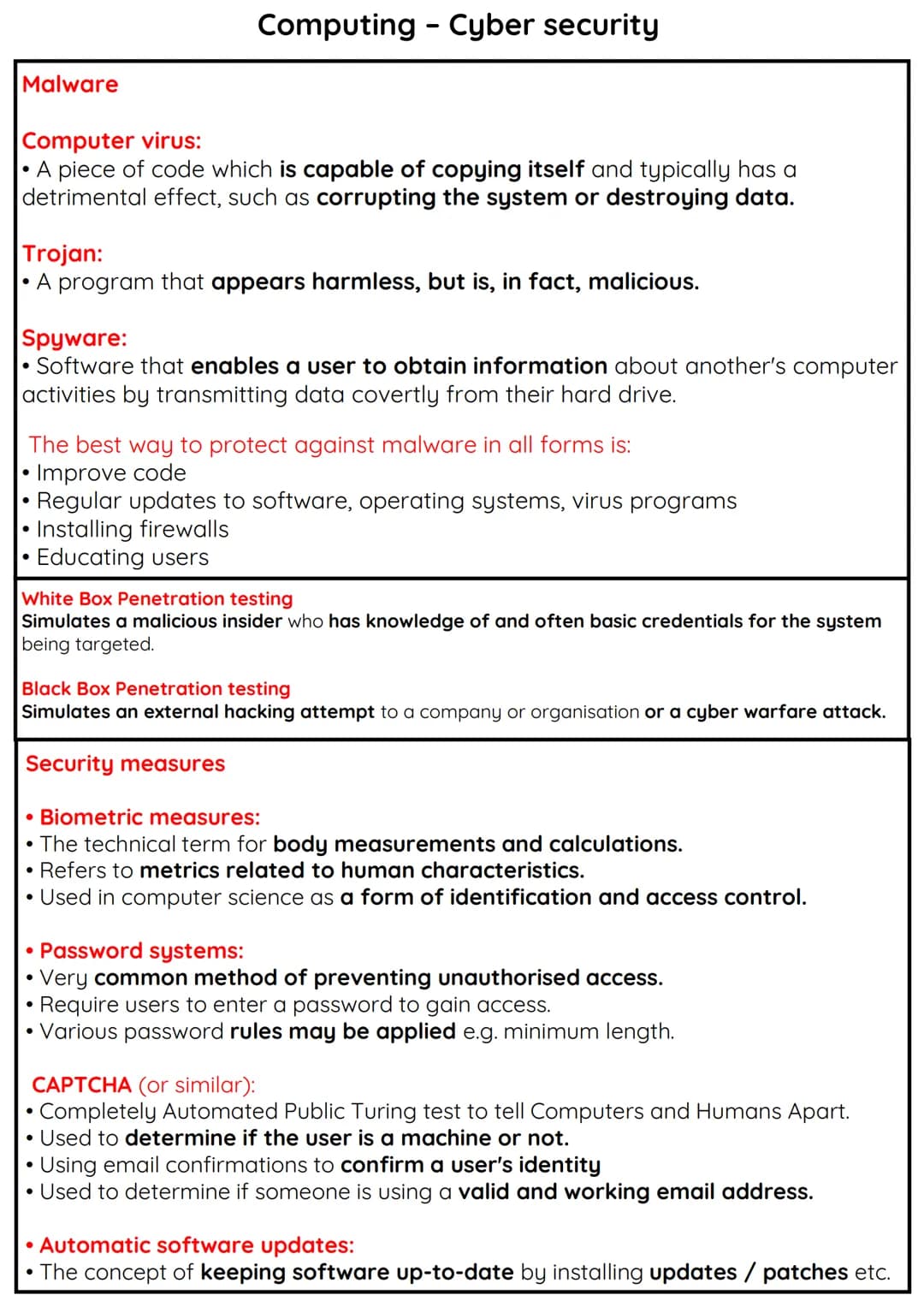

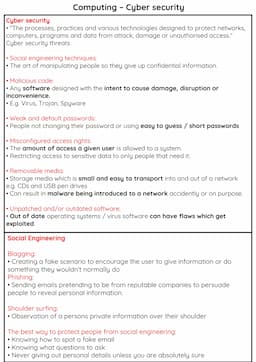

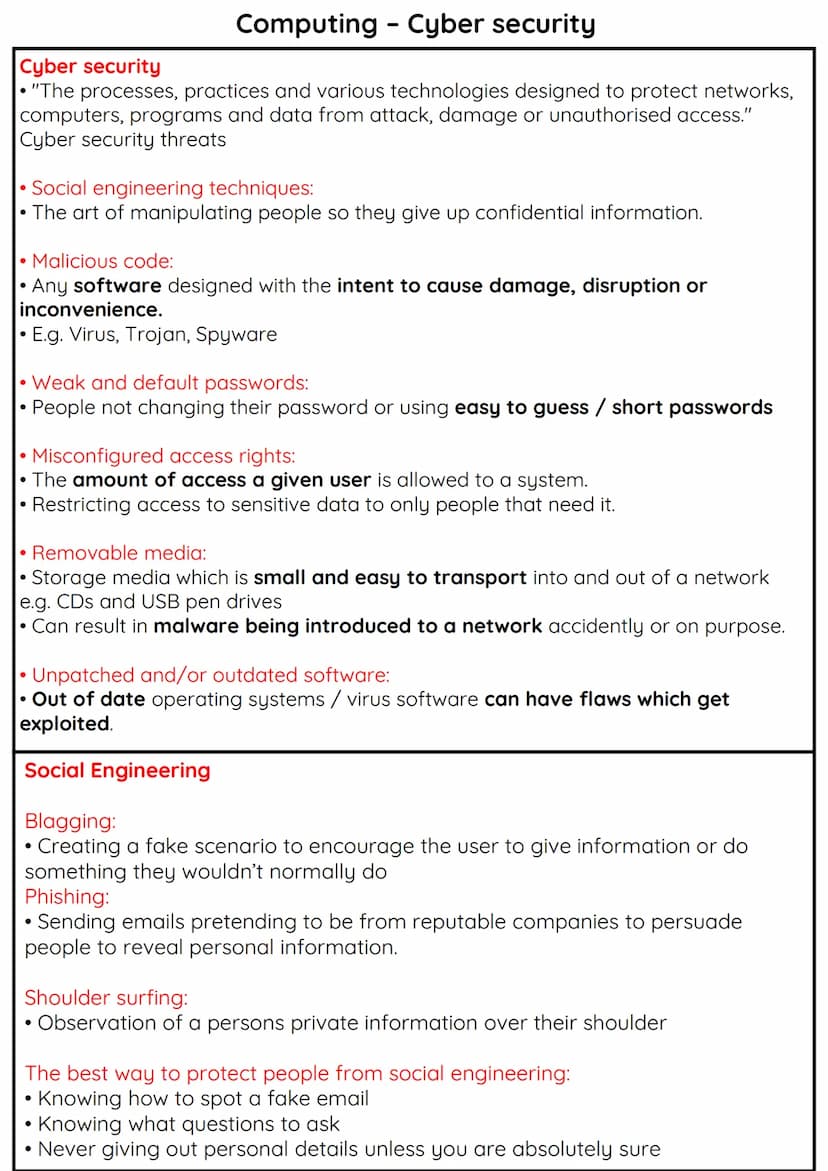

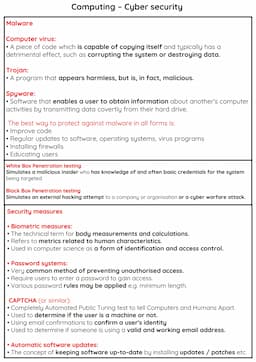

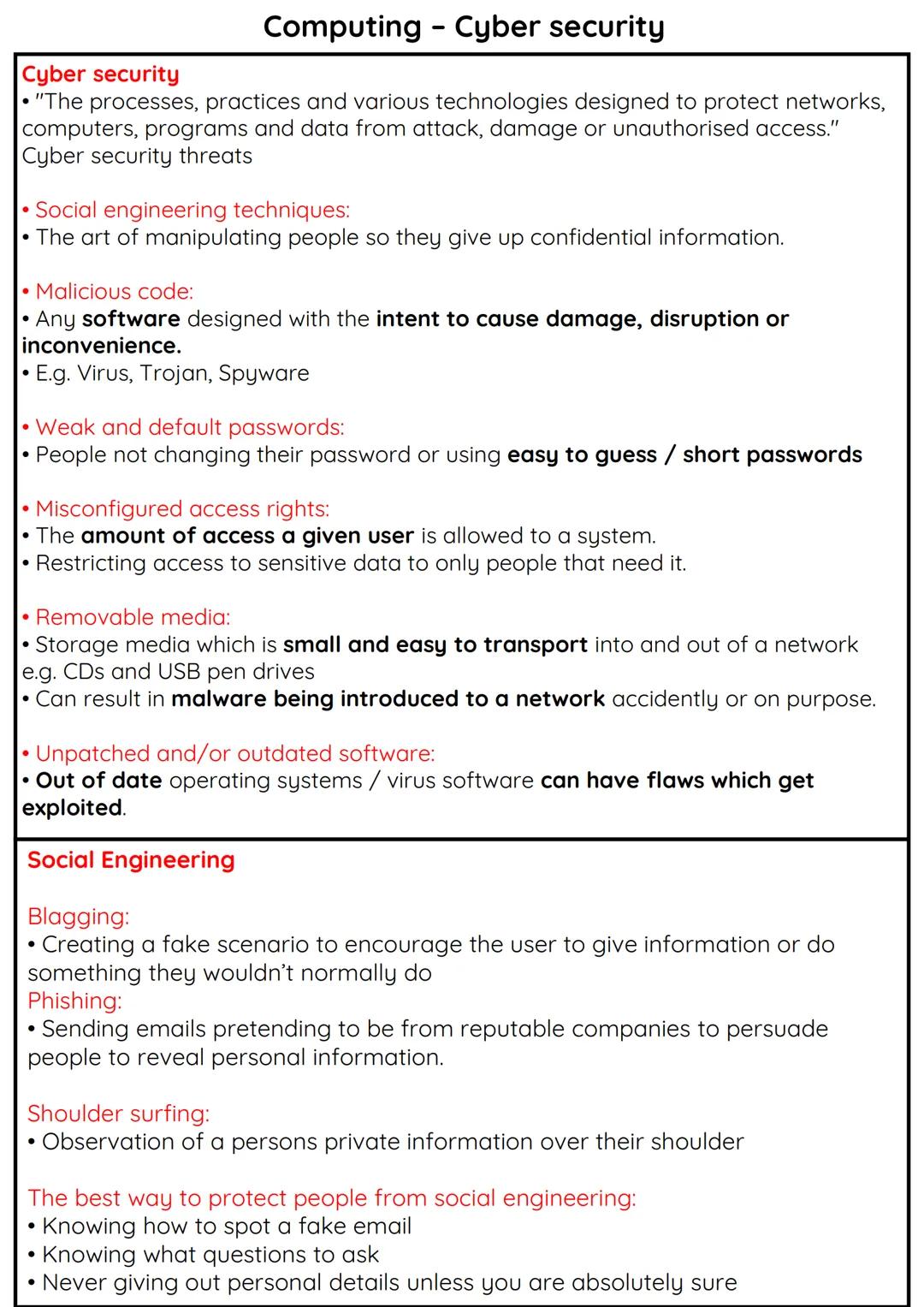

Understanding Malware and Cybersecurity Measures in Computer Science

Malware represents one of the most significant threats in modern computing systems, requiring comprehensive understanding for effective protection. Python Programming and cybersecurity knowledge are essential for developing robust defense mechanisms against various types of malicious software.

Computer viruses function as self-replicating code that can spread across systems and networks, causing data corruption and system damage. Unlike simple programs covered in AQA GCSE Computer Science Paper 1, viruses possess sophisticated mechanisms for reproduction and concealment. Trojans present a particularly deceptive threat, masquerading as legitimate software while harboring malicious capabilities that can compromise system security.

Definition: Spyware is specialized malware designed to covertly gather information from a target computer system, transmitting sensitive data without user authorization or knowledge.

Protection against malware requires a multi-layered approach combining technical solutions and user awareness. This includes implementing regular software updates, maintaining current antivirus protection, and establishing robust firewall systems. These concepts are thoroughly covered in Complete AQA GCSE Computer Science Revision Notes PDF, providing essential knowledge for understanding cybersecurity fundamentals.

Highlight: Security testing methodologies like White Box and Black Box Penetration Testing simulate different attack scenarios to identify system vulnerabilities. White Box testing mimics insider threats with system knowledge, while Black Box testing replicates external attack attempts.

Advanced Security Measures and Authentication Systems

Modern cybersecurity relies heavily on sophisticated authentication methods and continuous system protection. These concepts form a crucial part of Data Representation Computer Science A Level studies, demonstrating the evolution of security measures in response to emerging threats.

Biometric security represents an advanced approach to access control, utilizing unique human characteristics for identification. This technology, extensively covered in AQA GCSE Computer Science Paper 1 and 2 Study Guide PDF, provides more reliable authentication compared to traditional methods.

Example: CAPTCHA (Completely Automated Public Turing test to tell Computers and Humans Apart) systems represent an innovative approach to preventing automated system access. These tests can include image recognition, text interpretation, or puzzle-solving tasks that machines typically struggle to complete accurately.

Password systems remain fundamental to digital security, though they've evolved significantly. Modern password requirements incorporate complexity rules, minimum length requirements, and regular change policies. This topic is thoroughly explored in AQA GCSE Computer Science Questions by Topic, providing practical examples of implementation and best practices.

Vocabulary: Automatic software updates serve as a critical security measure, ensuring systems maintain current protection against newly discovered vulnerabilities and threats. This process includes patch management and regular system maintenance protocols.
