Understanding System Architecture: The CPU and Embedded Systems

Report
H
Hannah Crowley @annahrowley_sqarhqzr
Ever wondered what makes your computer actually work? The CPU (Central Processing Unit) is basically the brain of your computer that processes everything you do. Let's break down how this clever bit of tech manages to run all your apps, games, and programmes.
1.1 Systems Architechture and the CPU – page 1

Sign up to see the content.
It's free!

By signing up you accept Terms of Service and Privacy Policy

Systems Architecture and the CPU

The CPU is like your computer's control centre - it's constantly running the Fetch-Decode-Execute cycle to process all your data. Think of it as a super-fast worker that grabs instructions, figures out what they mean, then carries them out.

Inside the CPU, you've got several key components working together. The Control Unit (CU) acts like a traffic controller, managing timing and data flow whilst decoding instructions. The Arithmetic Logic Unit (ALU) handles all the maths and logical comparisons your computer needs to make.

Registers are tiny storage spaces that hold one piece of information (64 bits). The most important ones include the Program Counter (PC) which tracks the next instruction to run, the Memory Address Register (MAR) that stores memory locations, and the Accumulator (ACC) which holds calculation results.

Quick Tip: Think of registers like your desk drawers - small spaces where you keep the stuff you need right now for easy access!

The Von Neumann Architecture is the blueprint that most computers follow, where instructions and data share the same memory space. There's also cache memory - super-fast storage that keeps frequently used data close to the processor.

1.1 Systems Architechture and the CPU – page 2

Sign up to see the content.
It's free!

By signing up you accept Terms of Service and Privacy Policy

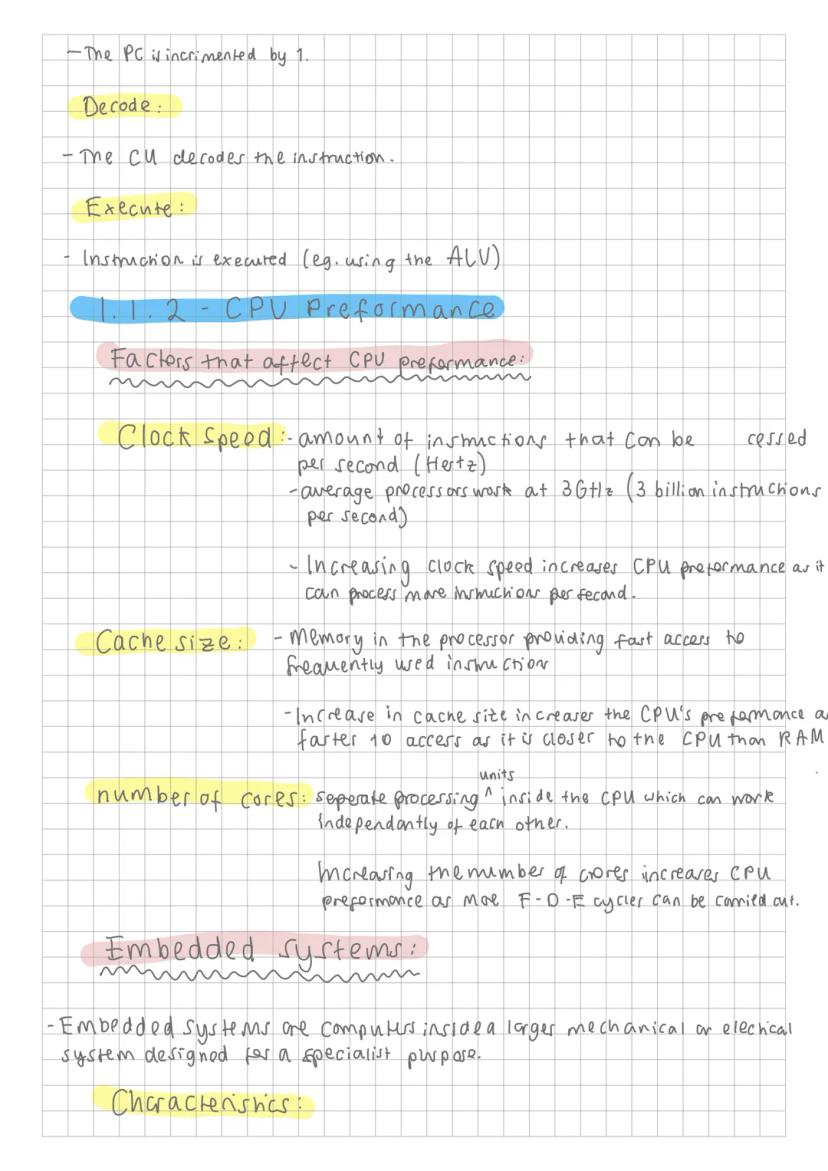

The Fetch-Decode-Execute Cycle and CPU Performance

The Fetch-Decode-Execute cycle is surprisingly straightforward. First, the address from the program counter gets copied to the MAR, then the instruction is fetched to the MDR, and the PC increases by 1. Next, the control unit decodes what the instruction actually means. Finally, the instruction gets executed (often using the ALU).

CPU performance depends on three main factors that you'll definitely need to know. Clock speed measures how many instructions can be processed per second (measured in Hertz) - average processors work at about 3GHz, meaning 3 billion instructions per second!

Cache size matters because it's memory stored right in the processor, giving lightning-fast access to frequently used instructions. The bigger the cache, the less time the CPU wastes waiting for data from slower RAM.

Remember: More cores = more parallel processing power, but only if your software can actually use multiple cores effectively!

Number of cores refers to separate processing units inside the CPU that can work independently. More cores mean more Fetch-Decode-Execute cycles can happen simultaneously, boosting performance for multitasking.

1.1 Systems Architechture and the CPU – page 3

Sign up to see the content.
It's free!

By signing up you accept Terms of Service and Privacy Policy

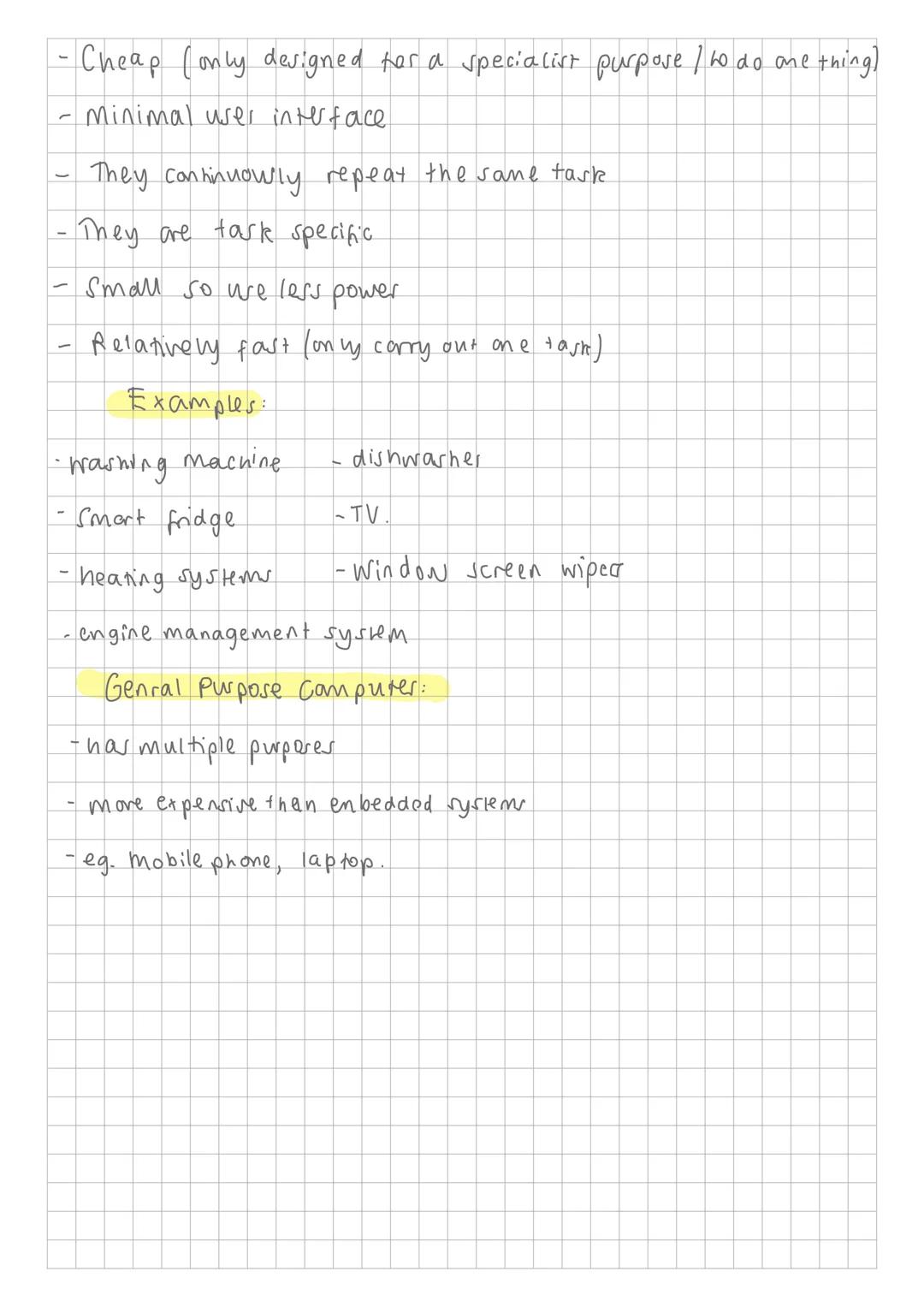

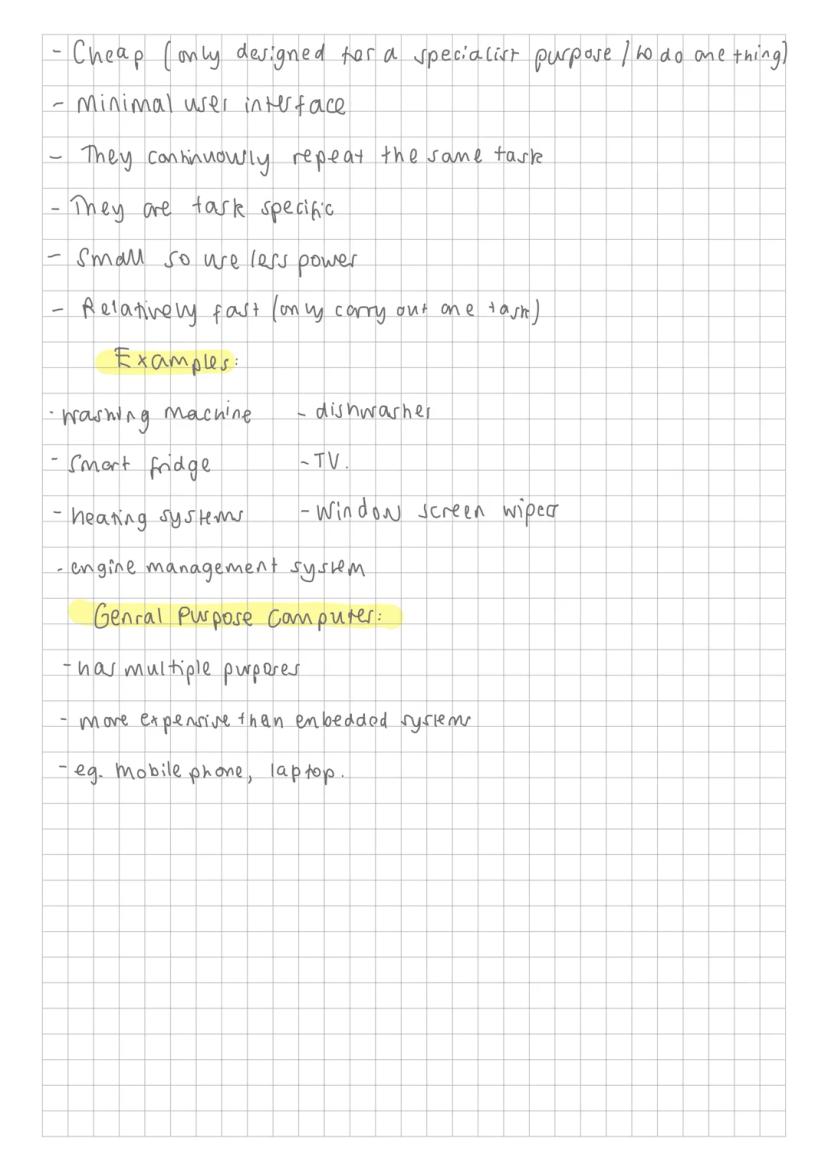

Embedded Systems vs General Purpose Computers

Embedded systems are specialised computers hidden inside everyday devices, designed for one specific job. They're everywhere - from your washing machine to your car's engine management system.

These systems have some brilliant characteristics that make them perfect for their jobs. They're cheap because they only need to do one thing well, have minimal user interfaces, and continuously repeat the same tasks. They're also small, use less power, and work relatively fast since they're not juggling multiple programmes.

You'll find embedded systems in loads of places: dishwashers, smart fridges, TVs, heating systems, windscreen wipers, and engine management systems. Each one is task-specific and built to excel at that particular function.

Real World Connection: Your smartphone actually contains multiple embedded systems (camera processor, GPS chip) alongside being a general-purpose computer!

General purpose computers are the complete opposite - they're designed to handle multiple tasks and purposes. Think laptops, desktop PCs, and smartphones. They're more expensive than embedded systems because they need the flexibility to run any software you throw at them, from games to word processors to video editing software.
