Physics practicals are your chance to get hands-on with real...
Physics124 views·Updated 20 Jun 2026·24 pagesGCSE AQA Physics Paper 1 & 2 Revision Guide
R
Rhea Jain@rheajain
1 / 10
1
of 10

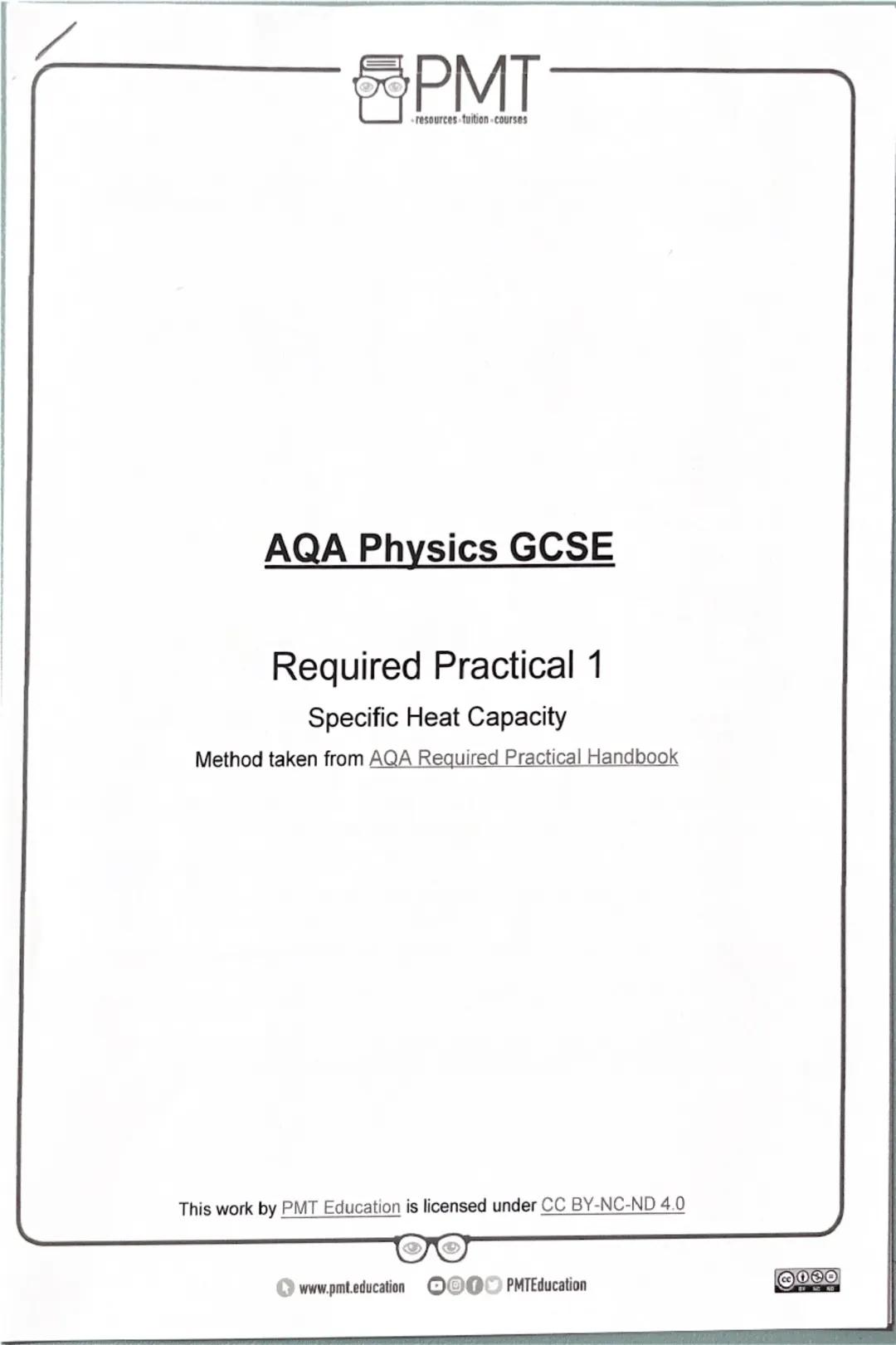

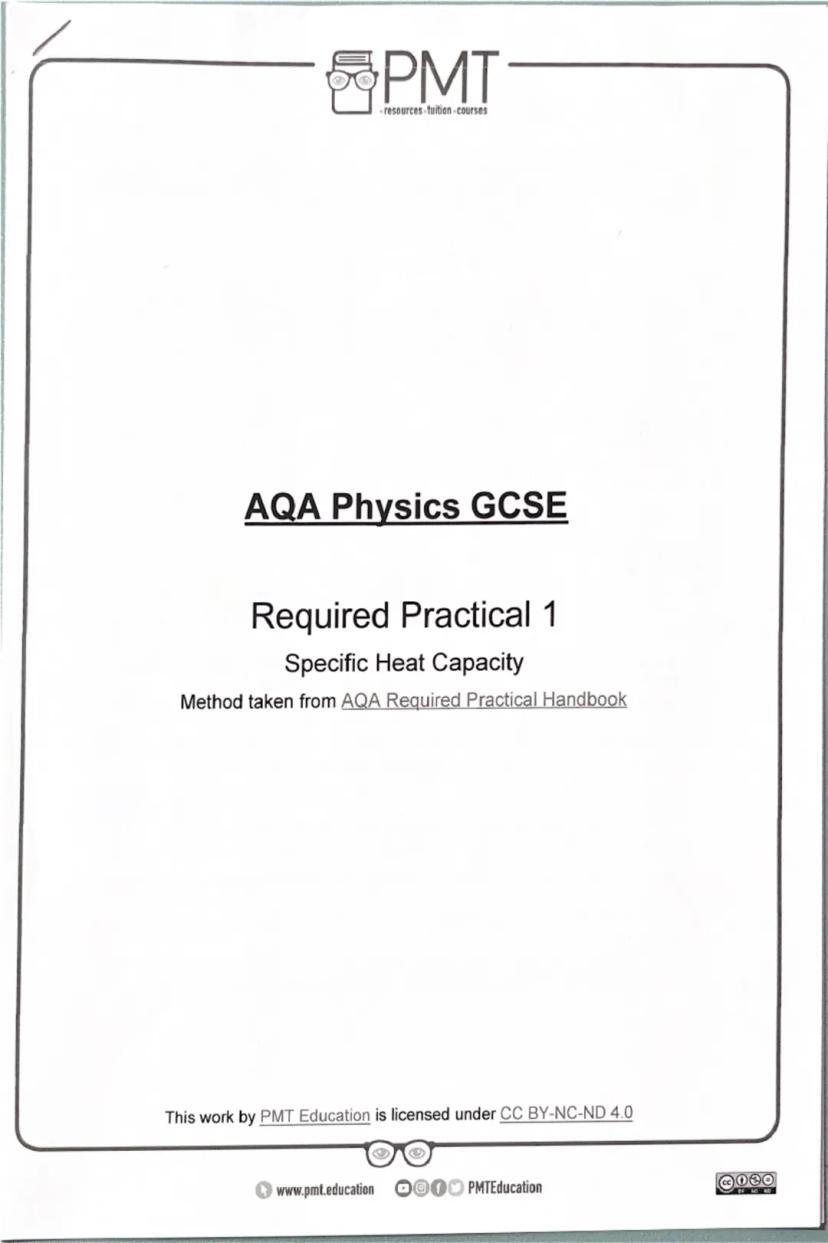

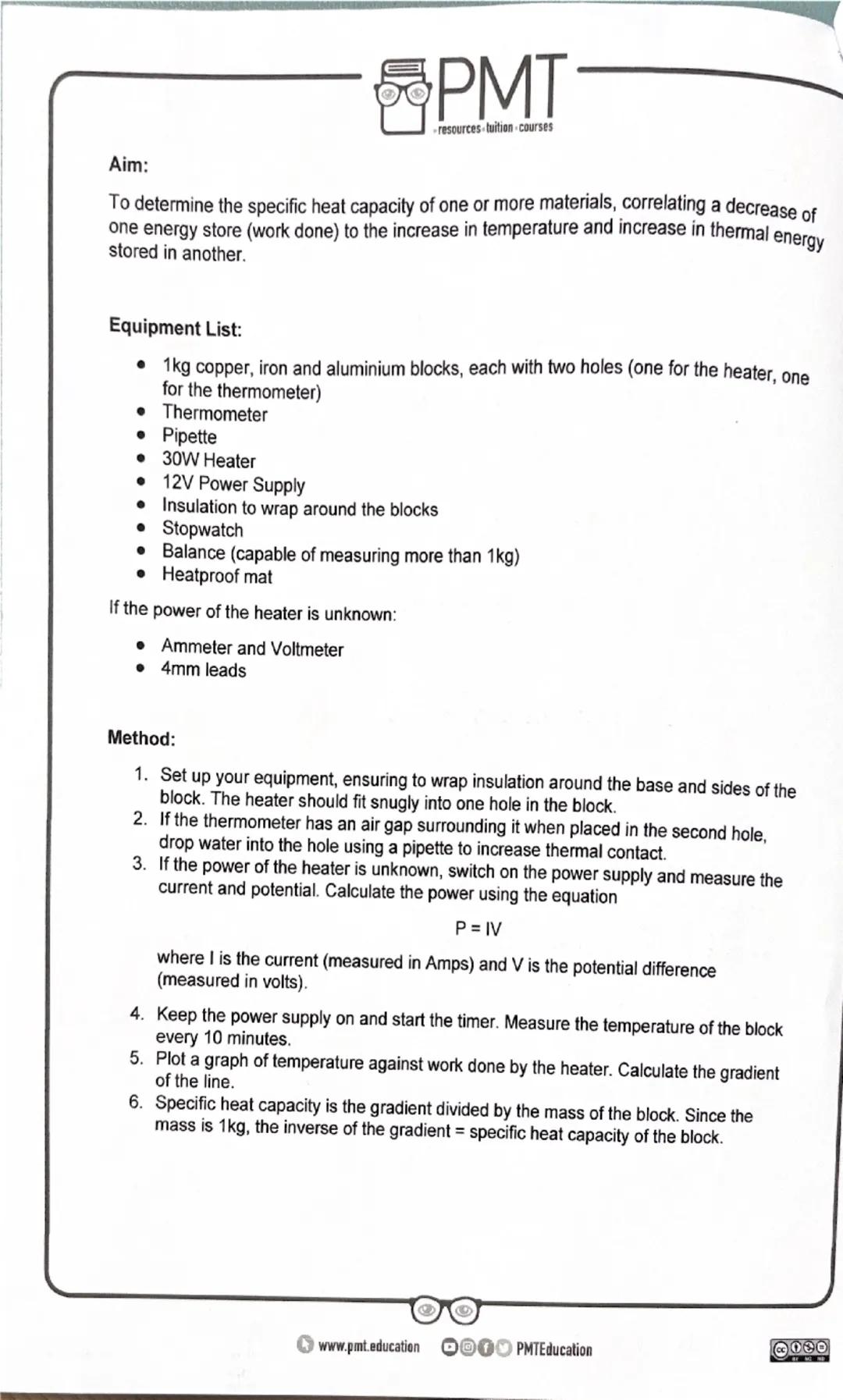

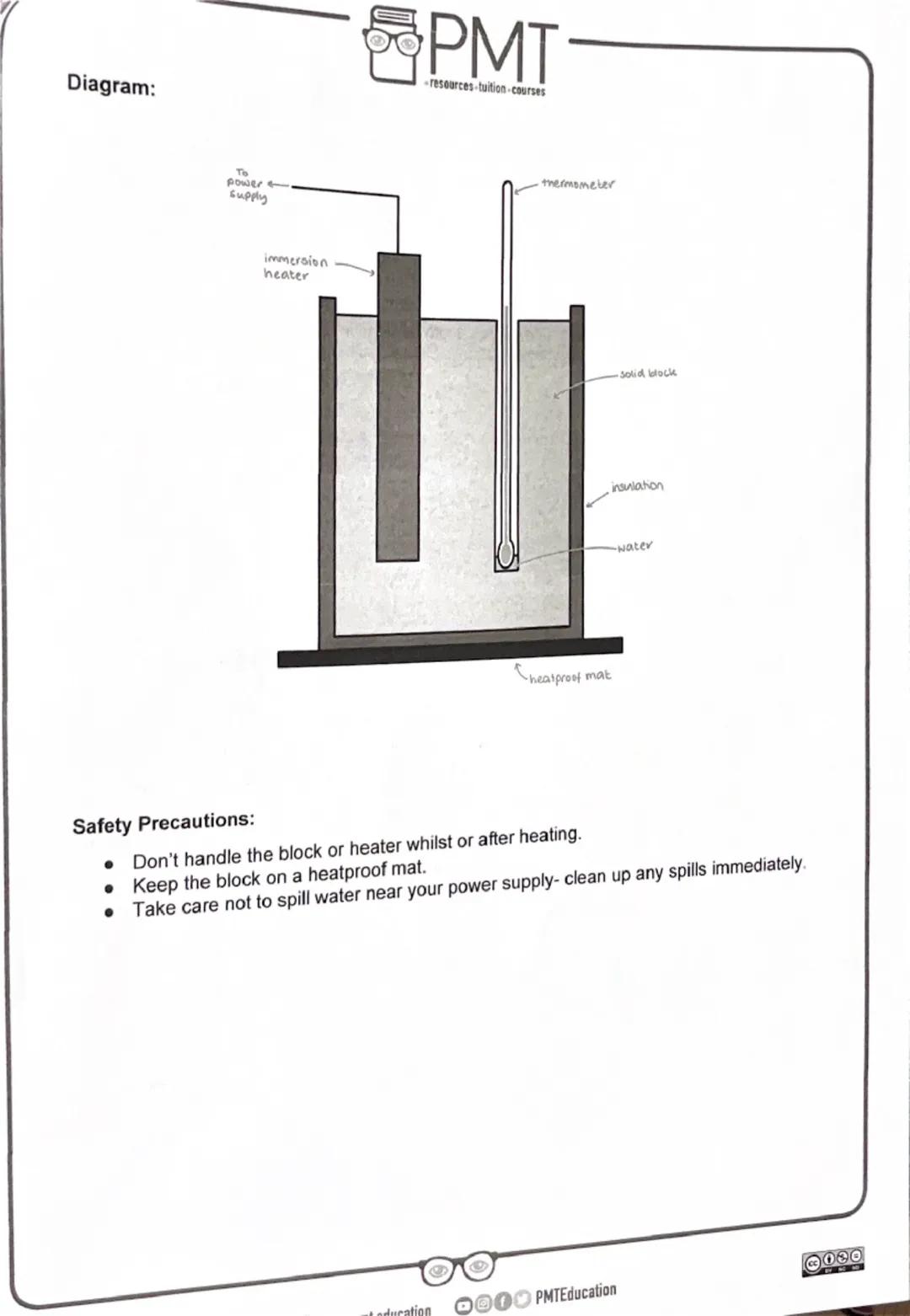

Required Practical 1: Specific Heat Capacity
Ever wondered why some materials heat up faster than others? Specific heat capacity tells us how much energy is needed to heat up 1kg of a material by 1°C. This practical helps you measure this property for different metals like copper, iron, and aluminium.
You'll use a 30W heater inserted into holes drilled in 1kg metal blocks, along with a thermometer to monitor temperature changes. The key is wrapping everything in insulation to prevent heat loss and using water in the thermometer hole to improve thermal contact.
The method involves heating the block whilst recording temperature every 10 minutes. You'll then plot temperature against work done by the heater and use the gradient to calculate specific heat capacity.
Top Tip: If you don't know the heater's power, measure current and voltage, then calculate power using P = IV. The specific heat capacity equals the inverse of your graph's gradient (since the mass is 1kg).
2
of 10

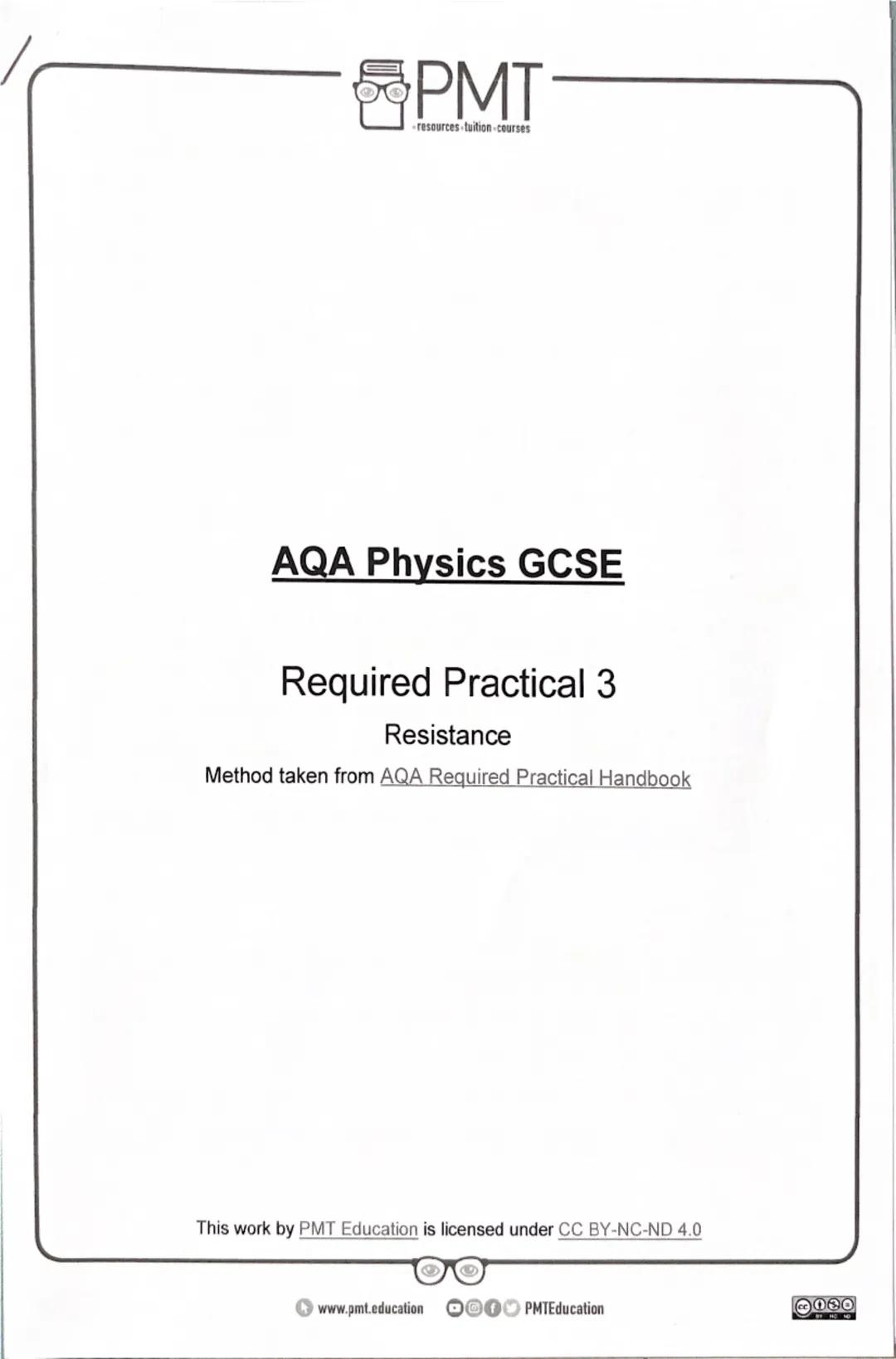

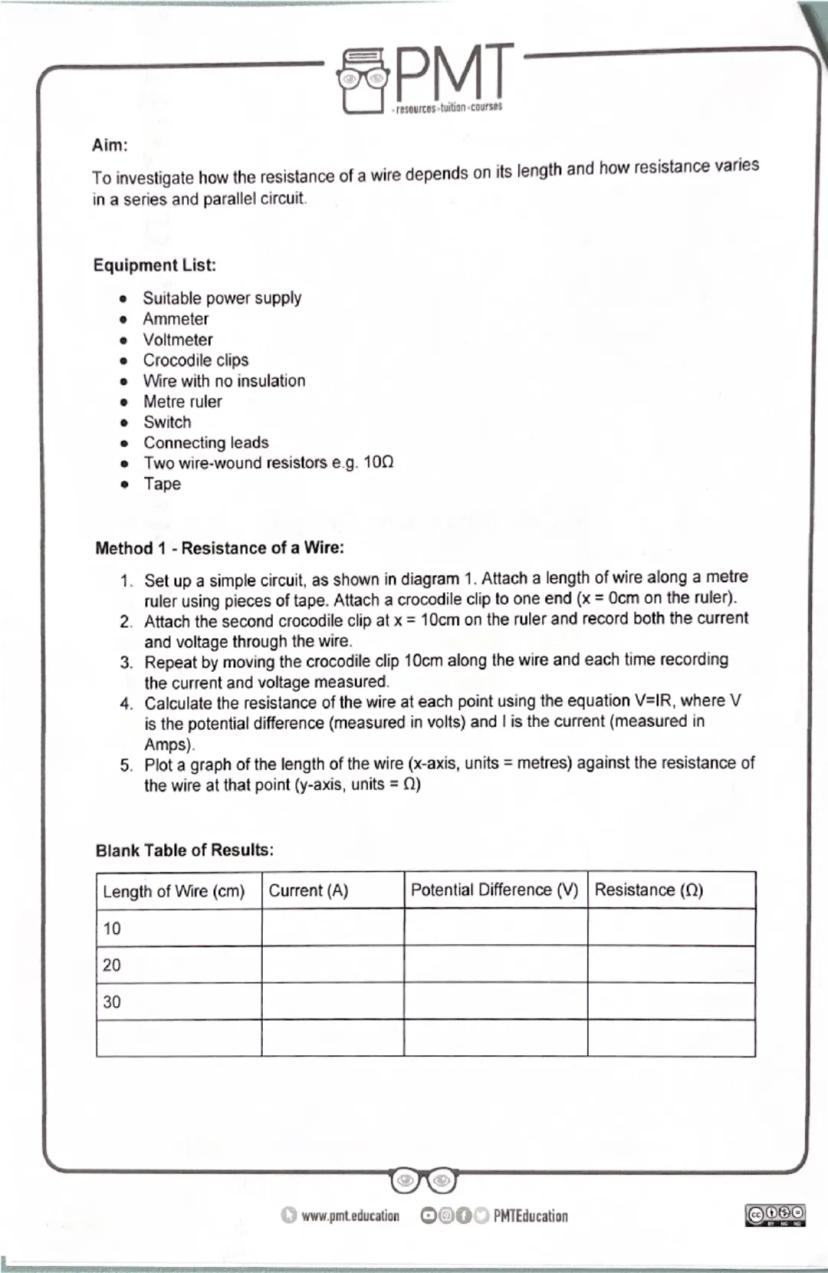

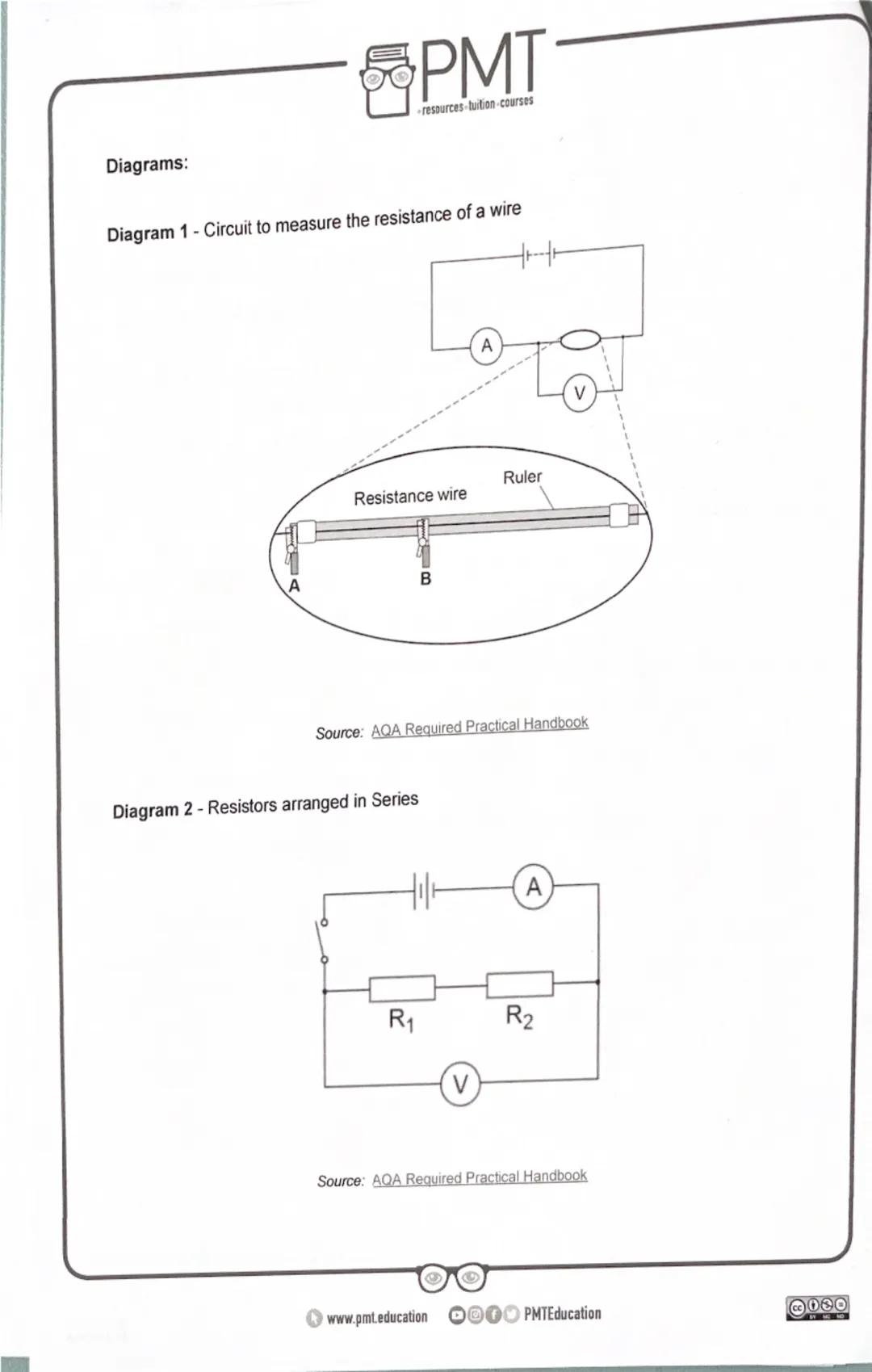

Required Practical 3: Resistance - Part 1 (Wire Length)
Understanding how resistance changes with wire length is crucial for designing electrical circuits. This practical proves that longer wires have higher resistance - something that affects everything from household wiring to phone chargers.
You'll set up a simple circuit with an uninsulated wire stretched along a metre ruler. Using crocodile clips, you'll measure current and voltage at 10cm intervals along the wire, then calculate resistance using V = IR at each point.
When you plot wire length against resistance, you'll get a straight line showing that resistance increases proportionally with length. This relationship is fundamental to understanding how electricity behaves in different materials.
Safety Alert: The wire gets hot during the experiment, so never touch it whilst current is flowing. Always switch off between measurements.
3
of 10

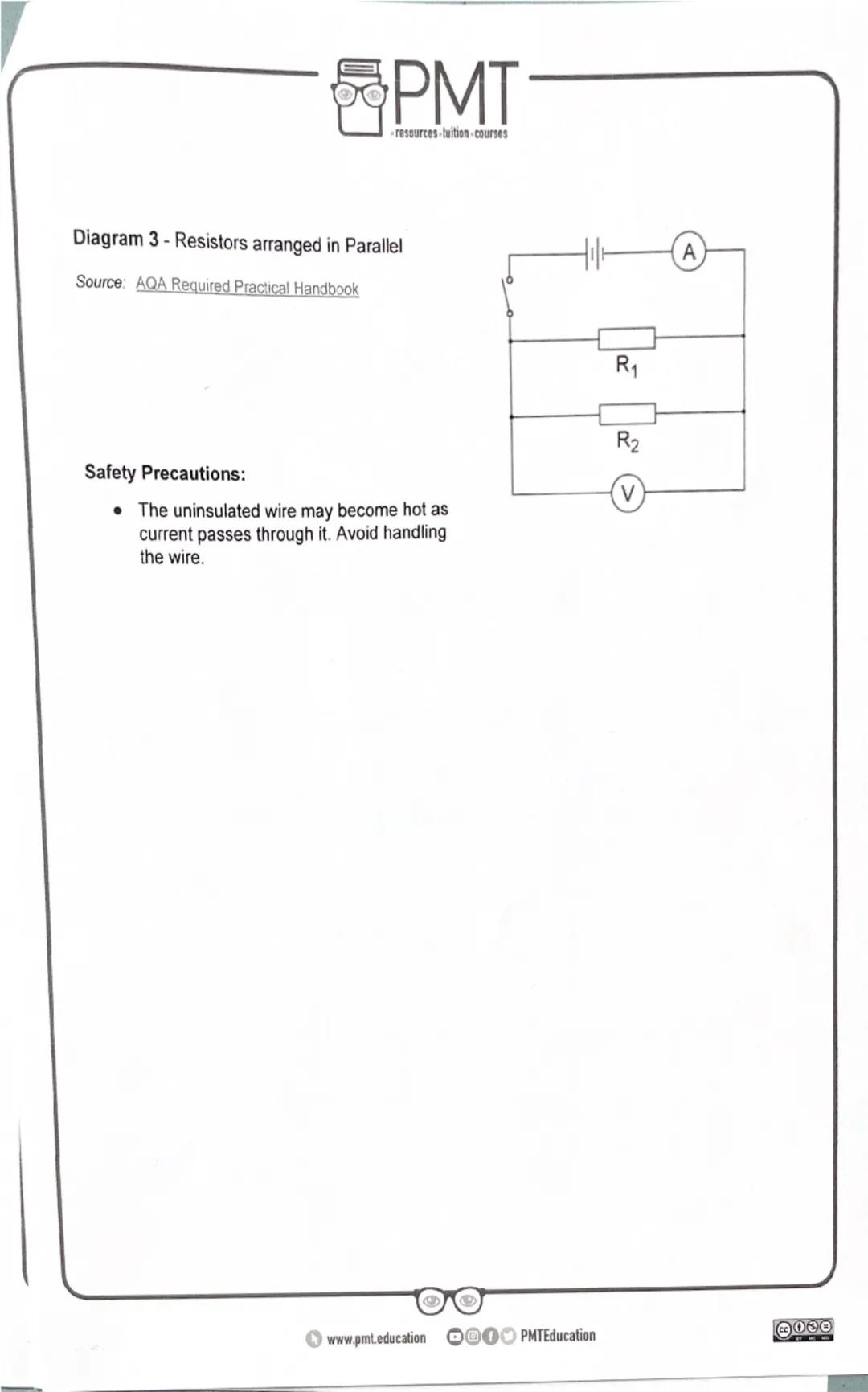

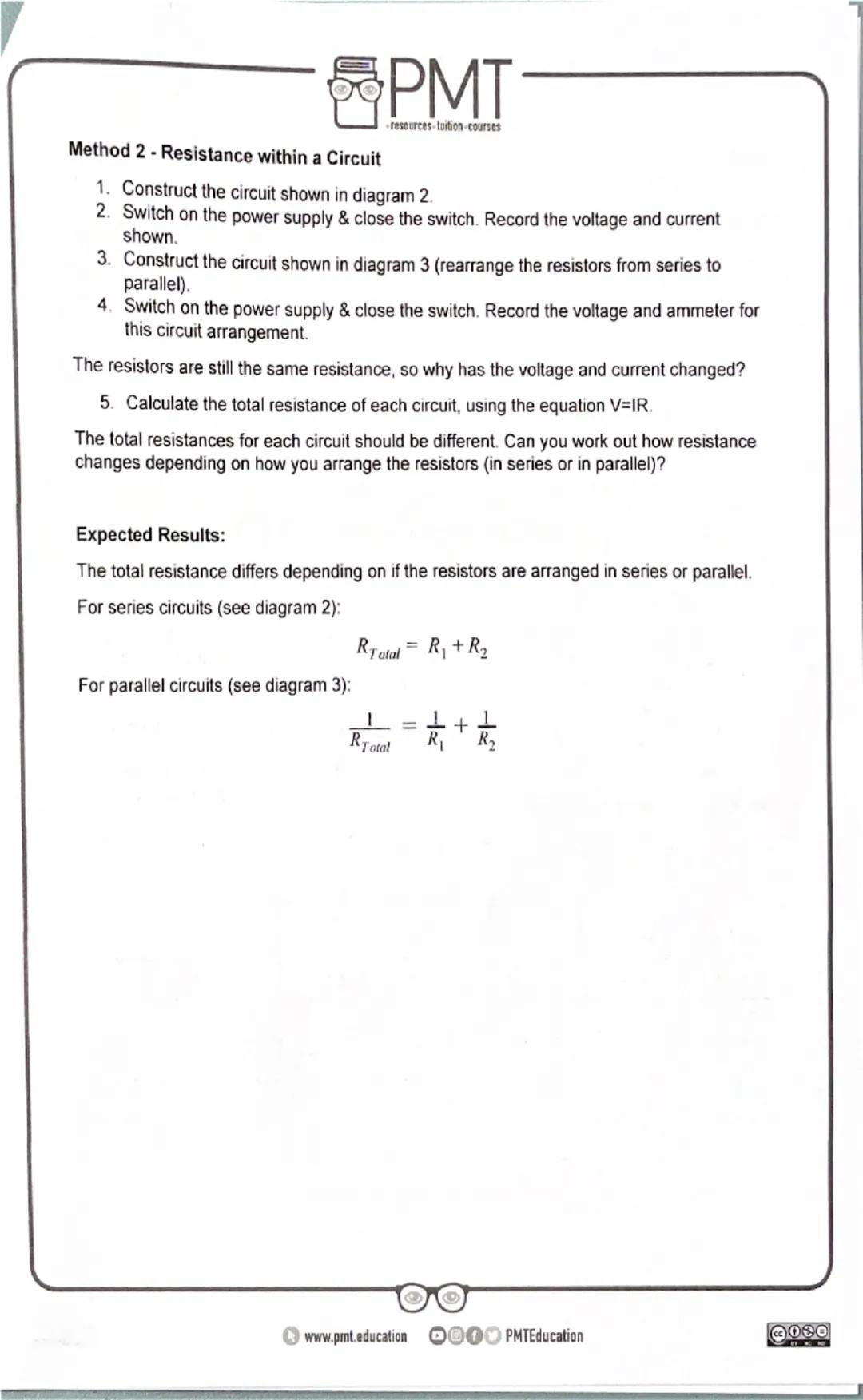

Required Practical 3: Resistance - Part 2 (Series vs Parallel)
This part reveals why your Christmas lights might all go out when one bulb fails, but your house lights don't. You'll discover how total resistance changes depending on whether components are arranged in series or parallel circuits.
First, you'll build a series circuit with two resistors and measure the total current and voltage. Then you'll rearrange the same resistors into a parallel circuit and repeat the measurements. The results will be dramatically different!
In series circuits, total resistance equals R₁ + R₂ (resistances add up). In parallel circuits, it's much more complex: 1/R_total = 1/R₁ + 1/R₂. This means parallel circuits actually have lower total resistance than individual components.
Key Insight: Parallel circuits are why you can turn appliances on and off independently at home - each has its own path for current to flow.
4
of 10

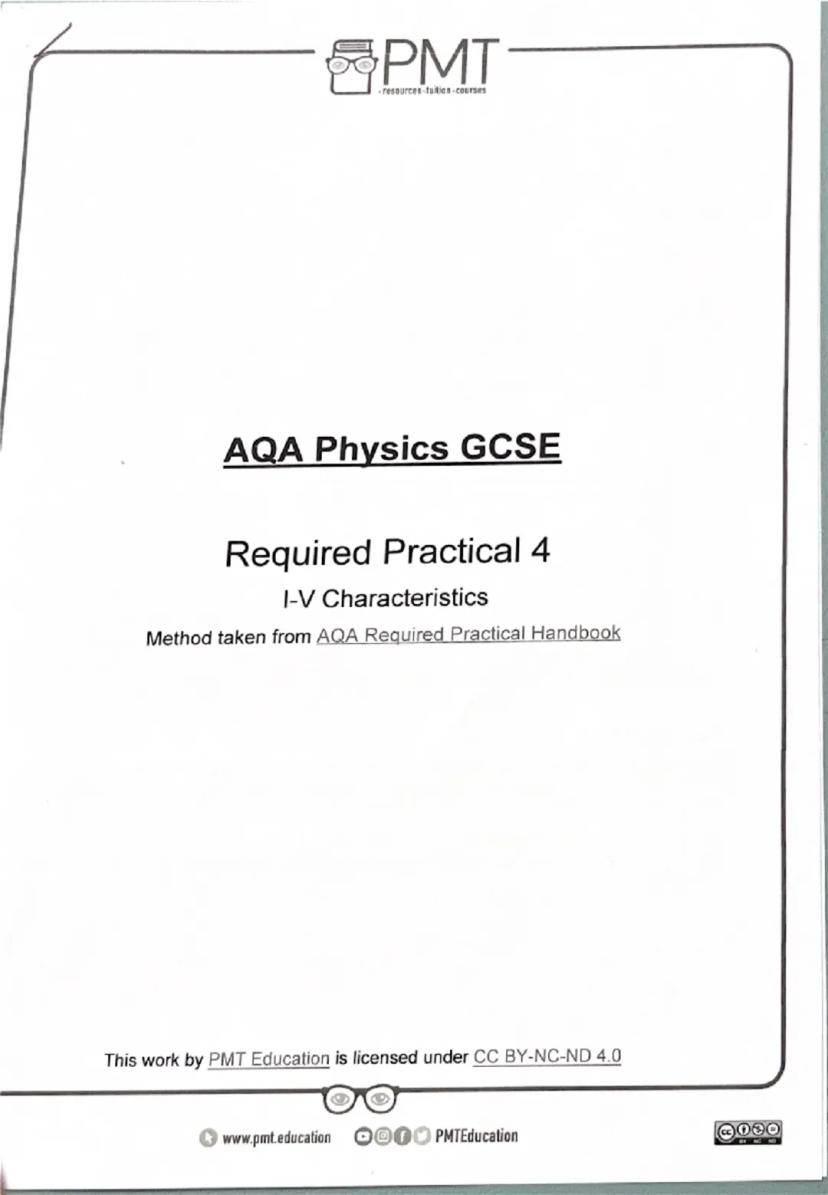

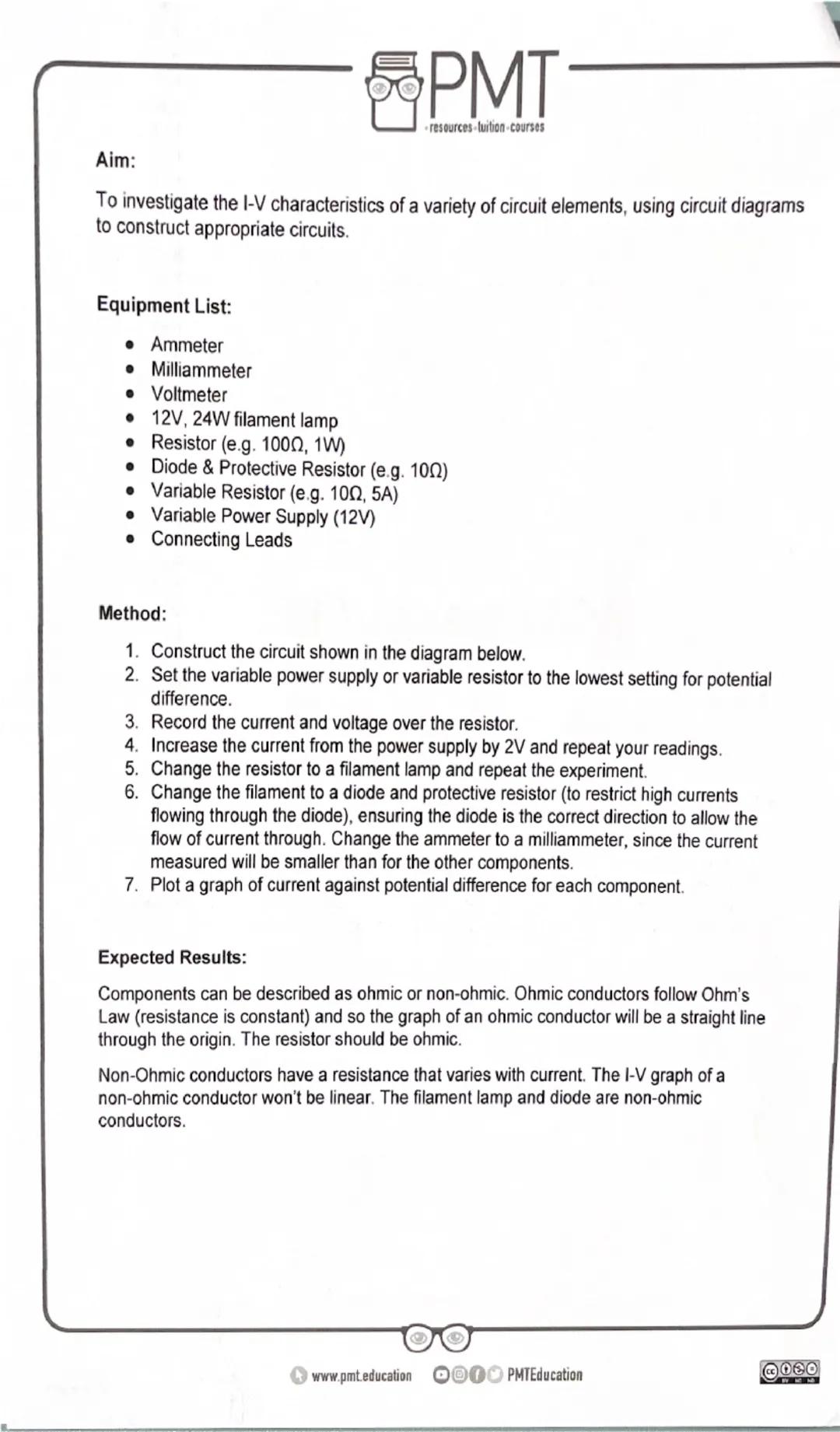

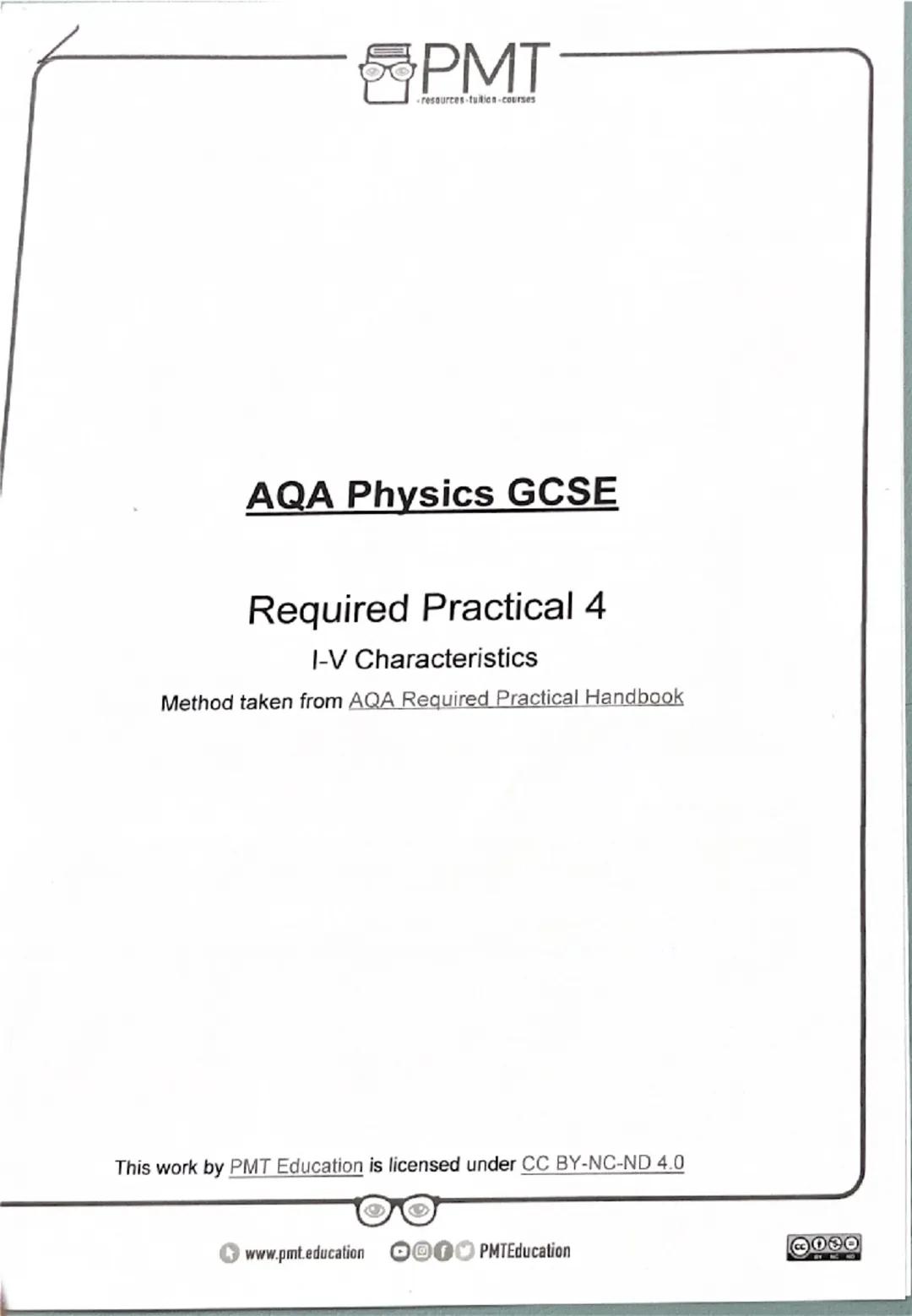

Required Practical 4: I-V Characteristics
Different electrical components behave very differently when you change the voltage across them. This practical explores current-voltage characteristics of resistors, filament lamps, and diodes - knowledge that's essential for understanding how electronic devices work.
You'll use a variable power supply to gradually increase voltage across each component whilst measuring the resulting current. Starting with a simple resistor, then moving to a filament lamp, and finally a diode (with protective resistor), you'll see three completely different patterns.
Ohmic conductors like resistors follow Ohm's Law - their I-V graphs are straight lines through the origin because resistance stays constant. Non-ohmic conductors like filament lamps and diodes have curved I-V graphs because their resistance changes with current.
Exam Focus: Remember that filament lamps get hotter as current increases, which increases their resistance. Diodes only allow current to flow in one direction, creating a distinctive I-V curve.
