Electric Circuits Fundamentals

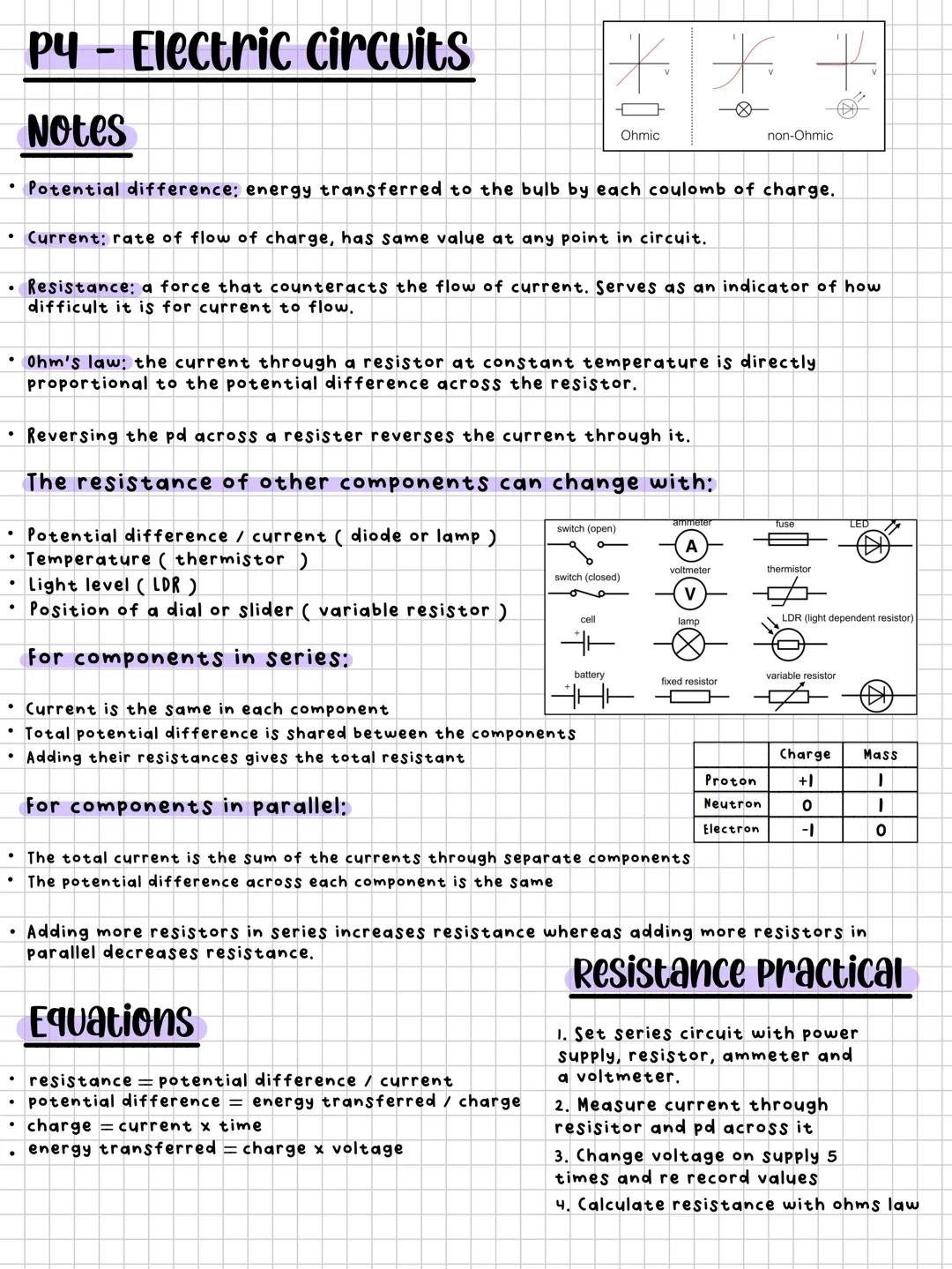

Think of electricity like water flowing through pipes - this analogy makes circuit concepts much easier to grasp. Current measures how fast electric charge flows through a circuit, and it stays the same at every point in a simple circuit, just like water flow in a pipe.

Potential difference (voltage) represents the energy given to each unit of charge as it flows through components like bulbs. The higher the voltage, the more energy each charge carries. Resistance acts like a narrow section in a pipe - it makes it harder for current to flow through components.

Ohm's law is your key equation: the current through a resistor is directly proportional to the voltage across it (at constant temperature). This means doubling the voltage doubles the current. Importantly, if you reverse the voltage direction, the current flows backwards too.

Quick Tip: Remember that different components change their resistance based on conditions - thermistors with temperature, LDRs with light, and diodes only let current flow one way!

Various components like thermistors, LDRs (light dependent resistors), and variable resistors change their resistance based on external conditions. This makes them incredibly useful for sensors and control circuits in real-world applications.
