Exploring Atoms and Their Role in the Periodic Table

Atomic Structure and the Periodic Table

Ever wondered what makes up literally everything around you? Atoms are the building blocks of all matter, and understanding them is your gateway to mastering chemistry.

Elements contain only one type of atom, whilst compounds are different elements chemically bonded together. Mixtures are just different substances hanging out together without any chemical bonds - think of a fruit salad where each piece stays separate.

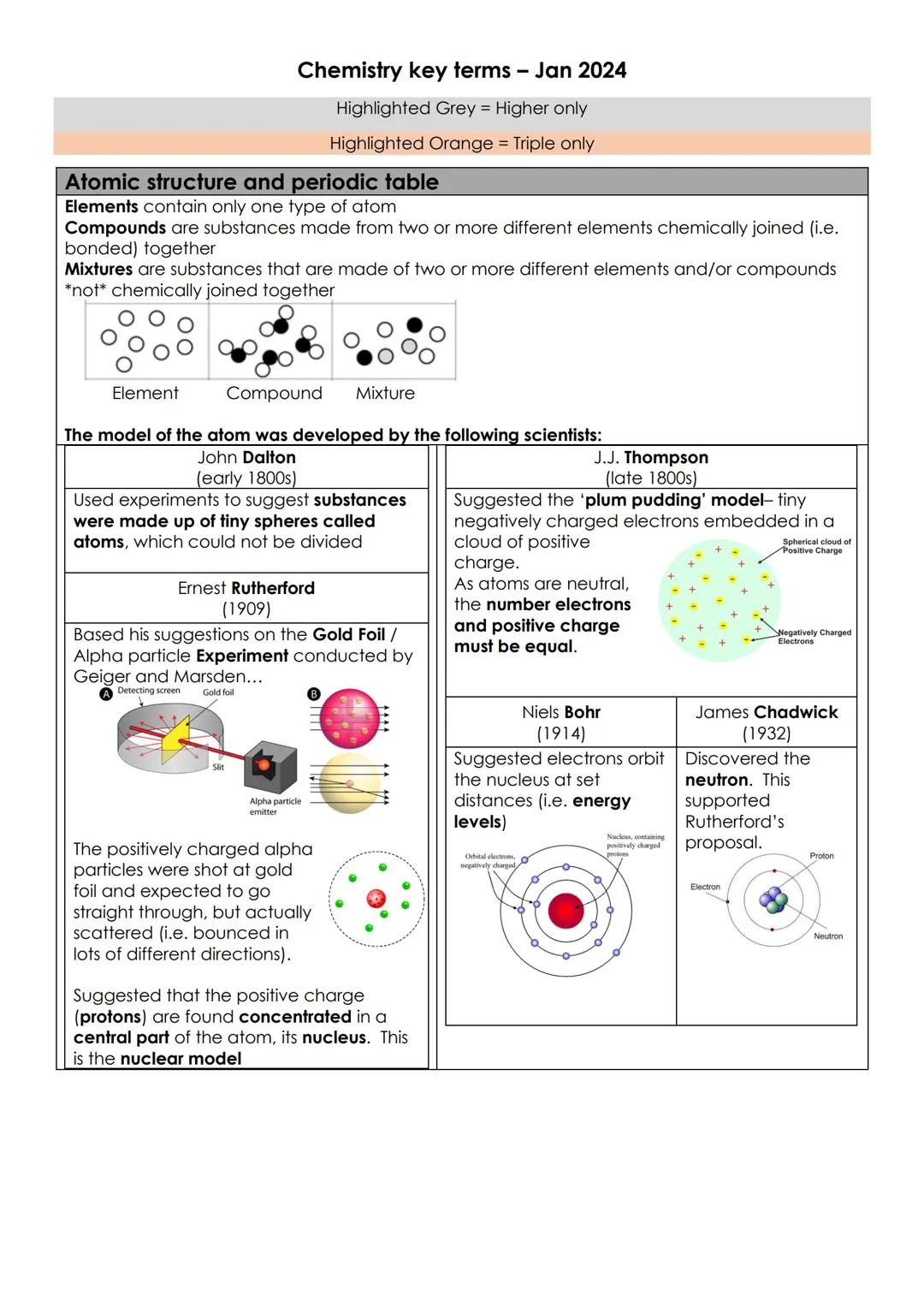

The atomic model didn't appear overnight. John Dalton started with tiny spheres, J.J. Thompson proposed the 'plum pudding' model with electrons scattered in positive charge, and Ernest Rutherford discovered the nucleus through his famous gold foil experiment. Niels Bohr then suggested electrons orbit in set energy levels, and James Chadwick discovered neutrons.

Quick Tip: Remember the scientists chronologically - Dalton, Thompson, Rutherford, Bohr, Chadwick. Each built on the previous work to give us today's atomic model!

Inside the Atom

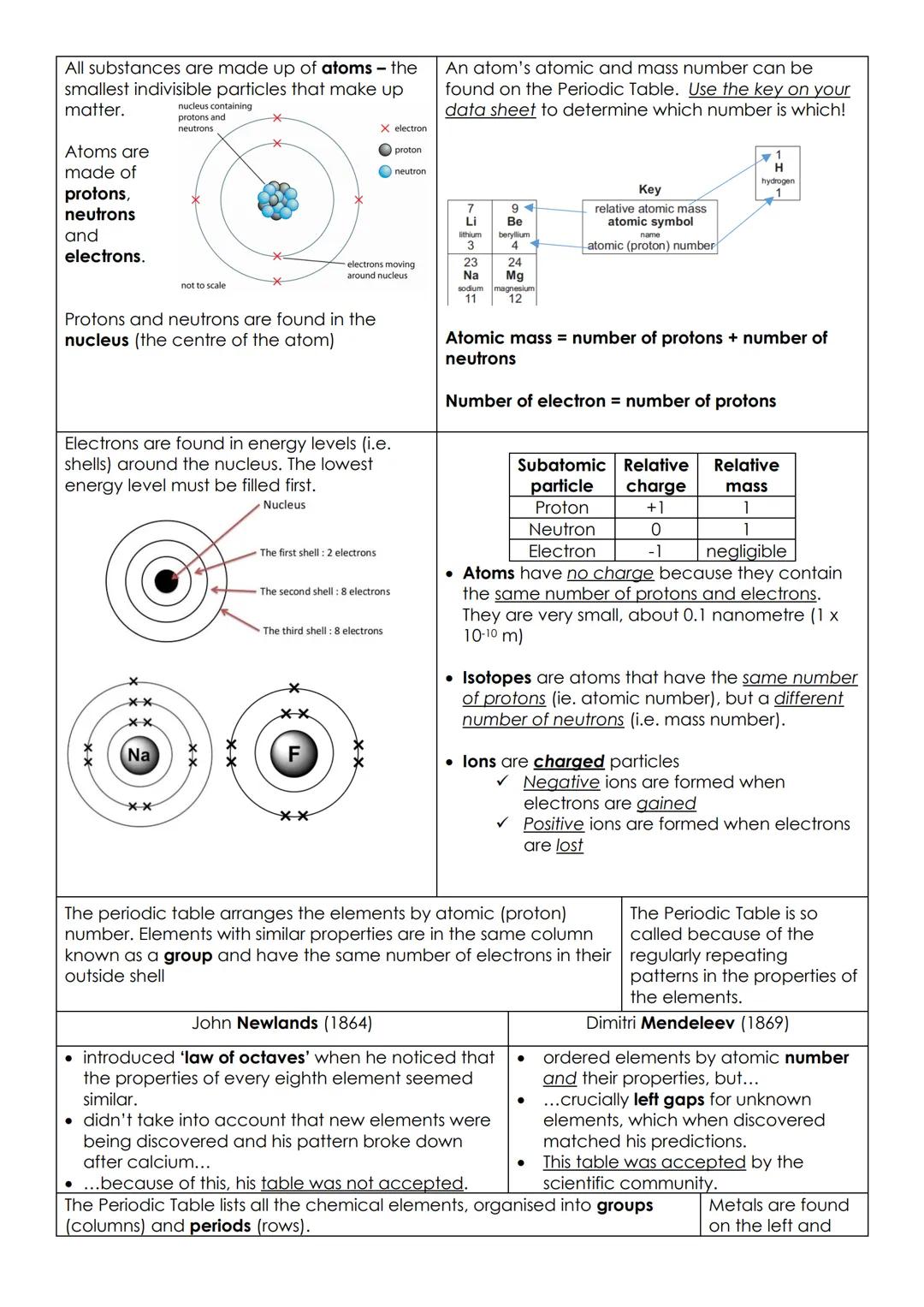

Think of atoms like incredibly tiny solar systems. The nucleus sits at the centre containing protons (positive charge) and neutrons (no charge), whilst electrons (negative charge) whiz around in energy levels or shells.

Here's what you need to remember: atomic number = number of protons, mass number = protons + neutrons, and atoms always have equal numbers of protons and electrons (that's why they're neutral). The first electron shell holds 2 electrons maximum, the second and third shells hold 8 each.

Isotopes are atoms with the same number of protons but different neutrons - same element, different mass. Ions are atoms that have gained or lost electrons, making them charged particles.

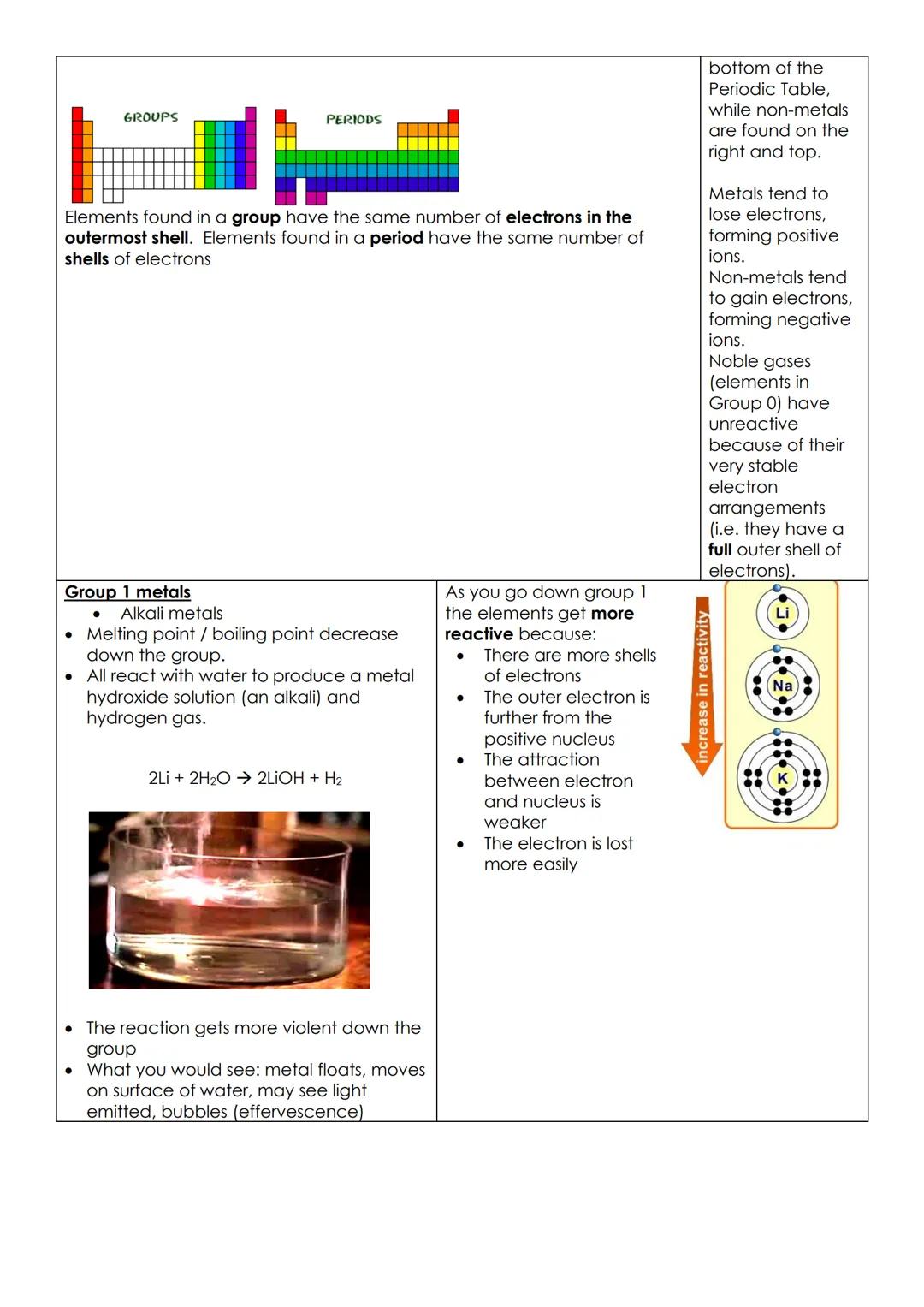

The periodic table arranges elements by atomic number. Groups (columns) have the same number of outer electrons, which is why they behave similarly. Periods (rows) have the same number of electron shells.

Memory Hook: Groups go down, periods go across - elements in the same group are like family members with similar traits!

Groups in the Periodic Table

The periodic table isn't just a random arrangement - it's organised so elements with similar properties line up perfectly in columns called groups.

Group 1 metals (alkali metals) get more reactive as you go down because their outer electron is further from the nucleus and easier to lose. They all react with water to produce hydrogen gas and metal hydroxides. You'll see them fizzing, floating, and sometimes producing light!

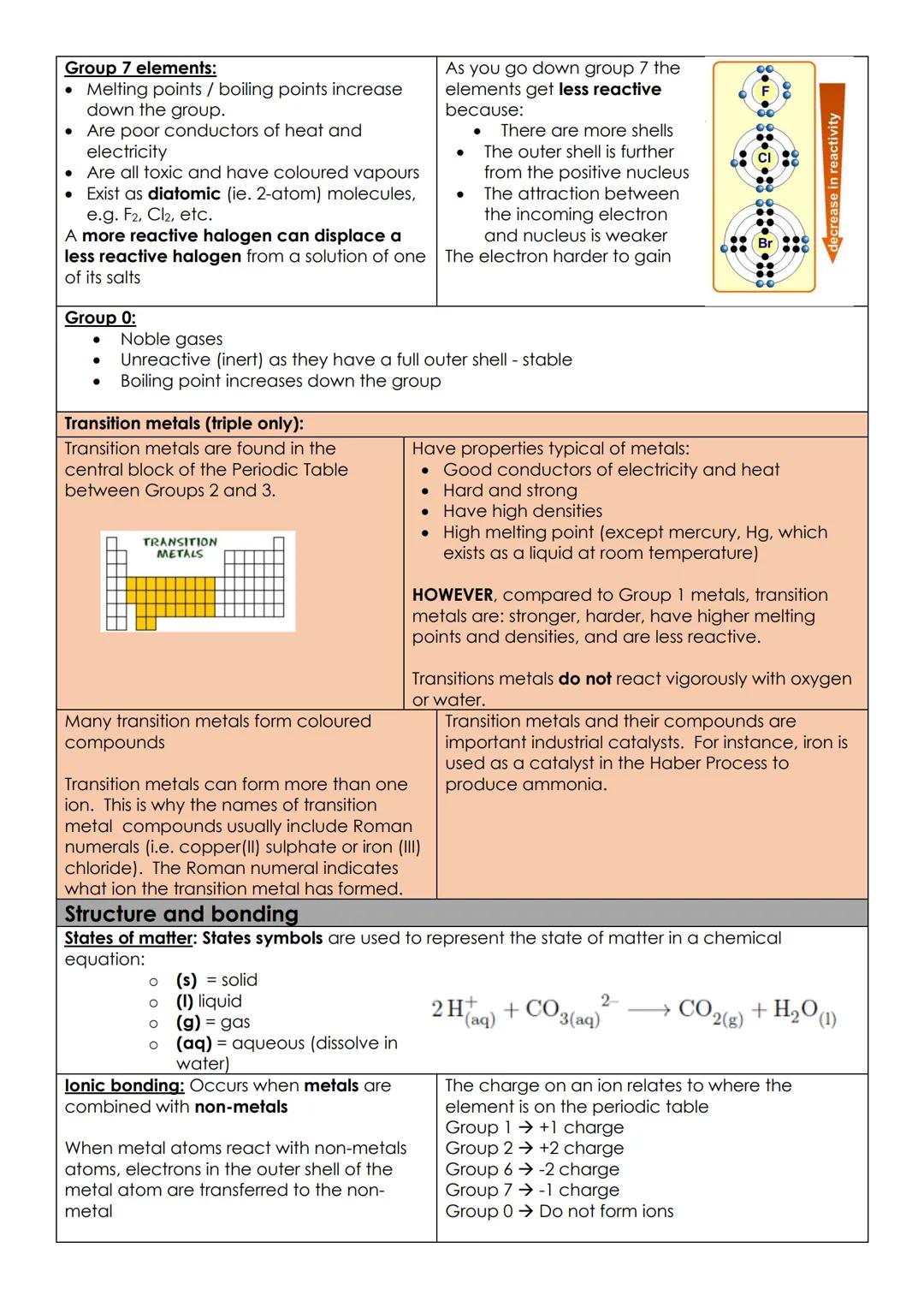

Group 7 elements (halogens) work oppositely - they get less reactive going down because it's harder for them to gain that extra electron. They exist as diatomic molecules (F₂, Cl₂) and more reactive halogens can displace less reactive ones from solutions.

Noble gases (Group 0) are the loners of chemistry - they don't react because they already have full outer shells. Their boiling points increase down the group, but they remain unreactive throughout.

Real-World Connection: Group 1 metals are so reactive they're stored in oil, whilst noble gases are used in light bulbs precisely because they won't react!

Bonding Basics

Understanding how atoms stick together is crucial for predicting how substances will behave. There are three main types of bonding you need to master.

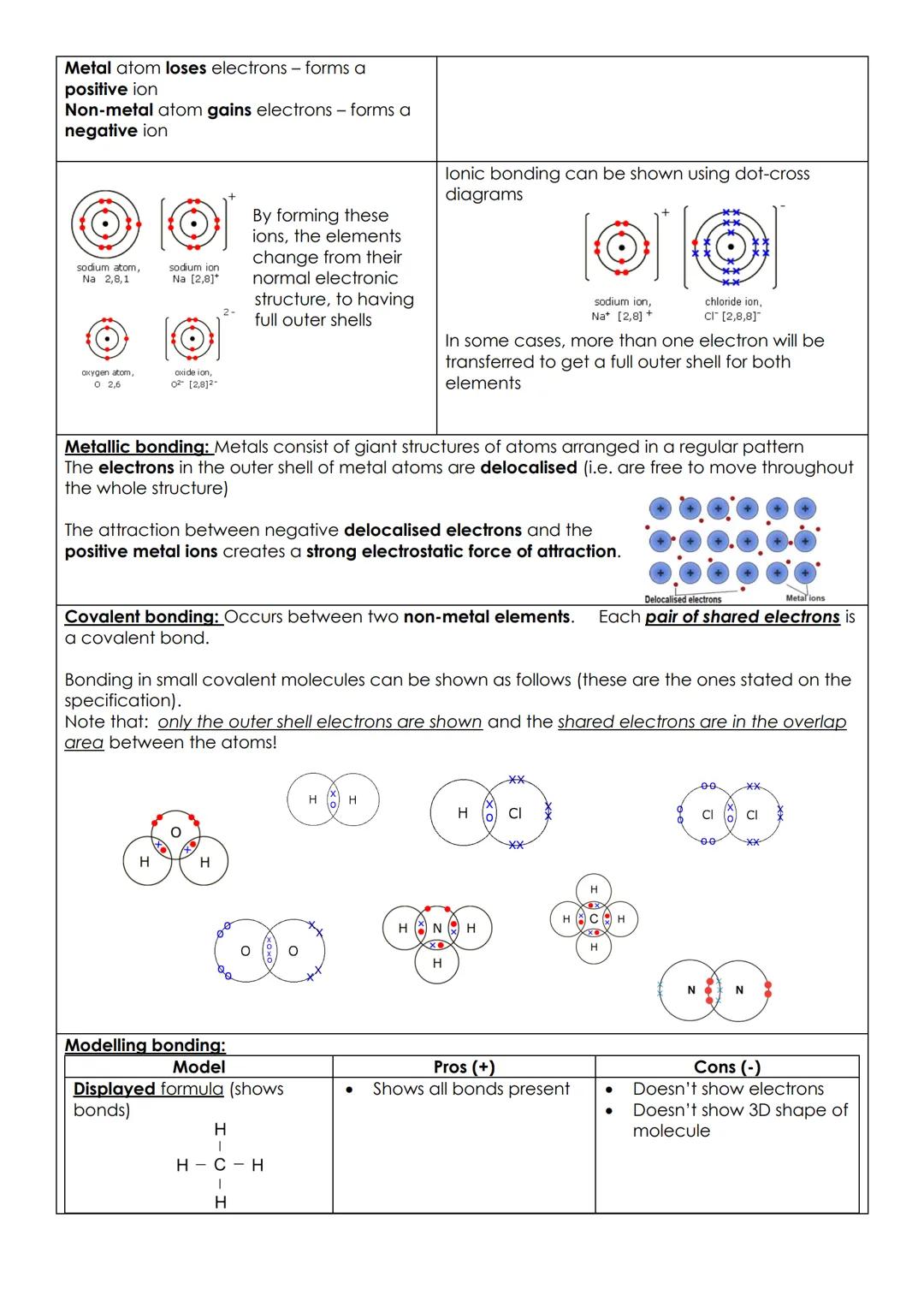

Ionic bonding happens between metals and non-metals. The metal loses electrons (becoming positive), the non-metal gains them (becoming negative), and opposites attract! The charges depend on the group: Group 1 = +1, Group 2 = +2, Group 6 = -2, Group 7 = -1.

Metallic bonding explains why metals conduct electricity. Metal atoms release their outer electrons into a 'sea' of delocalised electrons that can move freely, creating strong attraction between positive metal ions and negative electrons.

Transition metals are the workhorses of chemistry - they're stronger, less reactive than Group 1 metals, often form coloured compounds, and make excellent catalysts. That's why iron is used in the Haber process and why many transition metal compounds have Roman numerals in their names.

Exam Tip: State symbols are essential - $s$ solid, $l$ liquid, $g$ gas, (aq) aqueous (dissolved in water). Don't lose marks by forgetting them!

Covalent Bonding and Models

Covalent bonding occurs between non-metals that share electrons to get full outer shells. Each shared pair creates one covalent bond, and you can show this in several ways.

The main molecules you need to know are simple: H₂ (hydrogen), HCl (hydrogen chloride), H₂O (water), NH₃ (ammonia), CH₄ (methane), and Cl₂ (chlorine). Remember that only outer shell electrons are shown in diagrams, and shared electrons appear in the overlap between atoms.

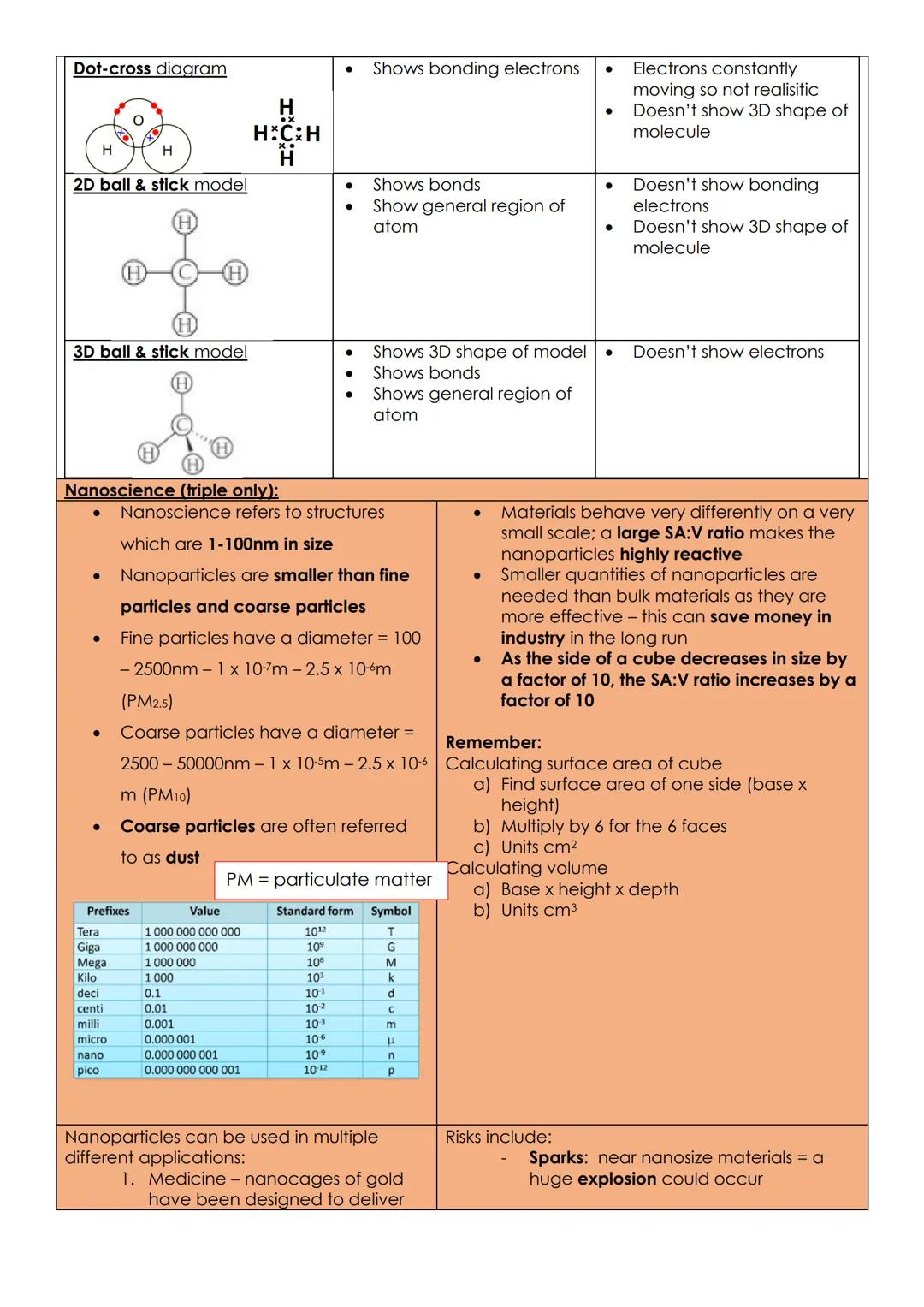

Different models show different aspects: displayed formulas show all bonds but miss 3D shape, dot-cross diagrams show electrons but aren't realistic since electrons constantly move, and ball-and-stick models can show 3D structure but don't show electrons.

Each model has strengths and weaknesses, so pick the right one for what you're trying to explain. In exams, you'll often need to draw these, so practice the common molecules until they become automatic.

Drawing Tip: Start with the central atom (usually the one that appears once in the formula), then add the others around it. Count electrons to make sure everyone has full outer shells!

Nanoscience and Calculations

Nanoscience deals with particles between 1-100 nanometres - that's incredibly tiny! These nanoparticles behave very differently from bulk materials because they have a huge surface area to volume ratio, making them extremely reactive.

As particle size decreases by a factor of 10, the surface area to volume ratio increases by 10. This makes nanoparticles perfect for medicine (targeted drug delivery), sun cream (better coverage), and cosmetics (deeper skin absorption).

However, there are risks. The smaller the particle, the greater the health risk - they can damage lungs and enter bloodstreams. Near nanosize materials, even small sparks could cause huge explosions.

For calculations, remember: surface area of a cube = 6 × (side²), volume = side³. When measuring anything, uncertainty values show the possible error range, and you'll need to calculate percentage uncertainty using the range divided by the mean, times 100.

Scale Check: A nanometre is 0.000000001 metres - imagine splitting a metre into a billion pieces and taking just one!

Quantitative Chemistry Fundamentals

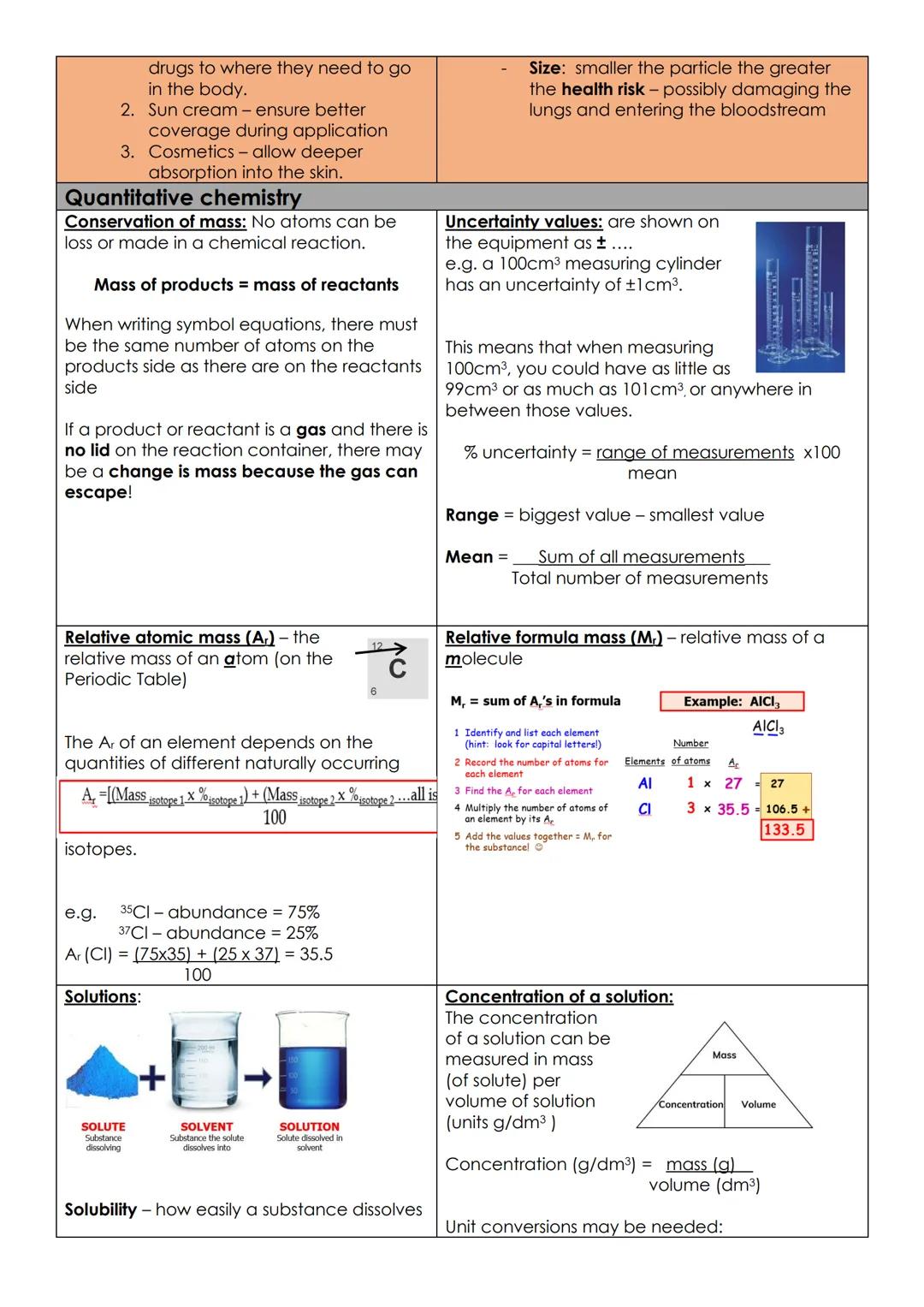

Conservation of mass is chemistry's golden rule - no atoms are ever created or destroyed in reactions. This means mass of reactants always equals mass of products (unless gases escape!).

Relative atomic mass (Ar) comes from the periodic table and accounts for different isotopes. Relative formula mass (Mr) is just the sum of all Ar values in a compound. For example, AlCl₃ = (1×27) + (3×35.5) = 133.5.

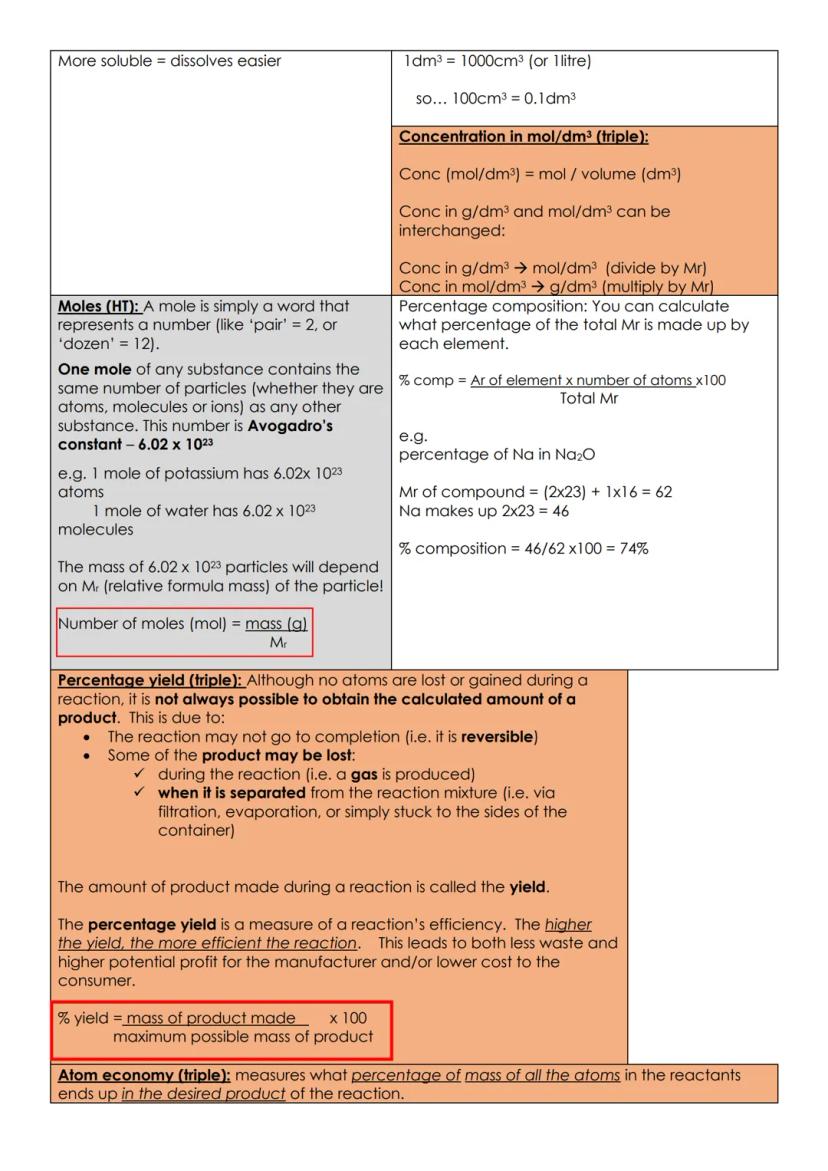

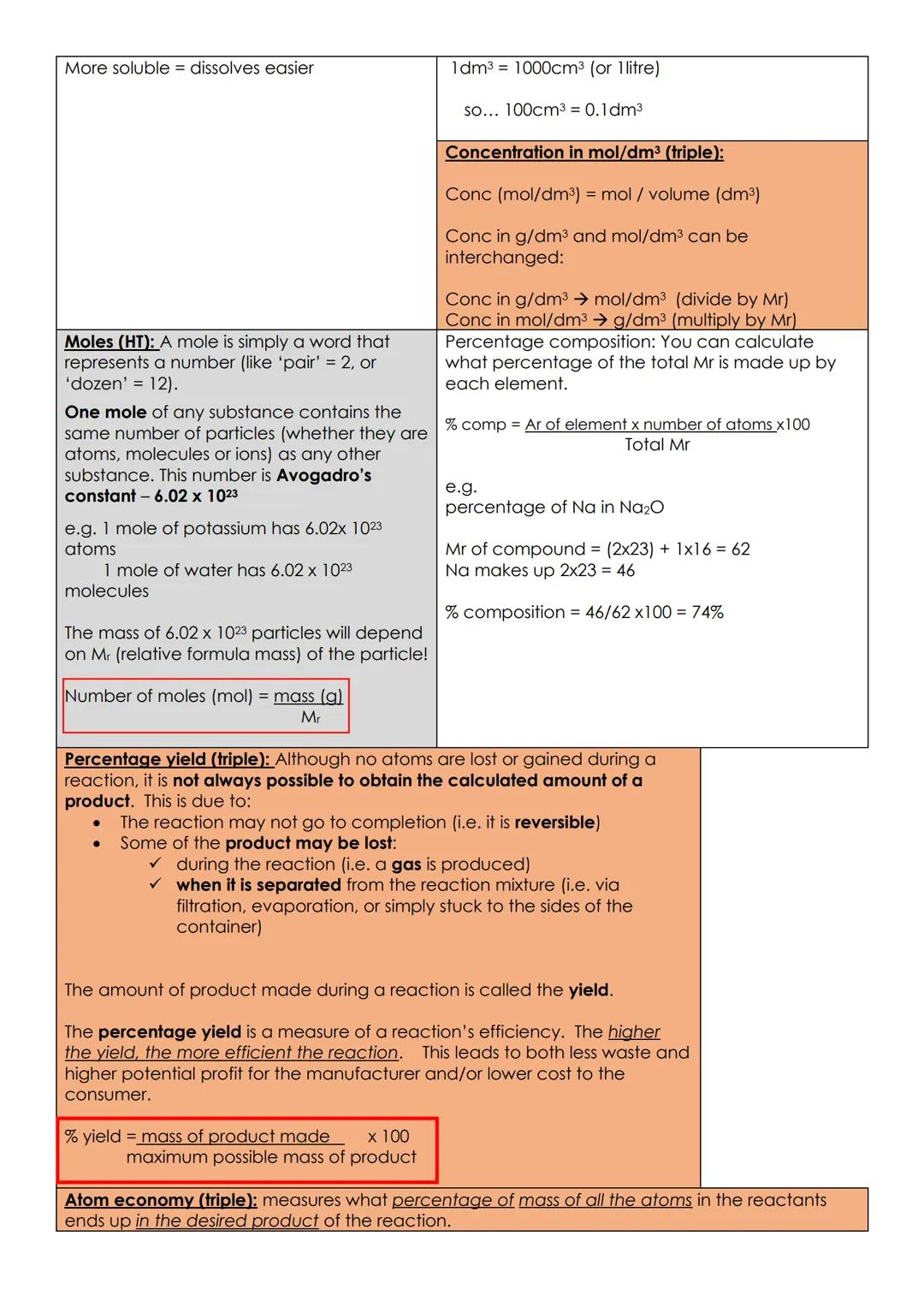

Moles might sound scary, but they're just a counting unit like 'dozen'. One mole contains 6.02×10²³ particles (Avogadro's constant). Calculate moles using: moles = mass ÷ Mr.

Solutions and concentration are about how much solute dissolves in solvent. Concentration = mass ÷ volume, and you can convert between g/dm³ and mol/dm³ by dividing or multiplying by Mr.

Unit Alert: Always check your units! 1dm³ = 1000cm³ = 1 litre. Convert cm³ to dm³ by dividing by 1000.

Advanced Calculations and Efficiency

Percentage composition tells you what fraction of a compound's mass comes from each element. Use: (Ar × number of atoms ÷ total Mr) × 100. This is especially useful for working out purity or identifying unknown compounds.

Percentage yield measures how efficient a reaction is. Reactions rarely give 100% yield because they might not complete, products get lost, or side reactions occur. Calculate it as: (actual yield ÷ theoretical yield) × 100.

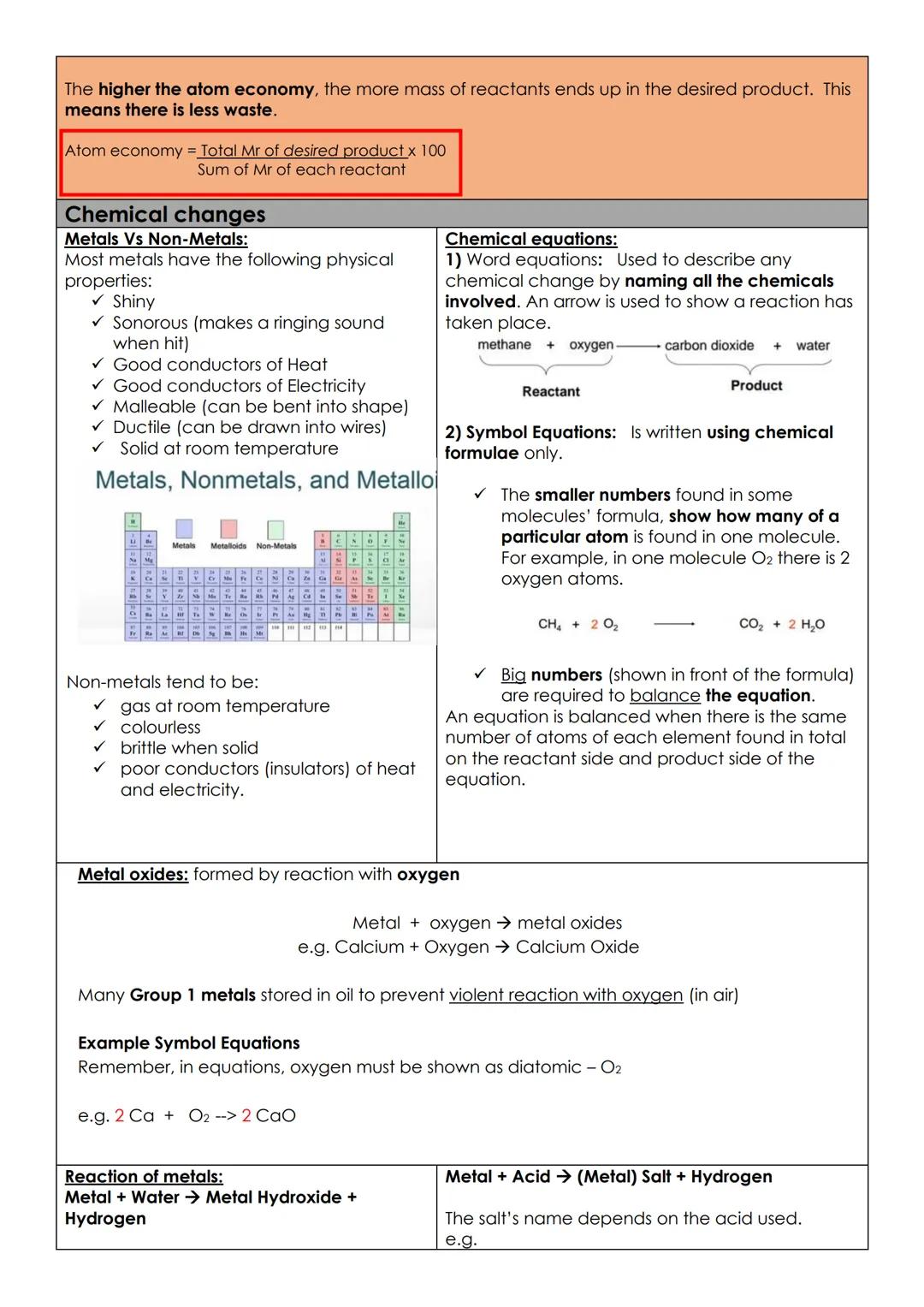

Atom economy measures how much of your starting materials end up in the desired product rather than waste. High atom economy means less waste and more profit: (Mr of desired product ÷ sum of Mr of reactants) × 100.

Both percentage yield and atom economy are crucial for industrial processes. Companies want high values for both to maximise efficiency and minimise environmental impact.

Industry Insight: Pharmaceutical companies obsess over these calculations - wasting expensive starting materials or having low yields can make medicines unaffordable!

Chemical Reactions and the Reactivity Series

Metals are generally shiny, sonorous, good conductors, malleable, and ductile, whilst non-metals are often gases, brittle when solid, and poor conductors. These properties help you predict behaviour.

Chemical equations can be written as words or symbols. Symbol equations must be balanced - same number of each type of atom on both sides. Remember that elements like oxygen usually exist as diatomic molecules (O₂).

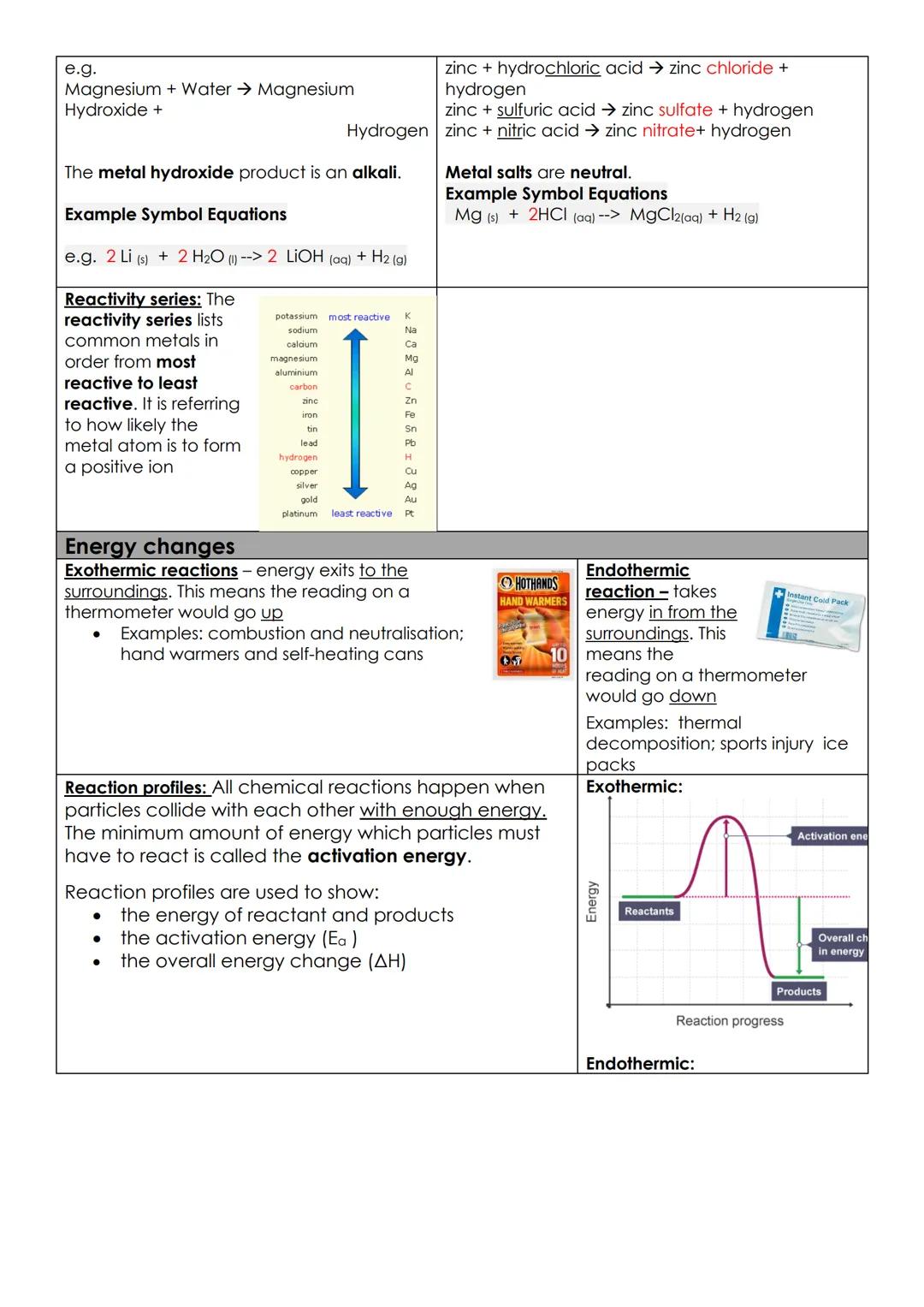

Metal reactions follow predictable patterns: Metal + Oxygen → Metal Oxide; Metal + Water → Metal Hydroxide + Hydrogen; Metal + Acid → Salt + Hydrogen. The salt name depends on the acid used (hydrochloric = chloride, sulfuric = sulfate, nitric = nitrate).

The reactivity series ranks metals from most to least reactive based on how easily they form positive ions. This determines which metals can displace others from solutions and how vigorously they react.

Safety Note: Group 1 metals are stored in oil because they react so violently with air and water - never handle them without proper supervision!

Energy Changes in Reactions

Every chemical reaction involves energy changes that you can measure with a thermometer. Exothermic reactions release energy to surroundings (temperature goes up), whilst endothermic reactions absorb energy (temperature goes down).

Common exothermic reactions include combustion and neutralisation - think hand warmers and self-heating cans. Endothermic examples include thermal decomposition and those instant ice packs for sports injuries.

Reaction profiles are energy diagrams showing the journey from reactants to products. They display the activation energy (minimum energy needed for reaction) and overall energy change (ΔH). Exothermic reactions end up at lower energy than they started, endothermic reactions end up higher.

Understanding energy changes helps predict whether reactions will happen spontaneously and how much heating or cooling you'll need to control them.

Memory Trick: EXothermic = EXits energy (gets hot), ENdothermic = ENters energy (gets cold). The 'EX' and 'EN' give you the direction!
