Bonding, Structure and Properties in GCSE Chemistry - A comprehensive guide covering metallic bonding, ionic structures, and smart materials for understanding fundamental chemical concepts.

• The guide explores the fundamental differences between metals and non metals and their bonding mechanisms
• Detailed explanations of metallic bonding and how it influences physical properties
• Coverage of ionic and covalent bonding in simple and giant structures
• Introduction to modern materials including fullerenes, smart materials, and nanomaterials
• Focus on practical applications and real-world examples of chemical structures

...

26/02/2023

413

GCSE Chemistry Unit 2 & GCSE Science (Double Award) Unit 5-Revision Guide
Topic 1 - BONDING, STRUCTURE AND PROPERTIES
Metals and Non-metals

View

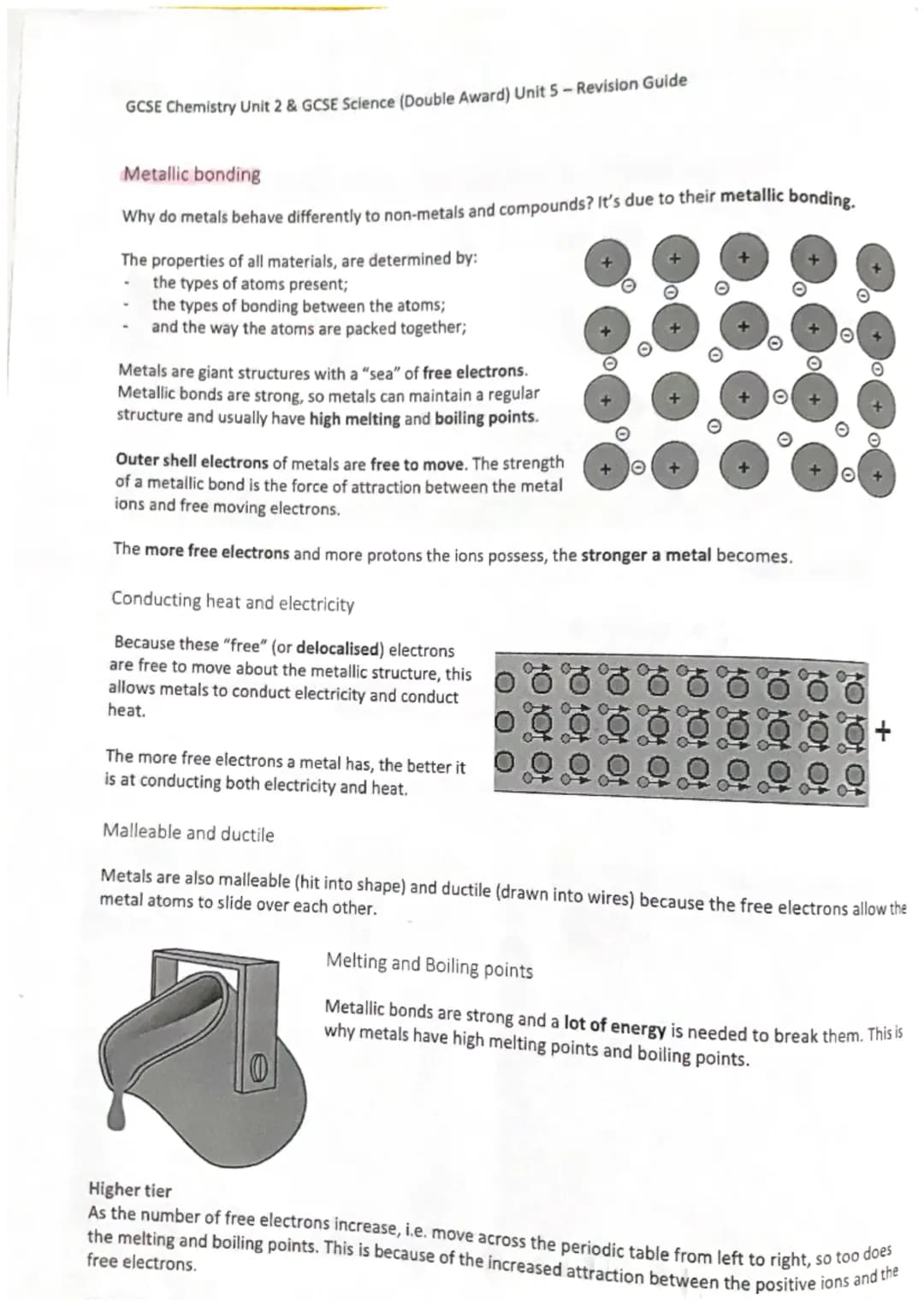

Metallic Bonding

This page delves into the concept of metallic bonding, which explains the unique properties of metals observed in the previous section.

Metallic bonding is characterized by a "sea" of free electrons surrounding positively charged metal ions in a giant structure. This bonding type determines the distinctive properties of metals:

Strong metallic bonds result in high melting and boiling points.
Free electrons enable metals to conduct electricity and heat efficiently.
The ability of metal atoms to slide over each other due to free electrons makes metals malleable and ductile.

Vocabulary: Delocalised electrons are those that are not associated with a specific atom but are free to move throughout the metallic structure.

Example: The strength of metallic bonds increases with the number of free electrons and protons in the ions, making some metals stronger than others.

The page also introduces higher-tier content, explaining that melting and boiling points increase across the periodic table from left to right due to increased attraction between positive ions and free electrons.

Highlight: Understanding metallic bonding is crucial for explaining why metals can conduct heat and electricity, a key topic in GCSE Chemistry structure and bonding questions.

View

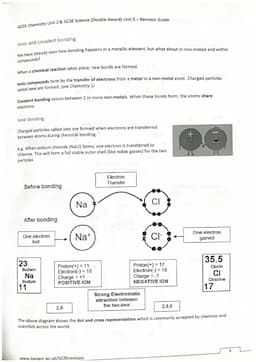

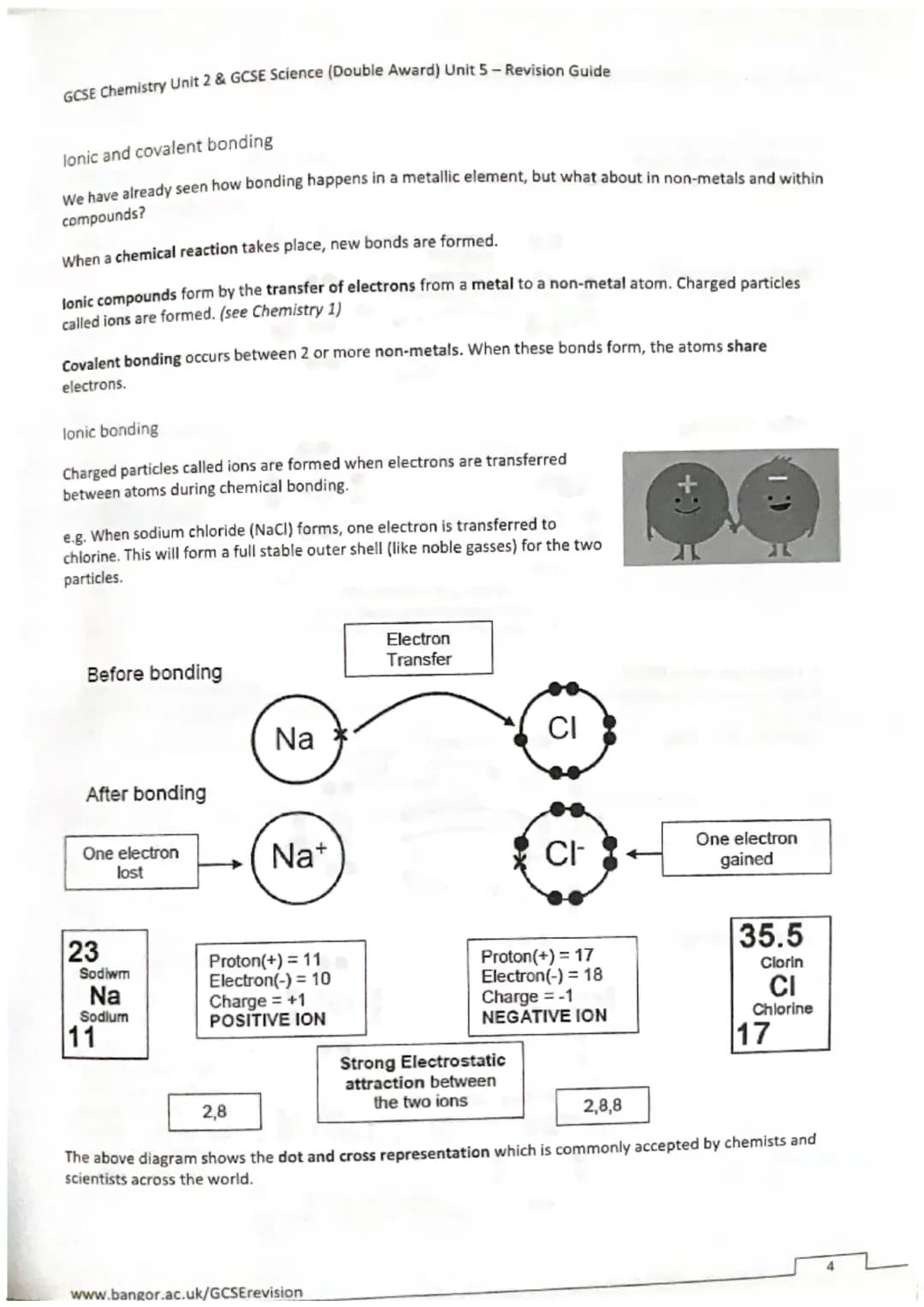

Ionic and Covalent Bonding

This page introduces two other fundamental types of chemical bonding: ionic and covalent bonding. These concepts are essential for understanding the properties of non-metals and compounds.

Ionic bonding:

Occurs between a metal and a non-metal
Involves the transfer of electrons
Results in the formation of charged particles called ions

Covalent bonding:

Occurs between two or more non-metals
Involves the sharing of electrons

The page provides a detailed example of ionic bonding in sodium chloride (NaCl):

Sodium loses one electron to chlorine
Both atoms achieve stable outer electron shells
The resulting ions have opposite charges and are held together by strong electrostatic attraction

Definition: Ions are charged particles formed when atoms gain or lose electrons during chemical bonding.

Highlight: The dot and cross representation shown in the diagram is a universally accepted method among chemists for illustrating electron arrangement in bonding.

Understanding these bonding types is crucial for answering GCSE Chemistry structure and bonding questions and answers.

View

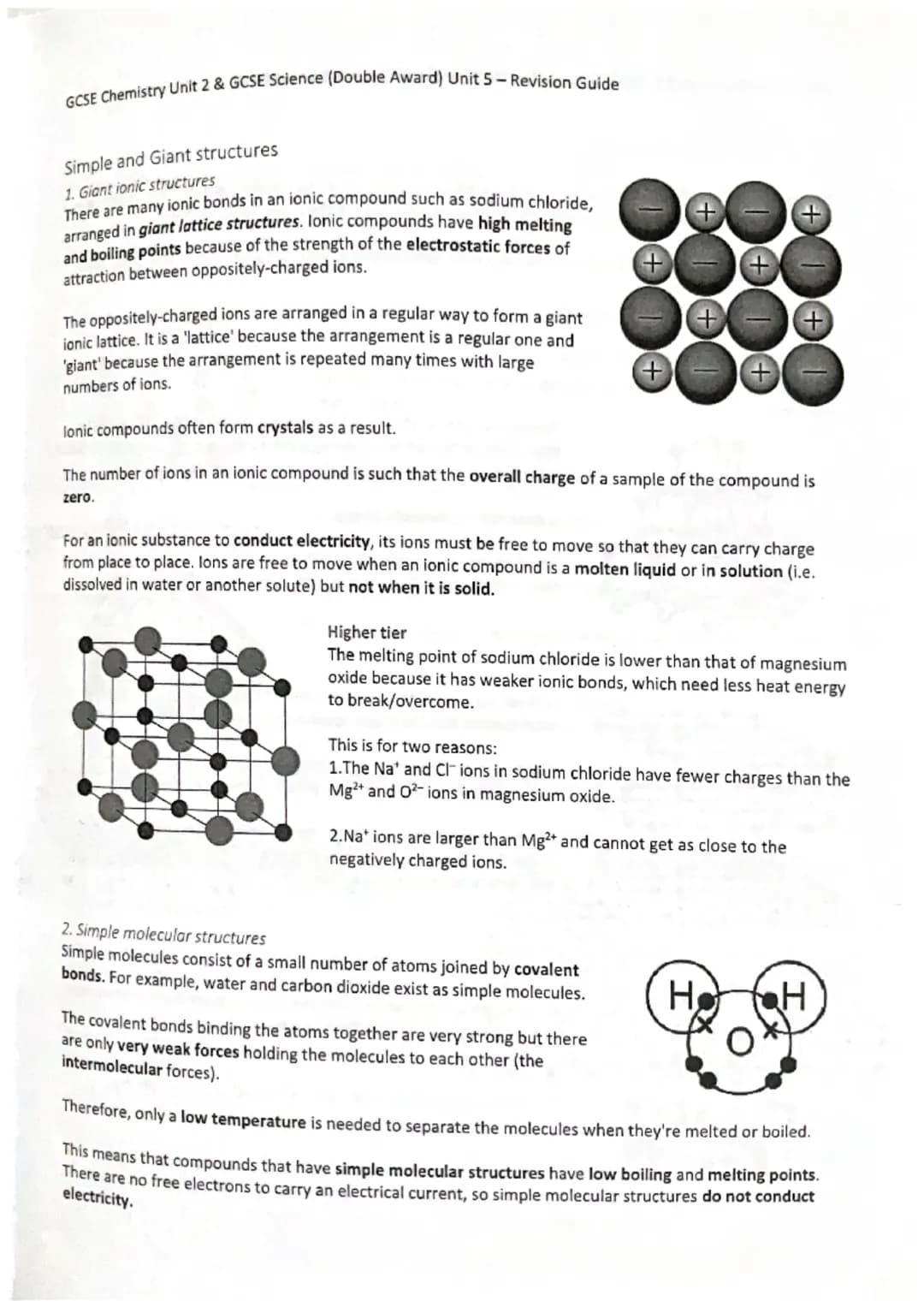

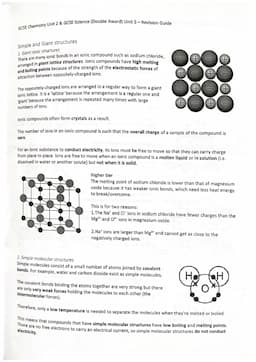

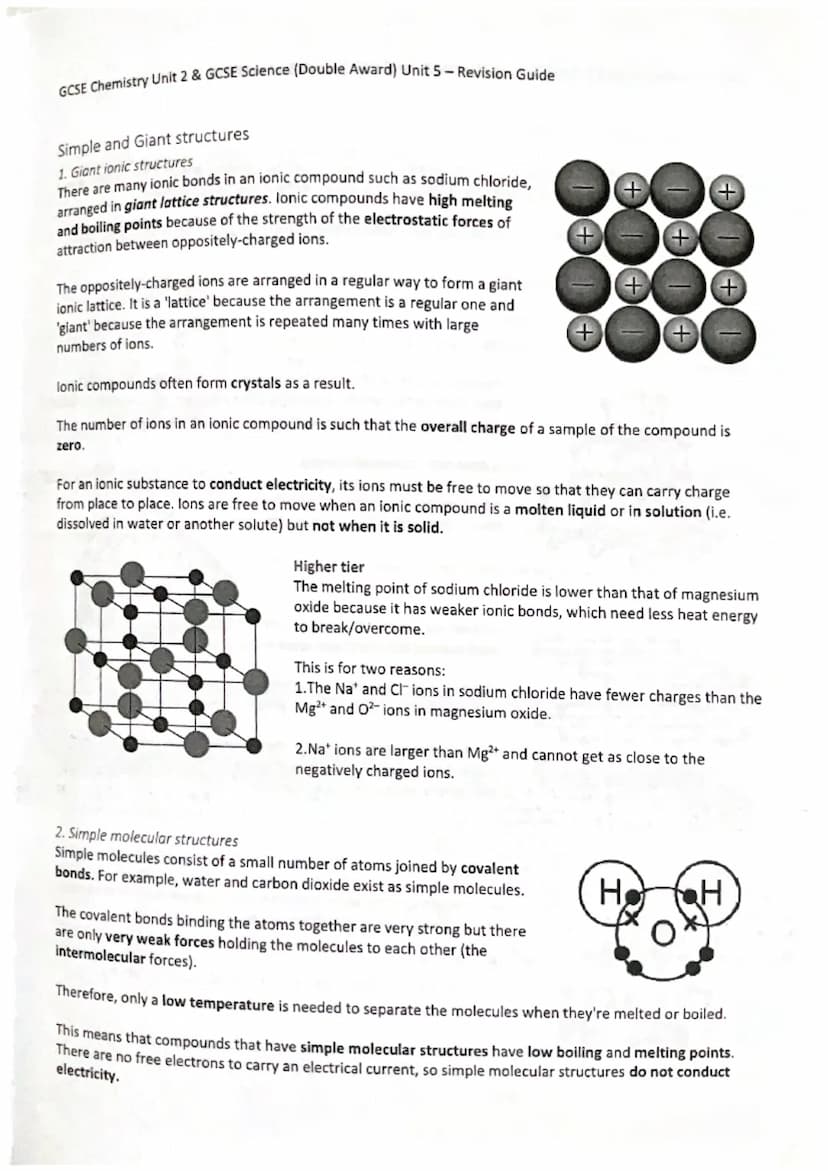

Simple and Giant Structures

This page introduces the concept of simple and giant structures, focusing on giant ionic structures. This information is vital for understanding the properties of non-metals and compounds at the GCSE level.

Key points about giant ionic structures:

Ionic compounds like sodium chloride form giant lattice structures.
These structures have high melting and boiling points due to strong electrostatic forces between oppositely-charged ions.
The ions are arranged in a regular, repeating pattern to form a giant ionic lattice.
Ionic compounds often form crystals as a result of this structure.
The overall charge of an ionic compound sample is always zero, despite being made up of charged particles.

Vocabulary: A lattice is a regular, repeating arrangement of particles (in this case, ions) in three dimensions.

Highlight: Understanding giant structures is crucial for explaining the physical properties of non-metals and ionic compounds in GCSE Chemistry.

The page also mentions a condition for ionic substances to conduct electricity, but the information is cut off. This topic is likely expanded upon in subsequent pages.

This content is particularly relevant for students preparing for GCSE Chemistry structure and bonding questions pdf resources and exams.

View

Page 4: Simple and Giant Structures

The page focuses on giant ionic structures and their properties.

Example: Sodium chloride demonstrates a giant ionic lattice structure with high melting and boiling points.

Highlight: The strength of ionic compounds comes from the powerful electrostatic forces between oppositely-charged ions.

View

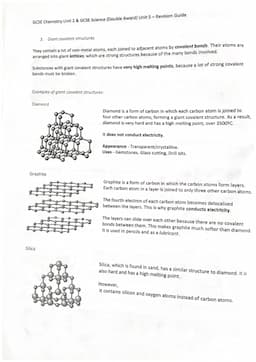

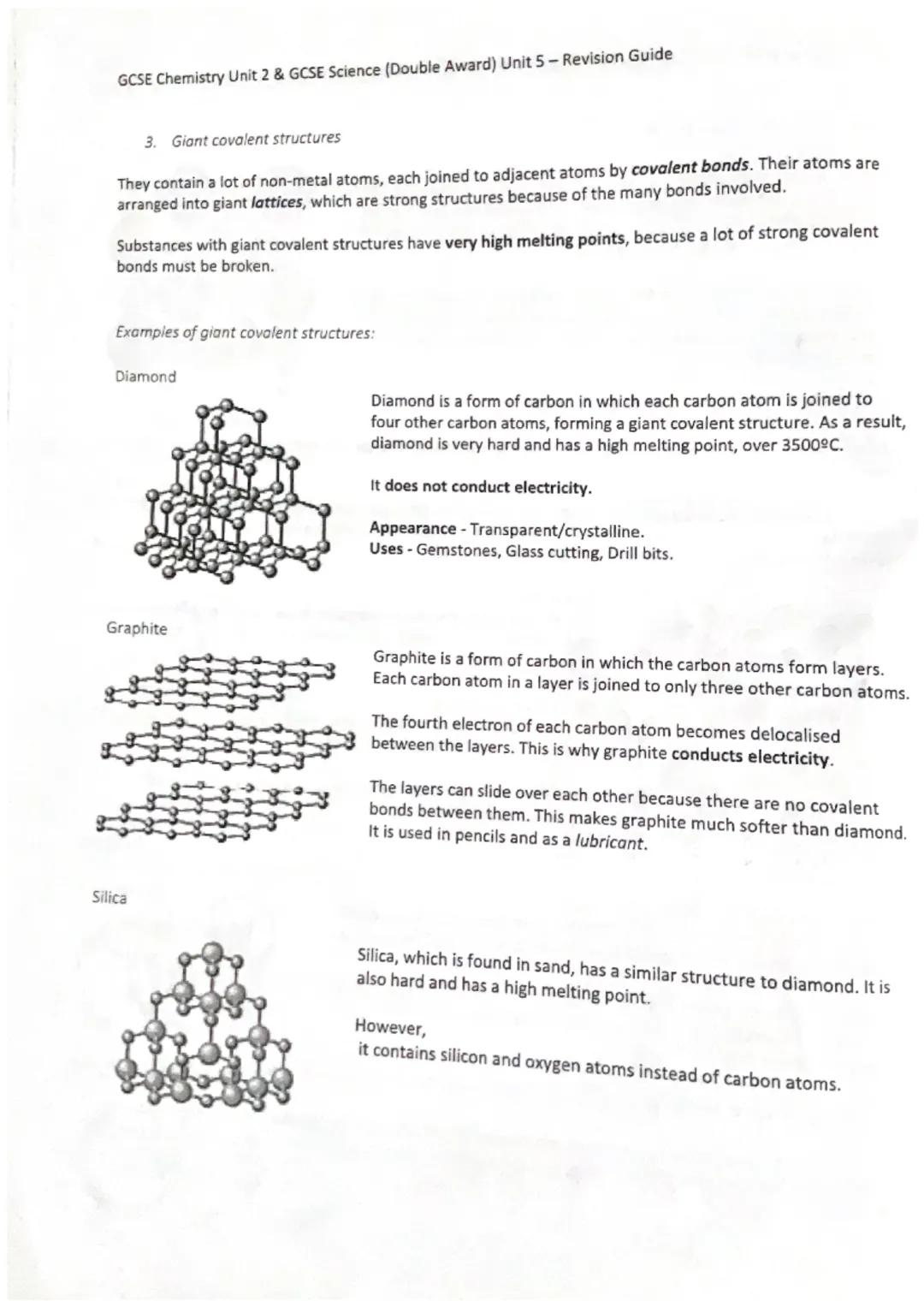

Page 5: Giant Covalent Structures

This section explores complex molecular structures formed through covalent bonding.

Example: Diamond and graphite are classic examples of giant covalent structures with very high melting points.

Definition: Giant covalent structures contain numerous non-metal atoms joined by covalent bonds in a lattice arrangement.

View

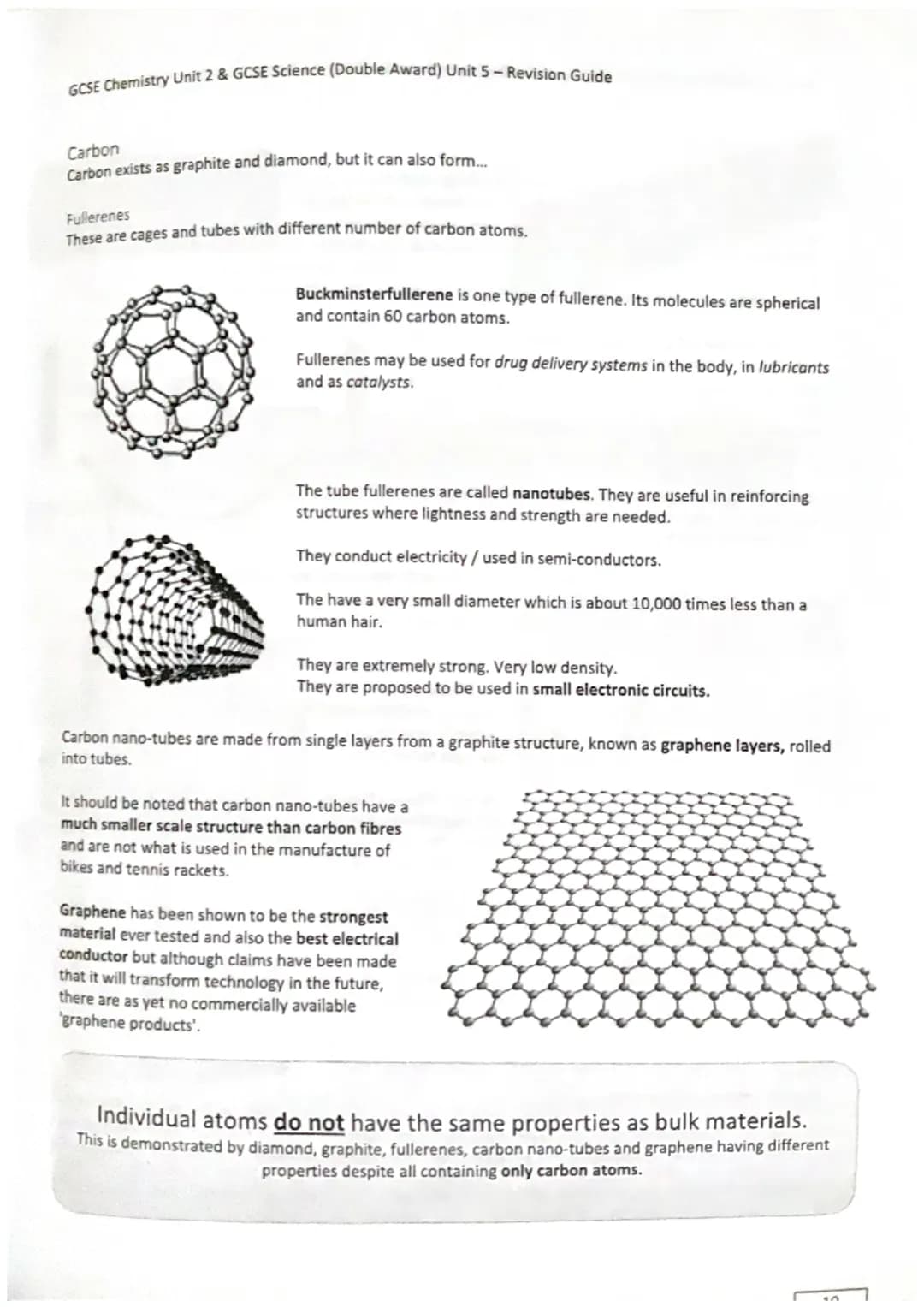

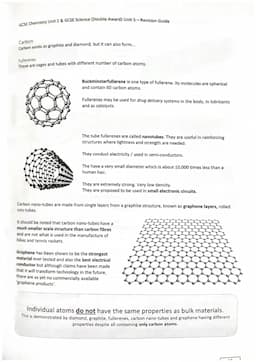

Page 6: Carbon Structures and Fullerenes

The page details various carbon allotropes, particularly focusing on fullerenes.

Vocabulary: Buckminsterfullerene is a spherical molecule containing 60 carbon atoms.

Highlight: Carbon nanotubes offer practical applications in reinforcing structures and conducting electricity.

View

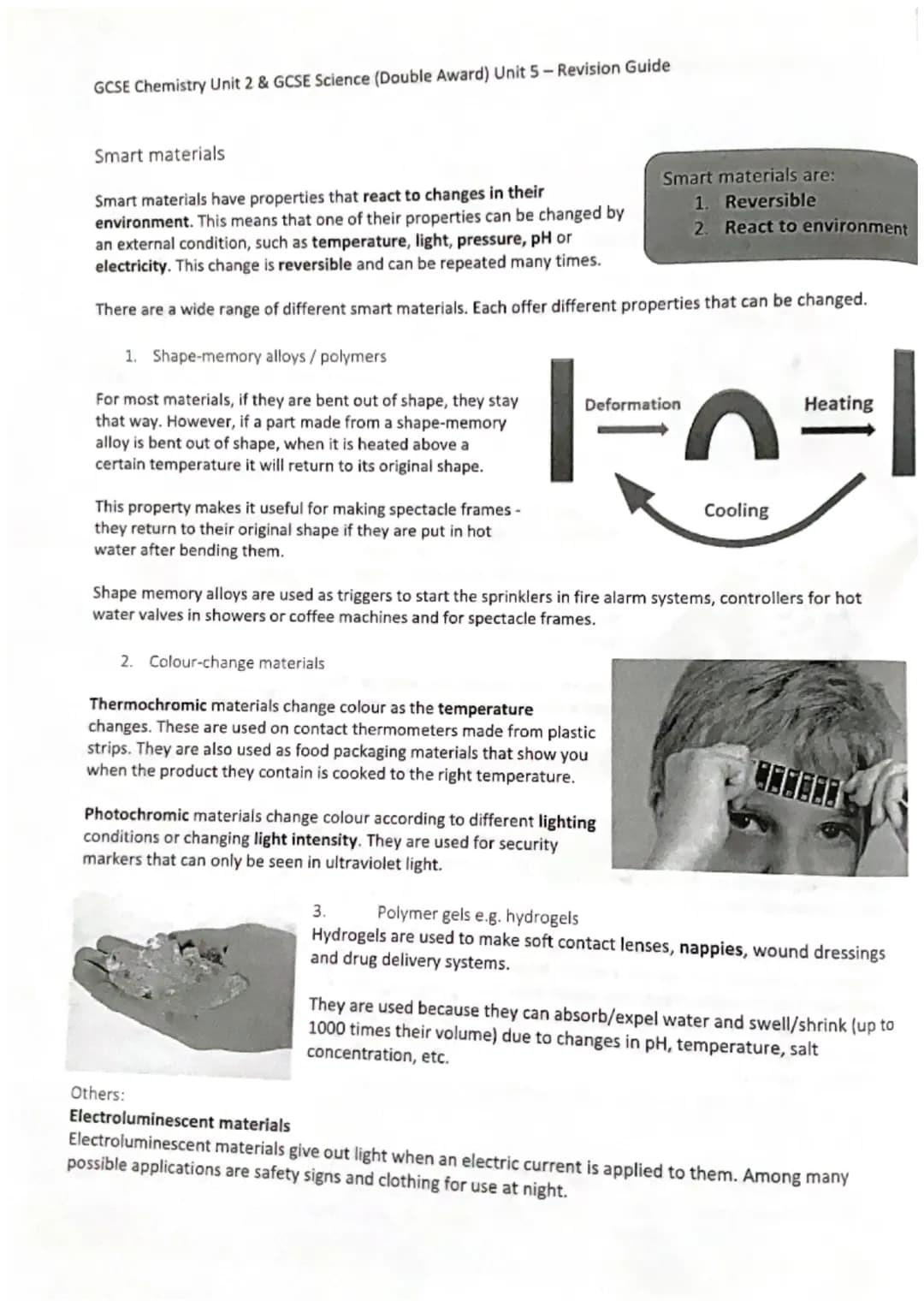

Page 7: Smart Materials

This section introduces materials with adaptable properties.

Definition: Smart materials can change their properties in response to environmental conditions such as temperature, light, or pressure.

Example: Shape-memory alloys demonstrate reversible shape changes under specific conditions.

Can't find what you're looking for? Explore other subjects.

Knowunity is the #1 education app in five European countries

Knowunity has been named a featured story on Apple and has regularly topped the app store charts in the education category in Germany, Italy, Poland, Switzerland, and the United Kingdom. Join Knowunity today and help millions of students around the world.

Download in

Google Play

Download in

App Store

Knowunity is the #1 education app in five European countries

4.9+

Average app rating

17 M

Pupils love Knowunity

#1

In education app charts in 17 countries

950 K+

Students have uploaded notes

Still not convinced? See what other students are saying...

iOS User

I love this app so much, I also use it daily. I recommend Knowunity to everyone!!! I went from a D to an A with it :D

Philip, iOS User

The app is very simple and well designed. So far I have always found everything I was looking for :D

Lena, iOS user

I love this app ❤️ I actually use it every time I study.

Subjects

Chemistry

GCSE Chemistry Unit 2: Bonding, Structure, and Properties – Easy Worksheets, PDFs, and Answers

Najah Isse

@najahisse_hovz

1 Follower

Bonding, Structure and Properties in GCSE Chemistry - A comprehensive guide covering metallic bonding, ionic structures, and smart materials for understanding fundamental chemical concepts.

...

26/02/2023

413

Chemistry

Sign up to see the content. It's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Metallic Bonding

This page delves into the concept of metallic bonding, which explains the unique properties of metals observed in the previous section.

Metallic bonding is characterized by a "sea" of free electrons surrounding positively charged metal ions in a giant structure. This bonding type determines the distinctive properties of metals:

Strong metallic bonds result in high melting and boiling points.
Free electrons enable metals to conduct electricity and heat efficiently.
The ability of metal atoms to slide over each other due to free electrons makes metals malleable and ductile.

Vocabulary: Delocalised electrons are those that are not associated with a specific atom but are free to move throughout the metallic structure.

Example: The strength of metallic bonds increases with the number of free electrons and protons in the ions, making some metals stronger than others.

Highlight: Understanding metallic bonding is crucial for explaining why metals can conduct heat and electricity, a key topic in GCSE Chemistry structure and bonding questions.

Sign up to see the content. It's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Ionic and Covalent Bonding

This page introduces two other fundamental types of chemical bonding: ionic and covalent bonding. These concepts are essential for understanding the properties of non-metals and compounds.

Ionic bonding:

Occurs between a metal and a non-metal
Involves the transfer of electrons
Results in the formation of charged particles called ions

Covalent bonding:

Occurs between two or more non-metals
Involves the sharing of electrons

The page provides a detailed example of ionic bonding in sodium chloride (NaCl):

Sodium loses one electron to chlorine
Both atoms achieve stable outer electron shells
The resulting ions have opposite charges and are held together by strong electrostatic attraction

Definition: Ions are charged particles formed when atoms gain or lose electrons during chemical bonding.

Highlight: The dot and cross representation shown in the diagram is a universally accepted method among chemists for illustrating electron arrangement in bonding.

Understanding these bonding types is crucial for answering GCSE Chemistry structure and bonding questions and answers.

Sign up to see the content. It's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Simple and Giant Structures

Key points about giant ionic structures:

Ionic compounds like sodium chloride form giant lattice structures.
These structures have high melting and boiling points due to strong electrostatic forces between oppositely-charged ions.
The ions are arranged in a regular, repeating pattern to form a giant ionic lattice.
Ionic compounds often form crystals as a result of this structure.
The overall charge of an ionic compound sample is always zero, despite being made up of charged particles.

Vocabulary: A lattice is a regular, repeating arrangement of particles (in this case, ions) in three dimensions.

Highlight: Understanding giant structures is crucial for explaining the physical properties of non-metals and ionic compounds in GCSE Chemistry.

The page also mentions a condition for ionic substances to conduct electricity, but the information is cut off. This topic is likely expanded upon in subsequent pages.

This content is particularly relevant for students preparing for GCSE Chemistry structure and bonding questions pdf resources and exams.

Sign up to see the content. It's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Page 4: Simple and Giant Structures

The page focuses on giant ionic structures and their properties.

Example: Sodium chloride demonstrates a giant ionic lattice structure with high melting and boiling points.

Highlight: The strength of ionic compounds comes from the powerful electrostatic forces between oppositely-charged ions.

Sign up to see the content. It's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Page 5: Giant Covalent Structures

This section explores complex molecular structures formed through covalent bonding.

Example: Diamond and graphite are classic examples of giant covalent structures with very high melting points.

Definition: Giant covalent structures contain numerous non-metal atoms joined by covalent bonds in a lattice arrangement.

Sign up to see the content. It's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Page 6: Carbon Structures and Fullerenes

The page details various carbon allotropes, particularly focusing on fullerenes.

Vocabulary: Buckminsterfullerene is a spherical molecule containing 60 carbon atoms.

Highlight: Carbon nanotubes offer practical applications in reinforcing structures and conducting electricity.

Sign up to see the content. It's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Page 7: Smart Materials

This section introduces materials with adaptable properties.

Definition: Smart materials can change their properties in response to environmental conditions such as temperature, light, or pressure.

Example: Shape-memory alloys demonstrate reversible shape changes under specific conditions.

Sign up to see the content. It's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

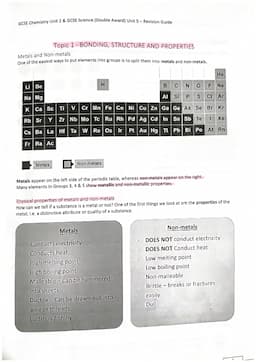

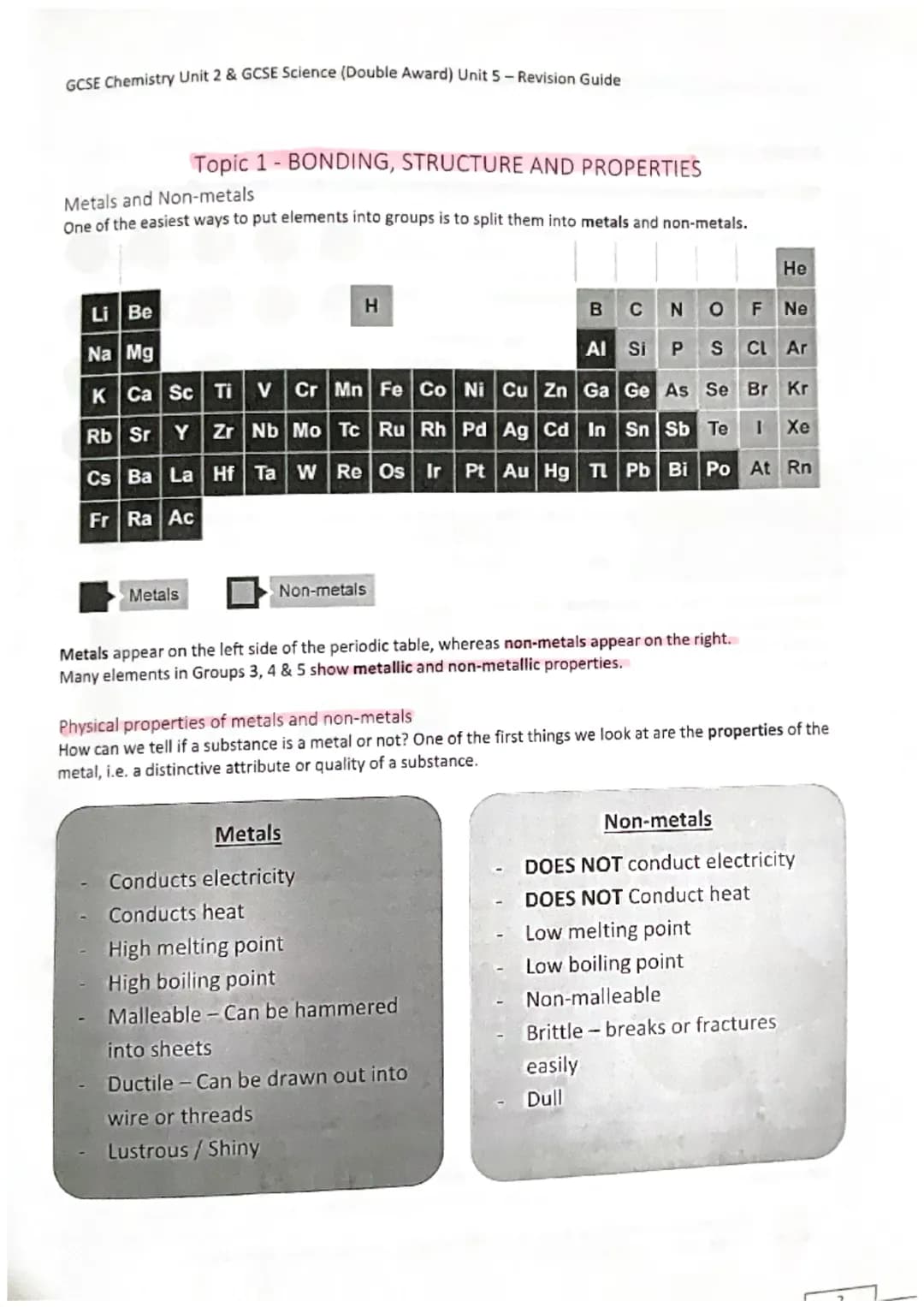

Metals and Non-metals

This page introduces the fundamental classification of elements into metals and non-metals, which is crucial for understanding bonding, structure and the properties of matter.

The periodic table is divided into metals on the left side and non-metals on the right side. Elements in Groups 3, 4, and 5 can exhibit both metallic and non-metallic properties.

The page outlines key physical properties that distinguish metals from non-metals:

Metals:

Conduct electricity and heat
High melting and boiling points
Malleable and ductile
Lustrous/shiny appearance

Non-metals:

Do not conduct electricity or heat
Low melting and boiling points
Non-malleable and brittle
Dull appearance

Definition: Malleable refers to the ability of a material to be hammered into sheets, while ductile means it can be drawn out into wires or threads.

Highlight: Understanding the properties of metals and non-metals is essential for predicting and explaining their behavior in chemical reactions and various applications.
