Separation Techniques in GCSE Chemistry

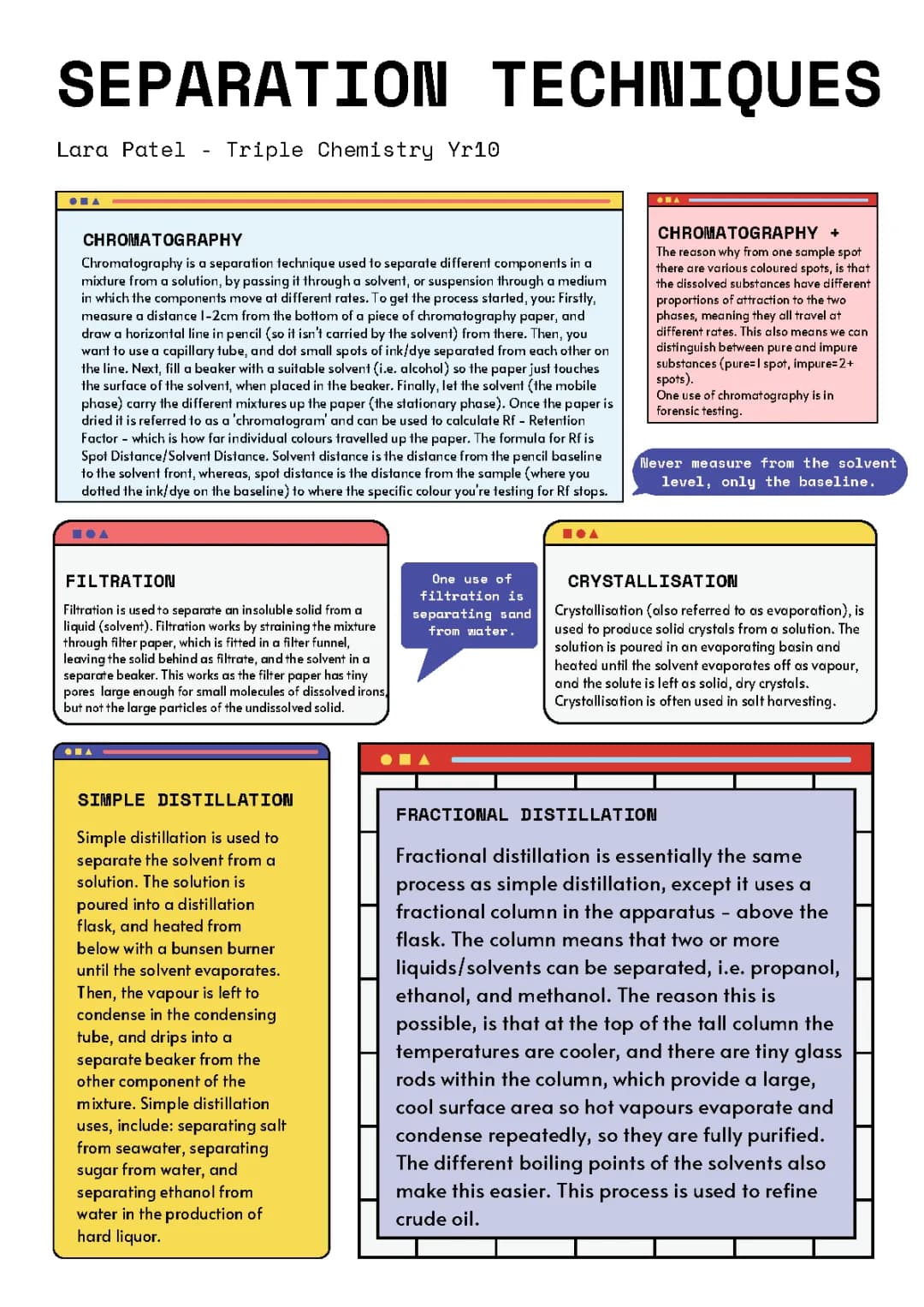

This page provides a comprehensive overview of various separation techniques essential for GCSE Chemistry, particularly focusing on the AQA syllabus. The techniques covered include chromatography, filtration, simple distillation, crystallisation, and fractional distillation.

Chromatography

Chromatography is a separation technique used to separate different components in a mixture. The process involves:

1. Drawing a pencil line 1-2cm from the bottom of chromatography paper.
2. Dotting ink/dye samples on the line using a capillary tube.
3. Placing the paper in a beaker with solvent, ensuring the solvent level is below the pencil line.
4. Allowing the solvent to carry the mixtures up the paper.

Vocabulary: Chromatogram - The dried paper after the chromatography process is complete.

Definition: Retention Factor (Rf) - A measure of how far individual colors travel up the paper, calculated as Spot Distance / Solvent Distance.

Example: Chromatography is used in forensic testing to analyze and compare substances.

Highlight: Pure substances produce one spot on the chromatogram, while impure substances produce two or more spots.

Filtration

Filtration is used to separate an insoluble solid from a liquid. The process works by:

1. Straining the mixture through filter paper fitted in a filter funnel.
2. Collecting the solid (filtrate) on the filter paper.
3. Allowing the liquid (solvent) to pass through into a separate beaker.

Example: Filtration can be used to separate sand from water.

Simple Distillation

Simple distillation separates a solvent from a solution by:

1. Heating the solution in a distillation flask until the solvent evaporates.
2. Condensing the vapor in a condensing tube.
3. Collecting the condensed liquid in a separate beaker.

Example: Simple distillation is used to separate salt from seawater or ethanol from water in liquor production.

Crystallisation

Crystallisation, also known as evaporation, produces solid crystals from a solution by:

1. Pouring the solution into an evaporating basin.
2. Heating until the solvent evaporates.
3. Collecting the remaining solid, dry crystals.

Example: Crystallisation is often used in salt harvesting.

Fractional Distillation

Fractional distillation is similar to simple distillation but uses a fractional column to separate two or more liquids. The process works by:

1. Utilizing temperature differences along the column.
2. Allowing vapors to evaporate and condense repeatedly on glass rods within the column.
3. Separating liquids based on their different boiling points.

Example: Fractional distillation is used to refine crude oil.

These separation techniques for GCSE Chemistry are crucial for understanding how to separate mixtures and are frequently featured in GCSE Chemistry exam questions.
