N5 Chemistry- UNIT 2 Summary Sheet

Discovering Structural Formulas: Alkanes vs. Alkenes and Naming Them Right!

Organic chemistry explores how carbon-based molecules form the building blocks of life through unique bonding patterns and structures.

Structural formulas in nature's chemistry reveal how carbon atoms connect with hydrogen and other elements to create diverse compounds. Carbon's special ability to form four stable bonds allows it to create chains, rings, and branched structures that make up everything from simple methane gas to complex proteins. These molecular arrangements follow specific patterns - single bonds in alkanes create stable saturated hydrocarbons, while alkenes contain reactive double bonds that enable chemical transformations.

The systematic naming of branched alkanes follows clear rules based on identifying the longest continuous carbon chain and noting branch positions. This standardized naming system helps chemists communicate molecular structures precisely. For example, a five-carbon main chain with a methyl group attached to the second carbon would be named 2-methylpentane. Understanding these naming conventions is crucial for working with organic molecules, as the name directly reflects the structural arrangement of atoms. Beyond just naming, these structural patterns determine important physical and chemical properties - straight-chain alkanes tend to have higher boiling points than branched versions with the same number of carbons, while the location of double bonds in alkenes affects their reactivity in chemical reactions. This systematic approach to understanding molecular architecture provides the foundation for studying biochemistry and the complex organic molecules that drive life processes.

...

06/10/2023

529

Unit 2 Natures Chemistry
Hydrocarbons Topic Summary Sheet
●
●
●
●
●
●
Alkanes
●
●
● Names end in -ane
●
●
●
Hydrocarbons are compounds conta

View

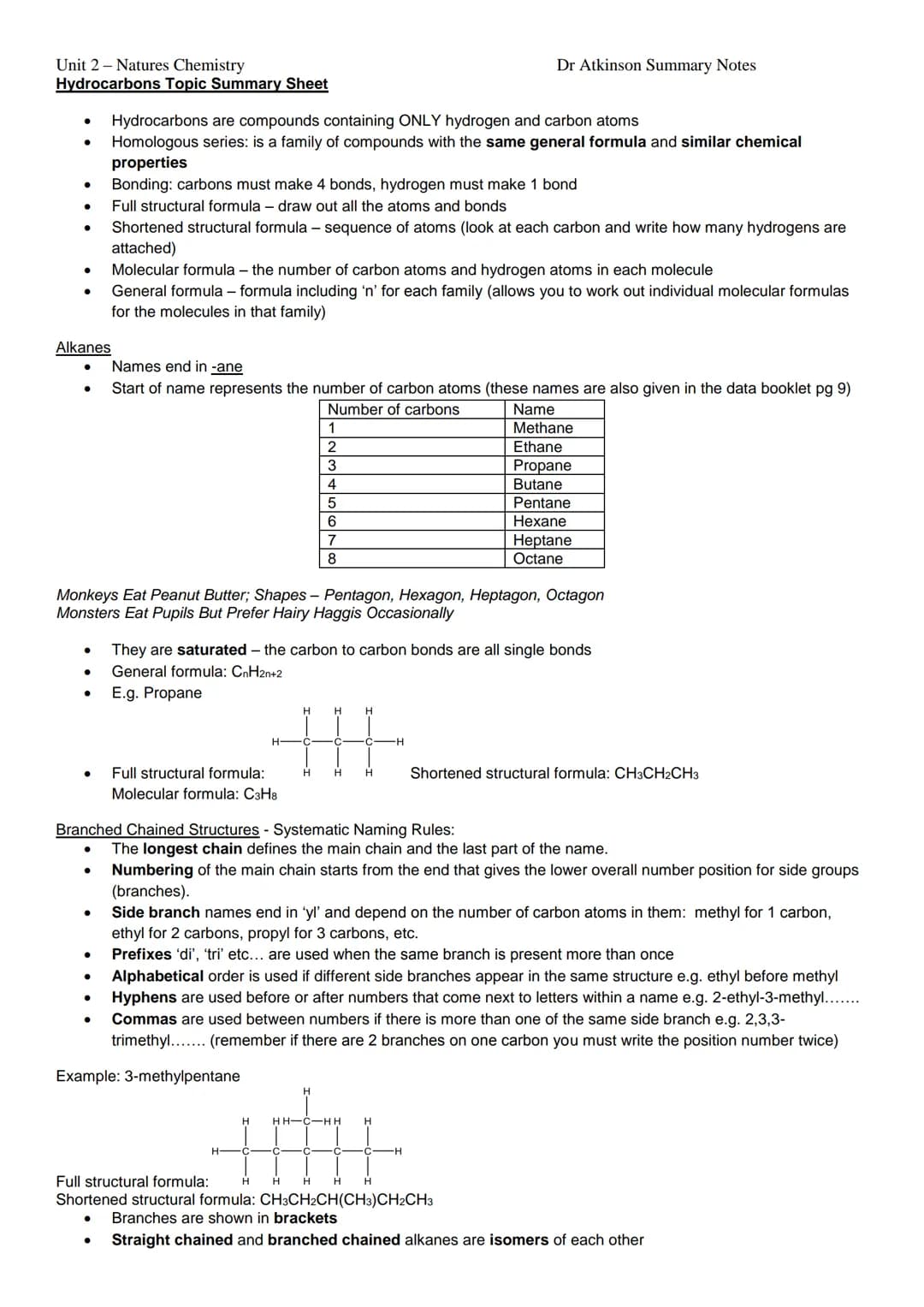

Understanding Nature's Chemistry: Hydrocarbons and Their Properties

Structural formulas in nature's chemistry form the foundation of understanding how carbon-based molecules interact and behave. These structures reveal the intricate arrangements of atoms that make up various hydrocarbon compounds, which contain only hydrogen and carbon atoms.

Definition: Homologous series are families of compounds sharing the same general formula and exhibiting similar chemical properties, with each member differing by one CH2 unit from the next.

Carbon atoms must form four bonds while hydrogen atoms form one bond. This fundamental rule governs how hydrocarbons are structured and behave. Scientists use different ways to represent these molecules:

  • Full structural formulas show all atoms and bonds
  • Shortened structural formulas display the sequence of atoms
  • Molecular formulas indicate the number of carbon and hydrogen atoms
  • General formulas use 'n' to represent the variable number of carbons

Highlight: The systematic naming of hydrocarbons follows specific rules that help identify their structure. Names ending in "-ane" indicate saturated hydrocarbons, while "-ene" endings signify the presence of a double bond.

Alkanes and alkenes differences become apparent when examining their structures and properties. Alkanes are saturated hydrocarbons with single bonds between carbon atoms, following the general formula CnH2n+2. In contrast, alkenes contain at least one double bond and follow the formula CnH2n.

Unit 2 Natures Chemistry
Hydrocarbons Topic Summary Sheet
●
●
●
●
●
●
Alkanes
●
●
● Names end in -ane
●
●
●
Hydrocarbons are compounds conta

View

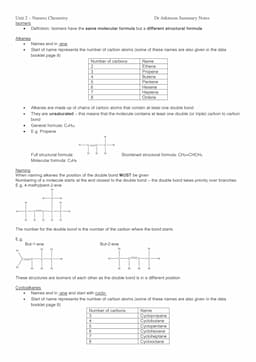

Chemical Structures and Isomerism in Hydrocarbons

Systematic naming of branched alkanes follows specific rules that ensure consistency in identifying molecular structures. The longest carbon chain determines the main name, while branches are named based on their size and position.

Vocabulary: Isomers are molecules sharing the same molecular formula but having different structural arrangements of atoms.

When naming branched structures:

  1. Identify the longest continuous carbon chain
  2. Number the chain to give branches the lowest possible numbers
  3. List branches alphabetically
  4. Use hyphens and commas appropriately in the name

Cycloalkanes represent another important class of hydrocarbons where carbon atoms form rings. These saturated compounds follow the general formula CnH2n, the same as alkenes, though their structures and properties differ significantly.

Example: In 3-methylpentane CH3CH2CH(CH3CH3CH2CH(CH3CH2CH3), the methyl branch CH3-CH3 is attached to the third carbon of a five-carbon main chain.

Unit 2 Natures Chemistry
Hydrocarbons Topic Summary Sheet
●
●
●
●
●
●
Alkanes
●
●
● Names end in -ane
●
●
●
Hydrocarbons are compounds conta

View

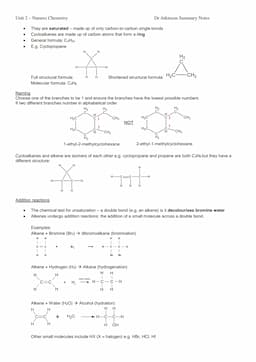

Reactions and Properties of Hydrocarbons

Addition reactions characterize the behavior of unsaturated hydrocarbons, particularly alkenes. These reactions involve adding small molecules across the double bond, resulting in new saturated compounds.

Key addition reactions include:

  • Bromination additionofBr2addition of Br2
  • Hydrogenation additionofH2addition of H2
  • Hydration additionofH2Oaddition of H2O

Definition: Addition reactions occur when small molecules join across a carbon-carbon double bond, converting unsaturated compounds to saturated ones.

Physical properties of hydrocarbons vary systematically with molecular size. As the carbon chain lengthens, both melting and boiling points increase due to stronger intermolecular forces. This relationship helps predict and understand hydrocarbon behavior in various applications.

Unit 2 Natures Chemistry
Hydrocarbons Topic Summary Sheet
●
●
●
●
●
●
Alkanes
●
●
● Names end in -ane
●
●
●
Hydrocarbons are compounds conta

View

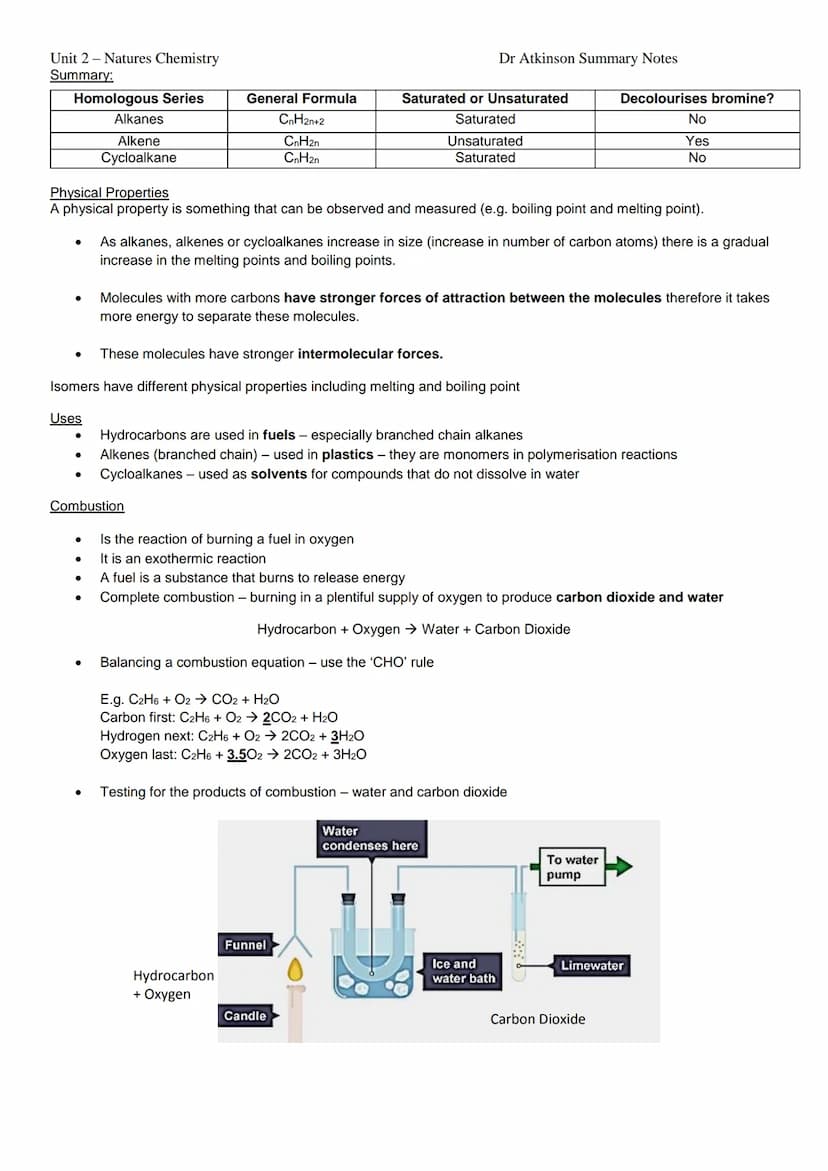

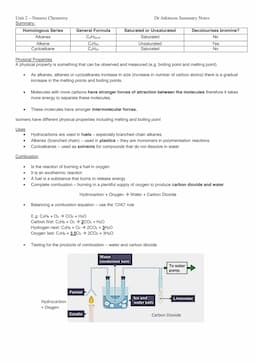

Applications and Testing of Hydrocarbons

Hydrocarbons serve numerous practical purposes in modern life. Branched alkanes function as efficient fuels, while alkenes serve as building blocks for plastics through polymerization reactions. Cycloalkanes find use as non-polar solvents.

Highlight: Complete combustion of hydrocarbons produces carbon dioxide and water, requiring sufficient oxygen supply. This process releases energy, making hydrocarbons valuable as fuels.

Testing for hydrocarbon properties involves specific chemical tests:

  • Bromine water decolorization identifies unsaturated compounds
  • Limewater tests for carbon dioxide production
  • Water condensation demonstrates hydrogen presence in combustion products

Understanding these properties and tests enables proper identification and use of different hydrocarbon classes in industrial and laboratory settings.

Unit 2 Natures Chemistry
Hydrocarbons Topic Summary Sheet
●
●
●
●
●
●
Alkanes
●
●
● Names end in -ane
●
●
●
Hydrocarbons are compounds conta

View

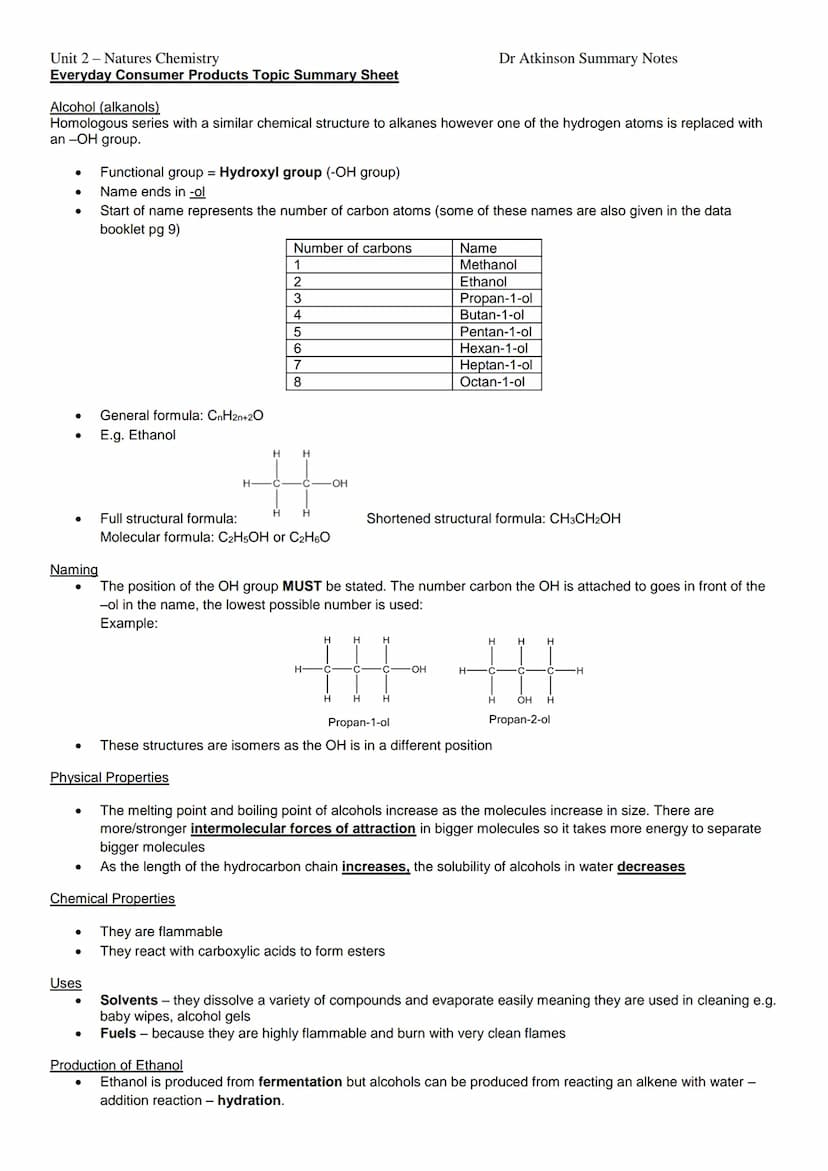

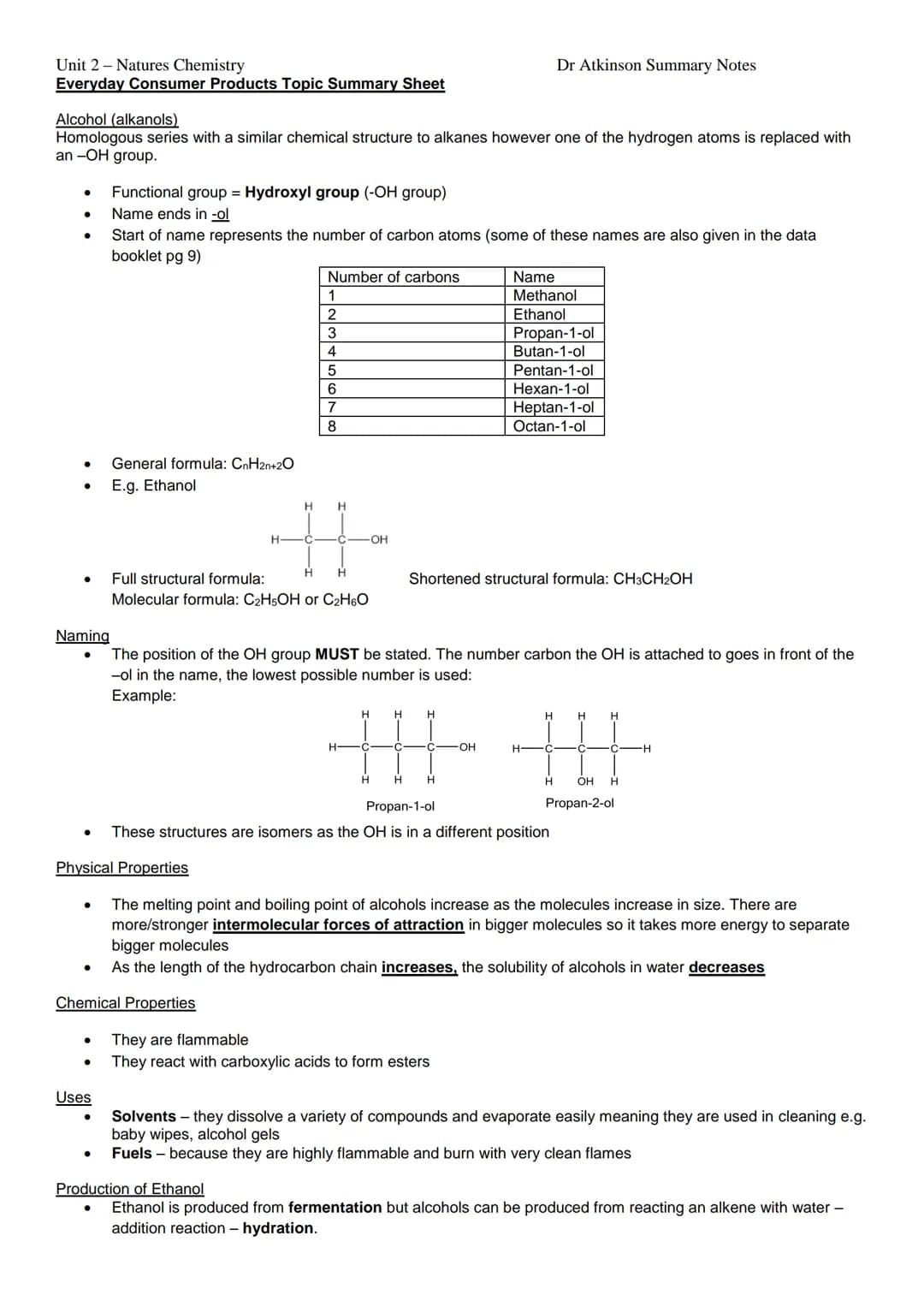

Understanding Alcohols in Nature's Chemistry

Alcohols, also known as alkanols, represent a crucial class of organic compounds that share structural similarities with alkanes. The key distinction lies in the replacement of a hydrogen atom with a hydroxyl OH-OH group, which dramatically changes their properties and applications.

The systematic naming of alcohols follows specific rules where the name ends in "-ol" and begins with the number of carbon atoms in the chain. For instance, ethanol C2H5OHC₂H₅OH contains two carbon atoms. The position of the hydroxyl group must be indicated by numbering the carbon chain, always using the lowest possible number where the -OH group attaches.

Definition: Alcohols are organic compounds characterized by the presence of a hydroxyl OH-OH functional group attached to a carbon atom.

Physical properties of alcohols demonstrate interesting patterns. As molecular size increases, both melting and boiling points rise due to stronger intermolecular forces between larger molecules. However, water solubility decreases with increasing chain length, explaining why methanol completely dissolves in water while longer-chain alcohols like octanol are less soluble.

The practical applications of alcohols are extensive and vital to modern life. Their ability to dissolve various compounds while evaporating easily makes them excellent solvents in cleaning products like hand sanitizers and baby wipes. Additionally, their high flammability and clean-burning properties make them valuable as alternative fuels.

Unit 2 Natures Chemistry
Hydrocarbons Topic Summary Sheet
●
●
●
●
●
●
Alkanes
●
●
● Names end in -ane
●
●
●
Hydrocarbons are compounds conta

View

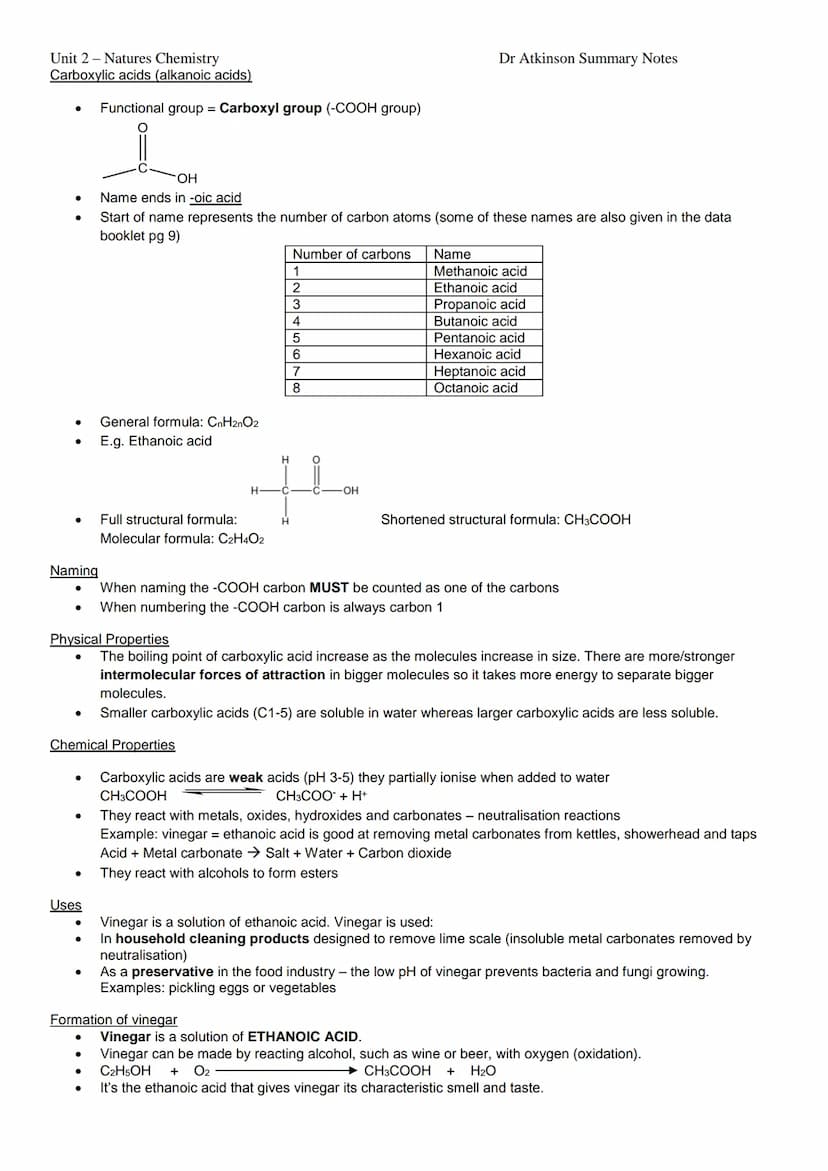

Carboxylic Acids: Essential Organic Compounds

Carboxylic acids, distinguished by their -COOH functional group, form another fundamental class of organic compounds in nature's chemistry. These compounds follow a systematic naming convention ending in "-oic acid," with the carboxyl group always designated as carbon number one in the chain.

Vocabulary: The carboxyl group COOH-COOH consists of a carbonyl group C=OC=O bonded to a hydroxyl group OH-OH, giving carboxylic acids their characteristic properties.

Physical properties of carboxylic acids show clear trends. Larger molecules exhibit higher boiling points due to increased intermolecular forces. Solubility patterns mirror those of alcohols, with shorter-chain acids C1C5C1-C5 showing good water solubility while longer chains become increasingly hydrophobic.

These compounds play crucial roles in both natural and industrial processes. Vinegar, a solution of ethanoic acid, exemplifies their practical applications. Its ability to react with metal carbonates makes it an effective cleaning agent for removing limescale, while its low pH makes it valuable as a food preservative by inhibiting microbial growth.

Can't find what you're looking for? Explore other subjects.

Knowunity is the #1 education app in five European countries

Knowunity has been named a featured story on Apple and has regularly topped the app store charts in the education category in Germany, Italy, Poland, Switzerland, and the United Kingdom. Join Knowunity today and help millions of students around the world.

Ranked #1 Education App

Download in

Google Play

Download in

App Store

Knowunity is the #1 education app in five European countries

4.9+

Average app rating

21 M

Pupils love Knowunity

#1

In education app charts in 17 countries

950 K+

Students have uploaded notes

Still not convinced? See what other students are saying...

iOS User

I love this app so much, I also use it daily. I recommend Knowunity to everyone!!! I went from a D to an A with it :D

Philip, iOS User

The app is very simple and well designed. So far I have always found everything I was looking for :D

Lena, iOS user

I love this app ❤️ I actually use it every time I study.



Chemistry

529

6 Oct 2023

7 pages

Discovering Structural Formulas: Alkanes vs. Alkenes and Naming Them Right!

user profile picture

Scott Radley

@scottradley_rcem

Organic chemistry explores how carbon-based molecules form the building blocks of life through unique bonding patterns and structures.

Structural formulas in nature's chemistryreveal how carbon atoms connect with hydrogen and other elements to create diverse compounds. Carbon's special ability... Show more

Unit 2 Natures Chemistry
Hydrocarbons Topic Summary Sheet
●
●
●
●
●
●
Alkanes
●
●
● Names end in -ane
●
●
●
Hydrocarbons are compounds conta

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Understanding Nature's Chemistry: Hydrocarbons and Their Properties

Structural formulas in nature's chemistry form the foundation of understanding how carbon-based molecules interact and behave. These structures reveal the intricate arrangements of atoms that make up various hydrocarbon compounds, which contain only hydrogen and carbon atoms.

Definition: Homologous series are families of compounds sharing the same general formula and exhibiting similar chemical properties, with each member differing by one CH2 unit from the next.

Carbon atoms must form four bonds while hydrogen atoms form one bond. This fundamental rule governs how hydrocarbons are structured and behave. Scientists use different ways to represent these molecules:

  • Full structural formulas show all atoms and bonds
  • Shortened structural formulas display the sequence of atoms
  • Molecular formulas indicate the number of carbon and hydrogen atoms
  • General formulas use 'n' to represent the variable number of carbons

Highlight: The systematic naming of hydrocarbons follows specific rules that help identify their structure. Names ending in "-ane" indicate saturated hydrocarbons, while "-ene" endings signify the presence of a double bond.

Alkanes and alkenes differences become apparent when examining their structures and properties. Alkanes are saturated hydrocarbons with single bonds between carbon atoms, following the general formula CnH2n+2. In contrast, alkenes contain at least one double bond and follow the formula CnH2n.

Unit 2 Natures Chemistry
Hydrocarbons Topic Summary Sheet
●
●
●
●
●
●
Alkanes
●
●
● Names end in -ane
●
●
●
Hydrocarbons are compounds conta

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

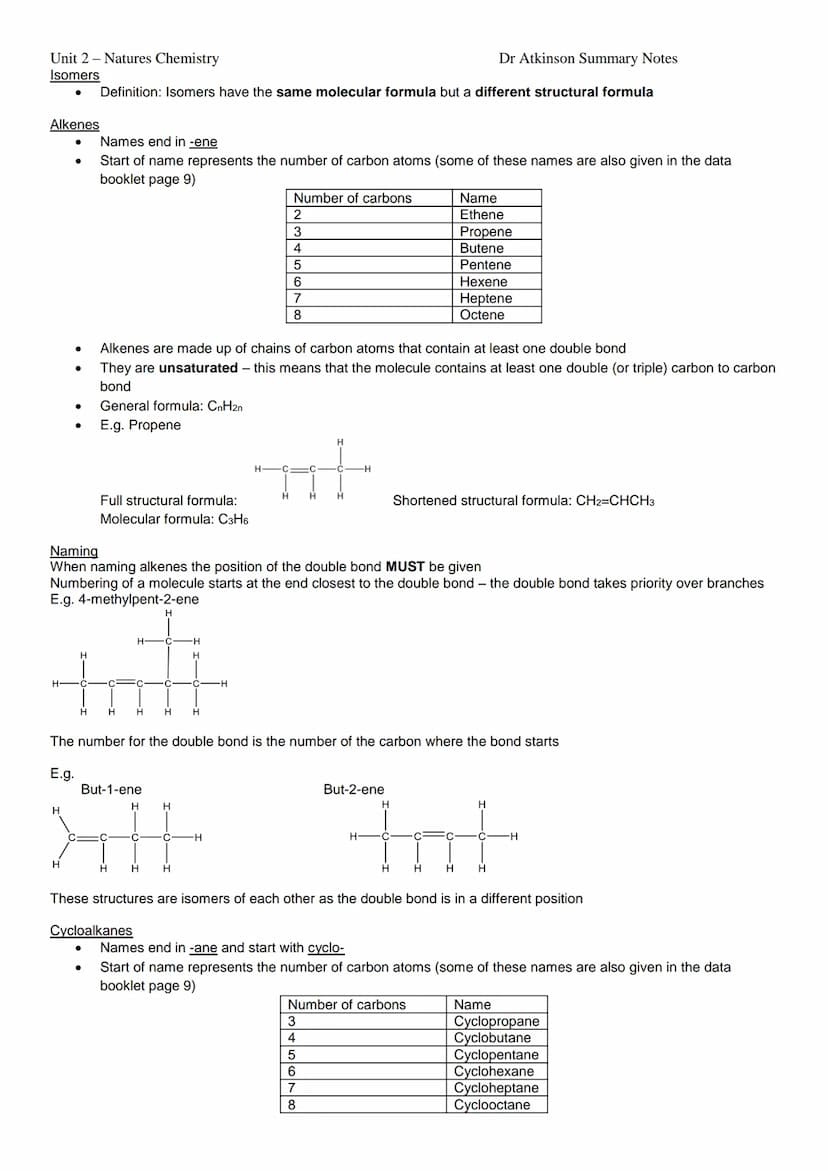

Chemical Structures and Isomerism in Hydrocarbons

Systematic naming of branched alkanes follows specific rules that ensure consistency in identifying molecular structures. The longest carbon chain determines the main name, while branches are named based on their size and position.

Vocabulary: Isomers are molecules sharing the same molecular formula but having different structural arrangements of atoms.

When naming branched structures:

  1. Identify the longest continuous carbon chain
  2. Number the chain to give branches the lowest possible numbers
  3. List branches alphabetically
  4. Use hyphens and commas appropriately in the name

Cycloalkanes represent another important class of hydrocarbons where carbon atoms form rings. These saturated compounds follow the general formula CnH2n, the same as alkenes, though their structures and properties differ significantly.

Example: In 3-methylpentane CH3CH2CH(CH3CH3CH2CH(CH3CH2CH3), the methyl branch CH3-CH3 is attached to the third carbon of a five-carbon main chain.

Unit 2 Natures Chemistry
Hydrocarbons Topic Summary Sheet
●
●
●
●
●
●
Alkanes
●
●
● Names end in -ane
●
●
●
Hydrocarbons are compounds conta

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Reactions and Properties of Hydrocarbons

Addition reactions characterize the behavior of unsaturated hydrocarbons, particularly alkenes. These reactions involve adding small molecules across the double bond, resulting in new saturated compounds.

Key addition reactions include:

  • Bromination additionofBr2addition of Br2
  • Hydrogenation additionofH2addition of H2
  • Hydration additionofH2Oaddition of H2O

Definition: Addition reactions occur when small molecules join across a carbon-carbon double bond, converting unsaturated compounds to saturated ones.

Physical properties of hydrocarbons vary systematically with molecular size. As the carbon chain lengthens, both melting and boiling points increase due to stronger intermolecular forces. This relationship helps predict and understand hydrocarbon behavior in various applications.

Unit 2 Natures Chemistry
Hydrocarbons Topic Summary Sheet
●
●
●
●
●
●
Alkanes
●
●
● Names end in -ane
●
●
●
Hydrocarbons are compounds conta

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

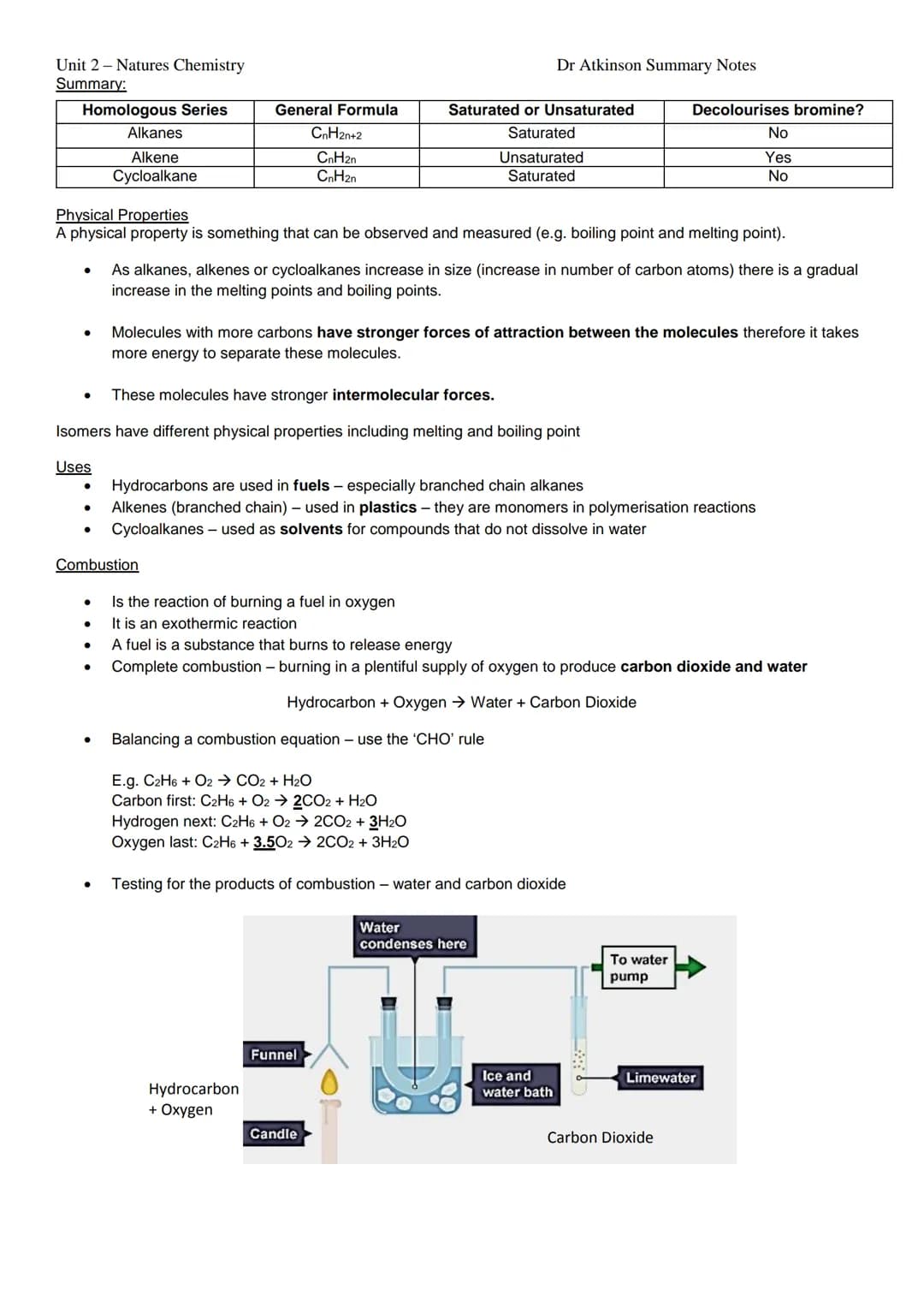

Applications and Testing of Hydrocarbons

Hydrocarbons serve numerous practical purposes in modern life. Branched alkanes function as efficient fuels, while alkenes serve as building blocks for plastics through polymerization reactions. Cycloalkanes find use as non-polar solvents.

Highlight: Complete combustion of hydrocarbons produces carbon dioxide and water, requiring sufficient oxygen supply. This process releases energy, making hydrocarbons valuable as fuels.

Testing for hydrocarbon properties involves specific chemical tests:

  • Bromine water decolorization identifies unsaturated compounds
  • Limewater tests for carbon dioxide production
  • Water condensation demonstrates hydrogen presence in combustion products

Understanding these properties and tests enables proper identification and use of different hydrocarbon classes in industrial and laboratory settings.

Unit 2 Natures Chemistry
Hydrocarbons Topic Summary Sheet
●
●
●
●
●
●
Alkanes
●
●
● Names end in -ane
●
●
●
Hydrocarbons are compounds conta

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Understanding Alcohols in Nature's Chemistry

Alcohols, also known as alkanols, represent a crucial class of organic compounds that share structural similarities with alkanes. The key distinction lies in the replacement of a hydrogen atom with a hydroxyl OH-OH group, which dramatically changes their properties and applications.

The systematic naming of alcohols follows specific rules where the name ends in "-ol" and begins with the number of carbon atoms in the chain. For instance, ethanol C2H5OHC₂H₅OH contains two carbon atoms. The position of the hydroxyl group must be indicated by numbering the carbon chain, always using the lowest possible number where the -OH group attaches.

Definition: Alcohols are organic compounds characterized by the presence of a hydroxyl OH-OH functional group attached to a carbon atom.

Physical properties of alcohols demonstrate interesting patterns. As molecular size increases, both melting and boiling points rise due to stronger intermolecular forces between larger molecules. However, water solubility decreases with increasing chain length, explaining why methanol completely dissolves in water while longer-chain alcohols like octanol are less soluble.

The practical applications of alcohols are extensive and vital to modern life. Their ability to dissolve various compounds while evaporating easily makes them excellent solvents in cleaning products like hand sanitizers and baby wipes. Additionally, their high flammability and clean-burning properties make them valuable as alternative fuels.

Unit 2 Natures Chemistry
Hydrocarbons Topic Summary Sheet
●
●
●
●
●
●
Alkanes
●
●
● Names end in -ane
●
●
●
Hydrocarbons are compounds conta

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

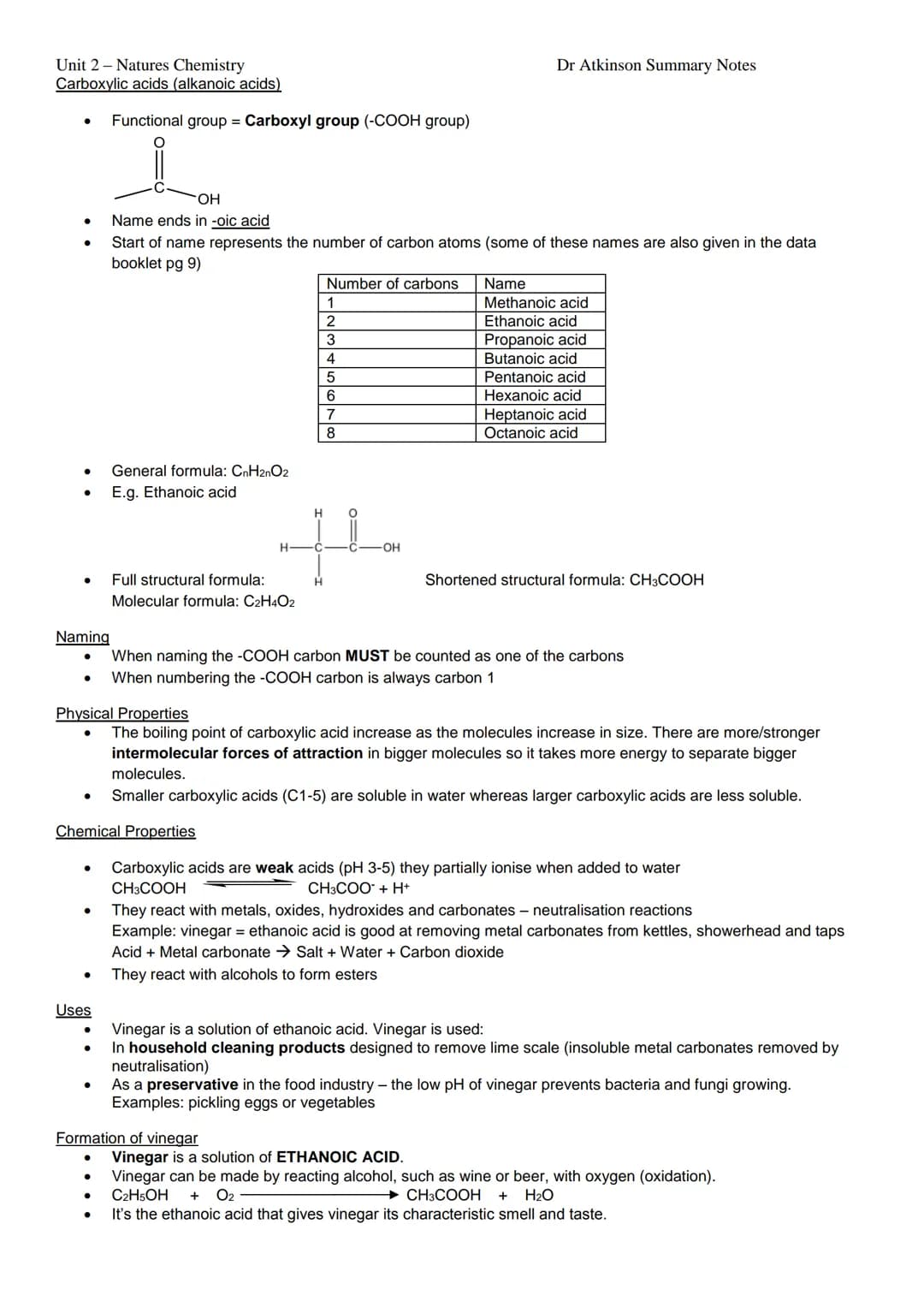

Carboxylic Acids: Essential Organic Compounds

Carboxylic acids, distinguished by their -COOH functional group, form another fundamental class of organic compounds in nature's chemistry. These compounds follow a systematic naming convention ending in "-oic acid," with the carboxyl group always designated as carbon number one in the chain.

Vocabulary: The carboxyl group COOH-COOH consists of a carbonyl group C=OC=O bonded to a hydroxyl group OH-OH, giving carboxylic acids their characteristic properties.

Physical properties of carboxylic acids show clear trends. Larger molecules exhibit higher boiling points due to increased intermolecular forces. Solubility patterns mirror those of alcohols, with shorter-chain acids C1C5C1-C5 showing good water solubility while longer chains become increasingly hydrophobic.

These compounds play crucial roles in both natural and industrial processes. Vinegar, a solution of ethanoic acid, exemplifies their practical applications. Its ability to react with metal carbonates makes it an effective cleaning agent for removing limescale, while its low pH makes it valuable as a food preservative by inhibiting microbial growth.

Unit 2 Natures Chemistry
Hydrocarbons Topic Summary Sheet
●
●
●
●
●
●
Alkanes
●
●
● Names end in -ane
●
●
●
Hydrocarbons are compounds conta

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

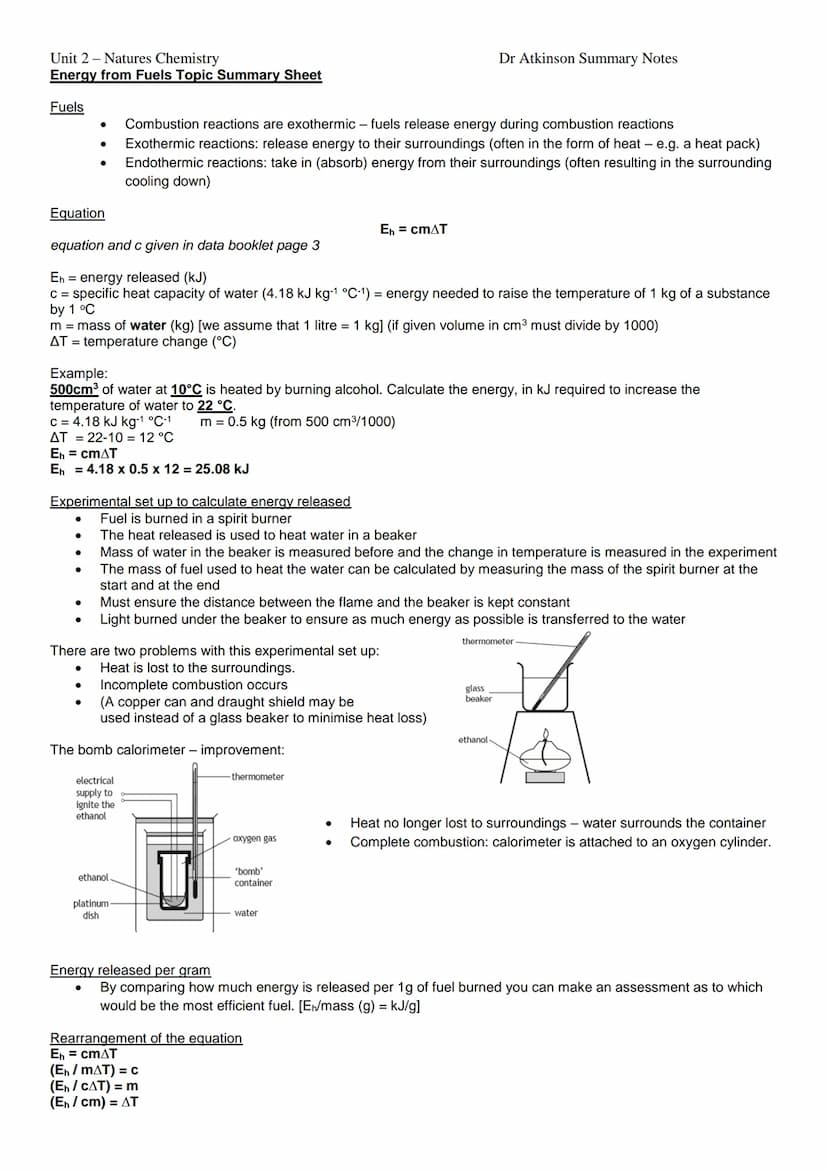

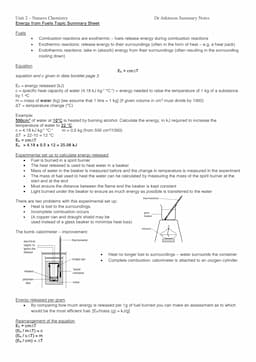

Energy from Fuels: Understanding Heat Release

The study of energy release from fuels centers on understanding combustion reactions and their quantitative measurement. This knowledge is fundamental to evaluating fuel efficiency and environmental impact.

Example: When calculating energy release, we use the equation Eh = cmΔT, where:

  • Eh represents energy released in kilojoules kJkJ
  • c is the specific heat capacity of water 4.18kJkg1°C14.18 kJ kg⁻¹ °C⁻¹
  • m is water mass in kilograms
  • ΔT is temperature change in degrees Celsius

Experimental setups for measuring energy release typically involve burning fuel under controlled conditions. The traditional method uses a spirit burner to heat water in a beaker, though this setup has limitations due to heat loss and incomplete combustion.

The bomb calorimeter represents a significant improvement in measuring fuel energy content. By containing the reaction in an oxygen-rich environment and surrounding it with water, it eliminates heat loss and ensures complete combustion, providing more accurate measurements of energy release per gram of fuel.

Can't find what you're looking for? Explore other subjects.

Students love us — and so will you.

4.9/5

App Store

4.8/5

Google Play

The app is very easy to use and well designed. I have found everything I was looking for so far and have been able to learn a lot from the presentations! I will definitely use the app for a class assignment! And of course it also helps a lot as an inspiration.

Stefan S

iOS user

This app is really great. There are so many study notes and help [...]. My problem subject is French, for example, and the app has so many options for help. Thanks to this app, I have improved my French. I would recommend it to anyone.

Samantha Klich

Android user

Wow, I am really amazed. I just tried the app because I've seen it advertised many times and was absolutely stunned. This app is THE HELP you want for school and above all, it offers so many things, such as workouts and fact sheets, which have been VERY helpful to me personally.

Anna

iOS user

Best app on earth! no words because it’s too good

Thomas R

iOS user

Just amazing. Let's me revise 10x better, this app is a quick 10/10. I highly recommend it to anyone. I can watch and search for notes. I can save them in the subject folder. I can revise it any time when I come back. If you haven't tried this app, you're really missing out.

Basil

Android user

This app has made me feel so much more confident in my exam prep, not only through boosting my own self confidence through the features that allow you to connect with others and feel less alone, but also through the way the app itself is centred around making you feel better. It is easy to navigate, fun to use, and helpful to anyone struggling in absolutely any way.

David K

iOS user

The app's just great! All I have to do is enter the topic in the search bar and I get the response real fast. I don't have to watch 10 YouTube videos to understand something, so I'm saving my time. Highly recommended!

Sudenaz Ocak

Android user

In school I was really bad at maths but thanks to the app, I am doing better now. I am so grateful that you made the app.

Greenlight Bonnie

Android user

very reliable app to help and grow your ideas of Maths, English and other related topics in your works. please use this app if your struggling in areas, this app is key for that. wish I'd of done a review before. and it's also free so don't worry about that.

Rohan U

Android user

I know a lot of apps use fake accounts to boost their reviews but this app deserves it all. Originally I was getting 4 in my English exams and this time I got a grade 7. I didn’t even know about this app three days until the exam and it has helped A LOT. Please actually trust me and use it as I’m sure you too will see developments.

Xander S

iOS user

THE QUIZES AND FLASHCARDS ARE SO USEFUL AND I LOVE THE SCHOOLGPT. IT ALSO IS LITREALLY LIKE CHATGPT BUT SMARTER!! HELPED ME WITH MY MASCARA PROBLEMS TOO!! AS WELL AS MY REAL SUBJECTS ! DUHHH 😍😁😲🤑💗✨🎀😮

Elisha

iOS user

This apps acc the goat. I find revision so boring but this app makes it so easy to organize it all and then you can ask the freeeee ai to test yourself so good and you can easily upload your own stuff. highly recommend as someone taking mocks now

Paul T

iOS user

The app is very easy to use and well designed. I have found everything I was looking for so far and have been able to learn a lot from the presentations! I will definitely use the app for a class assignment! And of course it also helps a lot as an inspiration.

Stefan S

iOS user

This app is really great. There are so many study notes and help [...]. My problem subject is French, for example, and the app has so many options for help. Thanks to this app, I have improved my French. I would recommend it to anyone.

Samantha Klich

Android user

Wow, I am really amazed. I just tried the app because I've seen it advertised many times and was absolutely stunned. This app is THE HELP you want for school and above all, it offers so many things, such as workouts and fact sheets, which have been VERY helpful to me personally.

Anna

iOS user

Best app on earth! no words because it’s too good

Thomas R

iOS user

Just amazing. Let's me revise 10x better, this app is a quick 10/10. I highly recommend it to anyone. I can watch and search for notes. I can save them in the subject folder. I can revise it any time when I come back. If you haven't tried this app, you're really missing out.

Basil

Android user

This app has made me feel so much more confident in my exam prep, not only through boosting my own self confidence through the features that allow you to connect with others and feel less alone, but also through the way the app itself is centred around making you feel better. It is easy to navigate, fun to use, and helpful to anyone struggling in absolutely any way.

David K

iOS user

The app's just great! All I have to do is enter the topic in the search bar and I get the response real fast. I don't have to watch 10 YouTube videos to understand something, so I'm saving my time. Highly recommended!

Sudenaz Ocak

Android user

In school I was really bad at maths but thanks to the app, I am doing better now. I am so grateful that you made the app.

Greenlight Bonnie

Android user

very reliable app to help and grow your ideas of Maths, English and other related topics in your works. please use this app if your struggling in areas, this app is key for that. wish I'd of done a review before. and it's also free so don't worry about that.

Rohan U

Android user

I know a lot of apps use fake accounts to boost their reviews but this app deserves it all. Originally I was getting 4 in my English exams and this time I got a grade 7. I didn’t even know about this app three days until the exam and it has helped A LOT. Please actually trust me and use it as I’m sure you too will see developments.

Xander S

iOS user

THE QUIZES AND FLASHCARDS ARE SO USEFUL AND I LOVE THE SCHOOLGPT. IT ALSO IS LITREALLY LIKE CHATGPT BUT SMARTER!! HELPED ME WITH MY MASCARA PROBLEMS TOO!! AS WELL AS MY REAL SUBJECTS ! DUHHH 😍😁😲🤑💗✨🎀😮

Elisha

iOS user

This apps acc the goat. I find revision so boring but this app makes it so easy to organize it all and then you can ask the freeeee ai to test yourself so good and you can easily upload your own stuff. highly recommend as someone taking mocks now

Paul T

iOS user
