The Evolution of Atomic Models

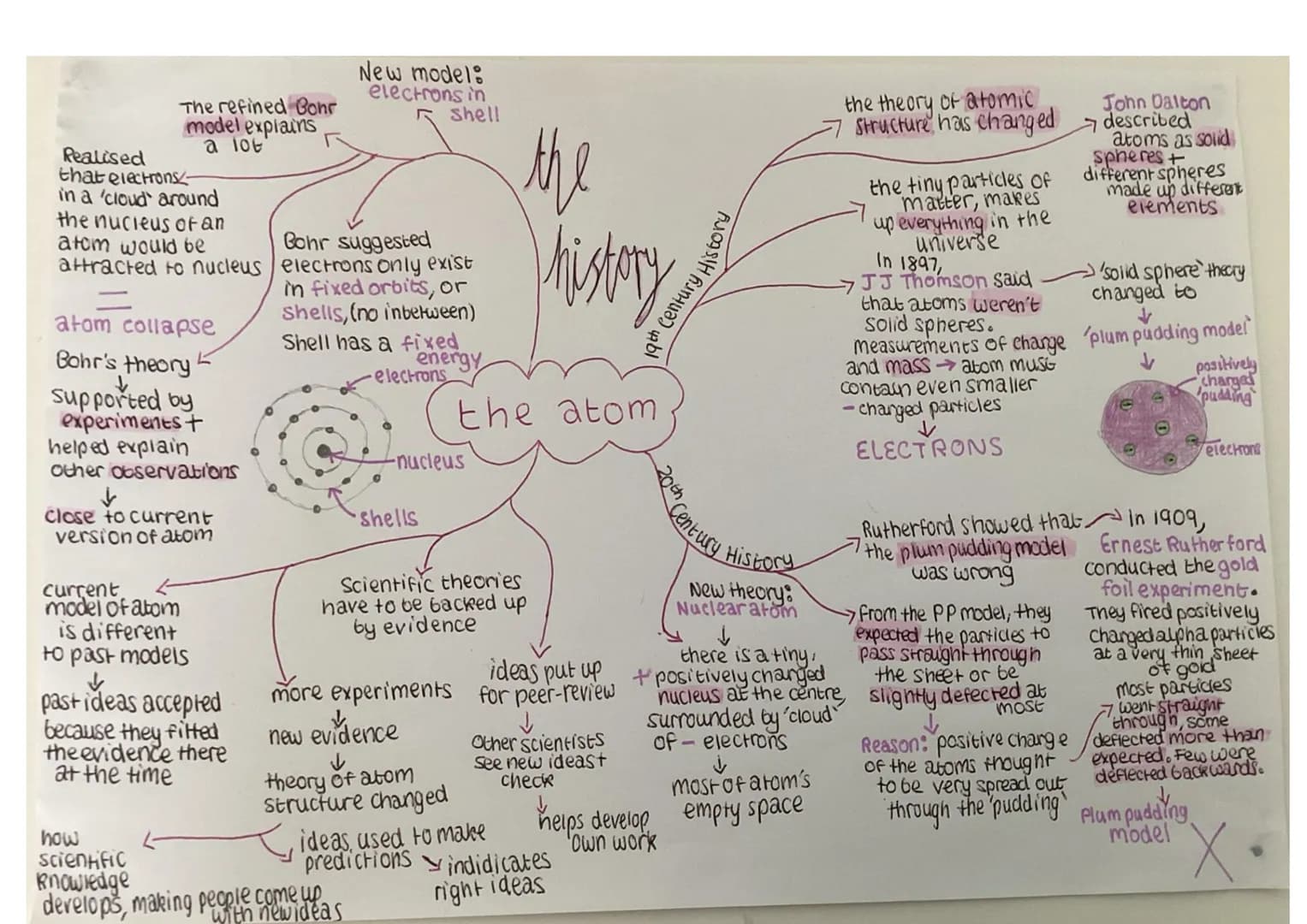

Your understanding of atoms has come a long way from the simple ideas scientists had centuries ago. John Dalton initially described atoms as solid spheres, but this theory quickly crumbled when new evidence emerged.
In 1897, JJ Thomson discovered that atoms contained even smaller charged particles called electrons. This led to his famous "plum pudding model" - imagine a positively charged pudding with electrons scattered throughout like raisins.
However, Ernest Rutherford's gold foil experiment in 1909 completely shattered this idea. When he fired alpha particles at gold foil, most went straight through, but some bounced back dramatically. This proved atoms had a tiny, dense nucleus at their centre, surrounded by mostly empty space.
Key Point: Scientific theories change when new evidence emerges - that's how we've built our current atomic model!
The refined Bohr model then suggested electrons exist in fixed shells around the nucleus, each with specific energy levels. This model, backed by experimental evidence, closely resembles what we understand today about atomic structure.

Inside the Atom: Subatomic Particles

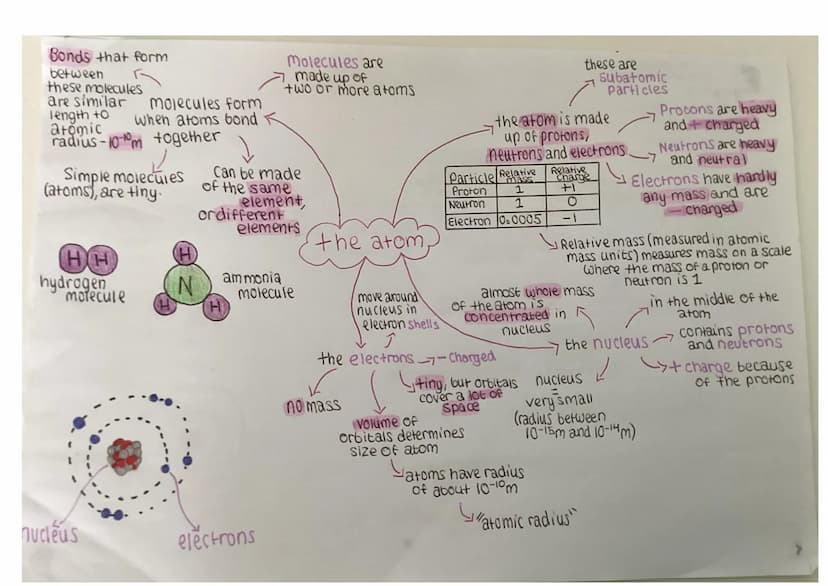

Think of an atom as having two main regions: the nucleus (incredibly tiny but containing almost all the mass) and the electron shells (taking up most of the space). The nucleus has a radius between 10⁻¹⁵m and 10⁻¹⁴m, whilst the whole atom measures about 10⁻¹⁰m across.
Protons are heavy particles with a +1 charge, neutrons are equally heavy but neutral, and electrons have virtually no mass but carry a -1 charge. The nucleus contains protons and neutrons, giving it a positive charge, whilst electrons orbit in shells around it.
When atoms bond together, they form molecules - think of hydrogen gas (H₂) or ammonia (NH₃). These molecular bonds are similar in length to atomic radii, showing just how tiny these building blocks really are.
Remember: Almost the entire mass of an atom is concentrated in its tiny nucleus, whilst electrons determine the atom's overall size!
Understanding these subatomic particles and their arrangement helps explain why different elements behave so differently in chemical reactions.

Ionic Bonding: When Atoms Swap Electrons

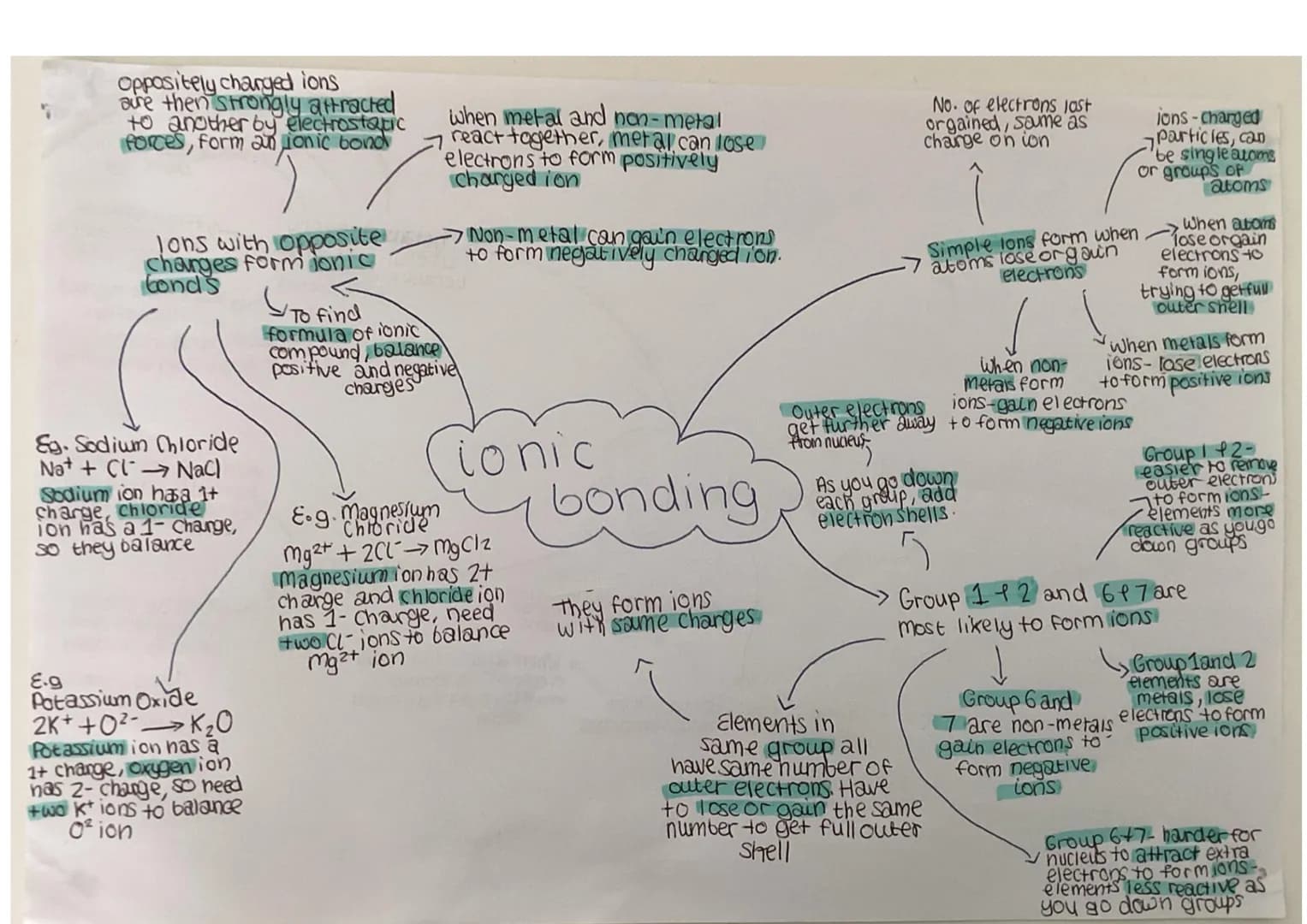

Ionic bonding happens when metals meet non-metals and electrons get transferred from one to the other. Metals lose electrons to become positive ions, whilst non-metals gain electrons to become negative ions - and opposites attract!
Elements in the same group behave similarly because they have the same number of outer electrons. Group 1 and 2 metals easily lose electrons, whilst Group 6 and 7 non-metals readily gain them to achieve full outer shells.
Working out ionic compound formulas is like balancing a seesaw - the positive and negative charges must equal zero. Sodium chloride is straightforward, but magnesium chloride needs two chloride ions to balance one magnesium ion .
Top Tip: Count the charges carefully - they must always balance out to zero in ionic compounds!
The electrostatic forces between these oppositely charged ions are incredibly strong, which explains why ionic compounds have such high melting points.

Properties of Ionic Compounds

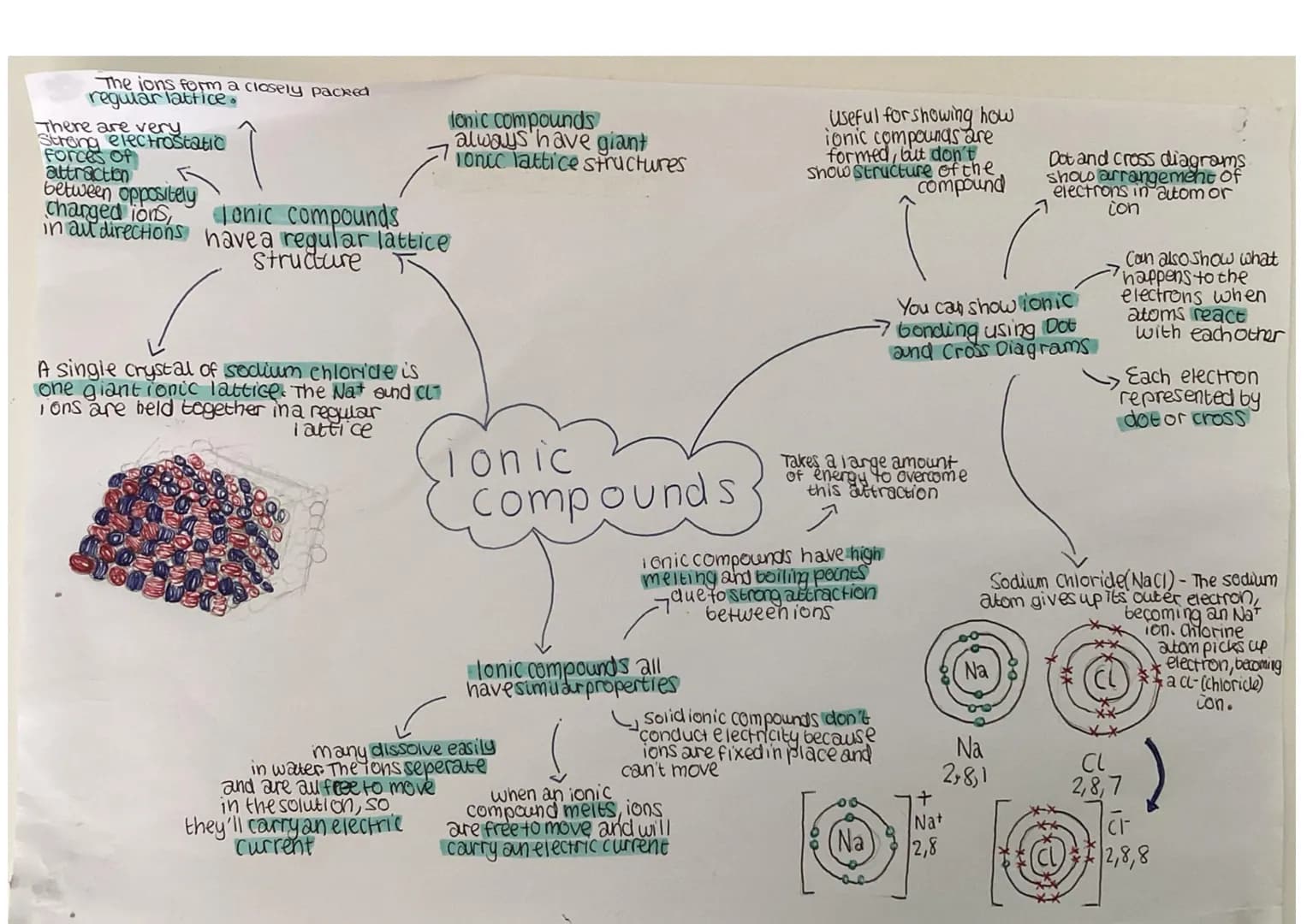

Ionic compounds form massive lattice structures where billions of ions are held together in regular, repeating patterns. Think of a single salt crystal - it's one giant lattice of sodium and chloride ions locked in place by electrostatic attraction.
These compounds share similar properties because of their structure. They have high melting and boiling points since it takes enormous energy to break apart the strong ionic bonds holding the lattice together.
Electrical conductivity in ionic compounds depends on whether the ions can move. Solid ionic compounds don't conduct electricity because ions are fixed in position, but when melted or dissolved in water, the ions become free to move and carry current.
Real-world Connection: This is why salt water conducts electricity but solid salt doesn't!
Dot and cross diagrams help visualise how electrons transfer during ionic bonding. Each electron is shown as either a dot or cross, making it clear which atoms lose or gain electrons to form the ionic compound.

Chromatography: Separating Mixtures

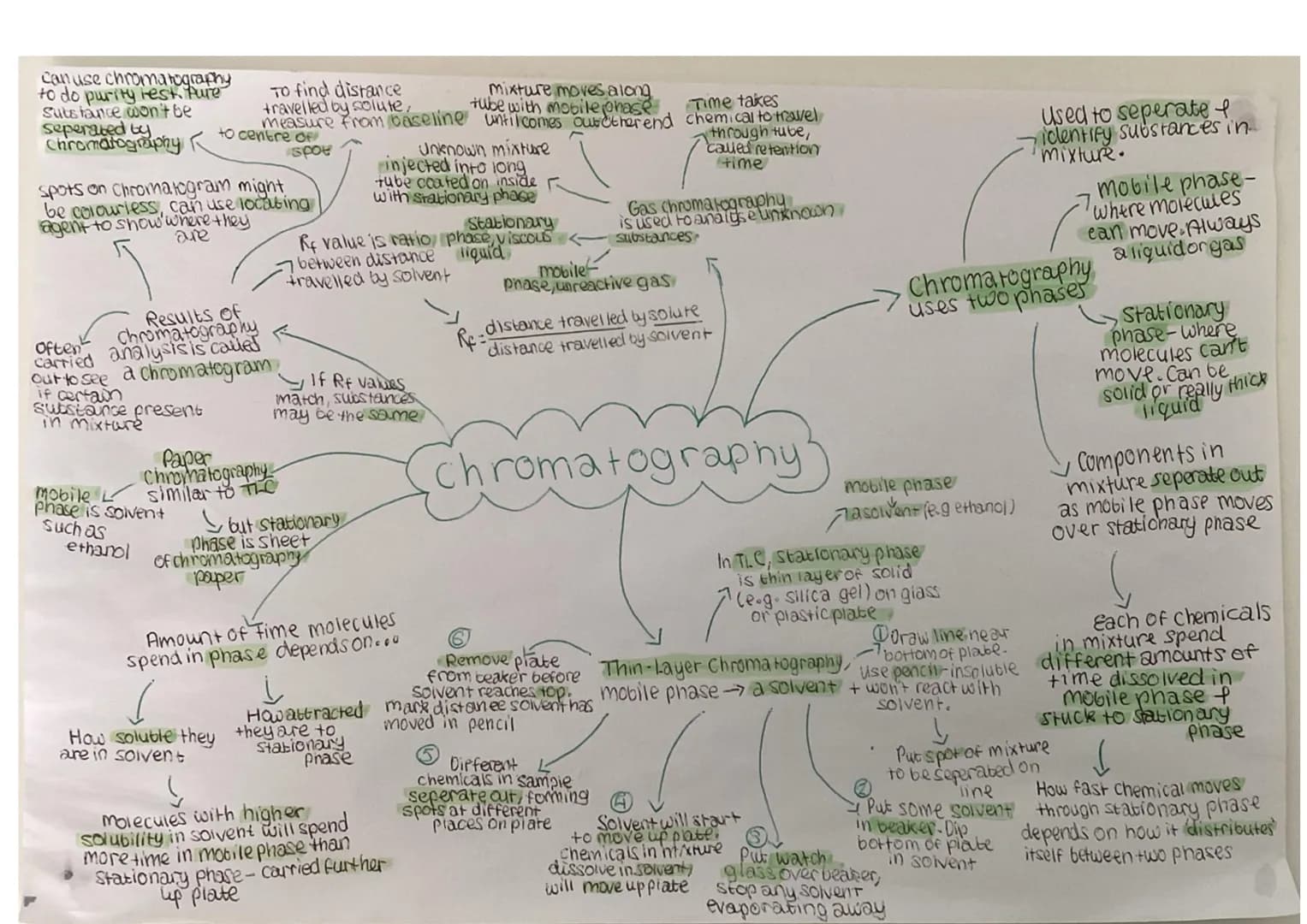

Chromatography is your go-to technique for separating and identifying substances in mixtures. It works using two phases: the stationary phase (which stays put) and the mobile phase (which moves and carries your sample along).
In paper chromatography, you dot your sample near the bottom of chromatography paper and dip it in solvent. Different substances travel at different speeds, creating separate spots. Thin-layer chromatography (TLC) works similarly but uses a glass plate coated with silica gel.
Gas chromatography uses a long tube where substances separate based on how long they take to travel through - this is called retention time. Each substance has a unique retention time, like a fingerprint for identification.
Lab Hack: Always use pencil to mark your chromatography paper - ink would interfere with your results!
The Rf value (distance travelled by substance ÷ distance travelled by solvent) helps identify unknown substances by comparing with known standards.

Structure Determines Properties
Here's a fascinating fact: chlorine appears in table salt, chloromethane, and PVC plastic, yet these materials have completely different properties. It's not the individual atoms that matter - it's how they're bonded together that determines what you get.

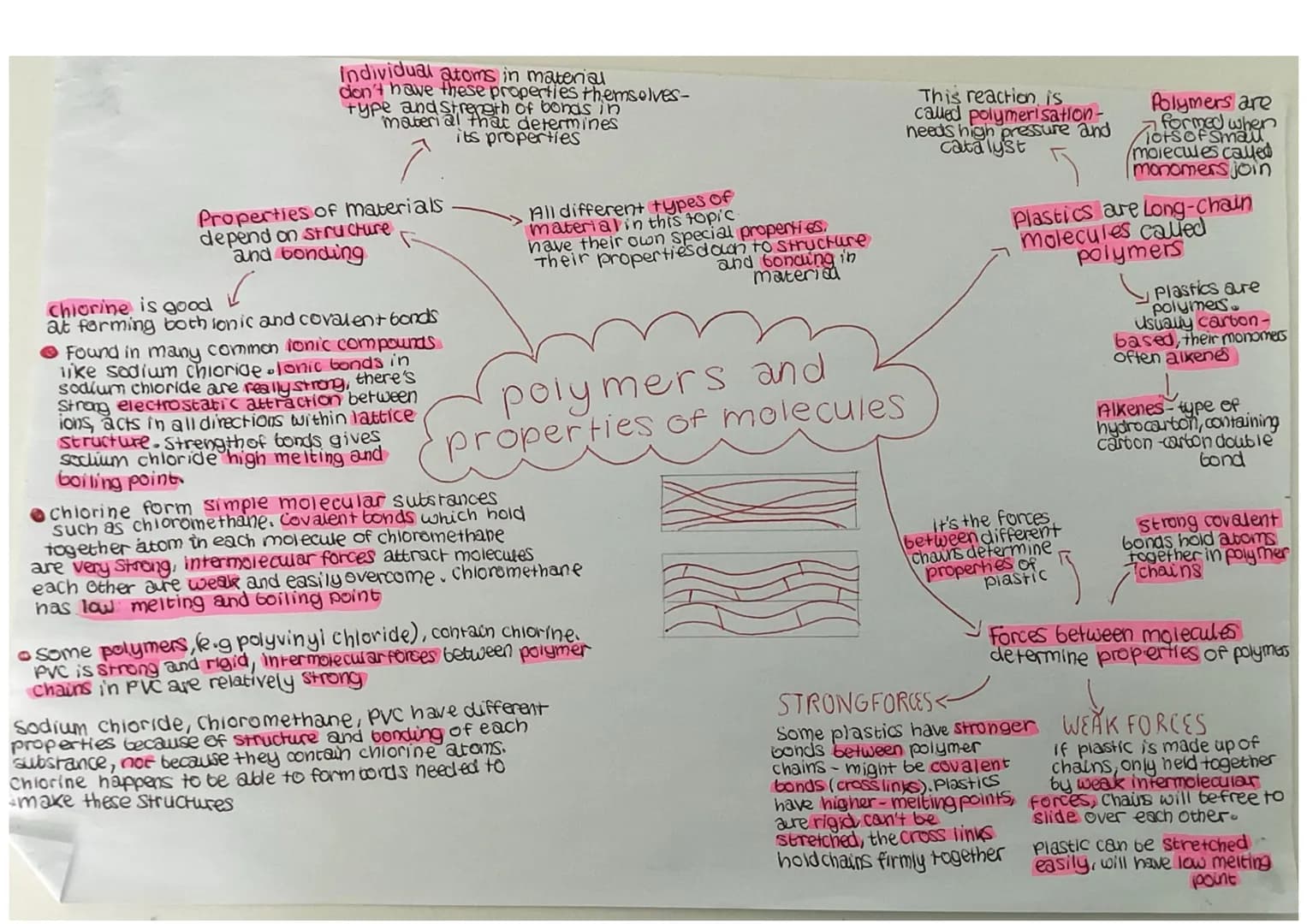

Polymers are long-chain molecules formed when small monomers (often alkenes) join together through polymerisation. The properties of these plastics depend entirely on the forces between the polymer chains, not the chains themselves.
Some plastics have weak intermolecular forces between chains, making them stretchy with low melting points. Others have strong covalent crosslinks between chains, creating rigid materials with high melting points - perfect for different applications.
Think About It: Your plastic water bottle and a car tyre are both polymers, but their different structures give them completely different uses!
Understanding that structure and bonding determine properties helps explain why materials behave so differently, even when they contain similar atoms.

Chemical Formulas: Molecular vs Empirical

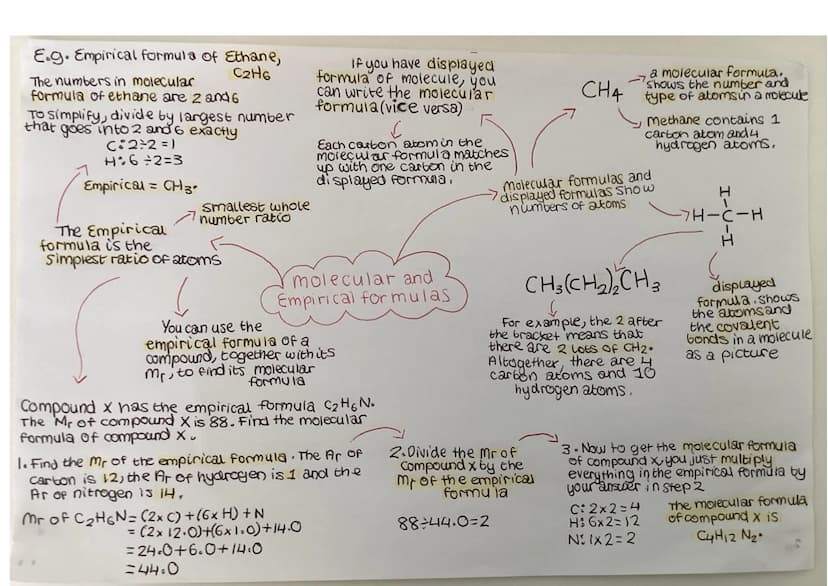

Molecular formulas tell you exactly how many atoms of each element are in a molecule - methane is CH₄, showing 1 carbon and 4 hydrogen atoms. Displayed formulas show this as a picture with all the bonds drawn out.
Empirical formulas give you the simplest whole number ratio of atoms. For ethane (C₂H₆), you divide both numbers by 2 to get the empirical formula CH₃. It's like reducing a fraction to its simplest form.
You can work backwards from empirical formula to molecular formula if you know the relative molecular mass (Mr). Find the Mr of the empirical formula, divide the compound's actual Mr by this number, then multiply everything in the empirical formula by your answer.
Example: If C₂H₆N has Mr = 44 and compound X has Mr = 88, then 88 ÷ 44 = 2, so the molecular formula is C₄H₁₂N₂.
These different ways of representing compounds help chemists communicate precisely about the substances they're working with and predict how they'll behave in reactions.
