Free GCSE AQA Chemistry Organic Chemistry Revision Notes PDF - Fractional Distillation Explained & Hydrocarbons Properties
G
George
@george_aakl

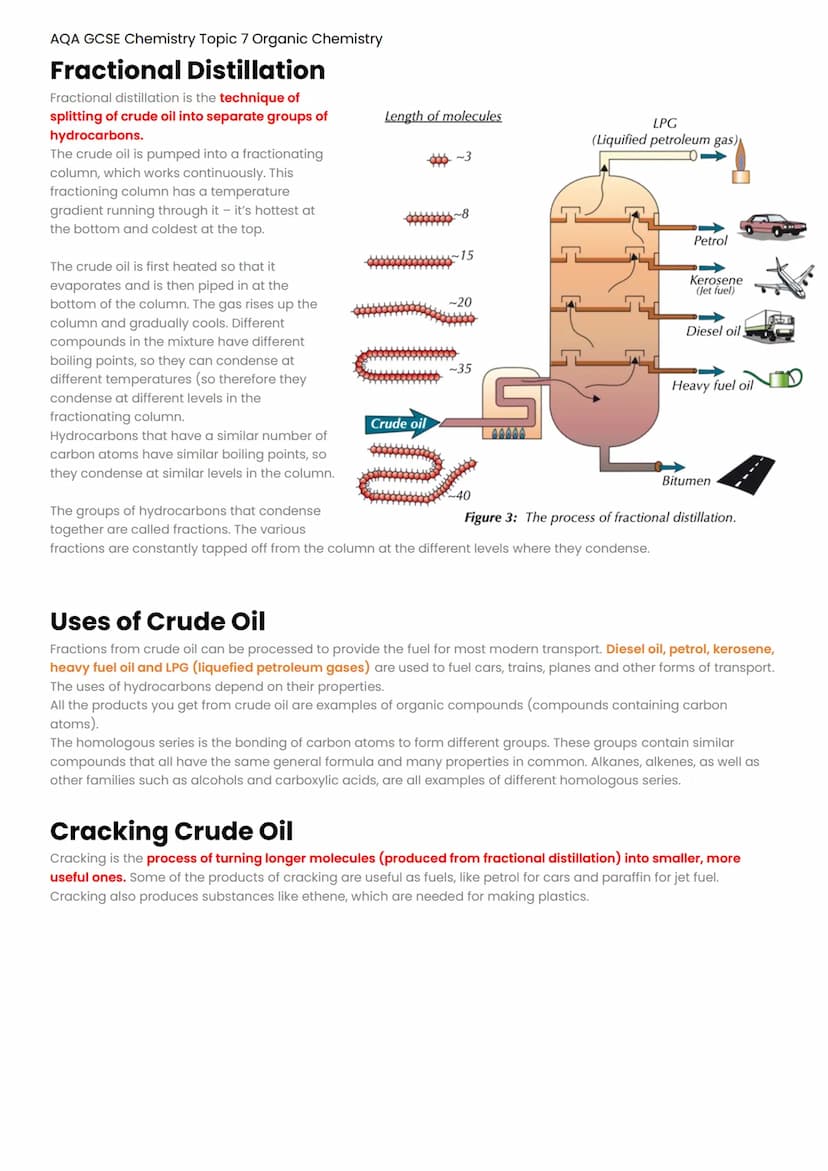

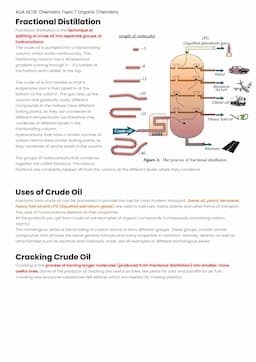

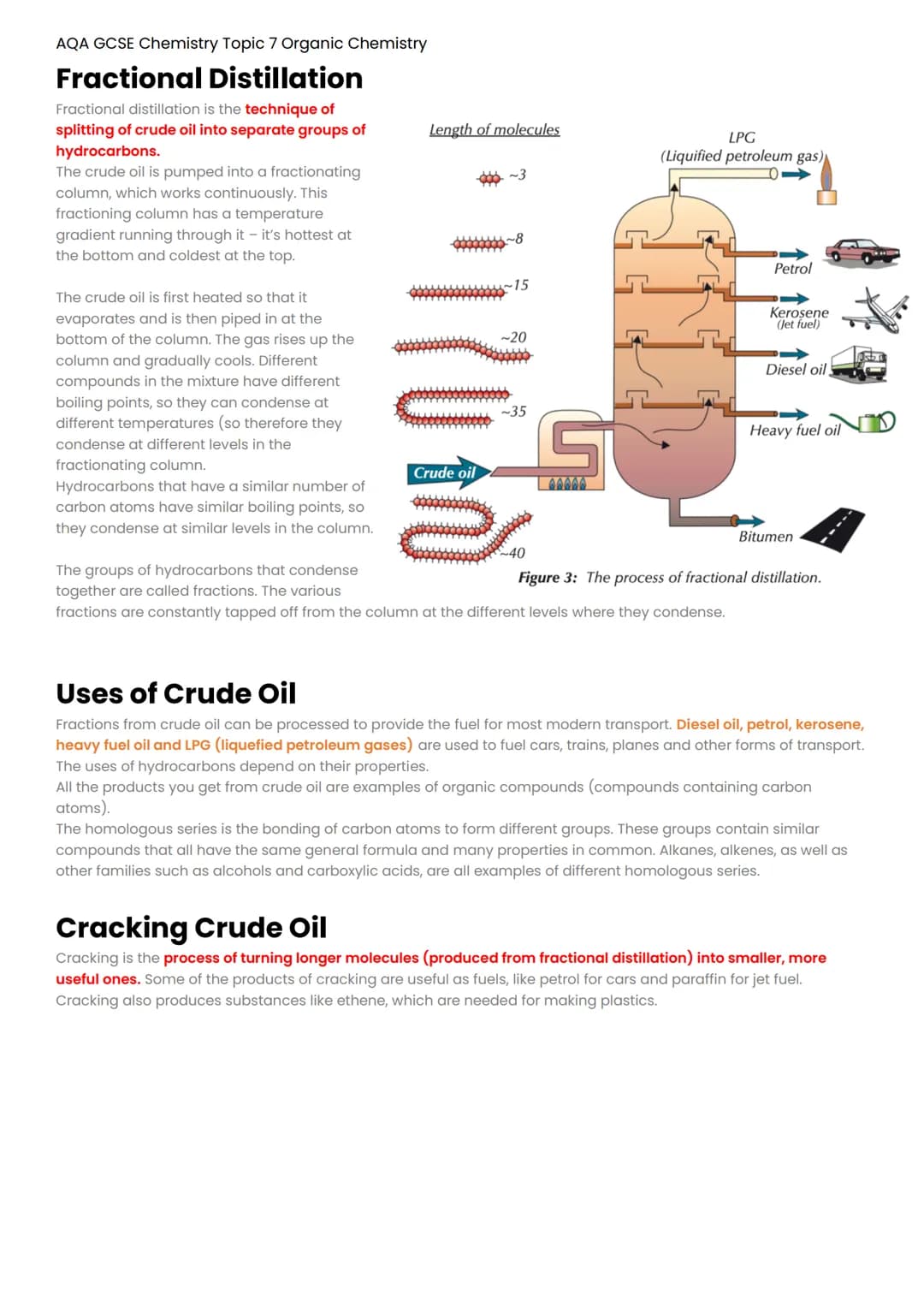

Fractional Distillation and Cracking
This section delves deeper into the fractional distillation process and introduces the concept of cracking, both essential topics for GCSE Organic Chemistry questions.
Fractional Distillation in Detail
The fractionating column used in the distillation process has a temperature gradient, with the hottest part at the bottom and the coldest at the top. As the crude oil vapor rises through the column, it cools gradually, allowing different compounds to condense at different levels.
Highlight: Hydrocarbons with similar numbers of carbon atoms have similar boiling points, so they condense at similar levels in the column.
The groups of hydrocarbons that condense together are called fractions. These fractions are continuously tapped off from the column at their respective condensation levels.
Example: Some common fractions include LPG, petrol, kerosene (jet fuel), diesel oil, and bitumen.
The uses of these fractions depend on their properties, which is a crucial concept for answering Organic chemistry GCSE AQA exam questions.

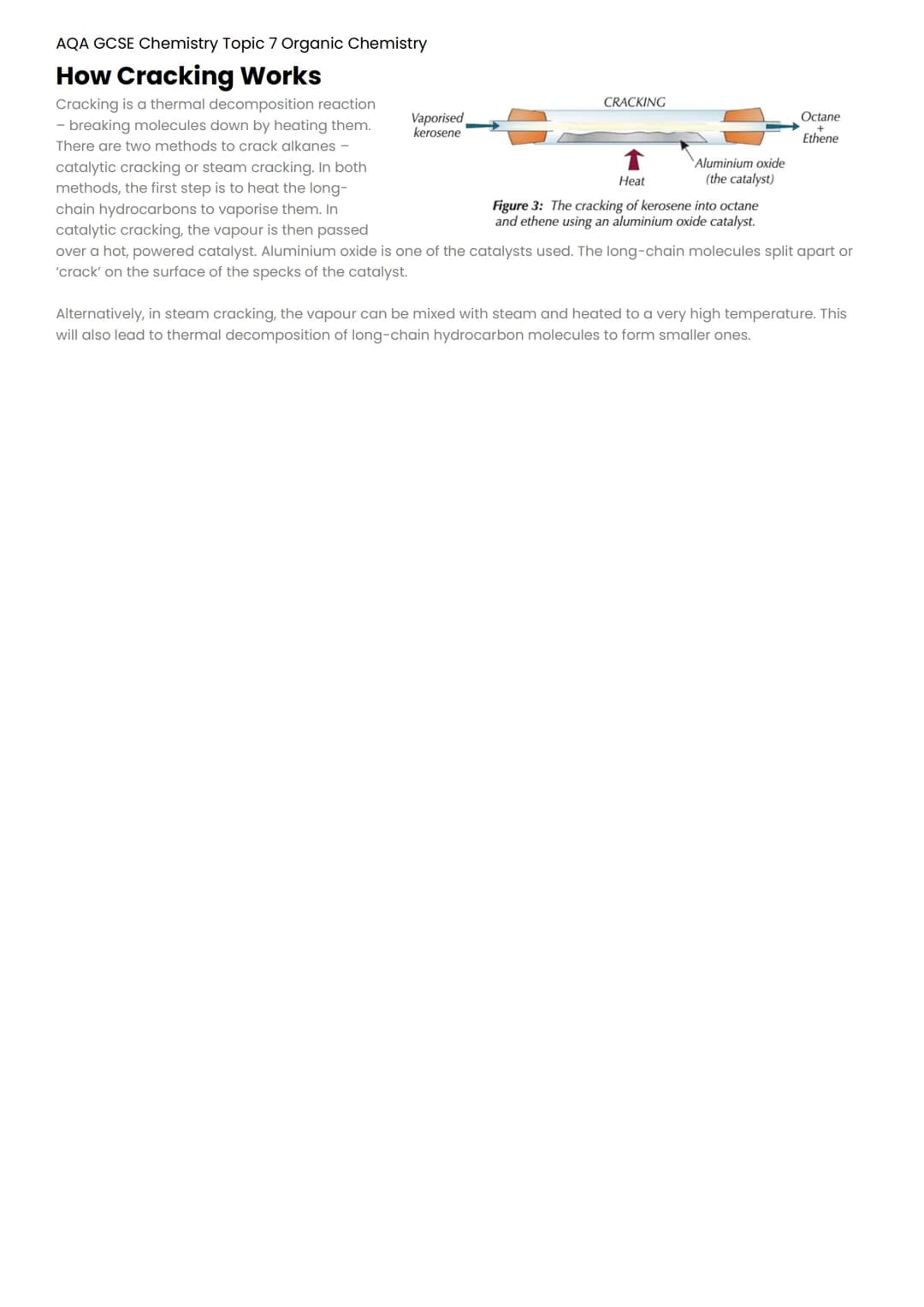

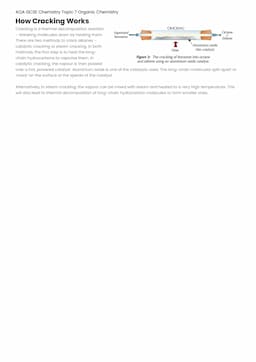

Cracking Crude Oil
Cracking is another important process in the refining of crude oil, turning longer hydrocarbon molecules into smaller, more useful ones.
Definition: Cracking is a thermal decomposition reaction that breaks down molecules by heating them.
There are two main methods of cracking:
- Catalytic cracking: Uses a hot, powdered catalyst (e.g., aluminium oxide)
- Steam cracking: Mixes the vapor with steam and heats it to a very high temperature
Highlight: Cracking produces substances like ethene, which are essential for making plastics, making it a key topic in GCSE AQA Chemistry paper 1 revision notes.
Understanding these processes is crucial for students preparing for their GCSE Chemistry fractional distillation questions and other related topics in organic chemistry.
Page 3: Cracking Processes and Applications
The final page focuses on cracking processes, explaining how larger hydrocarbon molecules are broken down into smaller, more useful ones.
Definition: Cracking is a thermal decomposition reaction that breaks down larger hydrocarbon molecules into smaller ones.
Vocabulary: Catalytic cracking uses catalysts like aluminium oxide, while steam cracking employs high-temperature steam.
Highlight: The process produces valuable products like ethene, which is essential for plastic production.
The page provides detailed explanations of both catalytic and steam cracking methods, including their industrial applications and importance in modern chemistry.

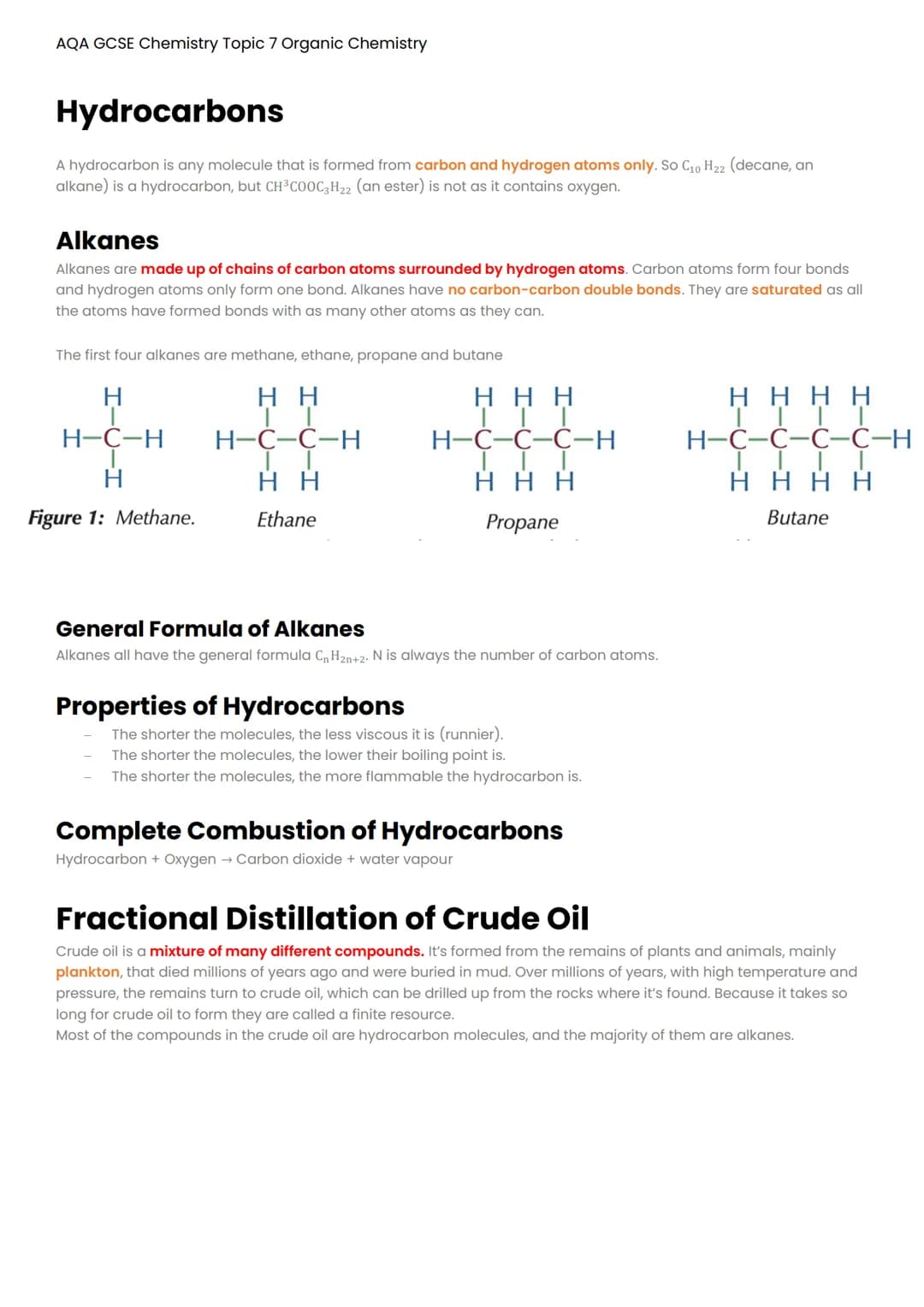

Hydrocarbons and Alkanes
Organic Chemistry forms a crucial part of the AQA GCSE Chemistry syllabus. This section focuses on hydrocarbons and alkanes, providing essential information for students preparing for their exams.
Hydrocarbons are molecules composed solely of carbon and hydrogen atoms. Alkanes, a type of hydrocarbon, consist of carbon chains surrounded by hydrogen atoms, with no carbon-carbon double bonds.
Definition: Alkanes are saturated hydrocarbons, meaning all atoms have formed bonds with as many other atoms as possible.
The first four alkanes are methane, ethane, propane, and butane. Their molecular structures are illustrated in the text, showing the arrangement of carbon and hydrogen atoms.
Vocabulary: The general formula for alkanes is CnH₂n+2, where n represents the number of carbon atoms.
Properties of hydrocarbons vary based on their molecular structure:
- Shorter molecules are less viscous (runnier).
- Shorter molecules have lower boiling points.
- Shorter molecules are more flammable.
Highlight: Understanding these properties is crucial for answering GCSE Chemistry fractional distillation questions.
The complete combustion of hydrocarbons produces carbon dioxide and water vapor, which is an important concept in Organic Chemistry GCSE AQA exam questions.
Fractional Distillation of Crude Oil
Crude oil, a finite resource formed from ancient organic matter, is a mixture of various hydrocarbon compounds. The process of separating these compounds is called fractional distillation.
Definition: Fractional distillation is the technique of splitting crude oil into separate groups of hydrocarbons based on their boiling points.
The process involves:
- Heating crude oil until it evaporates
- Pumping the vapor into a fractionating column with a temperature gradient
- Allowing different compounds to condense at different levels based on their boiling points
Example: Lighter fractions like LPG (Liquefied Petroleum Gas) condense at the top of the column, while heavier fractions like bitumen condense at the bottom.
This process is crucial for producing various fuels and organic compounds used in modern society, making it a key topic in GCSE AQA Chemistry organic chemistry revision.
