GCSE AQA Chemistry Combined Science C2, C4, C5 Mindmaps for Revision

user profile picture
Dae !@dailydae_aojb

Chemistry might seem overwhelming, but it's actually about understanding how...

1
of 5
GCSE AQA Chemistry Combined Science C2,C4,C5 Mindmaps – page 1

Chemical Bonding and Structure

Ever wondered why diamond is so hard but graphite is soft? It's all about how atoms bond together! There are three main types of chemical bonding: ionic, covalent, and metallic.

Ionic bonding happens when metals meet non-metals. The metal loses electrons to become a positive ion, whilst the non-metal gains electrons to become negative. These oppositely charged ions attract each other strongly, creating giant ionic structures like salt (NaCl). These compounds have high melting points because you need loads of energy to break those strong electrostatic forces.

Covalent bonding occurs between non-metals that share electrons. In small molecules like water (H₂O), the bonds between atoms are strong, but the forces between molecules are weak - that's why water boils easily. Polymers like polyethene are long chains of repeating units joined by covalent bonds.

Metallic bonding creates the unique properties of metals. Positive metal ions are surrounded by a "sea" of delocalised electrons that can move freely. This explains why metals conduct electricity and can be hammered into shape without breaking.

Key insight: The type of bonding determines a material's properties - from whether it conducts electricity to how easily it melts!

2
of 5
GCSE AQA Chemistry Combined Science C2,C4,C5 Mindmaps – page 2

Carbon Structures and Giant Covalent Networks

Carbon is chemistry's shape-shifter - the same element can form completely different structures with wildly different properties! This happens because carbon atoms can bond in various arrangements.

Diamond has every carbon atom bonded to four others in a 3D network. This creates an incredibly hard structure that doesn't conduct electricity because all electrons are locked in bonds. Graphite is completely different - carbon atoms form layers with only three bonds each, leaving one electron free to move and conduct electricity.

Graphene is essentially one layer of graphite - a single sheet of carbon atoms arranged in hexagons. It's incredibly strong yet flexible and light. Fullerenes are cage-like carbon molecules, including the football-shaped buckminsterfullerene (C₆₀) and carbon nanotubes.

These giant covalent structures all have high melting points because breaking them means snapping loads of strong covalent bonds. However, their other properties vary dramatically based on their specific arrangements.

Remember: Same element, different structure = completely different properties!

3
of 5
GCSE AQA Chemistry Combined Science C2,C4,C5 Mindmaps – page 3

Acids, Bases and Metal Reactivity

Acids and bases are everywhere - from the citric acid in your orange juice to the alkali in cleaning products! Understanding them is crucial for predicting chemical reactions.

The reactivity series ranks metals from most reactive (potassium) to least reactive (gold). More reactive metals displace less reactive ones from compounds - that's why zinc can push copper out of copper sulfate solution. When metals react with acids, they always produce a salt plus hydrogen gas.

pH measures how acidic or alkaline a solution is, from 0 (very acidic) to 14 (very alkaline), with 7 being neutral. Strong acids like hydrochloric acid (HCl) completely ionise in water, whilst weak acids like ethanoic acid only partially split up.

Neutralisation happens when acids react with bases to make salt and water. The H⁺ ions from acids combine with OH⁻ ions from bases. You can neutralise acids using metal oxides, hydroxides, or carbonates - the latter also produces carbon dioxide.

Top tip: Remember MASH - Metal + Acid = Salt + Hydrogen!

4
of 5
GCSE AQA Chemistry Combined Science C2,C4,C5 Mindmaps – page 4

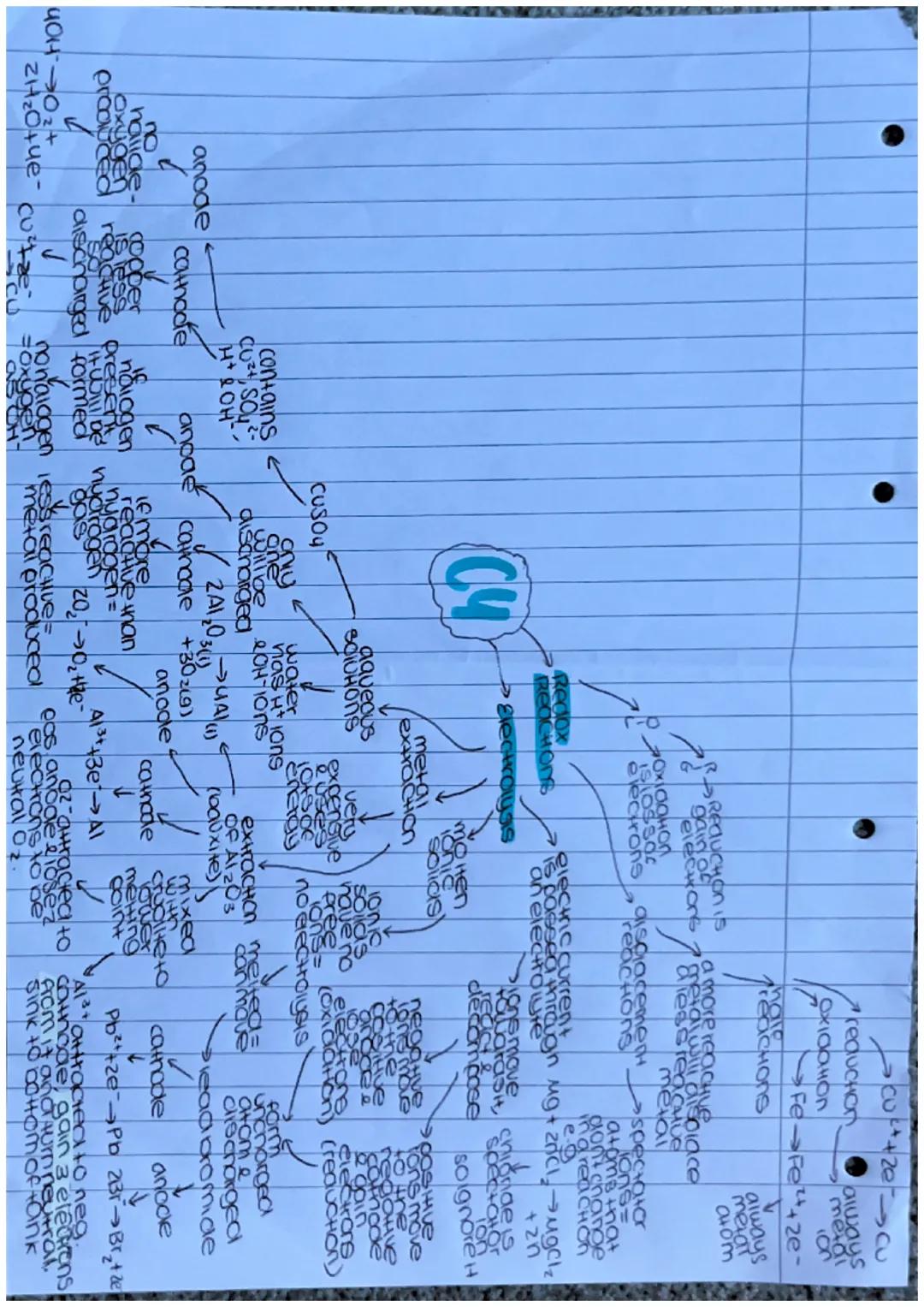

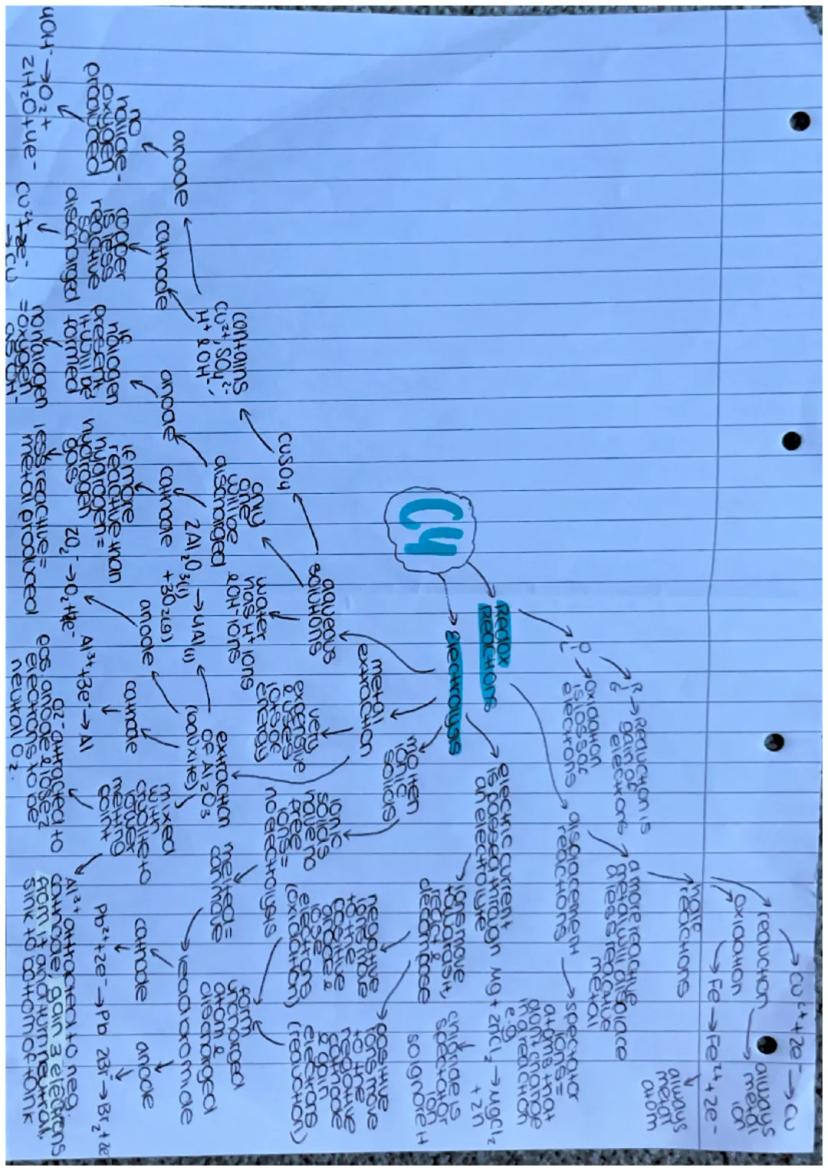

Electrolysis and Redox Reactions

Electrolysis is like using electricity to force chemical reactions that wouldn't normally happen - it's how we extract reactive metals and purify copper!

Redox reactions involve the transfer of electrons. Oxidation means losing electrons (think "OIL"), whilst reduction means gaining electrons ("RIG"). These always happen together - when one substance is oxidised, another must be reduced.

During electrolysis, ions move towards oppositely charged electrodes. At the cathode (negative electrode), positive ions gain electrons and get reduced. At the anode (positive electrode), negative ions lose electrons and get oxidised.

Metal extraction uses electrolysis for very reactive metals like aluminium. Aluminium oxide is melted and decomposed using electricity, producing pure aluminium at the cathode and oxygen at the anode. This process needs huge amounts of energy, making aluminium expensive to produce.

Quick check: Remember PANIC - Positive Anode, Negative Is Cathode!

5
of 5
GCSE AQA Chemistry Combined Science C2,C4,C5 Mindmaps – page 5

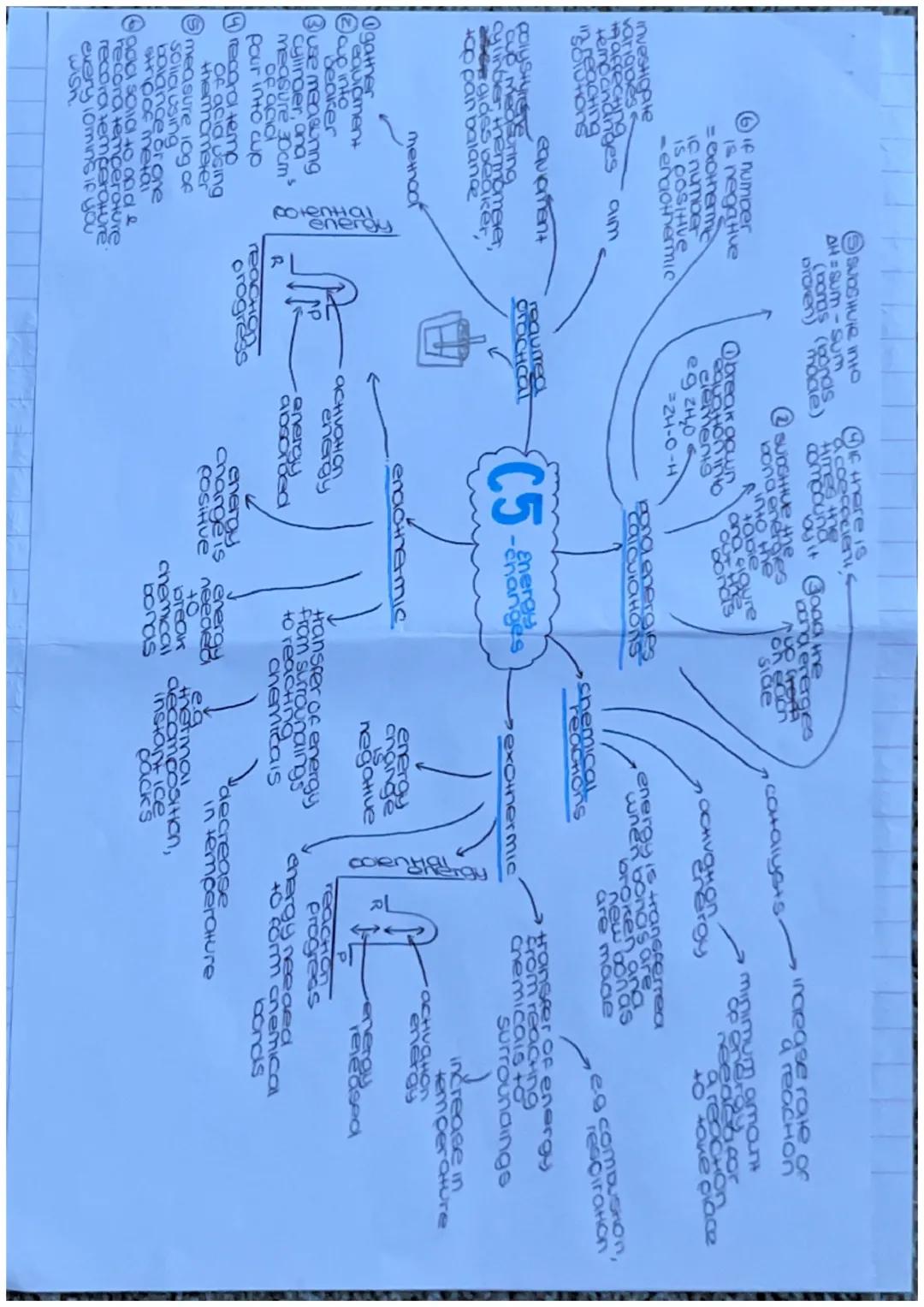

Energy Changes in Chemical Reactions

Chemical reactions either release energy (making things hot) or absorb energy (making things cold) - understanding this helps predict what'll happen when chemicals react!

Exothermic reactions release energy to the surroundings, causing temperature increases. Examples include combustion, respiration, and many reactions between acids and metals. Endothermic reactions absorb energy from surroundings, causing temperature decreases - like thermal decomposition or instant ice packs.

Bond energy calculations help predict whether reactions are exothermic or endothermic. Energy is needed to break bonds and released when new bonds form. If more energy is released than absorbed, the reaction is exothermic (ΔH is negative). If more energy is needed than released, it's endothermic (ΔH is positive).

To investigate energy changes practically, you'll measure temperature changes when chemicals react in solution. Use a polystyrene cup (good insulator), measure reactant temperatures first, then monitor how temperature changes during reaction.

Energy rule: Breaking bonds requires energy, making bonds releases energy!
