How to Do a Chromatography Experiment with Ink Dyes
Simona B
@simonabx

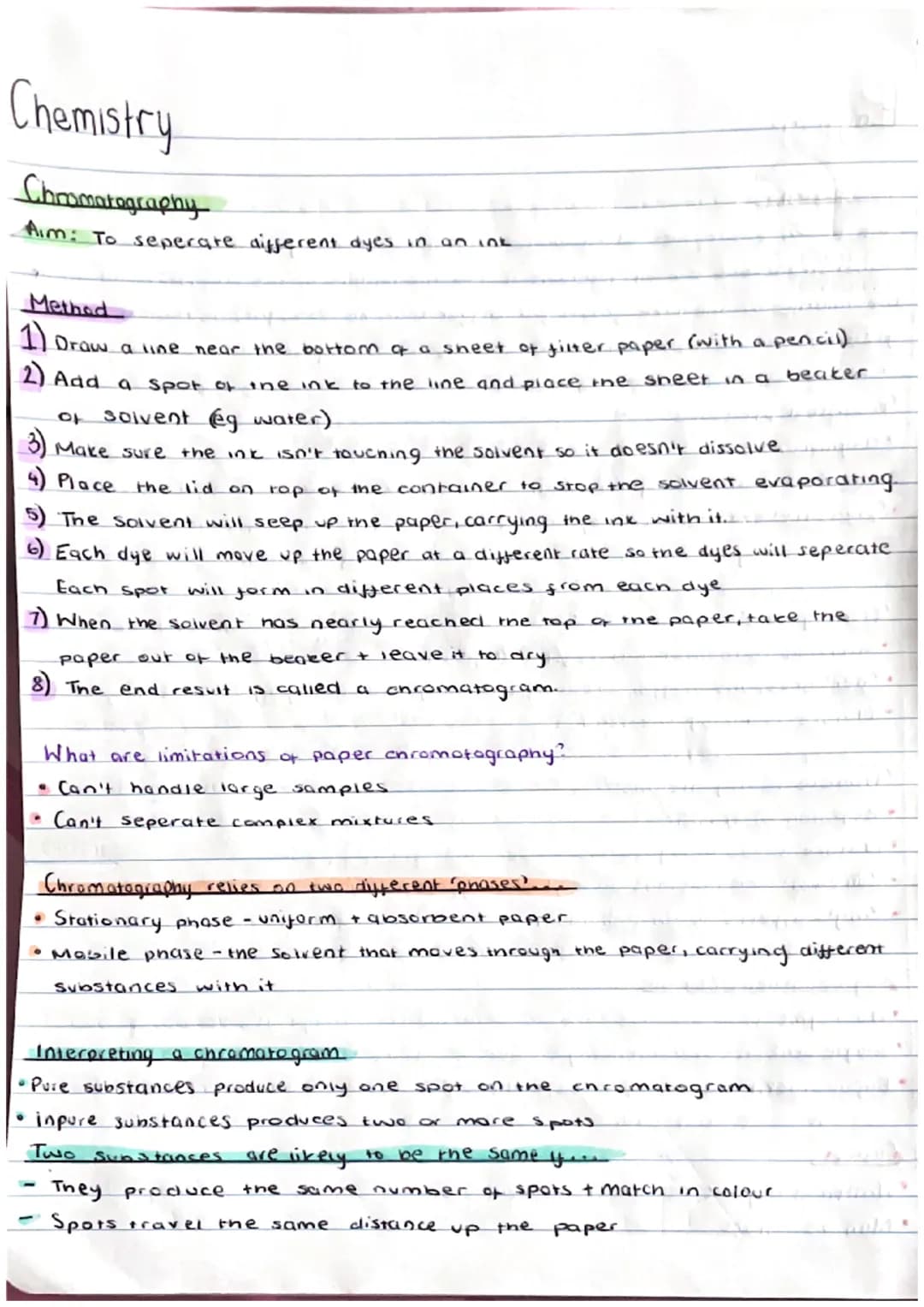

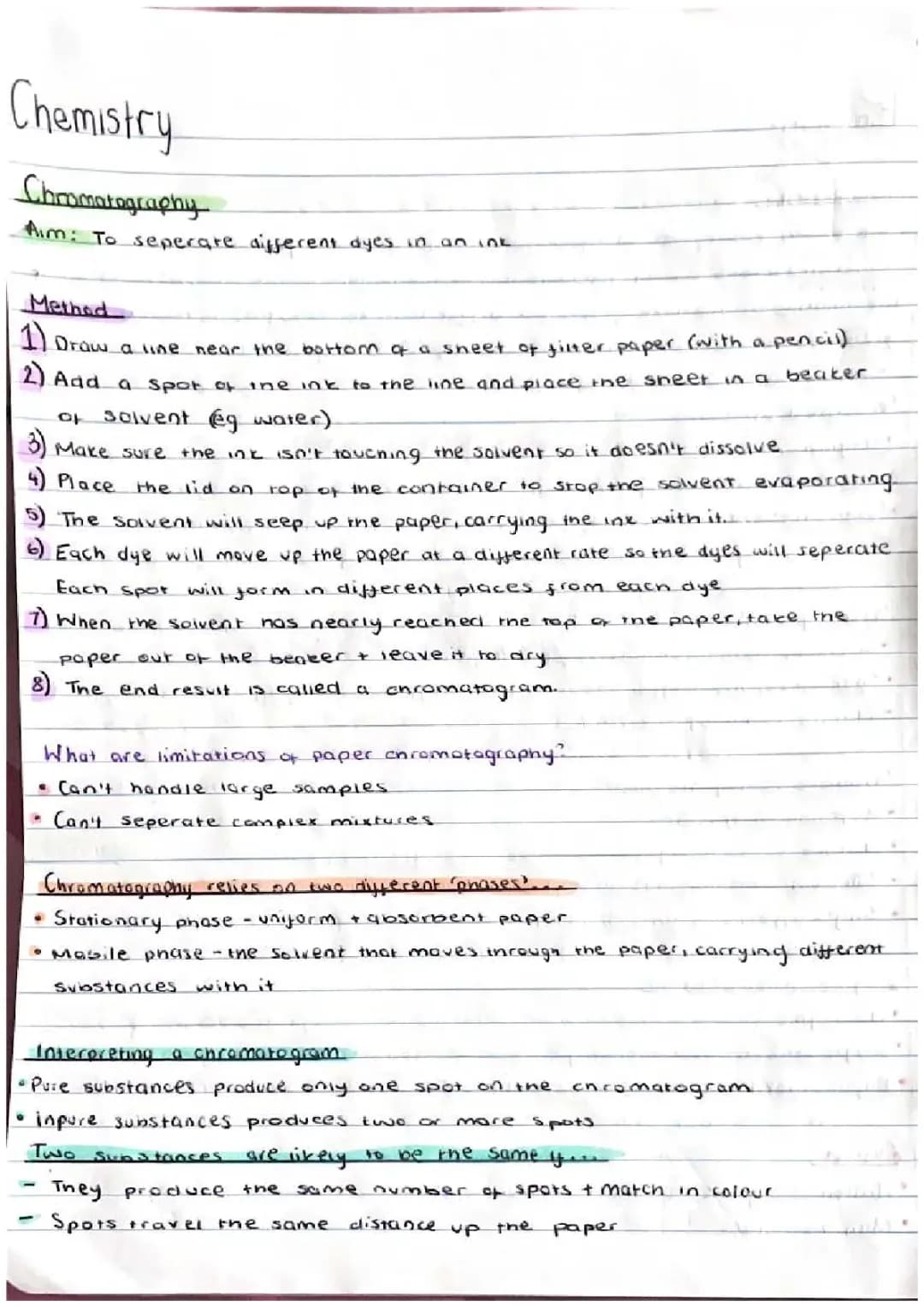

Chromatography: Separating Ink Dyes
This page provides a comprehensive guide on conducting a paper chromatography experiment to separate ink dyes. The method is explained step-by-step, along with key concepts and limitations of the technique.
Definition: Chromatography is a laboratory technique for separating mixtures based on the different rates at which their components move through a stationary phase when carried by a mobile phase.
The chromatography experiment steps for separating ink dyes are as follows:
- Draw a pencil line near the bottom of a filter paper sheet.
- Apply a spot of ink to the line.
- Place the paper in a beaker containing solvent , ensuring the ink spot doesn't touch the solvent directly.
- Cover the container to prevent solvent evaporation.
- Allow the solvent to travel up the paper, carrying the ink components.
- Different dyes in the ink will move at varying rates, separating as they travel.
- Remove the paper when the solvent nears the top and let it dry.
- The resulting pattern of separated dyes is called a chromatogram.
Vocabulary: A chromatogram is the visual result of a chromatography experiment, showing the separated components as distinct spots or bands on the stationary phase.
The process relies on two phases:
- Stationary phase: The uniform and absorbent paper.
- Mobile phase: The solvent that moves through the paper, carrying different substances.
Highlight: The separation occurs due to the different affinities of ink components for the stationary and mobile phases, causing them to travel at different rates.
Interpreting chromatogram results for pure and impure substances is crucial:
- Pure substances produce only one spot on the chromatogram.
- Impure substances produce two or more spots.
- Two substances are likely the same if they produce the same number of spots, match in color, and travel the same distance up the paper.
Example: If you test two black inks and one produces a single spot while the other produces multiple spots of different colors, you can conclude that the first ink is pure while the second is a mixture of different dyes.
However, there are limitations of paper chromatography in chemistry experiments:
- It cannot handle large samples.
- It is not suitable for separating complex mixtures.
Quote: "Chromatography relies on two different phases: the stationary phase and the mobile phase ."
This simple yet effective technique provides valuable insights into the composition of inks and other mixtures, making it a fundamental tool in chemistry education and research.
