OCR GCSE Chemistry Revision: Atomic Structure, Bonding, and Reactions

This comprehensive guide covers key topics in OCR Chemistry GCSE, including atomic structure, bonding, and chemical reactions. It provides essential information for students preparing for their GCSE Chemistry revision.

• Detailed explanations of atomic structure, including subatomic particles and atomic models
• In-depth coverage of chemical bonding, including ionic and covalent bonds
• Exploration of chemical reactions, including acid-base reactions and redox processes
• Discussion of nanoparticles and their applications in modern chemistry

23/05/2023

279

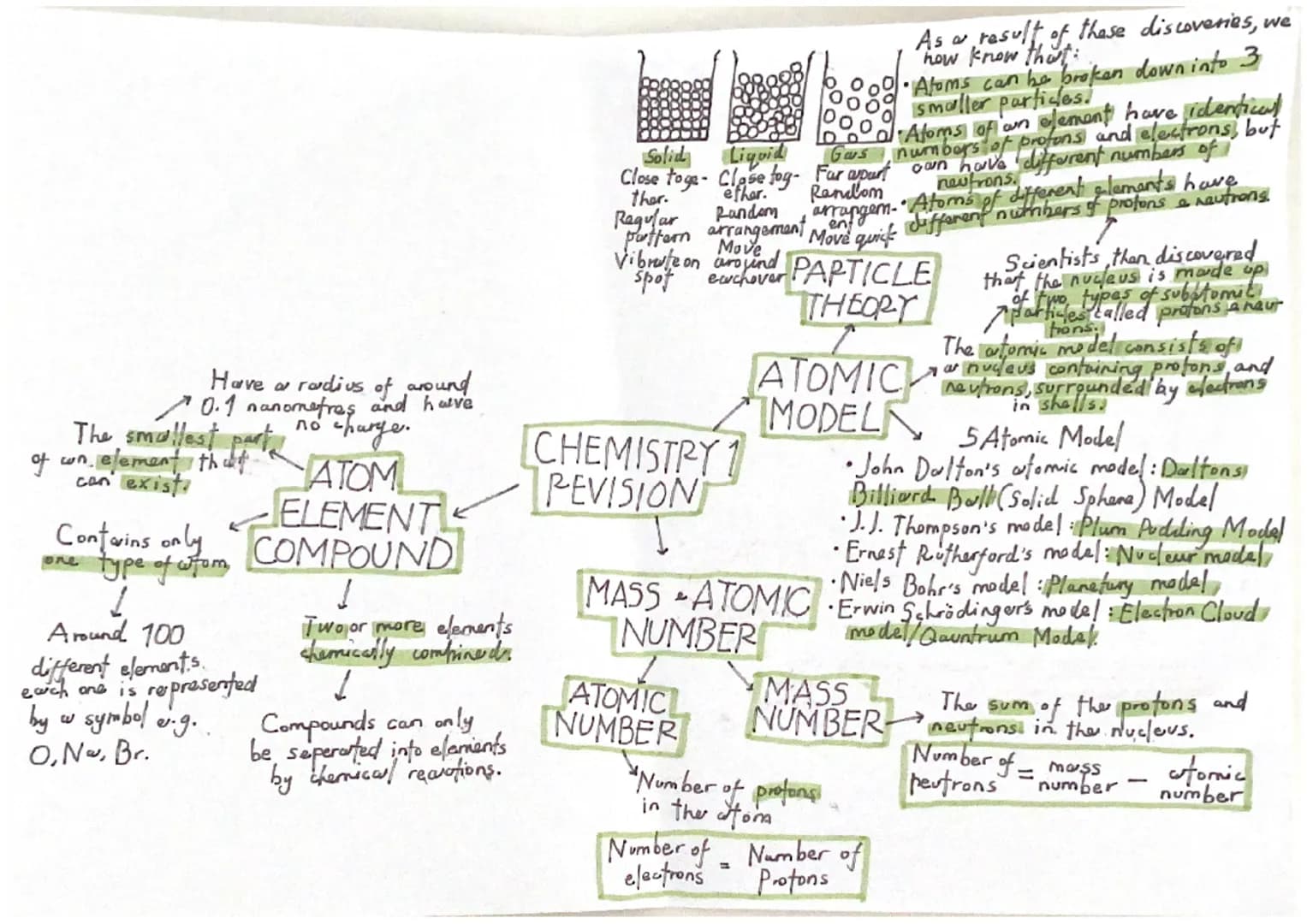

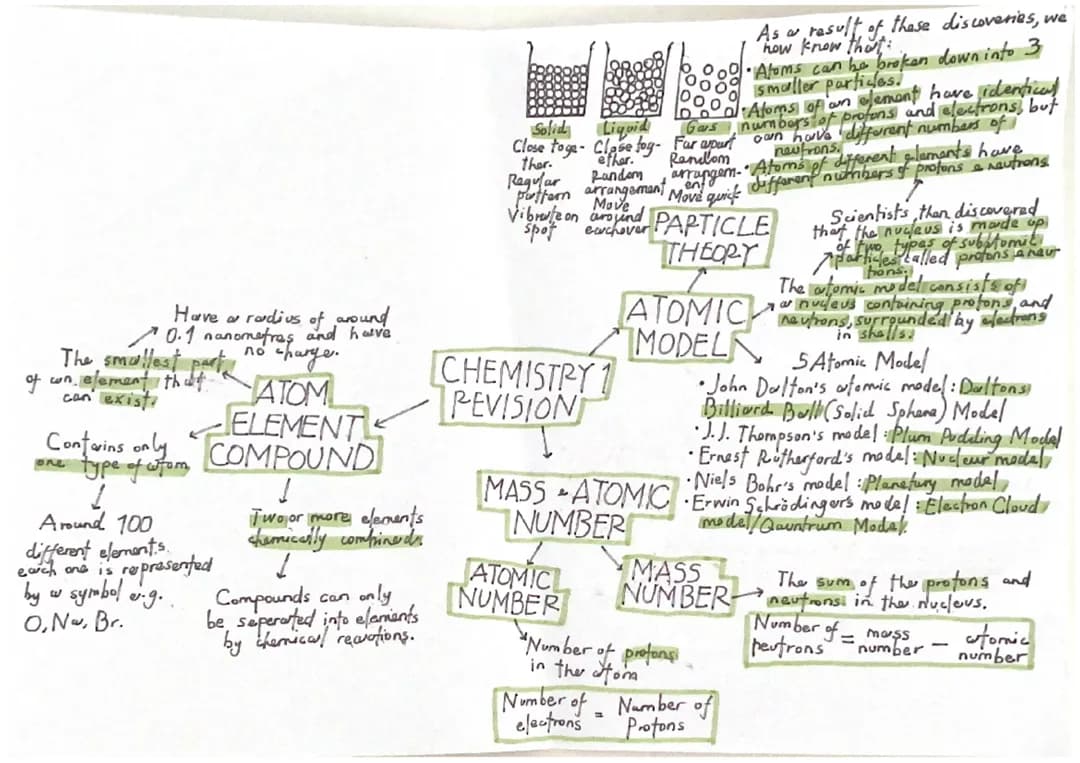

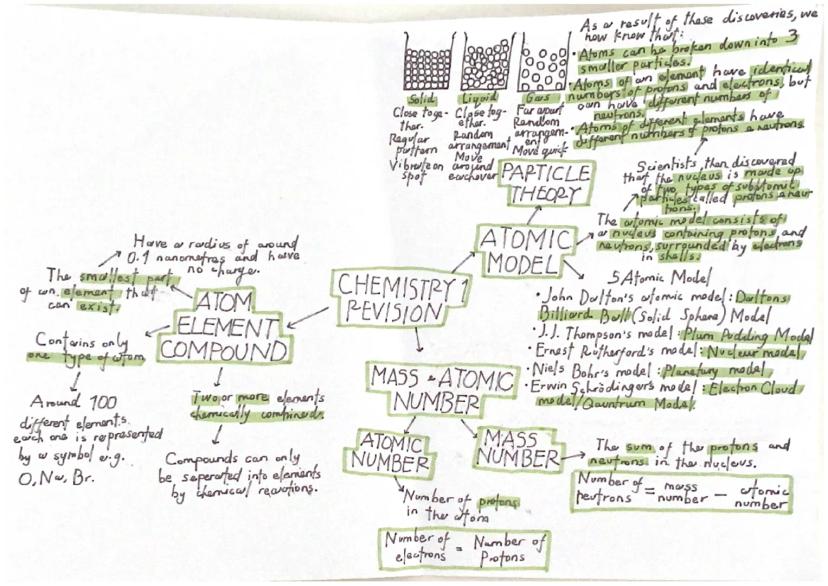

Atomic Structure and Particle Theory

The first page of this OCR GCSE Chemistry revision guide focuses on the fundamental concepts of atomic structure and particle theory. It provides a comprehensive overview of the basic building blocks of matter and their properties.

Definition: An atom is the smallest part of an element that can exist, with a radius of around 0.1 nanometres and no overall charge.

The guide explains the differences between atoms, elements, and compounds, which are crucial concepts in GCSE Chemistry. It also covers the states of matter (solid, liquid, and gas) and their characteristics in terms of particle arrangement and movement.

Highlight: The atomic model has evolved over time, with contributions from various scientists including John Dalton, J.J. Thompson, Ernest Rutherford, Niels Bohr, and Erwin Schrödinger.

The page delves into the structure of the atom, explaining the concepts of atomic number and mass number. It introduces the subatomic particles - protons, neutrons, and electrons - and their locations within the atom.

Vocabulary: The nucleus is the central part of an atom, containing protons and neutrons, while electrons orbit around it.

This section of the OCR Chemistry GCSE topics provides a solid foundation for understanding more complex chemical concepts and is essential for students preparing for their GCSE Chemistry revision.

Have a radius of around
0.1 nanometres and have
The smallest part no charge.
of un element that
can exist.
ATOM
ELEMENT
COMPOUND
Contains on

Register

Sign up to get unlimited access to thousands of study materials. It's free!

Access to all documents

Join milions of students

Improve your grades

By signing up you accept Terms of Service and Privacy Policy

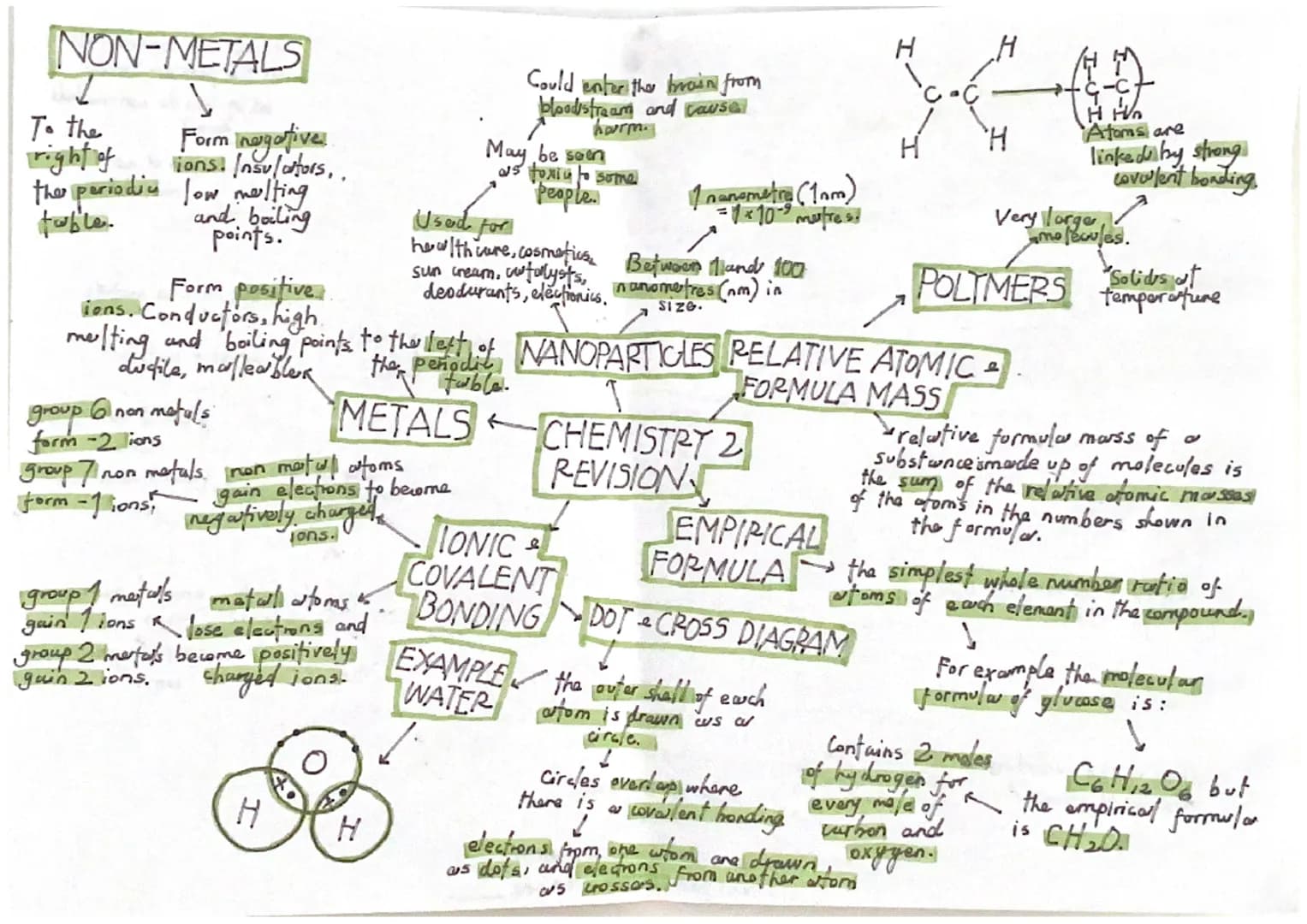

Chemical Bonding and Nanoparticles

The second page of this OCR GCSE Chemistry revision guide focuses on chemical bonding and introduces the concept of nanoparticles. It provides a detailed comparison between metals and non-metals, explaining their properties and positions in the periodic table.

Example: Group 1 metals form +1 ions, while Group 7 non-metals form -1 ions.

The guide explains ionic and covalent bonding, two fundamental types of chemical bonds covered in GCSE Chemistry. It introduces dot-cross diagrams as a way to represent the electronic structure of atoms and the formation of bonds.

Definition: Ionic bonding occurs between metals and non-metals, while covalent bonding typically occurs between non-metals.

The page also covers important concepts such as empirical formula and formula mass, which are crucial for chemical calculations in OCR Chemistry GCSE.

Highlight: Nanoparticles are particles between 1 and 100 nanometres in size. They have various applications in modern technology and medicine.

The guide discusses the uses of nanoparticles in areas such as healthcare, cosmetics, and electronics. It also mentions potential risks associated with nanoparticles, such as their ability to enter the bloodstream and potentially cause harm.

This section provides essential knowledge for students studying Chemistry OCR Gateway GCSE and prepares them for questions on bonding and modern materials in their exams.

Have a radius of around
0.1 nanometres and have
The smallest part no charge.
of un element that
can exist.
ATOM
ELEMENT
COMPOUND
Contains on

Register

Sign up to get unlimited access to thousands of study materials. It's free!

Access to all documents

Join milions of students

Improve your grades

By signing up you accept Terms of Service and Privacy Policy

Chemical Reactions and Electrolysis

The third page of this OCR GCSE Chemistry revision guide focuses on chemical reactions, with a particular emphasis on electrolysis and acid-base reactions. This section is crucial for students preparing for OCR GCSE Chemistry Questions by topic.

Definition: Electrolysis is the process by which ionic substances are decomposed into simpler substances when an electric current is passed through them.

The guide explains the process of electroplating, a practical application of electrolysis used in industry. It also covers the concept of reduction, which is central to understanding electrolysis reactions.

Example: In the reduction of copper ions, Cu²⁺(aq) + 2e⁻ → Cu(s), the copper ions gain electrons to form copper metal.

The page introduces the pH scale and discusses acid-base reactions, including neutralization. These concepts are fundamental in GCSE Chemistry and often appear in exam questions.

Vocabulary: Neutralization is a chemical reaction in which an acid and a base react quantitatively with each other to form a salt and water.

The guide also covers reaction profiles, which help students visualize the energy changes that occur during chemical reactions. It introduces the concept of activation energy, which is crucial for understanding reaction rates.

Highlight: The law of conservation of mass states that atoms are neither created nor destroyed in chemical reactions. This is why balanced symbol equations have the same number of atoms of each element on both sides.

This section provides essential knowledge for students studying OCR Chemistry GCSE and prepares them for questions on chemical reactions and electrolysis in their exams. It also reinforces the importance of balancing equations and understanding energy changes in reactions.

Have a radius of around
0.1 nanometres and have
The smallest part no charge.
of un element that
can exist.
ATOM
ELEMENT
COMPOUND
Contains on
