Understanding Chemistry: Structure and Bonding
J
Jessica Plane
@essicalane_jeu6oyvga
1 / 10
Structure and Bonding Overview
Understanding how atoms bond together is crucial for explaining why materials behave so differently. Whether it's why salt dissolves in water or why metals conduct electricity, it all comes down to bonding types.
The three main types of bonding are ionic , covalent , and metallic (metals with metals). Each creates substances with totally different properties that affect how we use them in everyday life.
Quick Tip: Remember the bonding triangle - ionic , covalent , metallic !

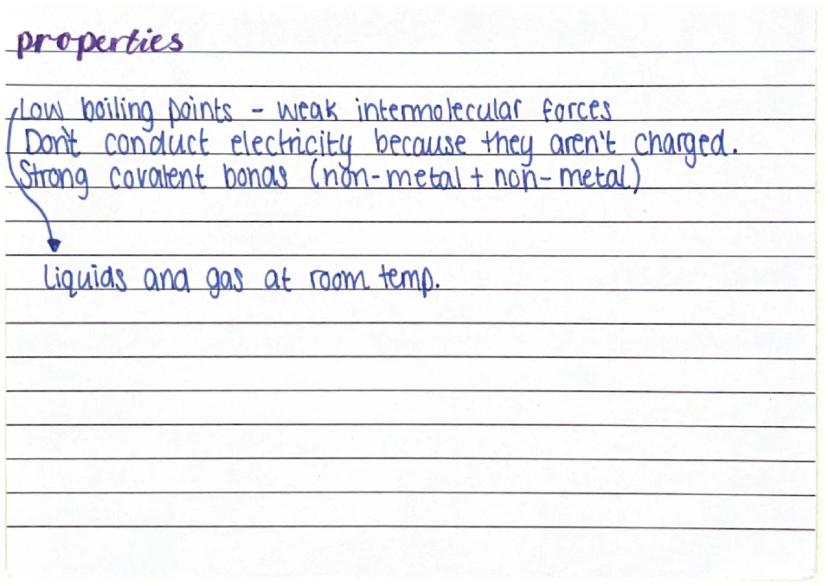

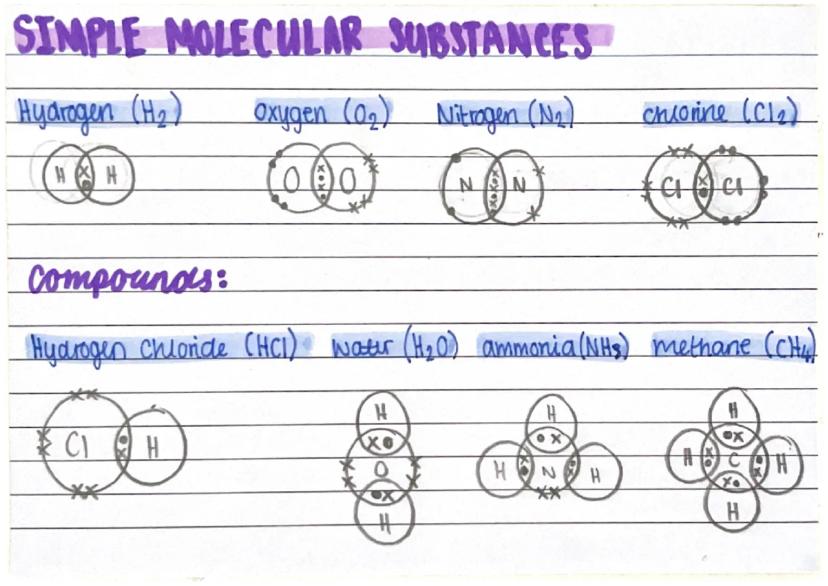

Simple Molecular Substances
Simple molecular substances are formed when non-metals bond covalently to create small, separate molecules. Think of hydrogen gas (H₂), water (H₂O), or methane (CH₄) - these are all simple molecules held together by strong covalent bonds within each molecule.
The key thing to remember is that whilst the bonds inside each molecule are strong, the forces between different molecules are incredibly weak. This is why these substances have low boiling points and are often liquids or gases at room temperature.
They also don't conduct electricity because the molecules aren't charged - there are no free electrons or ions to carry electrical current through the substance.
Remember: Strong bonds inside molecules, weak forces between molecules = low boiling points!

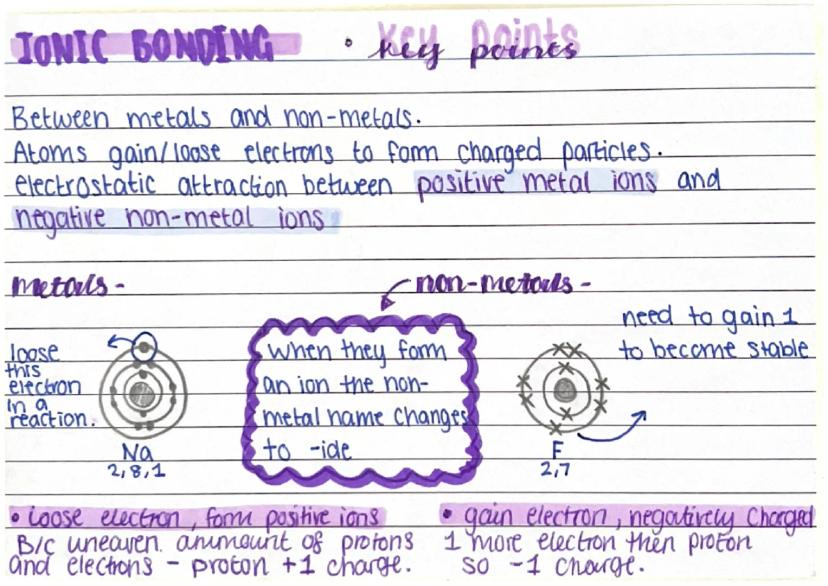

Ionic Bonding
Ionic bonding happens when metals meet non-metals, and it's all about electron transfer. Metals lose electrons to become positive ions, whilst non-metals gain electrons to become negative ions .
The magic happens because of electrostatic attraction - opposite charges attract powerfully. When sodium (Na) loses an electron and fluorine (F) gains one, you get Na⁺ and F⁻ ions that stick together strongly.

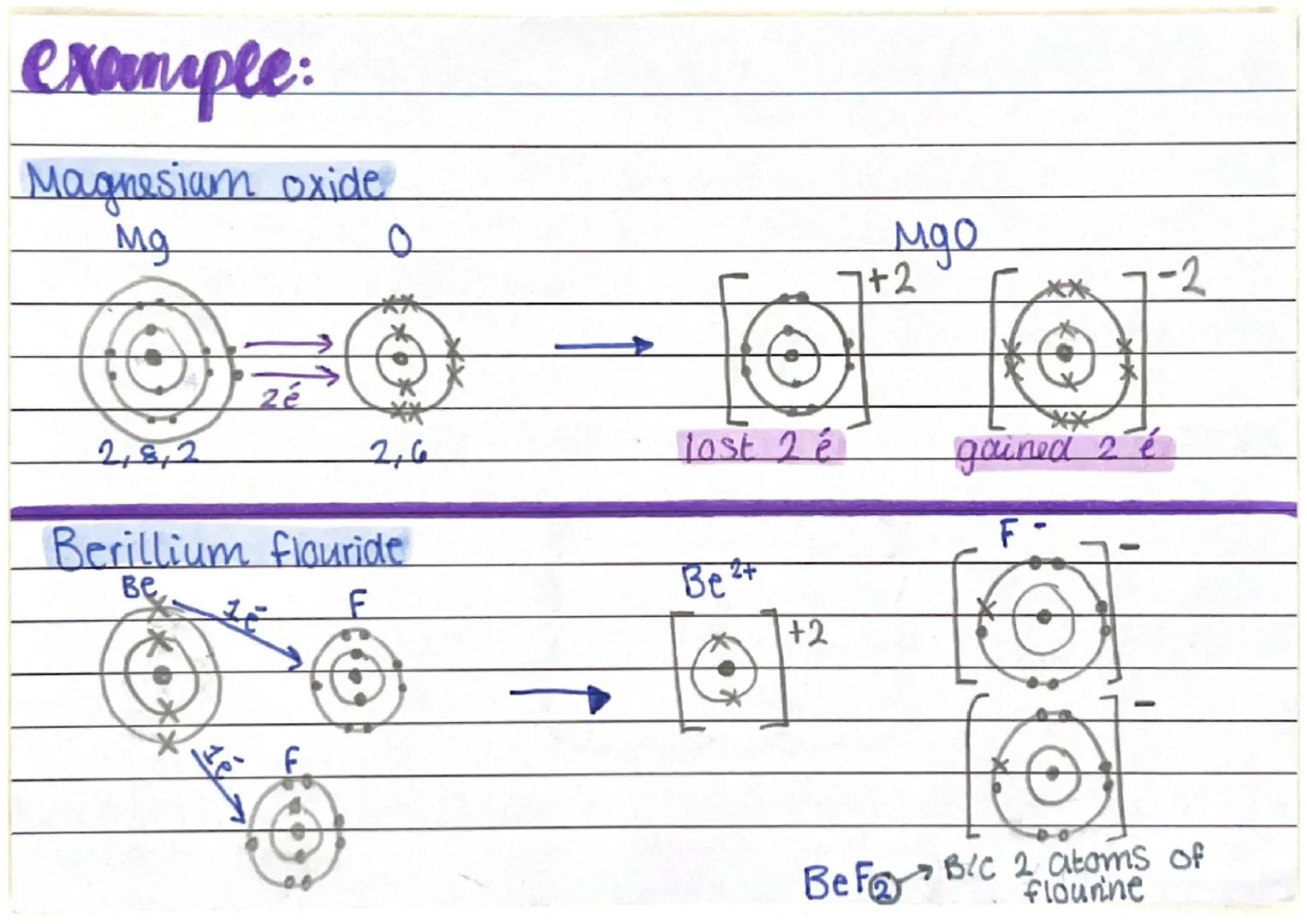

For example, in magnesium oxide (MgO), magnesium loses 2 electrons to become Mg²⁺, whilst oxygen gains 2 electrons to become O²⁻. The 2+ and 2- charges create a very strong attraction.
Key Point: Metal atoms lose electrons (become positive), non-metal atoms gain electrons (become negative)!

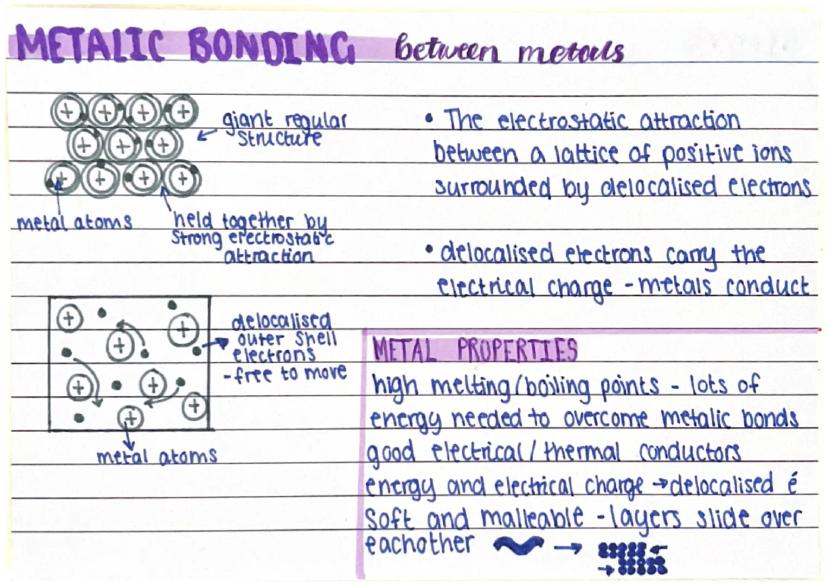

Metallic Bonding
Metallic bonding explains why metals are so useful - it's like atoms sharing a 'sea' of electrons! Metal atoms arrange in a giant regular structure where the outer electrons become delocalised, meaning they're free to move around.
This creates an electrostatic attraction between the positive metal ions and the 'sea' of negative delocalised electrons. It's these mobile electrons that make metals such good electrical and thermal conductors - they can carry charge and energy.
Metals also have high melting points because you need lots of energy to break these strong metallic bonds. Plus, they're soft and malleable because the layers of atoms can slide over each other without breaking bonds.
Think of it: Delocalised electrons are like a mobile phone network - they can move freely to conduct electricity anywhere in the metal!

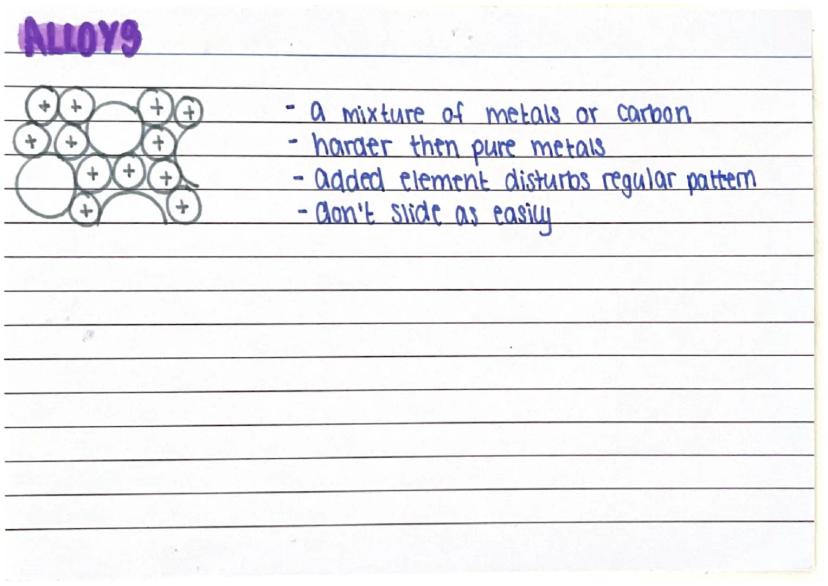

Alloys and Metallic Properties
Alloys are mixtures of metals (or metals with carbon) that are deliberately made harder than pure metals. When you add different-sized atoms to a pure metal, they disrupt the regular pattern and stop the layers from sliding over each other easily.
This is why steel is much harder than pure iron, and why bronze was so revolutionary in ancient times. The added elements act like 'speed bumps' in the metallic structure.
Pure metals are actually quite soft because their atoms are all the same size, so layers can slide past each other smoothly. Alloys prevent this sliding, making them perfect for construction and tools.
Real-world connection: Your bike frame is probably made from an aluminium alloy - pure aluminium would be too soft!

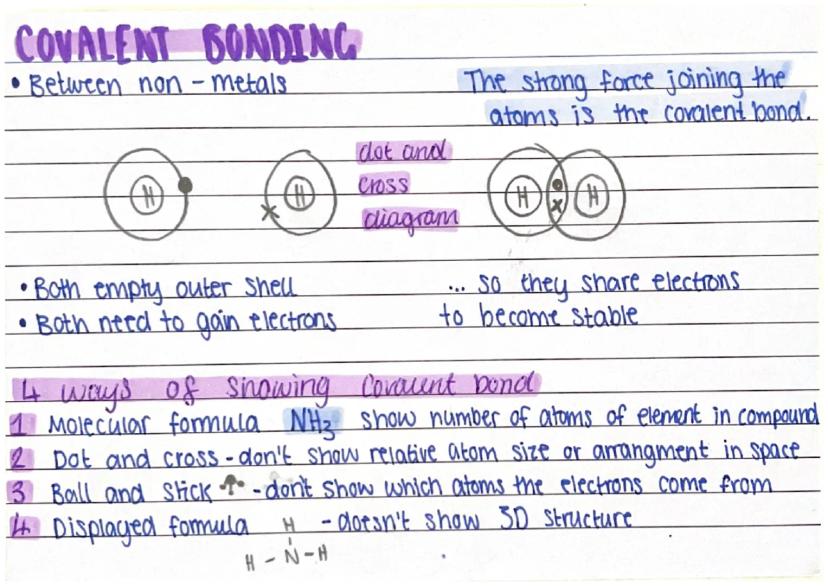

Covalent Bonding Basics
Covalent bonding occurs between non-metals that need to gain electrons to become stable. Instead of transferring electrons (like ionic bonding), atoms share electrons to fill their outer shells.

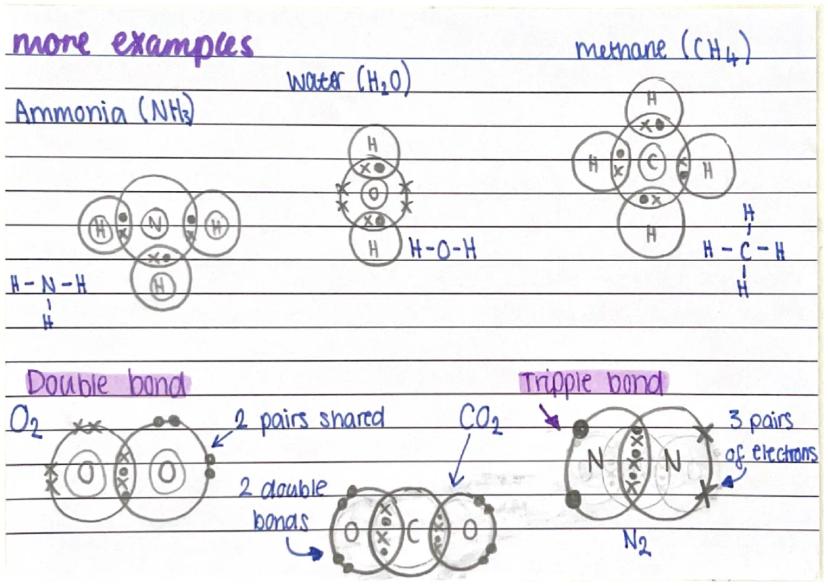

There are four ways to show covalent bonds: molecular formulae (like NH₃), dot-and-cross diagrams, ball-and-stick models, and displayed formulae . Each method shows different information about the molecule's structure.
You can have single bonds (one pair of shared electrons), double bonds (two pairs, like O₂), or triple bonds (three pairs, like N₂). The more pairs shared, the stronger the bond between those atoms.
Memory trick: Covalent = 'co-valent' = sharing valence (outer) electrons cooperatively!

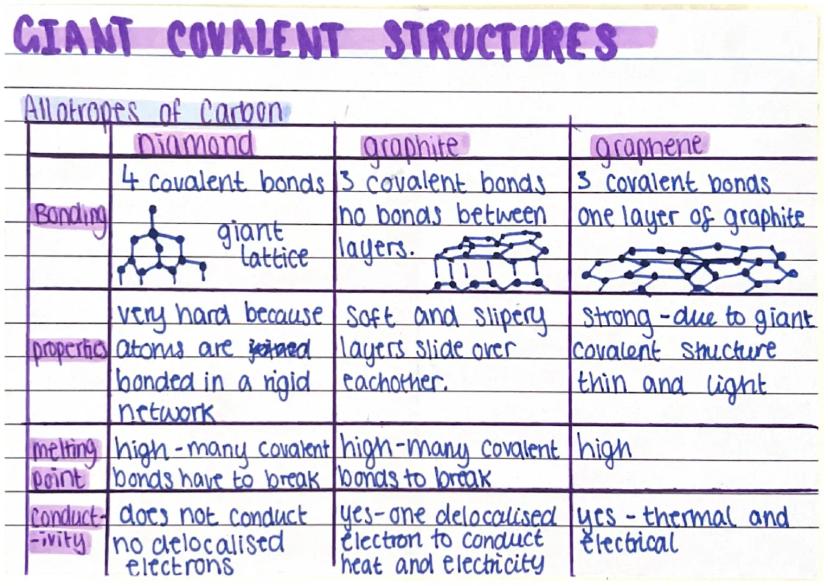

Giant Covalent Structures
Giant covalent structures are like massive 3D puzzles where millions of atoms are joined by covalent bonds. The three allotropes of carbon - diamond, graphite, and graphene - show how the same element can have completely different properties.
Diamond has four covalent bonds per carbon atom, creating an incredibly hard, rigid network. Graphite has three bonds per carbon, forming layers that can slide over each other, making it soft and slippery (perfect for pencils!).
Graphene is essentially one layer of graphite - it's incredibly strong yet thin and light. All three have high melting points because you need to break many covalent bonds to melt them.
Amazing fact: Graphite conducts electricity because it has delocalised electrons between layers, but diamond doesn't because all electrons are locked in bonds!
