Understanding Metallic Bonds: Electrostatic Attraction, Covalent Bonds, and the Octet Rule

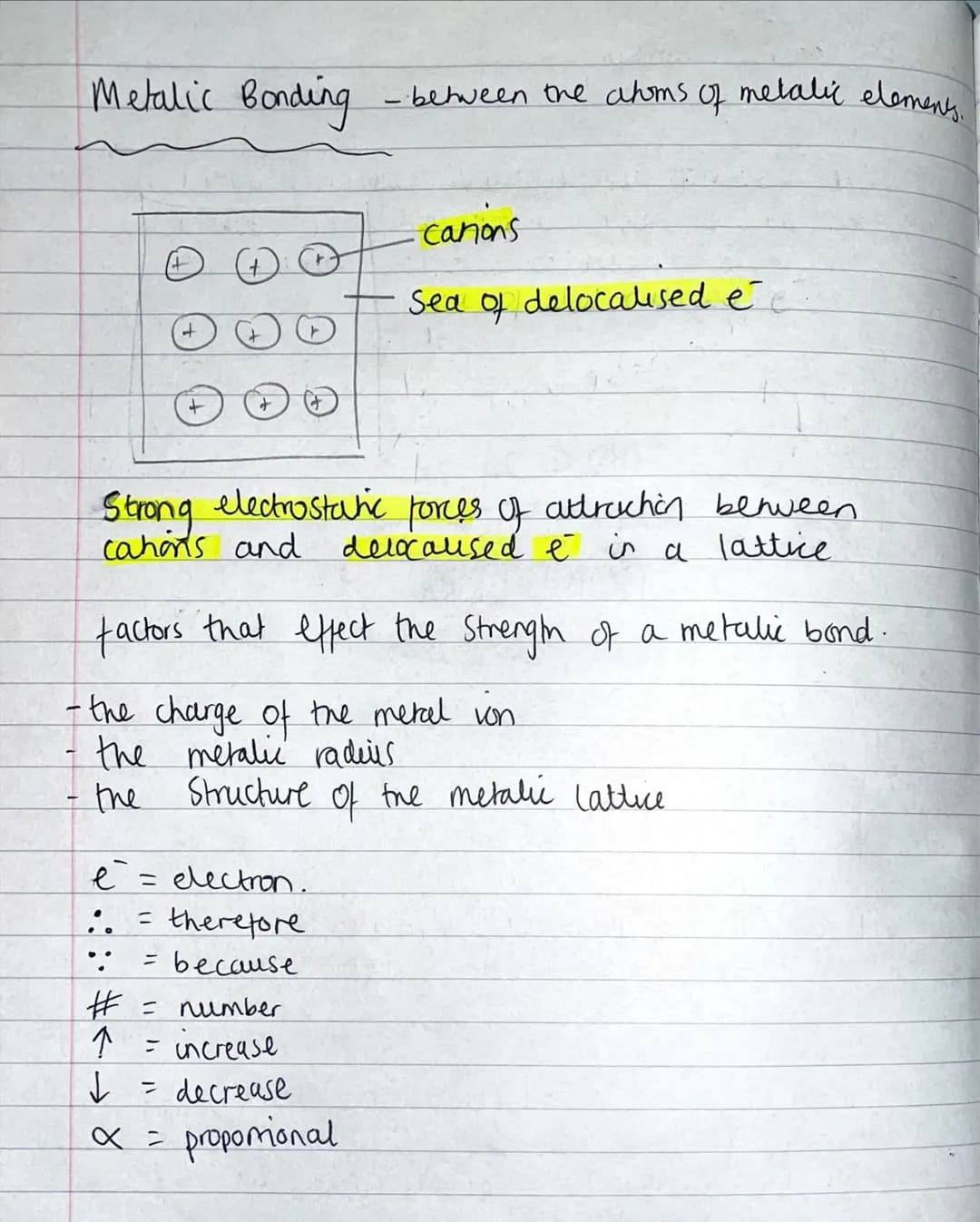

Chemical Bonding: Metallic Bonds and Electrostatic Forces

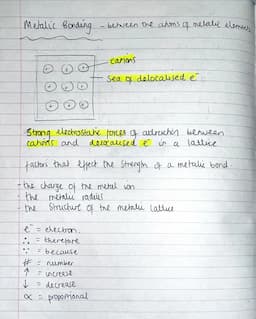

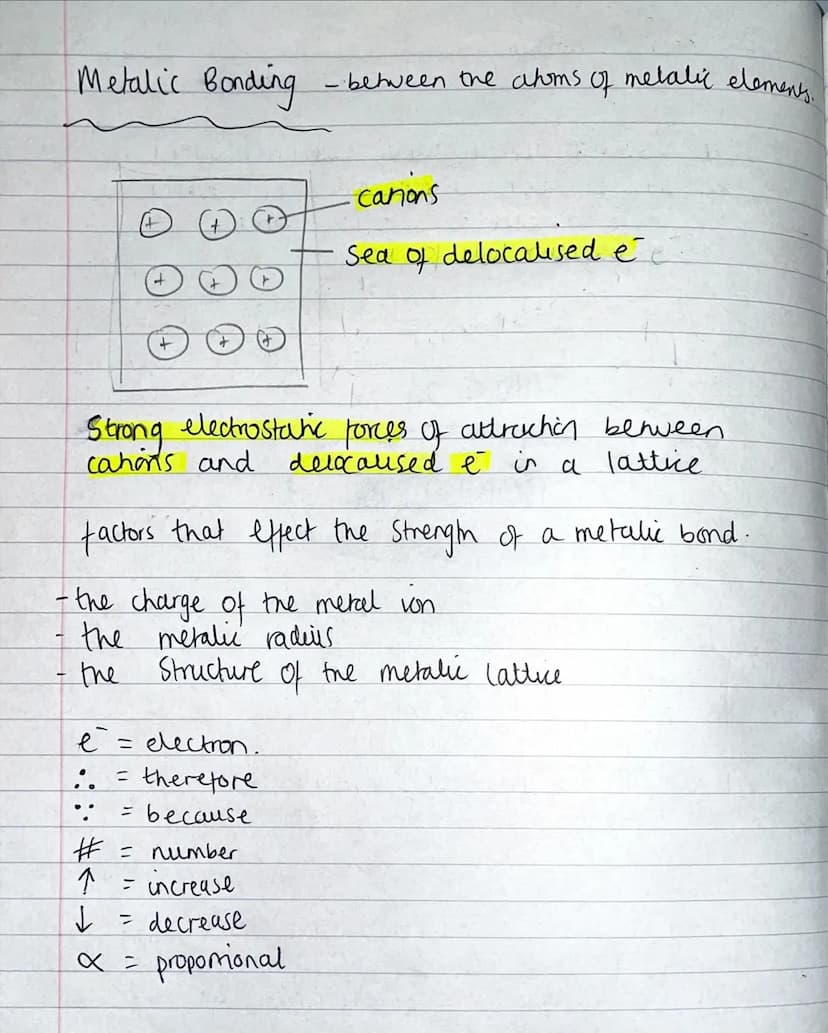

The metallic bond represents a fundamental type of chemical bonding characterized by التجاذب الكهروستاتيكي في الروابط المعدنية (electrostatic attraction in metallic bonds). In metallic bonding, positively charged metal ions form a regular crystalline lattice structure while sharing their outer electrons, creating what chemists call a "sea of delocalized electrons."

The strength of metallic bonds depends on several key factors. The primary factors include the charge of the metal ion and the metallic radius. As the positive charge on the metal ion increases, the strength of the metallic bond increases proportionally. Conversely, as the metallic radius increases, the strength of the bond typically decreases due to reduced electrostatic attraction.

Definition: Metallic bonding is the electrostatic attraction between positively charged metal ions and delocalized electrons in a crystalline lattice structure.

The practical applications of metallic bonding explain many common properties of metals, including their high electrical conductivity, thermal conductivity, malleability, and ductility. These properties arise from the mobile nature of the delocalized electrons and the regular arrangement of metal ions in the lattice.

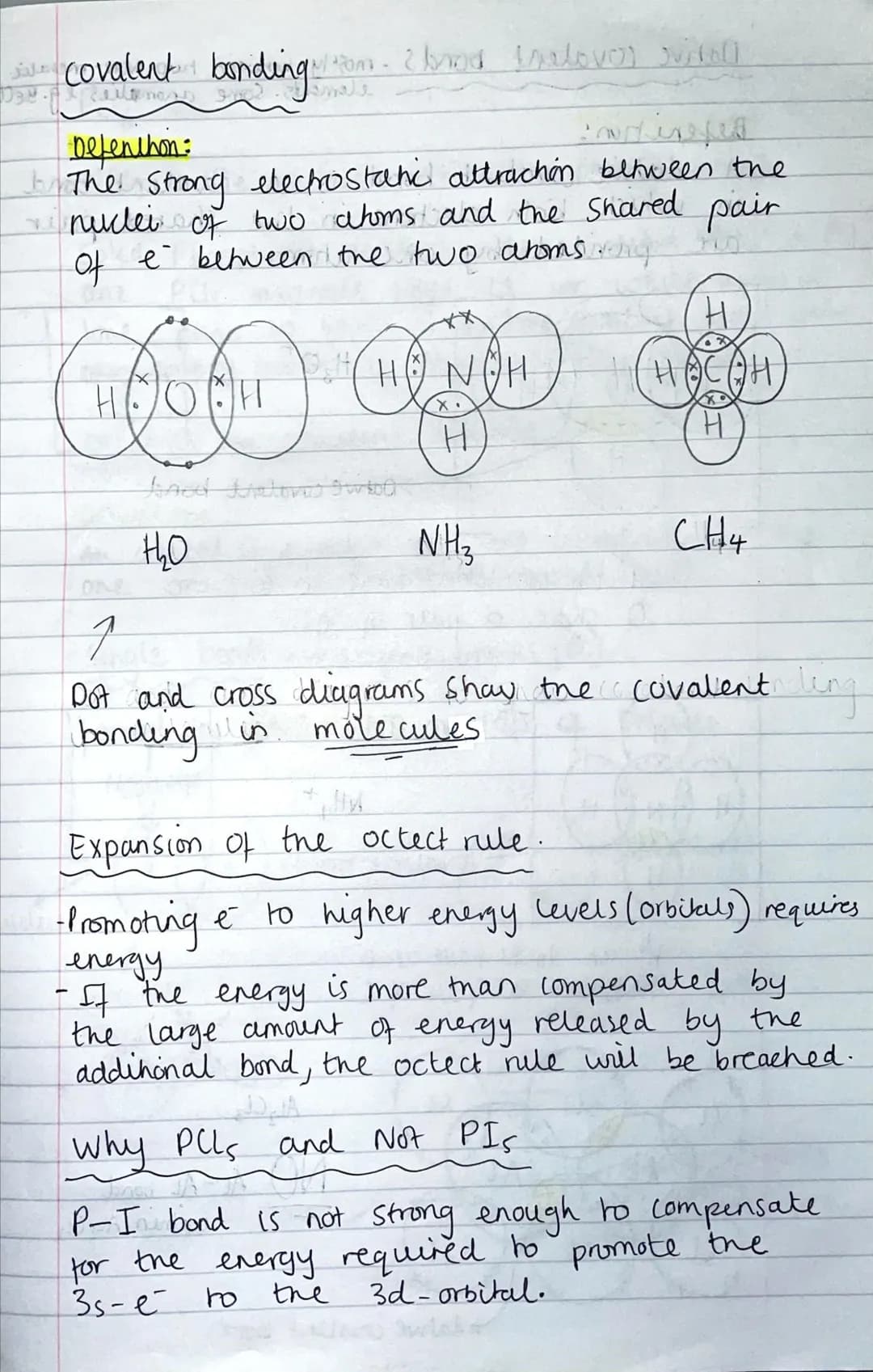

Understanding Covalent Bonds and the Octet Rule

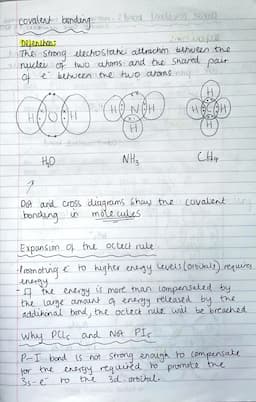

Covalent bonds form through the sharing of electron pairs between atoms, typically non-metallic elements. The قوة الروابط التساهمية والقاعدة الثمانية (strength of covalent bonds and the octet rule) governs how these bonds form and their relative stability.

Vocabulary: The octet rule states that atoms tend to form bonds to achieve eight electrons in their outer shell, similar to the electronic configuration of noble gases.

In molecules like H₂O and NH₃, atoms share electrons to achieve stable electron configurations. These bonds can be represented using dot-and-cross diagrams, which clearly show the shared electron pairs. The strength of covalent bonds depends on factors such as atomic size, electronegativity differences, and orbital overlap.

Expanded Octet and Orbital Promotion

Some elements can expand their octet through electron promotion to higher energy orbitals. This process requires energy but can be favorable if the resulting bonds release more energy than was required for promotion. Understanding why certain elements like phosphorus can form five bonds while others cannot relates to the energy requirements of orbital promotion.

Example: In PCl₅, phosphorus forms five covalent bonds by promoting an electron to a 3d orbital, while nitrogen cannot form more than four bonds due to lacking accessible d orbitals.

The concept of orbital promotion helps explain exceptions to the octet rule and provides insights into molecular geometry and chemical reactivity. These principles are crucial for understanding more complex molecular structures and chemical reactions.

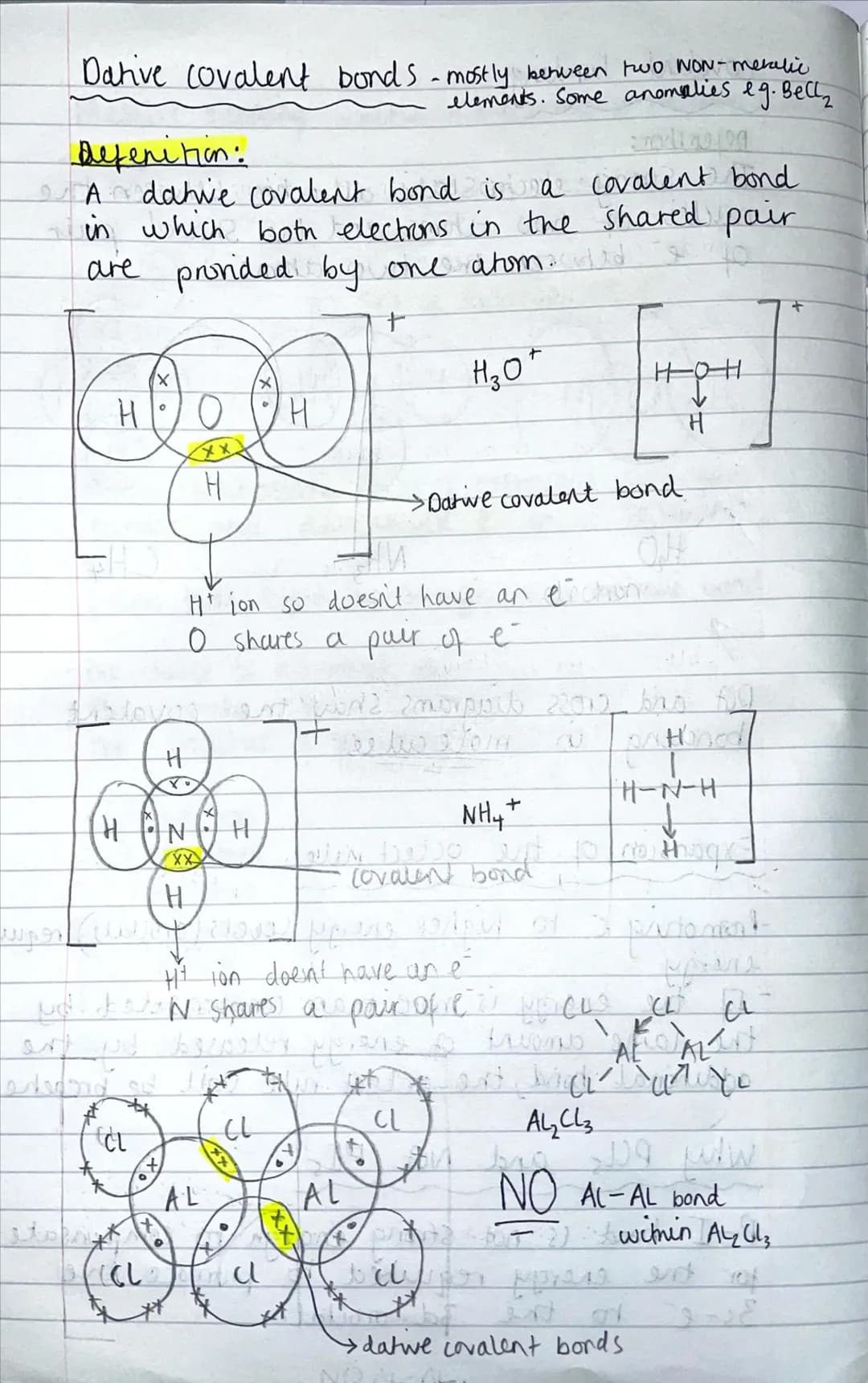

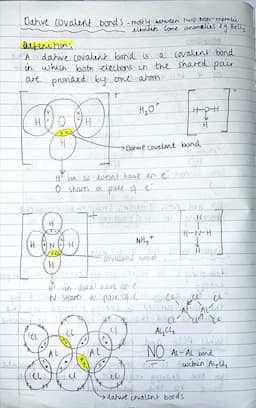

Dative Covalent Bonds and Their Applications

تعريف الروابط التساهمية الداتية (definition of dative covalent bonds) describes a special type of covalent bond where both shared electrons come from one atom. These bonds, also known as coordinate covalent bonds, play crucial roles in many chemical structures and reactions.

Highlight: In dative covalent bonds, the electron-donating atom is called the donor, while the accepting atom is the acceptor. This distinguishes them from regular covalent bonds where each atom contributes one electron.

Common examples include the formation of NH₄⁺ (ammonium ion) and the bonding in BF₃·NH₃ complexes. In these cases, one atom (usually with a lone pair of electrons) shares both electrons with another atom that has an empty orbital. This type of bonding is particularly important in coordination chemistry and explains the behavior of many molecular compounds.

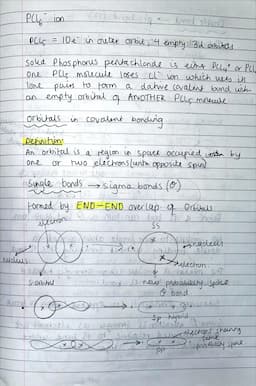

Understanding Orbital Bonding and Molecular Structures

Chemical bonds form through specific orbital arrangements and electron sharing patterns that determine molecular properties. Let's explore the fundamental concepts of orbital bonding and molecular geometry.

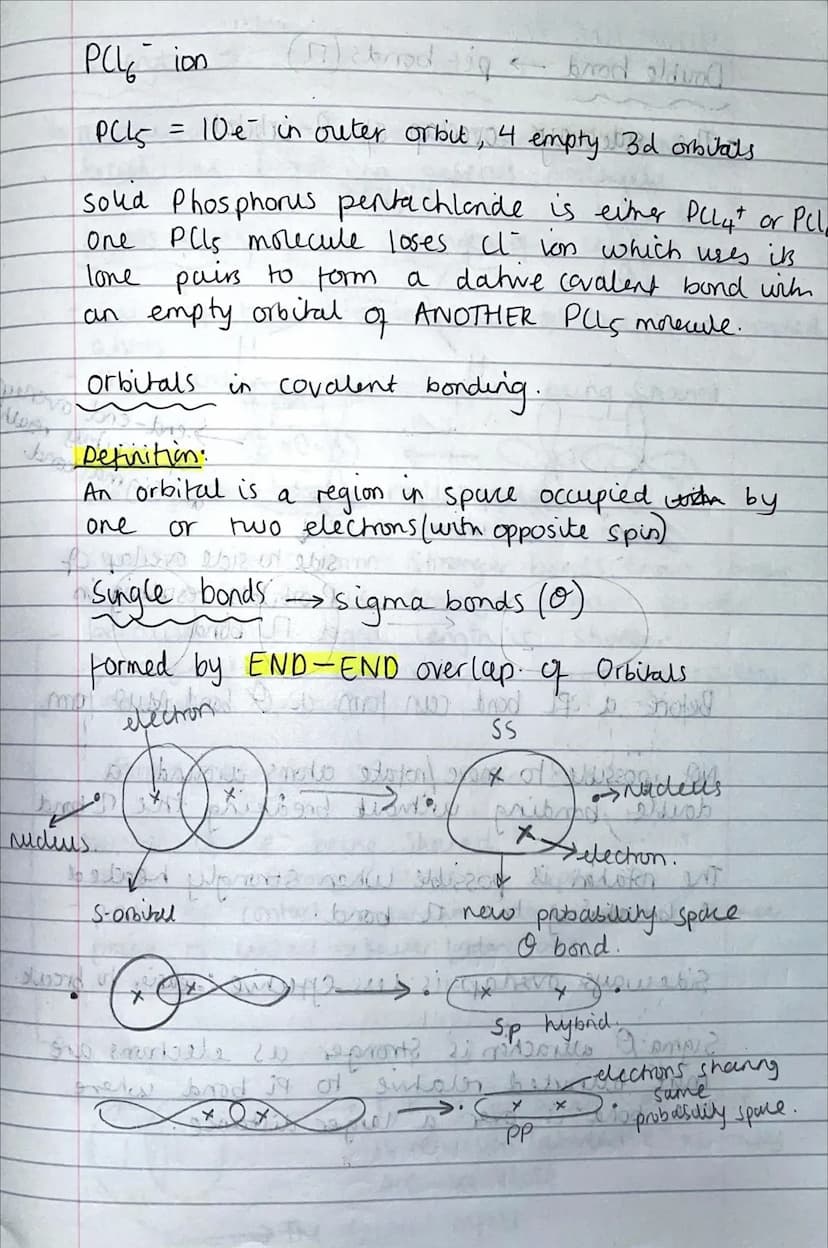

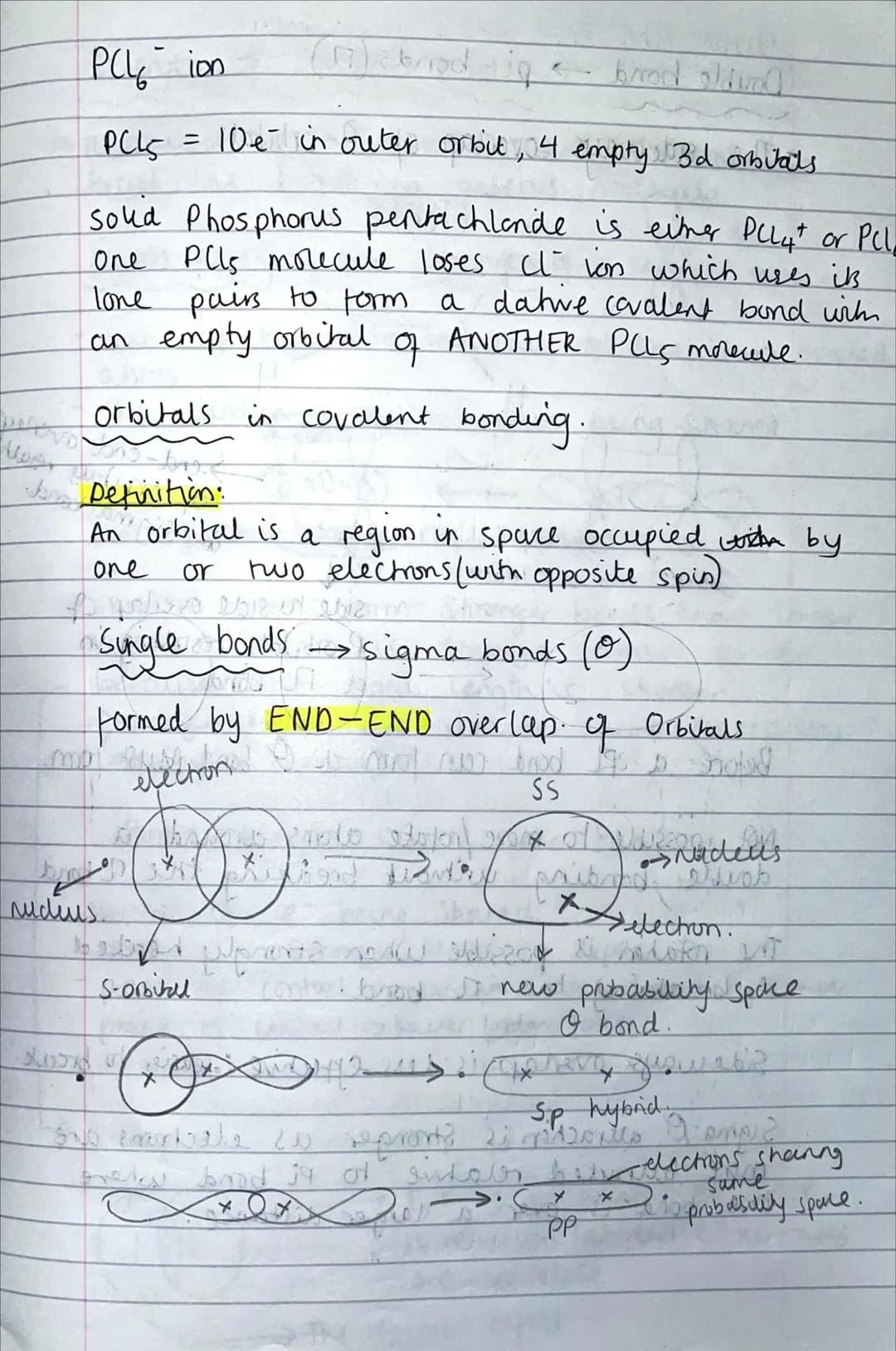

Orbitals play a crucial role in covalent bonding. An orbital represents a region in space that can hold up to two electrons with opposite spins. When atoms form bonds, their orbitals overlap in specific ways to create different types of chemical bonds.

Definition: An orbital is a three-dimensional region of space around an atomic nucleus where electrons are most likely to be found, with a maximum capacity of two electrons with opposite spins.

Sigma bonds (σ) form through end-to-end overlap of atomic orbitals along the internuclear axis. These can involve s-orbitals, p-orbitals, or hybrid orbitals. Sigma bonds are the strongest type of covalent bond because they allow for maximum orbital overlap and electron density between nuclei.

Example: In a single bond between two hydrogen atoms (H₂), the 1s orbitals of each hydrogen atom overlap end-to-end to form a sigma bond.

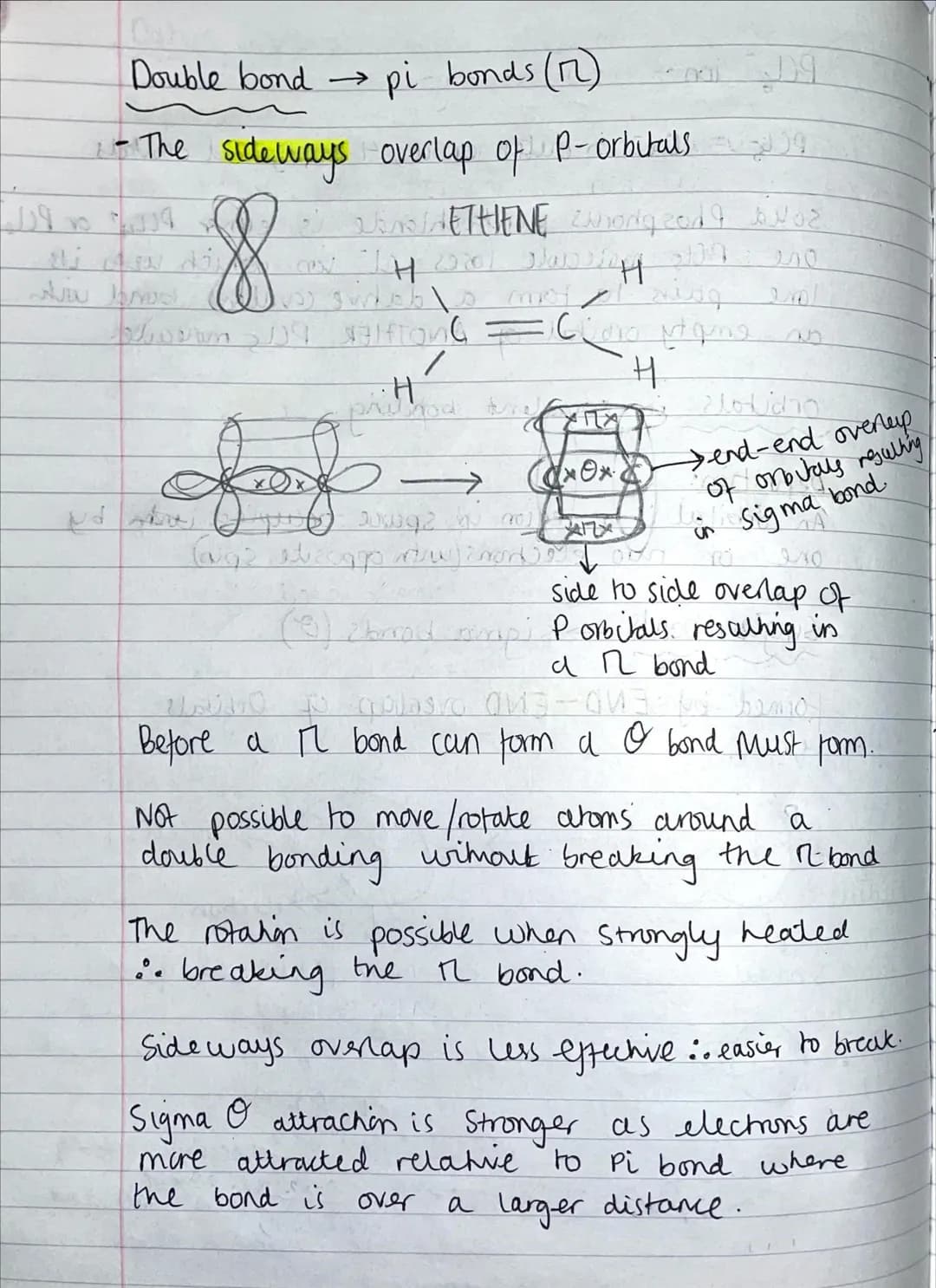

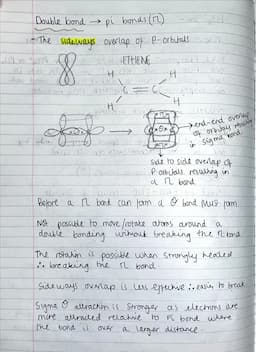

Double Bonds and Pi Bonding

Double bonds consist of both sigma and pi bonds. While the sigma bond forms through end-to-end orbital overlap, pi bonds (π) result from the sideways overlap of p-orbitals. This unique arrangement has important implications for molecular behavior.

Highlight: Pi bonds restrict rotation around the bond axis, leading to geometric isomerism in molecules with double bonds. This restriction can only be overcome with sufficient energy to break the pi bond.

The effectiveness of orbital overlap differs between sigma and pi bonds. Sigma bonds are stronger because the electrons are held more closely between the nuclei. Pi bonds, involving sideways orbital overlap, create a more diffuse electron distribution and are consequently weaker.

Vocabulary: Pi bonds (π) form through parallel overlap of p-orbitals, creating regions of electron density above and below the molecular plane.

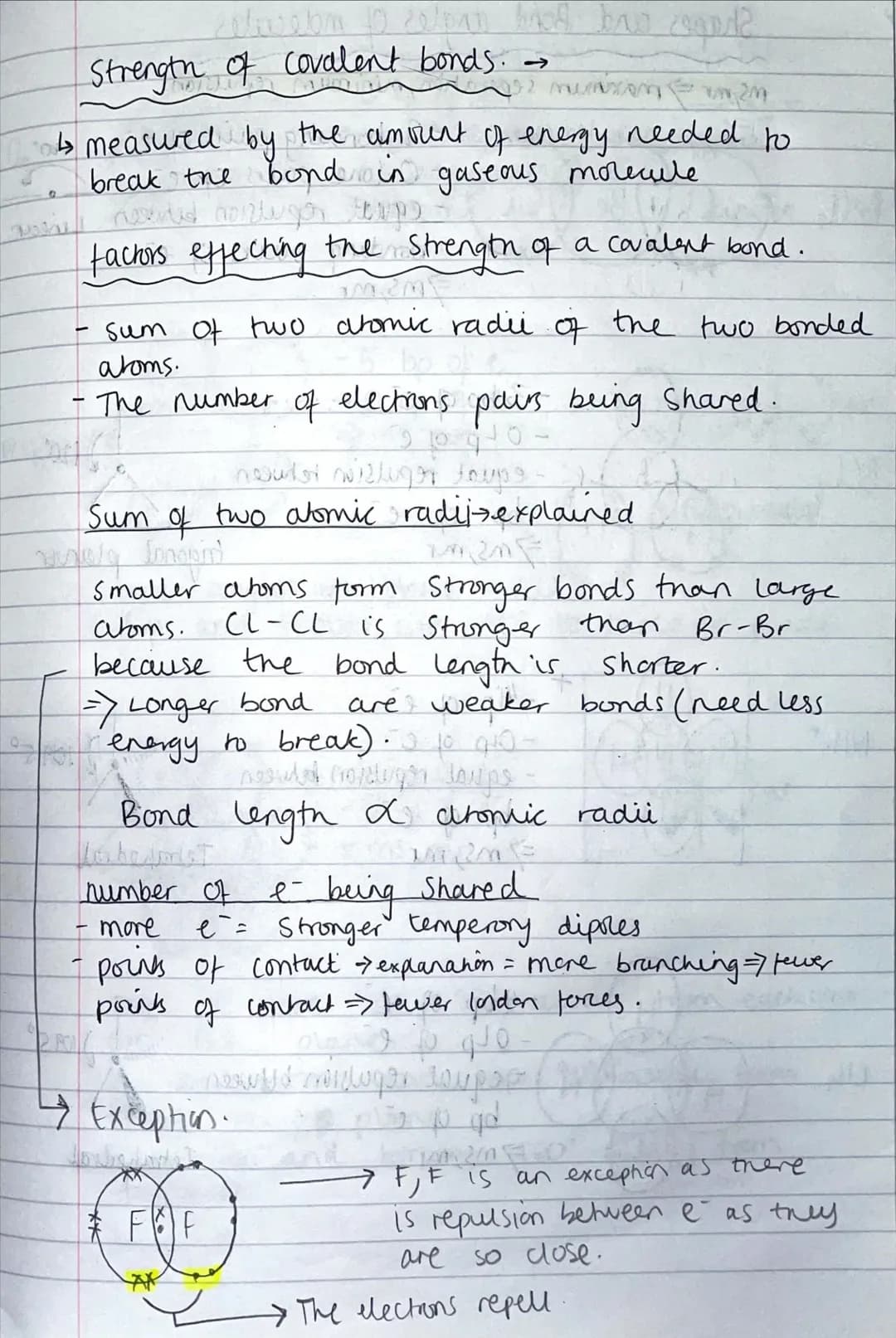

Bond Strength and Contributing Factors

Bond strength is quantified by the energy required to break a bond in a gaseous molecule. Several factors influence covalent bond strength:

1. Atomic size: Smaller atoms form stronger bonds due to shorter bond lengths and better orbital overlap. For example, a Cl-Cl bond is stronger than a Br-Br bond.

2. Number of shared electron pairs: More shared electrons generally create stronger bonds, though exceptions exist due to electron repulsion effects.

Example: The F-F bond is unexpectedly weak despite fluorine's small size, due to strong electron-electron repulsion between the atoms' many non-bonding electrons.

Bond length directly correlates with bond strength - shorter bonds are typically stronger because of more effective orbital overlap and stronger nuclear attraction to the shared electrons.

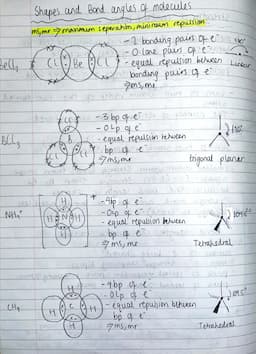

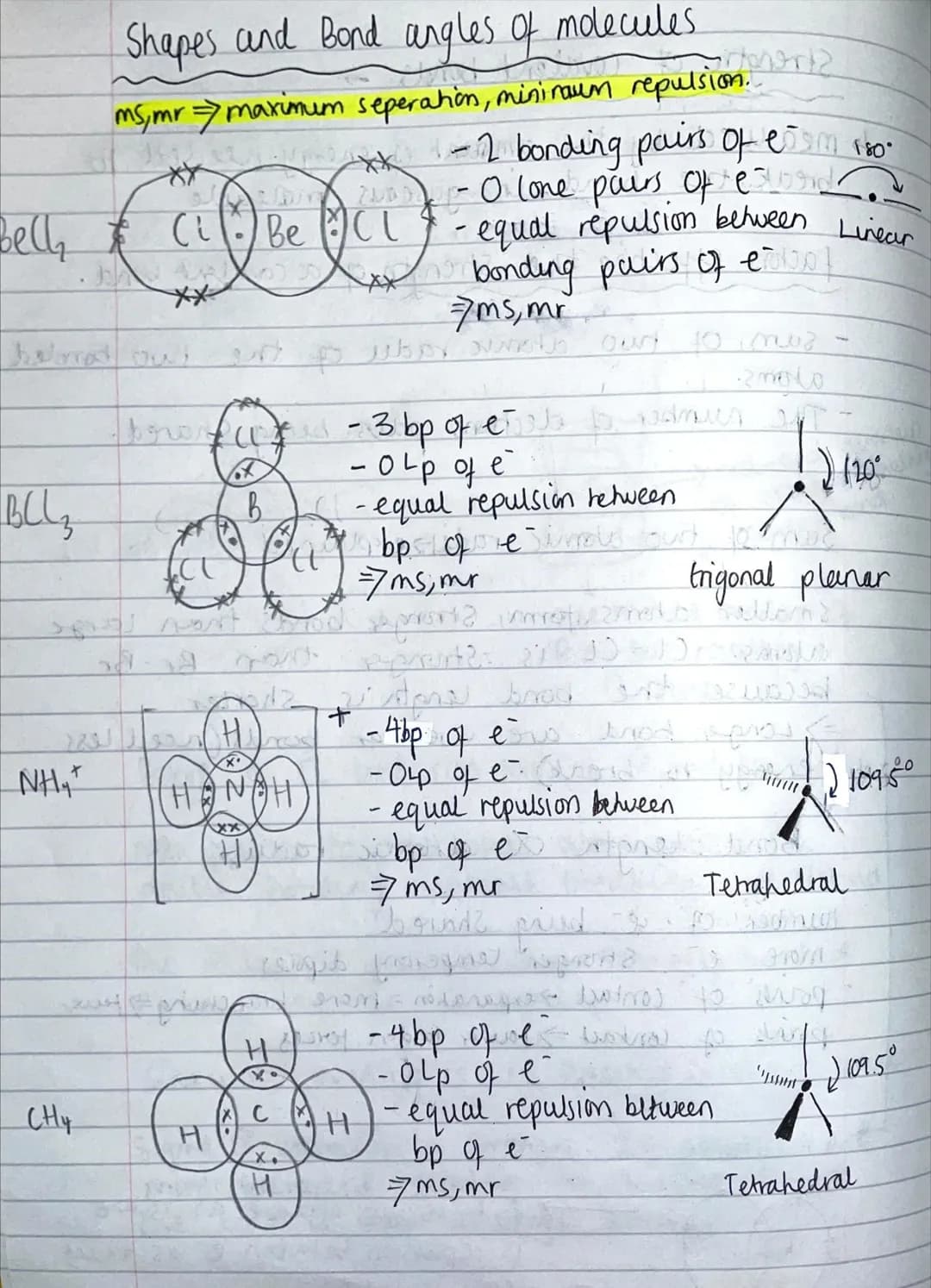

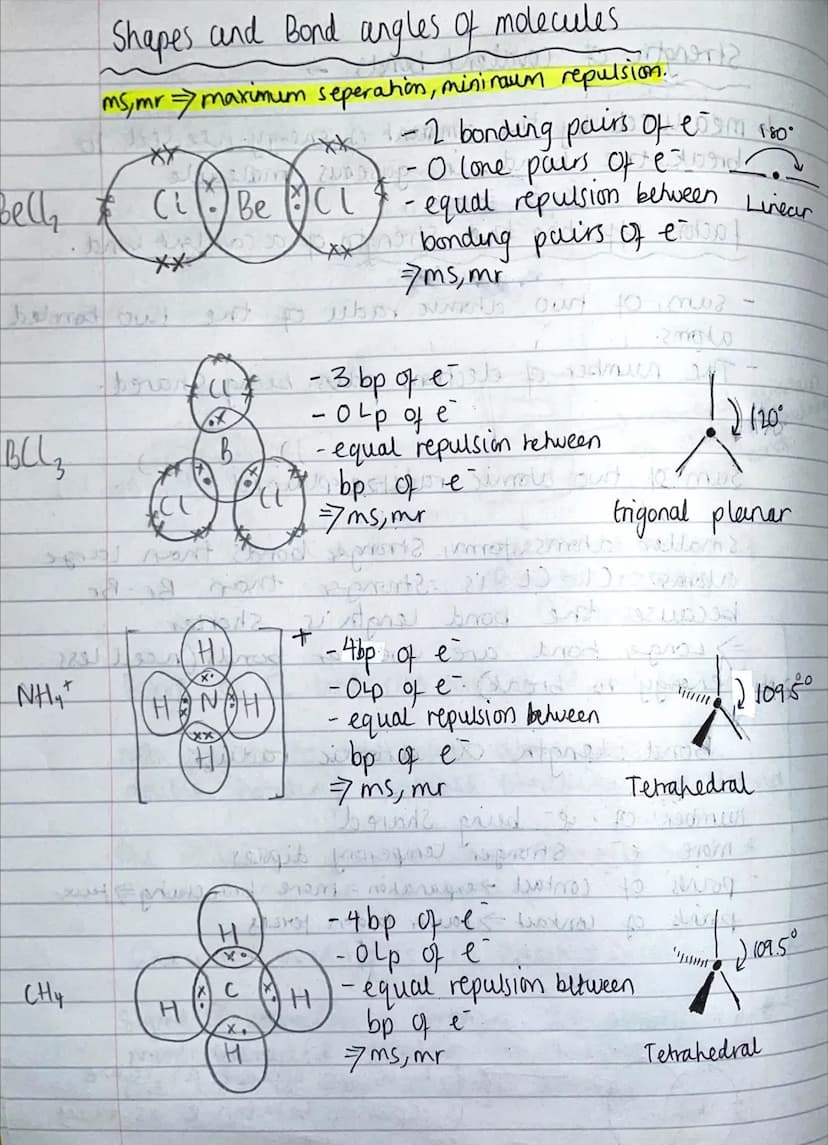

Molecular Geometry and Bond Angles

Molecular geometry follows the Valence Shell Electron Pair Repulsion (VSEPR) theory, which predicts molecular shapes based on electron pair repulsions. The theory emphasizes maximum separation between electron domains to minimize repulsion.

Common molecular geometries include:

• Linear (180°): Two electron domains
• Trigonal planar (120°): Three electron domains
• Tetrahedral (109.5°): Four electron domains
• Trigonal bipyramidal: Five electron domains
• Octahedral: Six electron domains

Definition: VSEPR theory states that electron domains (bonding and non-bonding) arrange themselves to achieve maximum separation and minimum repulsion.

The presence of lone pairs can distort ideal geometries due to their greater spatial requirement compared to bonding pairs. This leads to slight deviations from predicted bond angles in real molecules.

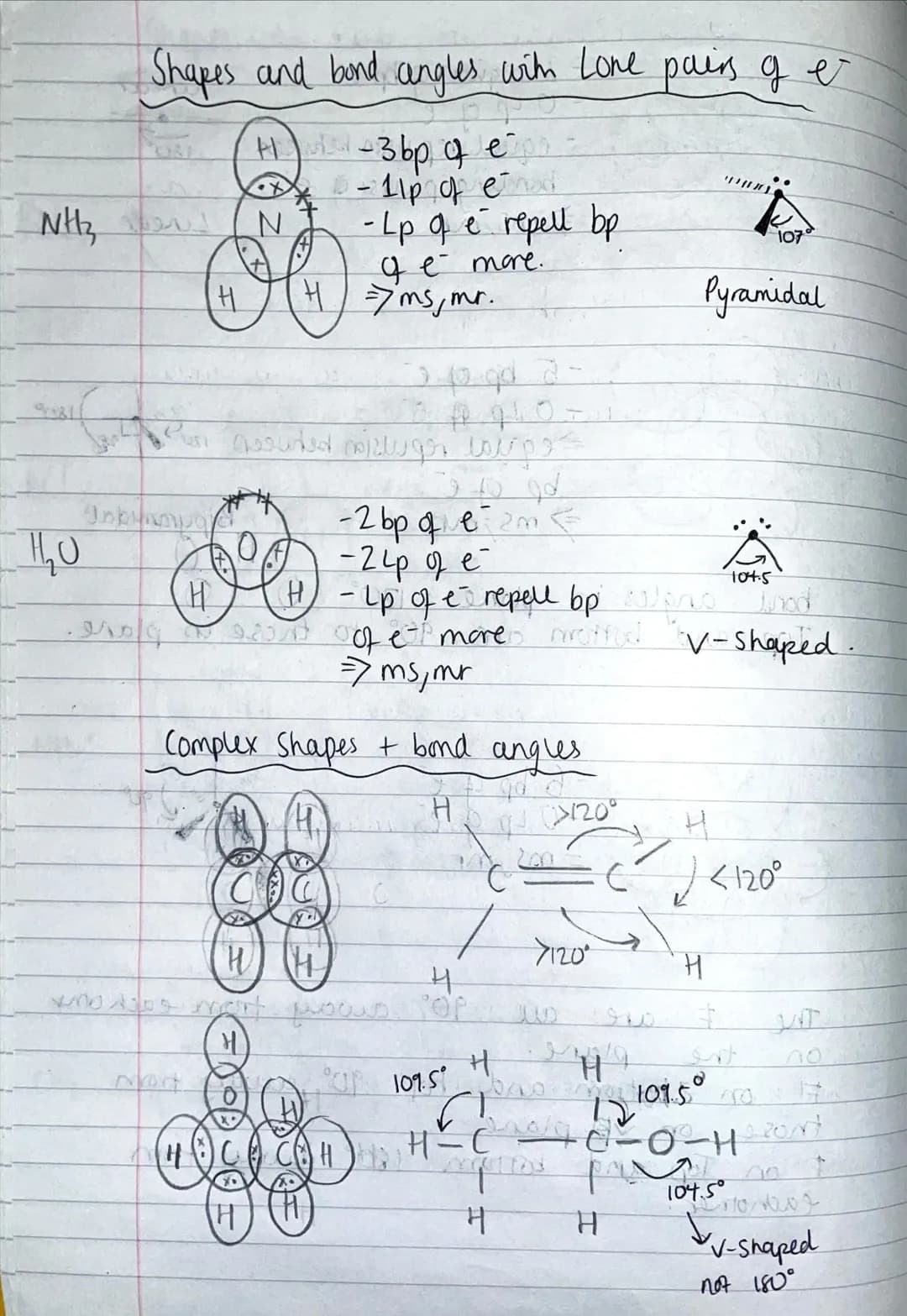

Understanding Molecular Geometry and Bond Angles

Chemical bonds form distinct three-dimensional shapes that directly influence molecular properties and reactions. The arrangement of atoms in molecules follows specific patterns based on electron distribution and repulsion forces.

Definition: Molecular geometry describes the three-dimensional arrangement of atoms in a molecule, determined by electron-pair repulsion and bonding patterns.

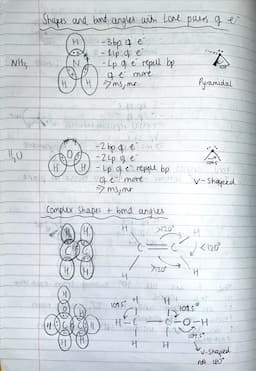

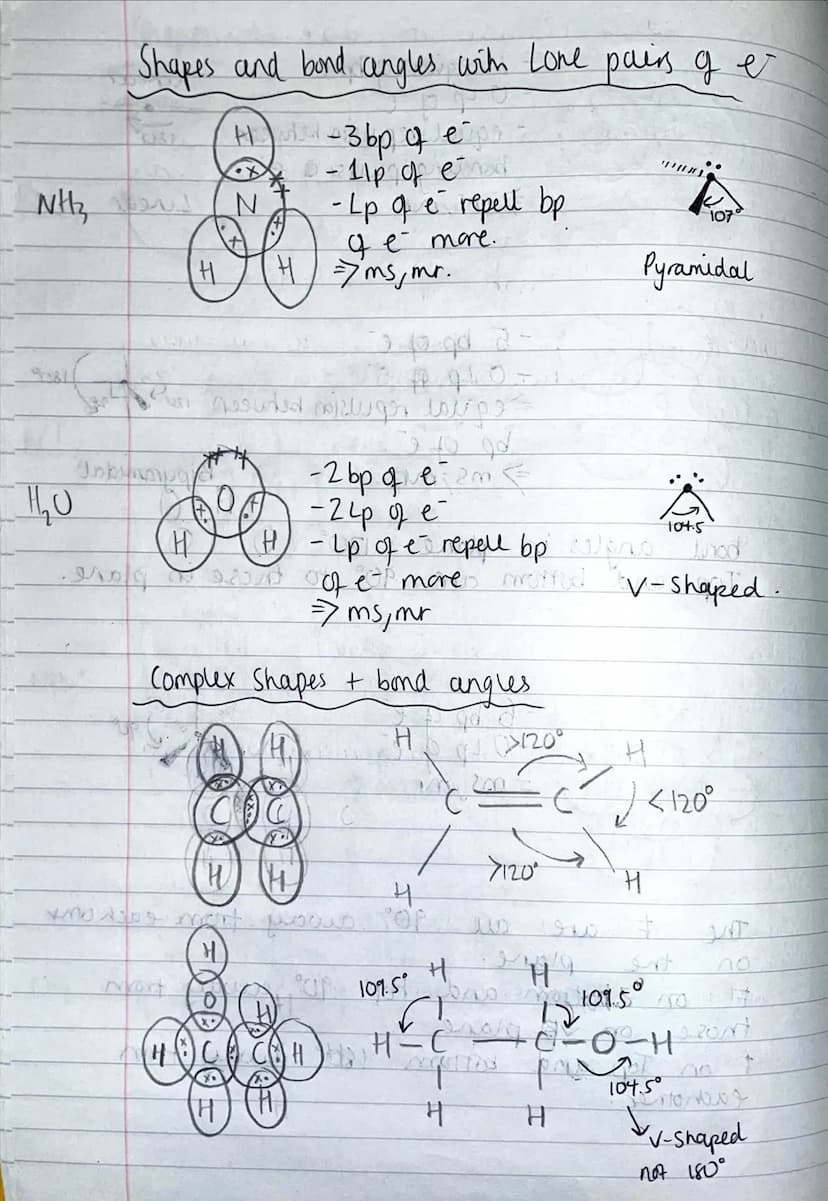

The shape of molecules is primarily determined by the number of bonding pairs (bp) and lone pairs (lp) of electrons around the central atom. When atoms form bonds, they arrange themselves to minimize electron repulsion and achieve maximum stability. This fundamental principle leads to predictable geometric arrangements.

For example, in water (H₂O), the oxygen atom has two bonding pairs with hydrogen atoms and two lone pairs. The repulsion between these electron pairs creates a bent or V-shaped molecule with a bond angle of approximately 104.5°. This is smaller than the ideal tetrahedral angle of 109.5° due to the stronger repulsion from the lone pairs.

Example: Ammonia (NH₃) demonstrates pyramidal geometry with a bond angle of 107°. The lone pair on nitrogen pushes the three N-H bonds slightly closer together compared to a perfect tetrahedral arrangement.

The presence of lone pairs significantly affects molecular geometry. Lone pairs occupy more space than bonding pairs and exert stronger repulsive forces. This principle explains why molecules with similar numbers of electron domains can have different shapes and bond angles.

Advanced Concepts in Molecular Structure

Understanding molecular geometry becomes more complex when dealing with molecules containing multiple bonds or different types of atoms. The hybridization of atomic orbitals plays a crucial role in determining final molecular shapes.

Highlight: Bond angles are not fixed values but can vary slightly based on electronegativity differences between atoms and other molecular forces.

In methane (CH₄), the carbon atom forms four equivalent bonds with hydrogen atoms, creating a perfect tetrahedral structure with 109.5° bond angles. This represents the ideal case where all electron domains are bonding pairs with equal repulsion forces.

The concept of Valence Shell Electron Pair Repulsion (VSEPR) theory provides a systematic approach to predicting molecular geometries. This theory considers both bonding and non-bonding electron pairs when determining molecular shape. The key principle is that electron domains arrange themselves to minimize repulsion, resulting in specific geometric patterns.

Vocabulary: VSEPR (Valence Shell Electron Pair Repulsion) theory - A model used to predict three-dimensional molecular shapes based on electron domain arrangements and repulsions.

The practical applications of understanding molecular geometry extend to fields like drug design, materials science, and chemical engineering. The shape of molecules influences their physical and chemical properties, including boiling point, solubility, and reactivity patterns.
