C3 Module: Exploring Structure and Bonding
T
Tara Vidal
@taravidal_jrny
Matter exists in different states and forms chemical bonds in fascinating ways that affect everything around you. Understanding how particles behave and bond together explains why diamond is incredibly hard whilst graphite is slippery, and why metals conduct electricity but... Show more

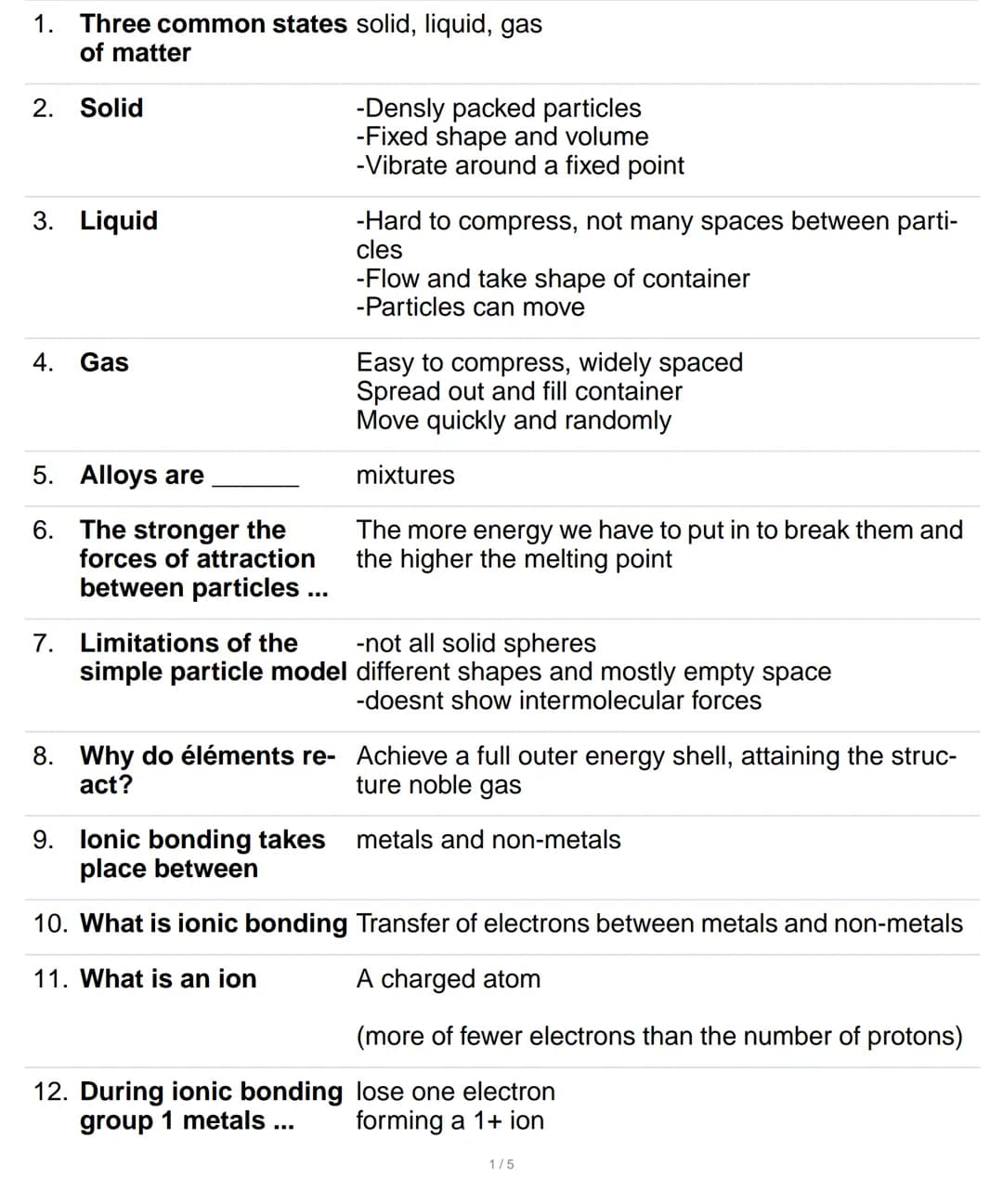

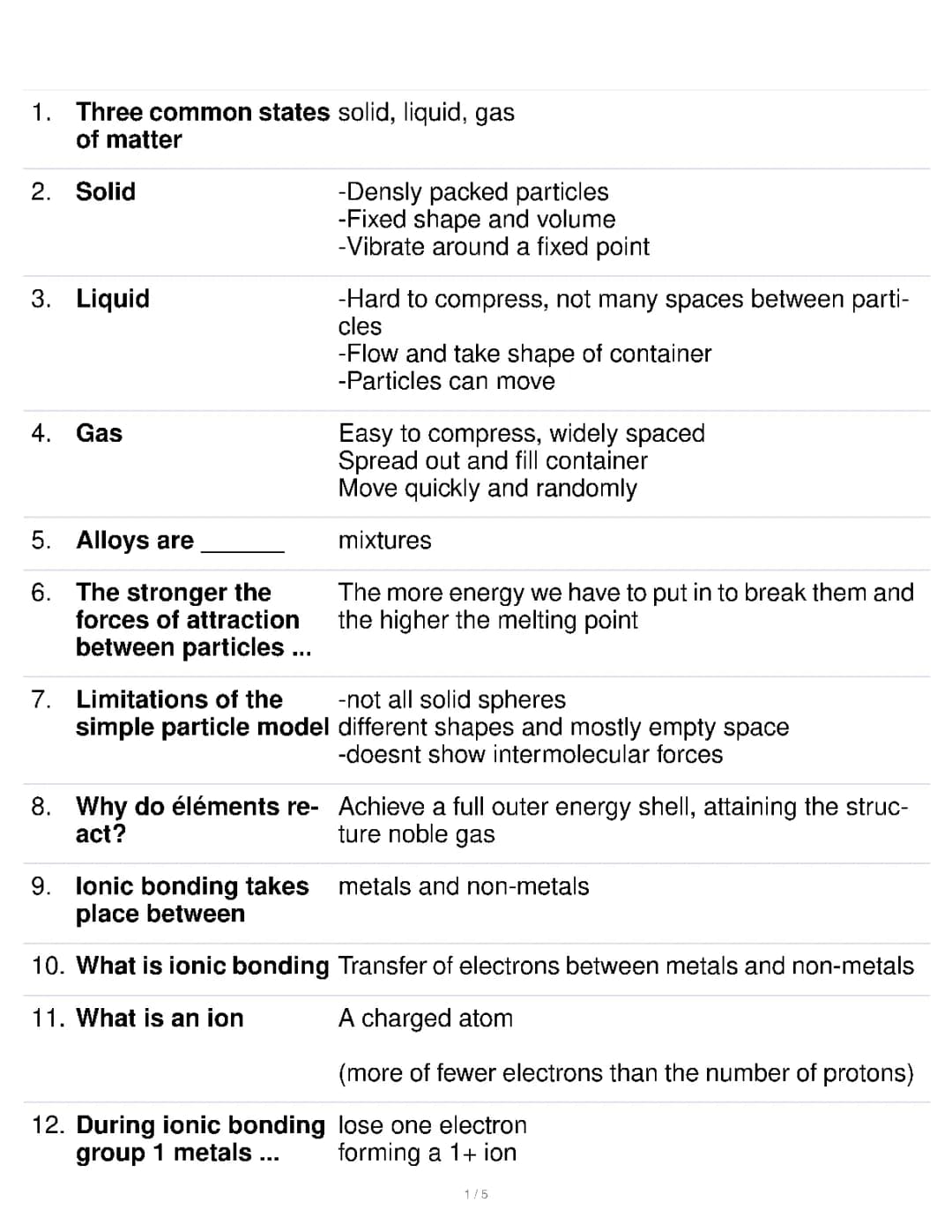

States of Matter and Particle Behaviour
Solids, liquids, and gases behave differently because their particles are arranged in unique ways. In solids, particles are densely packed and vibrate around fixed points, giving them a fixed shape and volume.
Liquids have particles that can move around each other, which is why they flow and take the shape of their container. Gases have widely spaced particles that move quickly and randomly, making them easy to compress and able to fill any container completely.
The forces of attraction between particles determine melting and boiling points - stronger forces mean you need more energy to break them apart. However, the simple particle model has limitations since particles aren't actually solid spheres and it doesn't show the forces between them.
Quick Tip: Remember that stronger particle attractions = higher melting points!
Sign up to see the contentIt's free!
Access to all documents
Improve your grades
Join milions of students
By signing up you accept Terms of Service and Privacy Policy

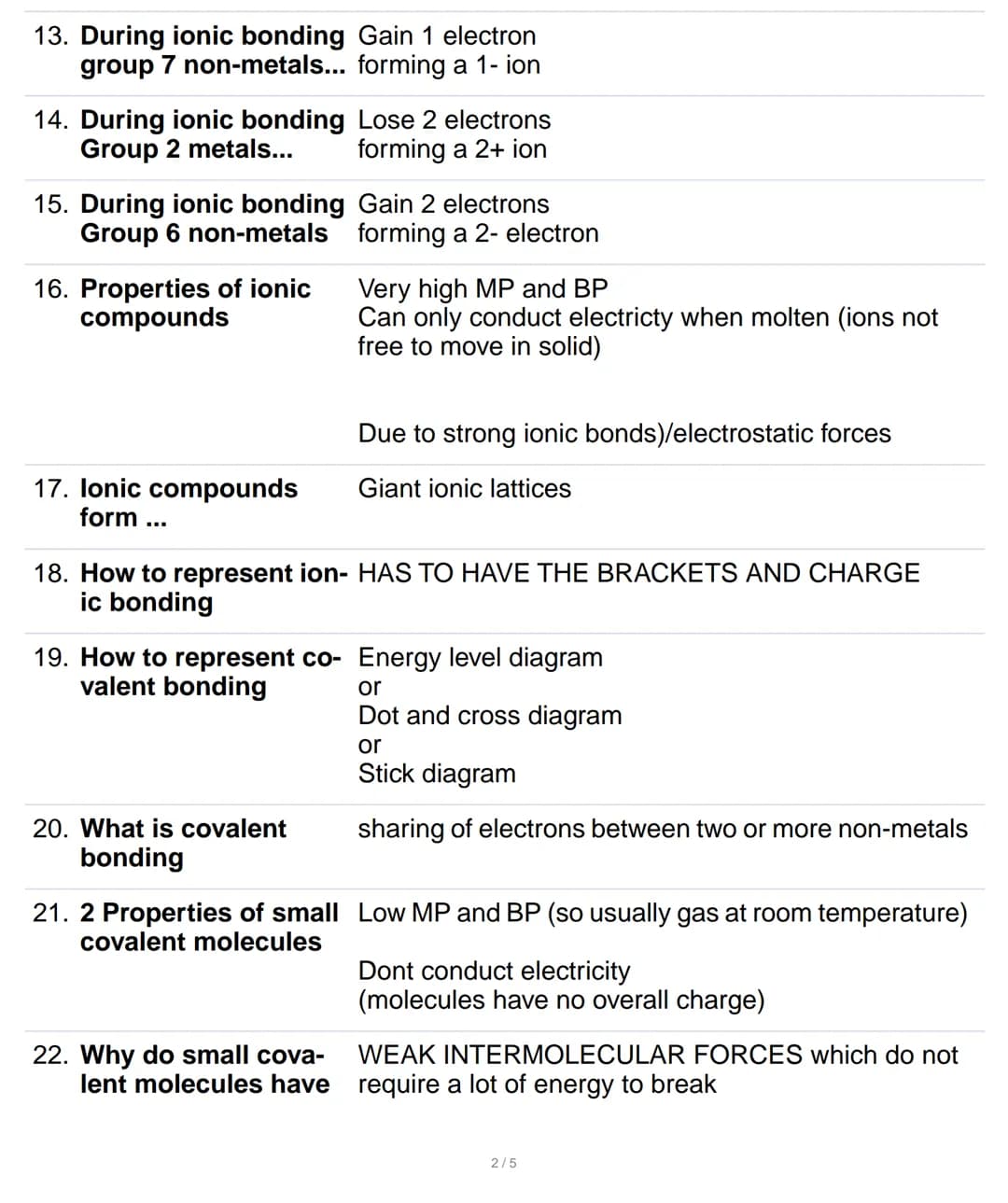

Ionic Bonding - When Opposites Attract
Ionic bonding happens when metals meet non-metals, and it's all about transferring electrons to achieve stable outer shells like noble gases. Metals lose electrons to become positive ions, whilst non-metals gain electrons to become negative ions.
Group 1 metals lose one electron , whilst Group 7 non-metals gain one electron . Group 2 metals lose two electrons, and Group 6 non-metals gain two electrons - it's like a perfectly choreographed electron exchange!
Ionic compounds form giant ionic lattices with very high melting and boiling points due to strong electrostatic forces. They only conduct electricity when molten because the ions need to be free to move around.
When representing ionic bonding, always remember to include brackets and charges - this is crucial for getting marks in exams!
Remember: Ionic bonding = electron transfer between metals and non-metals
Sign up to see the contentIt's free!
Access to all documents
Improve your grades
Join milions of students
By signing up you accept Terms of Service and Privacy Policy

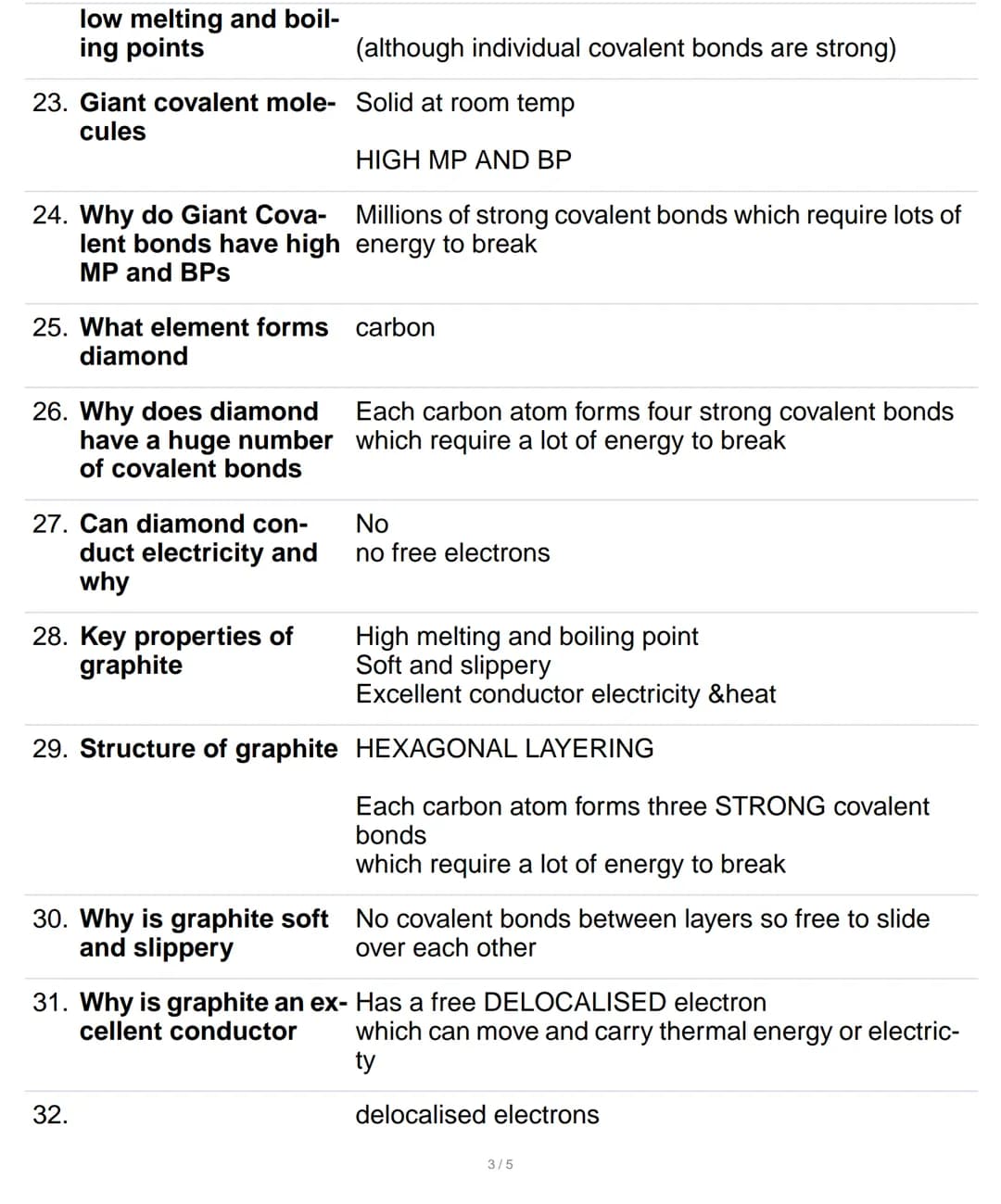

Covalent Bonding and Giant Structures
Covalent bonding involves sharing electrons between non-metals, creating completely different properties compared to ionic compounds. Small covalent molecules have low melting and boiling points because they're held together by weak intermolecular forces, even though the individual covalent bonds are strong.
Diamond is carbon's show-off form - each carbon atom forms four strong covalent bonds, creating an incredibly hard structure. However, it can't conduct electricity because there are no free electrons available.
Graphite tells a different story with its hexagonal layered structure. Each carbon atom forms three strong covalent bonds, but the layers aren't bonded to each other, making graphite soft and slippery. The delocalised electrons make graphite an excellent conductor of electricity and heat.
Graphene is essentially a single layer of graphite that's extremely strong and conducts electricity brilliantly due to its delocalised electrons.
Key Insight: Same element (carbon), completely different properties depending on structure!
Sign up to see the contentIt's free!
Access to all documents
Improve your grades
Join milions of students
By signing up you accept Terms of Service and Privacy Policy

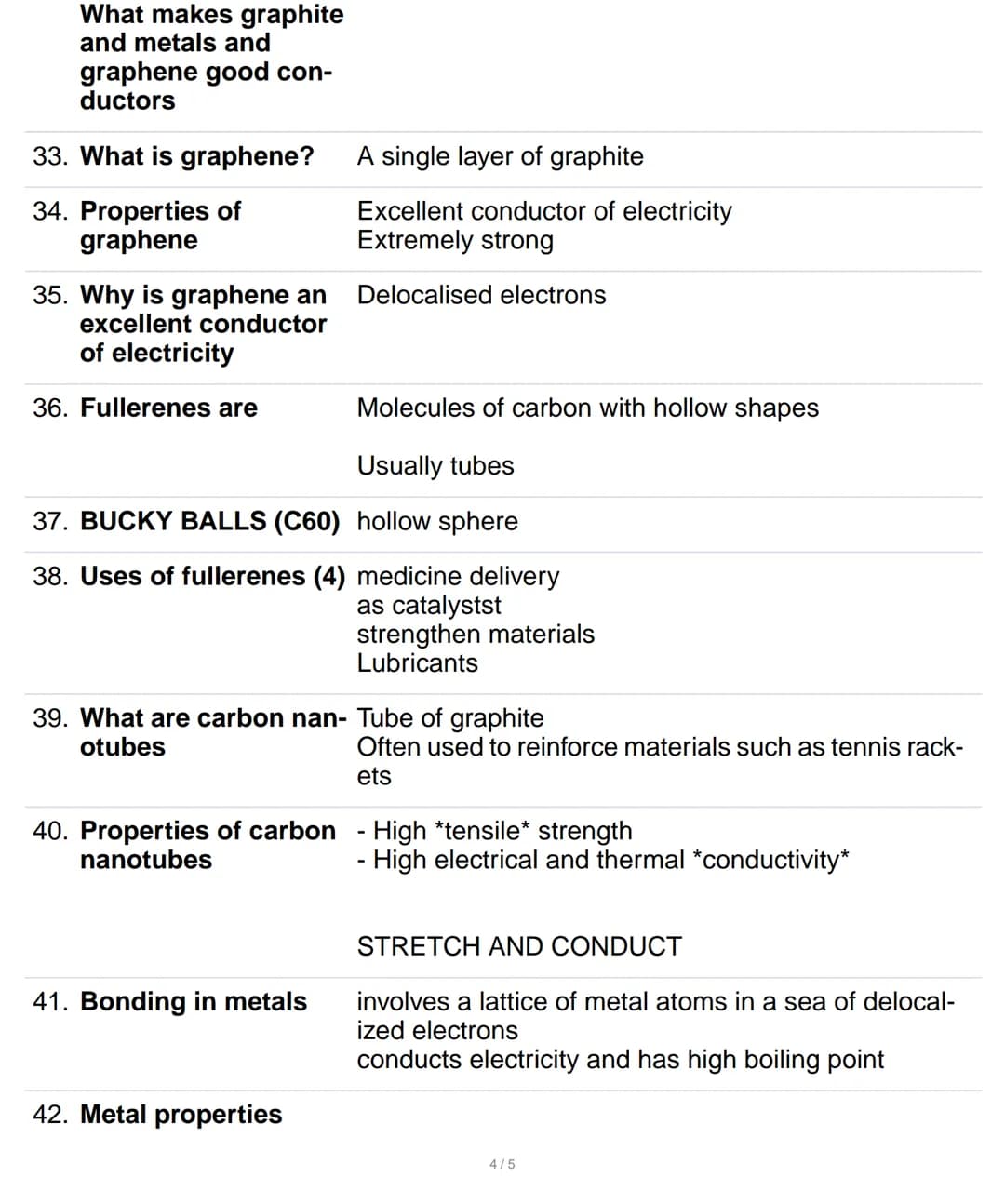

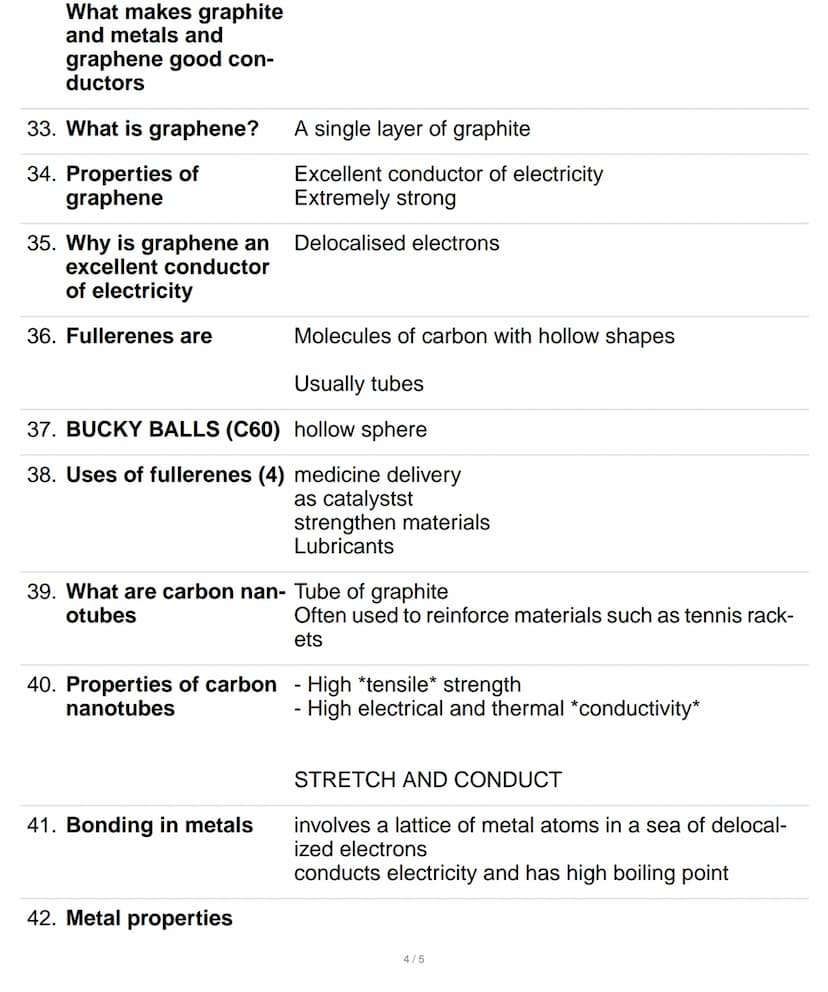

Fullerenes, Metals, and Alloys
Fullerenes are hollow carbon molecules that come in various shapes - from spherical buckyballs (C60) to tube-like carbon nanotubes. These versatile structures are used in medicine delivery, as catalysts, and to strengthen materials like tennis rackets due to their high tensile strength and conductivity.
Metallic bonding creates a 'sea of delocalised electrons' around metal atoms, explaining why metals are excellent conductors and have high boiling points. The electrons can move freely, carrying electrical current and thermal energy.
Metals are malleable because their layers can slide over each other without breaking bonds. However, alloys (mixtures of different metals) are harder than pure metals because different-sized atoms disrupt the layers, making them more difficult to slide.
This explains why we use steel (an alloy) rather than pure iron for construction - it's much stronger and more durable.
Real-world Connection: Your bike frame is probably made from an alloy, not pure metal, because it needs to be strong yet lightweight!
Sign up to see the contentIt's free!
Access to all documents
Improve your grades
Join milions of students
By signing up you accept Terms of Service and Privacy Policy

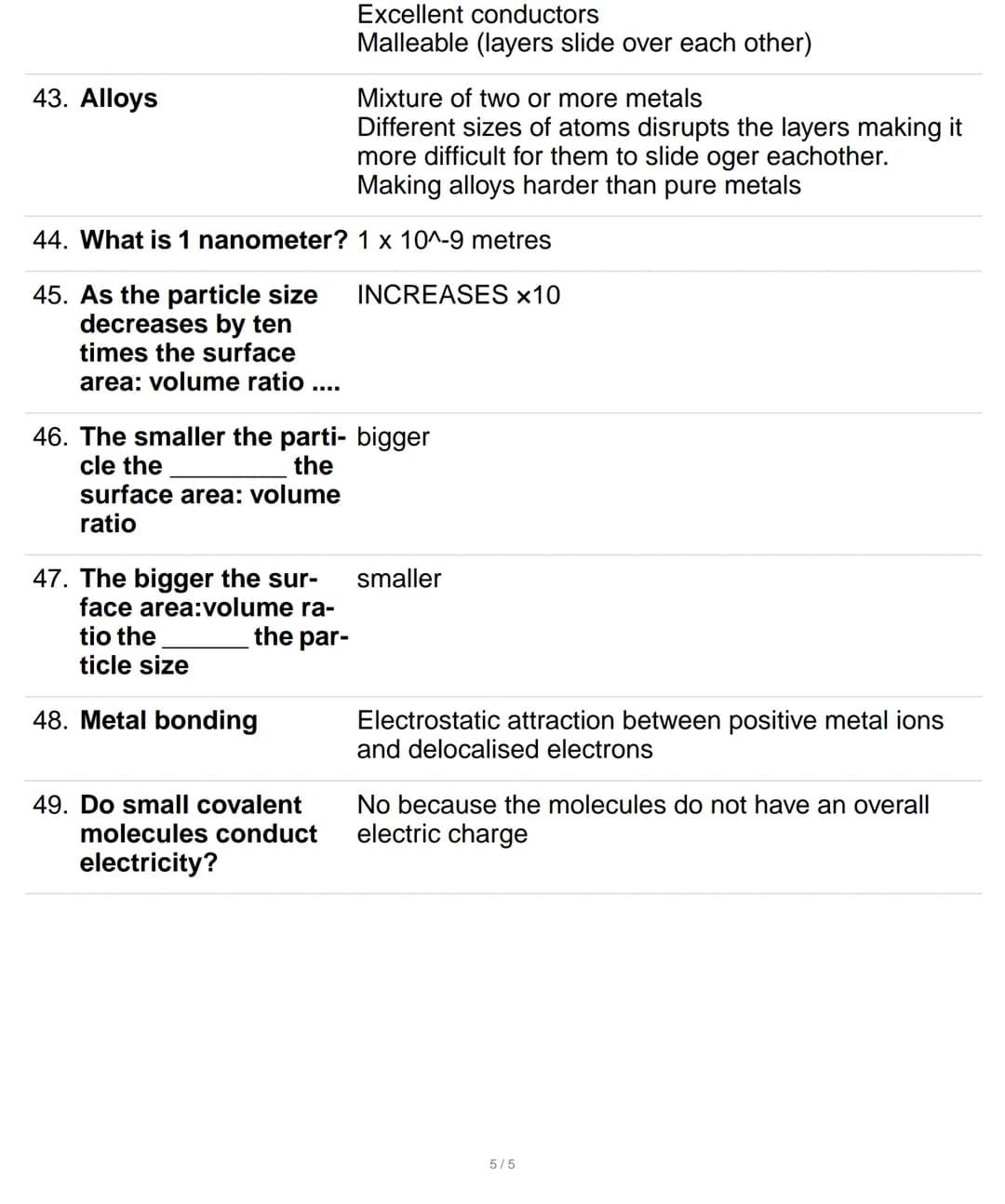

Nanoparticles and Conductivity
Nanoparticles operate at an incredibly small scale - just 1 × 10⁻⁹ metres (one nanometre). As particle size decreases, the surface area to volume ratio increases dramatically, which affects how materials behave and react.
When particles get ten times smaller, their surface area to volume ratio increases by ten times. This larger ratio means more surface area for reactions, making nanoparticles incredibly useful in applications like catalysts and drug delivery systems.
Conductivity depends entirely on having free-moving charged particles. Metals and graphite conduct because they have delocalised electrons that can move freely. Small covalent molecules don't conduct electricity because their molecules have no overall charge - the electrons are locked in place between specific atoms.
Understanding these principles helps explain why certain materials are chosen for specific jobs, from electrical wiring to smartphone components.
Exam Tip: Remember that conductivity always requires moving charged particles - no free charges means no conductivity!
