BTEC Applied Science Unit 5: Organic Chemistry Guide

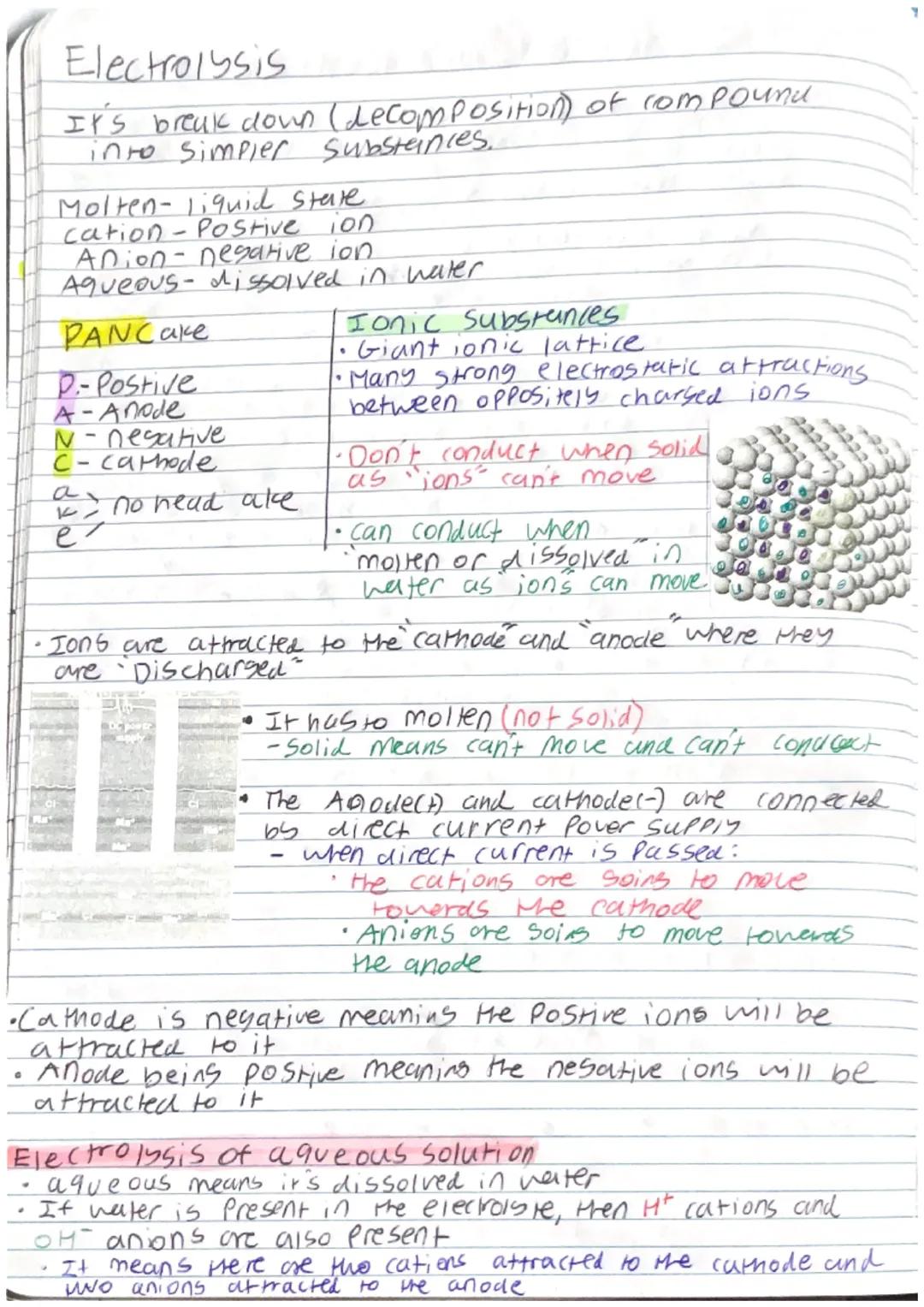

Electrolysis Basics

Ever wondered how we can use electricity to break things apart? Electrolysis is the decomposition of compounds using electrical energy - it's like reverse chemistry! The process only works when ions can move freely, which means the substance must be molten (liquid state) or aqueous (dissolved in water).

Remember the PANCAke memory trick: Positive goes to Anode, Negative goes to Cathode. The cathode (negative electrode) attracts positive ions (cations), whilst the anode (positive electrode) attracts negative ions (anions). Think of it as opposites attract!

When you've got an aqueous solution, things get competitive. Water adds its own H⁺ and OH⁻ ions to the mix, so you'll have multiple ions fighting to react at each electrode. The winner depends on how easily they gain or lose electrons.

Key Point: Solid ionic compounds can't conduct electricity because their ions are locked in place - they need to be molten or dissolved to move freely!

Electrolysis in Action

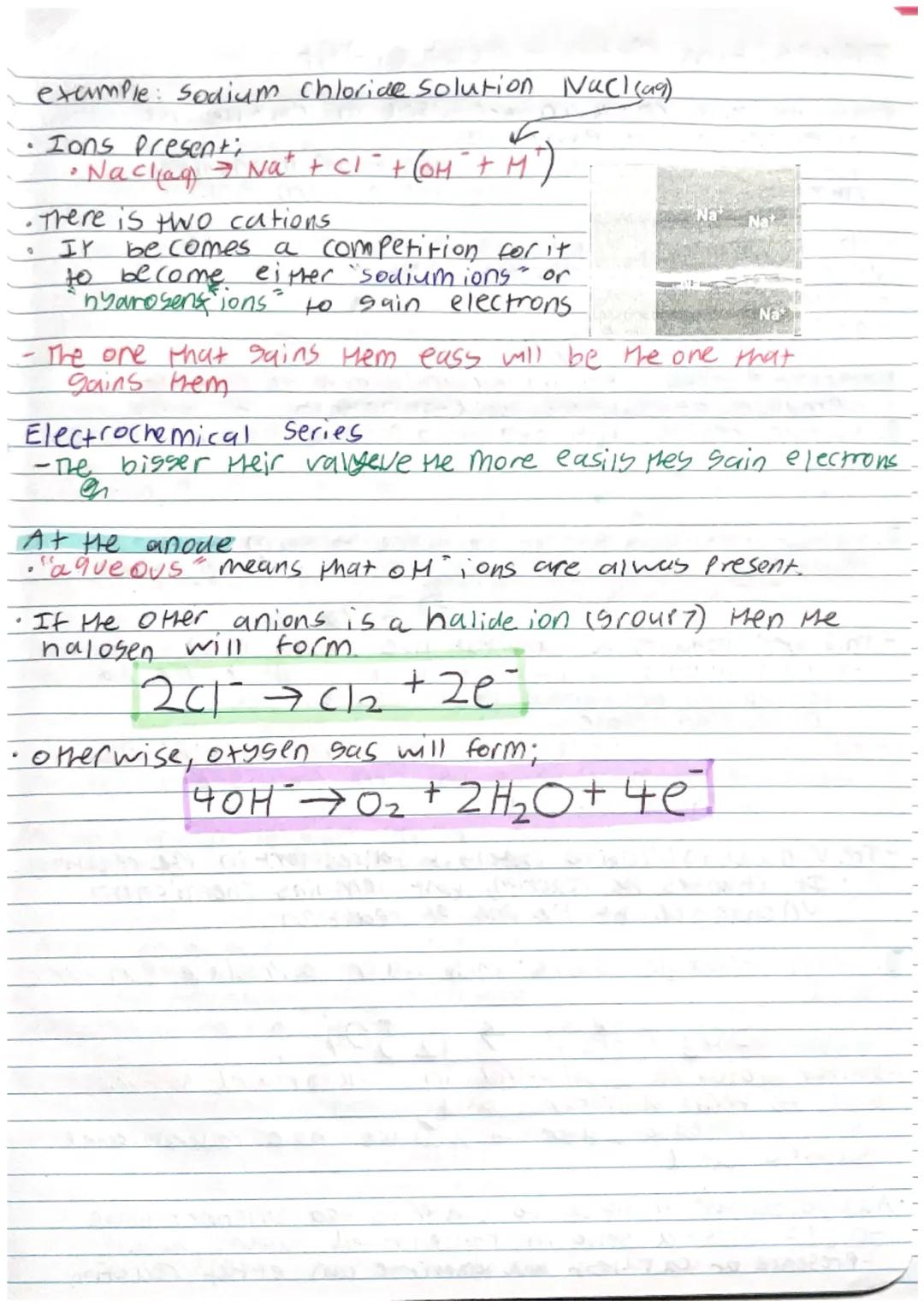

Let's see electrolysis in action with sodium chloride solution (NaCl). You've got Na⁺ and Cl⁻ ions from the salt, plus H⁺ and OH⁻ ions from water - it's like a four-way competition!

At the cathode, it's Na⁺ versus H⁺ ions battling to gain electrons. The electrochemical series tells us who wins - whoever gains electrons more easily takes the prize. Usually, hydrogen gas forms because H⁺ ions are better at grabbing electrons than sodium.

At the anode, the rules are simpler. If you've got a halide ion (like Cl⁻ from Group 7), the halogen gas forms. So chlorine gas bubbles off: 2Cl⁻ → Cl₂ + 2e⁻. If there's no halide present, oxygen gas forms instead from the OH⁻ ions.

Remember: In aqueous solutions, OH⁻ ions are always lurking around, ready to react if no halides are present!

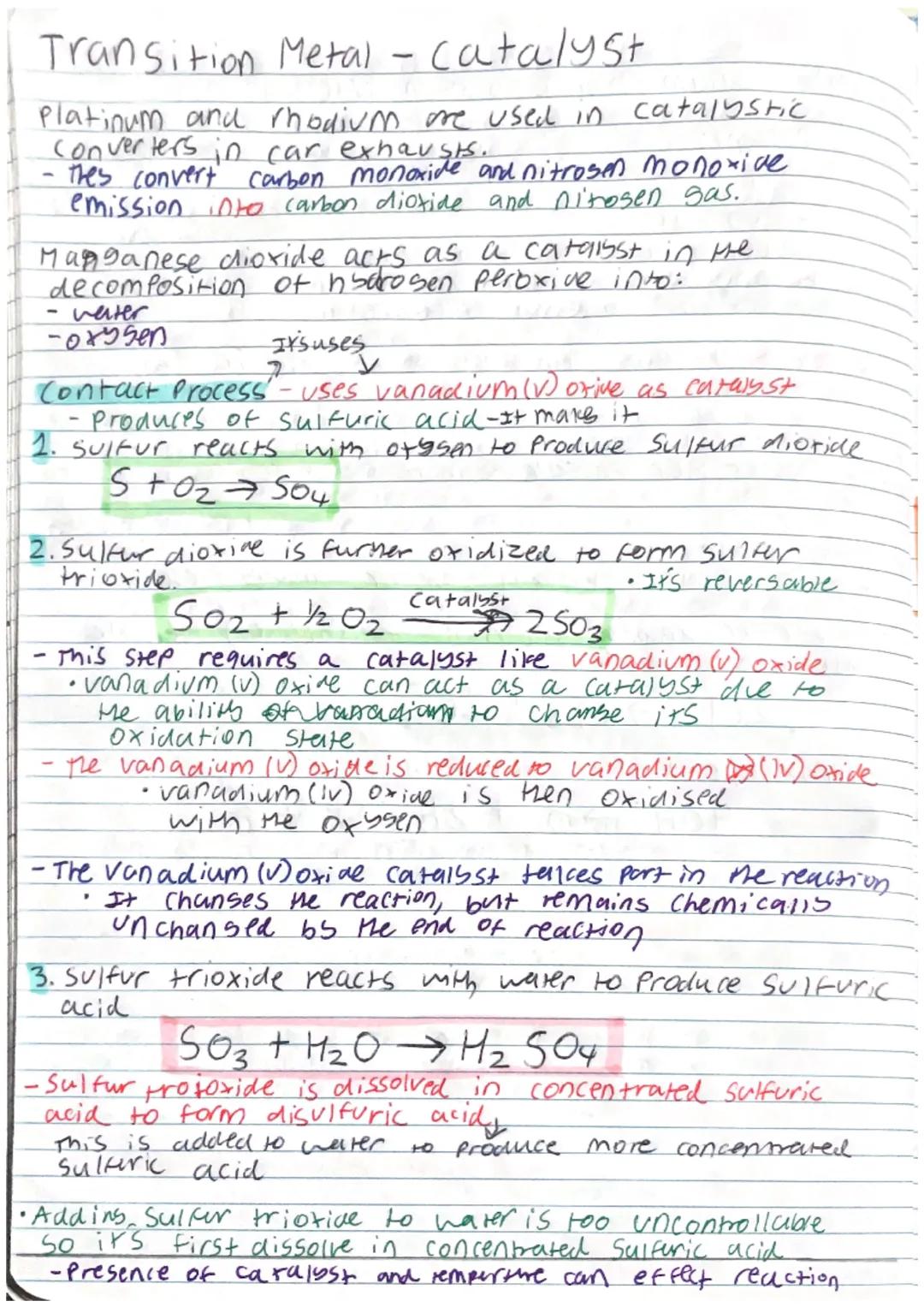

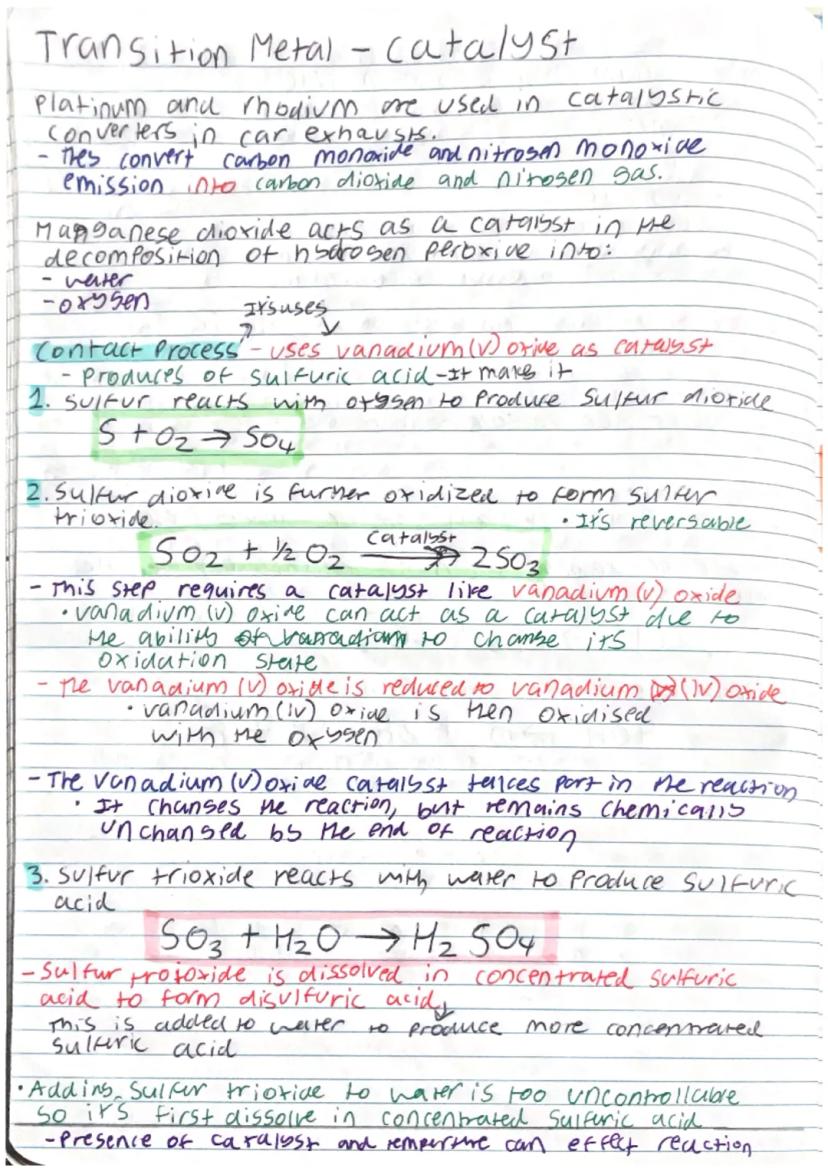

Transition Metals as Catalysts

Transition metals are the chemistry world's ultimate helpers - they speed up reactions without getting permanently changed themselves. Think of platinum and rhodium in car exhausts, converting nasty carbon monoxide into harmless carbon dioxide.

The Contact Process shows transition metals at their best. Vanadium (V) oxide catalyses the production of sulfuric acid by helping sulfur dioxide become sulfur trioxide. The magic happens because vanadium can easily change its oxidation state - it gets reduced to vanadium (IV) oxide, then oxidised back again.

Here's the clever bit: the catalyst takes part in the reaction but emerges chemically unchanged at the end. It's like being a matchmaker who brings people together but stays single themselves! The manganese dioxide catalyst in hydrogen peroxide decomposition works the same way.

Industry Secret: Catalysts don't just speed things up - they lower activation energy, which means less fuel needed and lower costs!

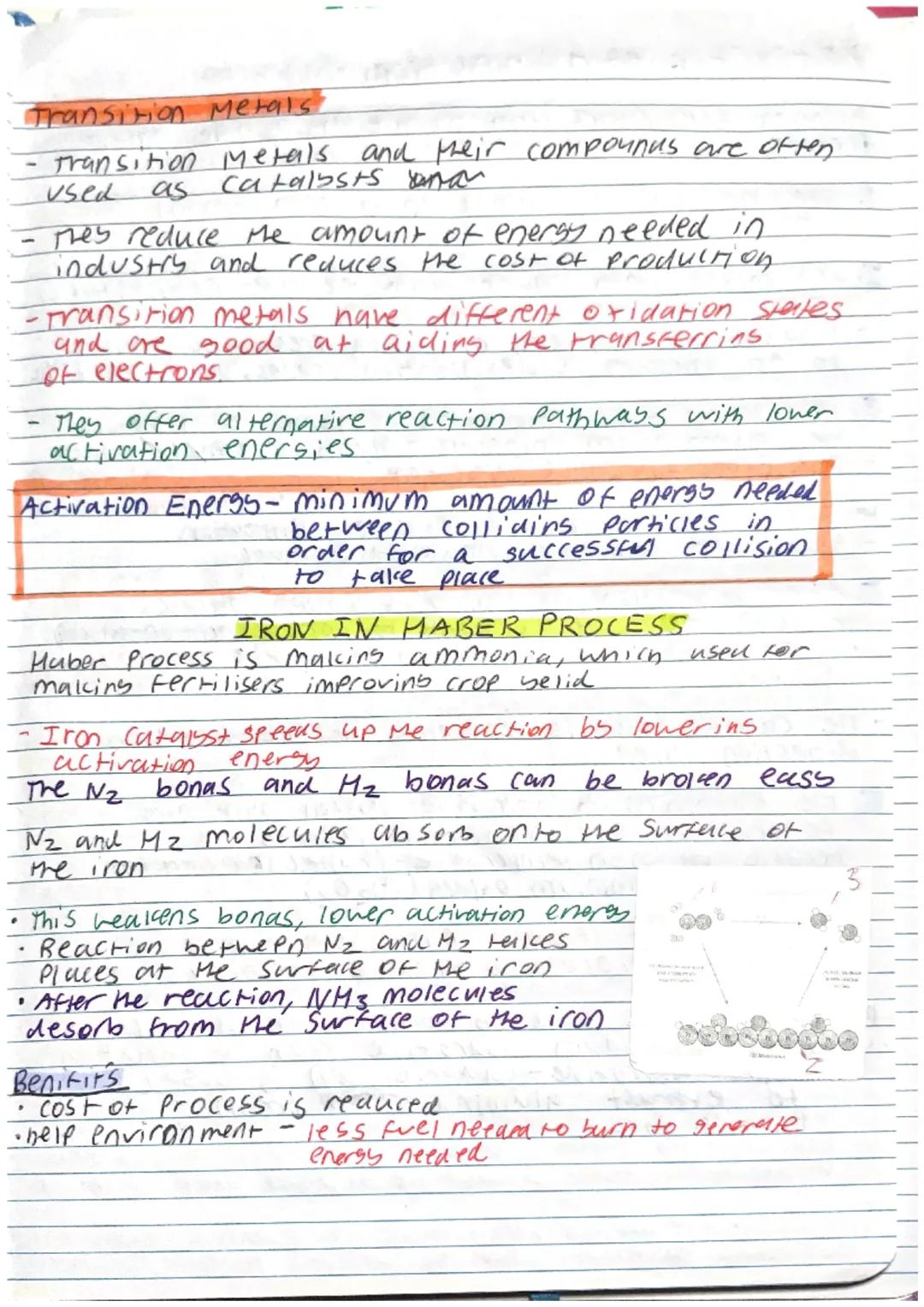

Iron in the Haber Process

The Haber Process feeds the world by making ammonia for fertilisers, and iron catalyst is the unsung hero. Without it, nitrogen and hydrogen would barely react - those molecules are incredibly stubborn!

Here's how iron works its magic: N₂ and H₂ molecules absorb onto the iron surface, which weakens their bonds and lowers the activation energy. It's like having a helping hand to crack open a tough nut. The reaction happens right on the iron surface, then ammonia molecules desorb (release) when they're ready.

Activation energy is the minimum energy needed for particles to collide successfully and react. Think of it as the height of a wall that molecules need to climb over. Catalysts build a lower tunnel through that wall.

The benefits are massive: lower costs for industry and less environmental impact because you need less fuel to generate the required energy. That's why transition metal catalysts are worth their weight in gold!

Environmental Win: Using catalysts means burning less fuel, which reduces CO₂ emissions and helps fight climate change!

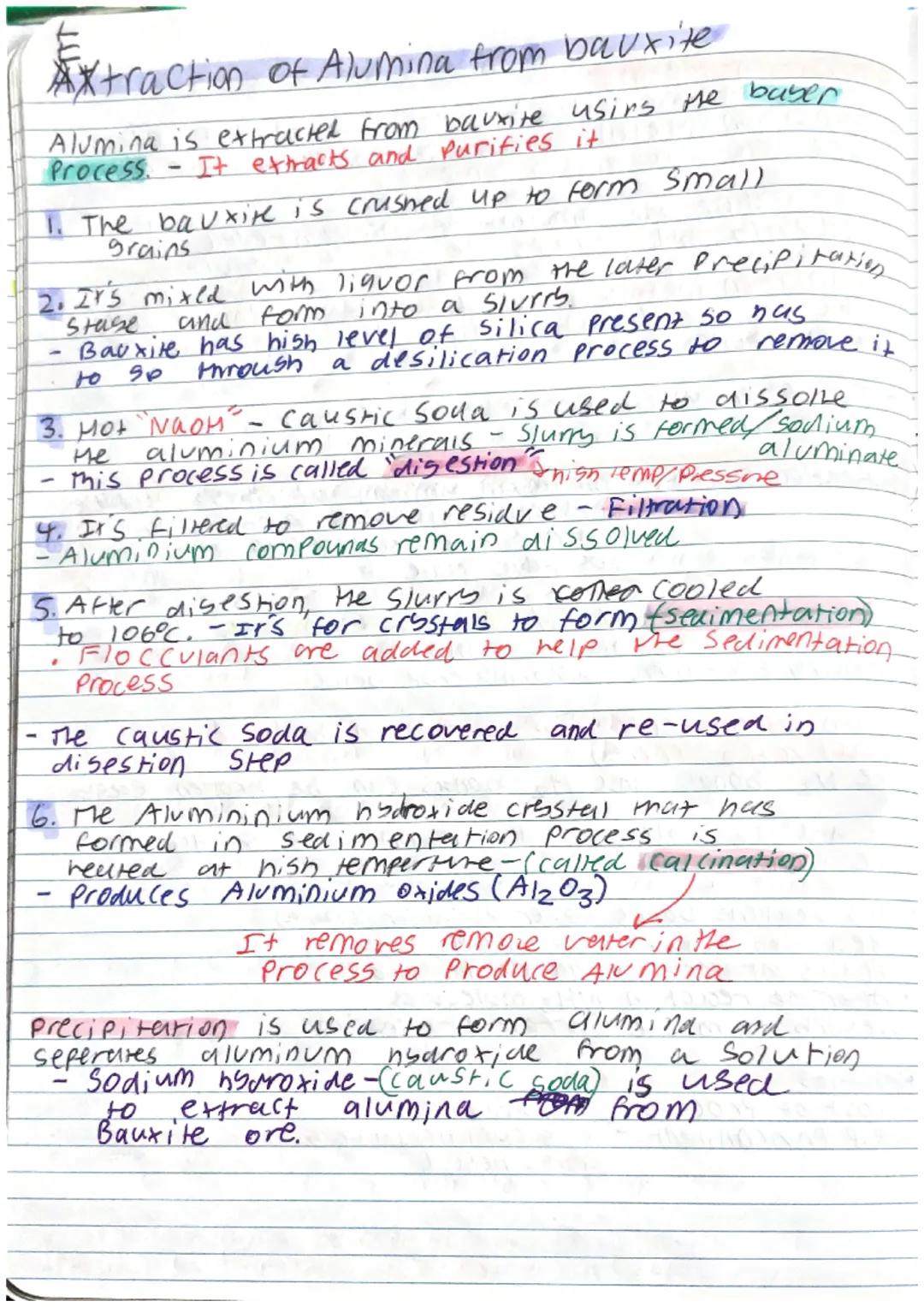

Extracting Aluminium Oxide from Bauxite

Getting alumina (aluminium oxide) from bauxite ore involves the Bayer Process - it's like a sophisticated washing and filtering operation. First, the bauxite gets crushed into small grains, making it easier to work with.

The magic ingredient is caustic soda (NaOH), which dissolves the aluminium minerals during digestion at high temperature and pressure. The unwanted silica gets removed through desilication, leaving you with a slurry of sodium aluminate.

Filtration removes the solid residue, then the solution gets cooled to 106°C for crystallisation. Flocculants help the crystals settle out during sedimentation - think of them as gathering agents that help small particles clump together.

Finally, calcination heats the aluminium hydroxide crystals at high temperature, driving off water to produce pure aluminium oxide (Al₂O₃). The brilliant part? The caustic soda gets recovered and reused, making the process more sustainable.

Recycling Win: The Bayer Process recovers and reuses caustic soda, reducing waste and keeping costs down!

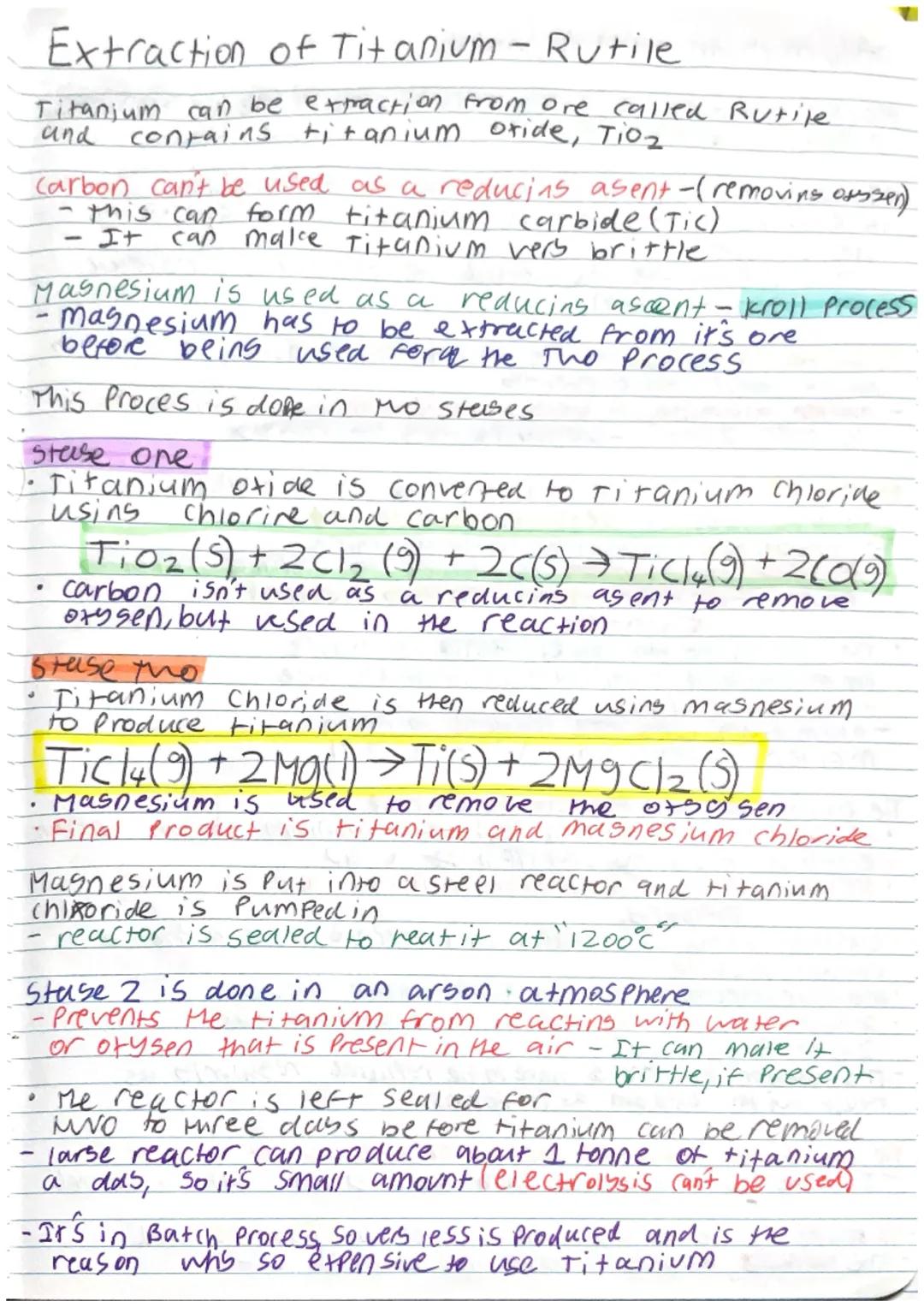

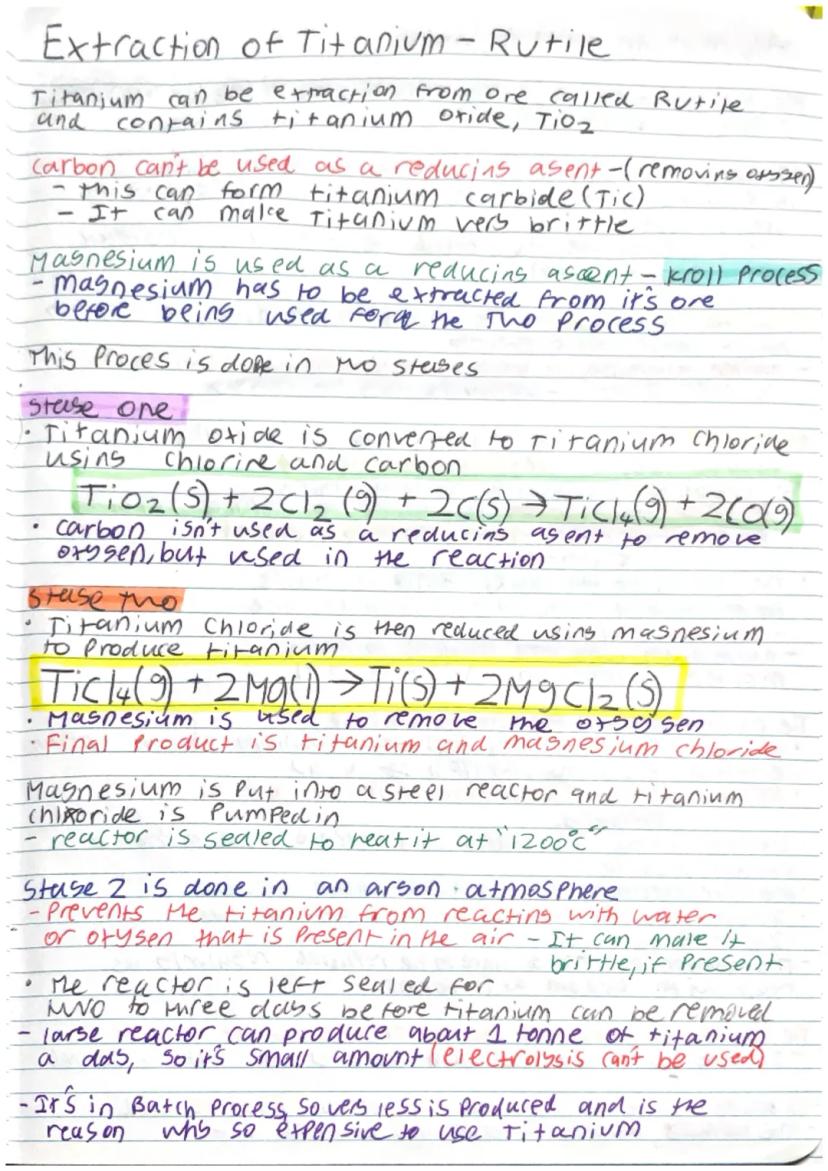

Extracting Titanium from Rutile

Titanium extraction from rutile ore (TiO₂) is trickier than you might think. You can't use carbon as a reducing agent because it forms titanium carbide (TiC), making the metal brittle and useless. Instead, we use the Kroll Process with magnesium.

Stage One converts titanium oxide to titanium chloride using chlorine and carbon: TiO₂ + 2Cl₂ + 2C → TiCl₄ + 2CO. Notice carbon isn't removing oxygen here - it's just helping the reaction along.

Stage Two uses magnesium to reduce titanium chloride: TiCl₄ + 2Mg → Ti + 2MgCl₂. This happens in a sealed steel reactor at 1200°C under an argon atmosphere to prevent the titanium reacting with oxygen or water vapour.

The reactor stays sealed for two to three days before the titanium can be removed. One large reactor produces about 1 tonne per day - tiny compared to other metals! This batch process explains why titanium is so expensive.

Why So Expensive? The Kroll Process is slow, energy-intensive, and produces small quantities - that's why titanium costs so much!

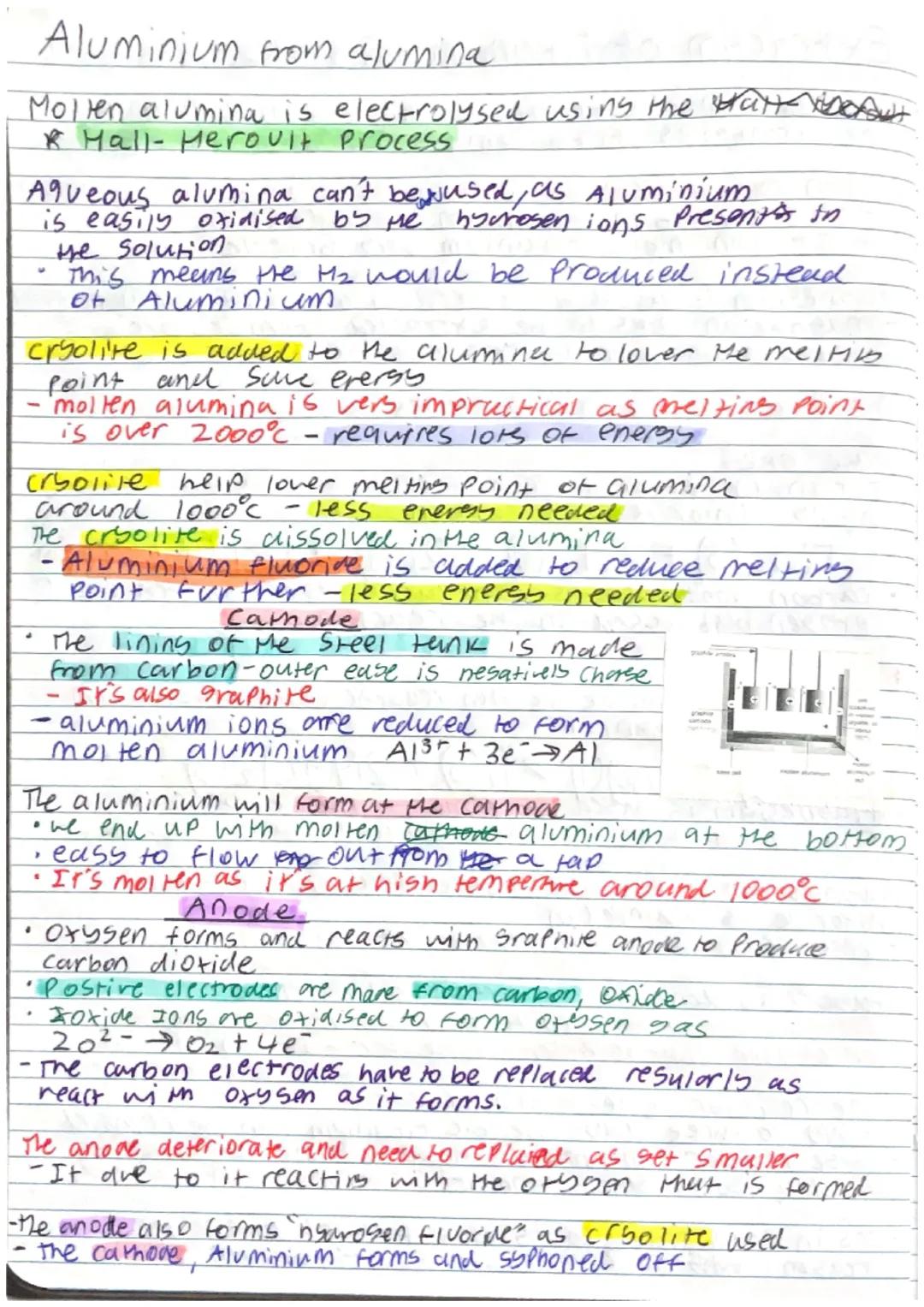

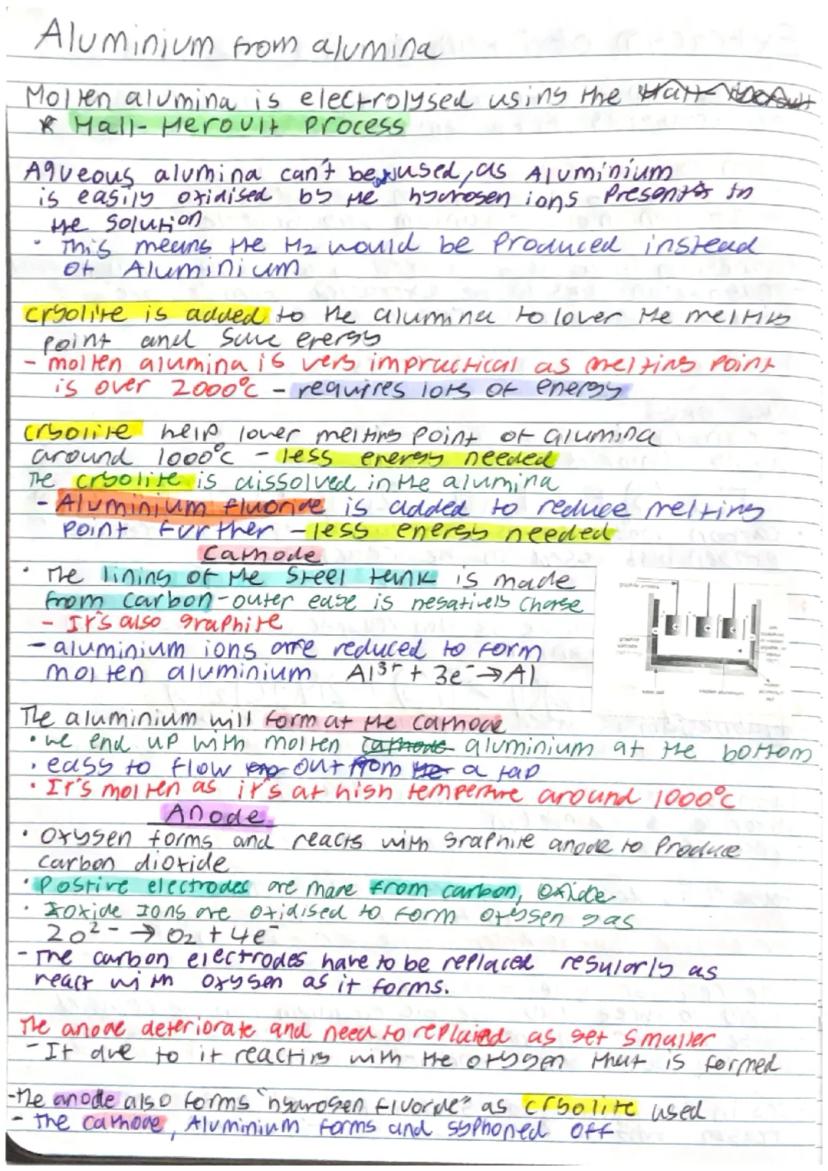

Making Aluminium from Alumina

The Hall-Héroult process uses electrolysis to extract aluminium from molten alumina, but there's a clever twist. You can't use aqueous alumina because aluminium gets easily oxidised by hydrogen ions - you'd get hydrogen gas instead of aluminium!

Cryolite is the game-changer, lowering alumina's melting point from over 2000°C to around 1000°C. Aluminium fluoride reduces it even further, saving massive amounts of energy. The cryolite dissolves in the alumina like sugar in tea.

At the cathode (carbon lining), aluminium ions gain electrons: Al³⁺ + 3e⁻ → Al. The molten aluminium collects at the bottom and gets tapped off like beer from a barrel. At the anode (graphite electrodes), oxygen forms and immediately reacts with the carbon: 2O²⁻ → O₂ + 4e⁻.

Here's the maintenance issue: anodes deteriorate because they react with the oxygen they produce, forming carbon dioxide. They need regular replacement, which adds to costs.

Engineering Challenge: The graphite anodes literally burn away as they work, so they need constant replacement!

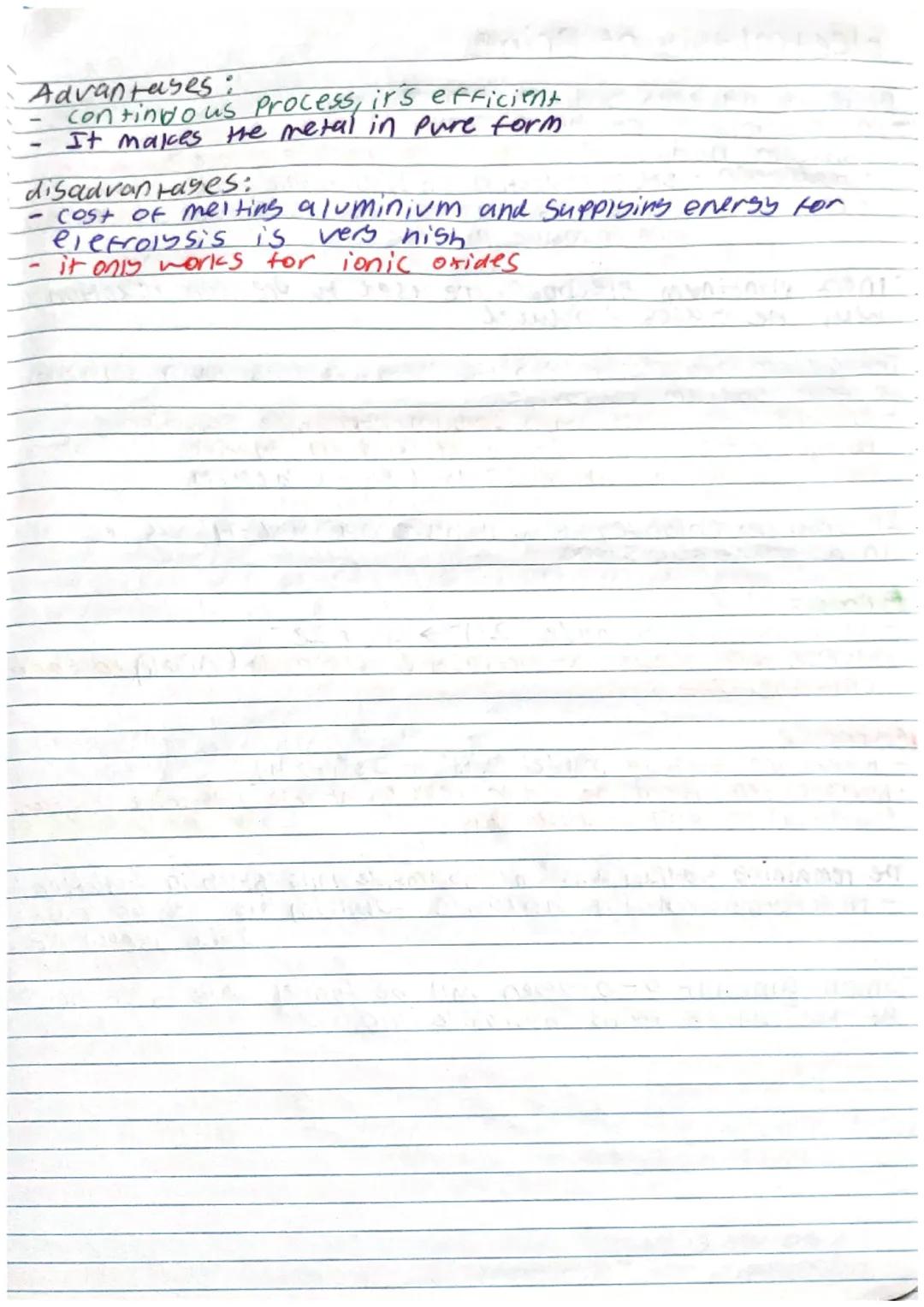

Pros and Cons of Aluminium Extraction

The Hall-Héroult process has clear advantages: it's a continuous process that's highly efficient and produces pure aluminium metal. Unlike batch processes, it runs 24/7 once you get it going.

However, the disadvantages are significant. The energy costs for melting alumina and supplying electricity for electrolysis are enormous - aluminium smelters need their own power stations! Plus, this method only works for ionic oxides, limiting its applications.

The environmental impact is substantial because of the massive energy requirements, though modern smelters increasingly use renewable energy sources.

Energy Reality: Aluminium production consumes about 3% of the world's total electricity - that's why recycling aluminium cans saves so much energy!

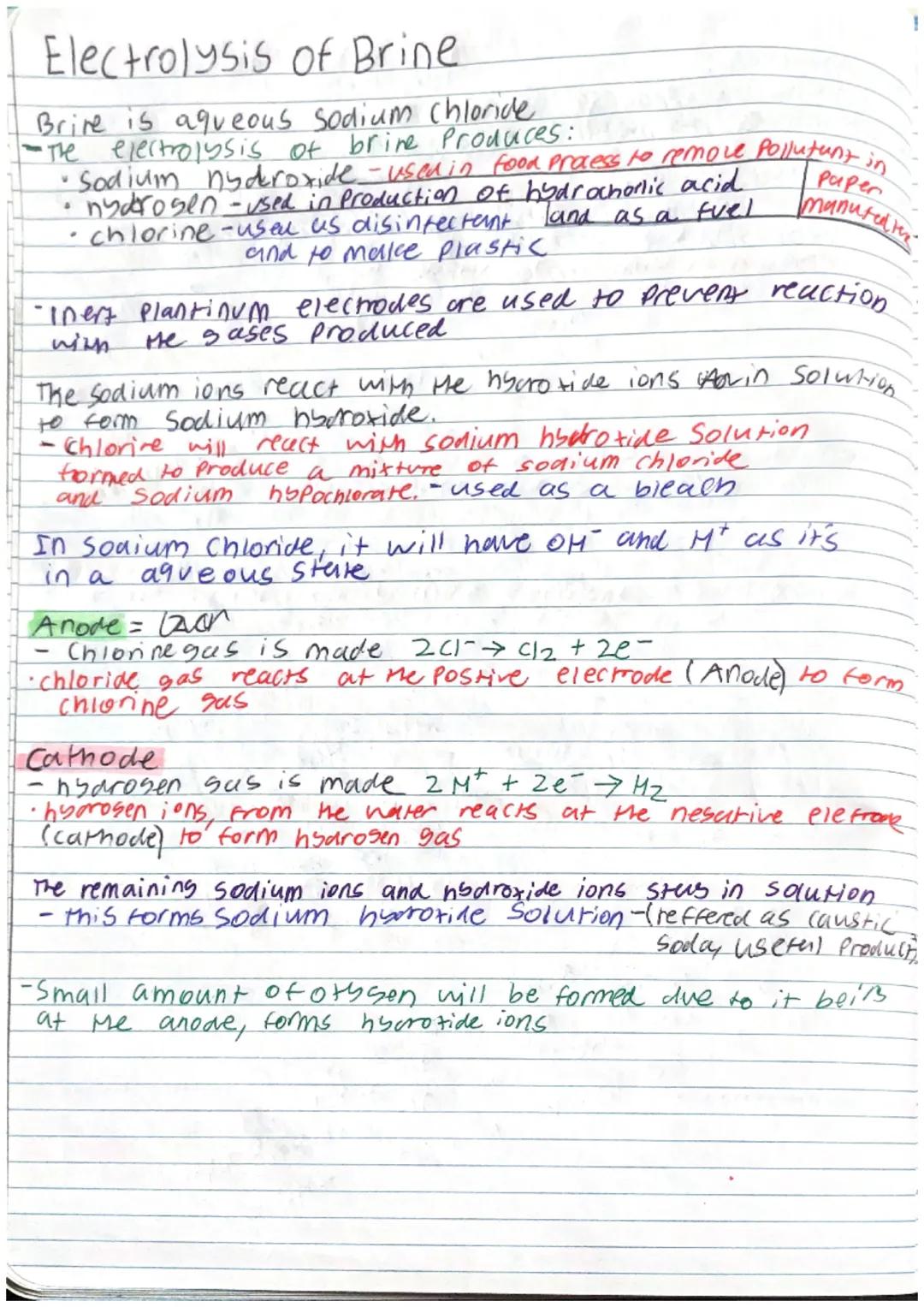

Electrolysis of Brine

Brine electrolysis is like getting three products for the price of one! This aqueous sodium chloride solution produces sodium hydroxide (for paper manufacturing), hydrogen gas (for fuel), and chlorine gas (for disinfectants and plastics).

Inert platinum electrodes prevent unwanted reactions with the gases produced. At the anode, chloride ions lose electrons: 2Cl⁻ → Cl₂ + 2e⁻, producing chlorine gas. At the cathode, hydrogen ions from water gain electrons: 2H⁺ + 2e⁻ → H₂, making hydrogen gas.

The leftover sodium and hydroxide ions stay in solution, forming sodium hydroxide (caustic soda). This is incredibly useful for food processing and removing pollutants. However, if chlorine mixes with sodium hydroxide, you get sodium hypochlorite - household bleach!

The key is keeping the products separate using either a diaphragm or membrane system.

Triple Win: One electrolysis process produces three valuable industrial chemicals - that's efficient chemistry!

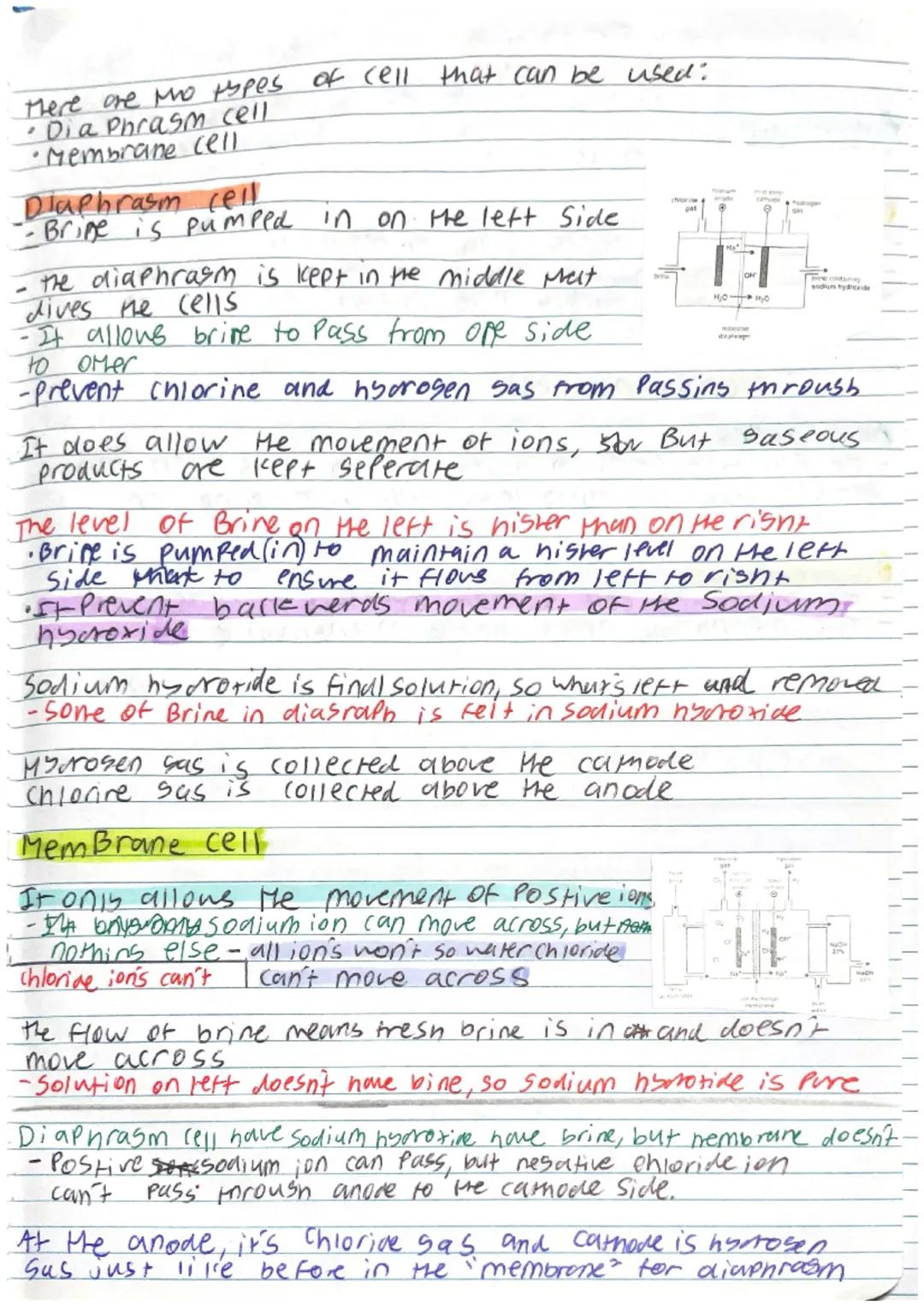

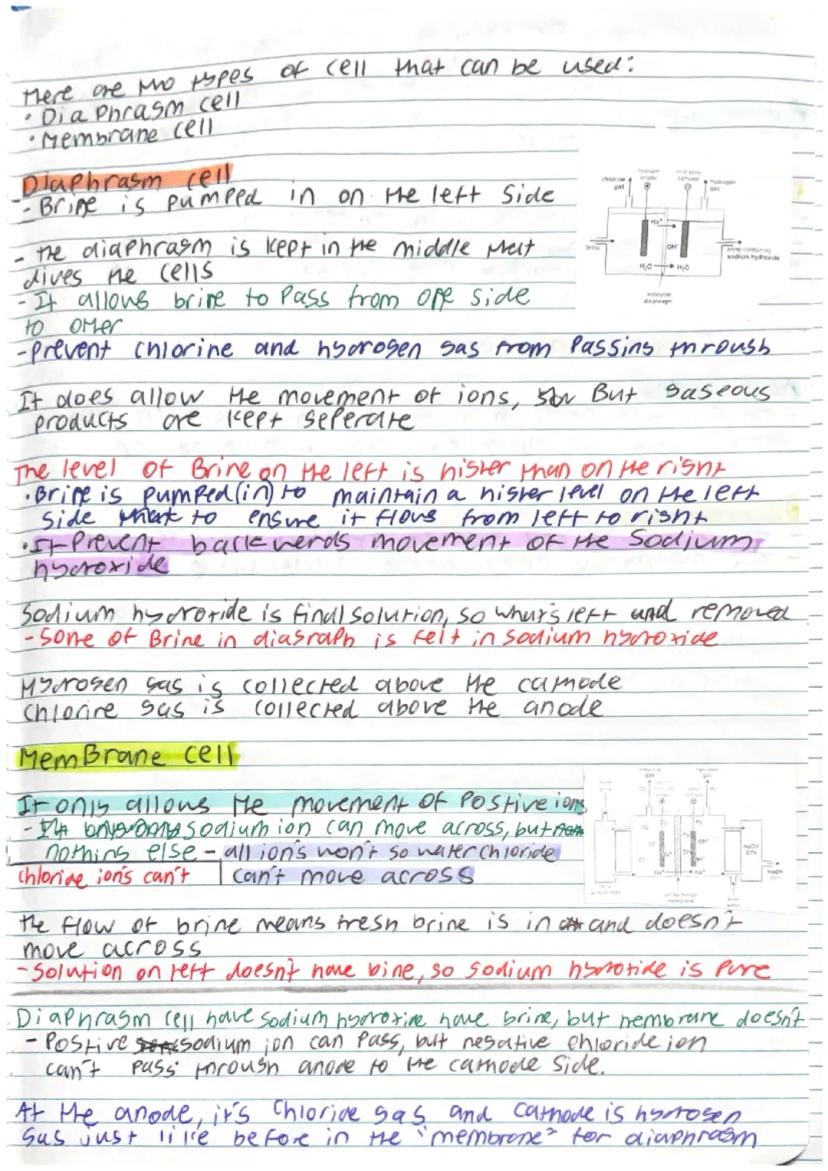

Diaphragm vs Membrane Cells

Two main cell types handle brine electrolysis: diaphragm cells and membrane cells. Both keep the gaseous products separate but work differently.

Diaphragm cells use a porous barrier that allows ions and brine to pass through but blocks gases. Brine gets pumped in at a higher level on the left, ensuring flow from anode to cathode side. This prevents backward movement of sodium hydroxide, but some brine contaminates the final product.

Membrane cells are more selective - they only allow positive ions (like Na⁺) to pass through. Negative chloride ions stay put on the anode side. Fresh brine flows in continuously, and since brine can't cross the membrane, you get pure sodium hydroxide on the cathode side.

The membrane system produces purer sodium hydroxide because there's no brine contamination, making it the preferred industrial method despite higher initial costs.

Purity Matters: Membrane cells cost more to build but produce purer sodium hydroxide, making them worth the investment!
