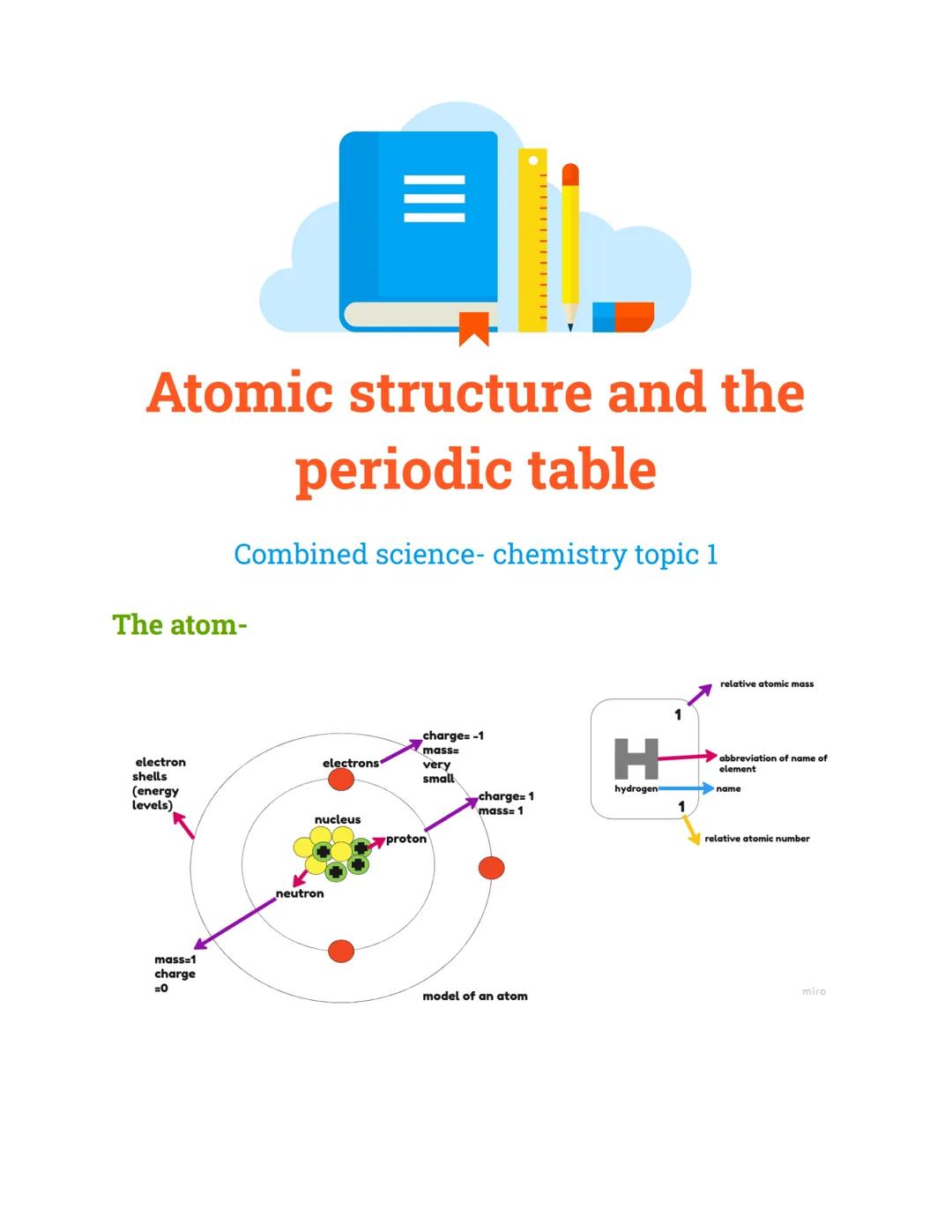

Atomic Structure Basics

Think of an atom like a tiny solar system with three main players. The nucleus sits at the centre, packed with protons $positively charged, mass = 1$ and neutrons $no charge, mass = 1$.

Whizzing around the nucleus in electron shells are the electrons - they're negatively charged and have virtually no mass. These shells are also called energy levels, and they determine how atoms behave in reactions.

The atomic number tells you how many protons an element has, whilst the relative atomic mass gives you the total mass of protons and neutrons combined. Every element has its own unique atomic number - that's what makes hydrogen different from oxygen!

Quick tip: Remember that atoms are normally neutral, so the number of protons always equals the number of electrons.

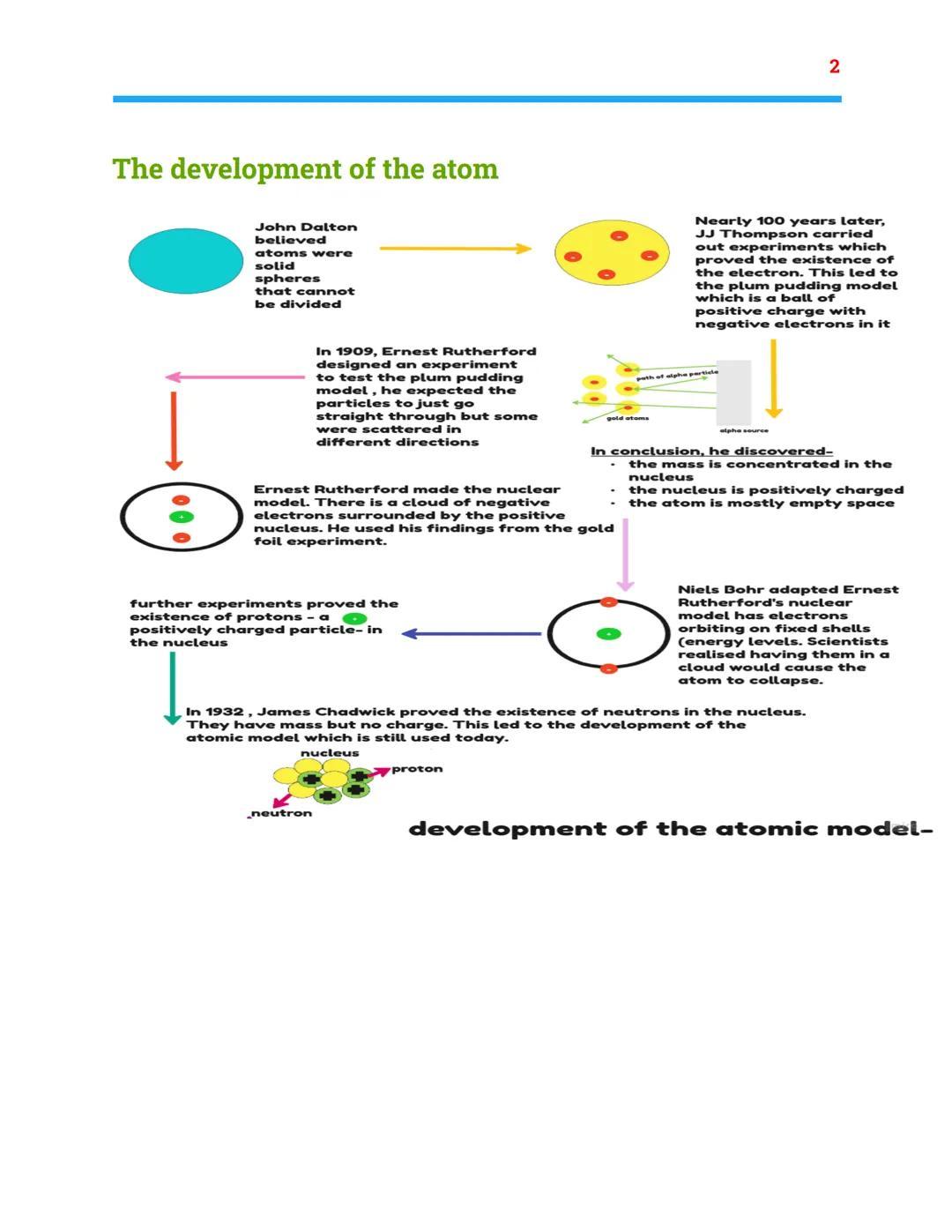

Development of Atomic Models

Scientists didn't always know what atoms looked like - it took centuries of detective work! John Dalton started things off in the early 1800s, imagining atoms as solid, indestructible spheres.

JJ Thompson shook things up by discovering electrons, creating the plum pudding model - imagine a ball of positive charge with negative electrons dotted throughout. But Ernest Rutherford's famous gold foil experiment in 1909 proved this wrong when particles scattered unexpectedly.

Rutherford's nuclear model revealed that atoms are mostly empty space with a tiny, dense, positively charged nucleus at the centre. Niels Bohr then improved this by showing electrons orbit in fixed shells rather than floating in a cloud.

Finally, James Chadwick discovered neutrons in 1932, completing our modern understanding of atomic structure that we still use today.

Remember: Each scientist built on the previous work - science is all about improving ideas over time!

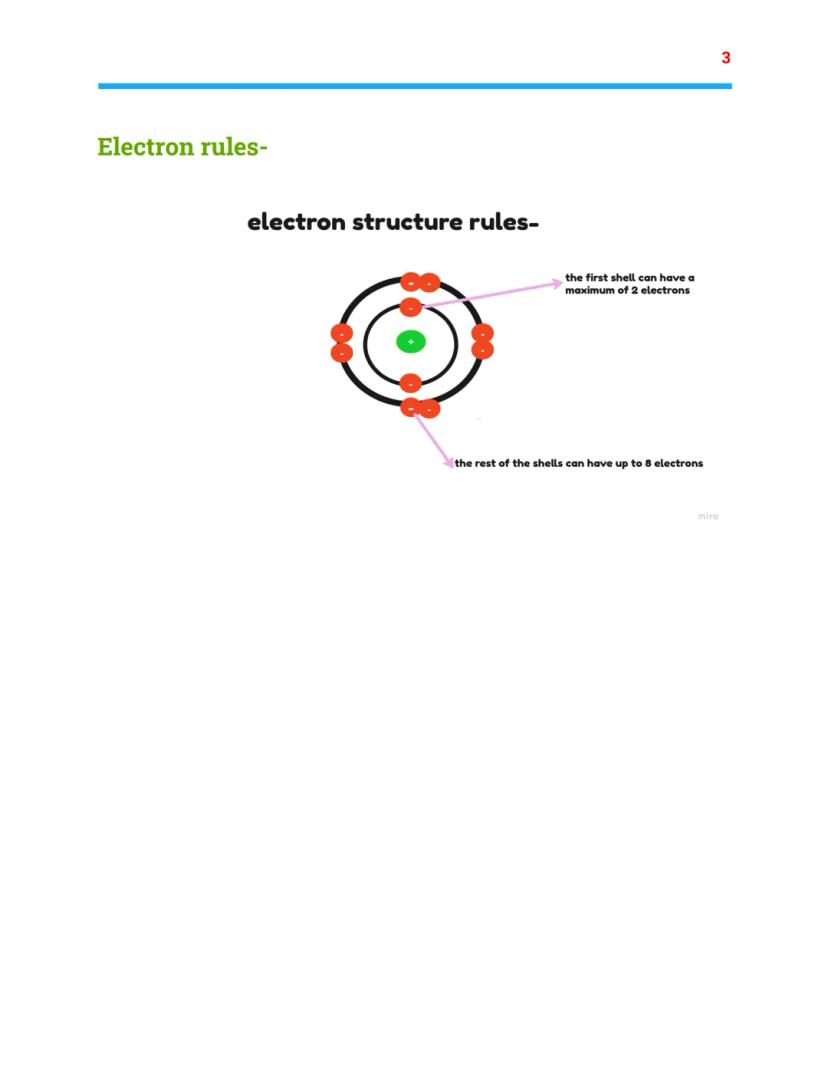

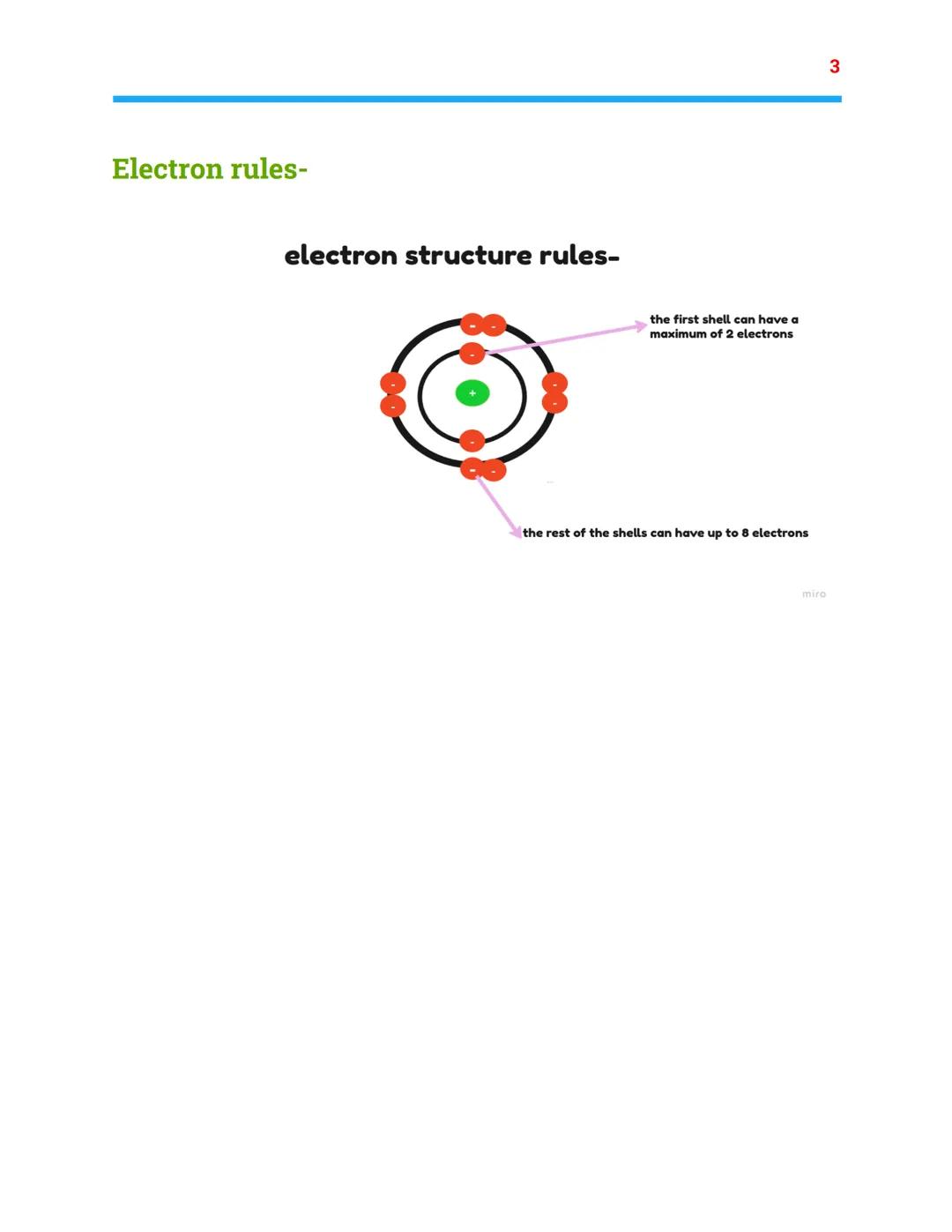

Electron Shell Rules

Understanding how electrons arrange themselves is crucial for predicting chemical behaviour. The rules are actually pretty straightforward once you get the hang of them.

The first shell (closest to the nucleus) can only hold a maximum of 2 electrons. After that, each subsequent shell can hold up to 8 electrons before it's full.

When drawing electron structures, always fill the inner shells first before moving to outer ones. For example, sodium has 11 electrons, so it goes 2, 8, 1 - meaning two electrons in the first shell, eight in the second, and one lonely electron in the third shell.

Top tip: The number of electrons in the outer shell determines how an element will react chemically!

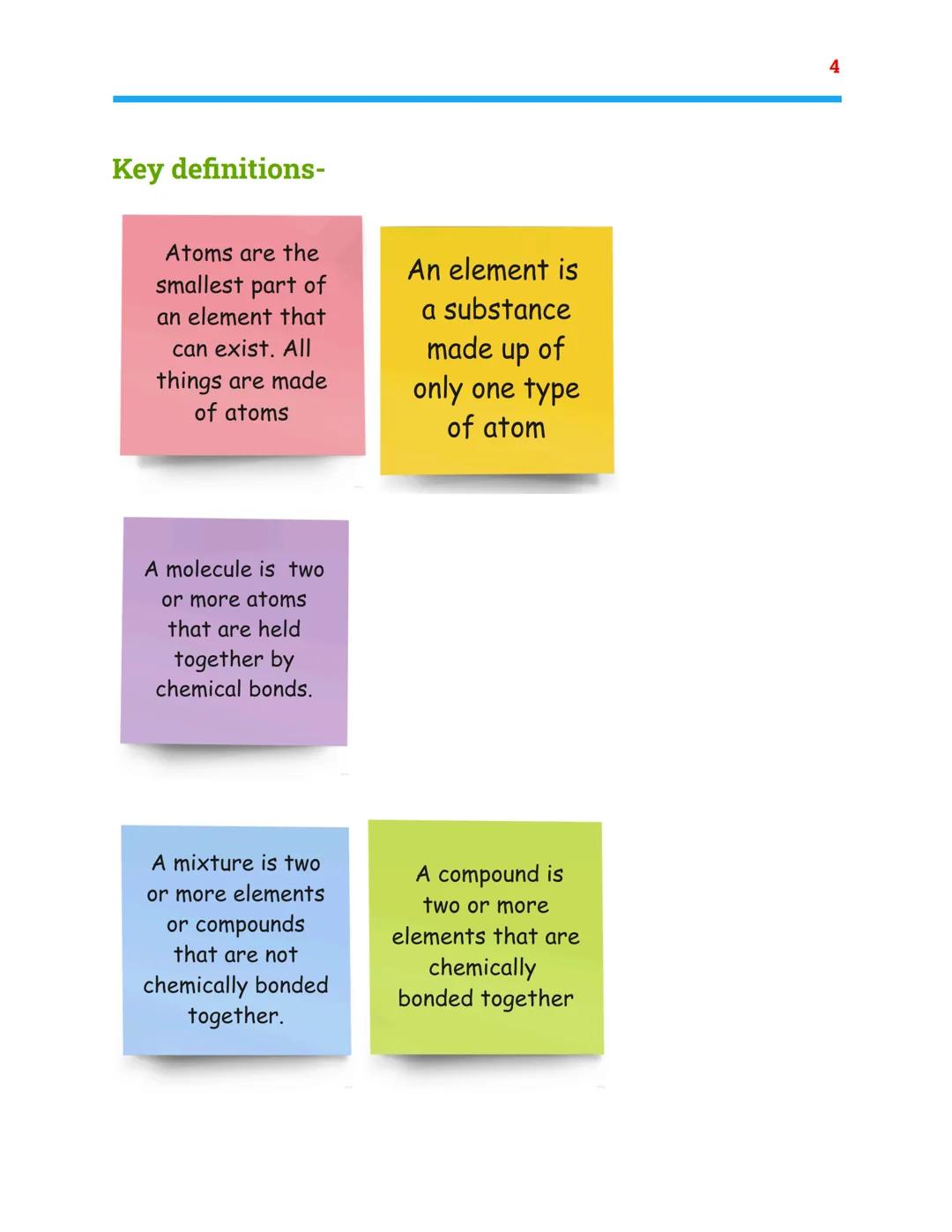

Key Chemical Definitions

Getting your head around the basic vocabulary is essential for chemistry success. Atoms are the smallest particles of an element that can exist - they're the fundamental building blocks of everything.

An element contains only one type of atom, whilst a compound forms when two or more different elements chemically bond together. Molecules are simply groups of atoms held together by chemical bonds.

Mixtures are different because the substances aren't chemically bonded - you can usually separate them using physical methods. Think oil and water versus salt dissolved in water.

Memory trick: Elements = same atoms, Compounds = different atoms bonded, Mixtures = different substances just mixed together!

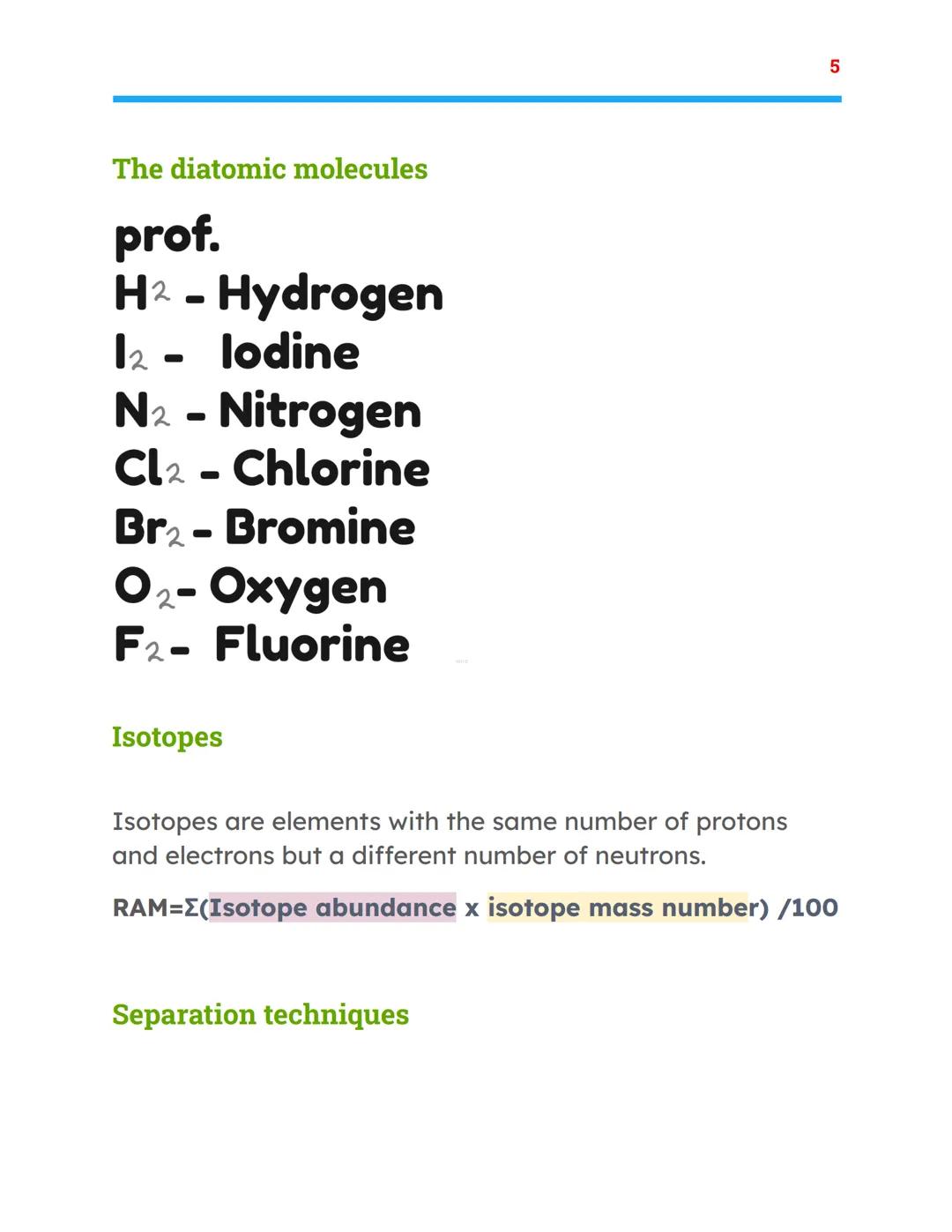

Diatomic Molecules and Isotopes

Some elements are naturally sociable and always exist as pairs in nature - these are called diatomic molecules. Remember them with "Have No Fear Of Ice Cold Beer" (H₂, N₂, F₂, O₂, I₂, Cl₂, Br₂).

Isotopes are atoms of the same element with different numbers of neutrons. They have identical chemical properties but different masses. Carbon-12 and Carbon-14 are famous examples.

You can calculate relative atomic mass (RAM) using the formula: RAM = Σ(Isotope abundance × isotope mass number) ÷ 100. This accounts for all the different isotopes of an element found in nature.

Key point: Isotopes have the same number of protons and electrons, but different numbers of neutrons!

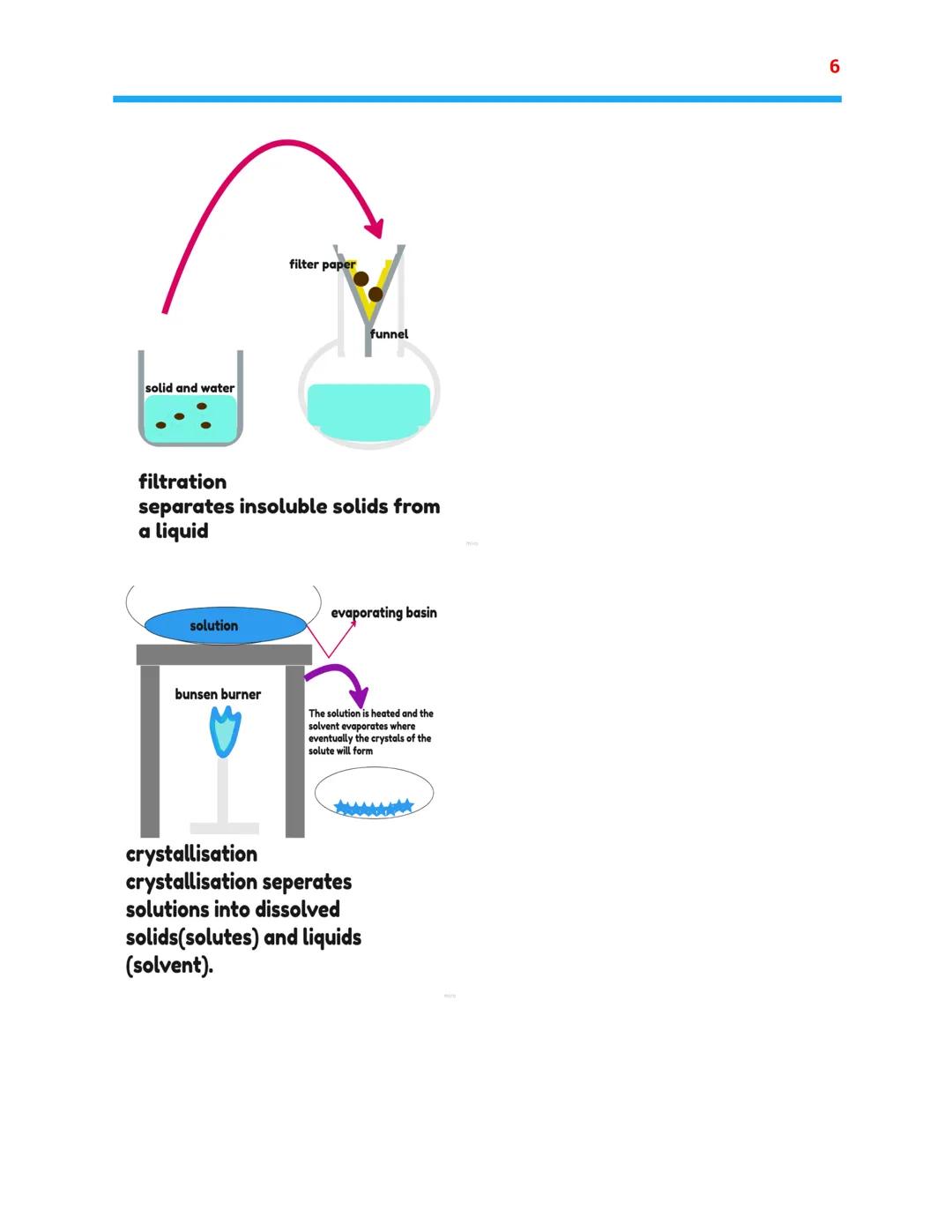

Separation Techniques: Filtration and Crystallisation

Sometimes you need to separate mixtures, and chemistry gives you some neat tricks to do this. Filtration is perfect for separating insoluble solids from liquids - just pour the mixture through filter paper in a funnel.

Crystallisation separates dissolved solids from their solvents by heating the solution. As the water evaporates, crystals of the dissolved substance form in the evaporating basin.

Both techniques work because they exploit physical differences between substances rather than breaking chemical bonds. You're not changing what the substances are, just separating them.

Practical tip: Always use a pencil line in chromatography - ink would interfere with your results!

Advanced Separation: Chromatography and Simple Distillation

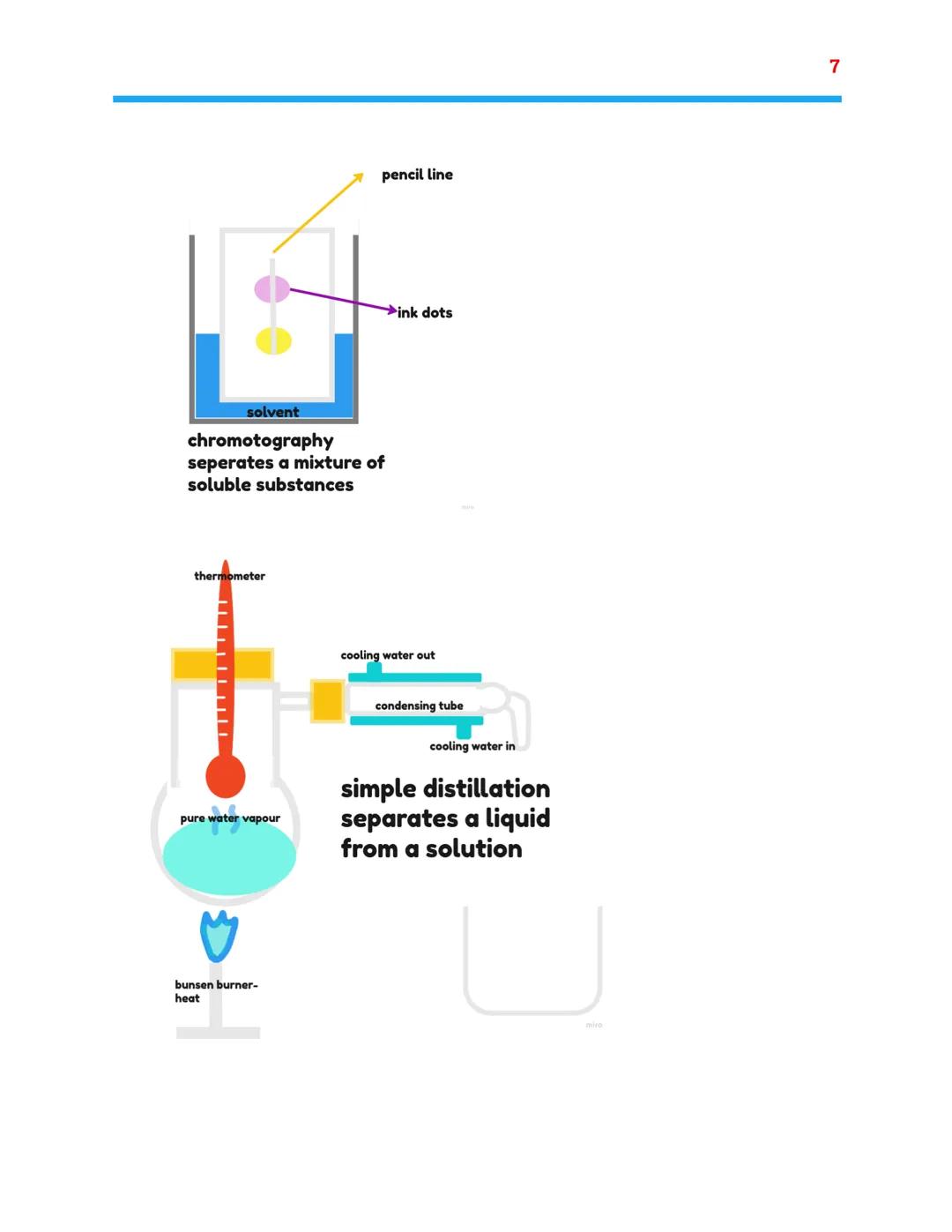

Chromatography separates mixtures of soluble substances by letting them travel up special paper at different rates. Different substances move different distances, creating a unique pattern.

Simple distillation separates liquids from solutions by heating and cooling. The liquid evaporates first, travels through the cooling tube, and condenses back into pure liquid.

These techniques are incredibly useful in real life - from testing athletes for drugs to purifying drinking water. The key is understanding that different substances have different physical properties.

Real-world connection: Forensic scientists use chromatography to analyse evidence at crime scenes!

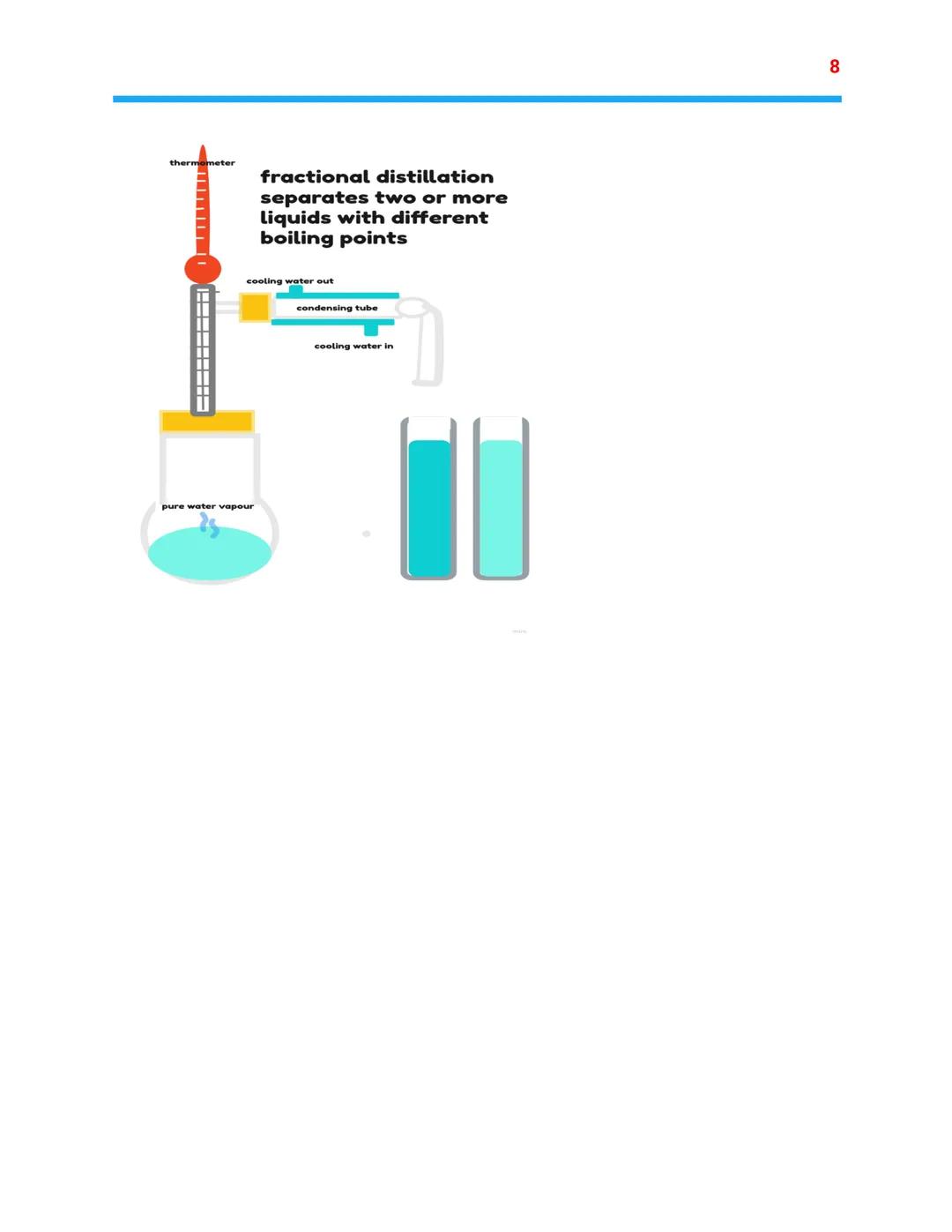

Fractional Distillation

Fractional distillation takes separation to the next level by separating multiple liquids with different boiling points. It's like simple distillation but more sophisticated.

The mixture is heated, and substances evaporate at their specific boiling points. As vapours rise through the fractionating column, they cool and condense at different heights.

This technique is used everywhere - from purifying crude oil into petrol, diesel, and other products, to making alcoholic beverages. It's one of the most important industrial processes in the world.

Industry insight: Oil refineries use massive fractional distillation columns to separate crude oil into useful products!

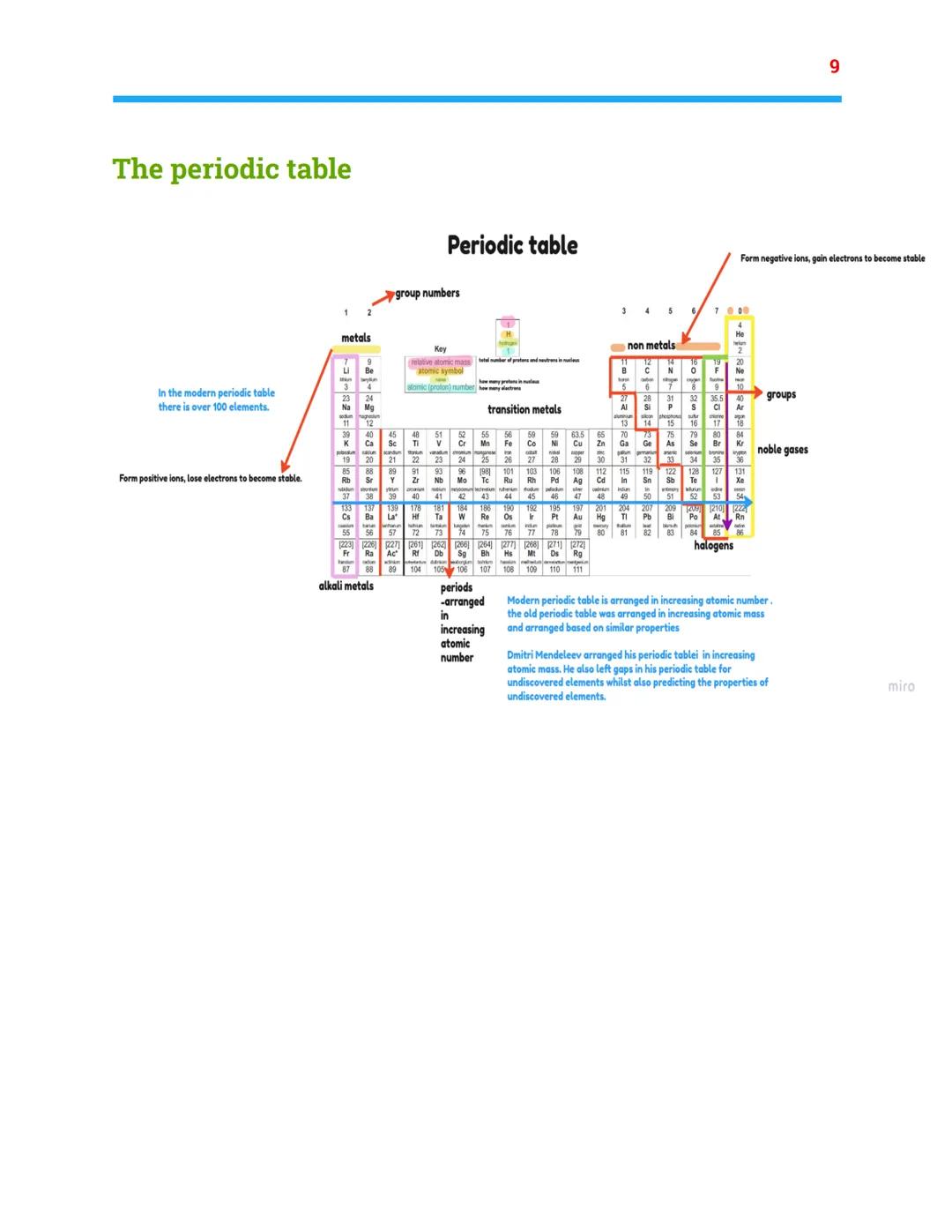

The Periodic Table Structure

The periodic table is chemistry's ultimate cheat sheet - it organises all 100+ elements by atomic number (number of protons). Dmitri Mendeleev originally arranged it by atomic mass and even predicted undiscovered elements!

Groups (vertical columns) contain elements with similar properties, whilst periods (horizontal rows) show increasing atomic number. Metals sit on the left and form positive ions, non-metals on the right form negative ions.

Key groups include alkali metals (Group 1), halogens (Group 7), and noble gases (Group 8). The transition metals sit in the middle block and include many familiar metals like iron and copper.

Exam tip: The group number tells you how many electrons are in the outer shell for main group elements!

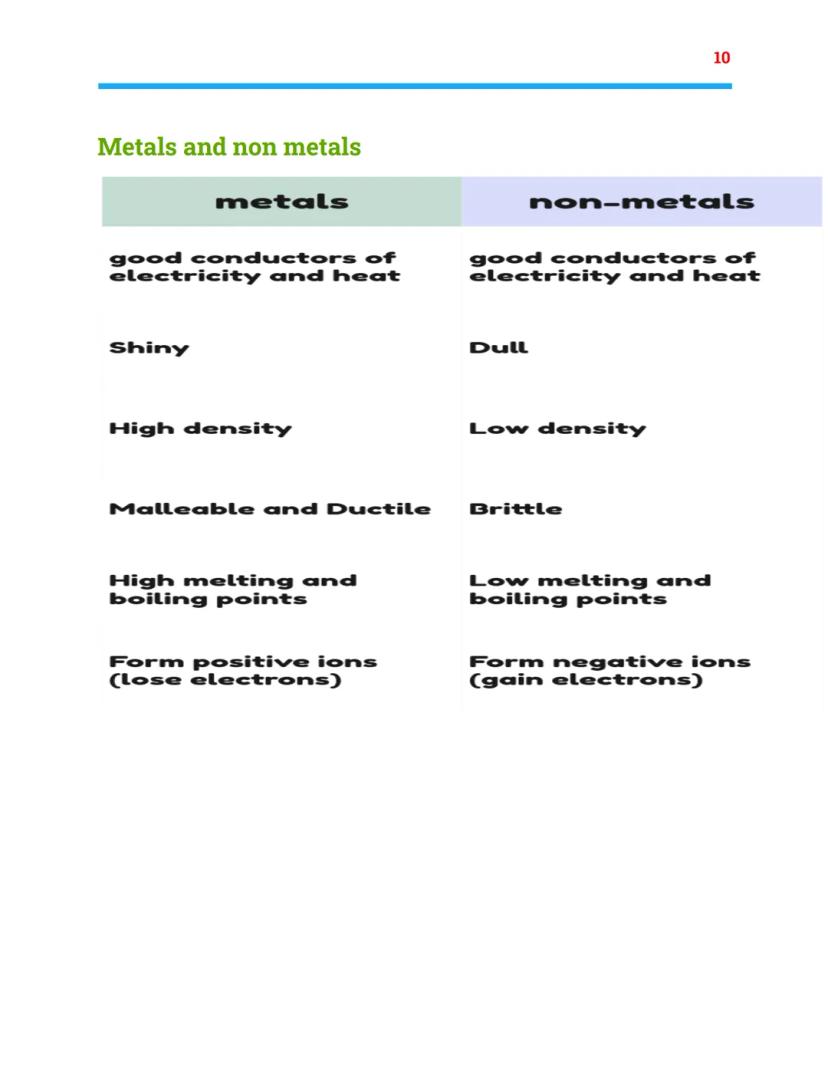

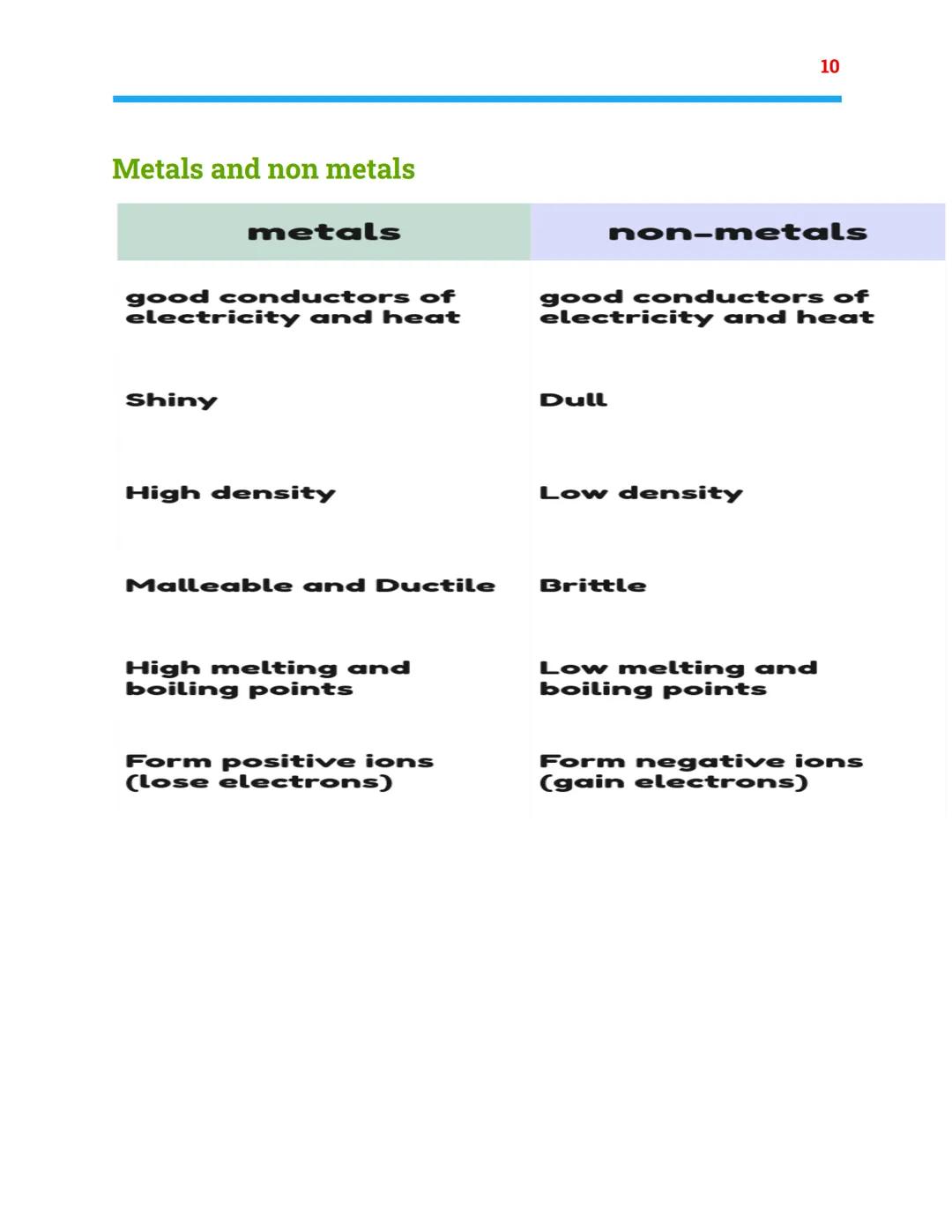

Properties of Metals and Non-metals

Understanding the difference between metals and non-metals helps predict how elements will behave. Metals are generally shiny, malleable (bendable), ductile (stretchable), and excellent conductors of heat and electricity.

Non-metals are typically dull, brittle, and poor conductors (except graphite). They have lower melting and boiling points compared to most metals and lower density.

Chemically, metals lose electrons to form positive ions, making them reactive with non-metals. Non-metals gain electrons to form negative ions. This electron transfer is what drives many chemical reactions.

Memory device: Metals are "macho" - they're strong, shiny, and like to give away electrons to show off!
