AS Chemistry- Shapes of molecules and bond angles
138
•
29 Nov 2025
•
Understanding AS Chemistry: Molecular Shapes and Bond Angles
A
Aidan Devine
@aidandevine_toov
1 / 3

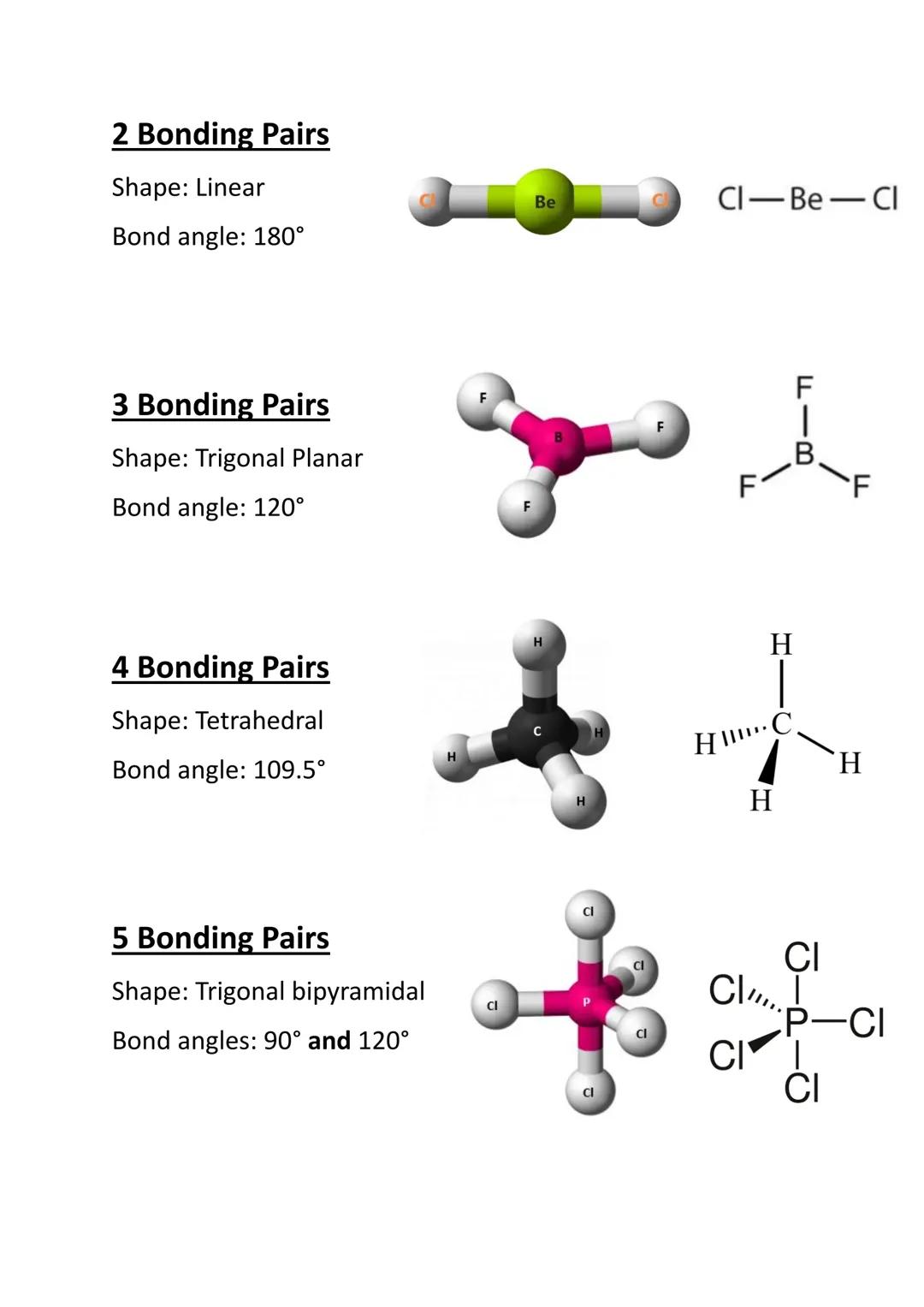

Basic Molecular Shapes
When molecules form, their shape is determined by how electron pairs arrange themselves to minimize repulsion. With 2 bonding pairs around a central atom, the molecule adopts a linear shape with a perfect 180° bond angle, as seen in CO₂.
Molecules with 3 bonding pairs form a trigonal planar shape where all atoms lie in the same plane with 120° bond angles. A common example is BF₃, where the boron sits at the center with three fluorine atoms arranged evenly around it.
As we add another electron pair, 4 bonding pairs create a tetrahedral arrangement with bond angles of 109.5°. This is the classic shape of methane (CH₄), where the carbon atom sits at the center with hydrogen atoms at each corner of the tetrahedron.
More complex molecules with 5 bonding pairs form a trigonal bipyramidal shape with two different bond angles: 90° between axial and equatorial bonds, and 120° between equatorial bonds. PCl₅ is a textbook example of this arrangement.
⚡ Remember that these shapes occur when there are only bonding pairs present - the introduction of lone pairs will distort these ideal arrangements and angles!

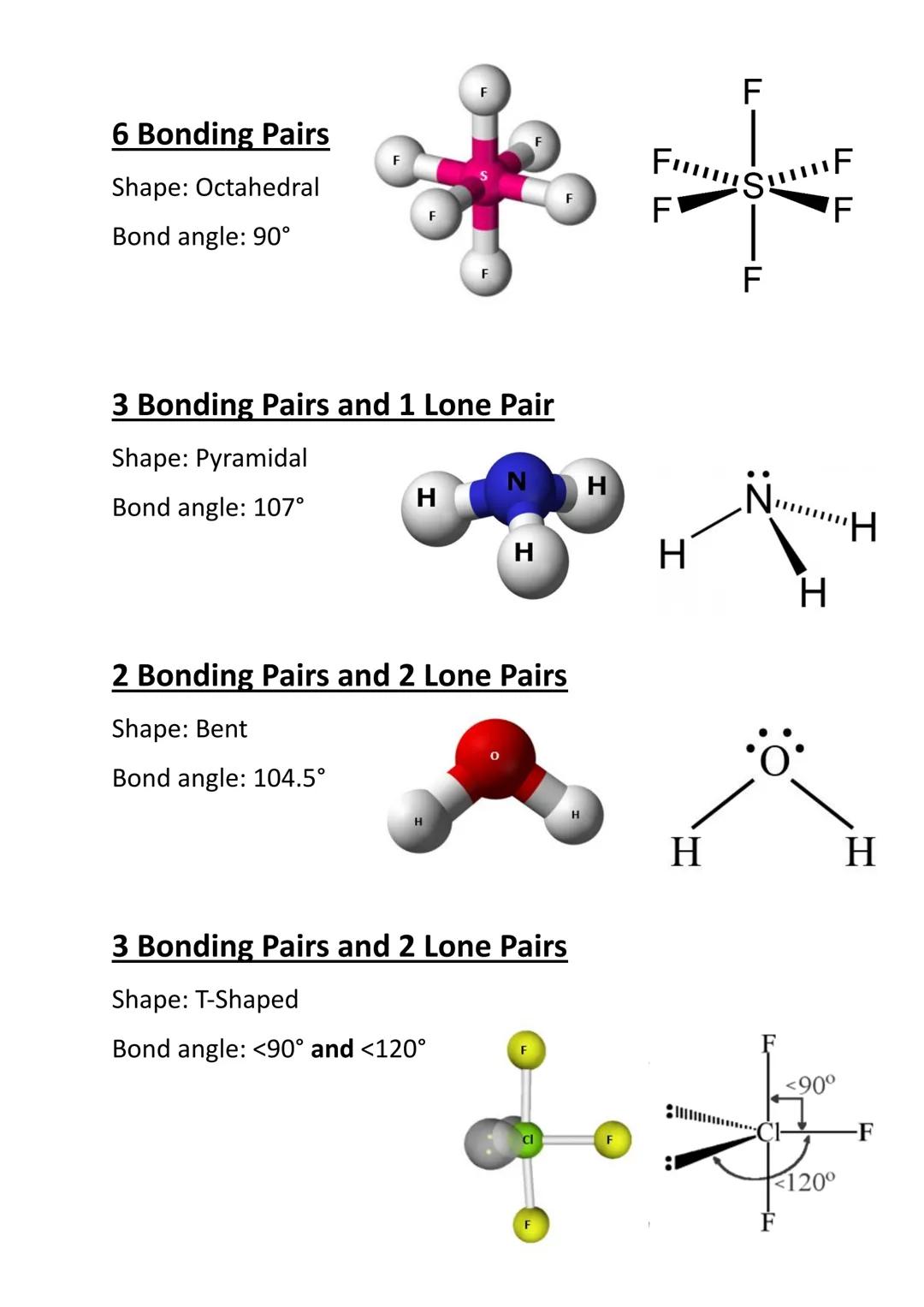

Advanced Molecular Shapes
With 6 bonding pairs, molecules adopt an octahedral shape with all bond angles at 90°. Sulfur hexafluoride (SF₆) perfectly demonstrates this, with fluorine atoms at the corners of an octahedron around the central sulfur atom.
When lone pairs enter the picture, they change everything. A molecule with 3 bonding pairs and 1 lone pair (like ammonia, NH₃) forms a pyramidal shape with bond angles of 107° – slightly compressed from the ideal tetrahedral angle due to the lone pair's stronger repulsion.
Water (H₂O) is the classic example of a molecule with 2 bonding pairs and 2 lone pairs, creating a bent shape with a bond angle of 104.5°. The two lone pairs push against the bonding pairs, further decreasing the angle from the tetrahedral ideal.
More exotic molecules with 3 bonding pairs and 2 lone pairs form a T-shaped arrangement. Here, bond angles are less than 90° and less than 120° due to significant repulsion from the lone pairs. Chlorine trifluoride (ClF₃) displays this unusual geometry.
🔍 Lone pairs occupy more space than bonding pairs because they're only attracted to one nucleus, causing greater repulsion and distorting the expected bond angles.

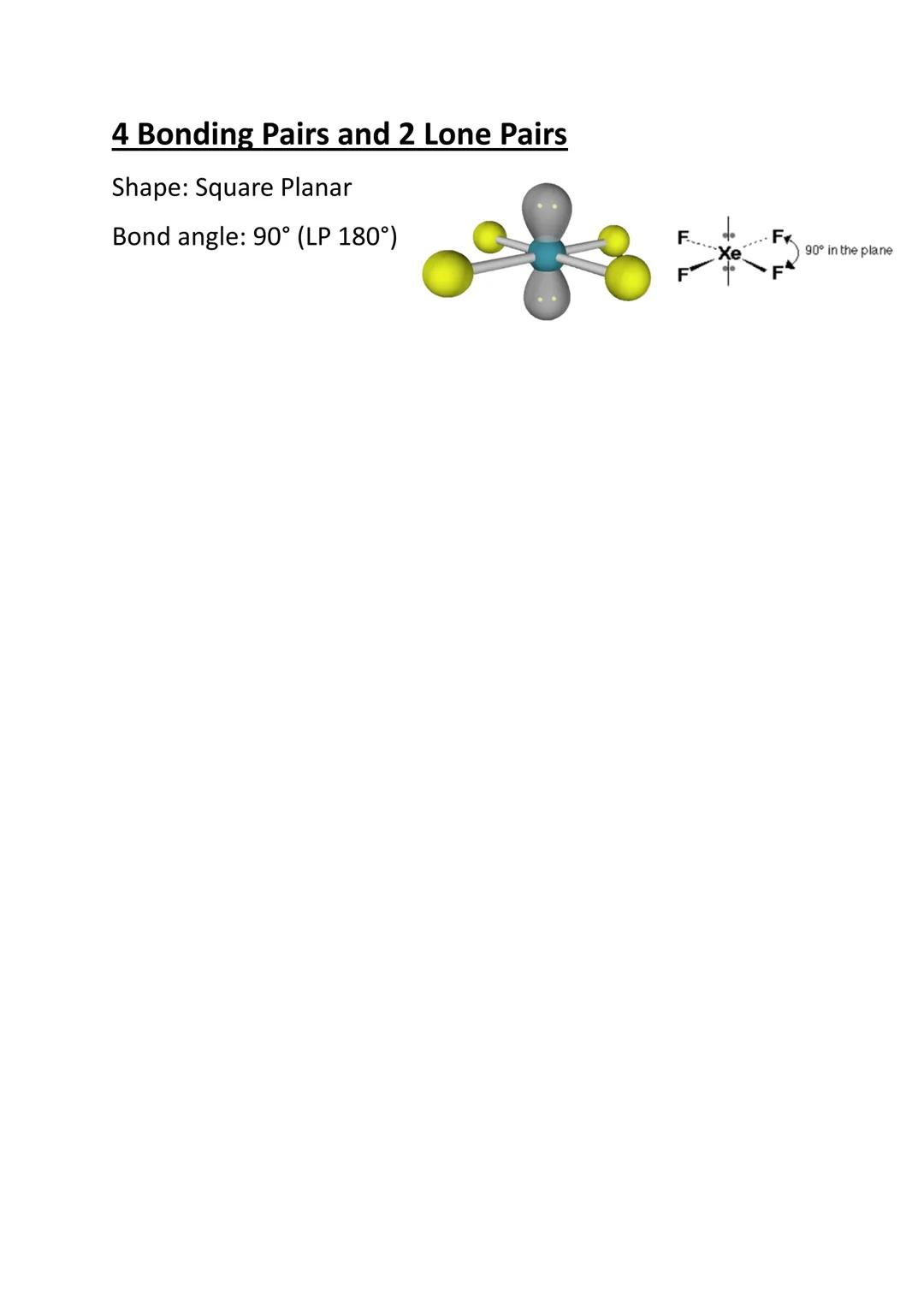

Special Molecular Arrangements
Some molecules exhibit particularly distinctive shapes, such as those with 4 bonding pairs and 2 lone pairs. These molecules form a square planar arrangement with 90° bond angles between adjacent bonds. The lone pairs position themselves 180° apart to minimize repulsion.
In square planar molecules, all four bonding atoms lie in the same plane, creating a flat, square-shaped structure. This arrangement is commonly seen in coordination compounds like ²⁻, where the central platinum atom is surrounded by four chloride ions.
The square planar geometry is quite distinctive because the lone pairs occupy positions above and below the plane of the bonding atoms. This creates an area of high electron density perpendicular to the molecular plane, affecting how these molecules interact with other species.
💡 Square planar molecules often display interesting chemical properties and reactivity patterns due to their open coordination sites perpendicular to the molecular plane.
