AQA GCSE C1 notes
1 / 6

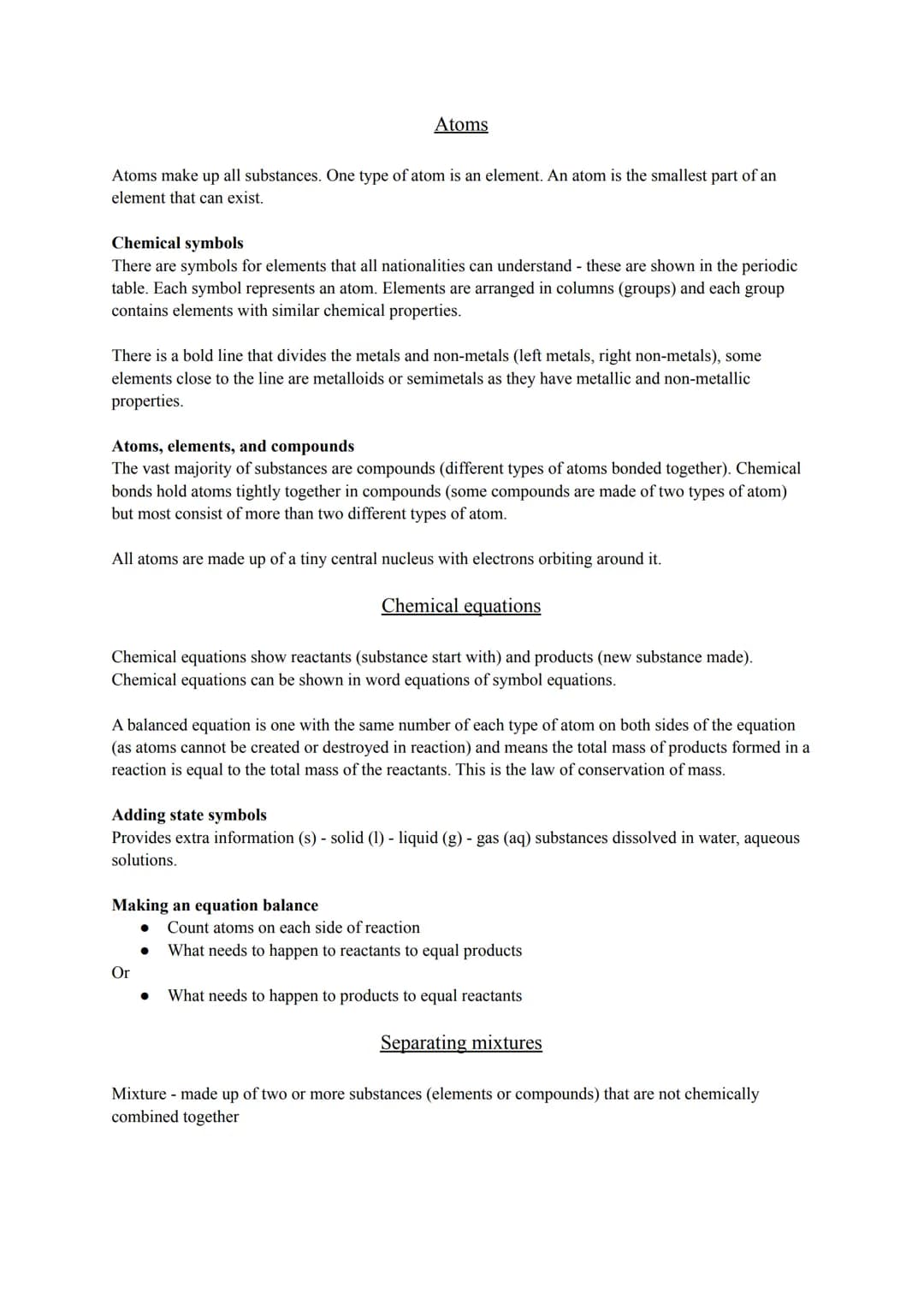

Page 2: Atoms, Elements, and Chemical Equations
This page delves into the basics of atoms, elements, and chemical equations, providing essential information for GCSE Chemistry C1 revision notes pdf.
Atoms are the smallest units of elements that can exist. The periodic table organizes elements using chemical symbols that are universally understood. Elements are arranged in groups with similar chemical properties, and a bold line divides metals from non-metals.
Definition: An atom is the smallest part of an element that can exist.
Compounds are substances made up of different types of atoms bonded together. Chemical bonds hold these atoms tightly in compounds, which can consist of two or more types of atoms.
Chemical equations are introduced as a way to represent reactions. They show reactants (starting substances) and products (new substances formed). Balanced equations demonstrate the law of conservation of mass, ensuring the same number of atoms on both sides of the equation.
Example: A balanced chemical equation: 2H₂ + O₂ → 2H₂O
State symbols provide additional information about the physical state of substances in reactions:
- (s) for solid
- (l) for liquid
- (g) for gas
- (aq) for aqueous solutions
The page concludes by mentioning mixtures, which are made up of two or more substances that are not chemically combined.
Vocabulary: Mixture - a combination of two or more substances that are not chemically combined together.

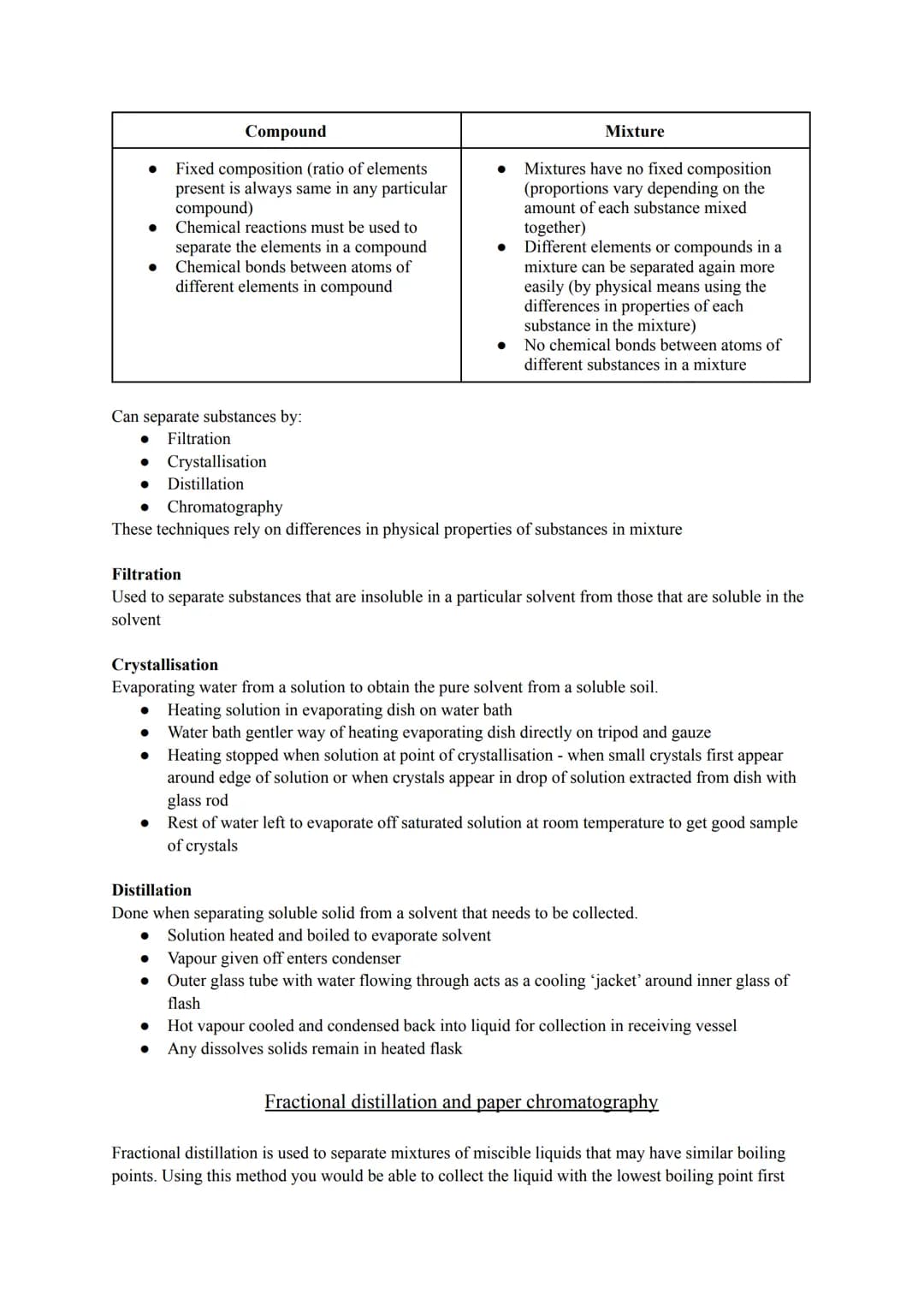

Page 3: Compounds, Mixtures, and Separation Techniques
This page covers the differences between compounds and mixtures, as well as various separation techniques, essential knowledge for Comprehensive atomic structure gcse notes pdf.
Compounds have a fixed composition with a consistent ratio of elements, while mixtures have variable compositions. Separating elements in compounds requires chemical reactions, whereas mixtures can be separated using physical means.
Highlight: The key difference between compounds and mixtures lies in their composition and the methods used to separate their components.
The page introduces several separation techniques:
- Filtration: Used to separate insoluble substances from soluble ones in a solvent.
- Crystallization: Involves evaporating water from a solution to obtain pure solvent from a soluble solid.
- Distillation: Used to separate a soluble solid from a solvent that needs to be collected.
Example: Crystallization process:
- Heat solution in an evaporating dish on a water bath
- Stop heating when small crystals appear around the edge of the solution
- Allow remaining water to evaporate at room temperature
The page also mentions fractional distillation and paper chromatography as advanced separation techniques.
Vocabulary: Fractional distillation - a method used to separate mixtures of miscible liquids with similar boiling points.

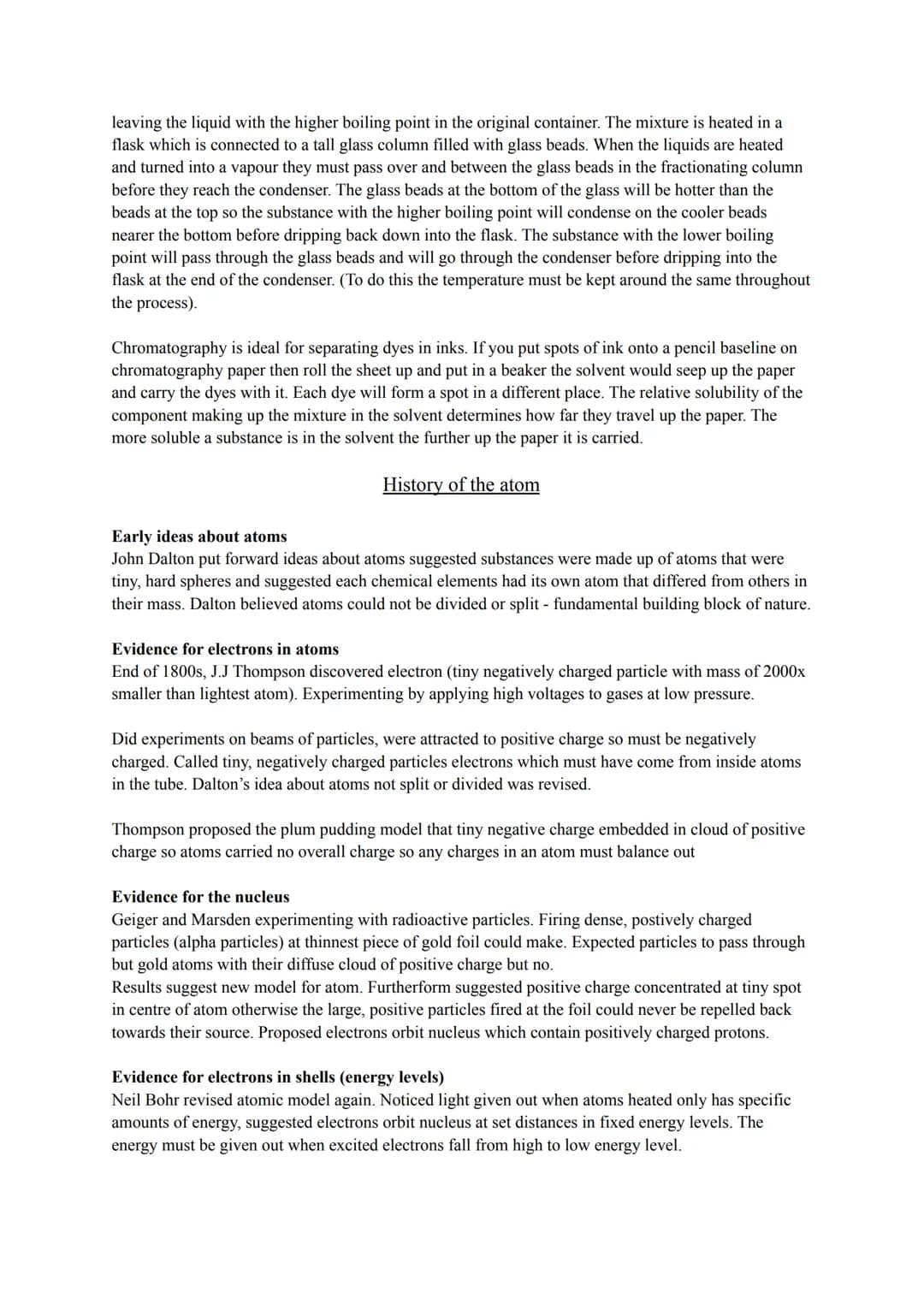

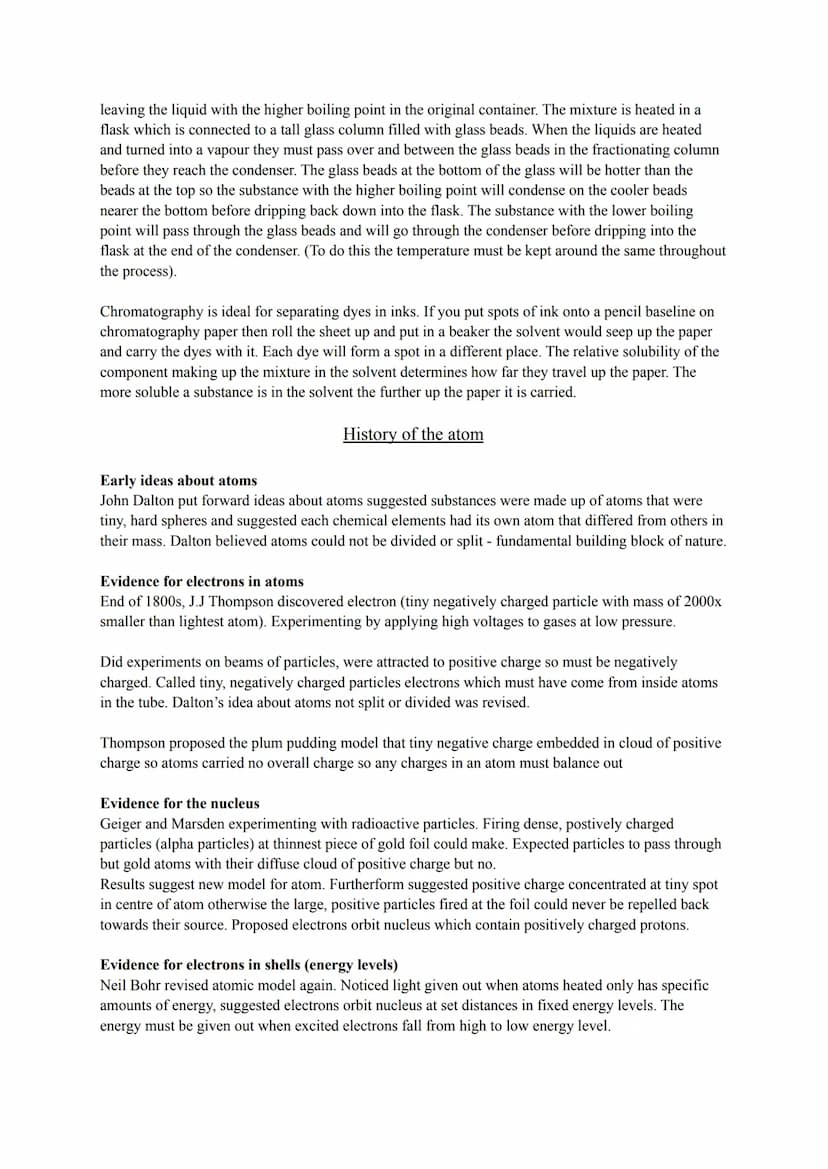

Page 4: Advanced Separation Techniques
This page provides detailed information on fractional distillation and chromatography, which are crucial for understanding separation methods in AQA GCSE Chemistry revision notes pdf.
Fractional distillation is explained as a method for separating mixtures of miscible liquids with similar boiling points. The process involves:
- Heating the mixture in a flask connected to a tall glass column filled with glass beads.
- As vapors rise, they pass over and between the glass beads in the fractionating column.
- The substance with the higher boiling point condenses on cooler beads near the bottom and drips back into the flask.
- The substance with the lower boiling point passes through the glass beads and condenser before being collected.
Highlight: Maintaining a consistent temperature throughout the fractional distillation process is crucial for effective separation.
Chromatography is introduced as an ideal method for separating dyes in inks. The process involves:
- Placing spots of ink onto a pencil baseline on chromatography paper.
- Rolling the sheet and placing it in a beaker with a solvent.
Example: Chromatography can be used to analyze the components of different inks or dyes in forensic science.
This page provides students with a deeper understanding of advanced separation techniques, which is essential for mastering GCSE Chemistry C1 topics.
Separation Techniques Part 2
This section continues with advanced separation techniques, particularly focusing on distillation methods.
Definition: Fractional distillation separates miscible liquids with similar boiling points.
Example: In fractional distillation, glass beads in the fractionating column help separate liquids based on their different boiling points.
Highlight: Temperature control is crucial during fractional distillation to achieve effective separation.
Chromatography and Advanced Separation
This final section introduces chromatography as a separation technique, completing the GCSE Chemistry C1 revision notes.
Definition: Chromatography is a technique particularly suited for separating dyes in inks.
Vocabulary: Chromatography paper serves as the stationary phase in paper chromatography.
Highlight: The separation in chromatography depends on different substances moving at different rates through the paper.

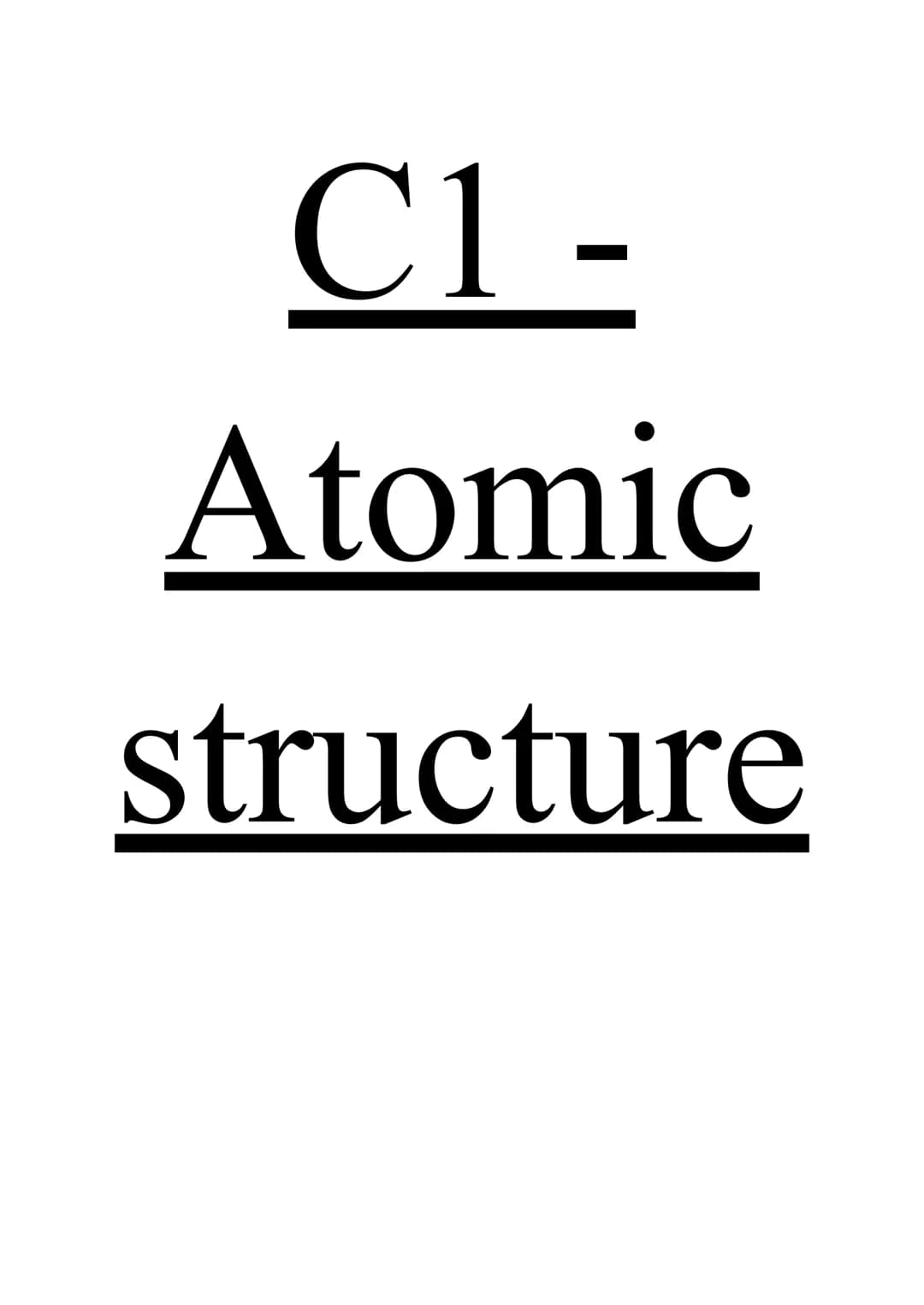

Page 1: Introduction to Atomic Structure
The first page introduces the topic of atomic structure in C1 Chemistry GCSE AQA. This foundational concept is crucial for understanding the building blocks of matter and chemical reactions.
Highlight: Atomic structure is a fundamental concept in chemistry, forming the basis for understanding elements, compounds, and chemical reactions.
